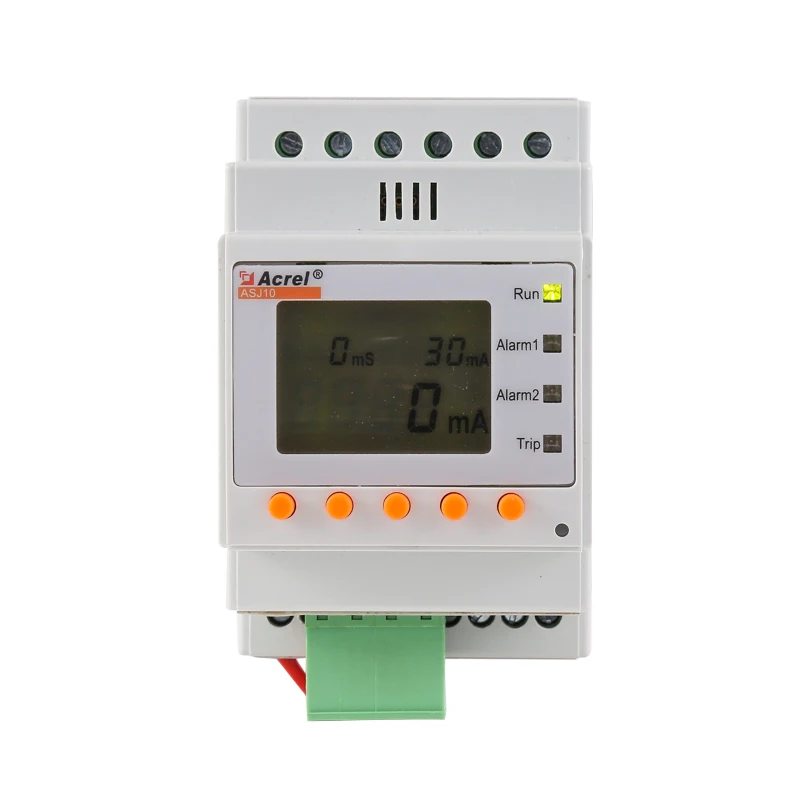

Acrel ASJ10L LD1A Din Rail A Type Earth Leakage LCD Display AC DC85 265V Residual Current Relay 2 Relay Output
- Category: >>>
- Supplier: Acrel E-Business (shanghai) Co. Ltd.
Share on (1600960315962):
Product Overview
Description
Products Description
ASJ Series Residual Current Relay
ACREL ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below.
ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.
* The measurement of A-type after-current;
* The streamer display of current percentage;
* The setting of rated residual action current;
* The setting of non-driving time of limitation;
* Two-pair relay output;
* Possessing the function of on-the-spot and long-distance testing and resetting.
* LCD display
* RS485 Modbus-RTU
* The streamer display of current percentage;
* The setting of rated residual action current;
* The setting of non-driving time of limitation;
* Two-pair relay output;
* Possessing the function of on-the-spot and long-distance testing and resetting.
* LCD display
* RS485 Modbus-RTU
Frequency
50Hz±5Hz
Auxiliary power supply
AC110V, AC220V, DC85 ~270V
(permissible error ±10%)
Consumption
≤5W
50Hz±5Hz
Auxiliary power supply
AC110V, AC220V, DC85 ~270V
(permissible error ±10%)
Consumption
≤5W
Installation
DIN rail 35mm
DIN rail 35mm
Dimension(L*W*H)
85×54×64mm
85×54×64mm
Function & Parameter
Function
Model | ASJ10L-LD1A |
Dimension | 85x54x64mm |
Measurement | A-type residual current |
Display | LCD |
Function | Prossessing the function of on-the-spot and long-distance testing and resetting |
Rated residual current | 0.03, 0.05, 0.1, 0.3, 0.5, 1, 3, 5, 10, 30A |
Frequency | 50Hz±5Hz |
Contact | 1normal close or normal open,1 change |
Reset type | locally, remote and automatically |

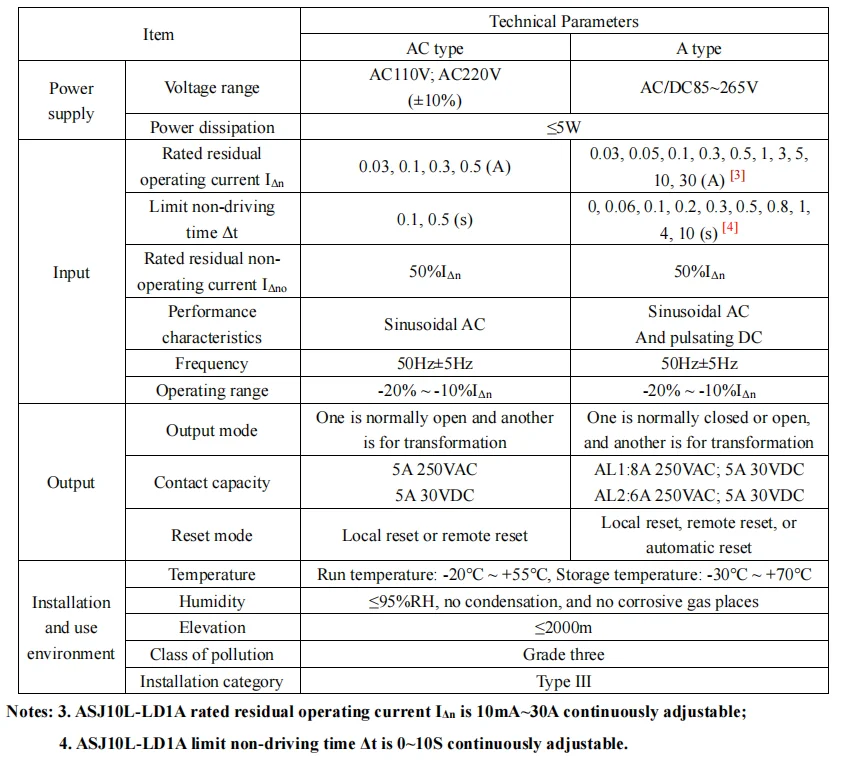

Parameters
Dimension and Packaging

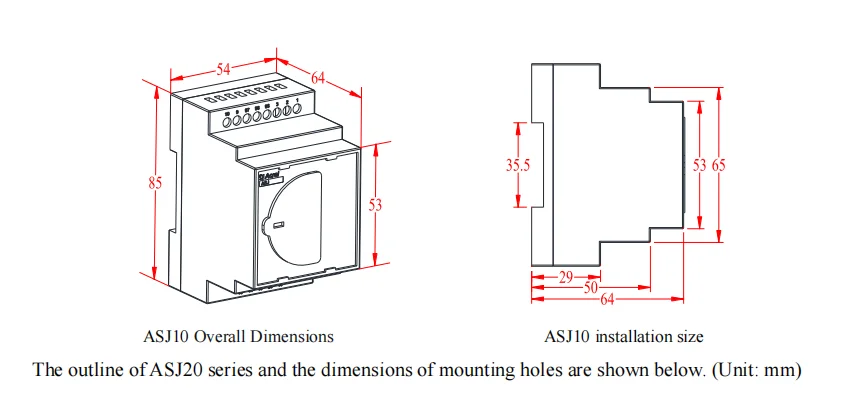

The outline of ASJ10 series and the dimensions of mounting holes are shown below. (Unit: mm)
Company Profile
Acrel Co., Ltd. [Stock Code : 300286. SZ] is a high-tech enterprise concentrating on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. ‘Acrel’ is equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users to realize energy visual management ,supply energy data services and improve electrical efficiency and safety. ‘Acrel’ has maintained steady growth since its listing in 2012. The company will adhere to the concept of ‘innovation,high-efficiency,unity and honesty’ and it provides more high-quality solutions,products and service for power system users and micro-grid.
Payment & Delivery
1.Payment: T/T 100% in advance, credit card, western union, in cash and etc. T/T 30% as deposit and the balance before shipment or against copy of B/L is acceptable with enough MOQ.
2.Delivery Arriving Time: in 3-7 working days after payment received.
3.Ways of Delivery: By sea, air, train or international courier like Fedex, TNT, DHL and UPS.
