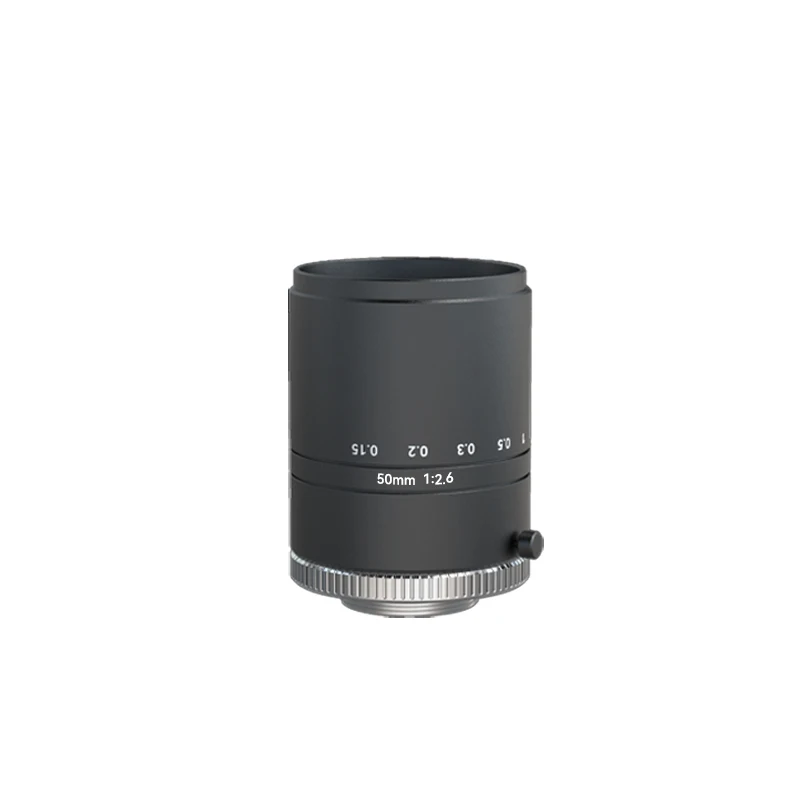

VS Technology SV 5026H 5MP 50mm 2/3' C Mount High contrast CCTV lens
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600960323006):
Product Overview
Description
Product Features
All machines correspond to a 2/3 size Fno with a 1.4 high brightness lens, which can correspond to a 2-5 million pixel megapixel camera.
Some models adopt industry-leading aspherical lenses, which have been miniaturized while vigorously suppressing peripheral distortion and low brightness.
There are a total of 12 models with focal distances ranging from f6 to 100mm, which have higher resolution and contrast compared to previous CCTV lenses and are widely used in various fields such as positioning and inspection.
Some models adopt industry-leading aspherical lenses, which have been miniaturized while vigorously suppressing peripheral distortion and low brightness.
There are a total of 12 models with focal distances ranging from f6 to 100mm, which have higher resolution and contrast compared to previous CCTV lenses and are widely used in various fields such as positioning and inspection.
Products Description
Specifications

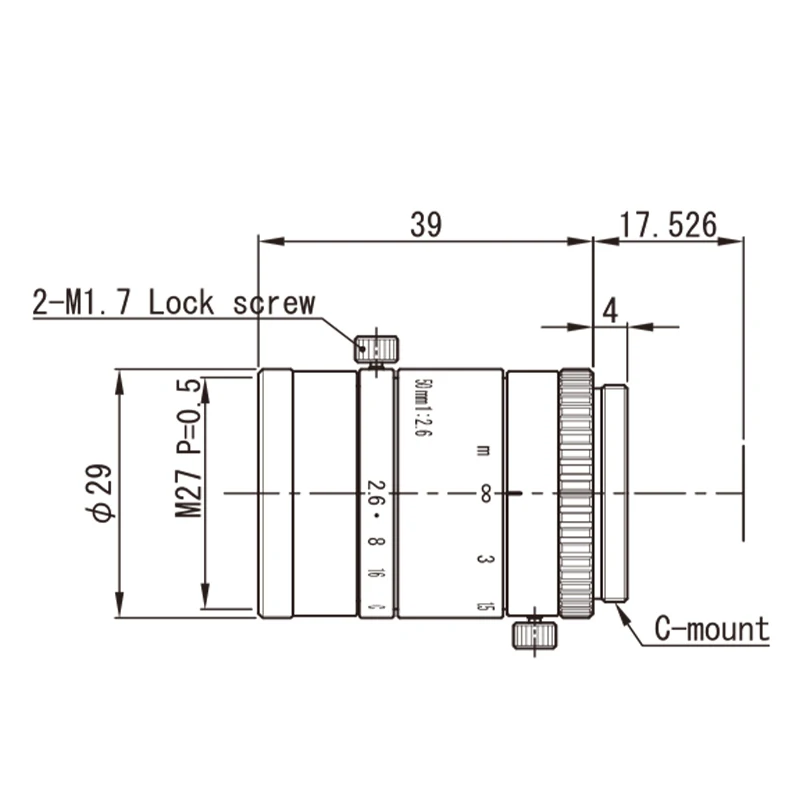

Specifications | SV-5026H |
Focal length | 50mm |
Magnification | 0.108X |
FNO | F2.6~close |
Angle of view | 8.1°x9.6° |
To the nearest WD | 500mm |
TV distortion | 0.01% |
Operation method | Manual(Lock screw M1.7) |
Suitable for chips | 2/3" |
Filter thread | M27 P=0.5 |
Interface type | C-Mount |
Flange back focus | 17.526 mm |
Weight | 54g |
