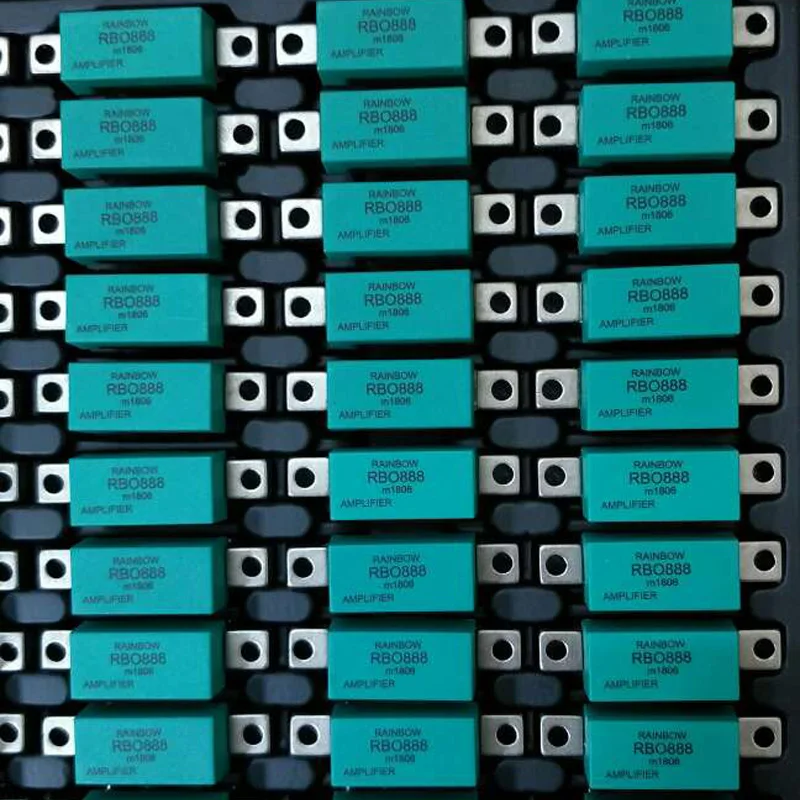

Low Noise Cable TV bgy888 Outdoor CATV Amplifier IC Module
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (1600960393418):
Product Overview
Description
860MHz 34dB Gain CATV forward Integrated Circuit

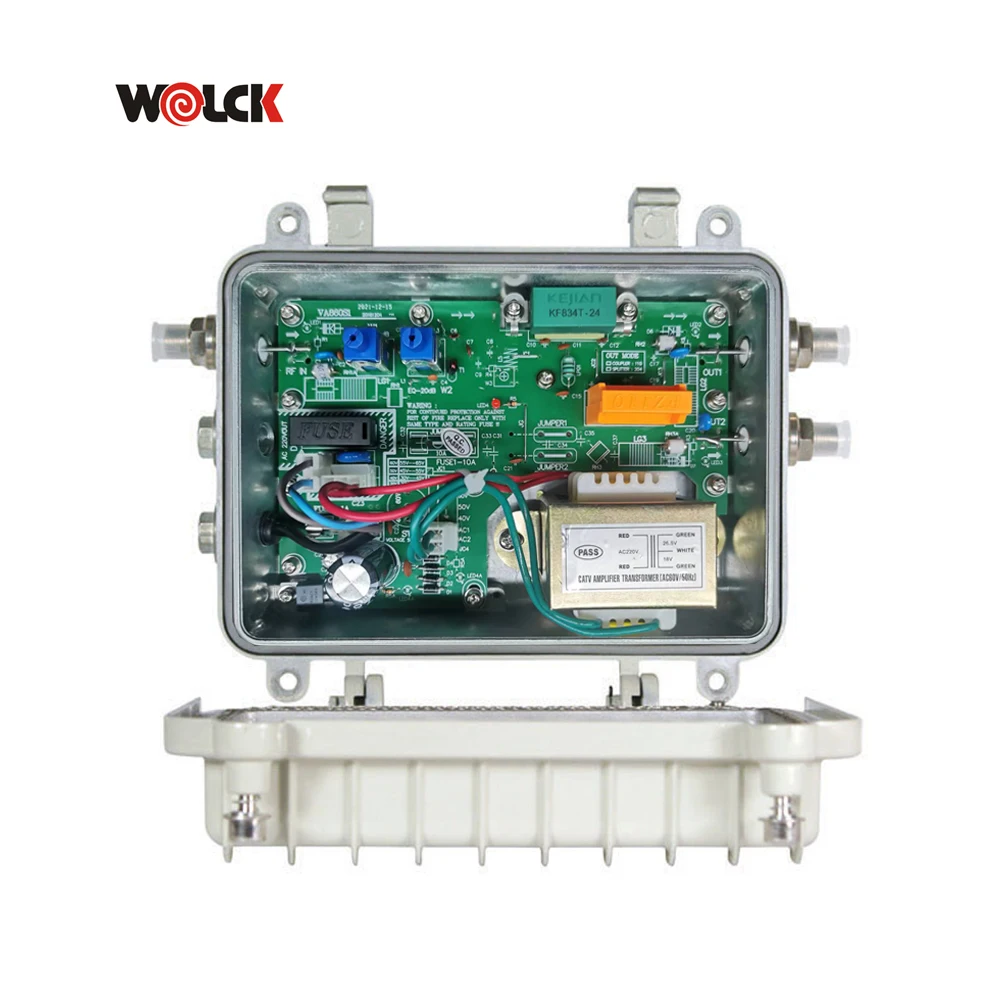

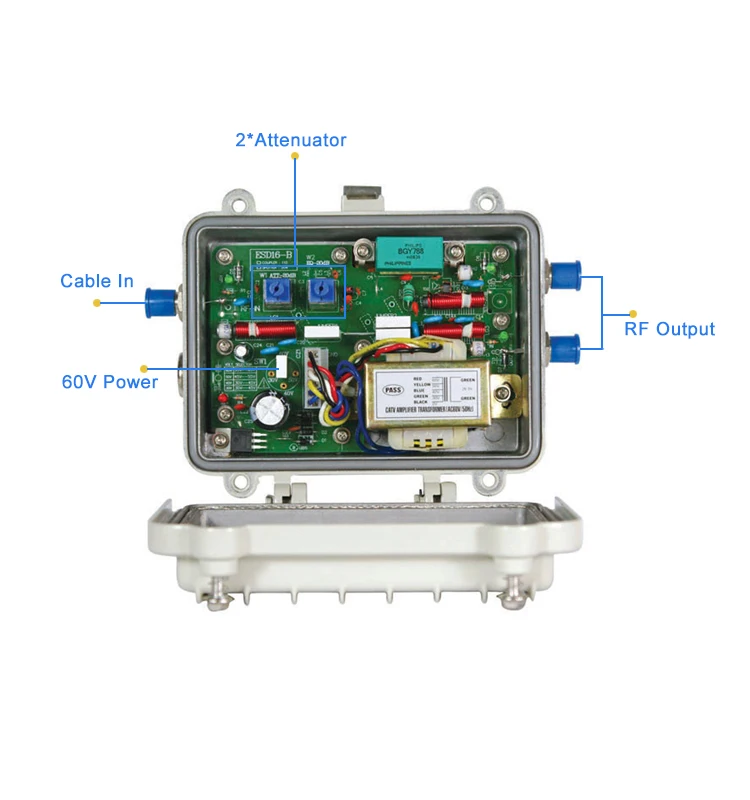

This RF Amplifier is use for CATV system cable transmitting network, compensate cable transmitting for RF-signal loss, extend the transmitting of RF-signal or improve users distribution network. Amplifier use professional module amplify design, signal level adjustment, take convenience for network return and system adjustment. With embranchment output and two way distribution output, ensure widely practicability.
★ FEATURES
-Excellent linearity
-Excellent distortion performance
-Extremely low noise
-Excellent return loss properties
★ APPLICATIONS
For CATV systems operating over a frequency range of 40 to 860MHz.
★ DESCRIPTION
KF834N-24 in a SOT115J package, operating at a supply voltage of 24V(DC), and intended for use as a line-extender.
-Excellent linearity
-Excellent distortion performance
-Extremely low noise
-Excellent return loss properties
★ APPLICATIONS
For CATV systems operating over a frequency range of 40 to 860MHz.
★ DESCRIPTION
KF834N-24 in a SOT115J package, operating at a supply voltage of 24V(DC), and intended for use as a line-extender.
SYMBOL | PARAMETER | CONDITIONS | MIN | TYP | MAX | UNIT |
Gp | power gain | f=50MHz | 33.5 | 34.0 | 35.0 | dB |
f=860MHz | 34.0 | - | - | dB | ||
Itot | total current consumption(DC)) | VB= +24V | 200 | 210 | 235 | mA |
Shenzhen Wolck Network Product Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
