Product Overview
Description
Product Description

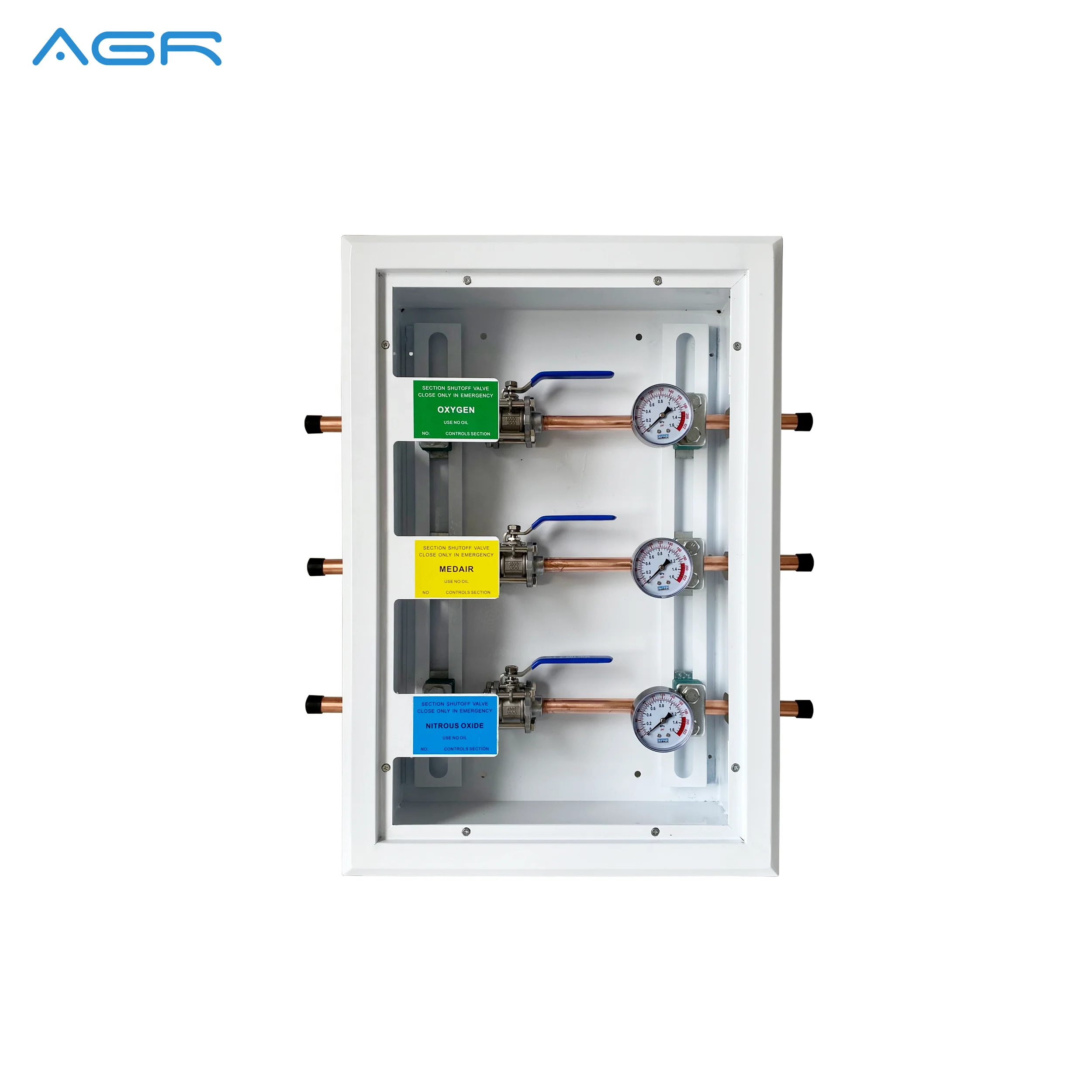

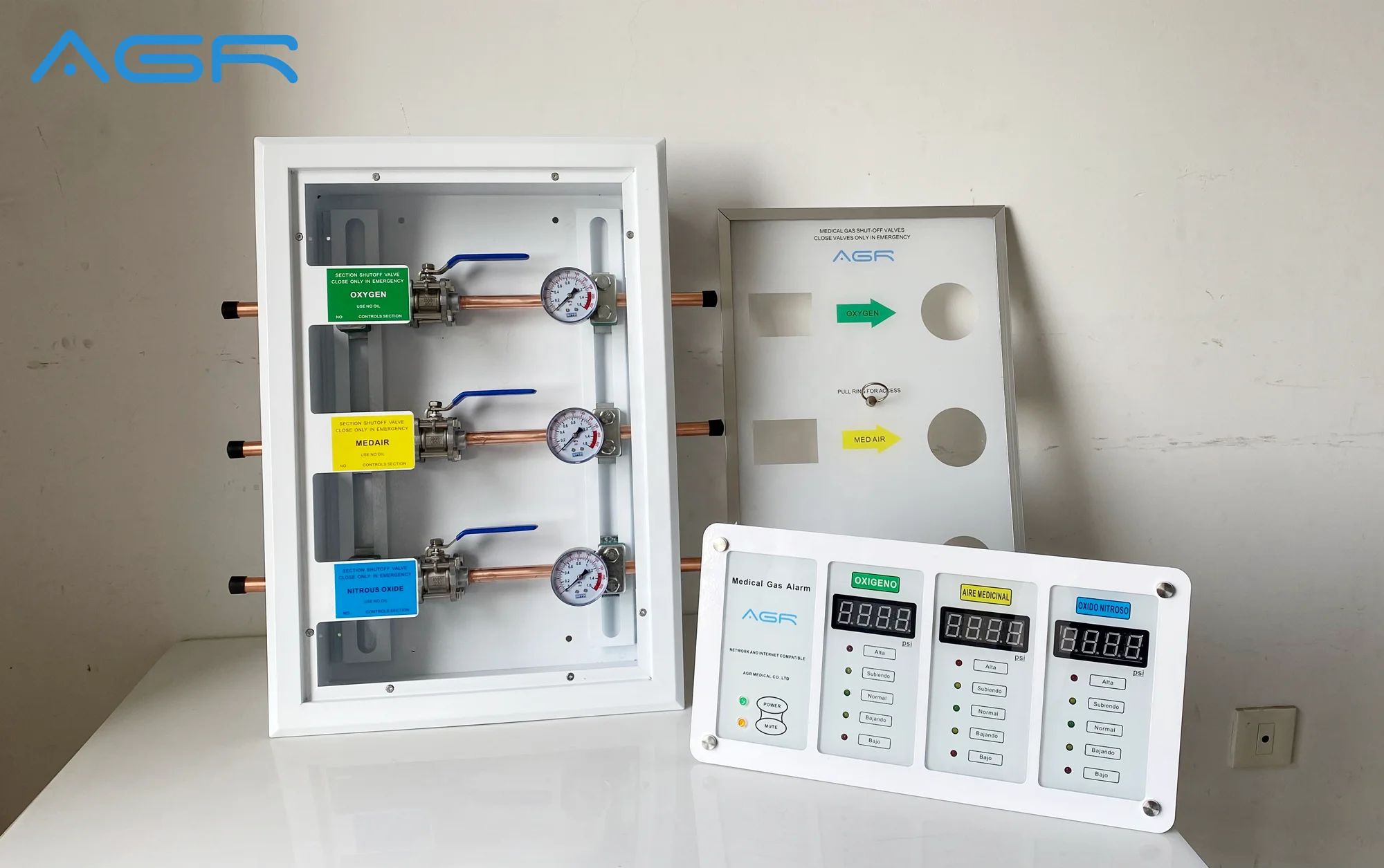

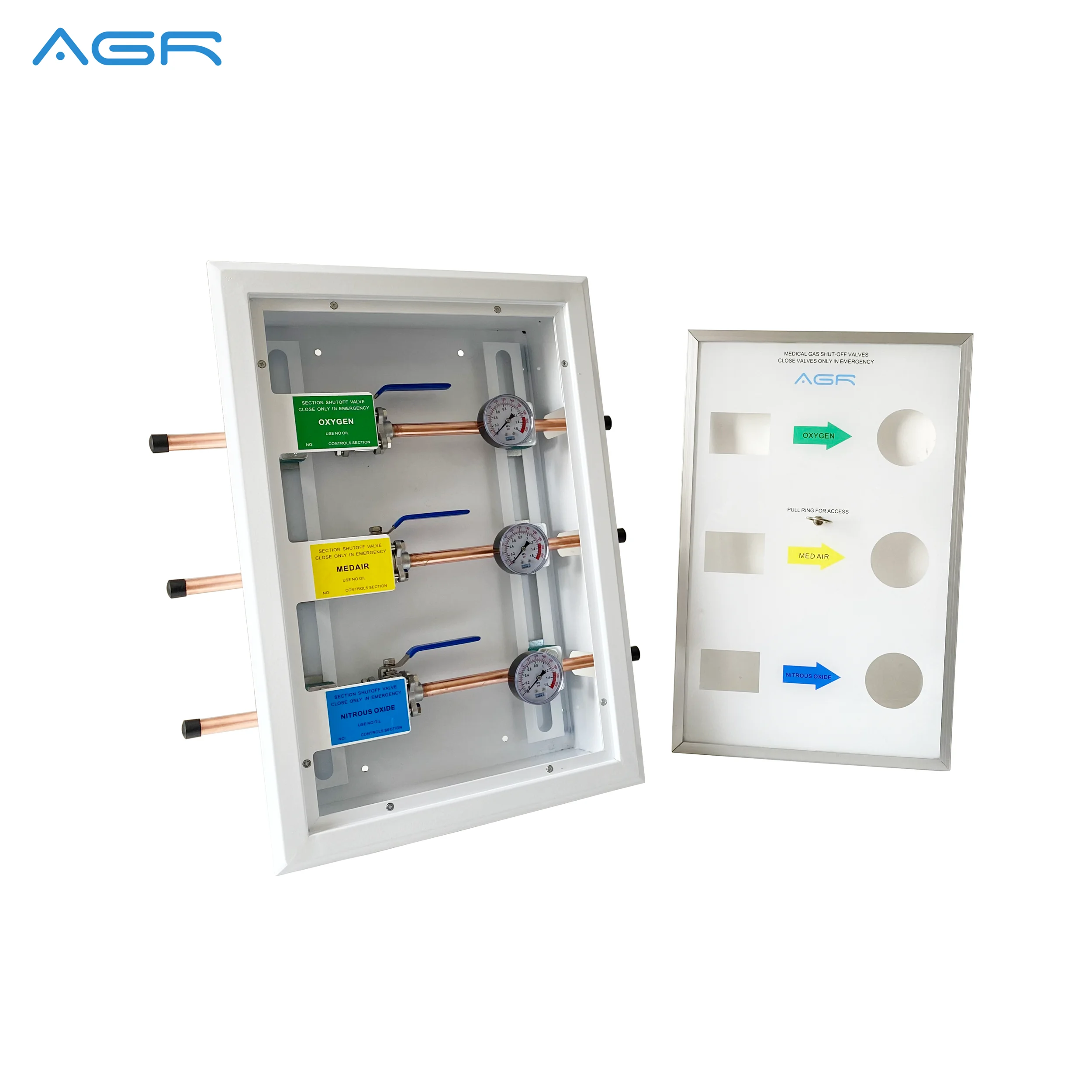

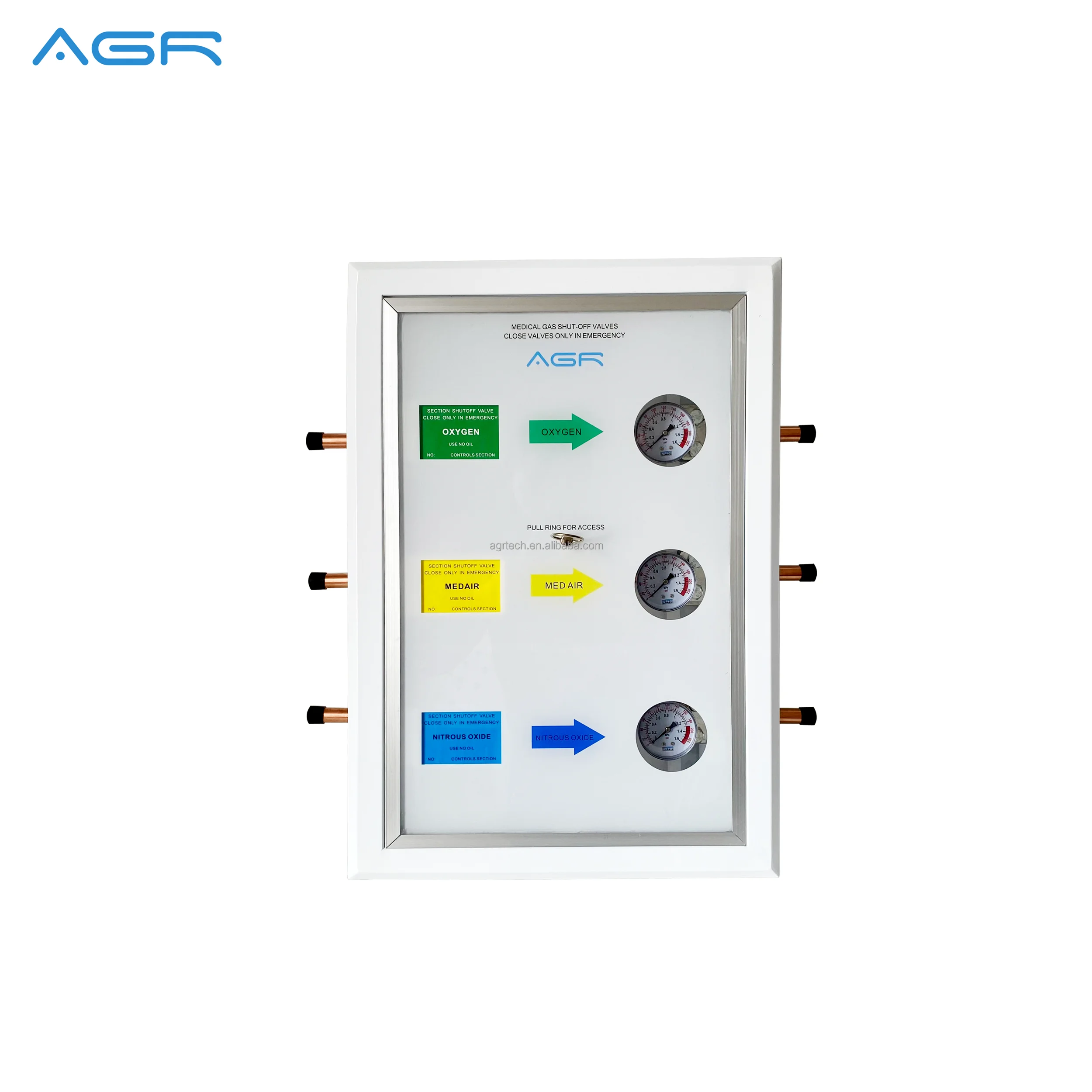

Zone valve boxes shall be constructed of stainless steel ball valve with extensions and pressure gauge, outer box and close window. The finished assembly shall be substantially dust-tight. Frames for all valve boxes shall have uniform width for balanced appearance. Clear viewing space shall be provided in the window to display the gas service, the area controlled by the valve, and the pressure gauges.

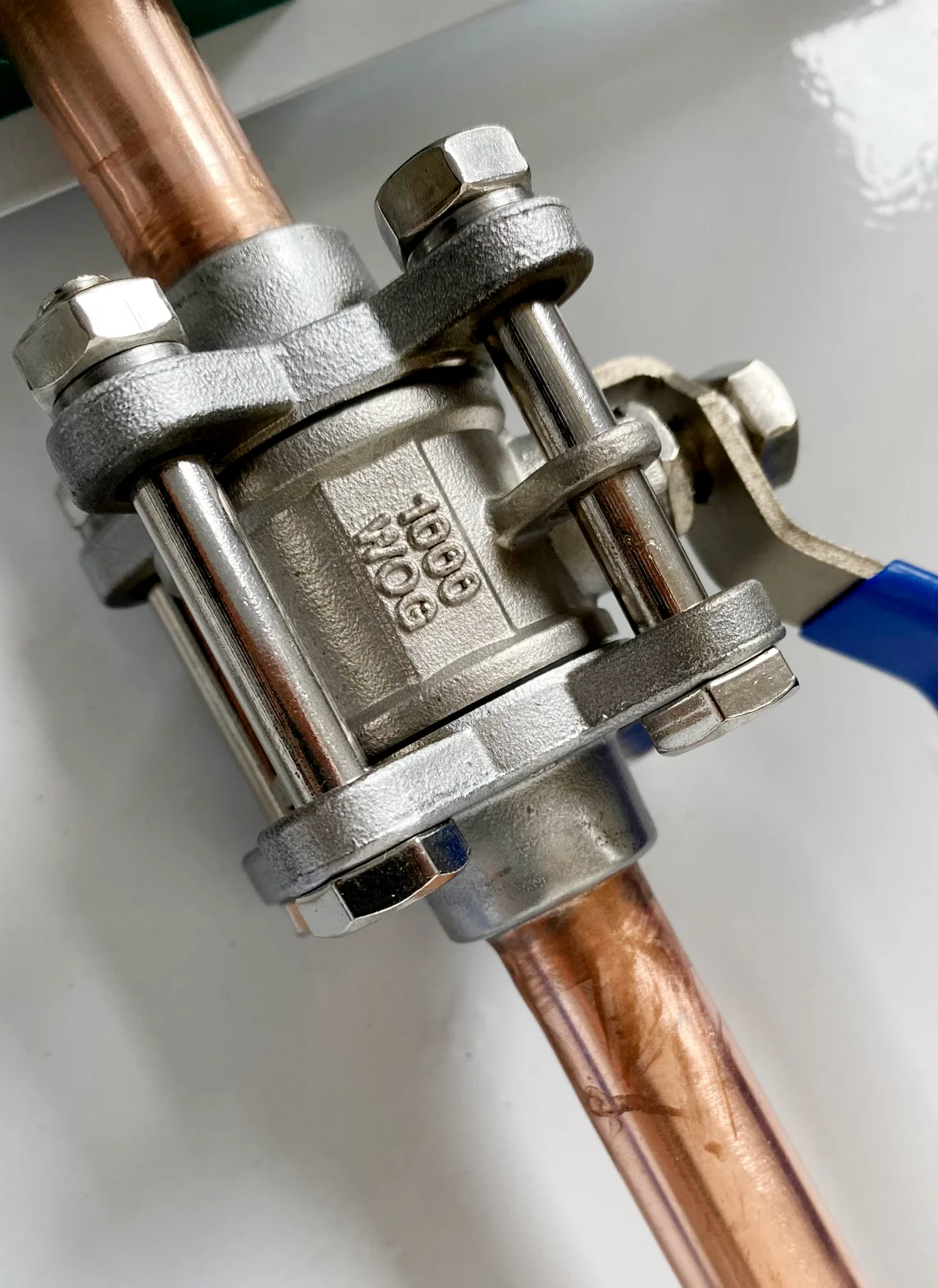

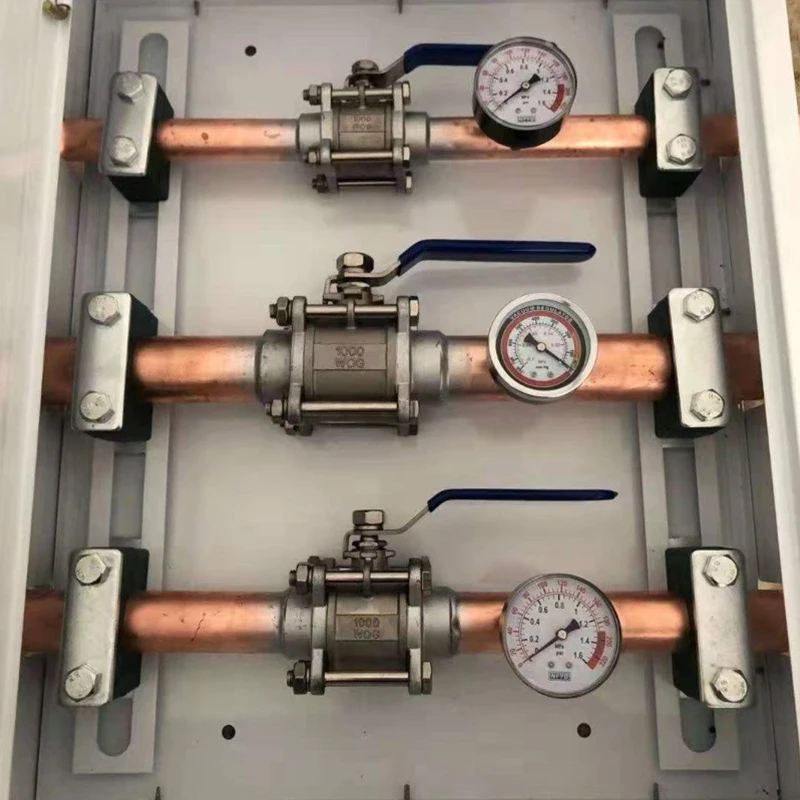

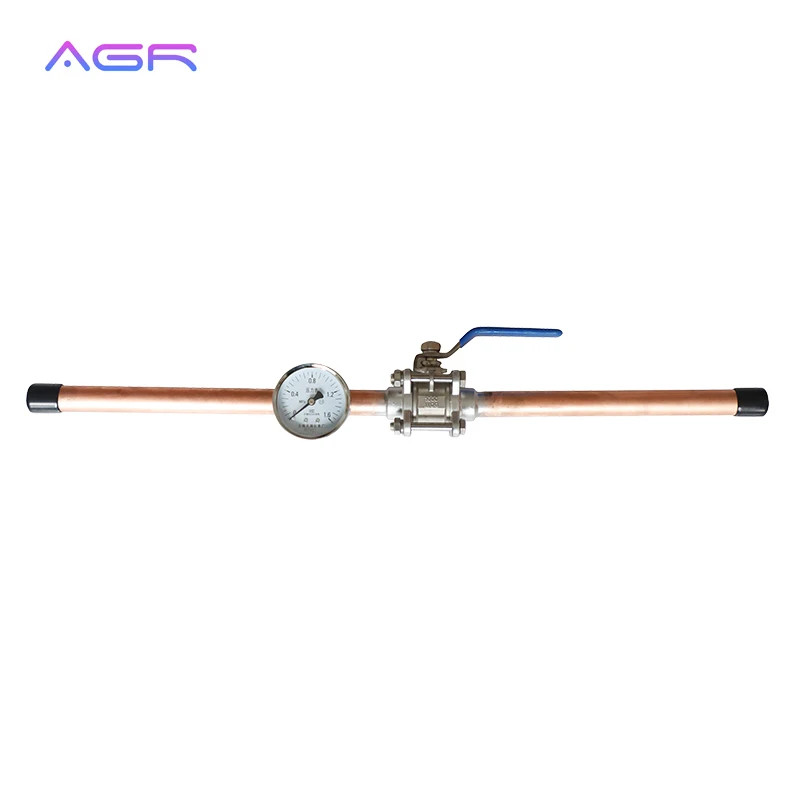

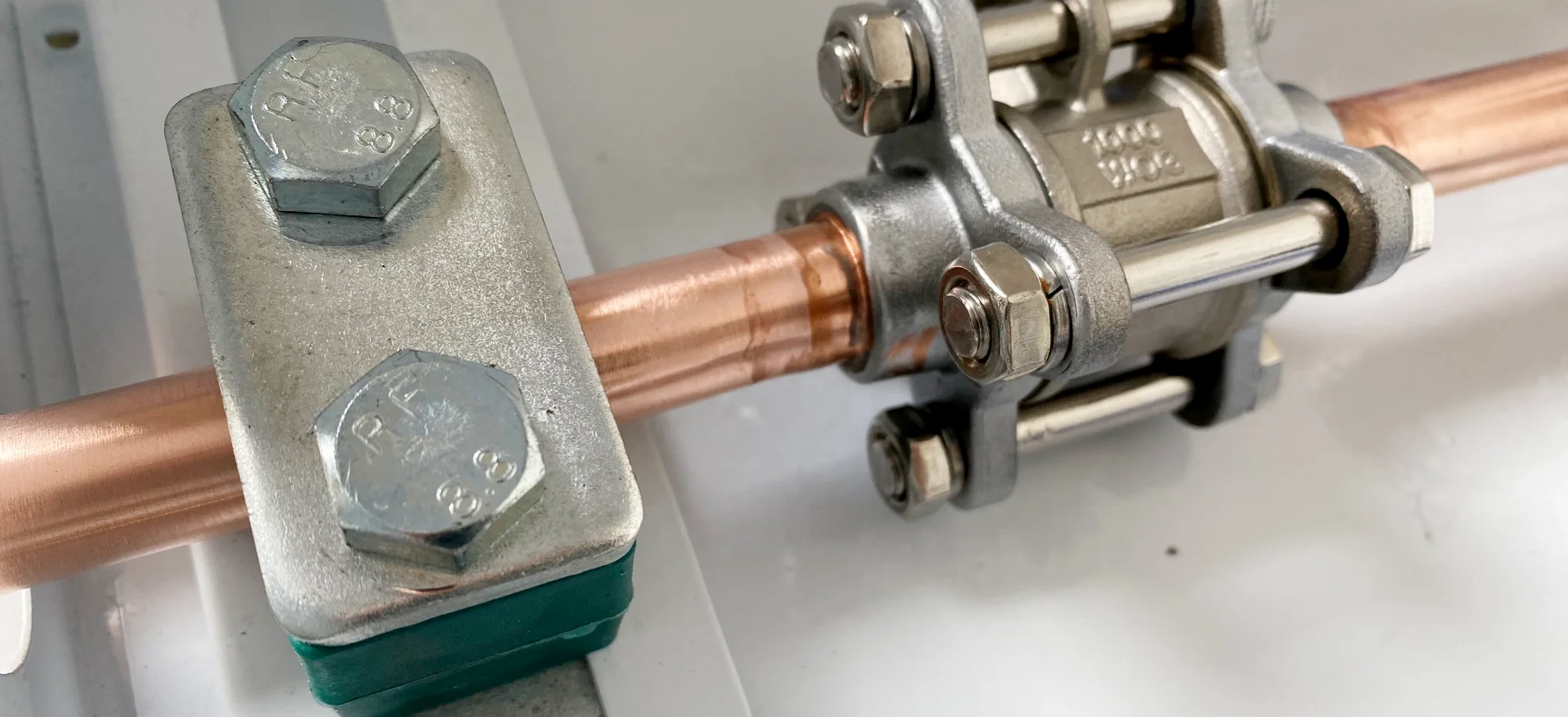

Valve box designed with valves removed prior to brazing, without disassembly of the box, to permit rearrangement of valves if necessary. Valves is made of 3 piece ball type with Type K copper extensions, cleaned for gas service, supplied with capped ends, and shall operate full open to closed position with 90 degree handle rotation. The gauge port shall be equipped with removable plug for pressure testing prior to final assembly of gauge

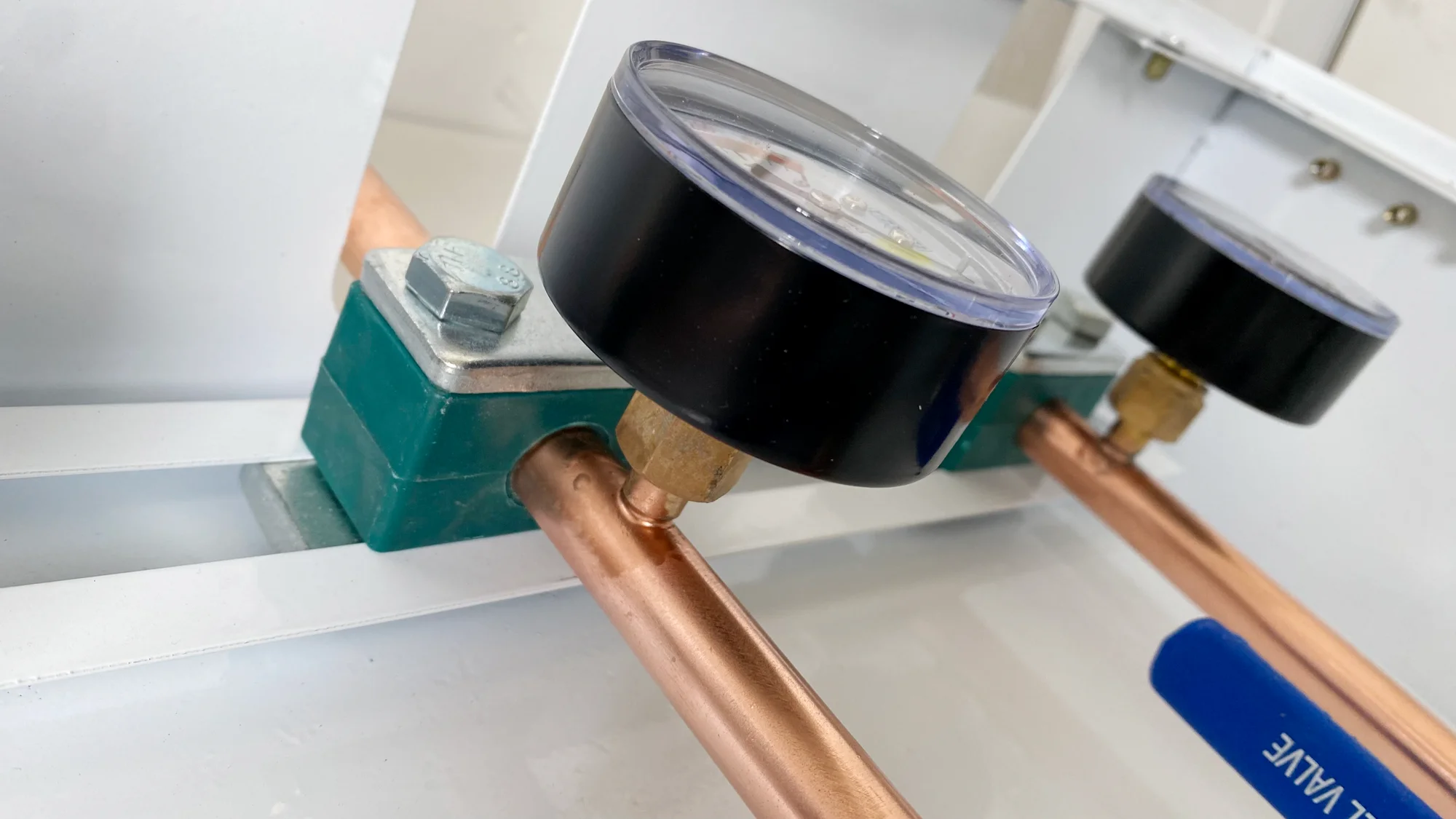

Gauges can be ordered separately
All zone valve box be piped left to right
Valve box designed with valves removed prior to brazing, without disassembly of the box, to permit rearrangement of valves if necessary. Valves is made of 3 piece ball type with Type K copper extensions, cleaned for gas service, supplied with capped ends, and shall operate full open to closed position with 90 degree handle rotation. The gauge port shall be equipped with removable plug for pressure testing prior to final assembly of gauge
Gauges can be ordered separately
All zone valve box be piped left to right
Specification
Sized up to 6 kinds of gas
Designed to house up to seven shut-off valves, each valve controls a different gas;
Gas Service is distinguished by label color ;
Wall mount style ;
Gas Service is distinguished by label color ;
Wall mount style ;

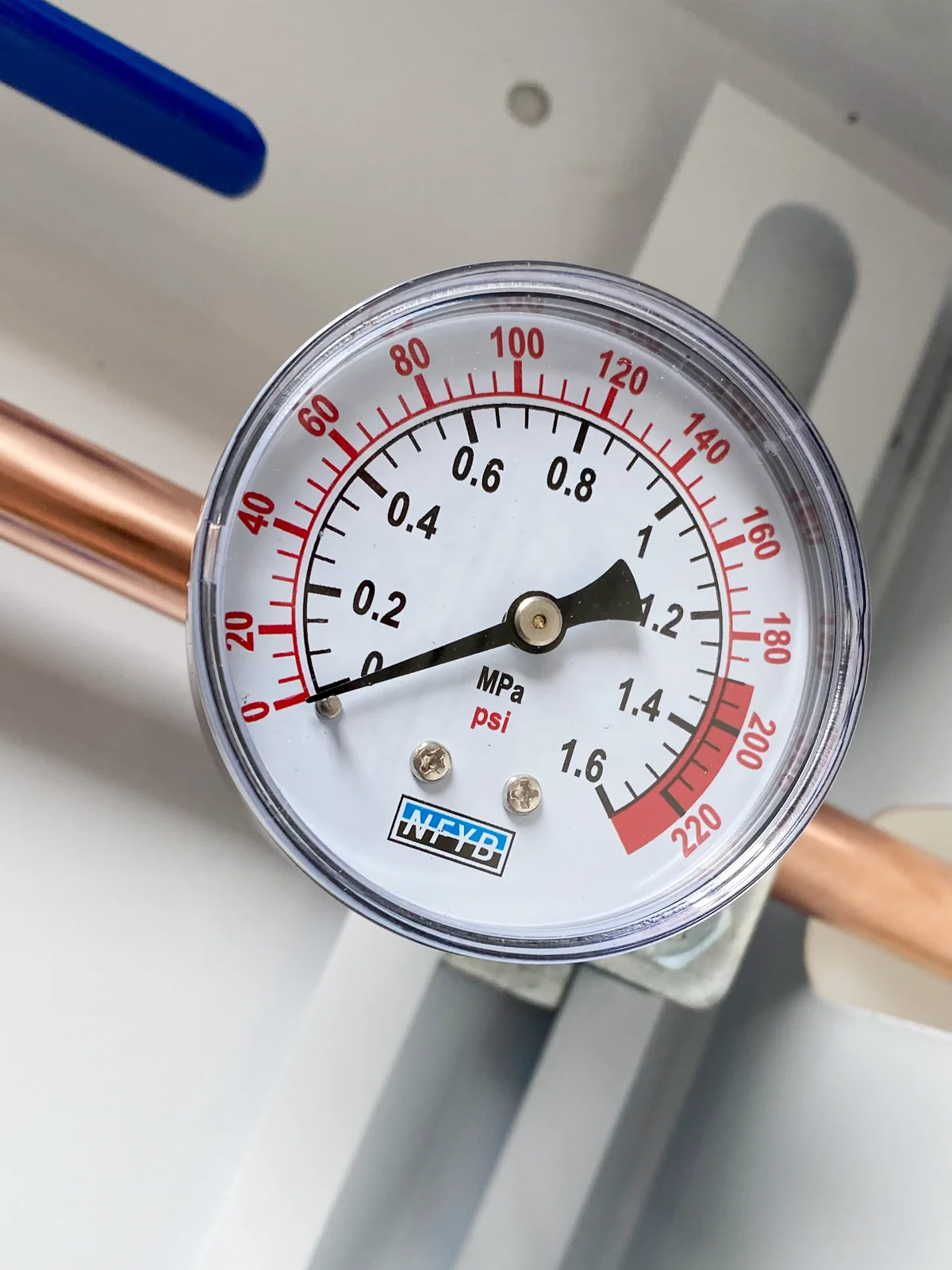

Units of gauge available in PSI , MPA
Copper tubes are welded to prevent leakage ;
Tubing is 100% tested for leakage
Complies with latest edition of NFPA99
