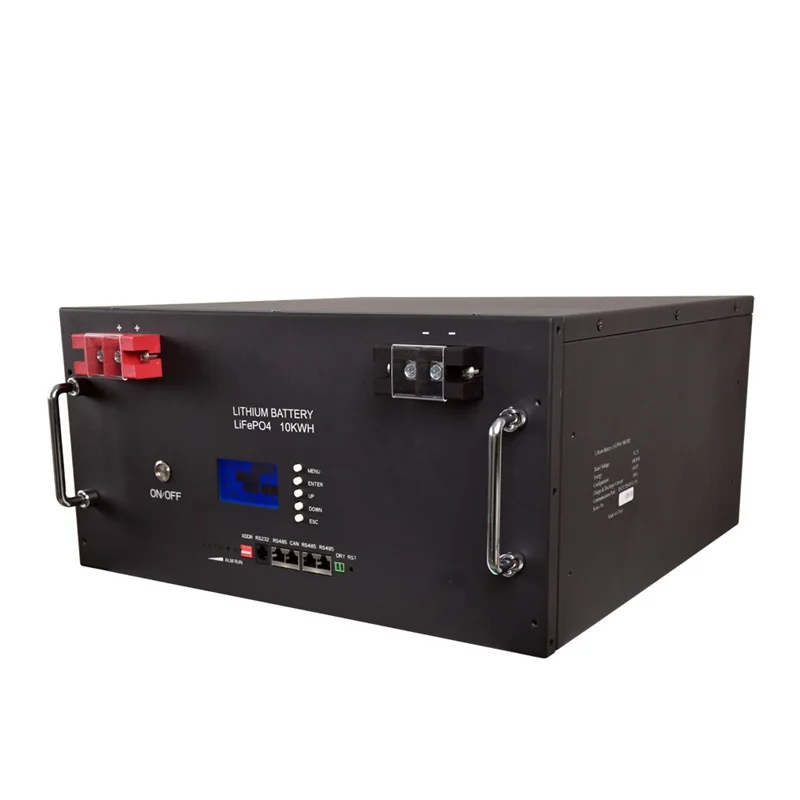

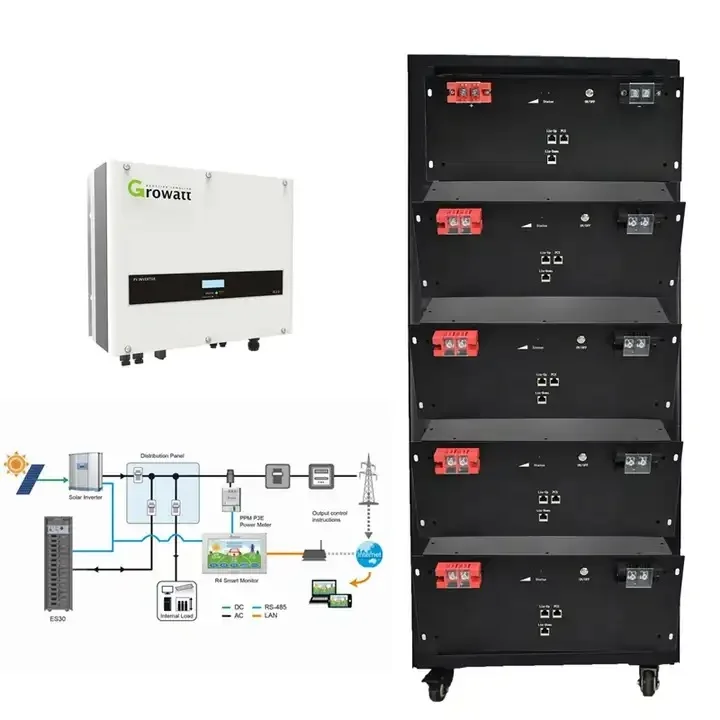

Smart Bms Rechargeable Lithium Ion Batteries 10kwh Lifepo4 Solar Home Rack Mounted Energy Storage 51.2V 200ah Lifepo4 Battery
- Category: >>>
- Supplier: Shenzhen Zooming Electronic Co. Ltd
Share on (1600960568628):
Product Overview
Description
Product Description
Model | ESS-2560 | ESS-5120 | ESS-10240 | ||
Nominal Voltage | 51.2V | 51.2V | 51.2V | ||
Nominal Capacity @25℃ | 50AH | 100AH | 200AH | ||
Nominal Energy @25℃ | 2560WH | 5120WH | 10240WH | ||

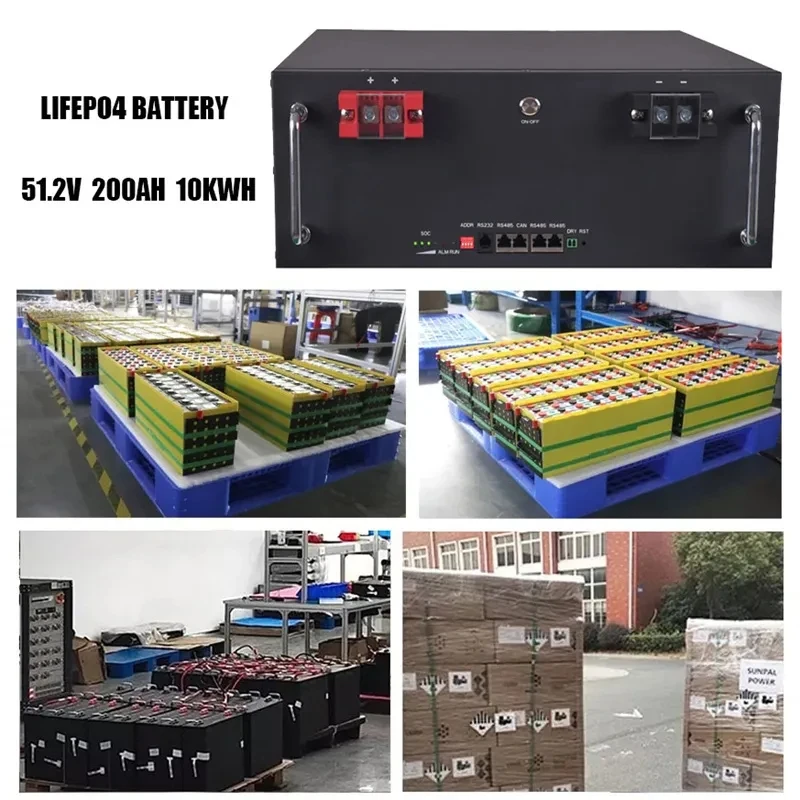

Battery Cell Type | LiFePO4 Lithium iron phosphate battery | ||||
Configuration (*S*P) | 16S1P | 16S1P | 16S2P | ||
Max. Continous Charge Current @25℃ | 50A | 100A | 100A | ||
Max. Continous Discharge Current @25°C,10s | 50A | 100A | 100A | ||
Dimension (mm) | 442X440X134MM | 442X484X165MM | 474X513X235MM | ||
Weight (KG) | 32KG | 41.2KG | 80KG | ||
Capable Parallel Quantity | ≤15 Modules | ||||
Full Charged Voltage | 58.4V | ||||
Discharge Cut-off Voltage | 40V | ||||
Operate Temperature Range | Charge: 0˚C~55˚C; Discharge: -20˚C~60˚C; Storage: -20˚C~45˚C | ||||
Humidity (non-condensing) | Max. 95% | ||||
Display | LCD | ||||
Communication Interface | RS485/ RS232 / CAN | ||||
Waterproof | IP22 | ||||
Cycle life | 4000 times - 8000 times | ||||
Service Life | 5-15 years | ||||
Warranty | 3 years | ||||
Features:
1、Safest lithium iron phosphate Battery cell: the use of Guoxuan, Yiwei, Tianyi, Ripu and other batteries,original factory new
grade A batteries guaranteed, ≥6000 cycles, 80%DOD;
2、Plug in and play:Plug in batteried then working ,easy to install and set up;

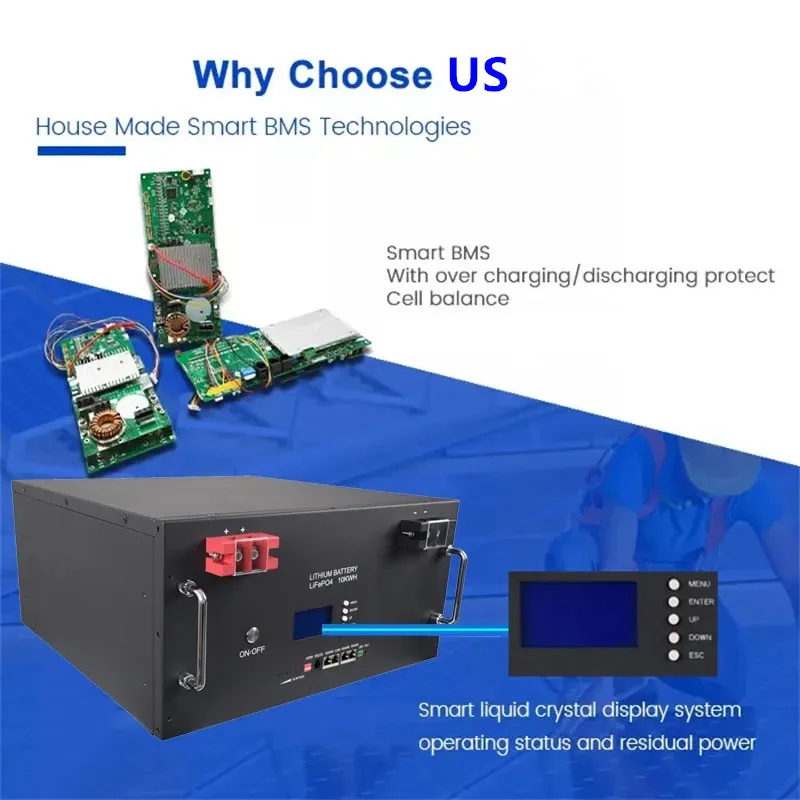

3、High compatibility BMS, compatible with most of available hybrid inverters.More Brands Are Coming Soon...
4、Support parallel expansion;
5、 A variety of communication interfaces: RS232, RS485, CAN;
grade A batteries guaranteed, ≥6000 cycles, 80%DOD;
2、Plug in and play:Plug in batteried then working ,easy to install and set up;
3、High compatibility BMS, compatible with most of available hybrid inverters.More Brands Are Coming Soon...
4、Support parallel expansion;
5、 A variety of communication interfaces: RS232, RS485, CAN;

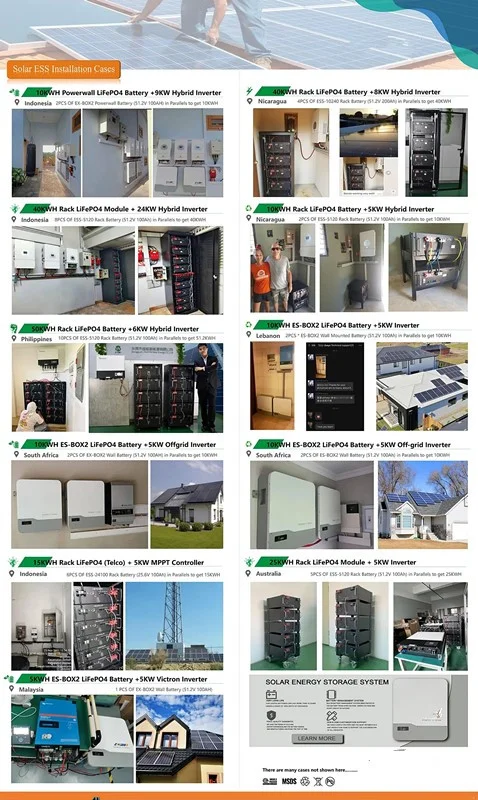

Customer Case Presentation
Cooperation Partner
Packing&Shipping
To solve the problems such as high transportation cost, unstable shipping schedule, or unable to transport battery products, we have professional and long cooperated battery transportation forwarders to solve international transportation problems for you.

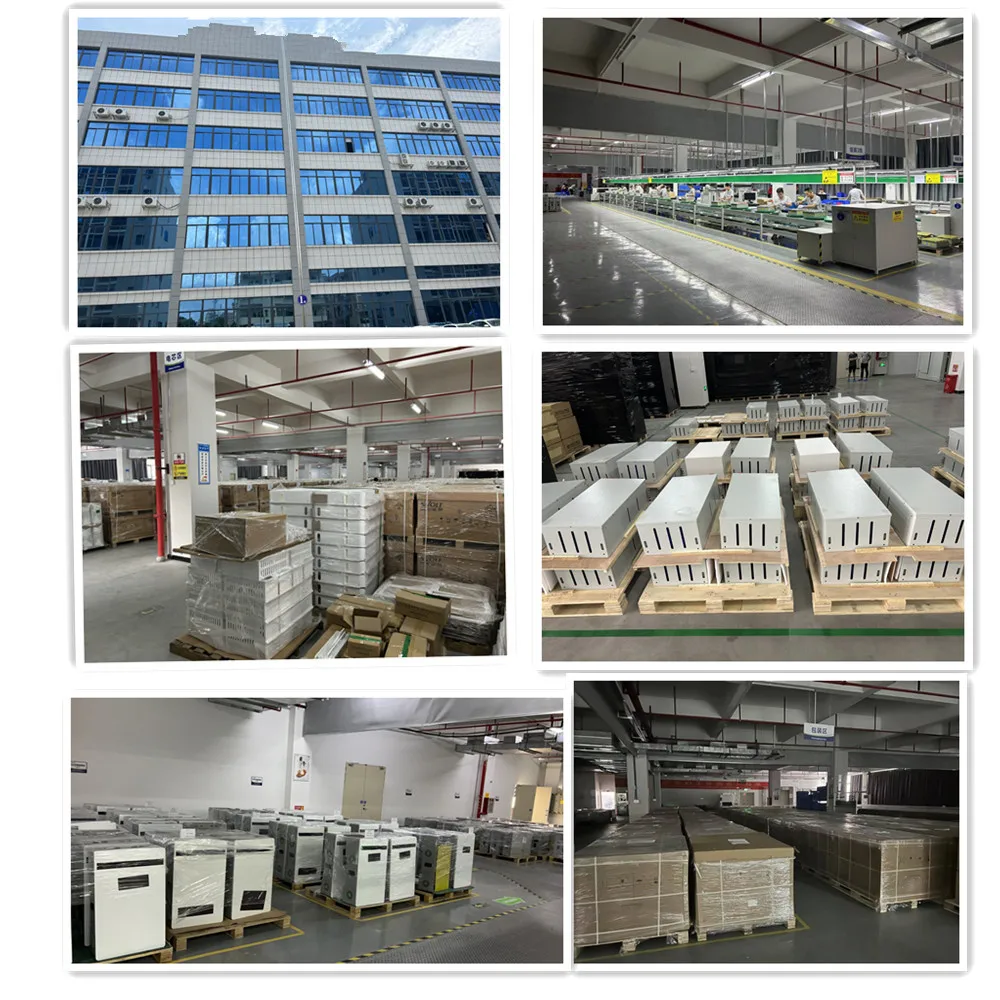

Company Introduction
Apke is focusing on the production of Li-ion battery energy, designing and marketing of battery, solar generator, energy storage system, telecom backup battery, UPS, solar street light battery and customized battery pack services.
Our factory is already certified with ISO 9001-2015, ISO14001, BSCI etc. With more than 10 national and international patents, our products have already been certified with IEC, UL, CE, FCC, ROHS, UN38.3, MSDS, PSE, SAA, SASO, KC, 1.2 meter dropping test, shipping report etc.
Apke's long-term value creation model of developing, building, operating scale solar storage battery projects, unlocks and storage the power of the sun. We consistently contribute to the economic and social development of the communities where Apke operates. We demonstrate through our actions, conduct, and keen focus on climate & environment. Our steadfast and proven track record for bringing new solar power to emerging markets, growing cities, and communities urgently needed to access affordable and clean solar energy storage.
Our factory is already certified with ISO 9001-2015, ISO14001, BSCI etc. With more than 10 national and international patents, our products have already been certified with IEC, UL, CE, FCC, ROHS, UN38.3, MSDS, PSE, SAA, SASO, KC, 1.2 meter dropping test, shipping report etc.
Apke's long-term value creation model of developing, building, operating scale solar storage battery projects, unlocks and storage the power of the sun. We consistently contribute to the economic and social development of the communities where Apke operates. We demonstrate through our actions, conduct, and keen focus on climate & environment. Our steadfast and proven track record for bringing new solar power to emerging markets, growing cities, and communities urgently needed to access affordable and clean solar energy storage.
FAQ
Q.What is special about lithium batteries?
A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, life span can reach more than 6 years. Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
Q.Are your batteries safe?

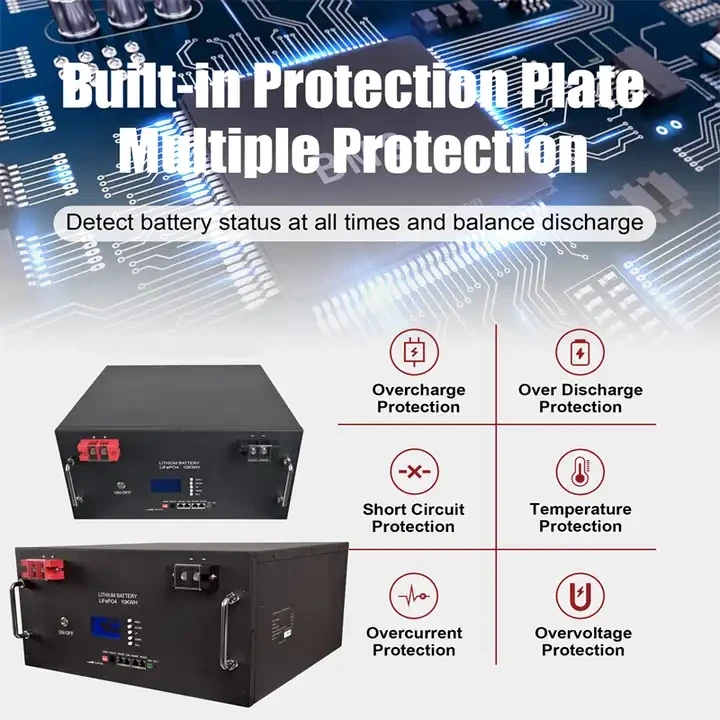

A: Our batteries are safe. All Apke batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A:Yes,our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt,Solax,Solis,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. Contact us and let me tell you more.
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each type of product may be different.
Q.Are your batteries safe?
A: Our batteries are safe. All Apke batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents,short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.
Q.Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A:Yes,our battery pack can compatible with most brand of inverter on the market, such as Deye, MUST, SMA, Growatt,Solax,Solis,Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. Contact us and let me tell you more.
Q: How long is the warranty period?
A: Our limited warranty is valid for a period of 5 years after delivery. It is restricted by specifications and warranty terms.
Q: Can we print our logo on products?
A: Of course, we can provide one to one customized OEM with a MOQ demand.
Q: How long is the estimated delivery time?
A: The delivery time is usually 28 days after receiving the payment.
Q: Are you able to handle shipment transportation?
A: Sure, we can arrange the shipment to most places as required.
Q: What kind of certification do you have?
A: In general, we have SGS TÜV Saar, IEC 62040-1, IEC 62109-1, IEC 62109-2, IEC 62619, UN38.3, IEC 62133, CEC, UL, MSDS, ISO 9001 certifications, but each type of product may be different.
