GX12 GX16 GX20 2 Pin Waterproof IP67 Female Male Electrical Circular Aviation Plug Connector Cable Wire Harness
- Category: >>>
- Supplier: Shenzhen Antech Century Technology Co. Ltd.
Share on (1600960569255):
Product Overview
Description
Product specification
A,GX12 Product specifications

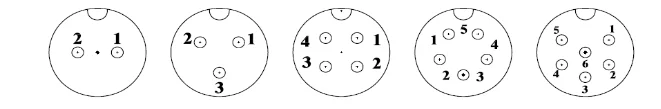

1,GX12 The hole place arranges(Comply with the needle direction):
2,Mateial and specifications:
Coupling:Threaded coupling
Shell material:Zinc alloy with nikelplate
Insert material:bakelite
Contact material:copper(silverplated/gold)
Termination:Solder
Mating cycle:500
Cable diameter:-20°C ~ +85°C
Cable diameter:≤ φ5.0mm
3,Technology parameter
NO.of contacts:2pin,3pin,4pin,5pin,6pin
Rated current/voltage:5A-125V
Operation limit voltage(AC.V.rms):200
Withstanding voltage(AC.V.rms) l minute:1500
Insulation resistance(MΩ MIN.) at D C 500V:1500
Contact resistance (MΩ MAX.) AT D C 1A:5
Solder cup mouth aperture φ(mm):0.8
Solder inter diameter φ(mm):1.2

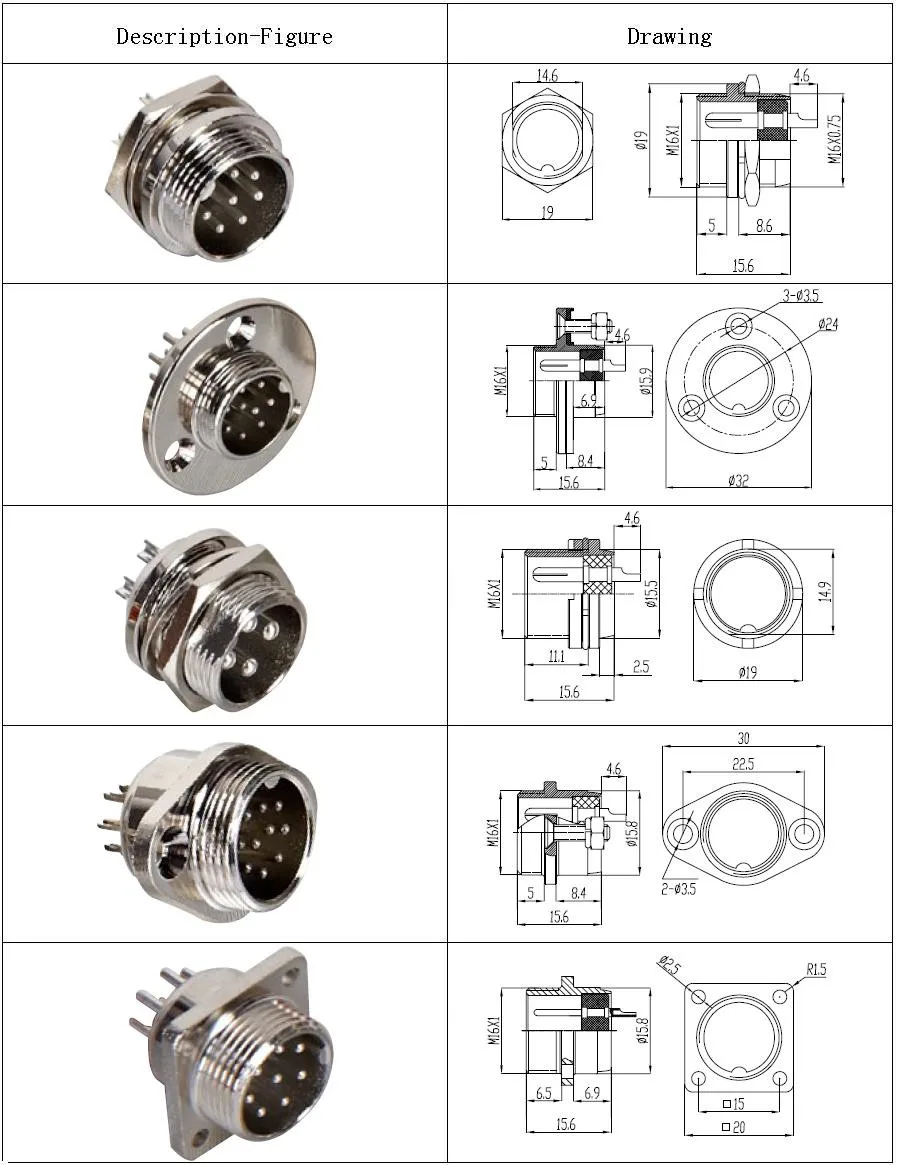

B,GX16 Product specifications

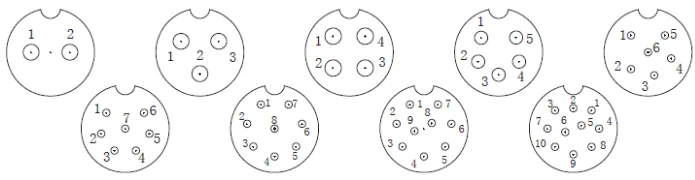

1,GX16 The hole place arranges(Comply with the needle direction):
2,Mateial and specifications:
Coupling:Threaded coupling
Shell material:Zinc alloy with nikelplate
Insert material:bakelite
Contact material:copper(silverplated/gold)
Termination:Solder
Mating cycle:500
Cable diameter:-20°C ~ +85°C
Cable diameter:φ7.5mm ~ ≤ φ8.5mm
3,Technology parameter
NO.of contacts:2pin,3pin,4pin,5pin,6pin,7pin,8pin,9pin,10pin
Rated current/voltage:5A-7A-125V
Operation limit voltage(AC.V.rms):200
Withstanding voltage(AC.V.rms) l minute:1500
Insulation resistance(MΩ MIN.) at D C 500V:1500
Contact resistance (MΩ MAX.) AT D C 1A:5
Solder cup mouth aperture φ(mm):0.9-1.6
Solder inter diameter φ(mm):1.15-2.45

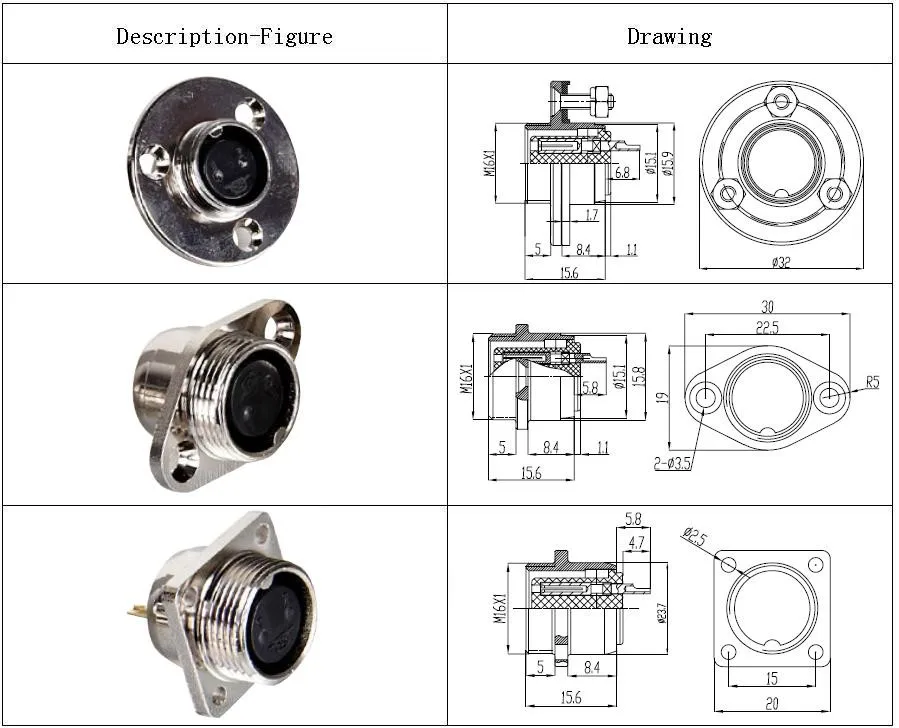

C,GX16MF Product specifications
1,GX16MF The hole place arranges(Comply with the needle direction):
2,Mateial and specifications:
Coupling:Threaded coupling
Shell material:Zinc alloy with nikelplate
Insert material:bakelite
Contact material:copper(silverplated/gold)
Termination:Solder
Mating cycle:500
Cable diameter:-20°C ~ +85°C
Cable diameter:φ7.5mm ~ ≤ φ8.5mm
3,Technology parameter
NO.of contacts:2pin,3pin,4pin,5pin,6pin,7pin,8pin
Rated current/voltage:5A-10A-125V
Operation limit voltage(AC.V.rms):200-250
Withstanding voltage(AC.V.rms) l minute:1500
Insulation resistance(MΩ MIN.) at D C 500V:1500
Contact resistance (MΩ MAX.) AT D C 1A:3-5
Solder cup mouth aperture φ(mm):0.8-1.2
Solder inter diameter φ(mm):1.2-1.6
Product Showcase

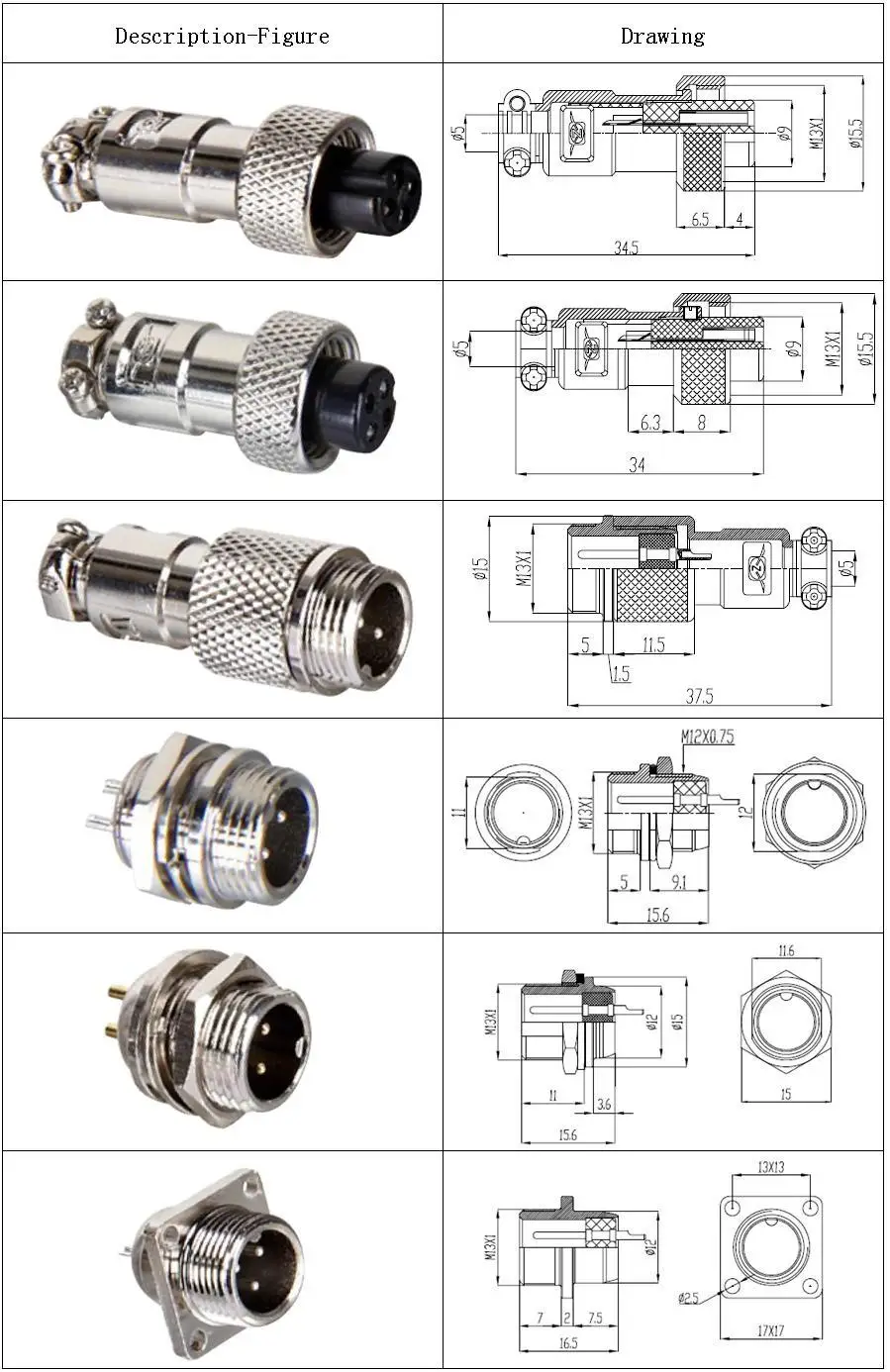

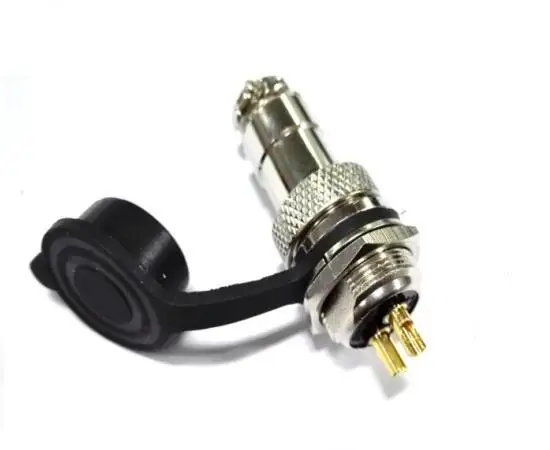

GX12 Product showcase

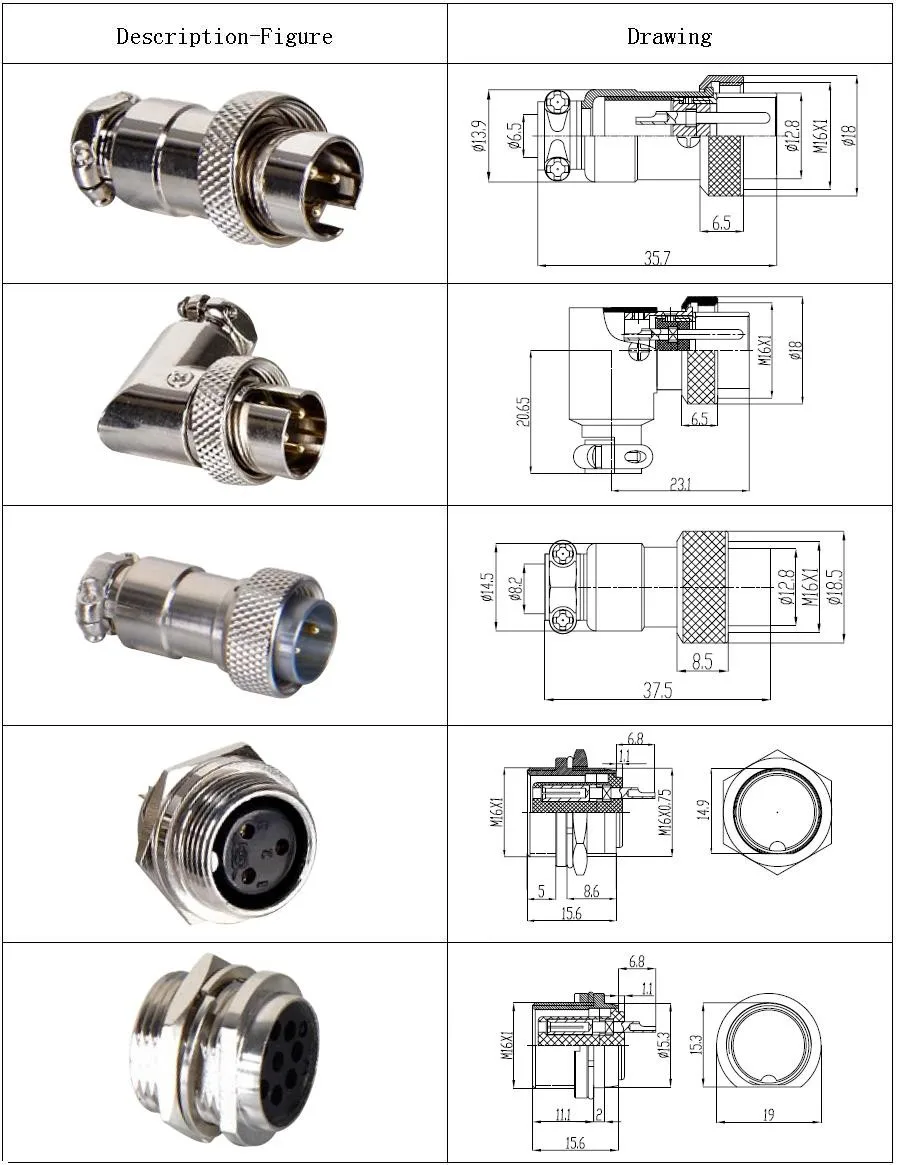

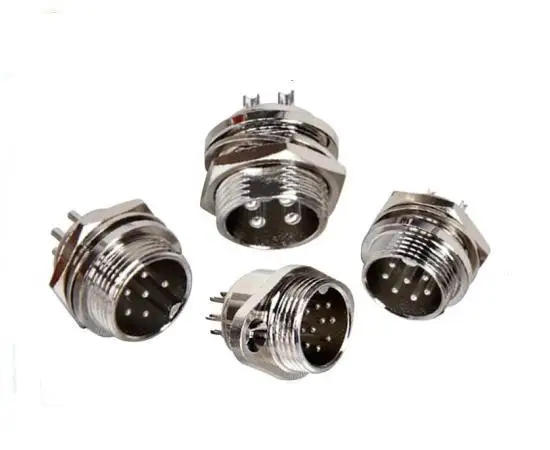

GX16 Product showcase

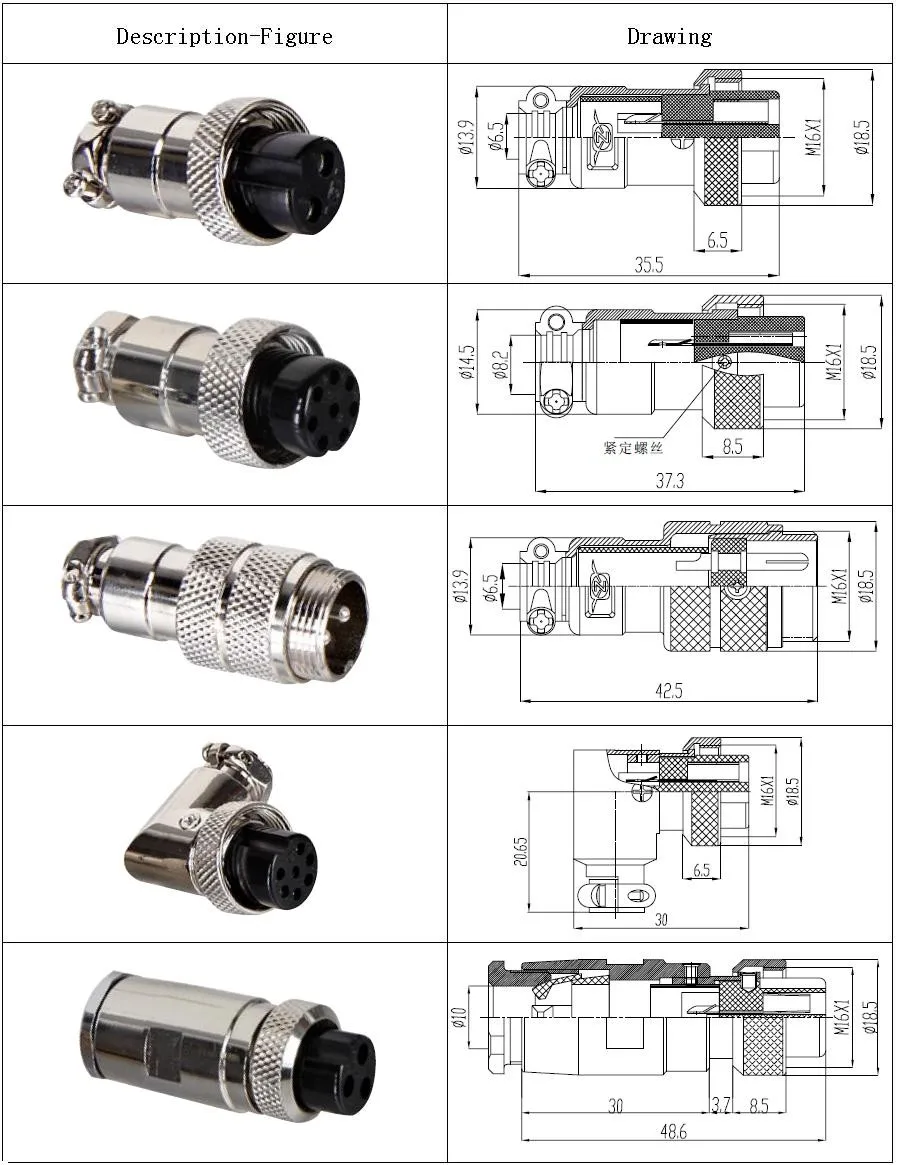

GX16MF Product showcase
