BSM10 50 mini awning style 1ton the cheapest small garden tractor front end loader backhoe
- Category: >>>
- Supplier: Bitsman Shandong Machinery Equipment Co. Ltd.
Share on (1600960690279):
Product Overview
Description
Product Overview

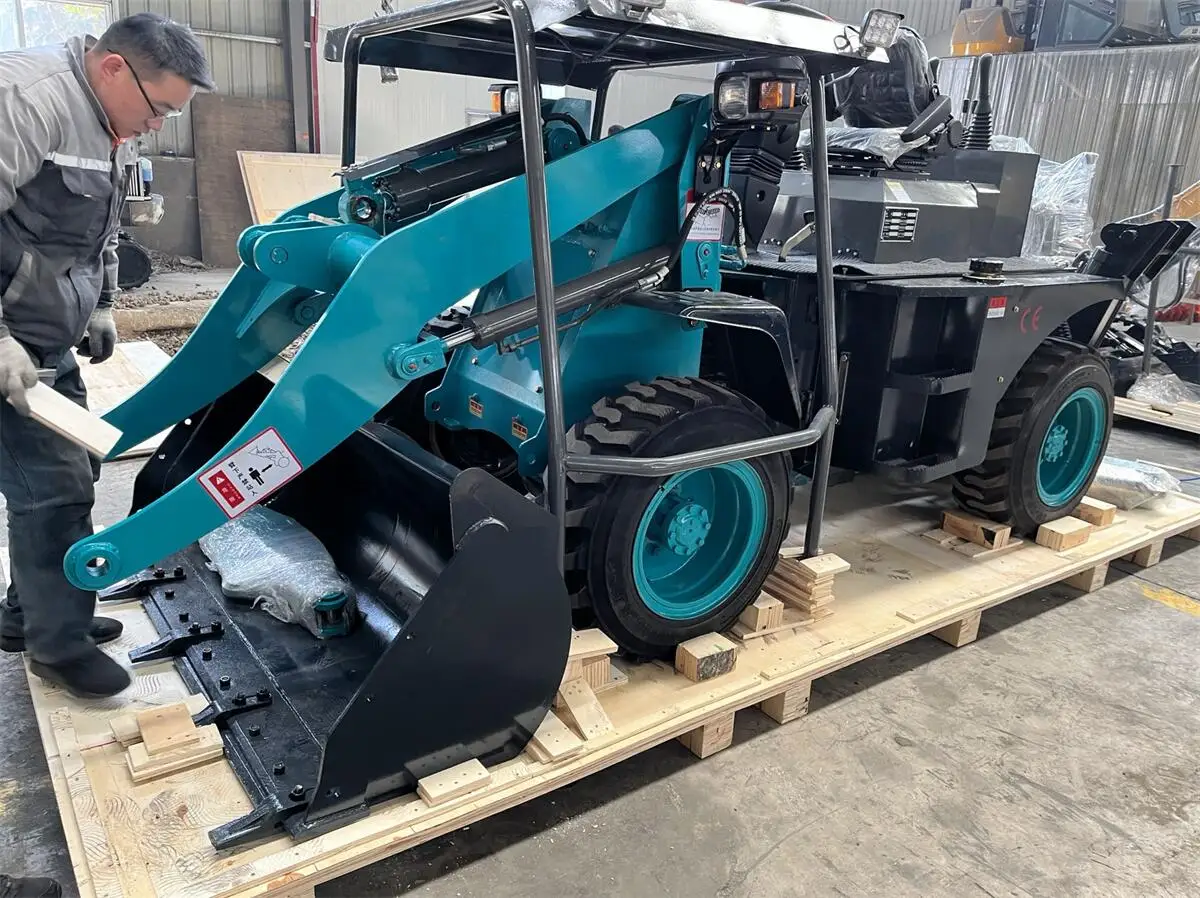

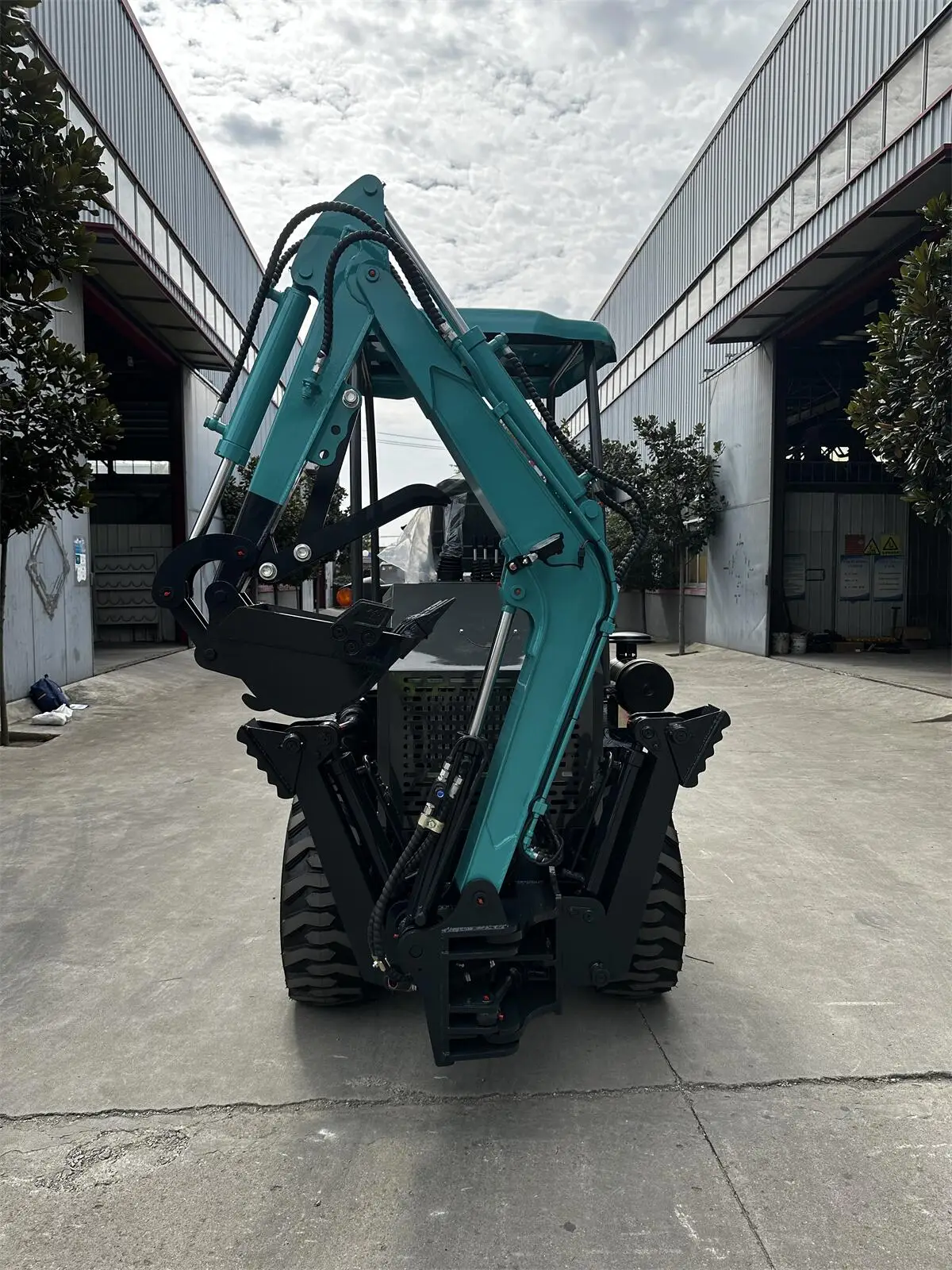

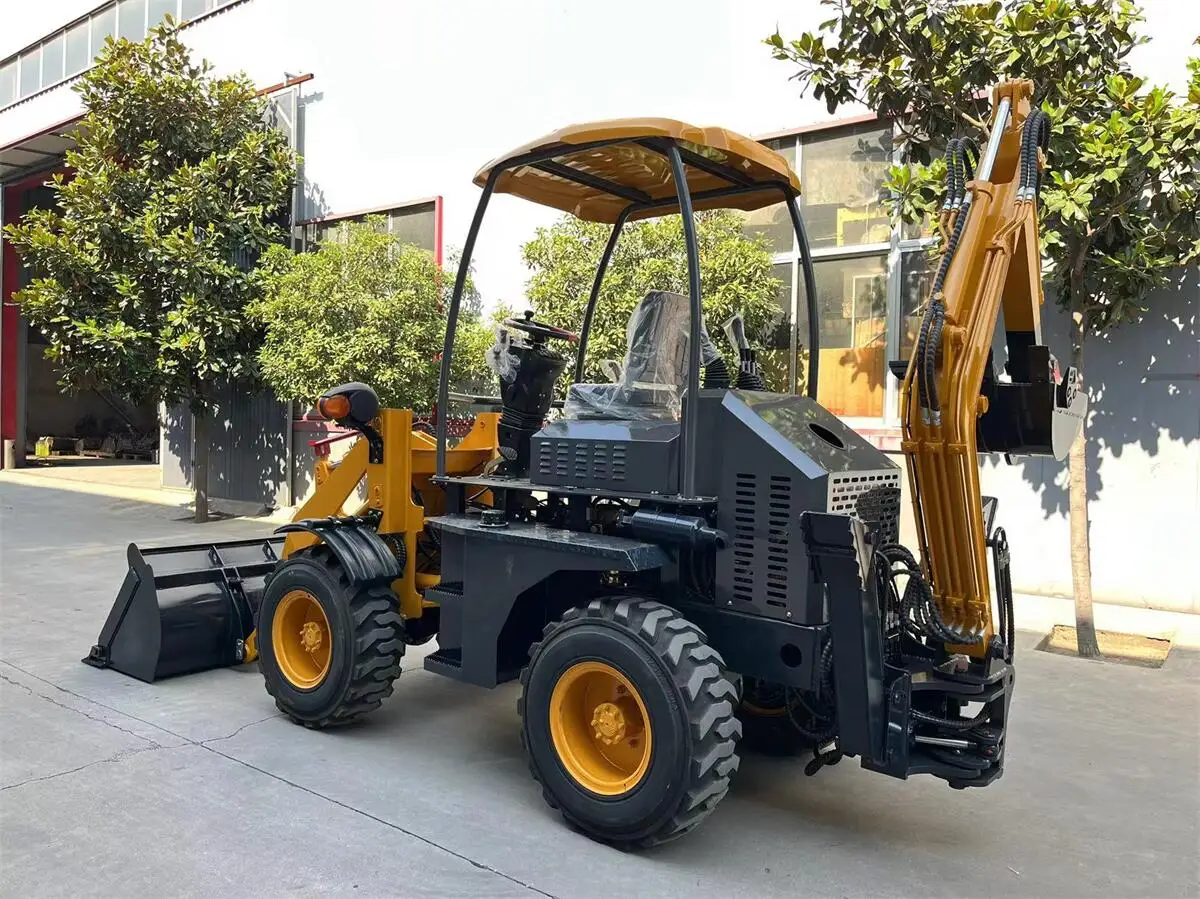

BSM10-50 mini awning style 1ton the cheapest small garden tractor front end loader backhoe
* Enlarge the warm air cab, safety glass, spacious and bright.
* The work surface, water temperature, oil temperature, current and working time are clear at
a glance.
* Using famous brand hydraulic components, two gear oil pumps work together, driven by
power, free to load and unload.
* Rotate the seat, the cab is turned forward.
* Front and rear body, small turning radius, hydraulic steering, comfortable and convenient
operation.
* Articulated frame, more flexible
* The work surface, water temperature, oil temperature, current and working time are clear at
a glance.
* Using famous brand hydraulic components, two gear oil pumps work together, driven by
power, free to load and unload.
* Rotate the seat, the cab is turned forward.
* Front and rear body, small turning radius, hydraulic steering, comfortable and convenient
operation.
* Articulated frame, more flexible
* Medium and large wheel side bridge, double pump
PRODUCT SPECIFICATIONS
Overall dimensions (mm) | 4950*1410*2550 |
Wheelbase (mm) | 1780 |
Wheelbase (mm) | 1130 |
Minimum ground clearance (mm) | 220 |
System pressure (MPa) | 16.5 _ |
Overall machine weight (Kg) | 2800 |
Rated load | 1000 |
Minimum turning radius (mm) | 4500 |
Maximum digging depth (mm) | 1600 |
Excavation unloading height (mm) | 2000 |
Maximum digging radius (mm) | 2700 |
Bucket width (mm) | 400 |
Digging bucket capacity (m³) | 0.05 _ |
Maximum digging height (mm) | 3600 |
Maximum digging force (KN) | 28 |
Excavator rotation angle (°) | 180 |
Maximum unloading height (mm) | 2200 |
Maximum unloading distance (mm) | 1000 |
Bucket width (mm) | 1650 |
Loading capacity (m³) | 0.8 |
Maximum lifting height of loader (mm) | 3100 |
Maximum rising power (KN) | 42 |
Forward shoveling action time sum (s) | 12 |
Model | YUNNEI YN25GB |
Type | In-line water-cooled 4-stroke |
Rated power (KW) | 37 |
Rated speed (r/min) | 2400 |
Gearbox | 300 hydraulic torque converter |
Number of gears | front 2 back 2 |
Type | Articulated fully hydraulic steering |
Steering angle (°) | 33 |
Type | main half shaft |
Specification | 10-16.5 |
Front wheel air pressure (KPa) | 520 |
Rear wheel air pressure (KPa) | 520 |
Service brake | drum brake |
Fuel tank (L) | 45 |
Hydraulic oil tank (L) | 45 |
Drive type | four-wheel drive |
Transmission type | Gear lever shifting |
Braking distance (mm) | 5000 |

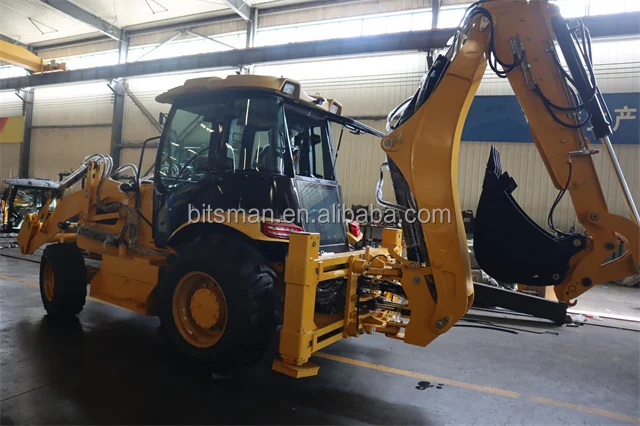

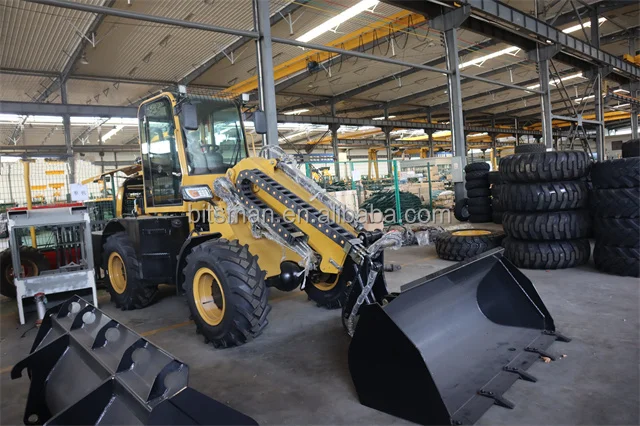

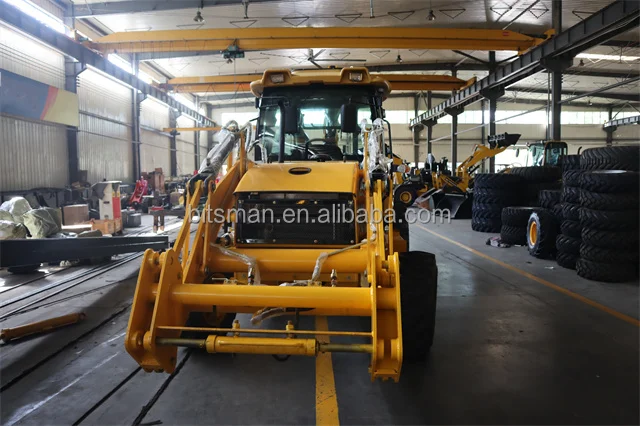

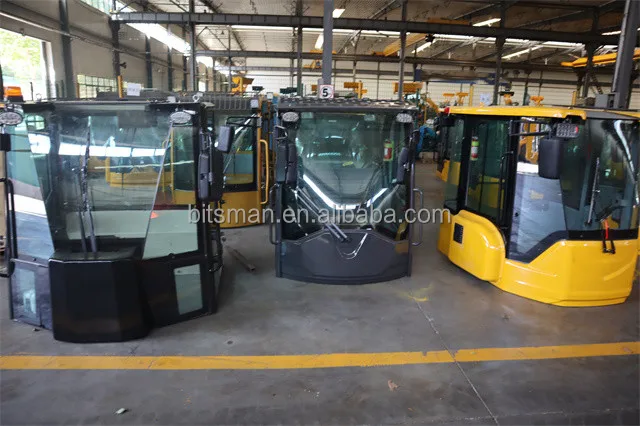

OUR FACTORY
COMPANY PROFILE
►Shandong Bitsman Machinery Equipment Corporation（BSMC）， was established in 2019 and mainly sells various Construction machinery (backhoes, wheel loaders, excavators,steer skid loader,dumper,etc). And Agricultural machinery (tractors with implements, agricultural drones, remote control lawn mowers, sprayer,wood chippers,etc).
►We have ISO9001 international quality system certification and CE certification. In order to meet the needs of customers in different countries, we have also launched products that meet EURO V, EPA 4 standards. Our products are exported to Europe, America, Russia, South America, South Africa and other places, enjoying a good reputation.
►We are committed to promoting global infrastructure and agricultural development.
►We can provide you with a complete set of service solutions, we have a complete production team, marketing team, after-sales team. You just need to choose the product you need and consider whether it is the right price.
►Bitsman Shandong Machinery Equipment can meet the needs of most customers and do its best to help customers do more business in the market and achieve a win-win situation.
►We have ISO9001 international quality system certification and CE certification. In order to meet the needs of customers in different countries, we have also launched products that meet EURO V, EPA 4 standards. Our products are exported to Europe, America, Russia, South America, South Africa and other places, enjoying a good reputation.
►We are committed to promoting global infrastructure and agricultural development.
►We can provide you with a complete set of service solutions, we have a complete production team, marketing team, after-sales team. You just need to choose the product you need and consider whether it is the right price.
►Bitsman Shandong Machinery Equipment can meet the needs of most customers and do its best to help customers do more business in the market and achieve a win-win situation.
FAQ
1.What can you buy from us?
Excavator/ Loader/ Backhoe/Bulldozer /Forklift
Farm Tractor with Implements/Agricultural Drone/Remote Control Lawn Mower
2. How is our delivery time?
If in stock, ship within 7 days,
The basic quantity is usually 15-25 days
30-60 days for large quantity
3.Which payment terms can we accept?
1) On T/T term, usually 30%T/T deposit, 70% T/T before shipment
2) On L/C term, other matters need to be negotiated according to the order amount
4. What services can we provide?
1) About production: We provide OEM customization services, including logo customization and outer packaging of small machines
2)About shipment: FOB/ CFR/CIF/EXW and so on
3)About customs clearance: We provide proforma invoice, packing list, commercial contract, LCL telex release documents, original bill of lading, and customs clearance requirements of different countries, such as oil-free power-off guarantee, asbestos-free instructions, etc.
4)Regarding the customs clearance of Euro V tractors: In addition to providing general customs clearance documents, we also provide COC certificates that can be recognized on the road, so that you can list them in the destination country
5. What is our warranty and spare parts service?
1)The whole machine is guaranteed for one year, and the auxiliary equipment is guaranteed for half a year, from the moment you receive the goods
2)We will provide spare parts list and operation manual
Excavator/ Loader/ Backhoe/Bulldozer /Forklift
Farm Tractor with Implements/Agricultural Drone/Remote Control Lawn Mower
2. How is our delivery time?
If in stock, ship within 7 days,
The basic quantity is usually 15-25 days
30-60 days for large quantity
3.Which payment terms can we accept?
1) On T/T term, usually 30%T/T deposit, 70% T/T before shipment
2) On L/C term, other matters need to be negotiated according to the order amount
4. What services can we provide?
1) About production: We provide OEM customization services, including logo customization and outer packaging of small machines
2)About shipment: FOB/ CFR/CIF/EXW and so on
3)About customs clearance: We provide proforma invoice, packing list, commercial contract, LCL telex release documents, original bill of lading, and customs clearance requirements of different countries, such as oil-free power-off guarantee, asbestos-free instructions, etc.
4)Regarding the customs clearance of Euro V tractors: In addition to providing general customs clearance documents, we also provide COC certificates that can be recognized on the road, so that you can list them in the destination country
5. What is our warranty and spare parts service?
1)The whole machine is guaranteed for one year, and the auxiliary equipment is guaranteed for half a year, from the moment you receive the goods
2)We will provide spare parts list and operation manual
