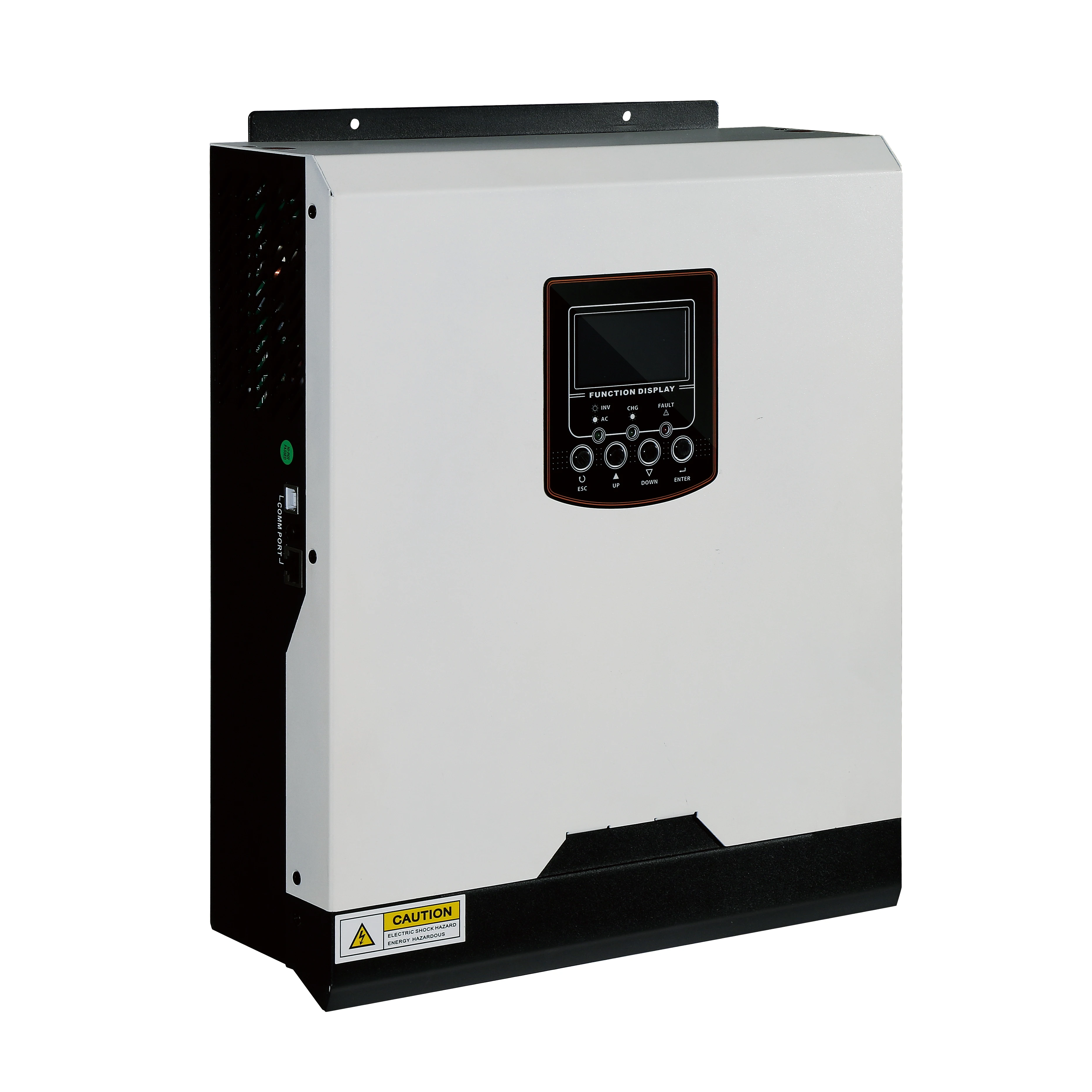

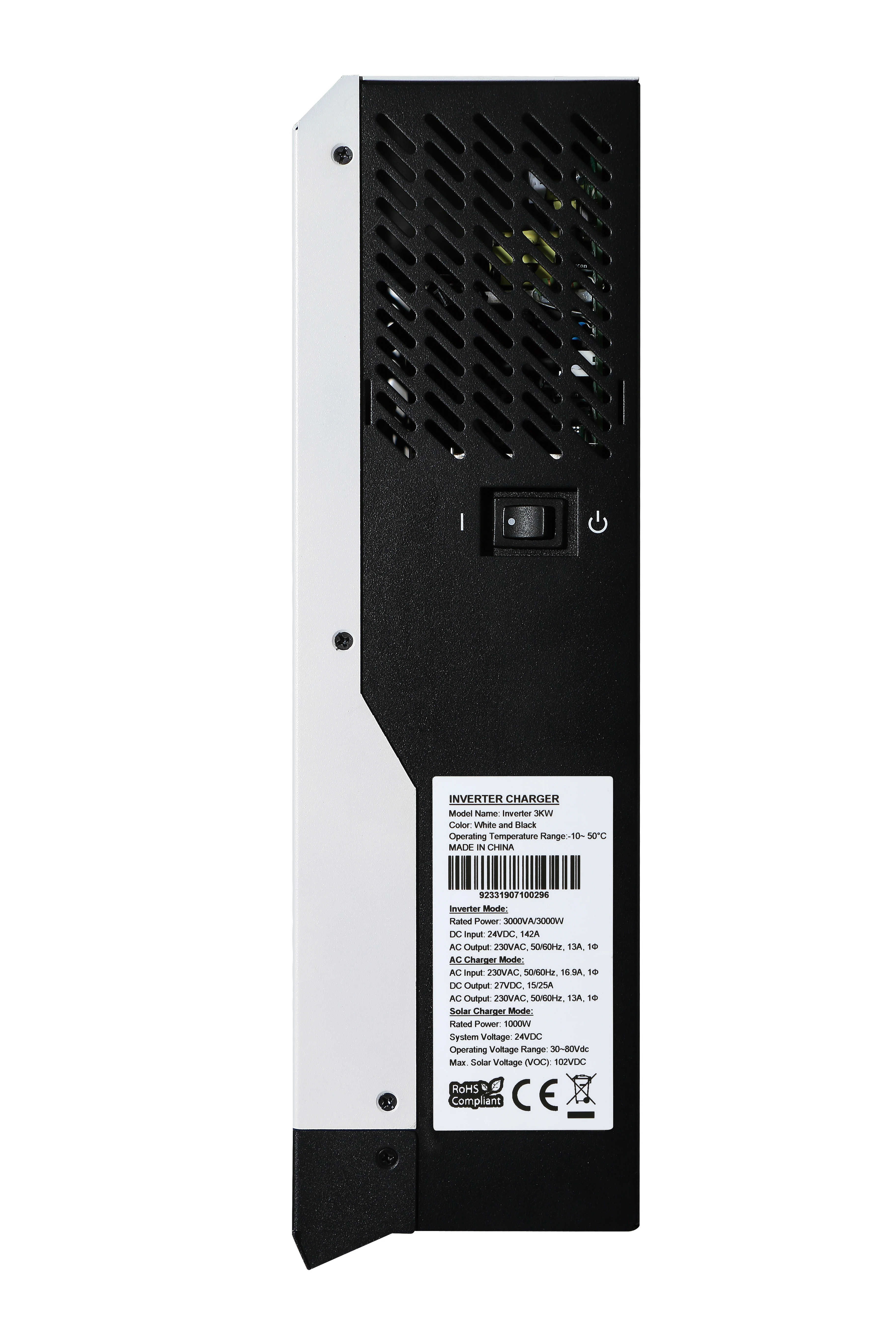

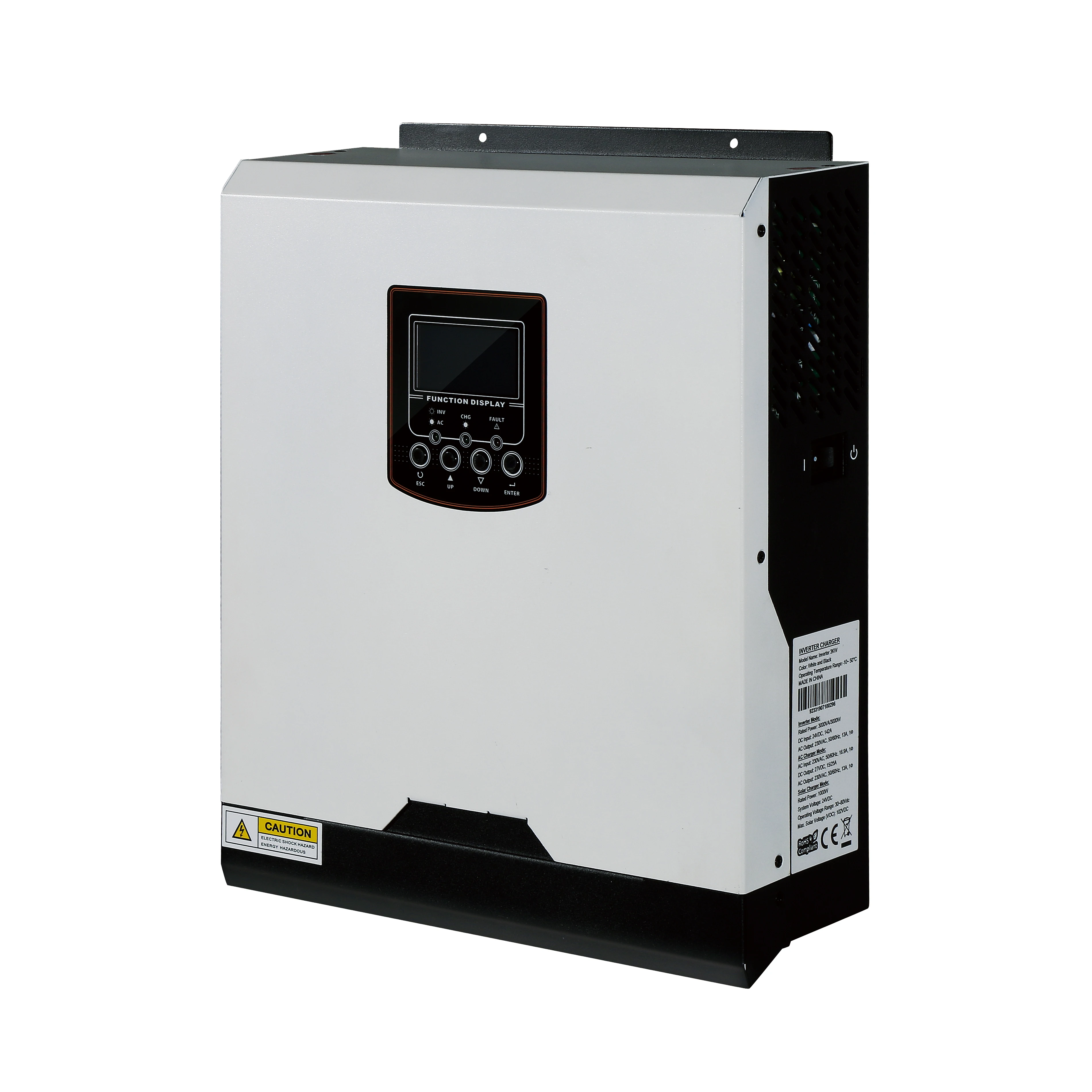

Ouyad Off grid HY5032VPN High frequency Hybrid Solar Inverter 5kVA/5kW/48VDC Pure Sine Wave Built in PWM
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (1600960720039):

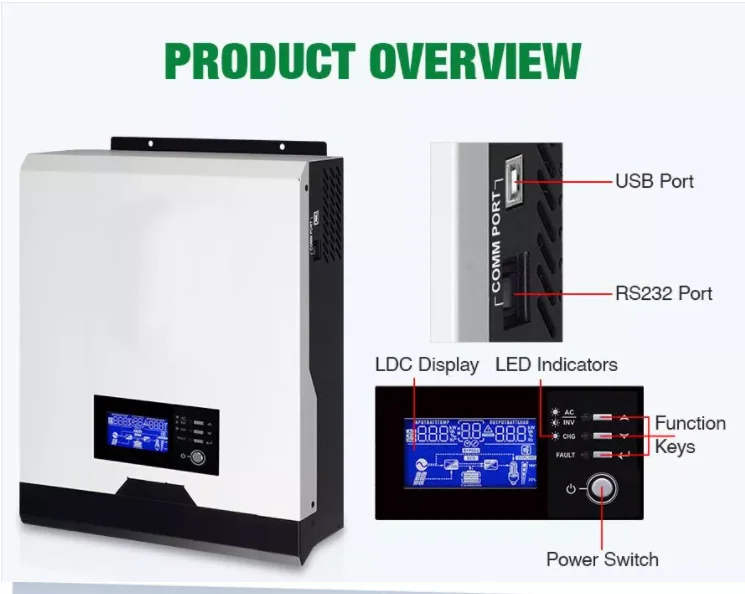

Product Overview
Description
Products Description
HY PWM Series
Equipped with PWM solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank. Transformer-less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing ,integrated interface system.It’s light and handy ,making installation easier.It’s the ideal inverters for small PV plants ,or individually for small houses both indoors
and outdoors
and outdoors
Main Features
1. Pure sine wave inverter
2. Built-in MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function
2. Built-in MPPT solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function
Model | HY1012M | HY3022P HY3022PN | HY5032VPN | HY5032PN | ||||
RATED POWER | 1000VA/1000W | 3000VA/2400W 3000VA/3000W | 5000VA/5000W | 5000VA/4000W | ||||
Parallel Capacity | No | No | No | Yes, 9pcs | ||||
Input | Voltage | 230VAC | ||||||
Selectable Voltage Range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |||||||
Frequency Range | 50Hz/60Hz (auto sensing) | |||||||
Output | AC Voltage Regulation (Batt.mode) | 230VAC±5% | ||||||
Surge Power (5 seconds） | 2000VA | 6000VA | 10000VA | 10000VA | ||||
Efficiency (peak) | 90-93% | 93% | ||||||
Transfer Time | 10ms(for personal computers); 20ms (for home appliances) | |||||||
Waveform | pure sine wave | |||||||
Battery& AC charger | Battery Voltage | 12VDC | 24VDC | 48VDC | 48VDC | |||
Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | 54VDC | ||||
Overcharge Protection | 16VDC | 31VDC/ 33VDC | 63VDC | 60VDC | ||||
Max. AC Charge Current | 20A | 25A | 60A | 60A | ||||
MAX PV Array Power | 500W | 1200W | 2400W | 2400W | ||||
Maximum PV Array Open Circuit Voltage | 102VDC | 80VDC | 105VDC | 105VDC | ||||
Max. Solar Charge Current | 40A | 50A | 50A | 50A | ||||
Max. AC Charge Current | 20A | 70A | 110A | 110A | ||||
Physical | Maximum Efficiency | 90~93% | ||||||
Standby Power Consumption | 2W | |||||||
Operating Environment | Dimension, D*W*H(mm) | 88*225*320 | 100*272*385 | 100*300*440 | 100*300*440 | |||
Net Weight (kgs) | 4.4KG | 7KG | 11KG | 11KG | ||||
Humidity | 5%-95% relative humidity ( non-condensing) | |||||||
Operating Temperature | -10℃ to 50℃ | |||||||
Storage Temperature | -15℃ to 60℃ | |||||||
