Factory Outlet High grade Original Chip with Retail Package Red A4988 Stepper Motor Driver for 3D Printer

Description:

• 100% brand new and high quality


• Material: Electrical components


• Color: Red


• Description

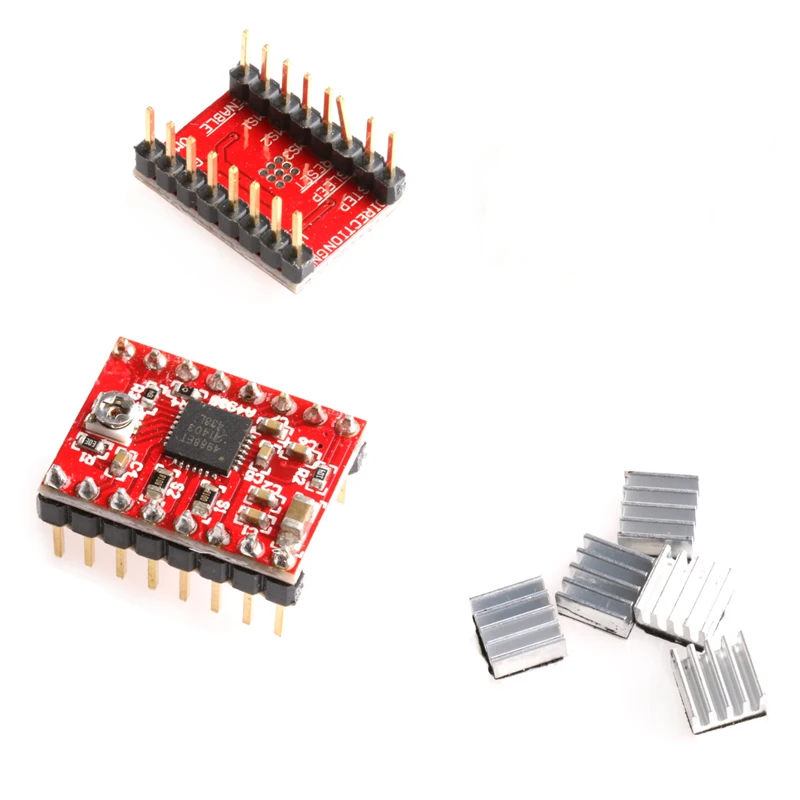

• This product is a breakout board for Allegro's A4988 DMOS Microstepping Driver with Translator and Overcurrent Protection;


• This stepper motor driver lets you to operate bipolar stepper motors in full-, half-, quarter-, eighth-,
  and sixteenth-step modes, with an output drive capacity of up to 35 V and 2 A.


• The translator is the key to the easy implementation of the A4988.


• Simply inputting one pulse on the STEP input drives the motor one microstep.


• There are no phase sequence tables, high frequency control lines, or complex interfaces to program.


• The A4988 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.


• Features


• Simple step and direction control interface


• Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step


• Adjustable current control lets you set the maximum current output with a potentiometer,
  which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates


• Intelligent chopping control that automatically selects the correct current decay mode
  (fast decay or slow decay)


• Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection


• Short-to-ground and shorted-load protection


• Warning


• Connecting or disconnecting a stepper motor while the driver is powered can destroy the driver.


• (More generally, rewiring anything while it is powered is asking for trouble.)

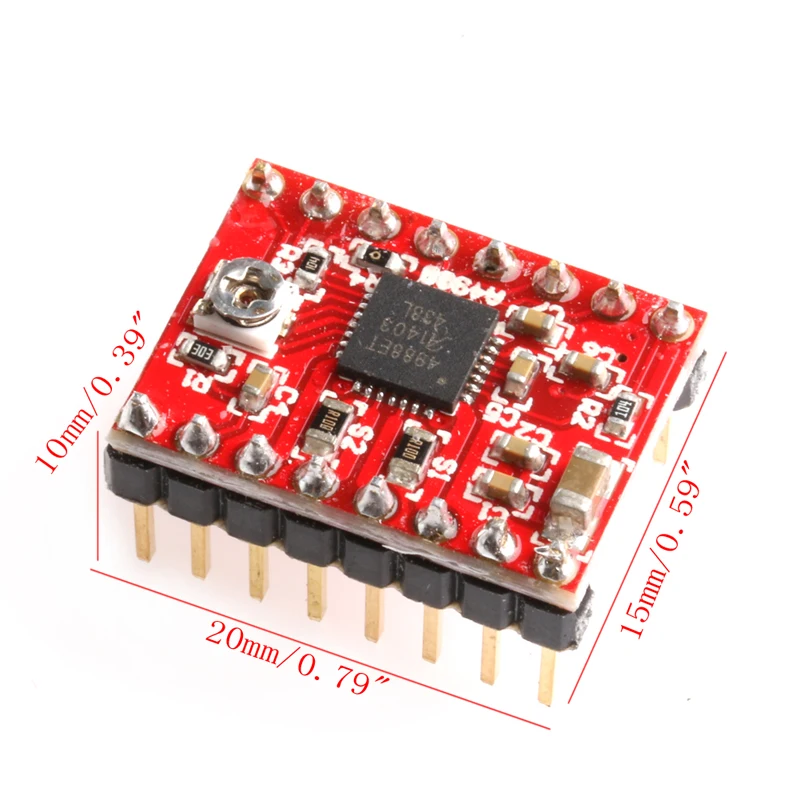

• Size: See the picture


• No retail packag
