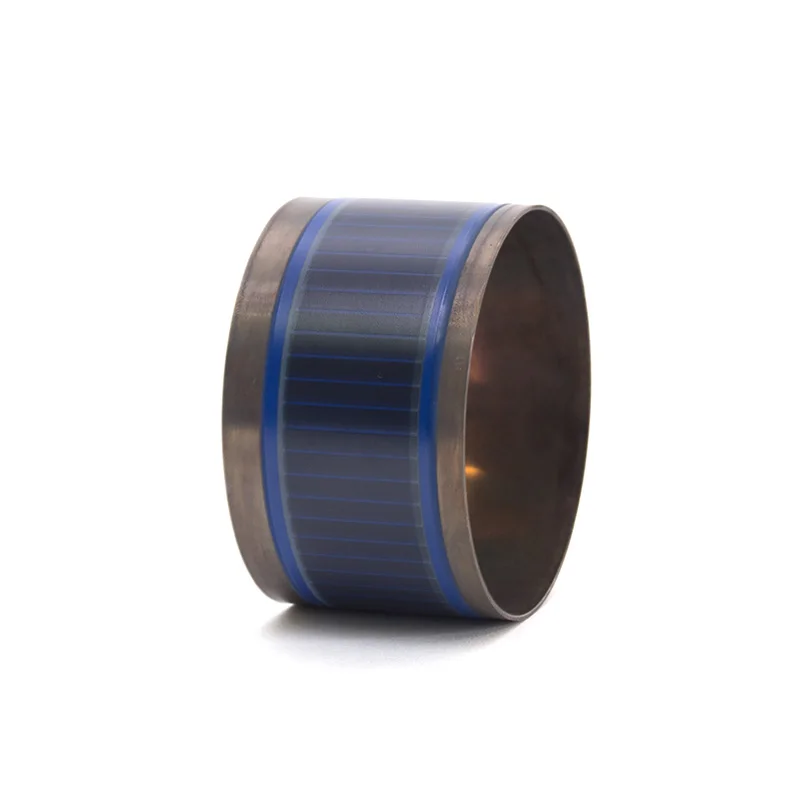

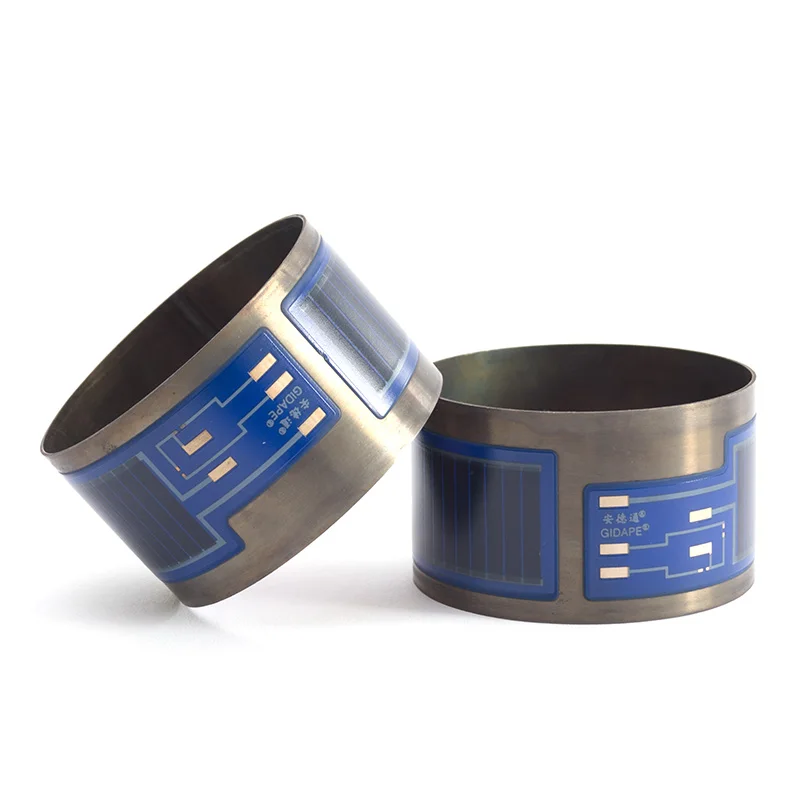

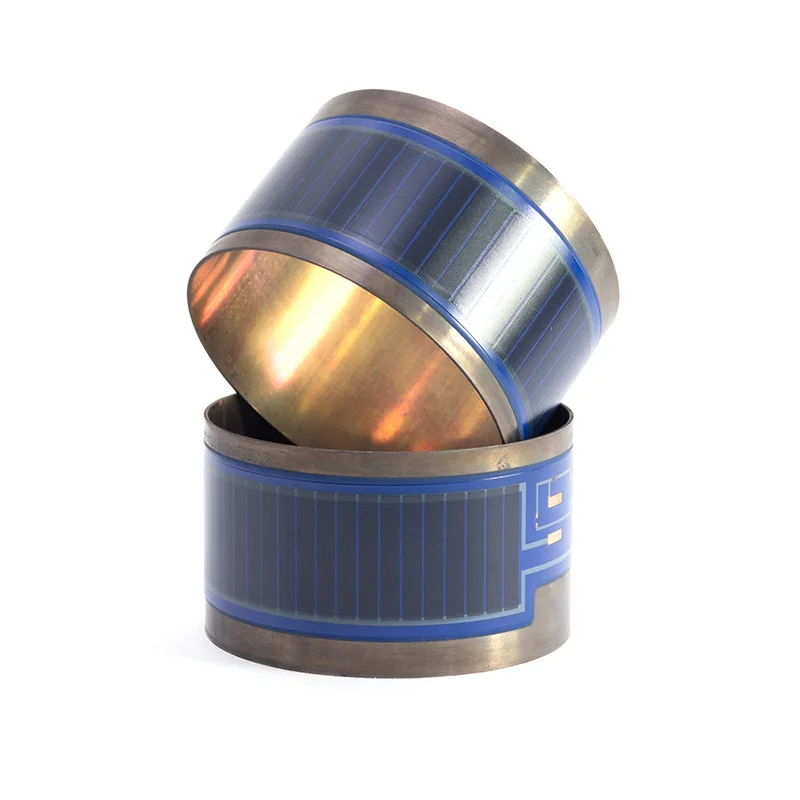

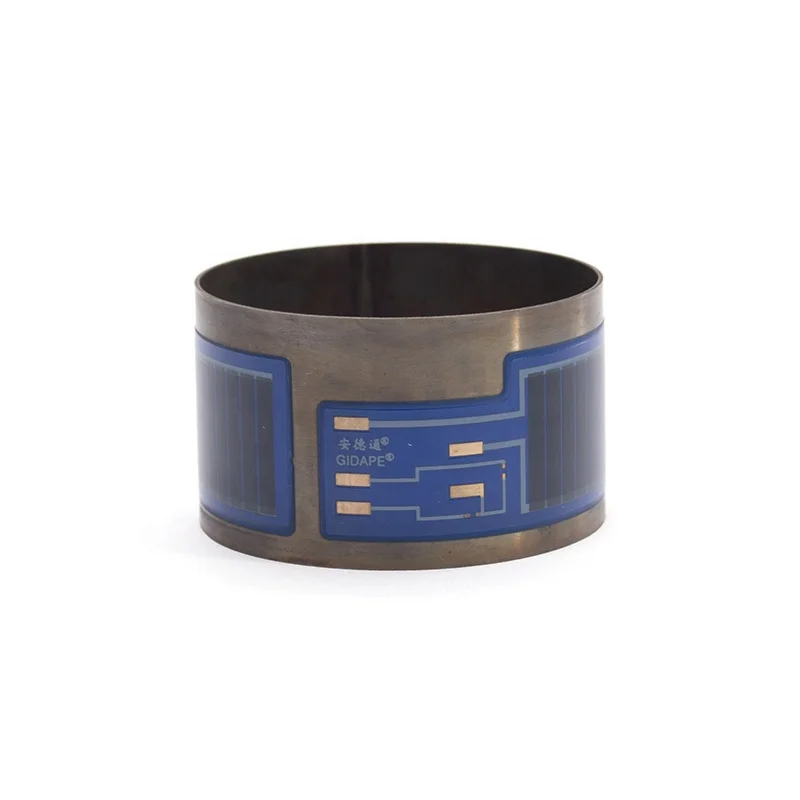

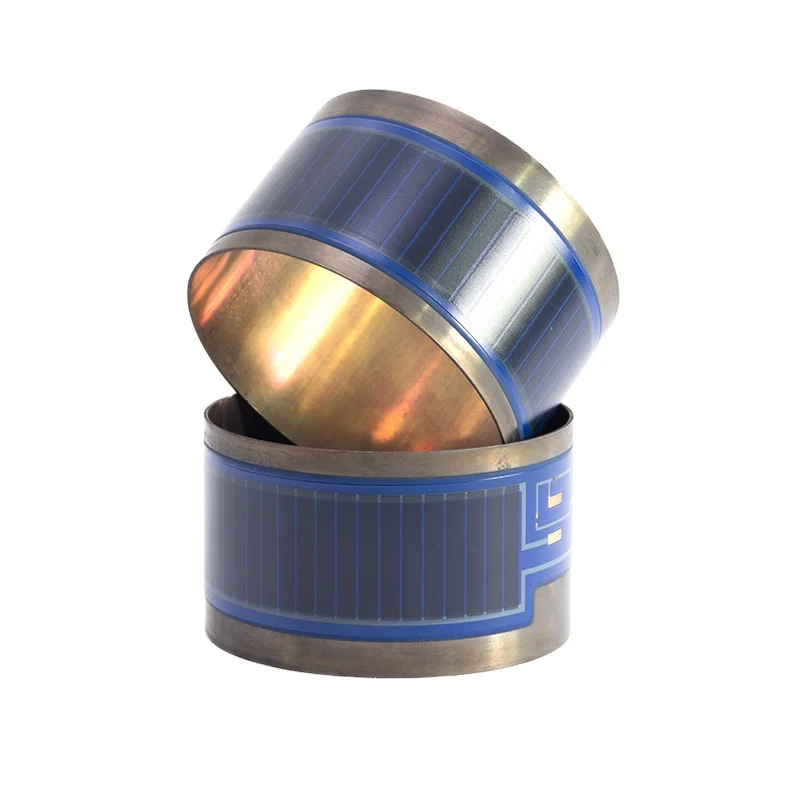

85*55mm Thick Film Water Heater Tubular for Dishwasher Machine 220V 2080W
- Category: >>>
- Supplier: Xinxiang Jieda Precision Electronics Co. Ltd.
Share on (1600960764476):
Product Overview
Description

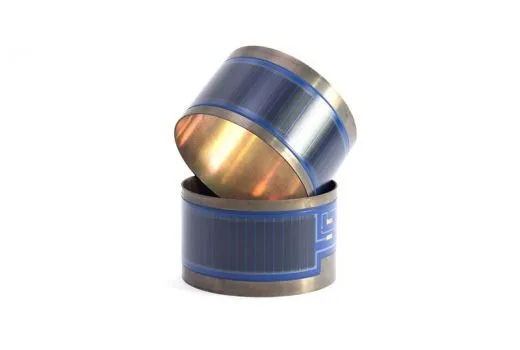

85*55mm Thick Film Water Heater Tubular for Dishwasher Machine 220V 2080W with Socket
Product Description
The Rare-Earth Metal Thick Film Heater is one of today's most innovation and forward-looking solution for electric
heating field.
The thick film heater is comprised of screen-printing dielectrics (5 layers), resistance (palladium-silver), conductor (silver) and isolation glazes on the substrate and sintered 8 times at temperature over 900℃.
It can heat water insantly due to the high power (6000W maximum for single heater).
For applications where space is limited, thick film heater is very advantageous to traditional ones for its compact size.
GIDAPE® ANDETONG® series stainless steel thick film heating tube has the following characteristics:
1 Safety and durability: working life>10000 hours .
2 Fast heating: temperature rise over 80~150℃/s.
3 High thermo transfer efficiency: efficiency up to above 98%.
4 Health friendly: no electromagnetic radiation.
5 Smaller size: compact structure due to higher power density (60W/cm²).
6 Customized services: size, voltage and power could be customized.
Technical Parameters
| Dimension | 75mm(diameter)*45mm(length) | Power Density | >60W/cm² |
| Ramp-Up Rate | 80~150℃/s | Thermal Efficiency | >98% |
| Power | 2,080W or customized | Service Life | ≥10,000 hours |
| Rated Voltage | 230v or customized | Certificate | CQC, RoHS |
| Dielectric Strength | 1,500V/5mA/60s | Power Deviation | -10% - +5% |
| Leakage Current | ≤0.25mA | Insulation Resistance | ≥200MΩ |
| Type | PA66+ glass fibre, temperature resistance≥250℃ | Snap Action Thermostat | 16A, installed close to the heating tube’s heating circuit |
| Shield Thermistor | PTC or NTC | Connecting Type | socket or wire |
Applications
Thick film heater is the ideal heating element for instant-heating home appliances such as Water Dispenser, Water Purifier, Coffee Maker, Dishwasher, etc.
We cooperate with our clients to do R&D work, to provide customized heating solutions.
Related Products

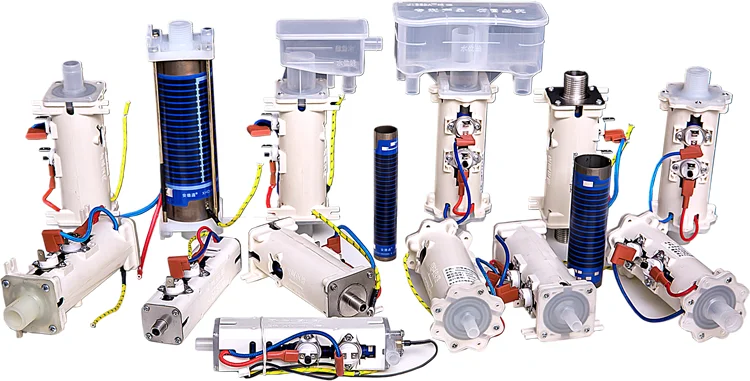

| Instant water heat tube | Instant water heat plate | Instant water heat element | The boiled water machine heat element |
Company Information
Jieda was founded in 2010, is a high-tech manufacturer that specializes in design, research, produce and sales rare-earth metal thick film electric heating tubes/elements.
What is Jieda advanced in?
1. More than 8 years experiences in thick film electric heating tubes.
2. Fully mastery of thick film tube surface screen printing and sintering technology.
3. First manufacturer to mass produce Thick Film Electric Heating Tube/Element in China
4. Available various solutions for fluid heating, especially for Instant Water Heating Home Appliances.
5. Monthly production capacity is up to 300,000 pcs.
What is Thick Film Heating Tube/Element advanced in?
1. The tubular structure makes it possible to instantly heat water flow inside tube.
2. It can work more than 10,000 hours, in case of no DRY HEATING.
3. The thermal transfer rate up to 98%.
4. Power density is up to 60w/cm².
5. Temperature ramp-up rate up to 80~150℃/S.
6. Boiling water (95℃) is available in 3 seconds around.
7. Simple & compact profile brings more possibility in new products R&D.
Those thick film heating tubes/elements are widely applied on Instant Hot Water Boiling, Instant Water Heater, Water Dispensers, Coffee Makers, Electric Faucets, Steam Generator, Air-Flow Heater, Floor Heating, Industrial Water Flow Heating, etc. It can reduce energy consumption, increase energy utilization and save space.
FAQ
Q: What's Thick Film Heating Element? A: Thick Film Heater is a new technical art which is use screen printing technology and new thick film material. It is printed with isolation dielectric, heating element and glass prevent on a substrate that is made by stainless steel, and through drying firing process with 800°C. Thick Film Heater has become a new type of heater. |
Q: What’s the advantages of Jieda Thick Film Heating Element? to heat continuous water flow without water tank. Smaller size: power density is up to 60W/CM². Faster heating: temperature rise is up to 150℃/s. |
Q: What's the lifespan of Thick Film Heating Tube / Thick Film Heating Element? |
Q: What's the inlet and outlet diameter? Thick Film Heating Element : Available with Ø10mm, Ø16mm and G1/2 OD20.9mm |
Q: Can I DIY it for personal use by myself? A: Our Products are mainly used as heating spare parts for water heaters in mass production,not recommended for personal DIY. |
Q: Can the Thick Film be applied to copper Pipe or aluminum Pipe? A: It can not be applied on copper pipe, but can work on aluminum pipe. |
Q: How to get the suitable model for our application? and other special requirements, to recommend the suitable Thick Film Heating Elements. |
Q: What's the operation attentions? 2. Please install it vertically, make sure water flow direction from bottom to top, to prevent DRY HEATING. 3. Set the minimum flow rate according to tubes' power, ensure smooth flowing of water, to prevent vaporizing and dry heating. 4. Make sure reliable grounding. |
