Analog pointer smart differential pressure monitor and controller and transmitter

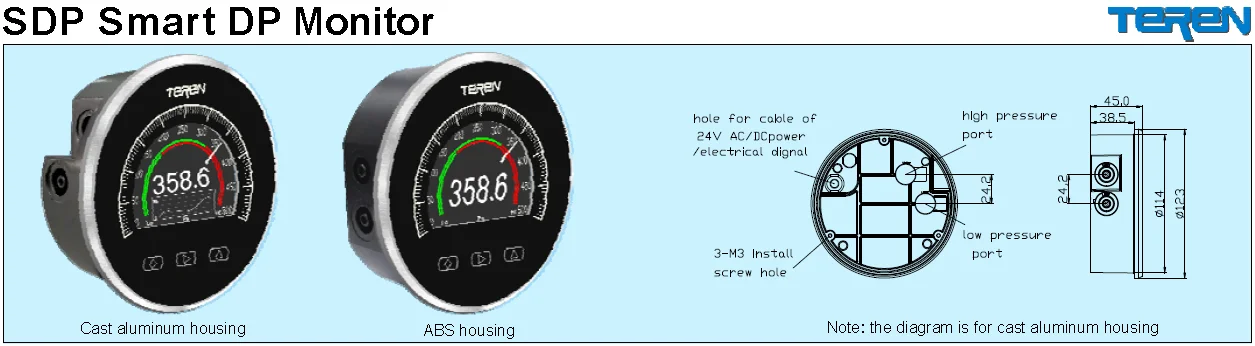

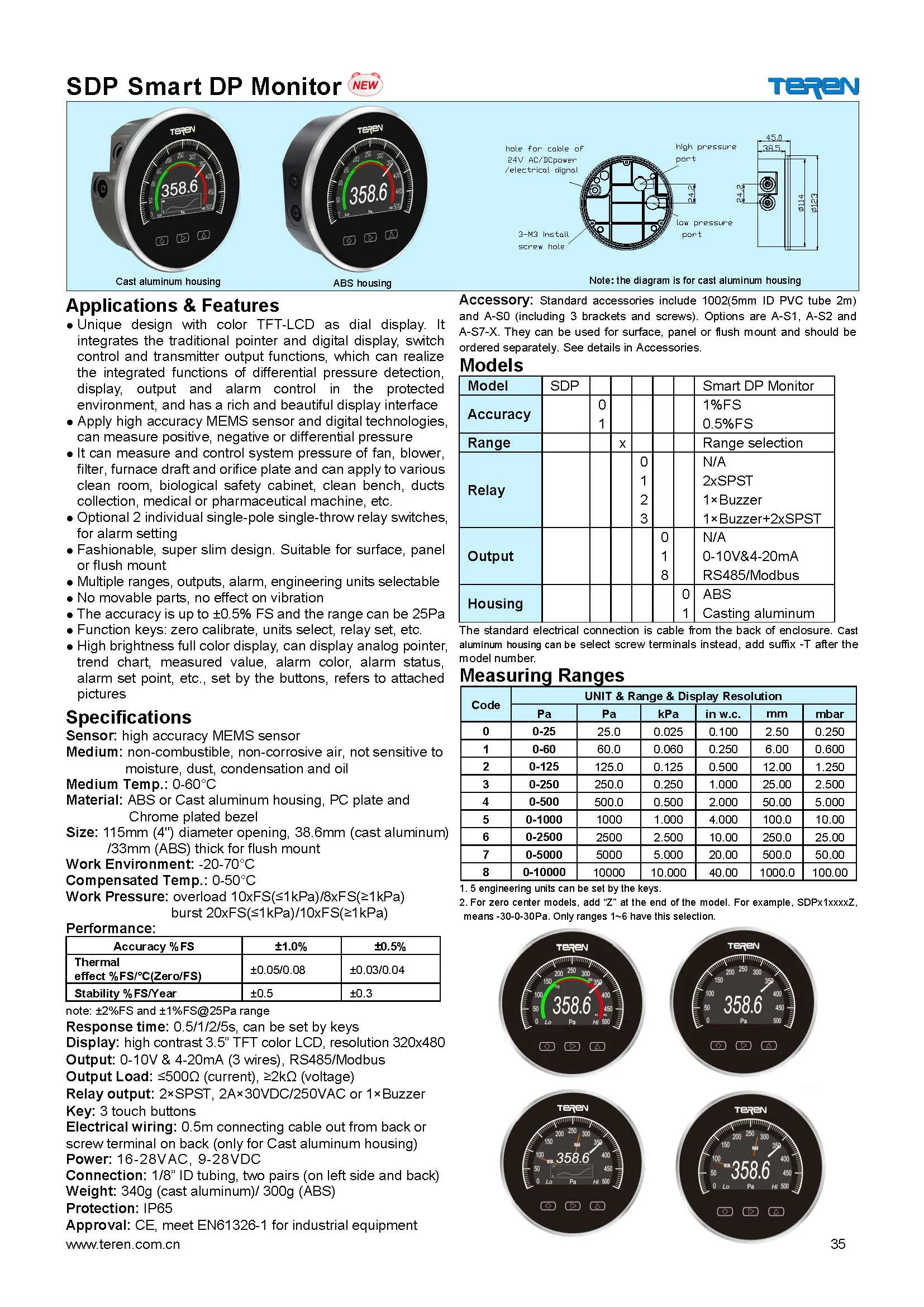

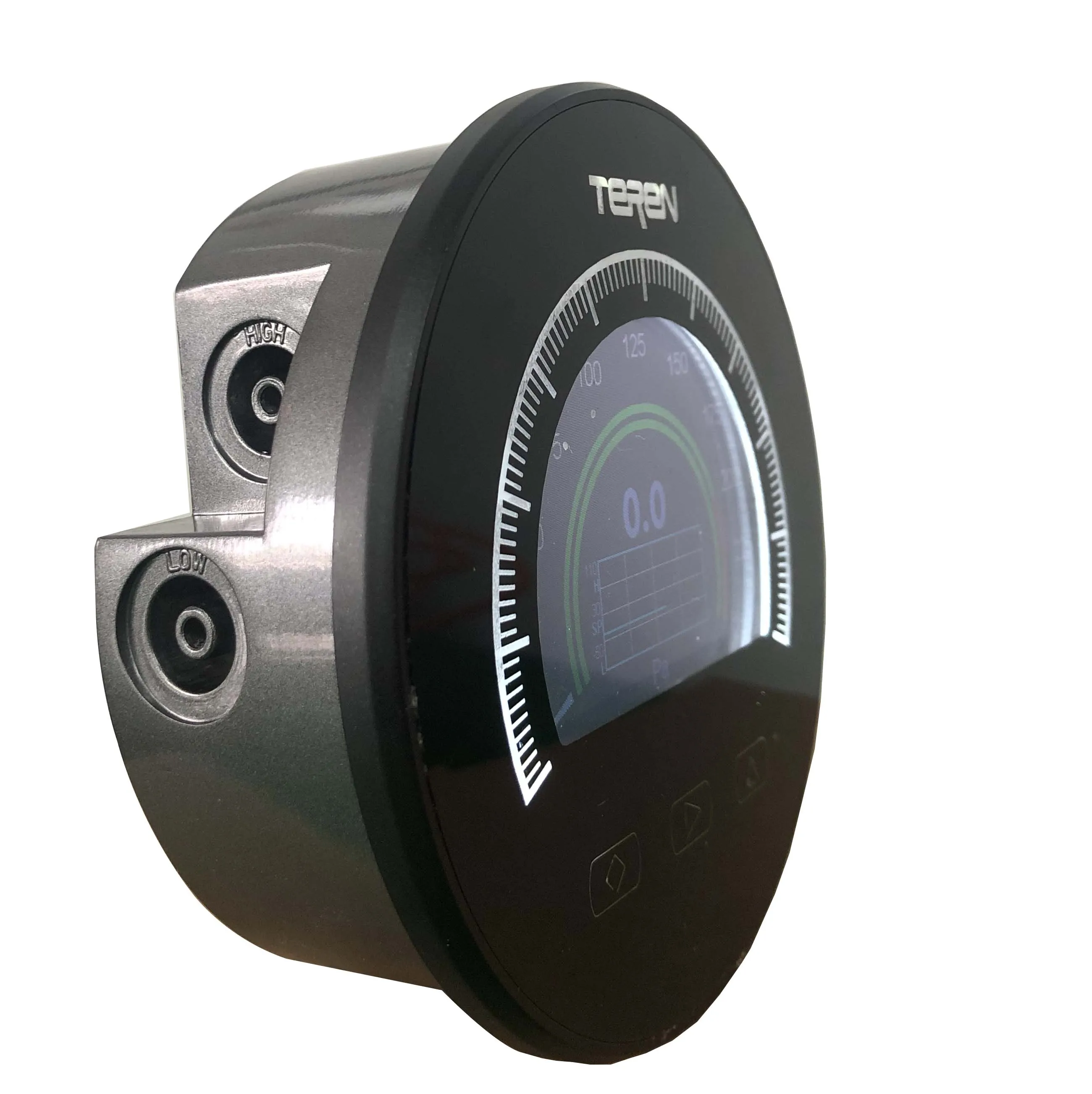

TEREN smart differential pressure monitor and controller and transmitter with buzzer alarm

Applications & Features

l Unique design with color TFT-LCD as dial display. It integrates the traditional pointer and digital display, switch control and transmitter output functions, which can realize the integrated functions of differential pressure detection, display, output and alarm control in the protected environment, and has a rich and beautiful display interface

l Apply high accuracy MEMS sensor and digital technologies, can measure positive, negative or differential pressure

l It can measure and control system pressure of fan, blower, filter, furnace draft and orifice plate and can apply to various clean room, biological safety cabinet, clean bench, ducts collection, medical or pharmaceutical machine, etc.

l Optional 2 individual SPST relays for alarm setting

l Fashionable, super slim design. Suitable for surface, panel or flush mount

l Multiple ranges, outputs, alarm, engineering units selectable

l No movable parts, no effect on vibration

l The accuracy is up to ±0.5% FS and the range can be 25Pa

l Function keys: zero calibrate, units select, relay set, etc.

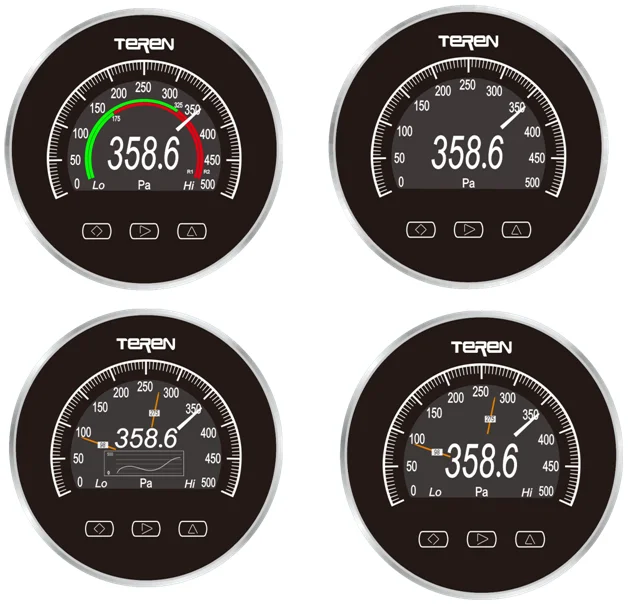

l High brightness color display, can display analog pointer, trend chart, measured value, alarm color, alarm status, alarm set point, etc., set by the buttons, refers to attached pictures

Specifications

Sensor: high accuracy MEMS sensor

Medium: non-combustible, non-corrosive air, not sensitive to moisture, dust, condensation and oil

Medium Temp.: 0-60°C

Material: ABS or Cast aluminum housing, PC plate and

         Chrome plated bezel

Size: Φ115mm opening, 38.5mm (cast aluminum) or 33mm (ABS) thick for flush mount

Work Environment: -20-70°C

Compensated Temp.: 0-50°C

Work Pressure: overload 10xFS(≤1kPa)/8xFS(≥1kPa)

               burst 20xFS(≤1kPa)/10xFS(≥1kPa)

Performance:

note: ±2%FS and ±1%FS@25Pa range

Response time: 0.5/1/2/5s, can be set by keys

Display: high contrast 3.5” TFT color LCD, resolution 320x480

Output: 0-10V & 4-20mA (3 wires), RS485/Modbus

Output Load: ≤500Ω (current), ≥2kΩ (voltage)

Relay output: 2×SPST, 2A×30VDC/250VAC or 1×Buzzer

Key: 3 touch buttons

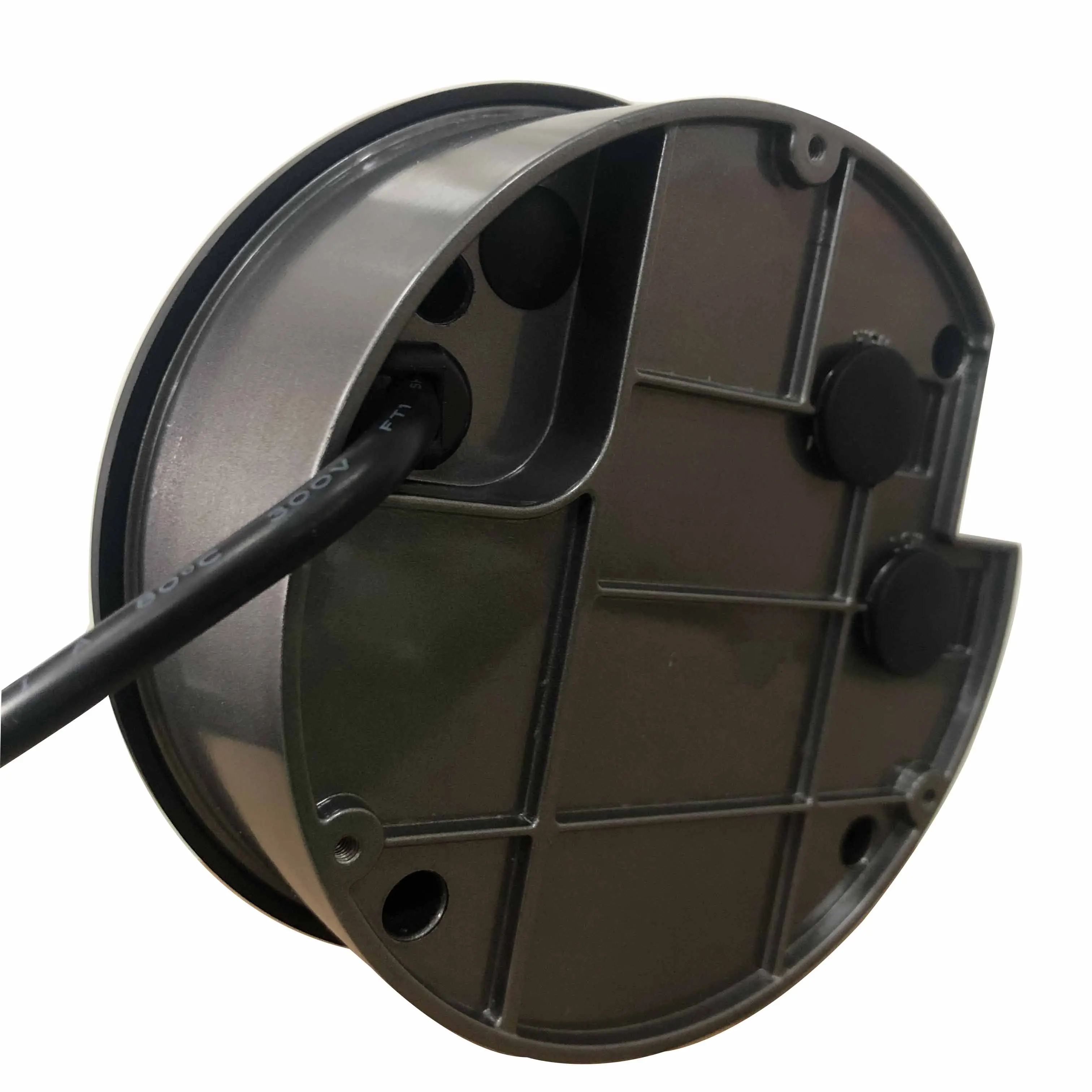

Electrical wiring: 0.5m cable from back or screw terminal on back (only for Cast aluminum housing)

Power: 16-28VAC, 9-28VDC

Connection: 1/8” ID tubing, two pairs (on left side and back)

Weight: 515g (cast aluminum)/400g (ABS)

Protection: IP65

Approval: CE, meet EN61326-1 for industrial equipment

Accessory: Standard accessories include 1002(5mm ID PVC tube 2m) and A-S0 (including 3 brackets and screws). Options are A-S1, A-S2 and A-S7-X. They can be used for surface, panel or flush mount and should be ordered separately. See details in Accessories.

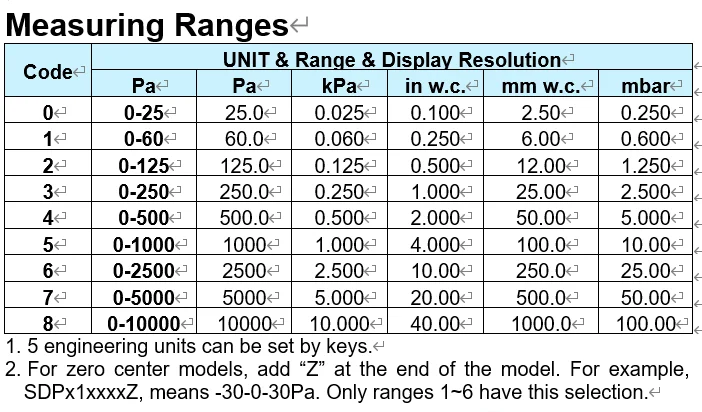

Models

The standard electrical connection is cable from the back. Cast aluminum housing can be screw terminals instead, add suffix -T after the model number.
