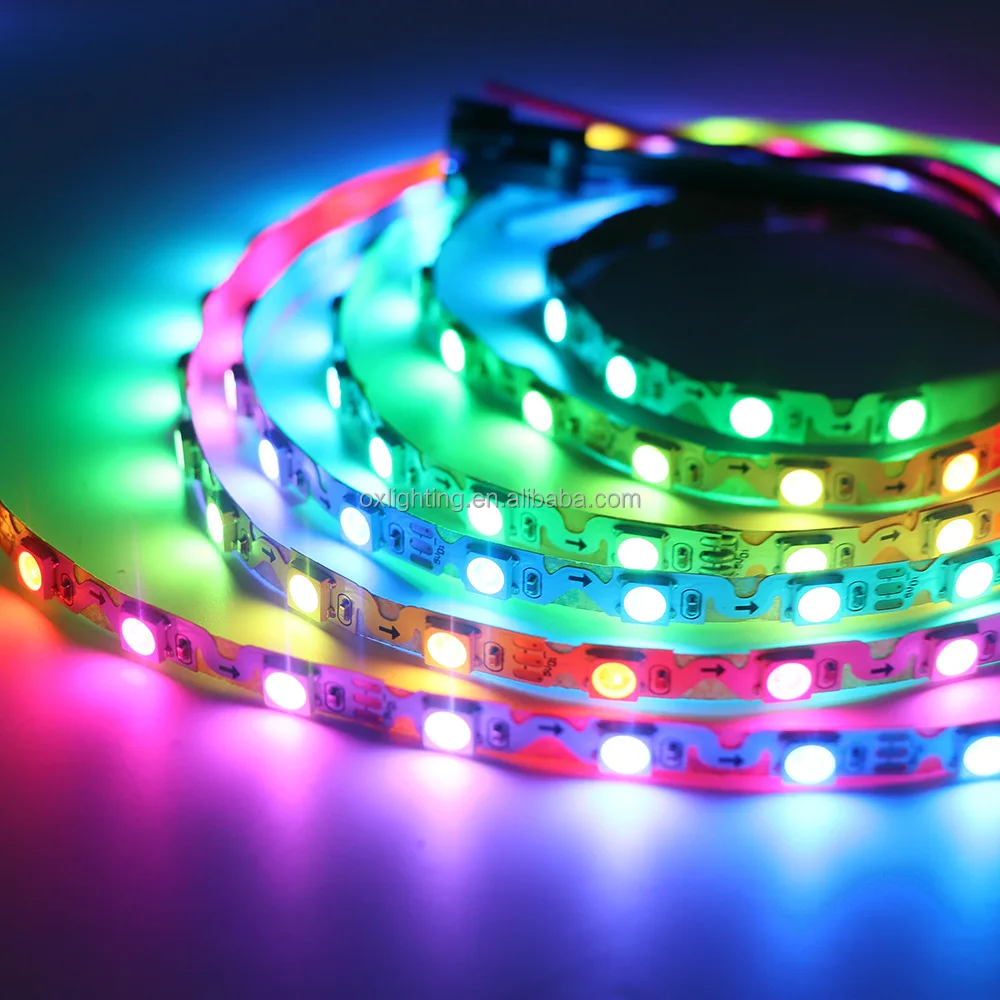

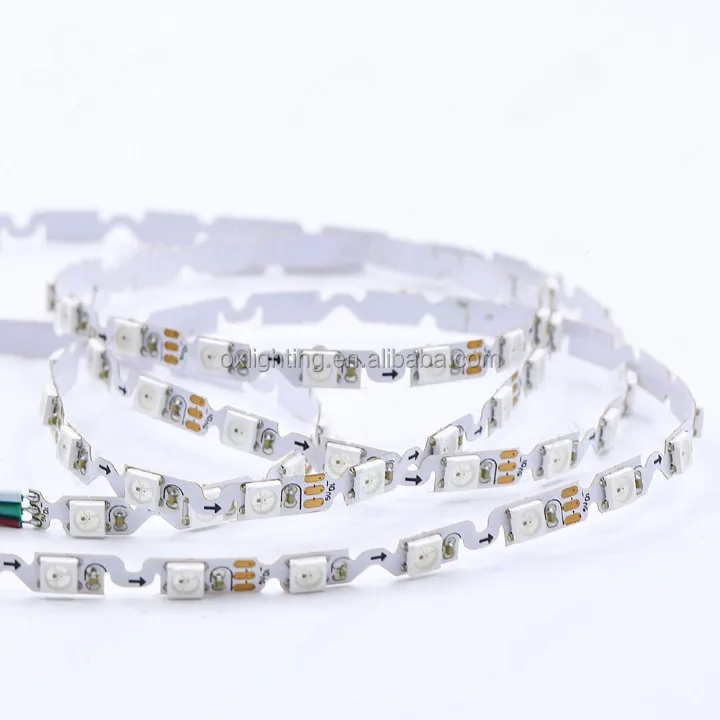

Full Color S LED Strip WS2812B 60LED DIY 5V 12v WS2812 6MM SPI Addressable Digital Bendable Zigzag RGBIC RGB LED Strip Letter
- Category: >>>
- Supplier: Shenzhen OX Lighting Tech. Co. Ltd.
Share on (1600960813565):
Product Overview
Description
Specification
Waterproof IP65 /IP20 LED Strip 5050
2. White PCB and black PCB optional .
3. It comes in 5 meters per reel with 3Pin female/male JST SM connector on both end and separated Power / Ground Wires .
Customized length is workable .

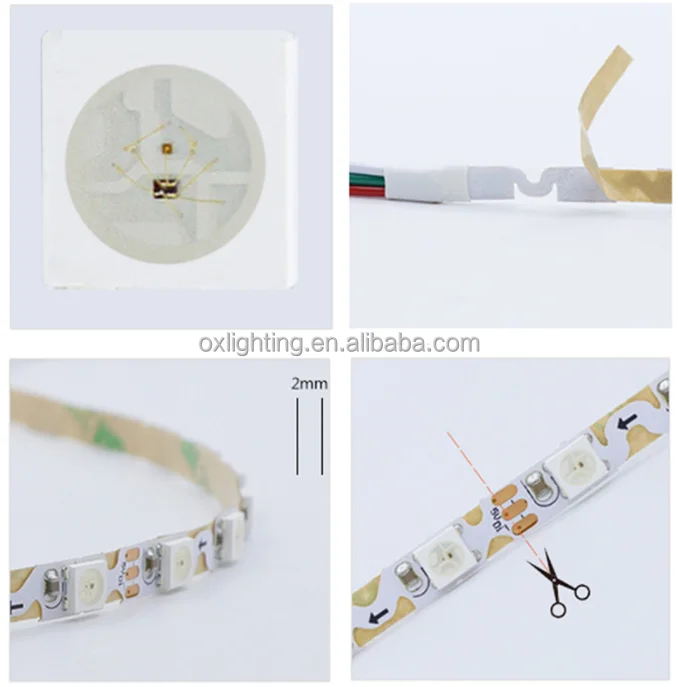

4. Flexible PCB material . Each LED/Pixel can be cut , there is cut lines every 16.7mm.
5. 60LEDs/M . 5V low voltage inputted , don’t over 6V , otherwise you will destroy the entire strip .
6. 10mm width PCB , 0.25mm thickness with 3M tape back side for non-weatherproof version . 12.5mm width , 4mm thick with silicon
tube for waterproof type .
7. It is only Date Pin for signal transfer , no Clock Pin .
8. Controller System:SD controller , DMX controller , Artnet and so on .
Name | S WS2812 rgb led strip |
LED Light Source | 5050 SMD |
Temperature Color | RGBIC |
Color Renering Index | 80 |

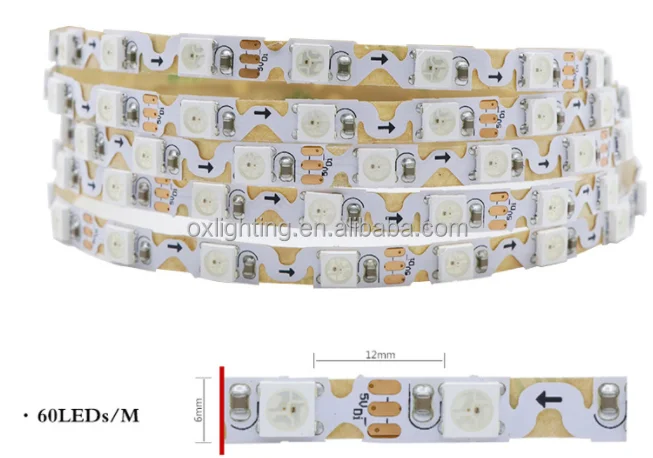

LED Quantity | 60LEDS/M |
Voltage | 5V |
LED Chip | Sanan Brand |
Real Walt per meter | 14w/m |
Light Efficiency | 80lm/w |
PCB Width & Thinkness | 10mm width,2OZ |
IP Rating | IP20 ,,ip65,ip67,IP68 |
Dimmable | Yes,(support all dimmer in the market) |
Cetification | CE & EMC & LVD & RoHS |
Warrangy | 3 years |
Cutting Unit | 5cm/cut |
Beam angle | 180 degree |
Sticker | Strong blue sticker at black |
Application | Indoor lighting(homes, offices, shops, restaurants) Commercial lighting :malls, exhibition halls, supermarkets |
Package | 5M/Rolls OR ,10m/rolls 24v (100m one rolls,support).one rolls into the bag. |
Product Description

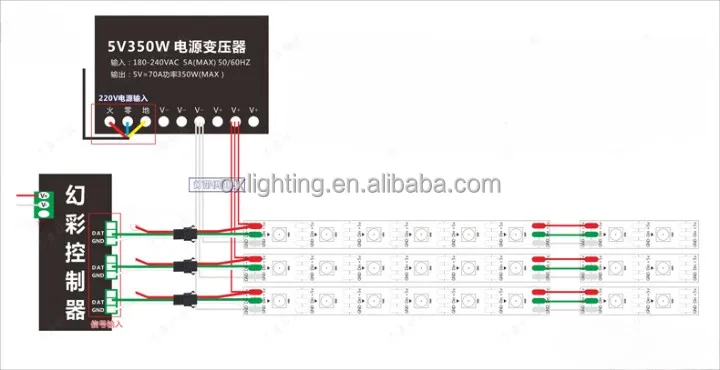

Installation Process

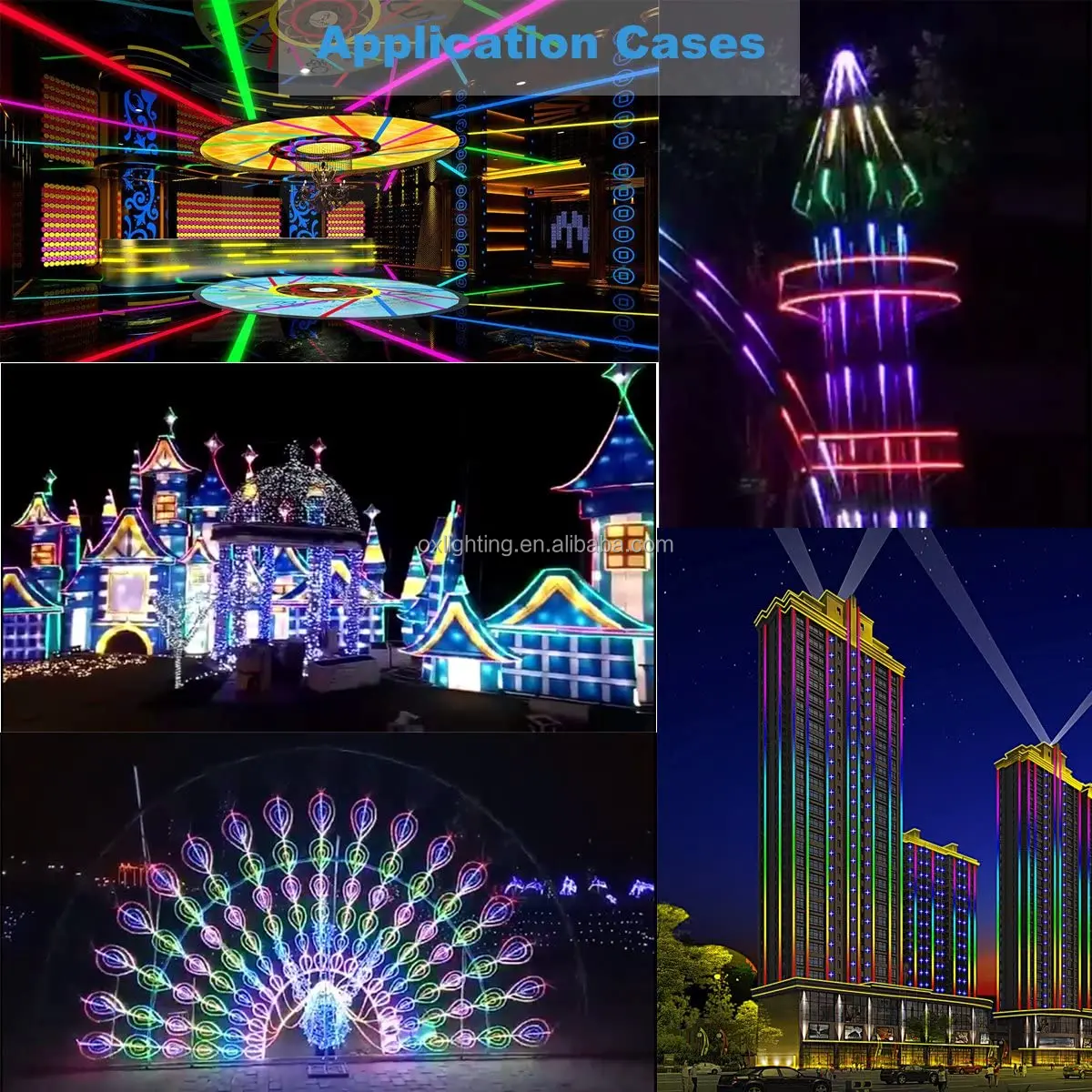

Applications
