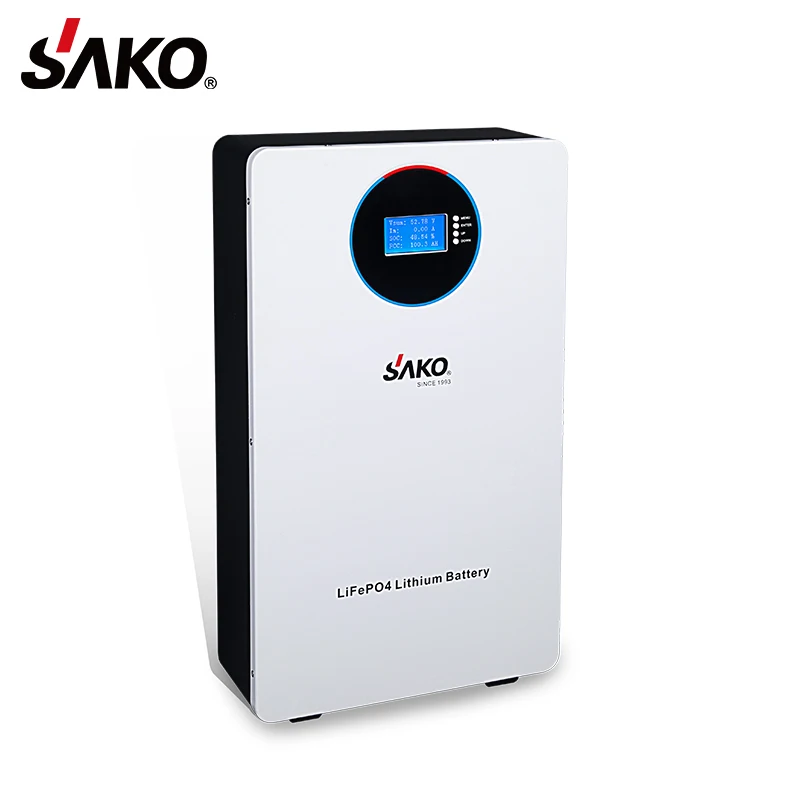

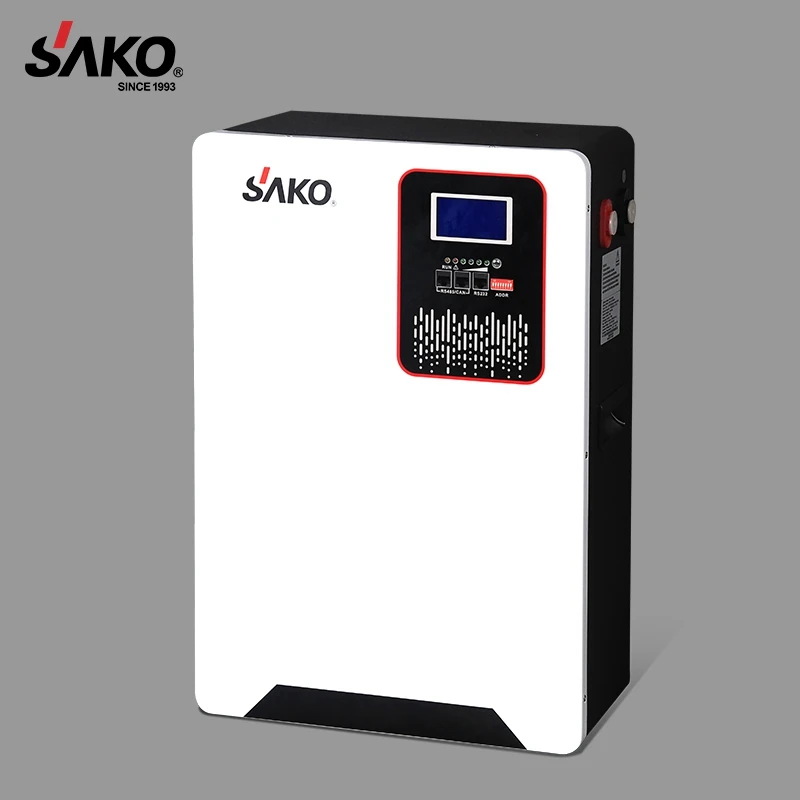

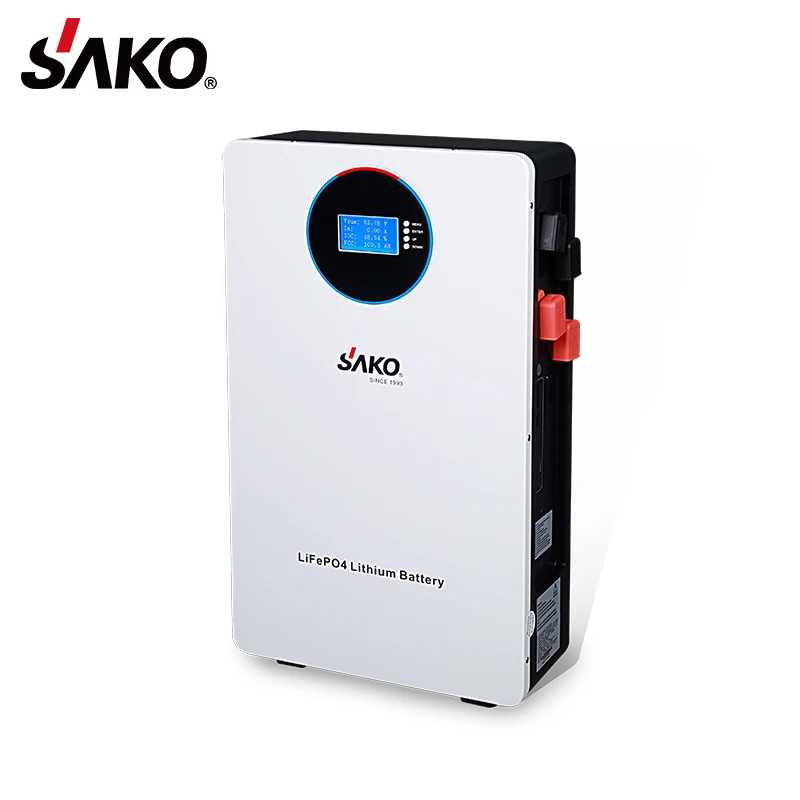

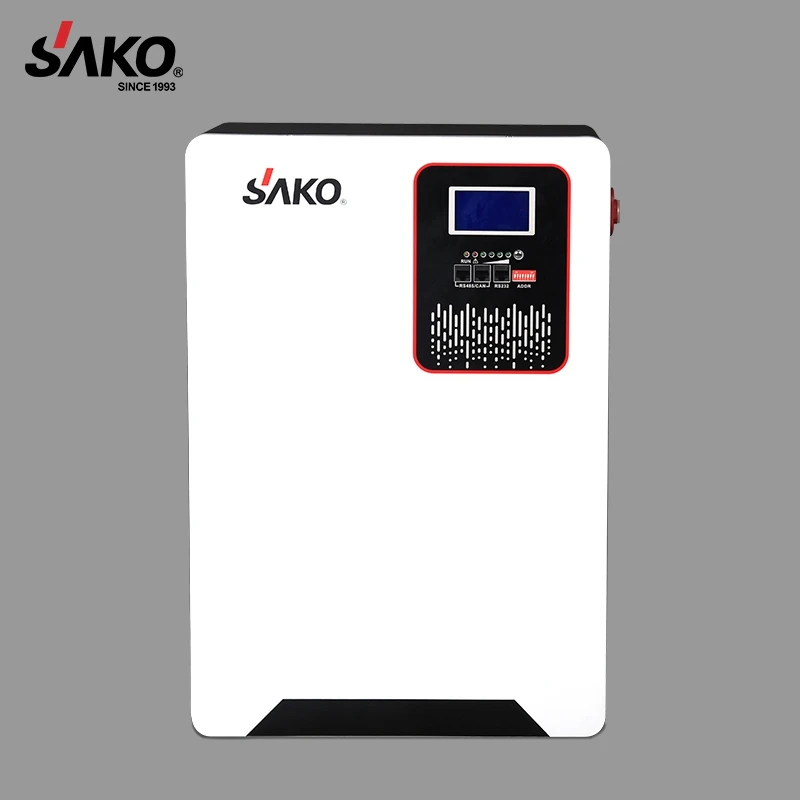

Shenzhen Sako 5Kw 10Kwh Solar Batteries Lithium Ion Phosphate 48 Volts 100Ah 48V Lifepo4 Battery 200Ah Manufacturer In China
- Category: >>>
- Supplier: Shenzhen Sako Solar Co. Ltd.
Share on (1600960824286):
Product Overview
Description
Products Description
CATL new cells , A quality
6000 cells cycle times, 5 years warranty, 10+ years life design
Power wall design, space saving design
High density, small size and weight
Big charge/discharge current up to 100A/200A, suitable for solar storage system
Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
LCD display with communication port(CAN/RS485/RS232) .
All around protection
6000 cells cycle times, 5 years warranty, 10+ years life design
Power wall design, space saving design
High density, small size and weight
Big charge/discharge current up to 100A/200A, suitable for solar storage system
Optional smart BMS can communicate with Different Brand of Hybrid Solar Inverter
LCD display with communication port(CAN/RS485/RS232) .
All around protection
MODEL | SK-25.6V200Ah Li-Sun series | SK-25.6V300Ah Li-Sun series | SK-51.2V100Ah Li-Sun series | SK-51.2V200Ah Li-Sun series | ||||||||||||
SPECIFICATION | ||||||||||||||||
Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | ||||||||||||
Total Energy | 5120Wh | 7680Wh | 5120Wh | 10240Wh | ||||||||||||
Usable Energy(90%DOD) | 4608Wh | 6912Wh | 4608Wh | 9216Wh | ||||||||||||
Voltage window | 22.4～29.2V | 22.4～29.2V | 44.8～58.4V | 44.8～58.4V | ||||||||||||
Fast Charge Voltage | 28.8V | 28.8V | 57.6V | 57.6V | ||||||||||||
Folat Charge Voltage | 28.0V | 28.0V | 56.0V | 56.0V | ||||||||||||
Low DC Cut-off Voltage | 23.4V | 23.4V | 46.8V | 46.8V | ||||||||||||
Max.continue discharge current | 100A | 100A | 100A | 100A | ||||||||||||
Max.pulse discharge current | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | 150A 1Sec. | ||||||||||||
Max.continue charge current | 100A | 100A | 50A | 100A | ||||||||||||
Scalable | 1~15 in parallel | |||||||||||||||
Communication | RS485 | CAN,RS485 | ||||||||||||||
Cycle life | ＞6000 Cycles@(+25℃,0.5C,90%DOD,60%EOL) | |||||||||||||||
Terminal | double M8 | |||||||||||||||
Storage temperature | 0℃～30℃ | |||||||||||||||
Storage duration | 6 months at 25℃ | |||||||||||||||
Safety standard | UN38.3,MSDS | |||||||||||||||
IP degree | IP20 | |||||||||||||||
PROTECTION | ||||||||||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、Shortcircuit protection、Overtemperature protection | |||||||||||||||
AMBIENT | ||||||||||||||||
working Temperature | -10℃～+50℃ | |||||||||||||||
Humidity | 0~95% ( no condensation) | |||||||||||||||
DIMENSION | ||||||||||||||||
L×W×H (products size) mm | 641*389*179mm | 691*455*189mm | 641*389*179mm | 850*560*179mm | ||||||||||||
L×W×H (package size) mm | 684*440*240mm(UN carton) | 734*515*247mm(UN carton) | 684*440*240mm(UN carton) | 898*635*265mm(UN wooden cases) | ||||||||||||
Weight(NW Kg) | 44.5Kg | 62.0Kg | 44.5Kg | 86.5Kg | ||||||||||||
Weight(GW Kg) | 48.0Kg | 66.0Kg | 48.0Kg | 101.5Kg | ||||||||||||
20FT QTY( UNIT) | ||||||||||||||||
Why Choose Us
For the past 30 years, SAKO has been engaged in the production of various solar energy products,To meet purchasing demands and
provide swift customer assistance，We have established warehouses and after-sales service centers in key global regions.
Solar Inverter Factory
Lithium Battery Factory
Solar Panel Factory
Certifications

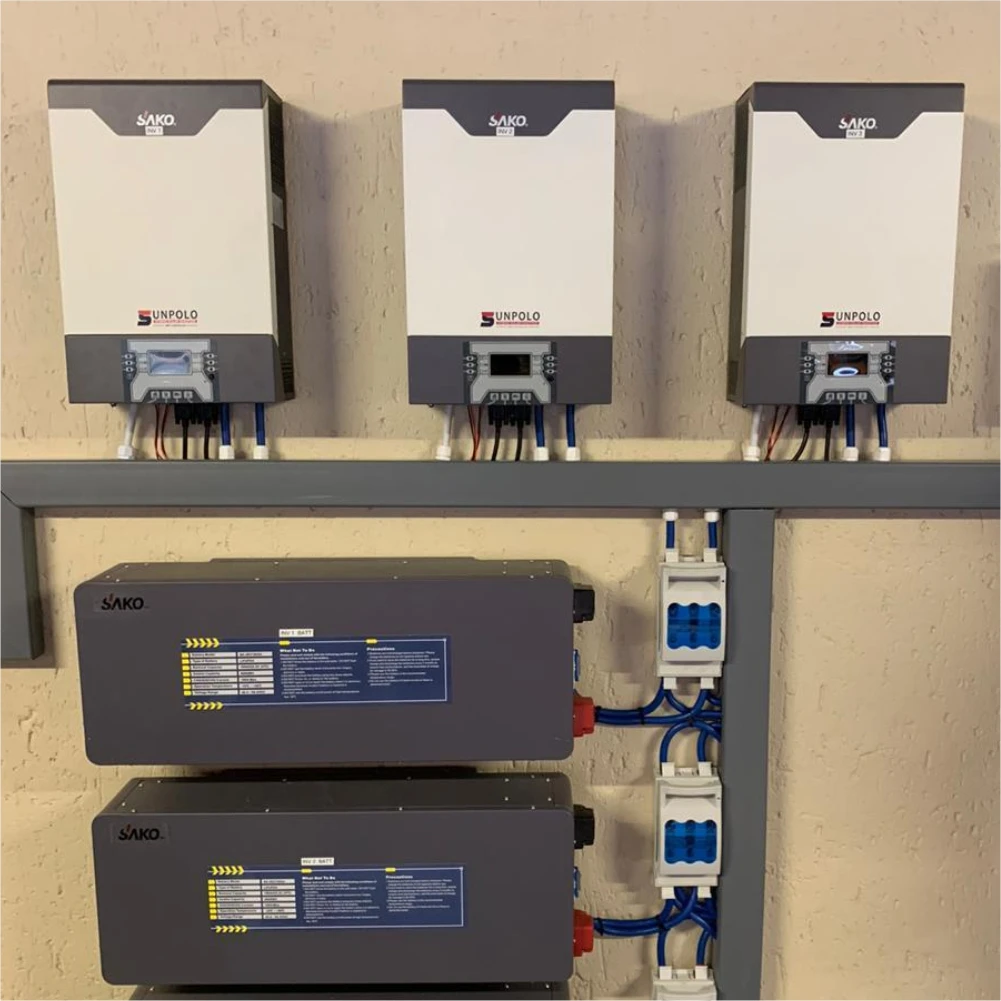

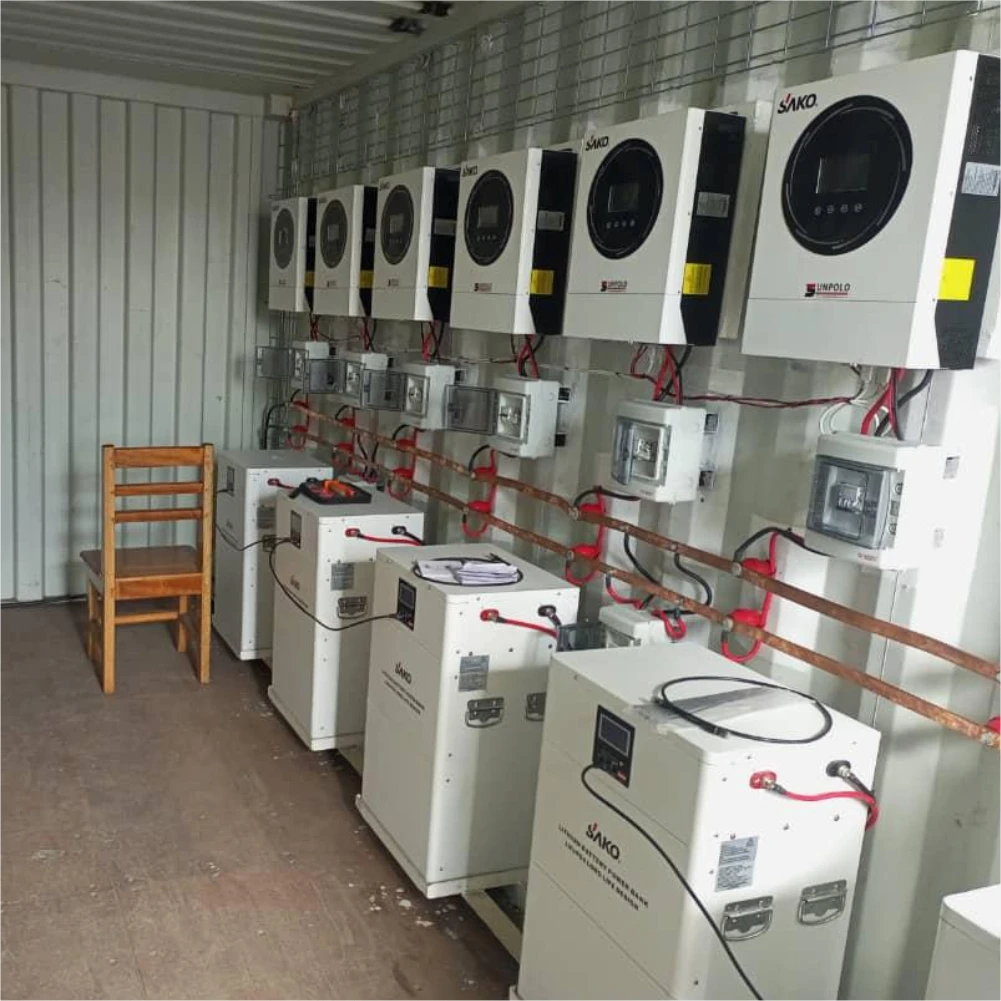

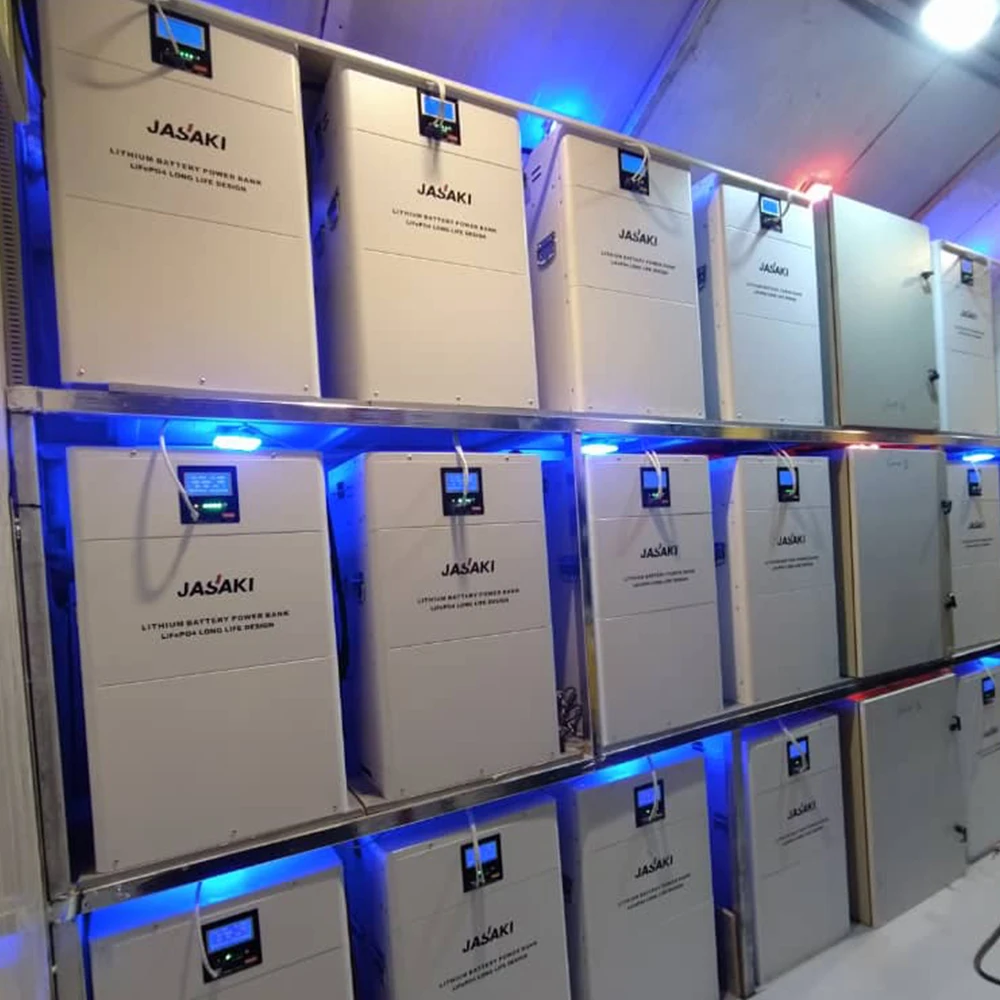

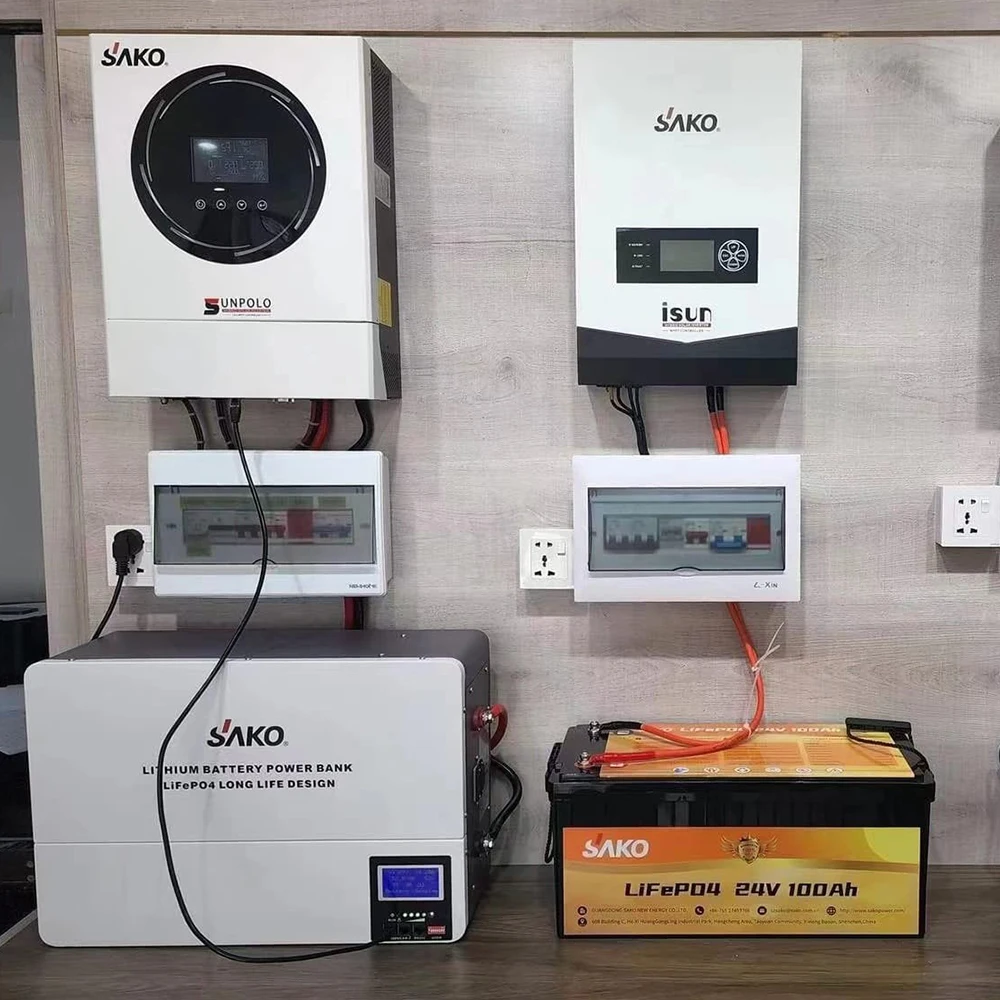

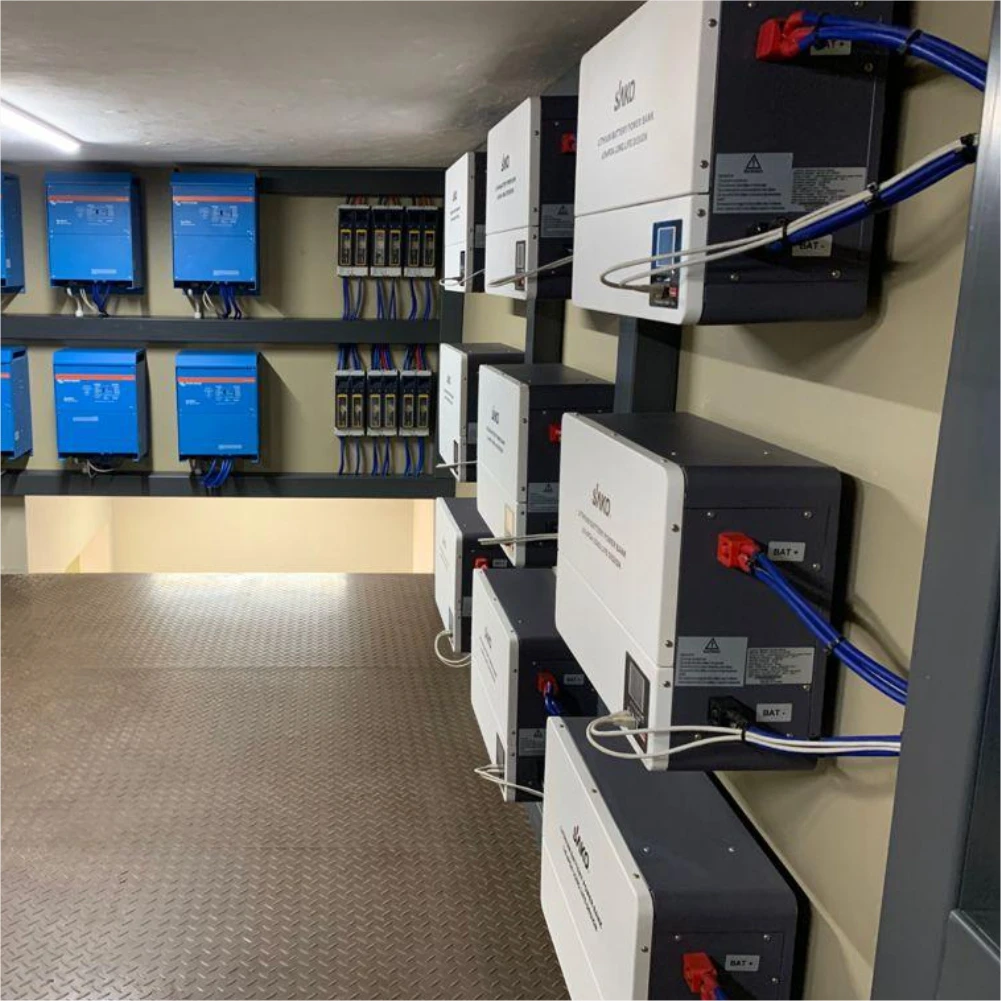

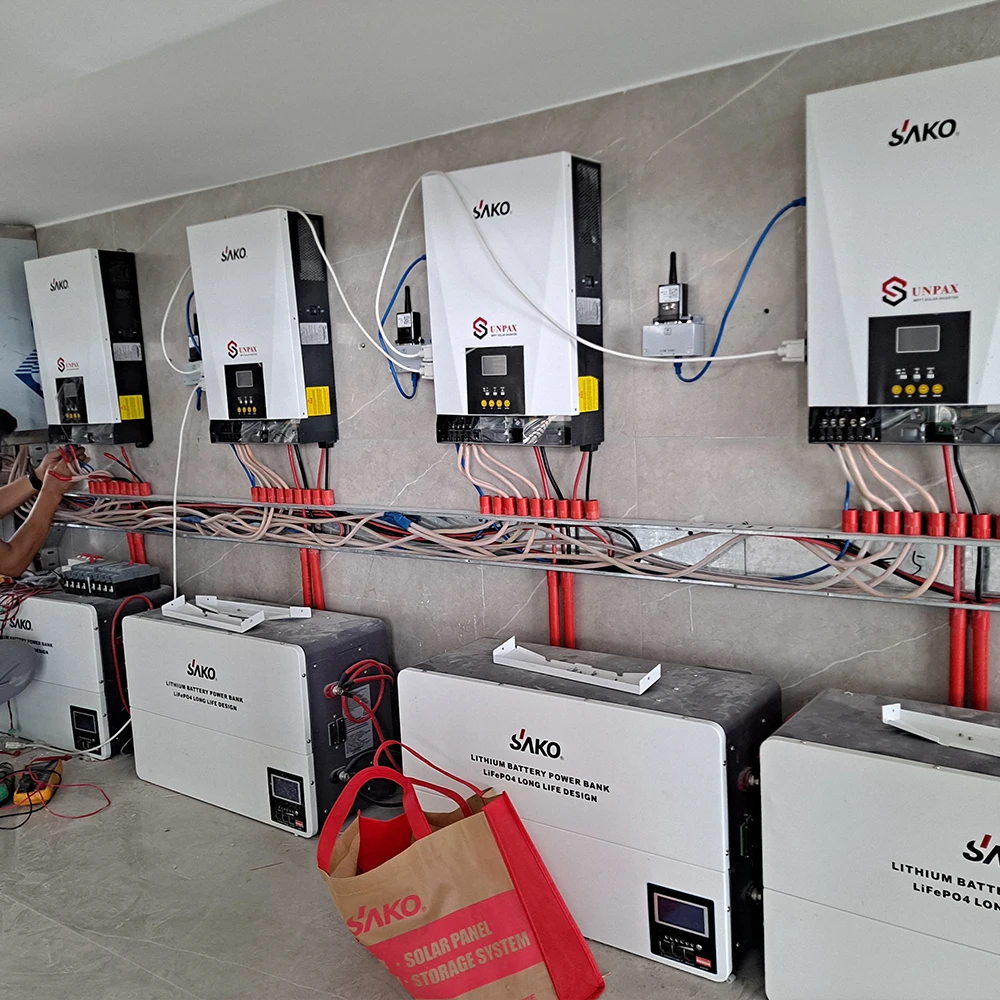

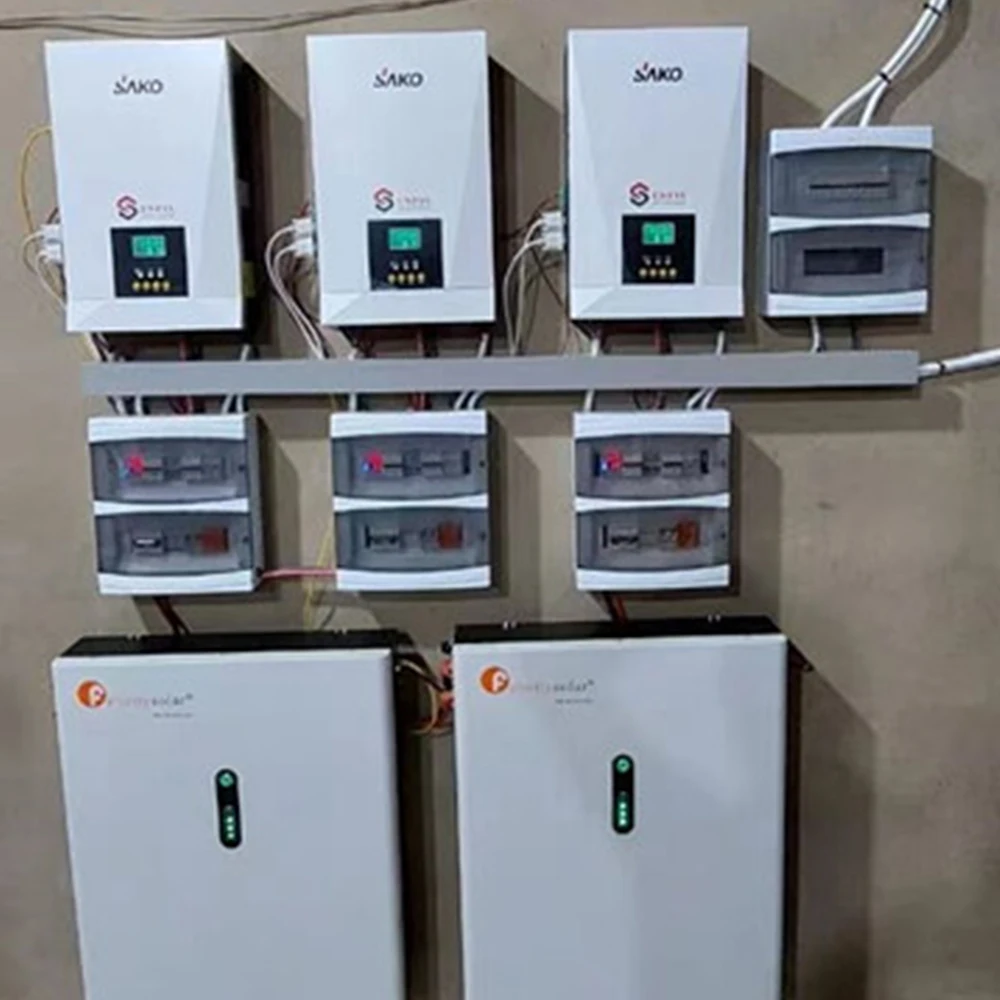

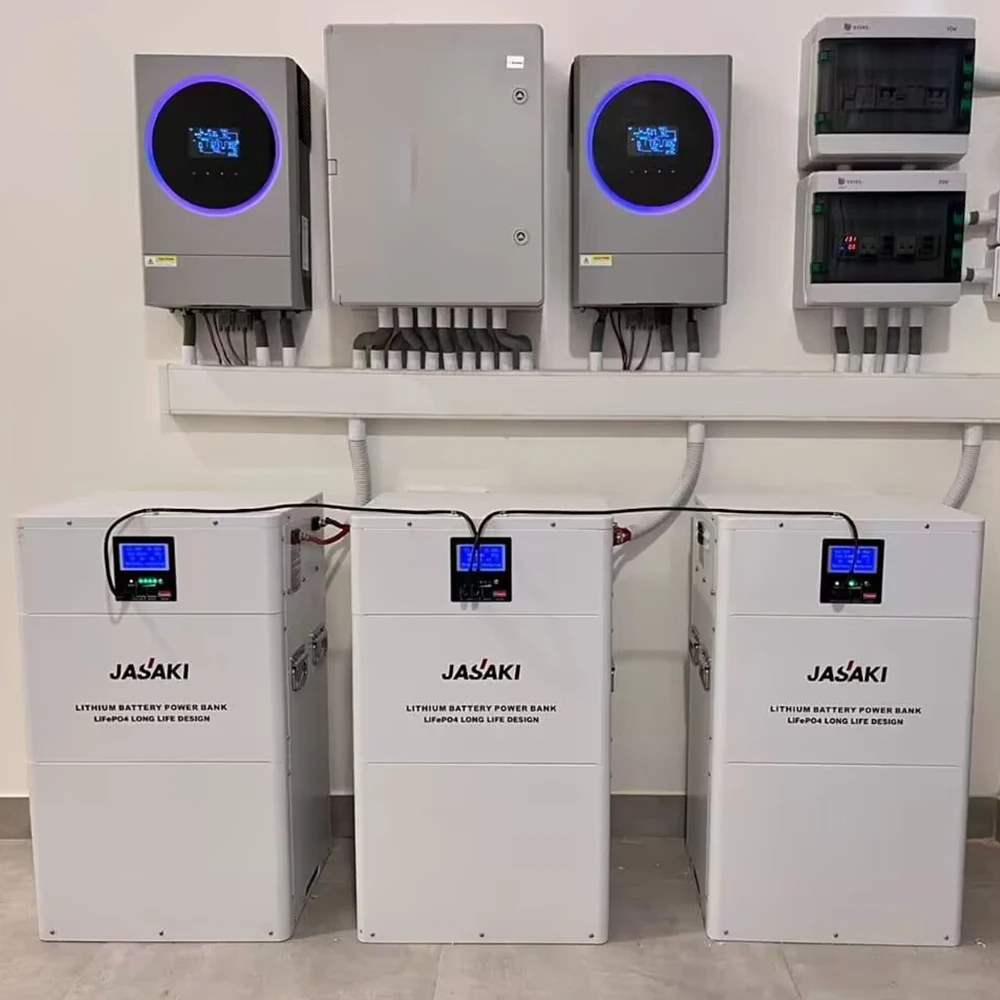

Our Projects

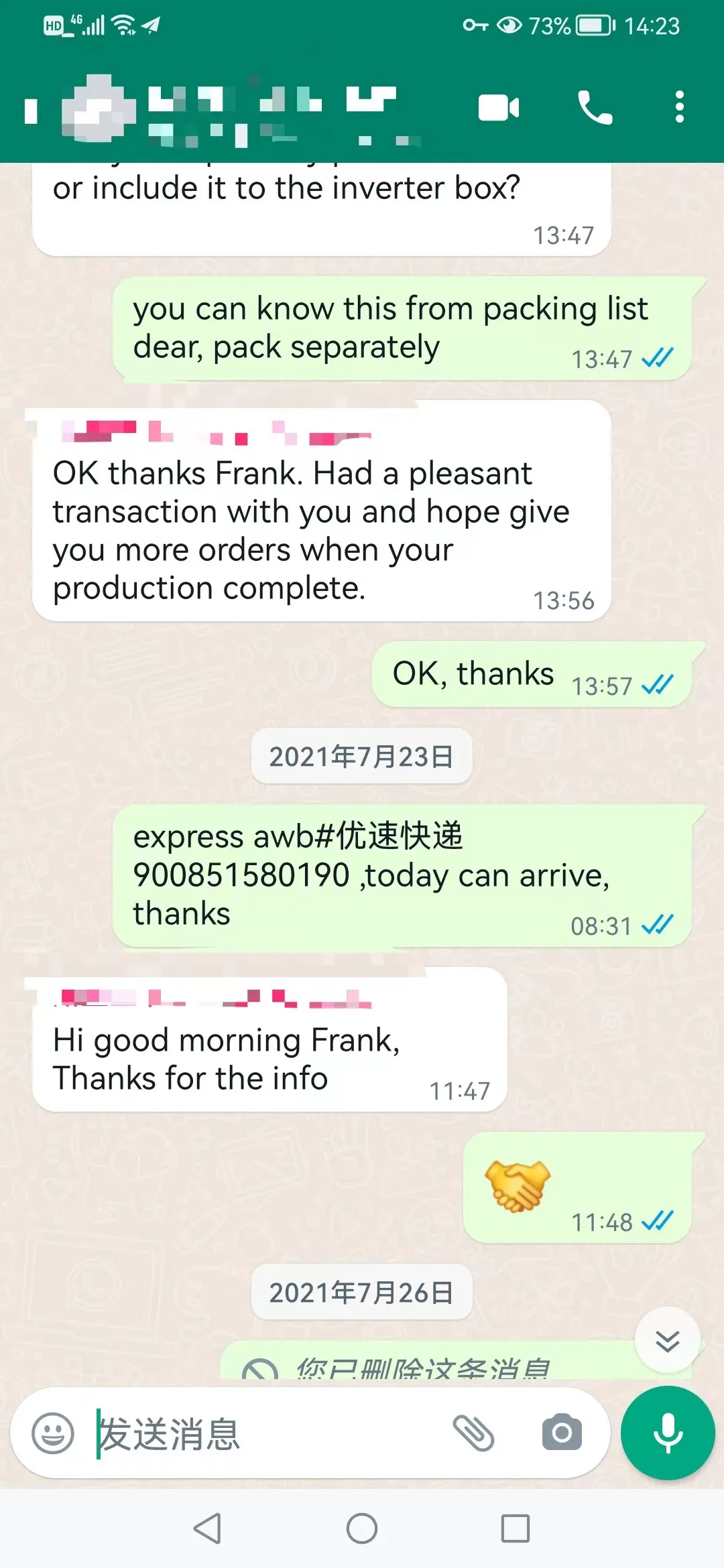

Customer reviews
