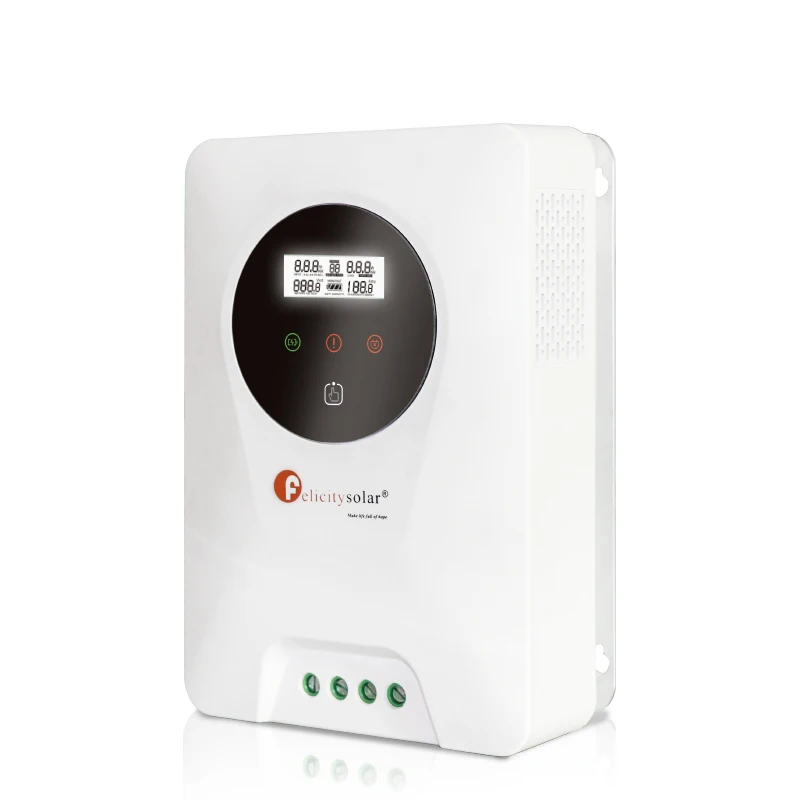

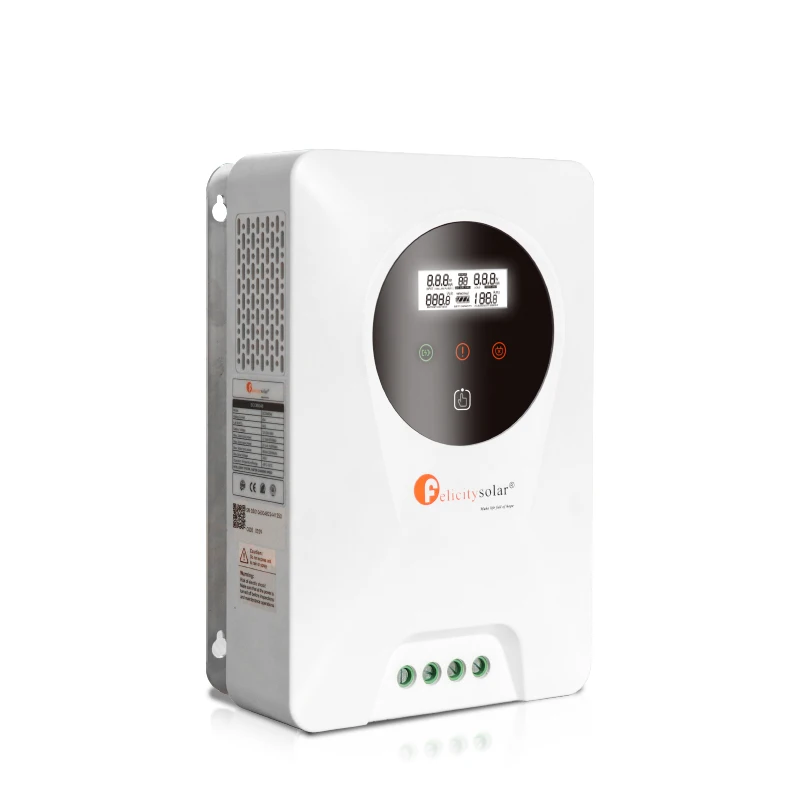

MPPT Regulator 30a 45a 60a 80a 100a 120a Mppt Charge Controller Inverter Charger With Wifi Optional
- Category: >>>
- Supplier: Guangzhou Felicity Solar Technology Co. Ltd.Guangzhou Ltd.
Share on (1600960851289):
Product Overview
Description
MODEL | SCCM3024 | SCCM4524 | SCCM4548 | SCCM6048 | SCCM8048 | SCCM10048 | SCCM12048 | |||||||
Maximum Battery Current | 30Amps | 45Amps | 45Amps | 60Amps | 80Amps | 100Amps | 120Amps | |||||||
Nominal System Voltage | 12 ,24VDC(Auto detection) | 12V, 24V, 48V DC (Auto detection) | ||||||||||||
Maximum Solar Input Voltage | 95V | 145V | 195V | |||||||||||
PV Start-up Voltage | 15V | |||||||||||||
PV Array MPPT Voltage Range | 12VDC / 24VDC | 12VDC /2 4 VDC / 48VDC | ||||||||||||
15-80VDC /30-80VDC | 15-130VDC / 30-130VDC 60-130VDC | 15-170VDC / 30-170VDC 60-170VDC | ||||||||||||
Maximum Input Power | 12V-420W | 12V-625W | 12V-625W | 12V-825W | 12V-1100W | 12V-1375W | 12V-1650W | |||||||
24V-830W | 24V-1250W | 24V-1250W | 24V-1650W | 24V-2200W | 24V- 2750W | 24V -3300W | ||||||||
/ | / | 48V-2500W | 48V-3300W | 48V-4400W | 48V - 5500W | 48V - 6600W | ||||||||
Transient Surge Protection | 4500 Watts / port | |||||||||||||

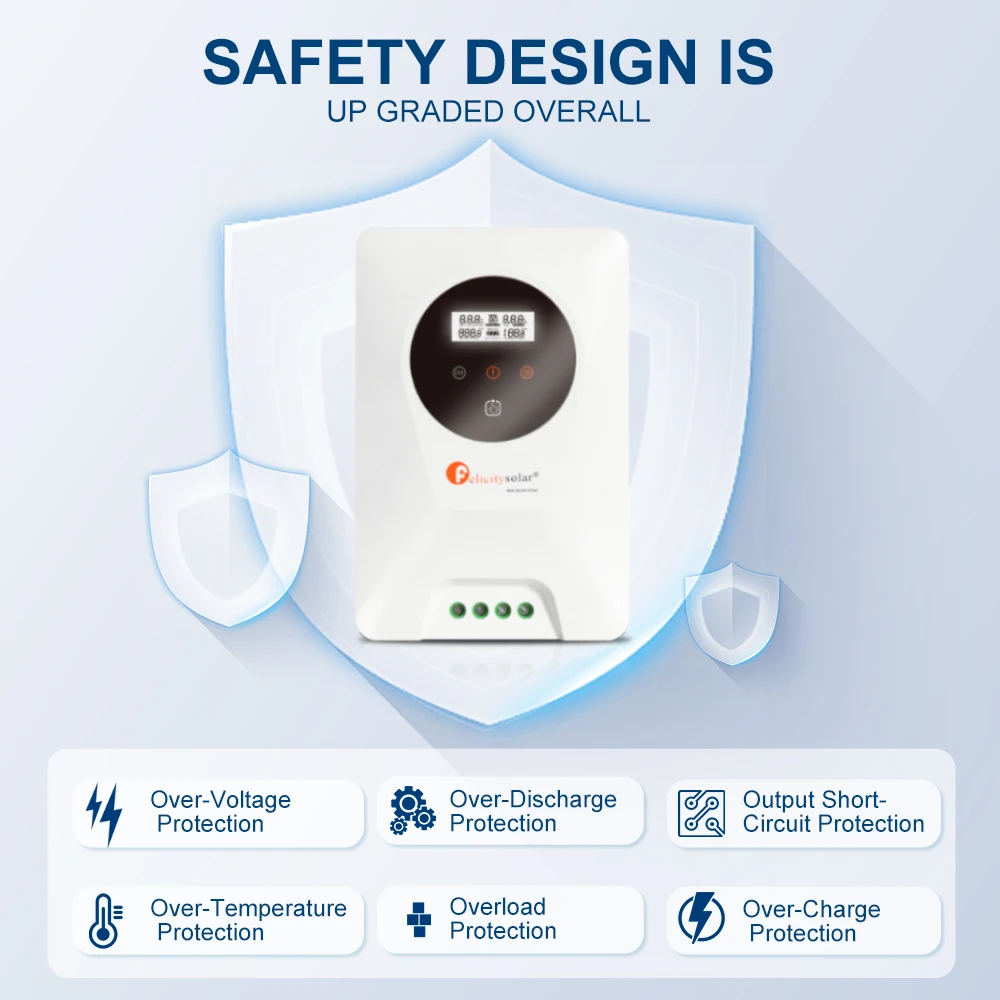

Protections | Solar high voltage disconnect Solar high voltage reconnect Battery high voltage disconnect Battery high voltage reconnect High temperature disconnect High temperature reconnect | |||||||||||||
Charging Algorithm | 3-Step | |||||||||||||
Charging stages | Bulk, Absorption, Float | |||||||||||||
Temperature compensation coefficient | -5 mV / °C / cell (25 °C ref.) | |||||||||||||
Temperature compensation range | 0 °C to +5 0 °C | |||||||||||||
Mechanical and Environment | ||||||||||||||
Product Size (WxHxD,mm) | 190x151x74 | 205x160x78 | 283x160x105 | 283x180x105 | 333x215x120 | |||||||||
Product Weight(Kg) | 1.2Kg | 1.8Kg | 4.0Kg | 5.1 Kg | 6.4Kg | 7.0Kg | ||||||||
Ambient Temperature Range | 0°C to +55°C | |||||||||||||
Storage Temperature | - 40°C to 75°C | |||||||||||||
Humidity | 0%-90%RH(No condensing) | |||||||||||||
Endosure | IP31(indoor&vented) | |||||||||||||

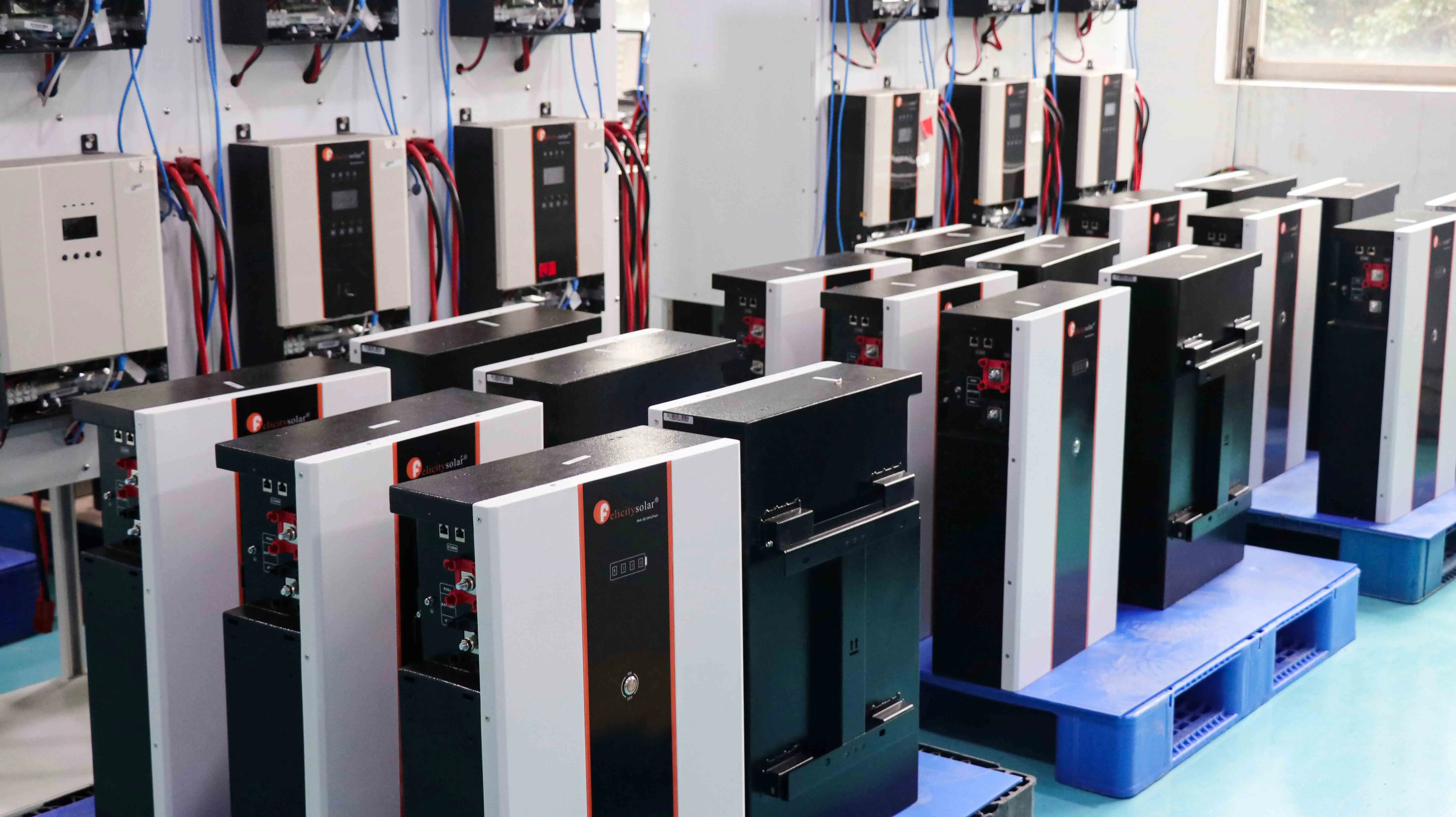

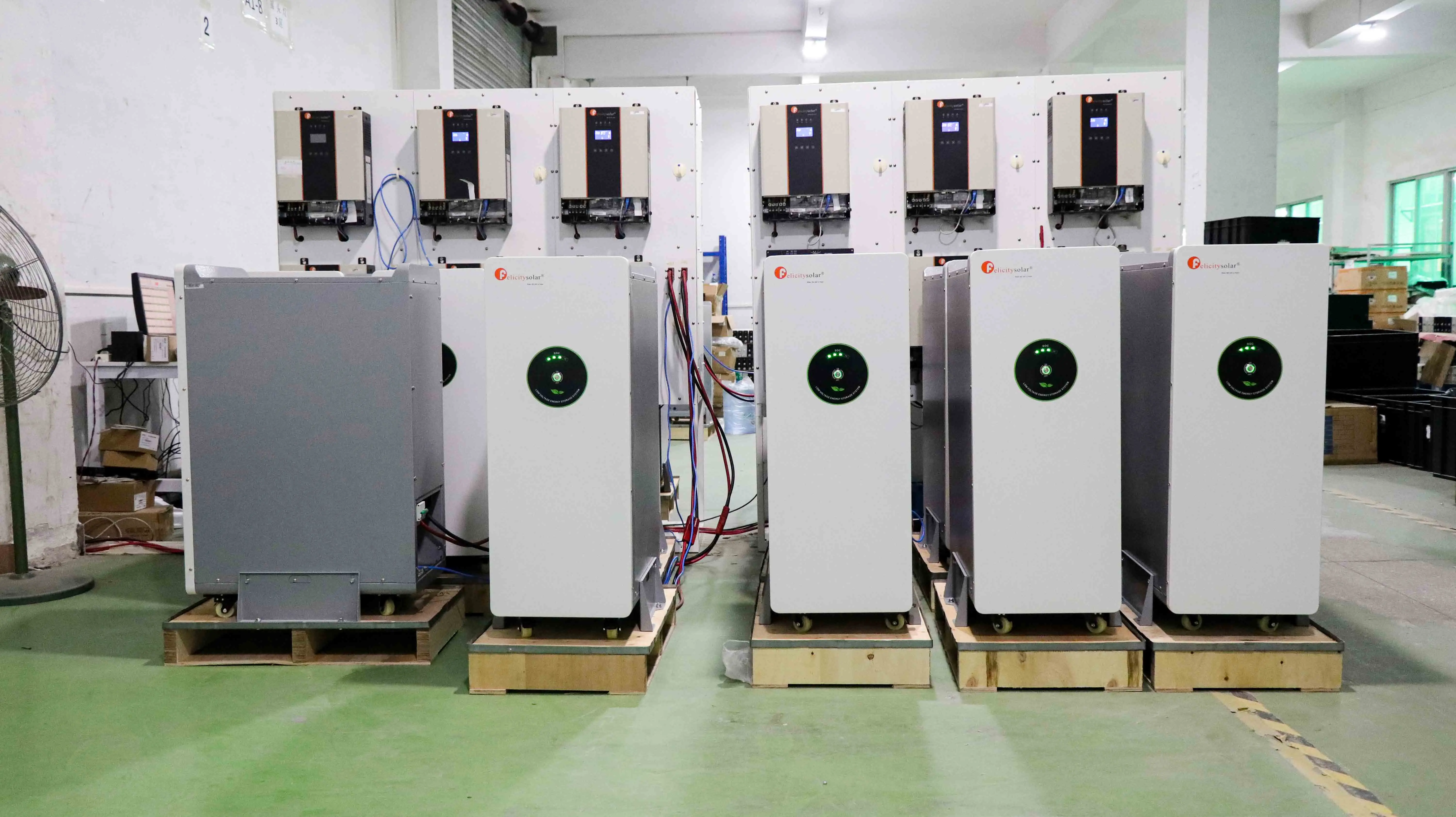

Production line
R & D technology
Exhibition
Feedback

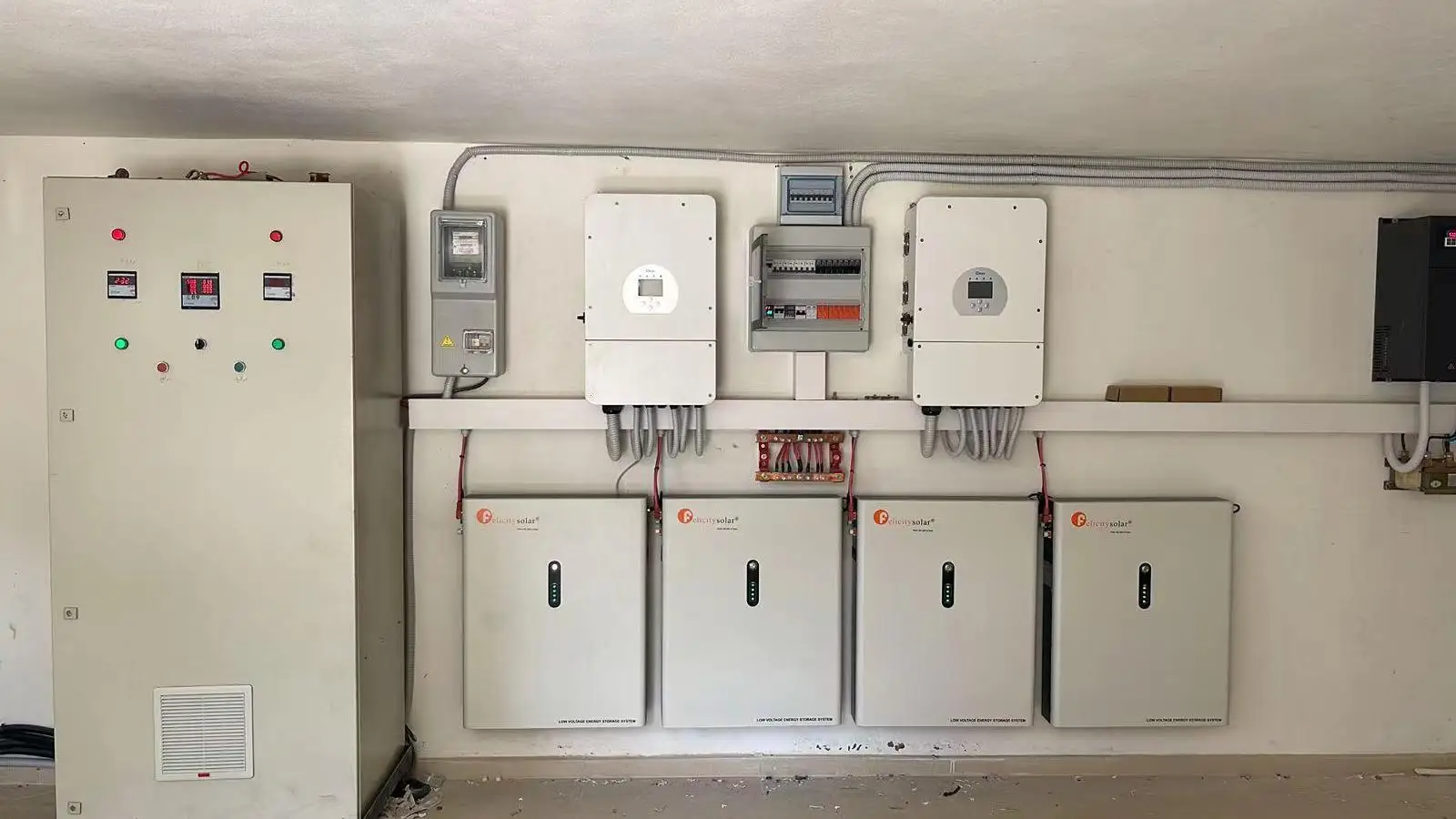

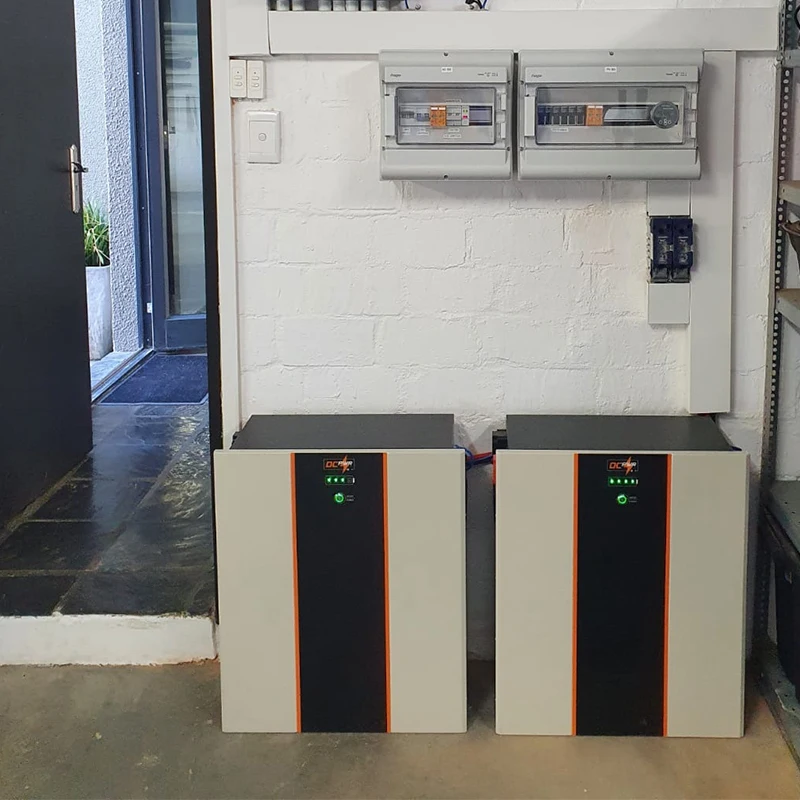

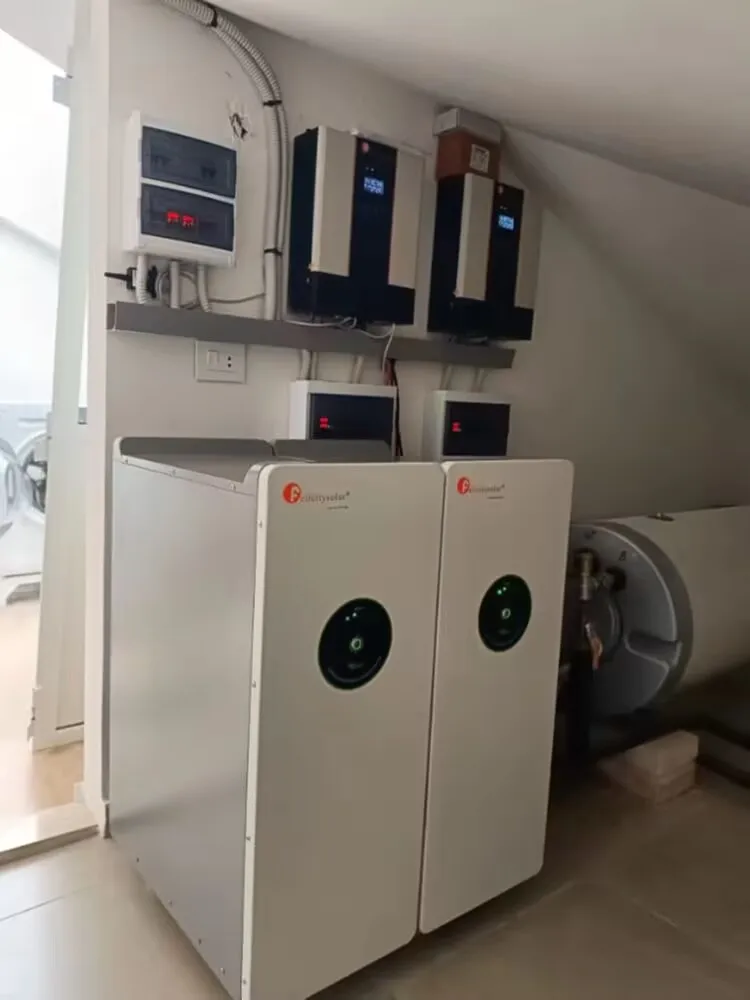

Customer Case
Certification&Payment
Company Profile
Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .
