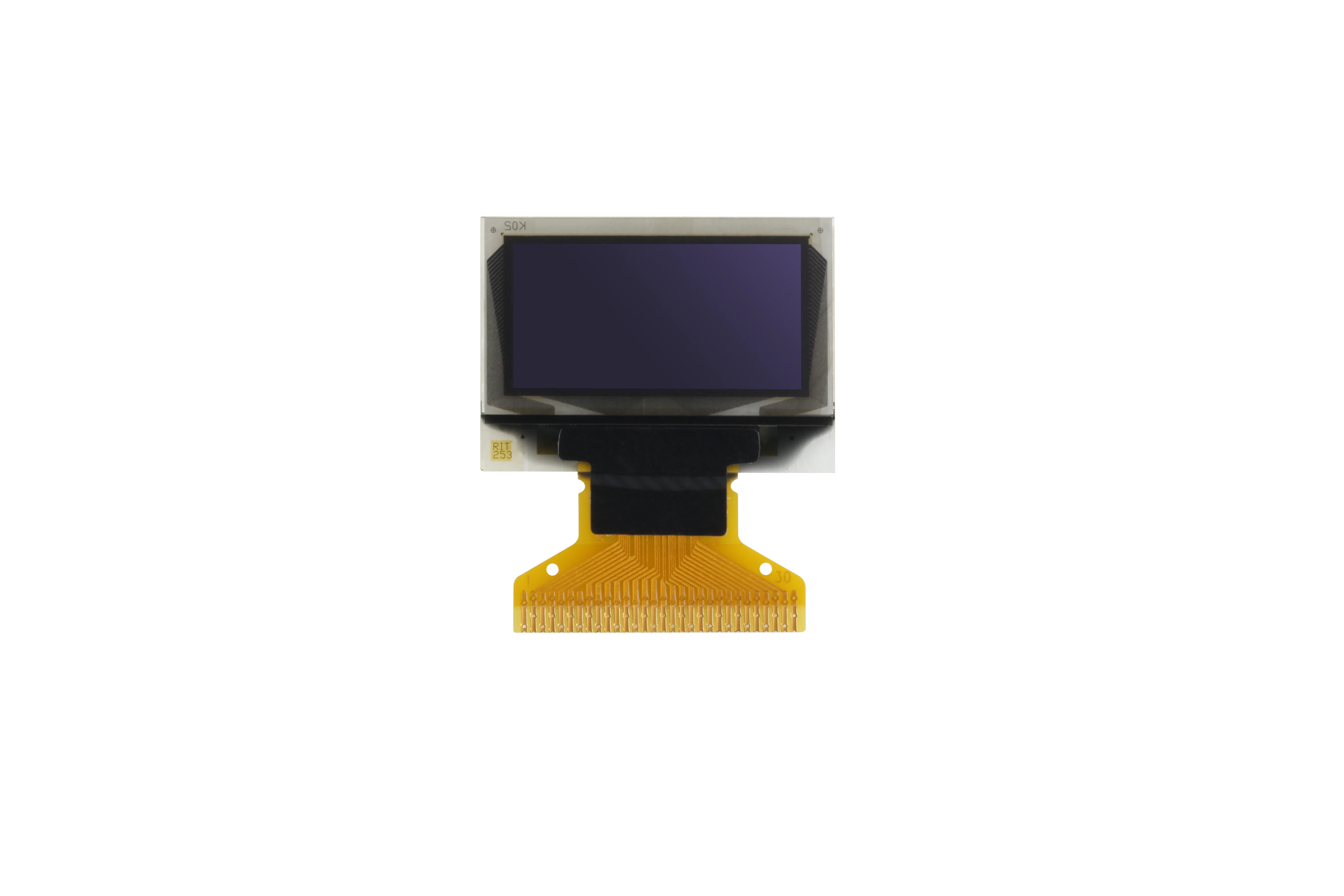

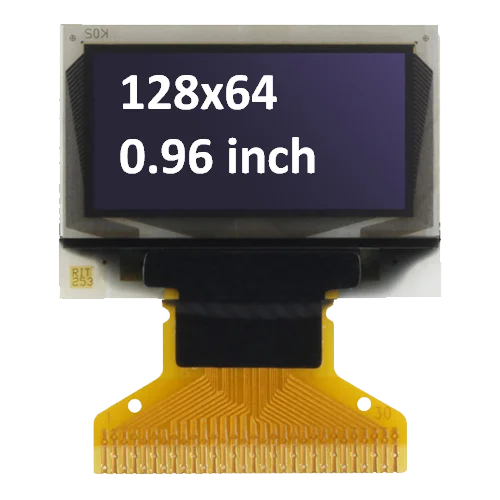

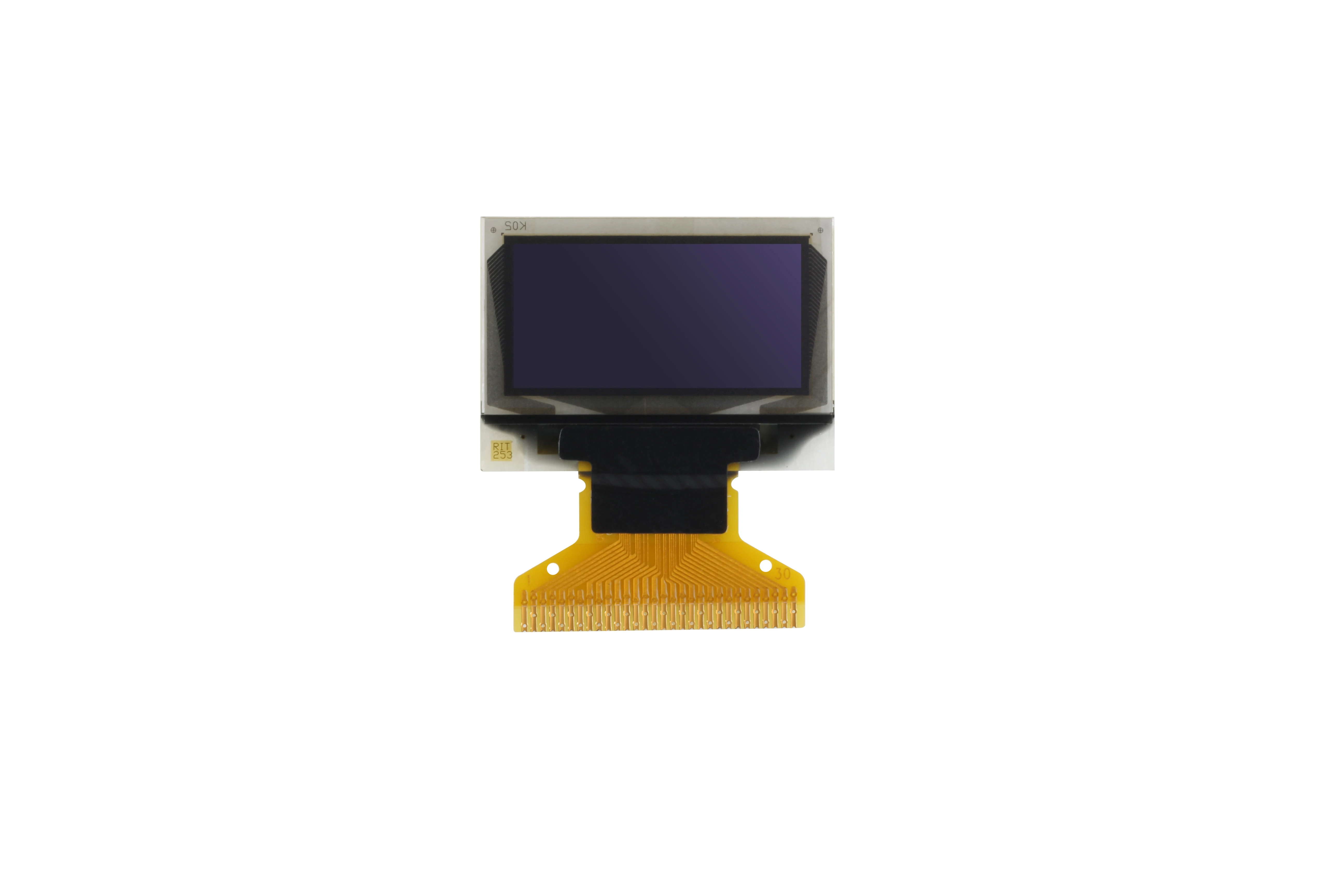

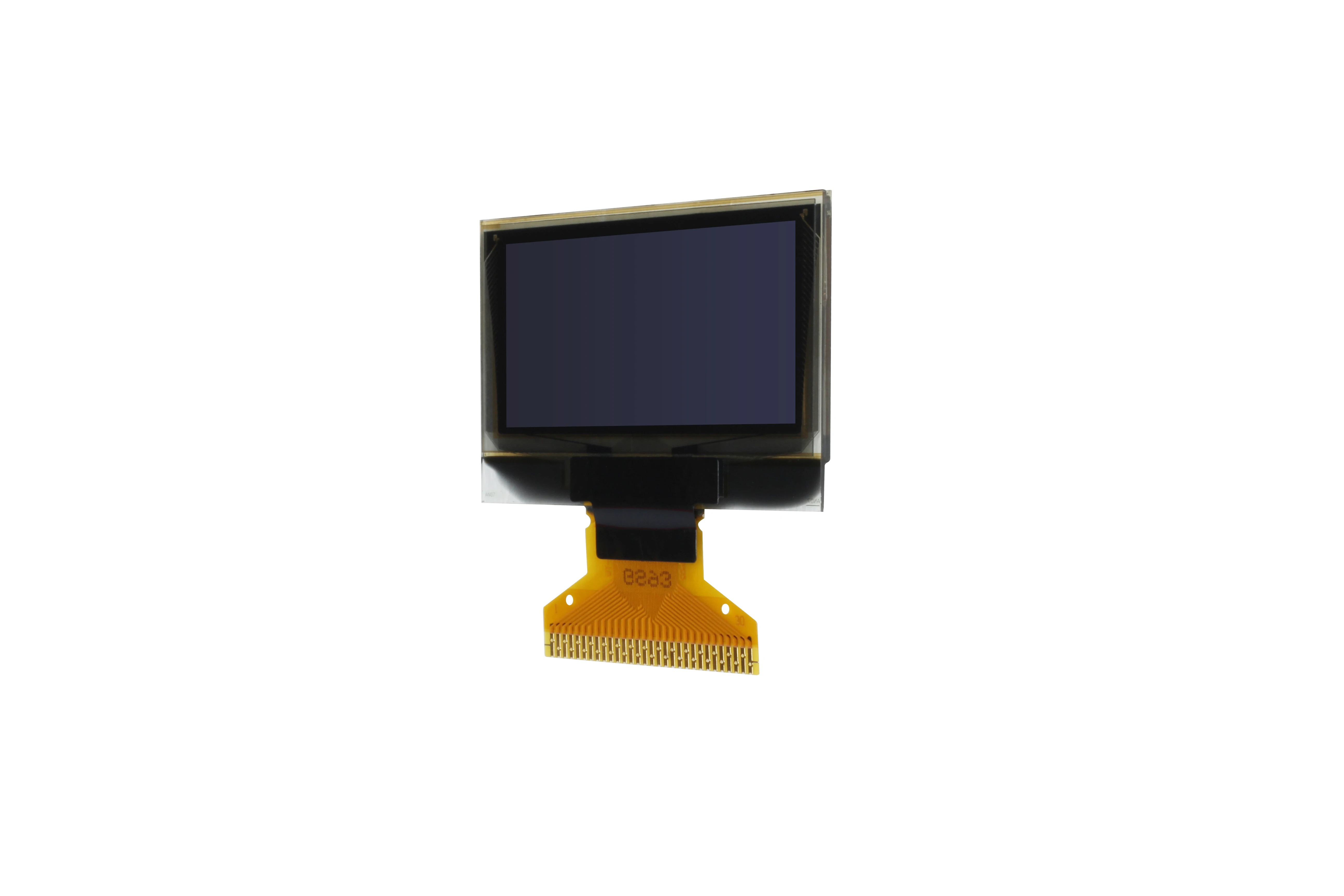

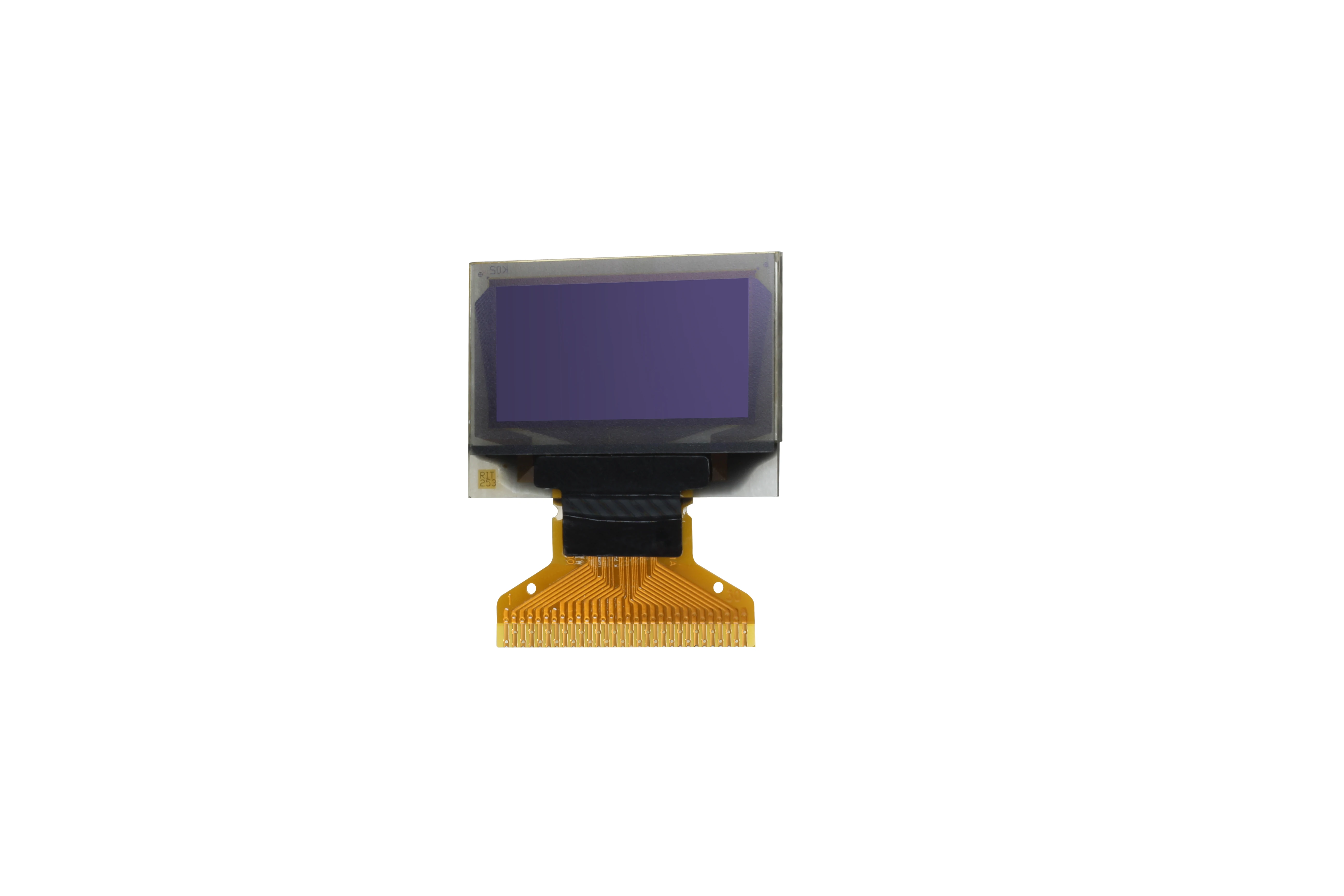

128x64 OLED I2C 0.96 inch Display,White Color,w/Connector FPC,SSD1306
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Technology Co. Ltd.
Share on (1600960864081):
Product Overview
Description
Display General Description
The GLO096-D-M2011 from SWI is a highly versatile graphic OLED display module with a diagonal size of 0.96 inches. It offers a visually appealing display with a resolution of 128x64 individual pixels available in white and blue color options. The module incorporates the efficient SSD1315 controller IC, which supports the SPI and I2C interfaces for seamless communication.
Thanks to its self-emitting nature, the OLED display module operates without the need for a backlight, resulting in reduced power consumption. This feature enhances the display's high contrast and provides an exceptionally wide viewing angle, ensuring reliable operation across a broad temperature range.
The FPC (Flexible Printed Circuit) of the module is designed with a soldering type, featuring 30-pin connections. This eliminates the need for a separate connector, allowing for convenient soldering of the FPC directly onto your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Controlling the GLO096-D-M2011 OLED module is straightforward, as it offers compatibility with various microcontroller units (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for integration into diverse applications such as embedded systems, industrial devices, wearable devices, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
To further meet specific customer requirements, SWI provides customization options for the display solution. This includes the ability to customize the FPC and offer integrated cover lenses, touch screens, or driver boards. Such flexibility ensures that customers receive an optimized display solution tailored precisely to their individual needs and preferences.
Thanks to its self-emitting nature, the OLED display module operates without the need for a backlight, resulting in reduced power consumption. This feature enhances the display's high contrast and provides an exceptionally wide viewing angle, ensuring reliable operation across a broad temperature range.
The FPC (Flexible Printed Circuit) of the module is designed with a soldering type, featuring 30-pin connections. This eliminates the need for a separate connector, allowing for convenient soldering of the FPC directly onto your PCB. This simplifies the integration process and ensures a secure and reliable connection.
Controlling the GLO096-D-M2011 OLED module is straightforward, as it offers compatibility with various microcontroller units (MCUs), including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This wide compatibility makes it suitable for integration into diverse applications such as embedded systems, industrial devices, wearable devices, MP3 players, e-cigarettes, security systems, medical equipment, consumer electronics, and handheld devices.
To further meet specific customer requirements, SWI provides customization options for the display solution. This includes the ability to customize the FPC and offer integrated cover lenses, touch screens, or driver boards. Such flexibility ensures that customers receive an optimized display solution tailored precisely to their individual needs and preferences.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT |
1 | Display Mode | PMOLED | |
2 | Diagonal Size | 0.96 | inch |
3 | Resolution | 128(V) x 64(H) | Dots |
4 | Active Area | 21.74(W) x 10.86(H) | mm |
5 | Outline Dimension | 24.74(W) x 16.6(H) | mm |
6 | Thickness | 1.28 + 0.2 | mm |
7 | Pixel Pitch | 0.170(W) x 0.175(H) | mm |
8 | Pixel Size | 0.154(W) x 0.154(H) | mm |
9 | Display Driver IC | SSD1315 | - |
10 | Touch Driver IC | NO Touch | - |
11 | Display Color | White/Blue | - |
12 | Gray Scale | 1 | Bit |
13 | Brightness | 150(min) | cd /m2 |
14 | Contrast Ratio | 2000:1 | - |
15 | Interface | 4-wire SPI/I2C | - |
16 | IC Package Type | COG | - |
17 | Module Connecting Type | Soldering | - |
18 | Weight | TBD | g |
19 | Duty | 1/64 | - |
20 | Pins | 30 | Pins |
21 | Operating Temperature | -40~70 | ℃ |
22 | Storage Temperature | -40~85 | ℃ |

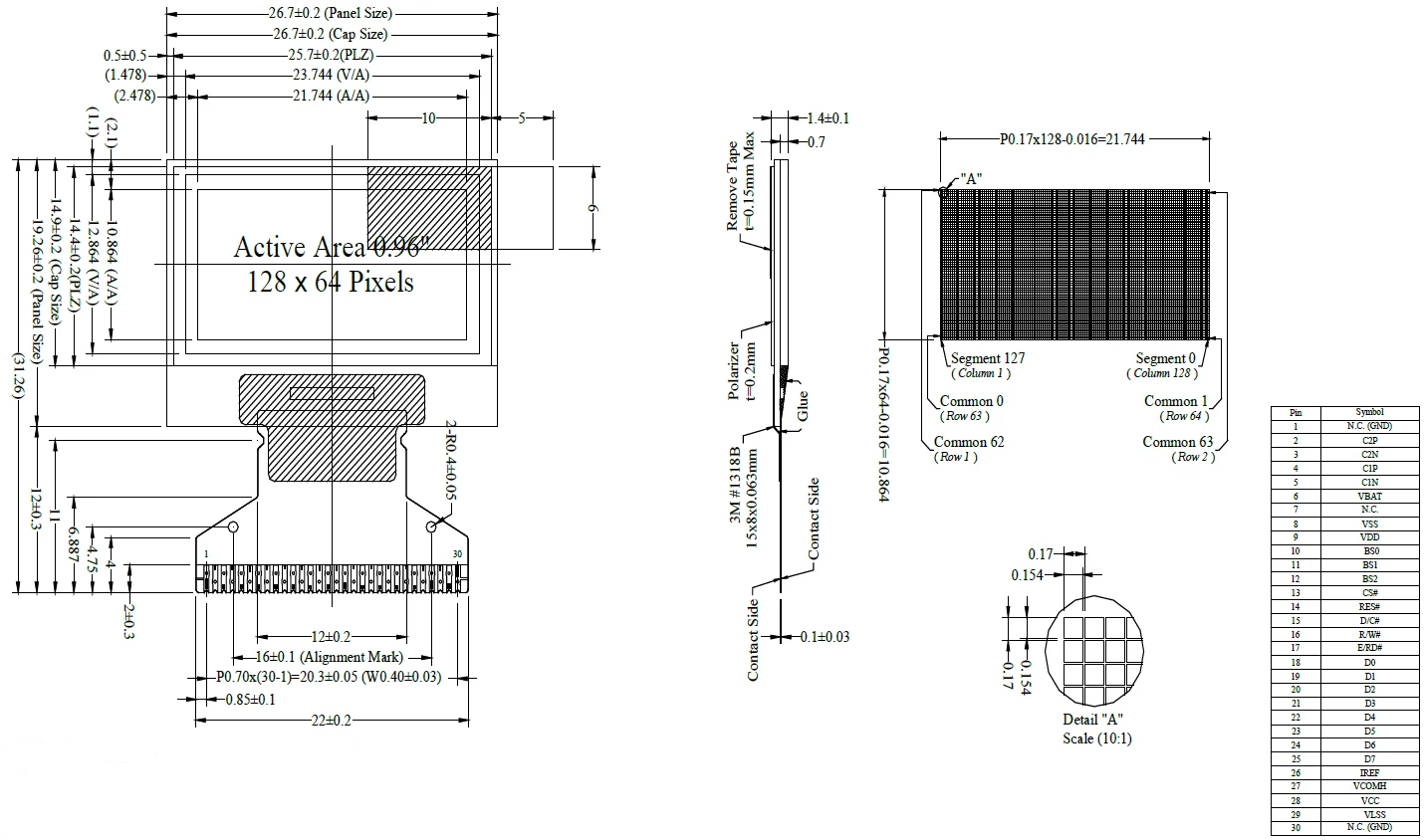

Drawings
Product Details
More OLED Screen Size Options Available
Size (inch) | Color | Display Mode | Resolution | Active Area (HxV mm) | Outline Dimension (HxVxD mm) | Interface |
0.33'' | White | Passive Matrix | 32x62 | 3.82x7.42 | 6.93x13.68x1.02 | 4-wire SPI/I2C |
0.42'' | W/B | Passive Matrix | 72x40 | 9.196x5.18 | 12.0x11.0x1.25 | 4-wire SPI/I2C |
0.49'' | W/B | Passive Matrix | 64X32 | 11.18x5.58 | 14.5x11.6x1.2 | 4-wire SPI |
0.5'' | White | Passive Matrix | 48x88 | 11.244x6.124 | 17.1x8.93x1.227 | I2C |
0.54'' | White | Passive Matrix | 96x32 | 12.46x4.14 | 18.52x7.04x1.22 | I2C |
0.6'' | Color | Passive Matrix | 64x64 | 10.73x10.73 | 15.0x17.5x1.20 | 4-wire SPI |
0.63'' | White | Passive Matrix | 120x28 | 15.58x3.62 | 21.54x6.62x1.22 | I2C |
0.66'' | W/B | Passive Matrix | 64x48 | 13.42x10.06 | 18.46x18.1x1.45 | Parallel/4-wire SPI/I2C |
0.69'' | W/B | Passive Matrix | 96x16 | 17.26x3.18 | 26.3x8x1.3 | I2C |
0.71'' | White | Passive Matrix | 48x64 | 10.54x14.7 | 13.9x22x1.2 | I2C |
0.75'' | White | Passive Matrix | 128x128 | D=19.18 | 23.15x25.93x1.21 | 4-wire SPI/I2C |
0.78'' | White | Passive Matrix | 80x128 | 9.68x17.26 | 12.13x23.6x1.22 | 4-wire SPI |
0.87'' | White | Passive Matrix | 128x32 | 21.35x5.32 | 29.0x8.7x1.2 | 4-wire SPI/I2C |
0.91'' | W/B | Passive Matrix | 128x32 | 22.38x5.58 | 30.0x11.5x1.2 | 4-wire SPI/I2C |
0.95'' | Color | Passive Matrix | 96x64 | 20.14x13.42 | 25.7x22.2x1.45 | MIPI 1 Lane/4-wire SPI |
0.96'' | W/B/Y | Passive Matrix | 128x64 | 21.74x11.175 | 26.7x19.26x1.45 | Parallel/4-wire SPI/I2C |
0.96'' | White | Passive Matrix | 96x96 | 17.26x17.26 | 24x25.7x1.2 | 4-wire SPI |
0.96'' | White | Passive Matrix | 64x128 | 10.86x21.74 | 14x28x1.22 | 4-wire SPI/I2C |
0.96'' | Color | Passive Matrix | 64x128 | 10.86x21.73 | 14.86x28.4x1.02 | Parallel/4-wire SPI |
1.09'' | White | Passive Matrix | 64x128 | 10.86x25.58 | 14x31.96x1.22 | 4-wire SPI |
1.1'' | Yellow | Passive Matrix | 96x96 | 20.14x20.14 | 27x42.11x1.61 | Parallel/SPI/I2C |
1.1'' | Color | Passive Matrix | 126x294 | 10.96x25.57 | 12.96x30.94x0.78 | MIPI 1 Lane/SPI |
1.12'' | White | Passive Matrix | 128x128 | 20.14x20.14 | 27x30.1x1.25 | Parallel/SPI/I2C |
1.12'' | Color | Passive Matrix | 96x96 | 19.85x19.85 | 25.9x30.1x1.2 | Parallel/4-wire SPI |
1.2'' | Color | Passive Matrix | 390x390 | D=30.42 | 33.22x33.75x0.68 | MIPI 2 Lane/SPI |
1.29'' | Color | Passive Matrix | 128x96 | 26.279x19.70 | 33x25.8x1.2 | Parallel/SPI |
1.29'' | White | Passive Matrix | 128x64 | 29.42x14.7 | 32.42x21.36x1.43 | Parallel/4-wire SPI/I2C |
1.3'' | W/B | Passive Matrix | 128x64 | 29.42x14.7 | 34.5x23.0x1.4 | Parallel/SPI/I2C |
1.3'' | White | Passive Matrix | 64x128 | 14.1x28.82 | 17.1x35.8x1.43 | 4-wire SPI/I2C |
1.3'' | Color | Active Matrix | 360x360 | D=32.94 | 35.34x36.07x0.67 | MIPI 2 Lane/SPI/MCU |
1.32'' | White | Passive Matrix | 128x96 | 26.86x20.14 | 32.5x29.2x1.61 | Parallel/SPI/I2C |
1.45'' | Color | Passive Matrix | 160x128 | 28.78x23.024 | 35.8x30.8x1.6 | Parallel/4-wire SPI/I2C |
1.47'' | Color | Active Matrix | 194x368 | 17.46x33.12 | 19.36x36.17x0.78 | MIPI 1 Lane/SPI |
1.5'' | Color | Passive Matrix | 128x128 | 26.85x26.86 | 33.8x34x1.6 | Parallel/SPI |
1.5'' | White | Passive Matrix | 128x128 | 26.85x26.85 | 33.9x37.3x1.44 | Parallel/4-wire SPI/I2C |
1.54'' | W/B/Y | Passive Matrix | 128x64 | 35.05x17.516 | 42.04x27.22x1.4 | Parallel/4-wire SPI/I2C |
1.6'' | Yellow | Passive Matrix | 128x64 | 36.45x18.21 | 41.9x28.0x1.61 | Parallel/4-wire SPI/I2C |
1.69'' | Color | Passive Matrix | 160x128 | 33.57x26.86 | 39.9x34x1.6 | Parallel/4-wire SPI/I2C |
1.77'' | Color | Passive Matrix | 160x128 | 35.01x28.01 | 42.7x33.4x2 | Parallel/SPI |
1.83'' | W/B | Passive Matrix | 256x32 | 46.06x5.74 | 52x11.5x1.81 | Parallel/4-wire SPI/I2C |
1.92'' | White | Passive Matrix | 128x160 | 28.90x39.34 | 32.9x118.4x1.22 | Parallel/SPI/I2C |
2.08'' | White | Passive Matrix | 256x64 | 51.18x12.78 | 62.5x20.6x1.6 | Parallel/4-wire SPI/I2C |
2.23'' | W/B | Passive Matrix | 128x32 | 55.02x13.1 | 62x24x2 | Parallel/4-wire SPI/I2C |
2.4'' | W/Y | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.82 | Parallel/4-wire SPI/I2C |
2.42'' | W/B/Y/G | Passive Matrix | 128x64 | 55.01x27.49 | 60.5x37x1.8 | Parallel/4-wire SPI/I2C |
2.7'' | W/Y | Passive Matrix | 128x64 | 61.41x30.69 | 73x41.86x2.0 | Parallel/4-wire SPI |
3.12'' | W/B/Y/G | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI |
3.2'' | W/Y | Passive Matrix | 256x64 | 76.78x19.18 | 88x27.8x2.0 | Parallel/SPI |
5.5'' | Green | Passive Matrix | 256x64 | 135x33.89 | 146x45x2.0 | Parallel/SPI |
About OLED
OLED displays offer several advantages, including ultra-thin designs (eliminating the need for a backlight), wide viewing angles, clear and bright displays, and reduced power consumption.
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
Display Sizes: 0.42”, 0.49”, 0.5'', 0.6'', 0.63'', 0.66”, 0.69”, 0.71”, 0.75”, 0.87”, 0.91”, 0.95”, 0.96”, 1.09'', 1.1'', 1.12”, 1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”, 2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
At SWI, we offer a range of standard small-sized OLED displays and also specialize in customized designs. Our customization options include tailored Flexible Printed Circuits (FPCs), integrated touch sensors, cover lenses, and choices for flexible and transparent configurations.
Our product lineup includes various types of OLEDs, such as Transparent OLEDs, Flexible OLEDs, Monochrome OLEDs, Character OLEDs, Segment OLEDs, Area Color OLEDs, Full Color OLEDs, and custom-designed OLEDs, covering sizes from 0.42 inches to 5.5 inches.
Leveraging the unique advantages of OLED technology, our OLED products find applications in a wide array of industries, including Consumer Electronics, Medical Devices, PC Peripherals, Automotive, Communication Devices, and Industrial Equipment.
0.42“-5.5” Sizes Character | Graphic | Monochrome | Color | Bendable | Transparent
Dot Matrix: 48 x 88, 64×32, 64×48, 64 x 64, 64×128, 96×16, 96×32, 96×64, 96×39, 96×96, 120 x 28, 120 x 240, 128×32, 128×64, 128×96, 128×128, 160×128, 180×120, 256×32, 256×64, 320×360, 390×390, 360×360, 454 x 454
Display Sizes: 0.42”, 0.49”, 0.5'', 0.6'', 0.63'', 0.66”, 0.69”, 0.71”, 0.75”, 0.87”, 0.91”, 0.95”, 0.96”, 1.09'', 1.1'', 1.12”, 1.29”, 1.3”, 1.45'', 1.46”, 1.47'', 1.5”, 1.54”, 1.6”, 1.19”, 1.29'', 1.39”, 1.41”, 1.69”, 1.77”, 1.83”, 2.08'', 2.23”, 2.4”, 2.42”, 3.12”, 5.5”
Font Color: White, Blue, Yellow, Green, Full Color
OLED Features
High Contrast Ratio (10,000:1)
Free Viewing Angle
Fast Response Time (≤15μs)
Thinner, Lighter, and Durable
Wide Operating Temperature Range (-40℃ to +85℃)
Self-emitting, No Backlight Required
Versatile Integration Across Industries
Industrial
Measuring & Meter
OA Equipment
POS & Server
Card Reader
Door Security
USB Key
Banking Device
Cryptocurrency Hardware Wallet
OA Equipment
POS & Server
Card Reader
