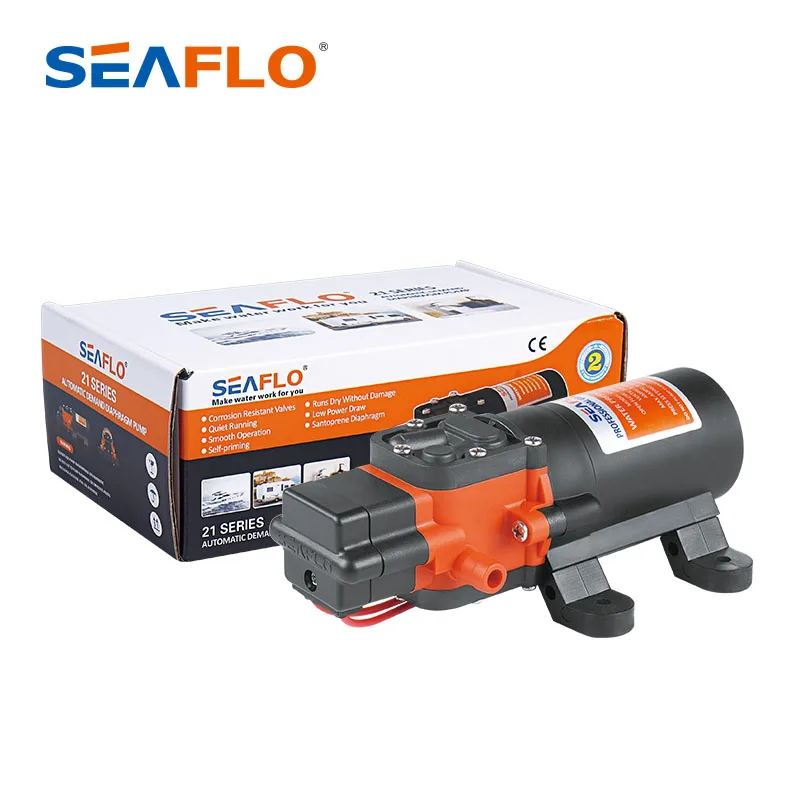

SEAFLO micro electric diaphragm pump 12V boiled water steam boiler machine rehydration pump 4 feet suction lift DC water pump

Share on (1600960865014):


Price:$17.99 - $29.99

Quantity:


Product Overview

Description



SEAFLO Profile


SEAFLO Profile












Product Description








Features & Benefits











1.Flow rate up to 1.0 GPM [3.8 LPM]
3.Automatically turn on and off
5.Quiet operation
7.On demand or by pass use

2.Can run dry without damage


4.Self priming & built-in check valve


6.Chemically resistant materials


8.Designed for spraying and fluid transfer





































































Product NameSEAFLO 24V DC Agricultural Equipment Demand Delivery Water Action Pump
Pump Type2 Chambers Positive Displacement Diaphragm Pump
Max Flow Rate1.0 GPM [3.8 LPM]
Max Pressure40 PSI [2.7 Bar]
Voltage24 VDC, and 12 V, 115 V, 230 V are available
Max Amp2.0 A
Fuse6.0 A
Switch TypeOn Demand [Cut-off Switch], and By Pass, none switch are available
Diaphragm MaterialSantoprene
Valve MaterialFluororubber, and EPDM is available
Duty CycleIntermittent
Self Priming4' [1.2 m] suction
Max Fluid Temp140 °F [60 °C]
Inlet & Outlet Port3/8" [10mm] hose barb, and contact us for more ports
Lead14" [35 cm] 18 AWG lead




The 21 Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.1 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

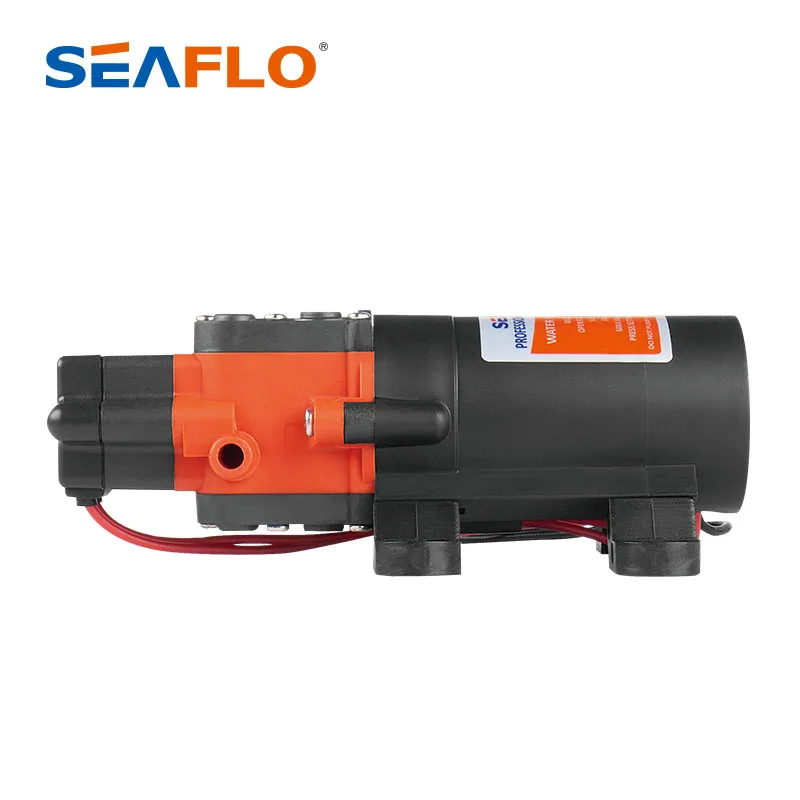

Product Show




21











Dimensions




21 SERIES DIMENSIONS









Performance


010-040-21 PERFORMANCE









Motor Heat Rise




21 SERIES MOTOR HEAT RISE

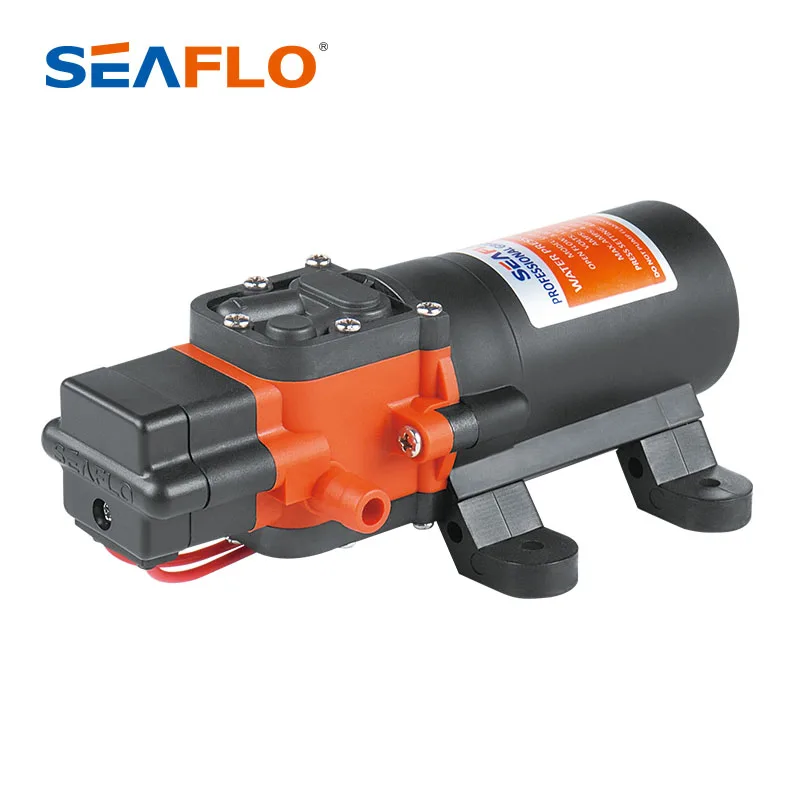

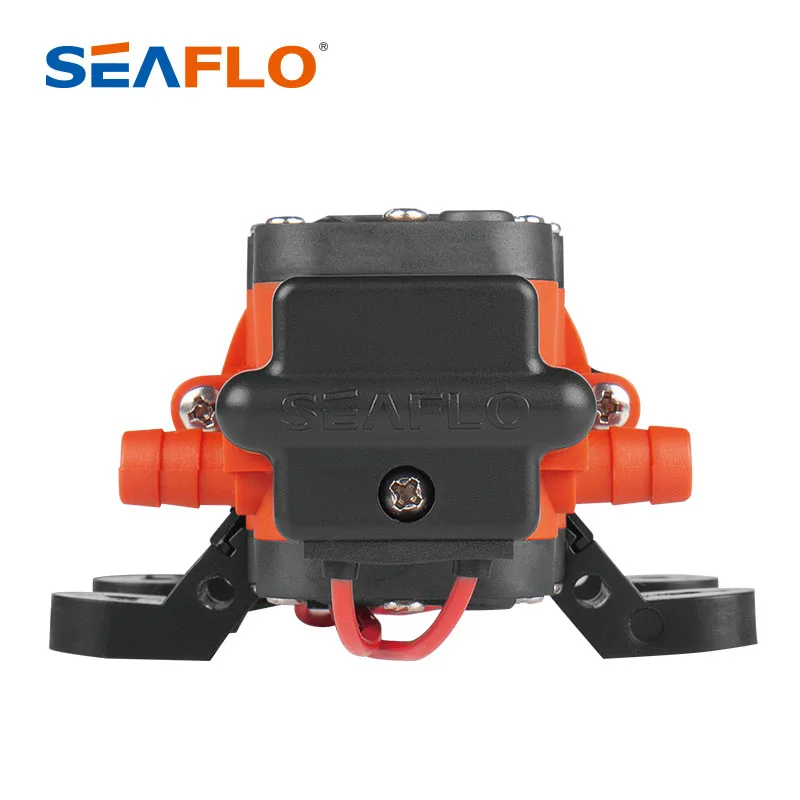

Product Details

21


Standard Pump Configurations




































































ModelVoltage

Open Flow


GPM [LPM]



Cut off Pressure


PSI [BAR]


Max DrawDiaphragmValve
SFDP1-010-040-2112 V1.0 [3.8]40 [2.8]4.0 ASantopreneEPDM
SFDP2-010-040-2124 V1.0 [3.8]40 [2.8]2.0 ASantopreneEPDM
SFDP1-007-070-2112 V0.7 [2.7]70 [4.8]4.0 ASantopreneEPDM
SFDP2-007-070-2124 V0.7 [2.7]70 [4.8]

2.0 A


SantopreneEPDM
SFDP1-010-060-2112 V1.0 [3.8]60 [4.1]4.5 ASantopreneEPDM
SFDP2-010-060-2124 V1.0 [3.8]60 [4.1]2.5 ASantopreneEPDM




OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 80 PSI [5.51 Bar]; Open flow can be adjusted from 0.5GPM [2.0 LPM] to 1.1 GPM [4.0 LPM]. Material can be adjusted according to your requirement.








Application


21





Packaging & Shipping


Package Infomation






























 Unit Pump Weight1.35 lbs [0.61 kg]
Selling Unit Size (L x W x H)

7.28" x 4.13" x 2.75" [18.5 x 10.5 x 7.0 cm]


Selling Unit Weight1.51 lbs [0.69 kg]
Master Carton Qty30 pcs / carton
Master Carton Size (L x W x H)

15.43" x 13.19" x 14.05" [39.2 x 33.5 x 35.7 cm]


Master Carton Weight45.82 lbs [20.78 kg]




Shipping





Company Information


_03(1)


_04(1)


_07





More Products

































































FAQ


Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.





Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as LILIE, Lippert, Bunnings etc.





Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.





Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.





Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.





Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.





Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.





Q: What is your port of loading?
A: Xiamen port.





Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.





Q: Can I get more info?
A: Please visit www.seaflo.com or www.seafloin.en.alibaba.com for more information.
