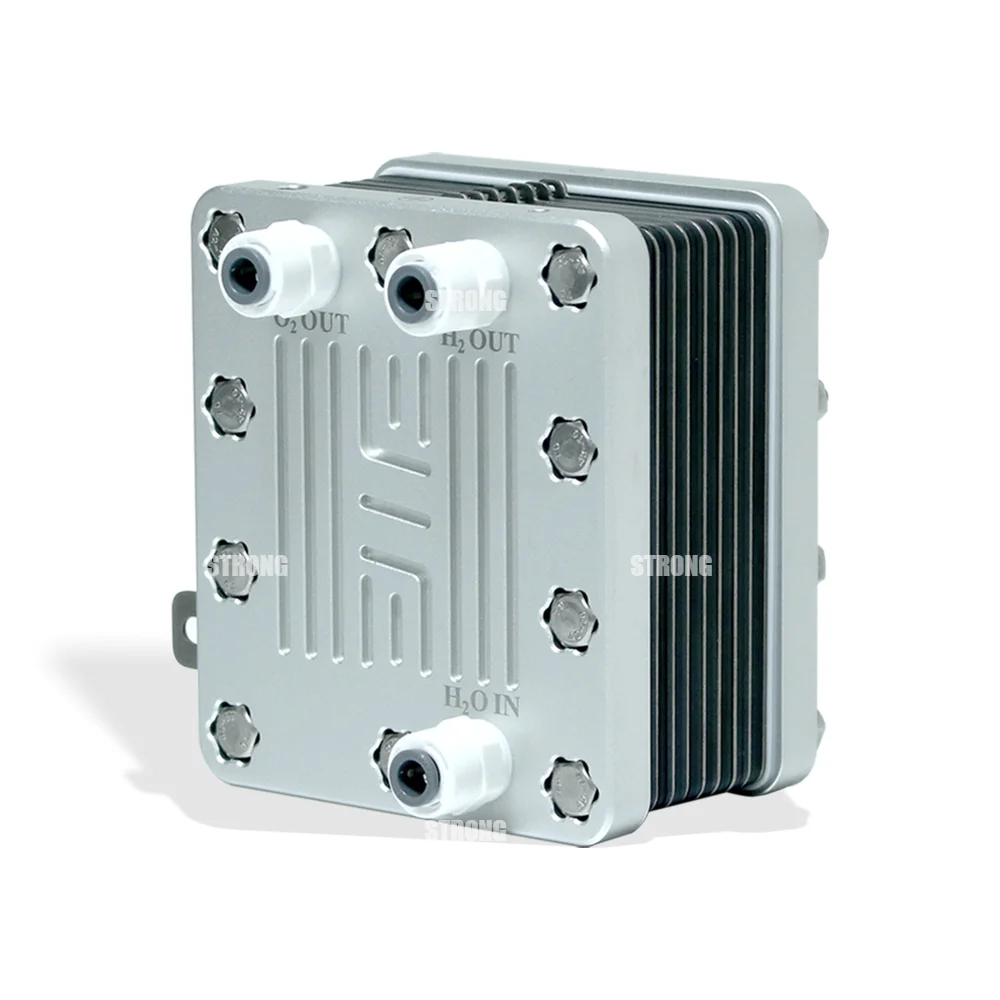

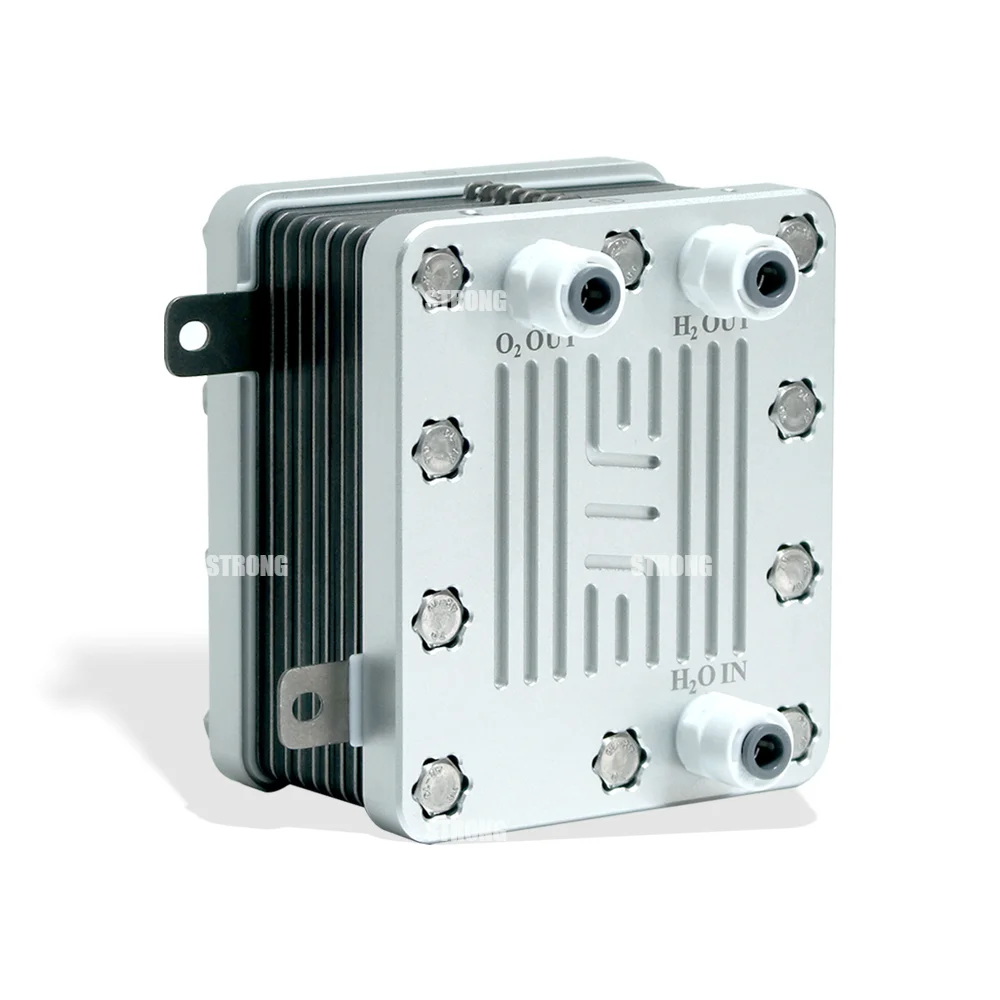

1600mL/Min High Energy Efficiency Hydrogen Gas Large Flow PEM Electrolyzer Hydrogen Generator
- Category: >>>
- Supplier: Dongguan Strong Machinery Co. Ltd.
Share on (1600960923784):
Product Overview
Description
Product Description

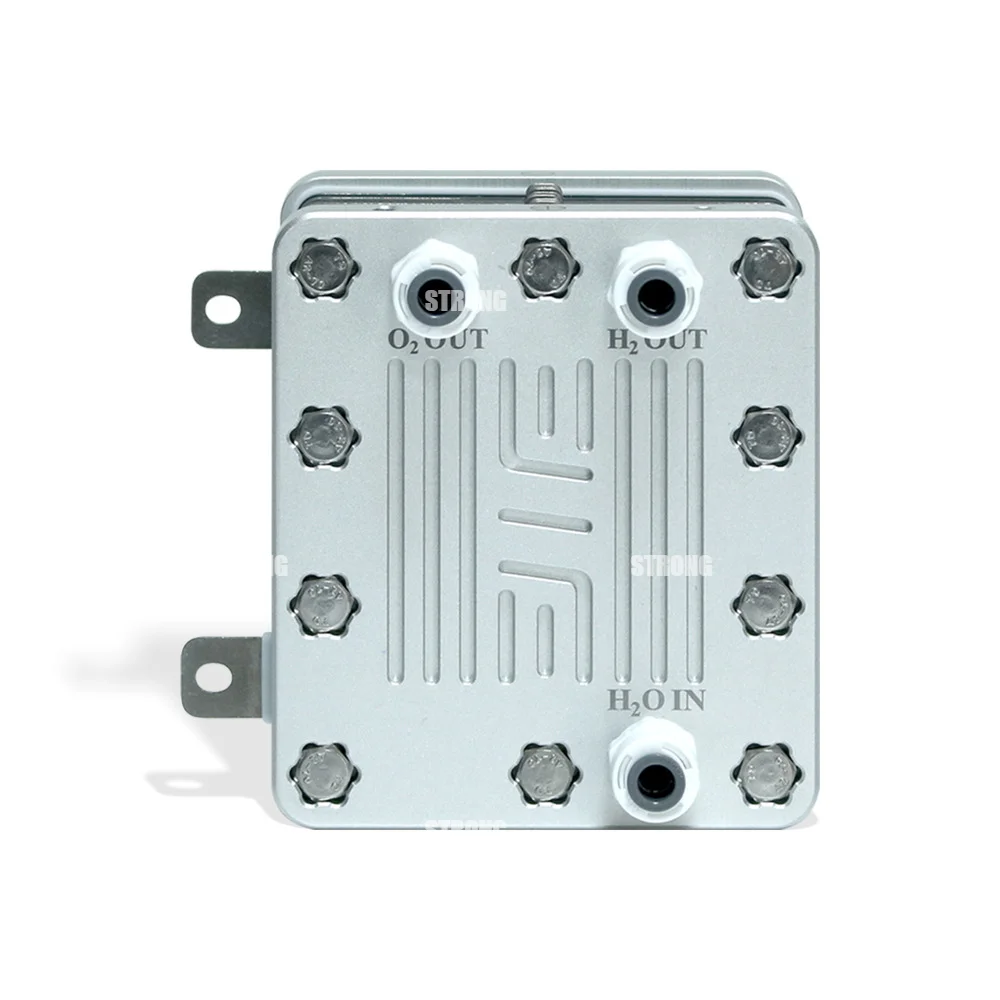

H₂O In：Represents the water inlet of pure water, connected to the water outlet of pure water tank.
H₂O Out：Represents the outlet of hydrogen, connected to the hydrogen pipe.
H₂ Out：It represents the outlet of oxygen, and it is also the return water outlet. The water from the oxygen outlet is either connected to the steam-water separator, and the water from the steam-water separator is returned to the water tank; Or directly connected to the water tank.
H₂O Out：Represents the outlet of hydrogen, connected to the hydrogen pipe.
H₂ Out：It represents the outlet of oxygen, and it is also the return water outlet. The water from the oxygen outlet is either connected to the steam-water separator, and the water from the steam-water separator is returned to the water tank; Or directly connected to the water tank.
Machine Paramter
Product Model | Hydrogen production | Oxygen production | Water consumption | Recommended pressure | Rated Current | Output voltage |
ST-50 | 50 ml/min | 25 ml/min | ≯ 6 ml/h | 0.1~1.0 MPa | 7 A | 3.5-5 V |
ST-100 | 100 ml/min | 50 ml/min | ≯ 12 ml/h | 0.1~1.0 MPa | 13 A | 3.5-5 V |
ST-150 | 150 ml/min | 75 ml/min | ≯ 18 ml/h | 0.1~1.3 MPa | 20 A | 2.5 V |
ST-300 | 300 ml/min | 150 ml/min | ≯ 36 ml/h | 0.1~1.0 MPa | 20 A | 5 V |
ST-450 | 450 ml/min | 225 ml/min | ≯ 54 ml/h | 0.1~1.0 MPa | 20 A | 7.5 V |
ST-600 | 600 ml/min | 300 ml/min | ≯ 72 ml/h | 0.1~1.0 MPa | 20 A | 10 V |
ST-1000 | 1000 ml/min | 500 ml/min | ≯ 120 ml/h | 0.1~1.0 MPa | 25 A | 12.5 V |
ST-1200 | 1200 ml/min | 600 ml/min | ≯ 144 ml/h | 0.1~1.0 MPa | 25 A | 15 V |
ST-1400 | 1400 ml/min | 700 ml/min | ≯ 168 ml/h | 0.1~1.0 MPa | 25 A | 17.5V |
ST-1600 | 1600 ml/min | 800 ml/min | ≯ 192 ml/h | 0.1~1.0 MPa | 25 A | 20 V |
ST-1800 | 1800 ml/min | 900 ml/min | ≯ 216 ml/h | 0.1~1.0 MPa | 25 A | 22.5 V |
ST-2000 | 2000 ml/min | 1000 ml/min | ≯ 240 ml/h | 0.1~1.0 MPa | 25 A | 25 V |
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery
solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
