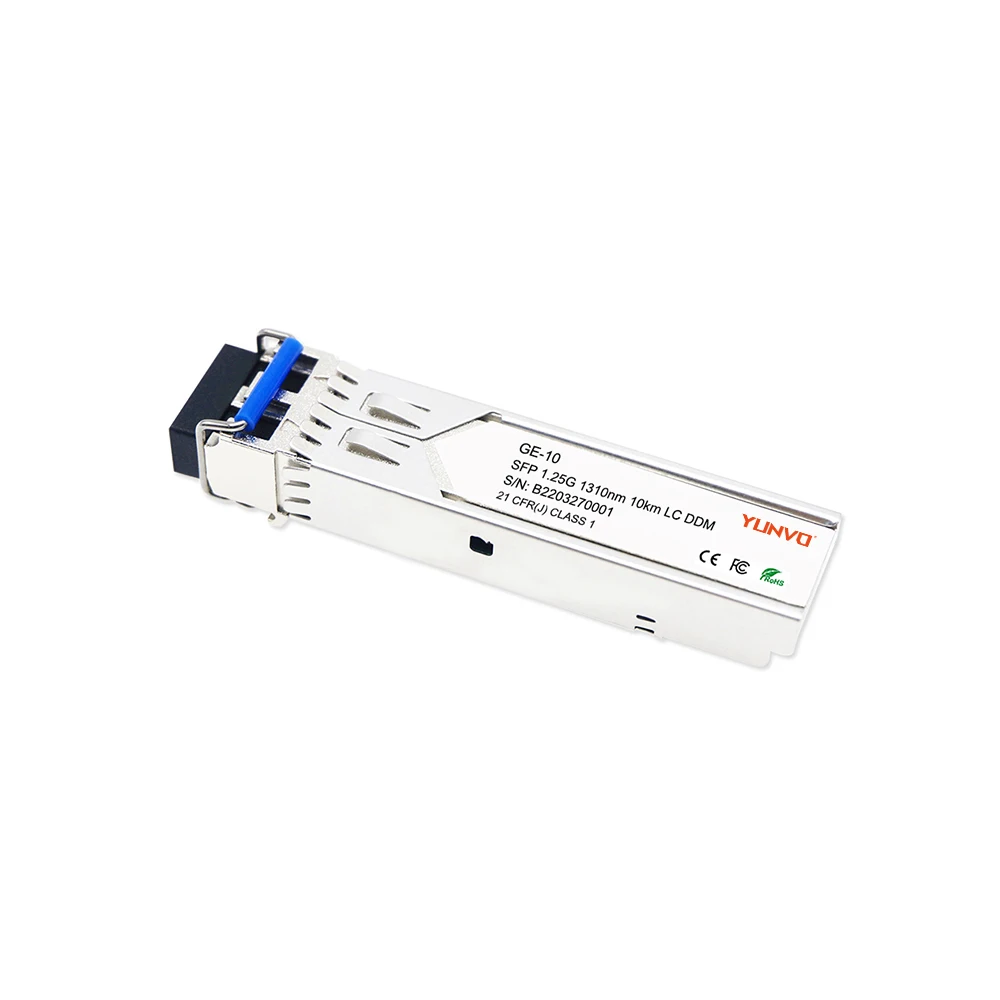

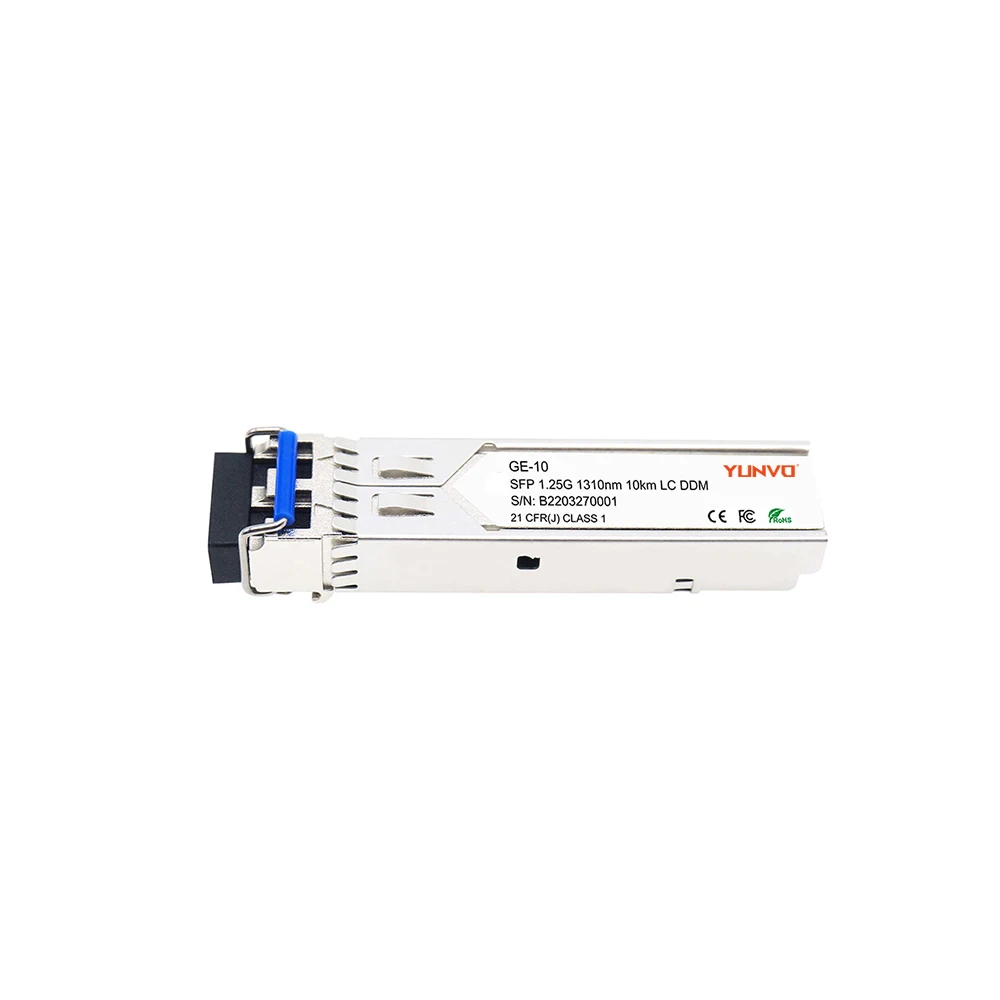

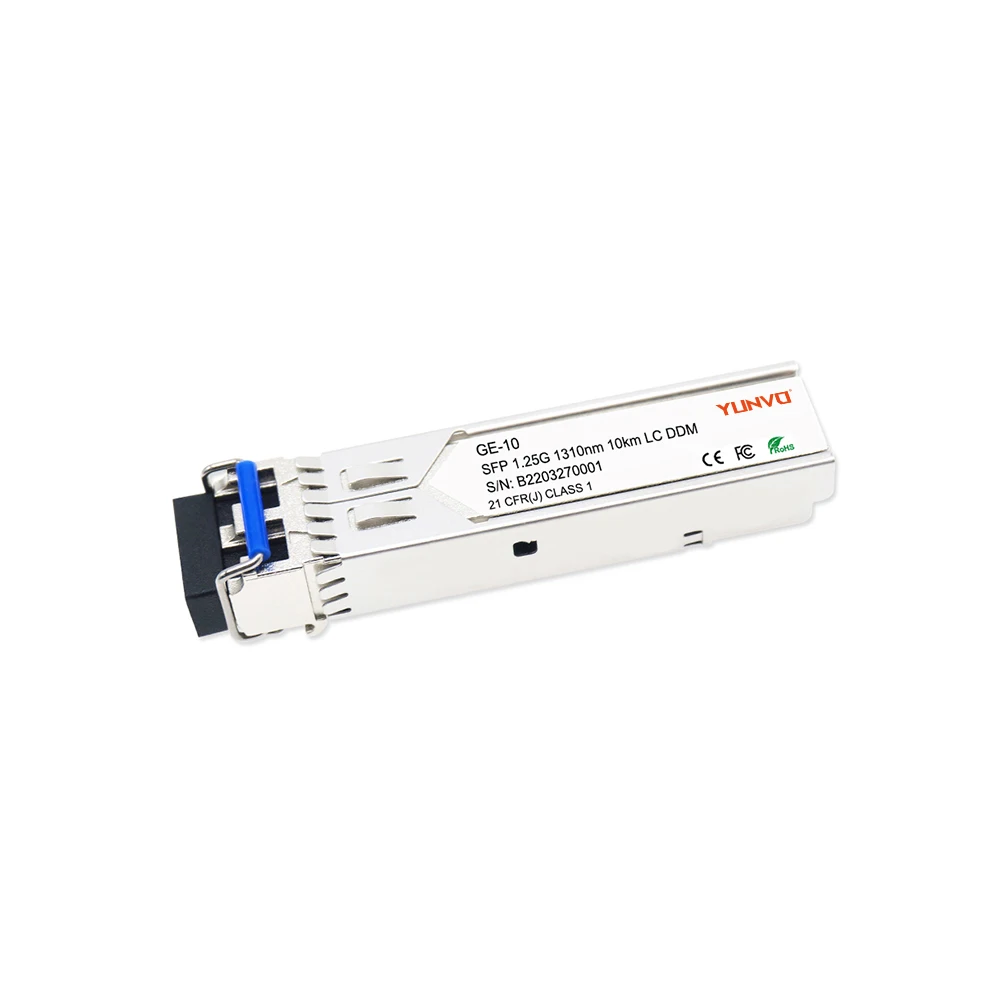

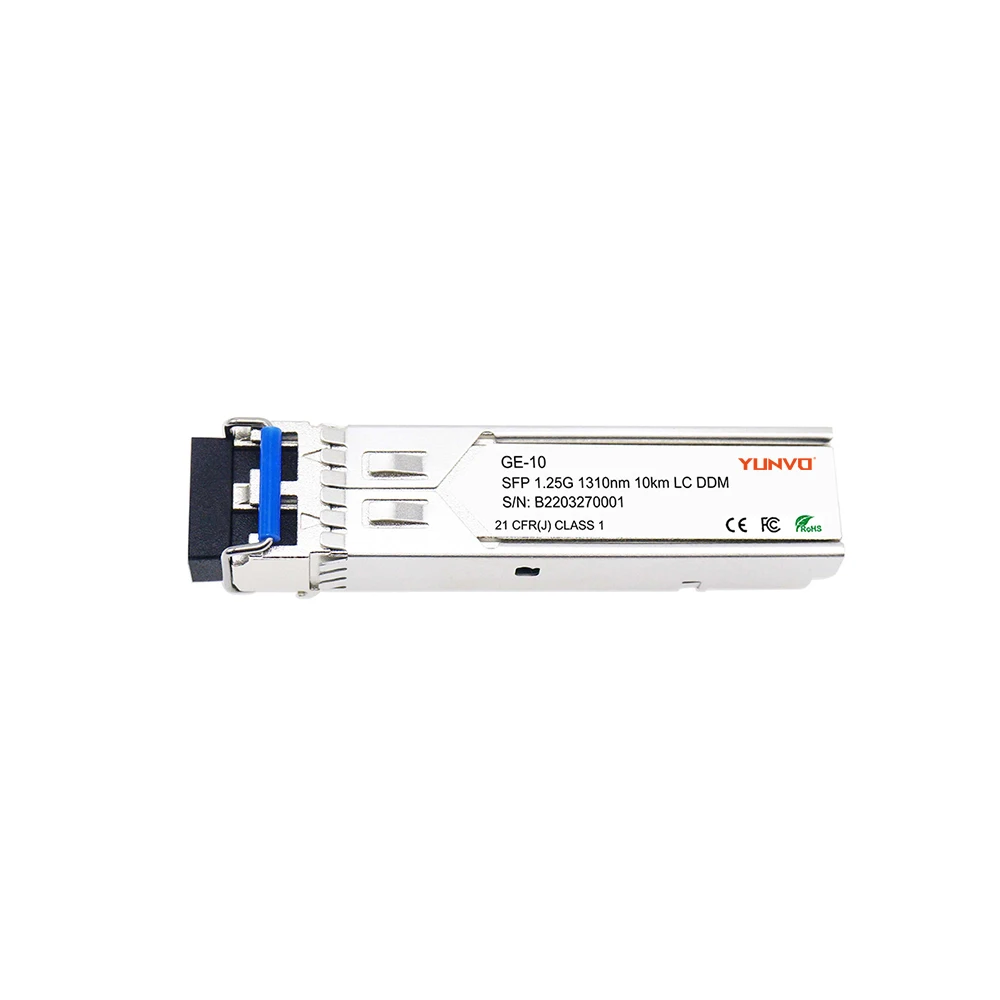

Yunvo OEM 1000BASE LX/LH SFP 1310nm 10km Duplex LC SMF Transceiver Module compatible GLC LH SM EX SFP 1GE LX SFP 1G LX
- Category: >>>
- Supplier: Shenzhen Yunvo Communication Co. Ltd.
Share on (1600960939301):
Product Overview
Description
Product Description
Yunvo OEM 1000BASE-LX/LH SFP 1310nm 10km Duplex LC SMF Transceiver Module compatible GLC-LH-SM EX-SFP-1GE-LX SFP-1G-LX
PN: YV-GE-10
1.25Gbps 1310nm 10km SFP Transceiver
Features
> Dual data-rate of 1.25Gbps/1.063Gbps operation
> 1310nm FP laser and PIN photodetector for 10km transmission
> Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
> Digital Diagnostic Monitoring: Internal Calibration or External Calibration
> Compatible with SONET OC-24-LR-1
> Compatible with RoHS
> +3.3V single power supply
> Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
> 1310nm FP laser and PIN photodetector for 10km transmission
> Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
> Digital Diagnostic Monitoring: Internal Calibration or External Calibration
> Compatible with SONET OC-24-LR-1
> Compatible with RoHS
> +3.3V single power supply
> Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
1. Gigabit Ethernet
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems
Order information
1.25G Duplex/BIDI/CWDM/DWDM SFP
Model No. | Data Rate | Wavelength | Distance | Connector |
YV-GE-055 | 1.25G | 850nm | 550m | Dual LC |
YV-GE-2 | 1.25G | 1310nm | 2km | Dual LC |
YV-GE-10 | 1.25G | 1310nm | 10km | Dual LC |
YV-GE-20 | 1.25G | 1310nm | 20km | Dual LC |
YV-GE-40 | 1.25G | 1310nm | 40km | Dual LC |
YV-GE-40-1550 | 1.25G | 1550nm | 40km | Dual LC |
YV-GE-80 | 1.25G | 1550nm | 80km | Dual LC |
YV-GE-100 | 1.25G | 1550nm | 100km | Dual LC |
YV-GE-120 | 1.25G | 1550nm | 120km | Dual LC |
YV-GE-160 | 1.25G | 1550nm | 160km | Dual LC |
YV-GE-3T | 1.25G | T1310/R1550nm | 3km | BiDi LC |
YV-GE-3R | 1.25G | T1550/R1310nm | 3km | BiDi LC |
YV-GE-3TS | 1.25G | T1310/R1550nm | 3km | BiDi SC |
YV-GE-3RS | 1.25G | T1550/R1310nm | 3km | BiDi SC |
YV-GE-20T | 1.25G | T1310/R1550nm | 20km | BiDi LC |
YV-GE-20R | 1.25G | T1550/R1310nm | 20km | BiDi LC |
YV-GE-20TS | 1.25G | T1310/R1550nm | 20km | BiDi SC |
YV-GE-20RS | 1.25G | T1550/R1310nm | 20km | BiDi SC |
YV-GE-20T-1310 | 1.25G | T1310/R1490nm | 20km | BiDi LC |
YV-GE-20R-1490 | 1.25G | T1490/R1310nm | 20km | BiDi LC |
YV-GE-40T | 1.25G | T1310/R1550nm | 40km | BiDi LC |
YV-GE-40R | 1.25G | T1550/R1310nm | 40km | BiDi LC |
YV-GE-60T | 1.25G | T1490/R1550nm | 60km | BiDi LC |
YV-GE-60R | 1.25G | T1550/R1490nm | 60km | BiDi LC |
YV-GE-80T | 1.25G | T1490/R1550nm | 80km | BiDi LC |
YV-GE-80R | 1.25G | T1550/R1490nm | 80km | BiDi LC |
YV-GE-120T | 1.25G | T1490/R1550nm | 120km | BiDi LC |
YV-GE-120R | 1.25G | T1550/R1490nm | 120km | BiDi LC |
YV-GE-160T | 1.25G | T1490/R1550nm | 160km | BiDi LC |
YV-GE-160R | 1.25G | T1550/R1490nm | 160km | BiDi LC |
YV-GE-20Cxxxx | 1.25G | CWDM 1271~1371nm | 20km | Dual LC |
YV-GE-20Cxxxx | 1.25G | CWDM 1391~1451nm | 20km | Dual LC |
YV-GE-20Cxxxx | 1.25G | CWDM 1471~1571nm | 20km | Dual LC |
YV-GE-20Cxxxx | 1.25G | CWDM 1591~1611nm | 20km | Dual LC |
YV-GE-40Cxxxx | 1.25G | CWDM 1271~1371nm | 40km | Dual LC |
YV-GE-40Cxxxx | 1.25G | CWDM 1391~1451nm | 40km | Dual LC |
YV-GE-40Cxxxx | 1.25G | CWDM 1471~1571nm | 40km | Dual LC |
YV-GE-40Cxxxx | 1.25G | CWDM 1591~1611nm | 40km | Dual LC |
YV-GE-80Cxxxx | 1.25G | CWDM 1271~1371nm | 80km | Dual LC |
YV-GE-80Cxxxx | 1.25G | CWDM 1391~1451nm | 80km | Dual LC |
YV-GE-80Cxxxx | 1.25G | CWDM 1471~1571nm | 80km | Dual LC |
YV-GE-80Cxxxx | 1.25G | CWDM 1591~1611nm | 80km | Dual LC |
YV-GE-120Cxxxx | 1.25G | CWDM 1470~1610nm | 120km | Dual LC |
YV-GE-160Cxxxx | 1.25G | CWDM 1470~1610nm | 160km | Dual LC |
YV-GE-80Dxx | 1.25G | DWDM CH20~59 | 80km | Dual LC |
YV-GE-120Dxx | 1.25G | DWDM CH20~59 | 120km | Dual LC |
Related Products
Company Profile
Yunvo is a global optical transport and connectivity solutions provider. We are dedicated to providing the
Best Fiber Optical products and Connectivity Solution with High Quality, Affordable Price, and Fast Delivery. Our main products are Optical Transceiver, Fiber Media Converter, Fiber Switch,POE Switch,Industrial Switch, Video Optic
Converter, Fiber Cable. The products are widely used in the MAN, LAN, Fiber Channel
Network, Wireless Networks, Data Center, Cloud Computing, Security Surveillance,etc. Customers spread all over the country and overseas regions such as Europe, North America, Africa, Middle
East, South America, Southeast Asia and so on.
Best Fiber Optical products and Connectivity Solution with High Quality, Affordable Price, and Fast Delivery. Our main products are Optical Transceiver, Fiber Media Converter, Fiber Switch,POE Switch,Industrial Switch, Video Optic
Converter, Fiber Cable. The products are widely used in the MAN, LAN, Fiber Channel
Network, Wireless Networks, Data Center, Cloud Computing, Security Surveillance,etc. Customers spread all over the country and overseas regions such as Europe, North America, Africa, Middle
East, South America, Southeast Asia and so on.
Packing & Delivery
Packing: 10 in 1 anti-static box, 100/200/400/600pcs in 1 carton.
Delivery time: 2~7 working days by DHL, Fedex, EMS, TNT, UPS etc,.
