DN25 CE approved nitrogen compressed air heliums China thermal mass gas flow meters sincerity gas flow meters
- Category: >>>
- Supplier: Kaifeng Kamboda Industrial Instrument Co. Ltd.
Share on (1600961162924):
Product Overview
Description
Product Description

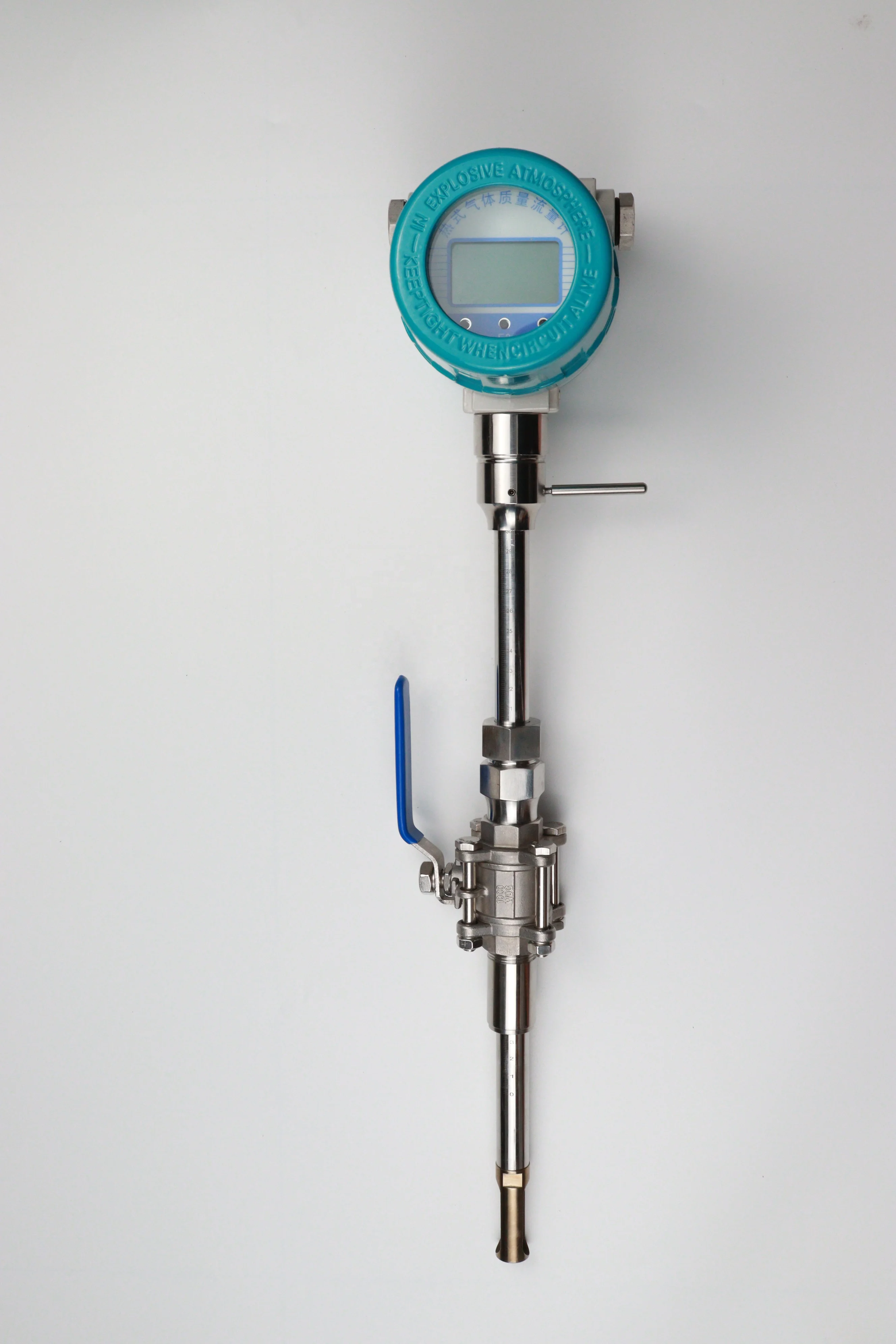

Insertion type

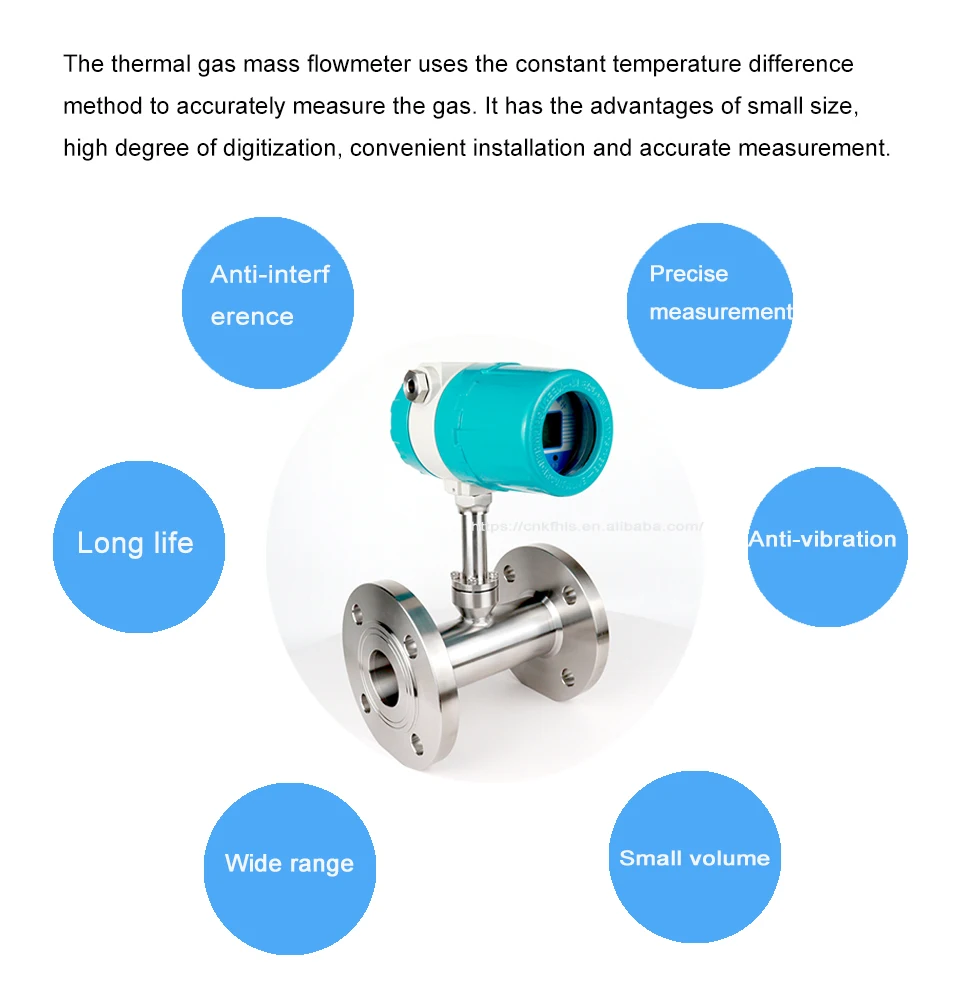

Thermal gas mass flow meter
working principle:HRLS series thermal gas mass flowmeters are constant power thermal gas mass flowmeters. Based on the principle of heat conduction technology, Newton's laws of thermodynamics are used to achieve the measurement of gas mass flow.
Features:
Features:
(1)easy installation and maintenance.
(2)with Bluetooth transmission function, can be operated through the mobile phone APP.
(3)with Modbus communication, remote monitoring.
(4)large range ratio, wide measurement flow rate range.
(5)no Moving parts,no pressure loss.
(6)measuring gas mass flow without temperature and pressure compensation.
(7)fully isolated electrical structure thoroughly filters out external interference.
Technical index | ||
Accuracy class | ±(1.5%RD+0.5%FS) | |
Repeatability | ±0.5% | |
responding speed | 1S | |

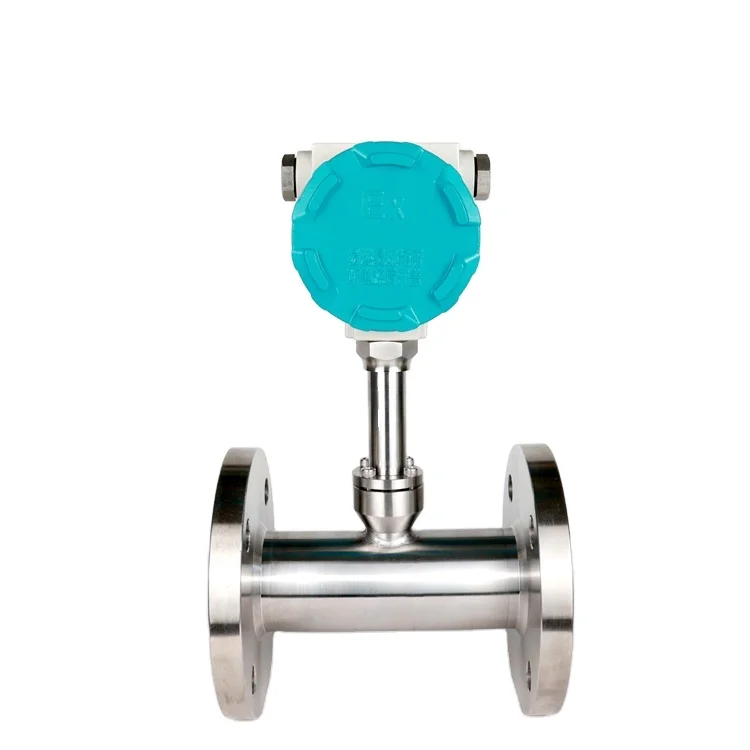

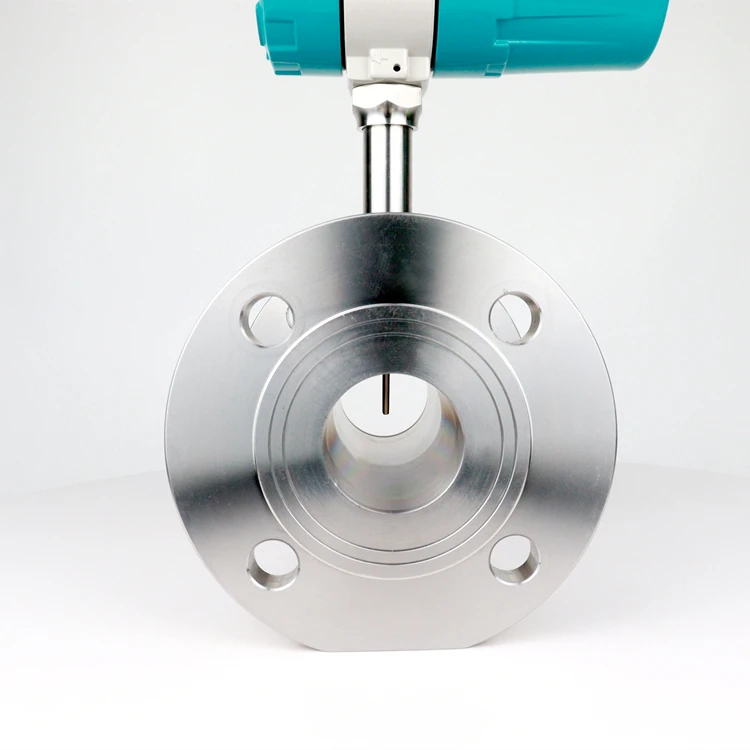

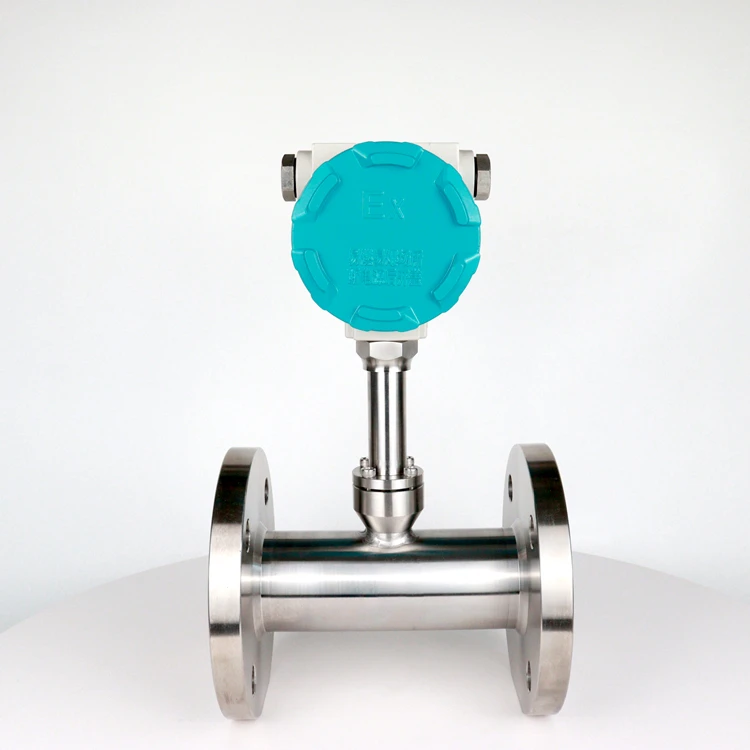

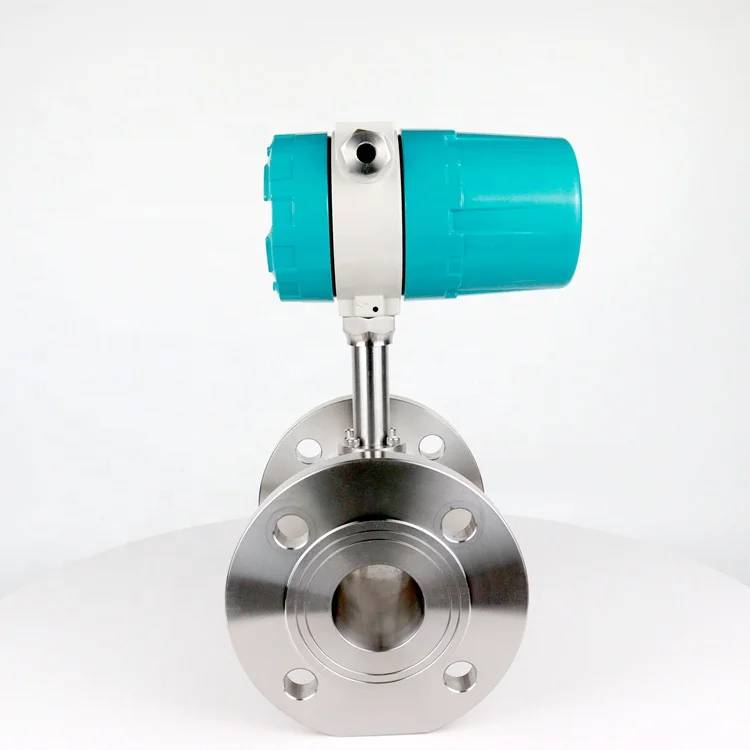

Diameter | Flange connection:DN25～DN200 | |
Velocity range | 0.3-30Nm/s 0.6-60Nm/s 0.9-90Nm/s 1.2-120Nm/s | |
Installation method | integrated or split | |

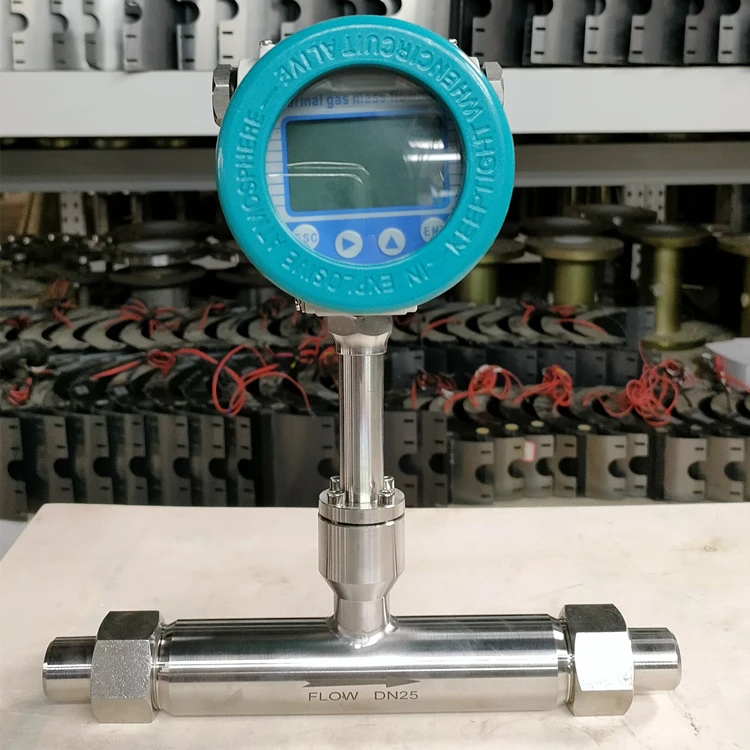

Connection method | Card sleeve connection | |
Measuring medium | Compressed air, oxygen, nitrogen, etc. | |
Ambient temperature | -40～60℃ | |
Operating temperature | -40～150℃(medium temperature, plug-in type) | |
Operating pressure | 1.6Mpa | |

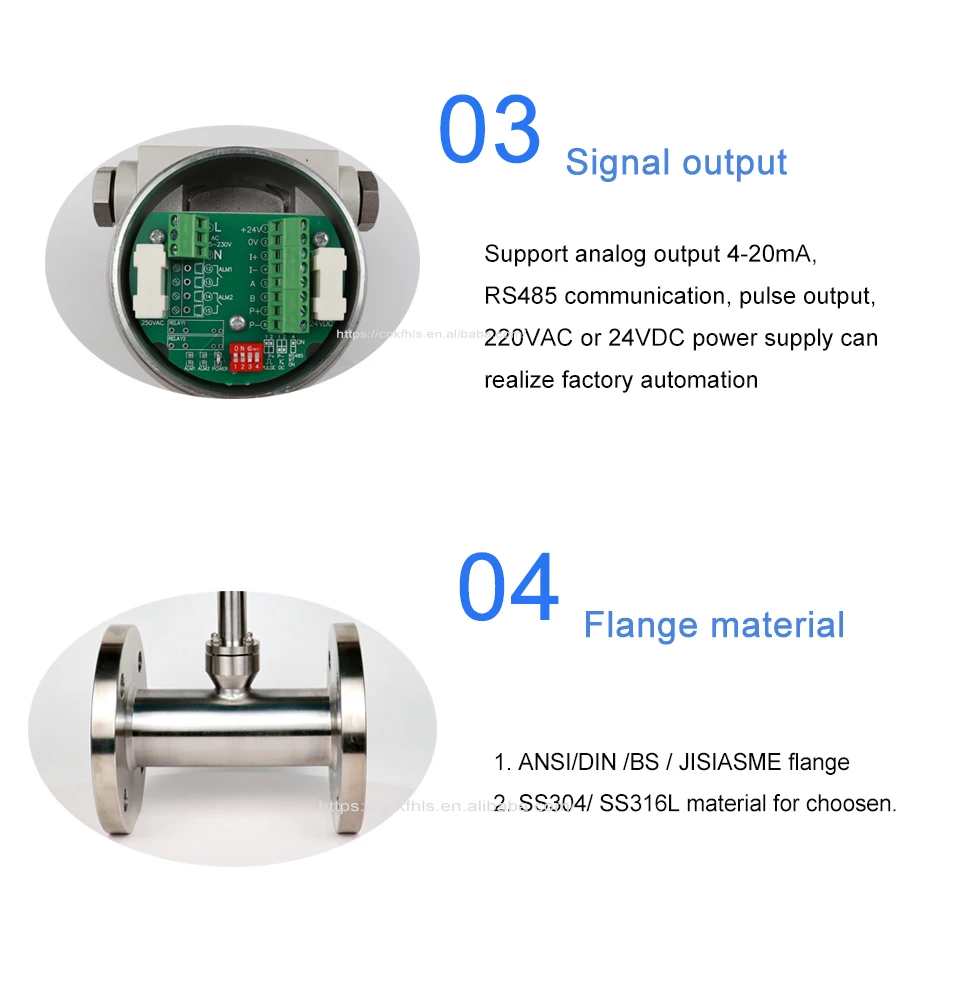

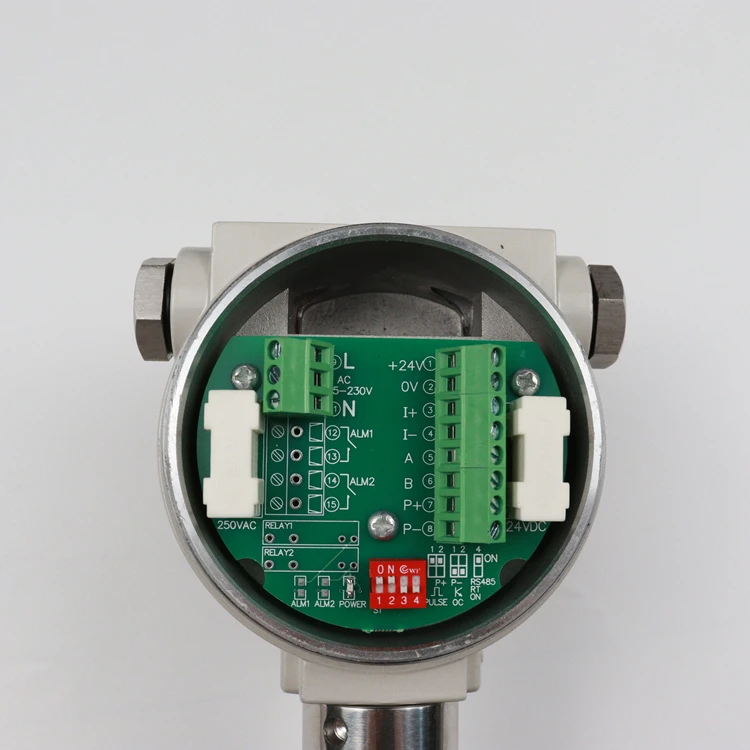

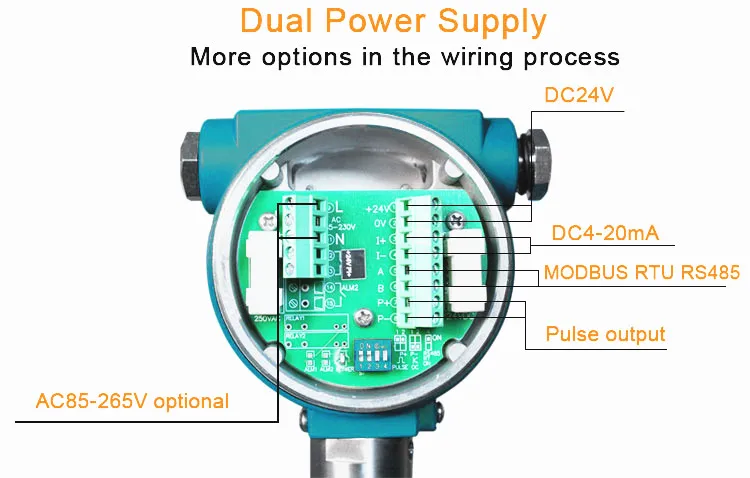

Signal interface | ModBus@RS485/Bluetooth function ModBus@RS485&4～20mA/Bluetooth function | |
Power supply | 13.5～42VDC | |
Protection class | IP65 | |
Sensor material | 316 | |
Body material | 304 | |
Contact us, Send us an inquiry,we will send you our flowmeter product catalog and more product information, and we will recommend the most suitable product based on size, medium, flow range, etc.
