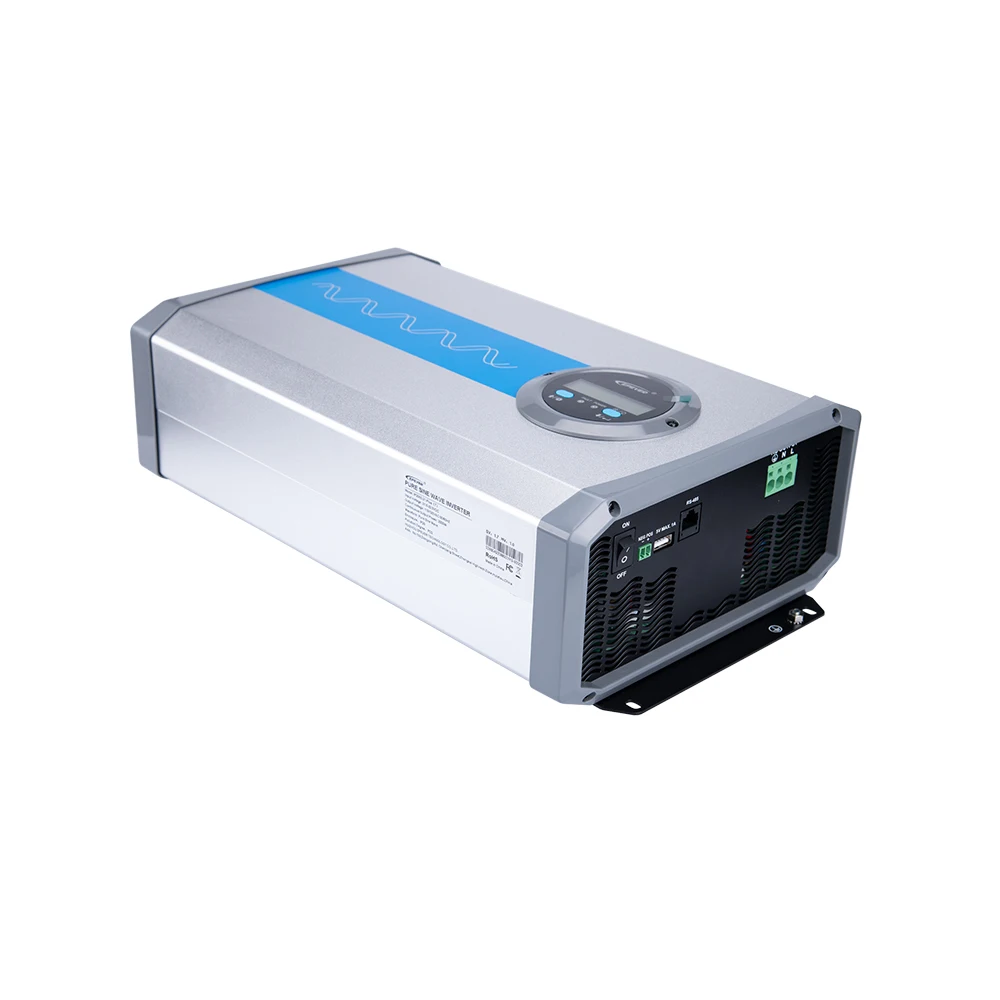

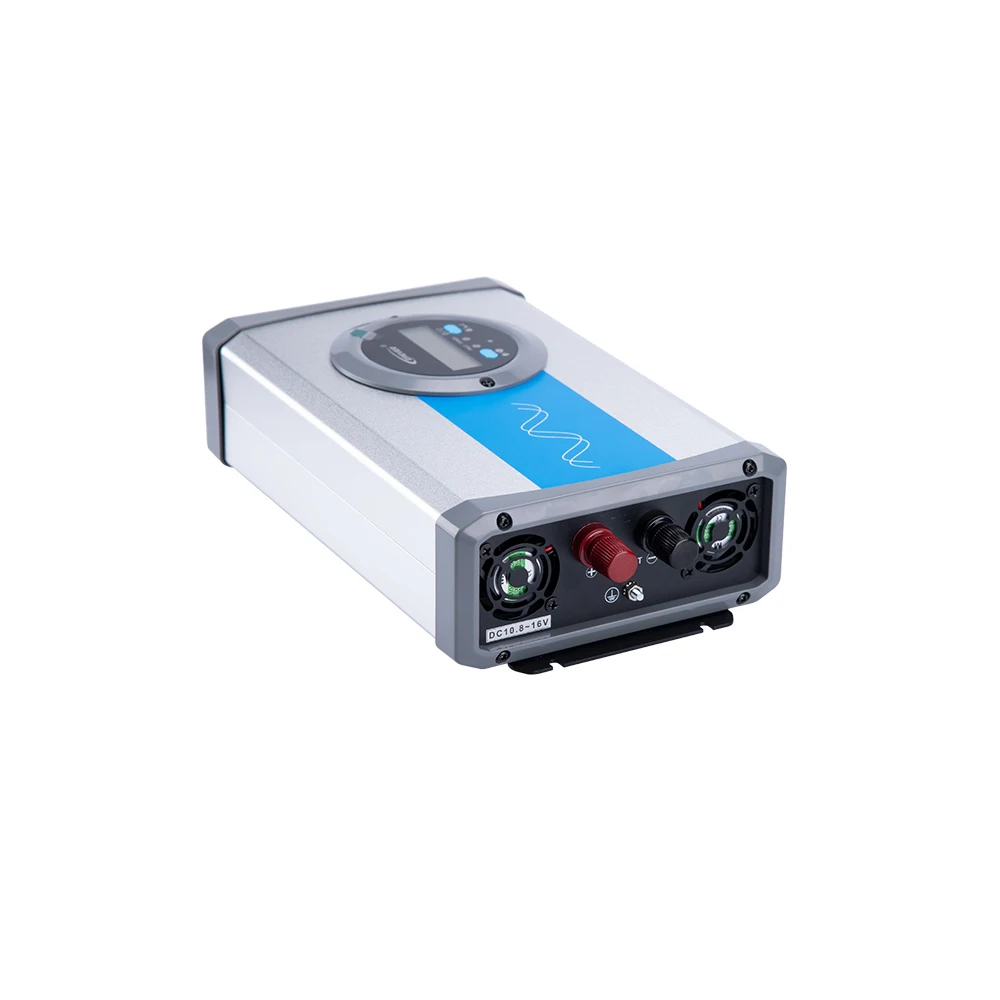

Epever 500W IP500 12 Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels
Epever 500W IP500-12-Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels

Epever 500W IP500 12 Plus off Grid 12VDC to 220 230VAC Mppt Inverters Epever For Solar Panels

Share on (1600962004459):


Price:$112.00 - $128.00

Quantity:


Product Overview

Description





Product Description




Specification


Parameters
IP350-12-Plus
IP350-22-Plus
IP500-12-Plus
IP500-22-Plus
Continuous output power
350W@35℃@ Rated input voltage
500W@35℃@ Rated input voltage
Surge power
700W@5S
1000W@5S
Surge current when power on
< 30A
< 50A
Output voltage
220VAC (±3%); 230VAC (-6%~+3%); 240VAC (-9%~+3%)
Output frequency
50/60Hz ± 0.2%
Output wave
Pure Sine Wave
Output distortion THD
THD ≤ 3% (Resistive load)
Load power factor
0.2 ~ 1 (Load power ≤ Continuous output power)
Rated input voltage
12VDC
24VDC
12VDC
24VDC
Input voltage range
10.8 ~ 16.0VDC
21.6 ~ 32VDC
10.8 ~ 16.0VDC
21.6 ~ 32VDC
Rated output efficiency①
> 89.0%
> 90.0%
> 89.5%
> 91.5%
Max. output efficiency
> 90.0% (70% loads)
> 91.5% (70% loads)
> 91.0% (40% loads)
> 92.0% (40% loads)
Idle current
< 0.15A
< 0.10A
< 0.15A
< 0.10A
No-load current
< 0.9A
< 0.4A
< 0.9A
< 0.6A
USB output
5VDC/Max.1A
RS485 com. port
5VDC/200mA
Mechanical parameters
Input terminal
M6
M6
Dimension (L x W x H)
229 × 163.5 × 75mm (with decorative cover) 229 × 160 × 73mm (without decorative cover)
286 × 163.5 × 78mm (with decorative cover) 286 × 160 × 78mm (without decorative cover)
Mounting size (L x W)
205 × 75mm
262 × 75mm
Mounting hole size
Φ5mm
Φ5mm
Net Weight
1.5kg
2.3kg
Environment parameters
Environment temperature
-20℃ ~ +60℃ (Refer to the Derating Curve)
Storage temperature
-35℃ ~ +70℃
Relative humidity
< 95% (N.C.)
Enclosure
IP20
Altitude
< 5000m (If the altitude exceeds 1000 meters, the rated power will be reduced according to IEC62040.)
Certification
Safety
EN/IEC62109-1，UL1741，UL458，CSA C22.2#107.1
EMC (Electromagnetic compatibility)
EN61000-6-1/EN61000-6-3 FCC 47 CFR Part 15，Subpart B
RoHS
IEC62321-3-1
① It is measured in the condition of continuous output power and rated input voltage.
② It means the max. output efficiency when the inverter is connected with different loads under the rated input voltage.


Company Profile












FAQ


1. Who are we?
We are based in Guangdong, China, start from 2019,sell to North America(23.00%),Western Europe(11.00%),South
America(10.00%),Northern Europe(9.00%),Mid East(9.00%),Southern Europe(8.00%),Africa(8.00%),Southeast Asia(7.00%),Eastern Europe(5.00%),Oceania(3.00%),Central America(3.00%),Domestic Market(2.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3.What can you buy from us?
Solar Charge Controller, Solar Inverter, Inverter Charger, Solar Power System, Portable Solar Power Generation System.

4. Why should you buy from us not from other suppliers?
For ages, as a professional manufacturer of solar controllers, inverters, solar power systems, solar home using products, street lamps, LED lights and many other energy saving products, we take pride in what we are.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow.
