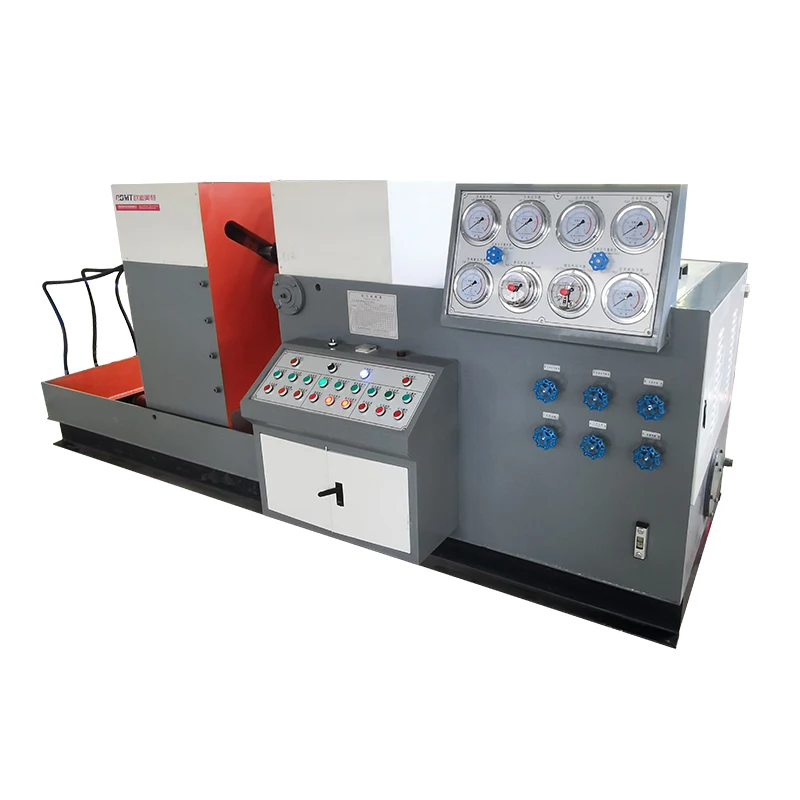

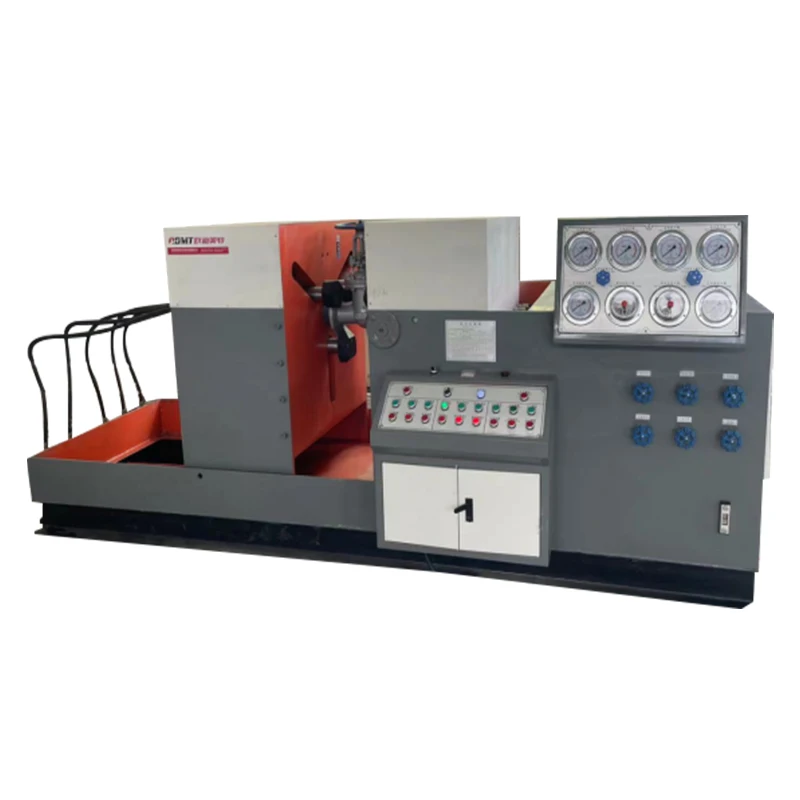

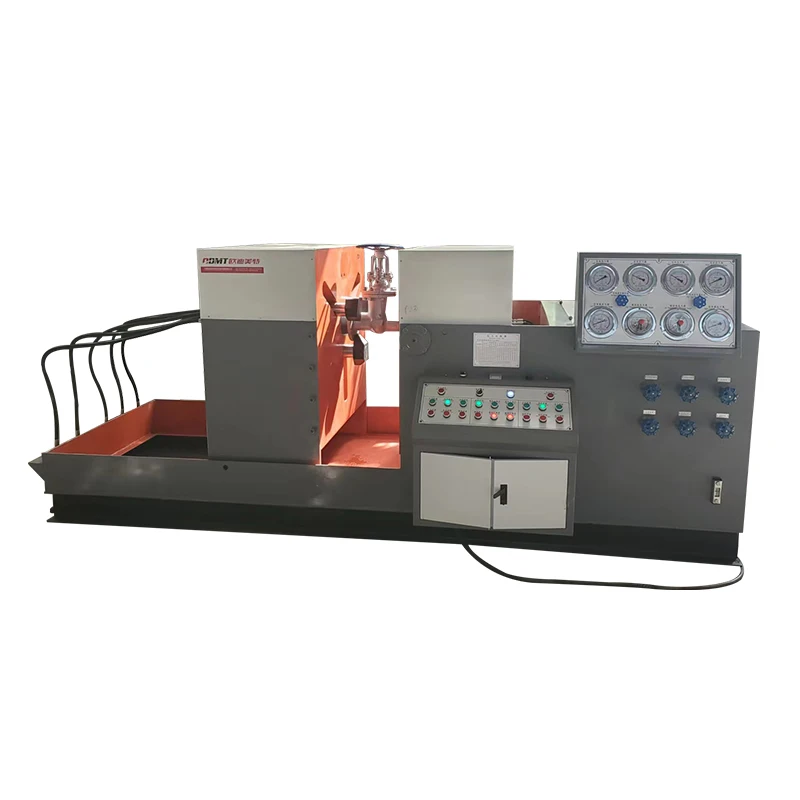

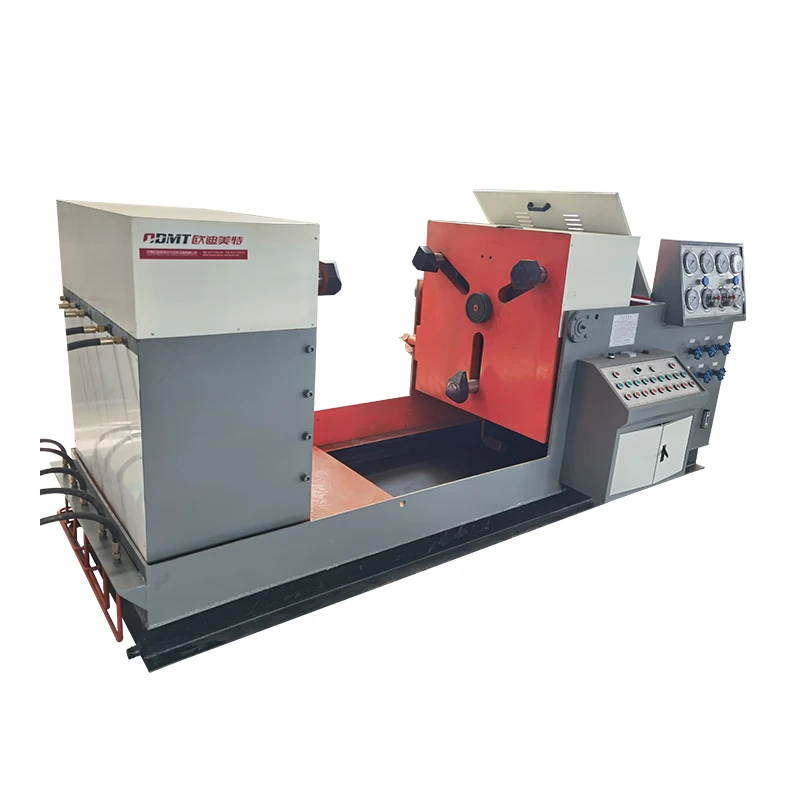

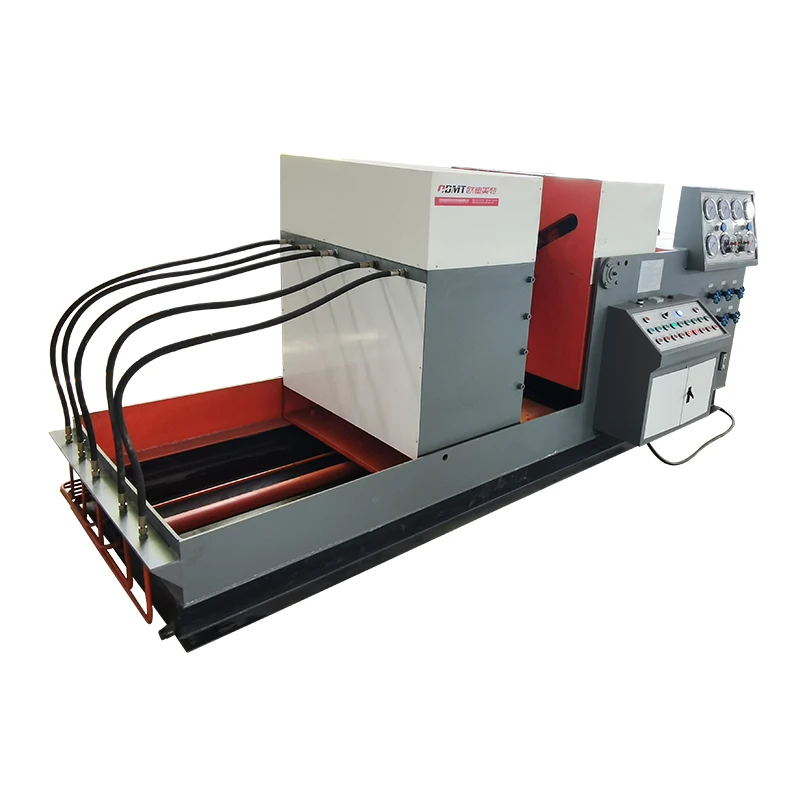

vtb flange water hydraulic pressure welded check ball valve test horizontal bench yfb 300 for valve pressure test
- Category: >>>
- Supplier: Shandong Hailaitaide Machinery Co. Ltd.
Share on (1600962589952):
Product Overview
Description
Product Description
MHV-B300-S hydraulic valve test bench is based on our company's many years of production valve testing equipment technology, and is managed and produced in strict accordance with the ISO9001 quality management system. The products meet relevant standards such as GB/T13927-2008 "General Valve Pressure Test", GB/T26480-2011 "Valve Test and Inspection" and AP1598 American Standard.
Hydraulic valve test bench integrates hydraulic, mechanical, electrical and medium storage and circulation. It has the advantages of reasonable structure, perfect function, stable performance and high degree of automation. It is widely used in high-precision flange valves with nominal diameter DN50-300mm It is the most ideal valve testing and testing equipment for industrial units such as valve manufacturing, petroleum and petrochemical, natural gas, water supply and drainage engineering, power plants, and valve
maintenance stations.
Hydraulic valve test bench integrates hydraulic, mechanical, electrical and medium storage and circulation. It has the advantages of reasonable structure, perfect function, stable performance and high degree of automation. It is widely used in high-precision flange valves with nominal diameter DN50-300mm It is the most ideal valve testing and testing equipment for industrial units such as valve manufacturing, petroleum and petrochemical, natural gas, water supply and drainage engineering, power plants, and valve
maintenance stations.
Completed test items: 1.5 times the nominal pressure shell test, 1.1 times the nominal pressure high pressure liquid sealing test; 4-7bar low pressure air tightness test.

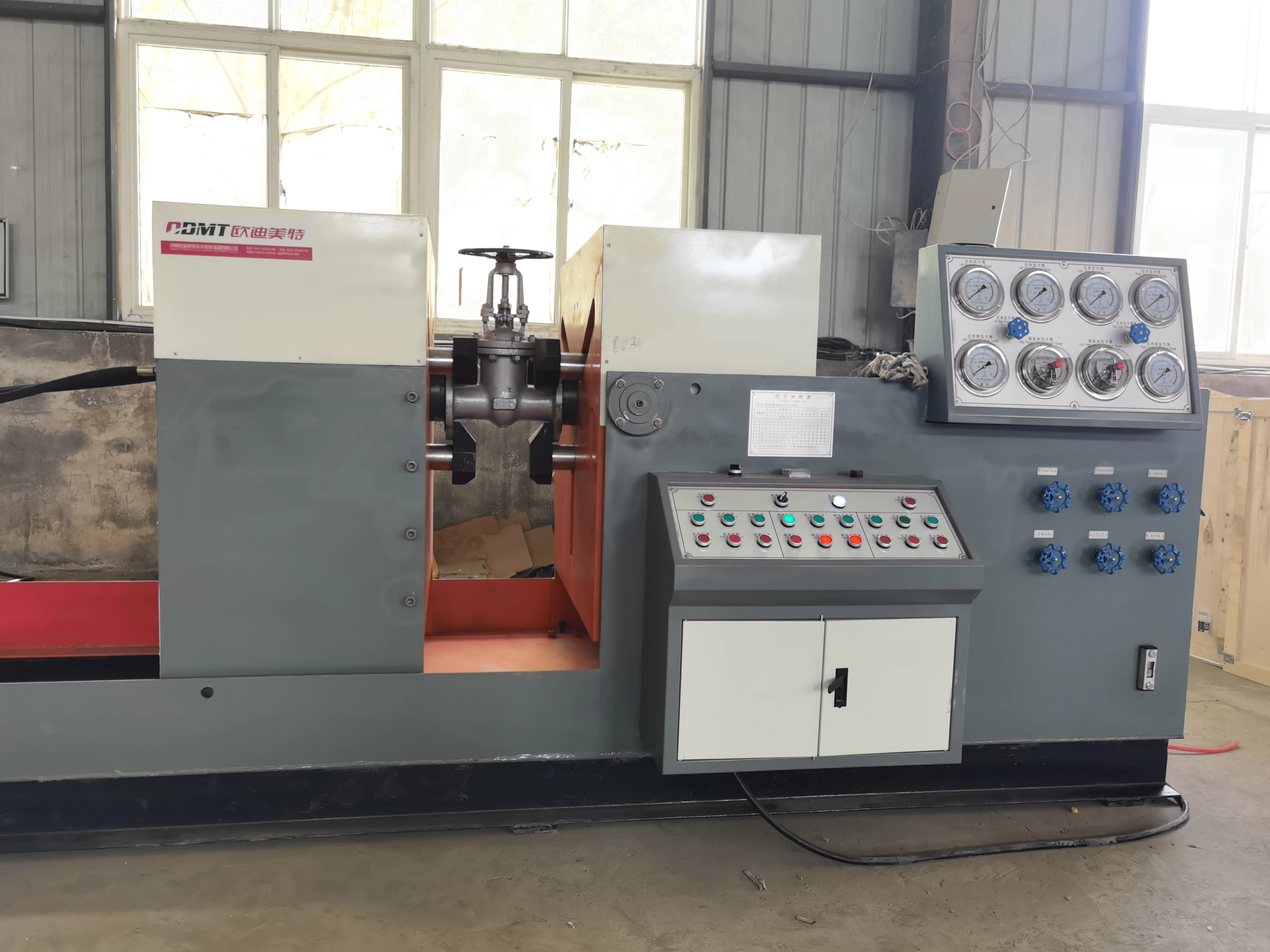

Hailaitaide MHV-B300/40-C Valve Repair Workshop Industrial Valve Testing Equipments Valve Bench testing

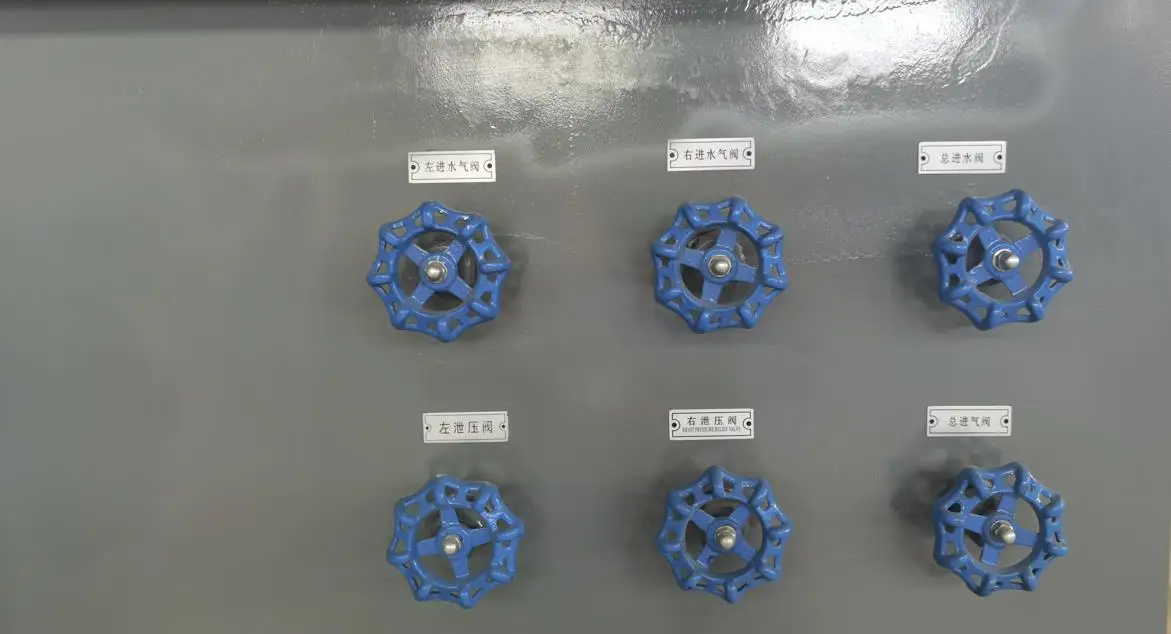

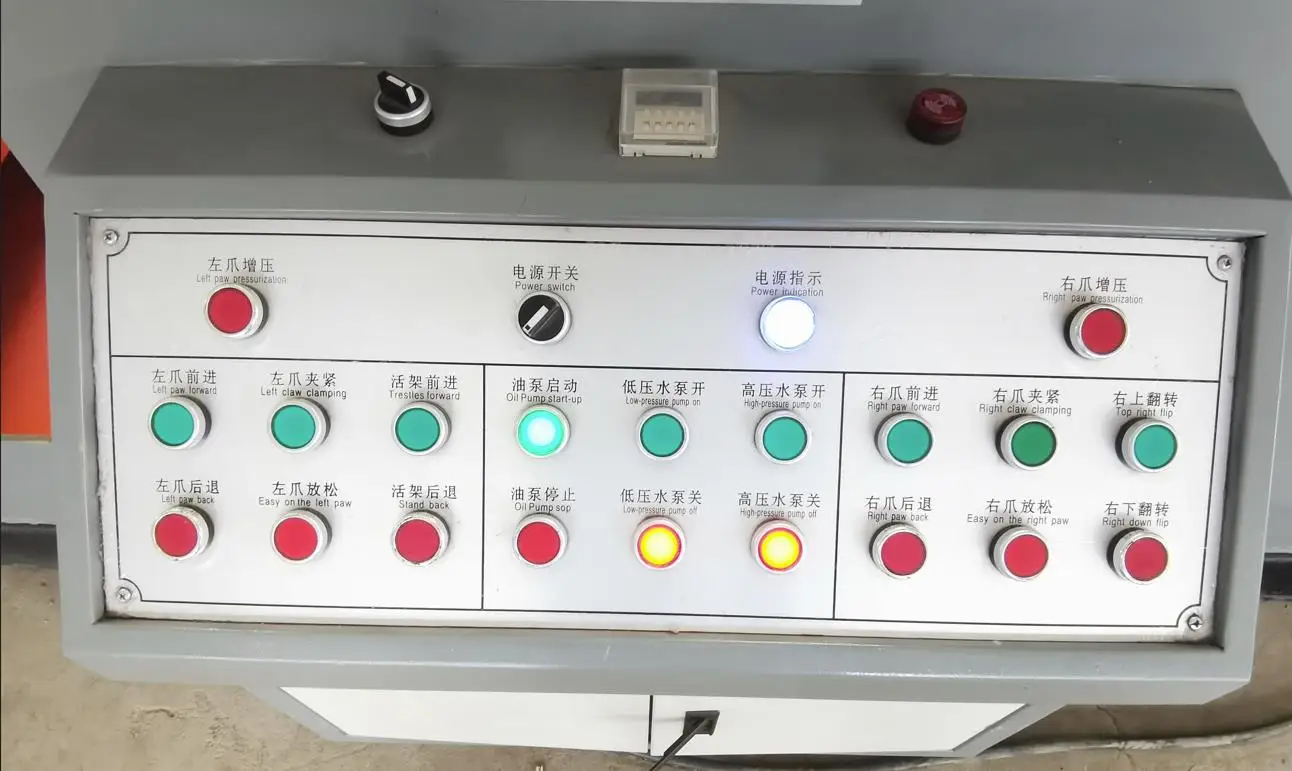

Part of Machine
Specification
Test valve type | straight through flange gate valve |
ball valve, globe valve | |
check valve | |
Clamping method | the clamping jaws clamp the back of the flange |
Valve and blind plate sealing method | O-ring seal on the end face |
Pressure test medium | water (air or nitrogen) |
Test range | DN50-300, see the pressure test range table |
Test valve structure length | 203-750mm |
Test valve flange diameter | 190-520mm |
Test valve flange thickness | 20-83mm |
Working disc spacing | 250-1100mm |
Left and right clamping cylinders | 3X140mm |
Maximum clamping force | 100 tons |
data acquisition software | LABVEIW program |
pressure sensor adopts | German IFM |
acquisition card adopts | American NI |
Nominal diameter | Nominal pressure | Test pressure |
DN50-80 | 1.6-25.0MPa | 1.6-40Mpa |
DN100 | 1.6-25.0MPa | 1.6-37.5Mpa |
DN150 | 1.6-20.0MPa | 1.6-30.0 Mpa |
DN200 | 1.6-10.0MPa | 1.6-15.0 Mpa |
DN250 | 1.6-10.0MPa | 1.6-15.0 Mpa |
DN300 | 1.6-6.4MPa | 1.6-9.6 Mpa |
Company Profie
Why Choose Us
FAQ
Q1：Are you the manufacturer?
A1：Yes , we are the manufacturer of the valve test bench and valve grinding machine, located in
jinan,shandong. We have our own brand :ODMT and Hailaitaide.
Q2: Do you have any certificates?
A2: Yes, we have CE, ISO .
Q3: Do you offer installation and comissioning services ?
A3: Yes. we have, Our engineer has been visiting to India, USA, Italy, Saudi, Indonesia, Singapore, South Africa etc
Q4: Can you customize the machine?
A4: Yes, please send us by email all your request.
jinan,shandong. We have our own brand :ODMT and Hailaitaide.
Q2: Do you have any certificates?
A2: Yes, we have CE, ISO .
Q3: Do you offer installation and comissioning services ?
A3: Yes. we have, Our engineer has been visiting to India, USA, Italy, Saudi, Indonesia, Singapore, South Africa etc
Q4: Can you customize the machine?
A4: Yes, please send us by email all your request.
