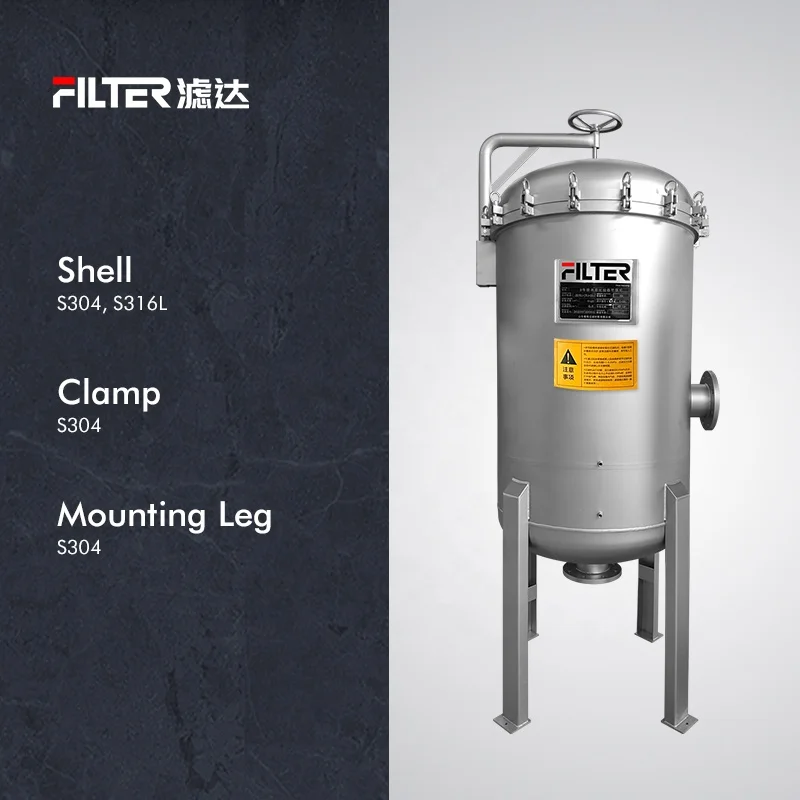

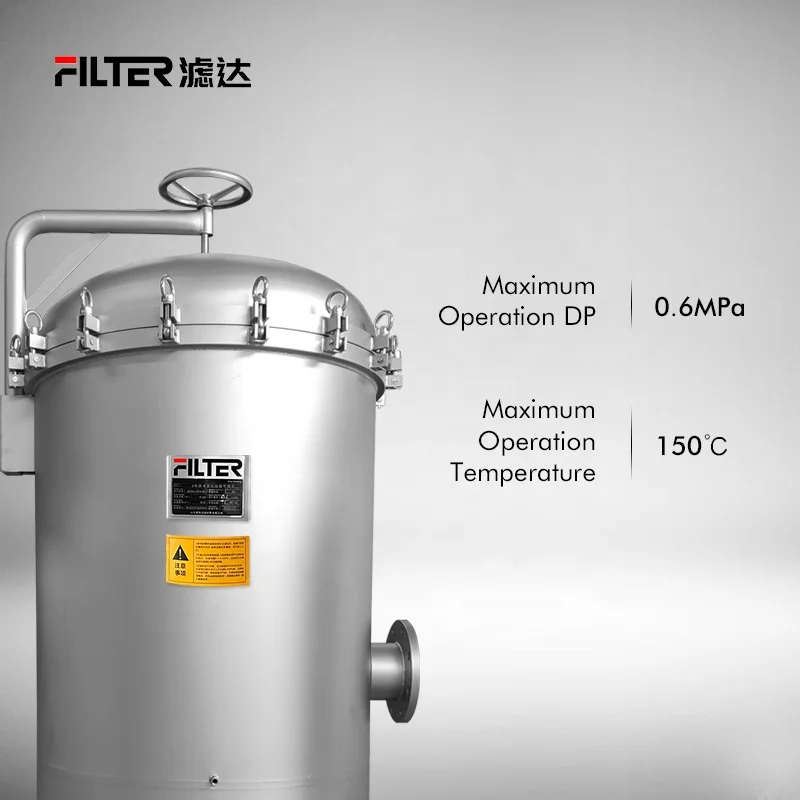

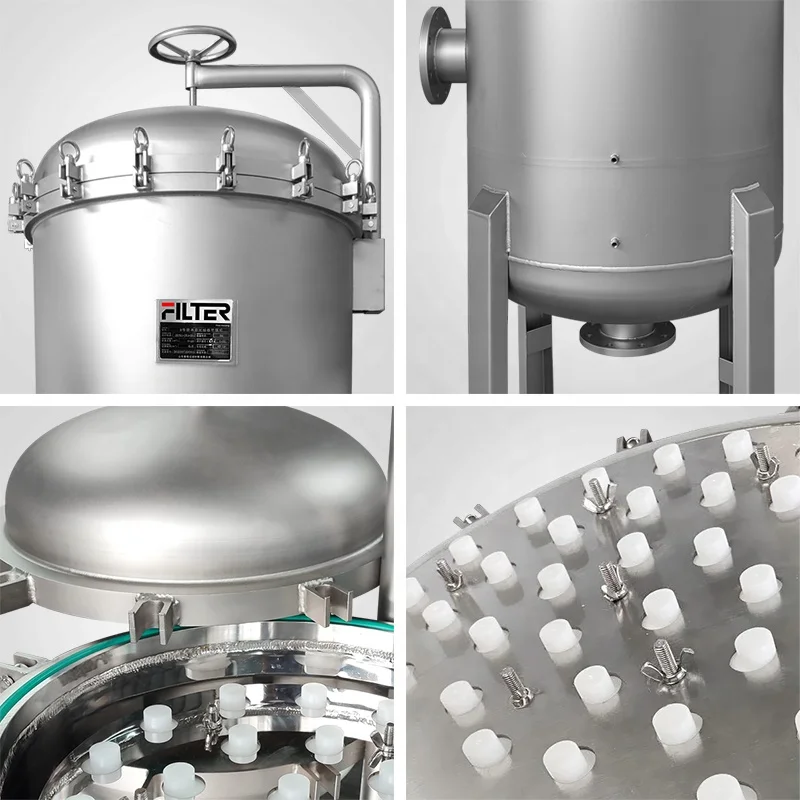

High pressure multi 40 inch multi cartridge stainless steel lenticular filter housing equipment
- Category: >>>
- Supplier: Shanghai Lvda Filtration System Co. Ltd.
Share on (1600963131963):
Product Overview
Description
We are a real manufacturer. Next I will show you my product information, as well as my production workshop, laboratory, filtration effect, delivery packaging and other information. Please browse.I can provide you with customized products, welcome to consult.
High pressure multi 40 inch multi cartridge stainless steel lenticular filter housing equipment
Pleated cartridge filter Install instruction
1. Please clean filter shell carefully before using.2. Connect cartridge filter with other in-line filtering system. Please check inlet and outlet install direction.

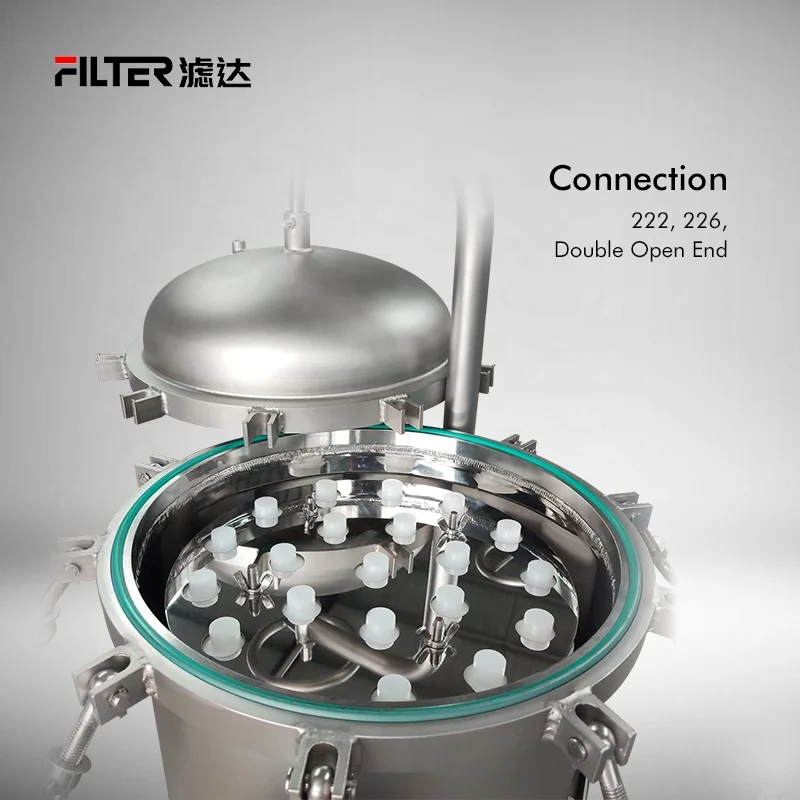

3. Open the filter top cover to check cartridge condition: O-ring’s sealing and its position.
4. Users can use wetting agent (Water e.g) to wet O-ring and cartridge socket.
5. Hold the cartridge near O-ring side, insert it into socket vertically.
6. Insert all cartridges, fixing with press plate and covering with top cover.

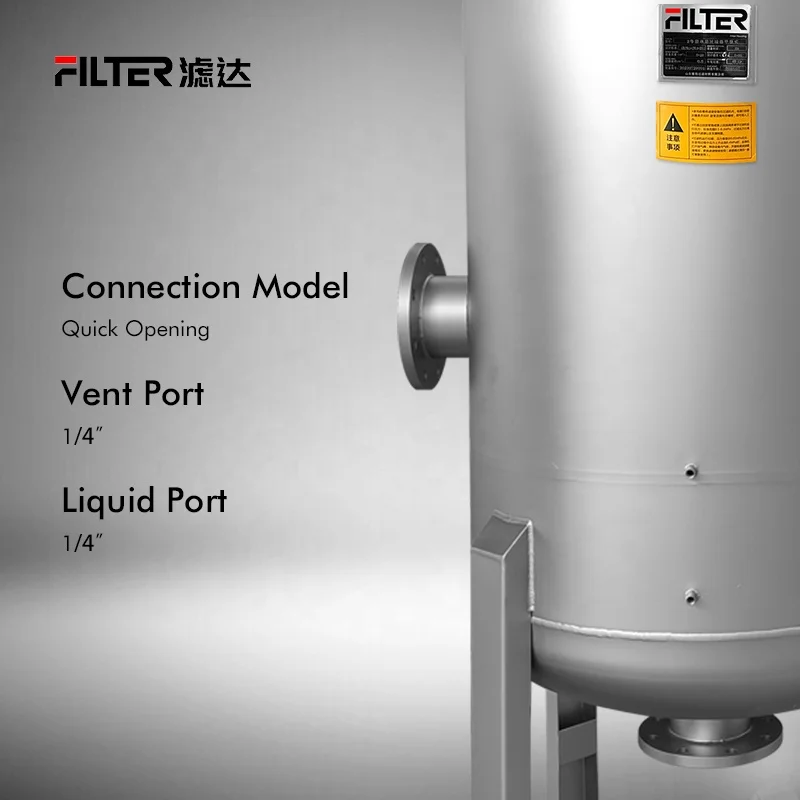

Open vent valve at the top of out shell. Turn on inlet valve a bit, let liquid into shell. Turn off vent valve till liquid comes
into shell entirely and leak from vent valve. Adjust outlet valve gradually until turn on it fully. Turn on inlet valve slowly to
adjust pressure drop to a data of 0.02MPa.
Products Description
Model | Filter element | Connection | Max. Flow (m³/h) |
YT-3*10“ | PP | DN25 | 1 |
YT-3*20” | PP | DN25 | 2 |
YT-5*10“ | PP | DN25-40 | 3 |
YT-5*20” | PP | DN25-40 | 4-6 |
YT-5*30“ | PP | DN25-40 | 7-8 |
YT-5*40” | PP | DN25-40 | 9-10 |
YT-7*20“ | PP | DN50 | 6-7 |
YT-7*30” | PP | DN50 | 9-11 |
YT-7*40“ | PP | DN50 | 11-14 |
YT-10*40“ | PP | DN50 | 14-18 |
YT-12*40” | PP | DN65 | 16-22 |
YT-15*40” | PP | DN65 | 20-28 |
YT-20*40“ | PP | DN80 | 28-38 |
YT-60*40” | PP | DN100 | 80-100 |
YT-70*40“ | PP | DN125 | 100-135 |
YT-80*40” | PP | DN125 | 120-155 |
YT-100*40“ | PP | DN125 | 150-190 |
Pleated cartridge filter Operation instruction
1.If cartridge filter is used at desalt system, please read exclusive operation instruction.2.If for normal use, please read below:
1. Open inlet valve, vent valve to let filter house full of water. Then open outlet valve, close vent valve to adjust filter’s
flow rate.
2. Cartridge using period usually can be inspected by pressure gauge. Normally the max differential pressure is 0.15MPa. When
pressure alarms, it’s time to close inlet and outlet vale, and to replace cartridge.
3. Open vent valve, drain vale and replace new cartridges.
Notes in operation
1. Avoid pressure impact, reverse pressure is forbidden.2. Replace cartridge when differential drop is big than 0.3MPa, or flow rate down obviously.
3. If filter no need work for a short time, soak cartridge in sterile solution, but don’t dry cartridge. User can pour sterile
solution inside filter house, clean it before again use.
4. If users need steam sterilization for filter, make sure drain condense water, and steam pressure not exceed 0.1MPa, filter
differential pressure not exceed 0.015MPa.
If users need disinfect wet cartridge, please use clean compress air absorb all liquid, or else, steam will destroy cartridge.
APPLICATION OF STAINLESS STEEL BAG FILTER HOUSING
Food and beverage: beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration.
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration.
Automotive: electrophoretic paint filtration; varnishes and topcoats filtration.
Electronics industry: lithium battery coolant filtration.
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration.
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration.
Petrochemical industry: aviation kerosene filtration; Diesel and fuel filtration; graphene, ink filtration.
Filtering Effect And Detection
Company Profile
Shipping and Packing
FAQ
1. What is the minimum order quantity?
A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
