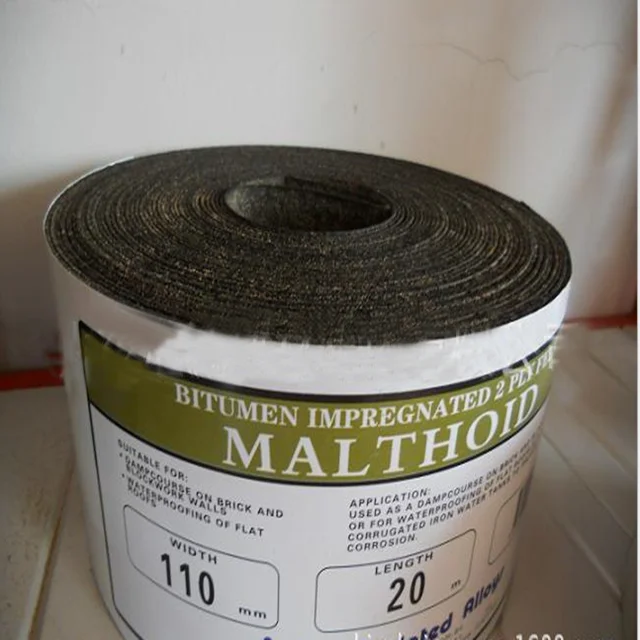

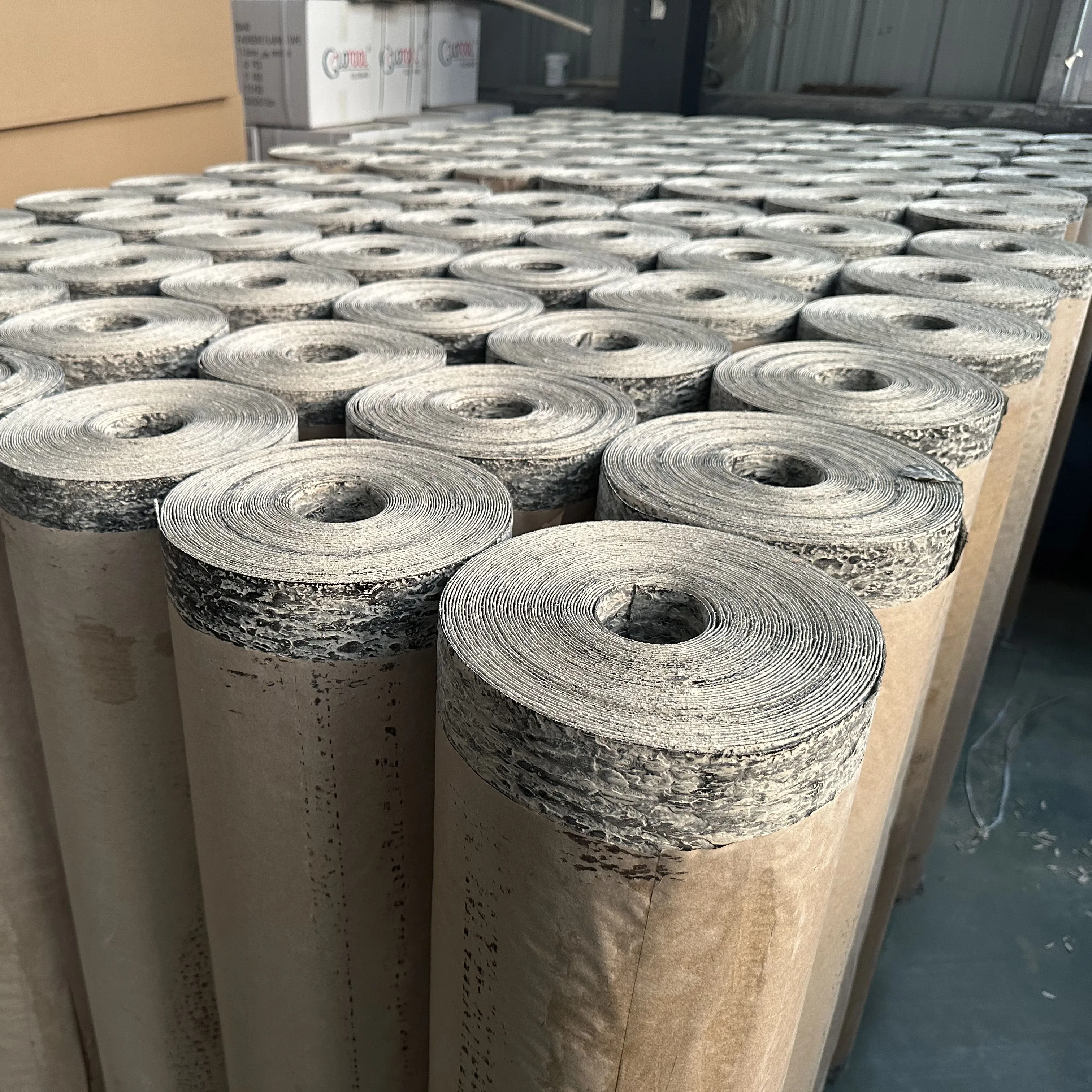

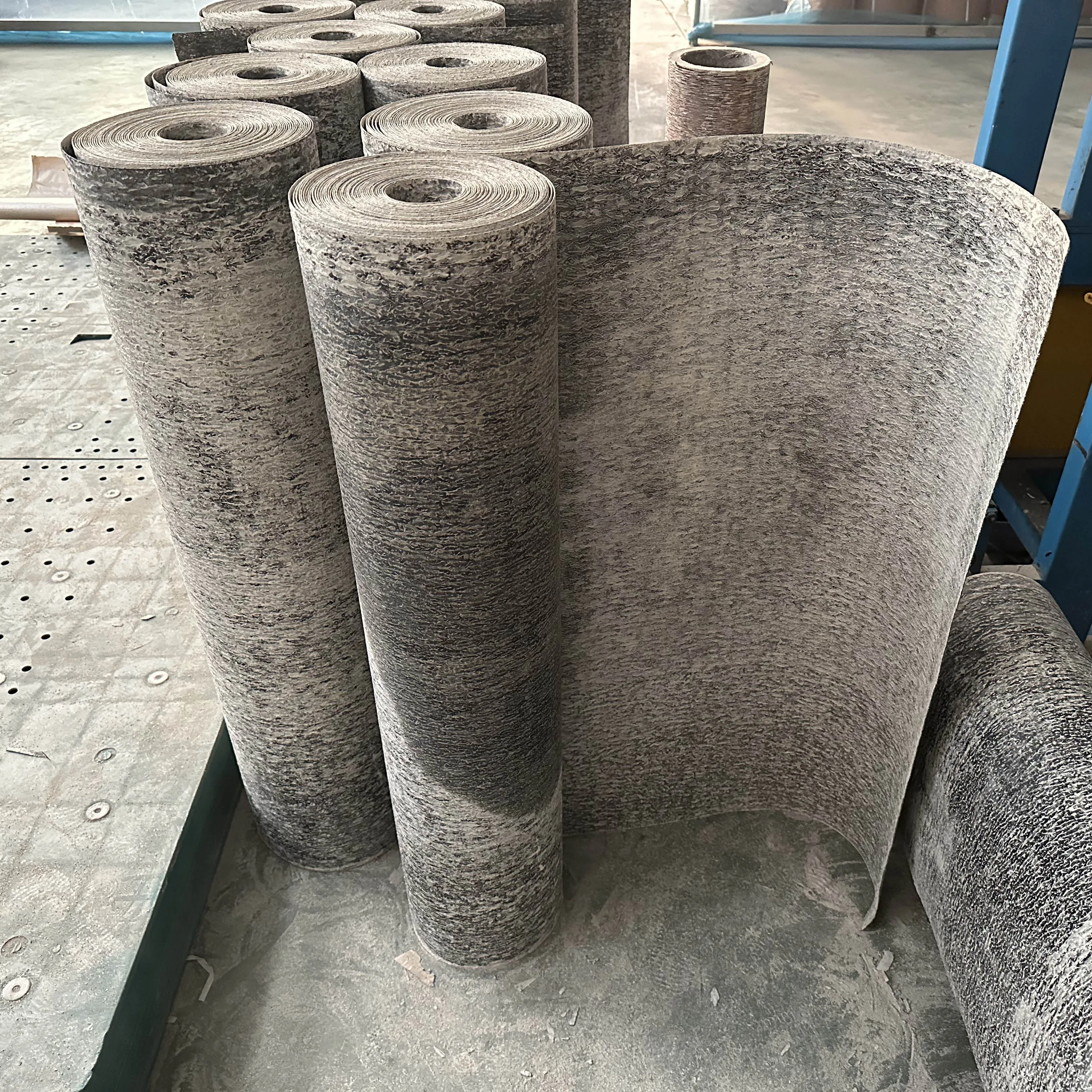

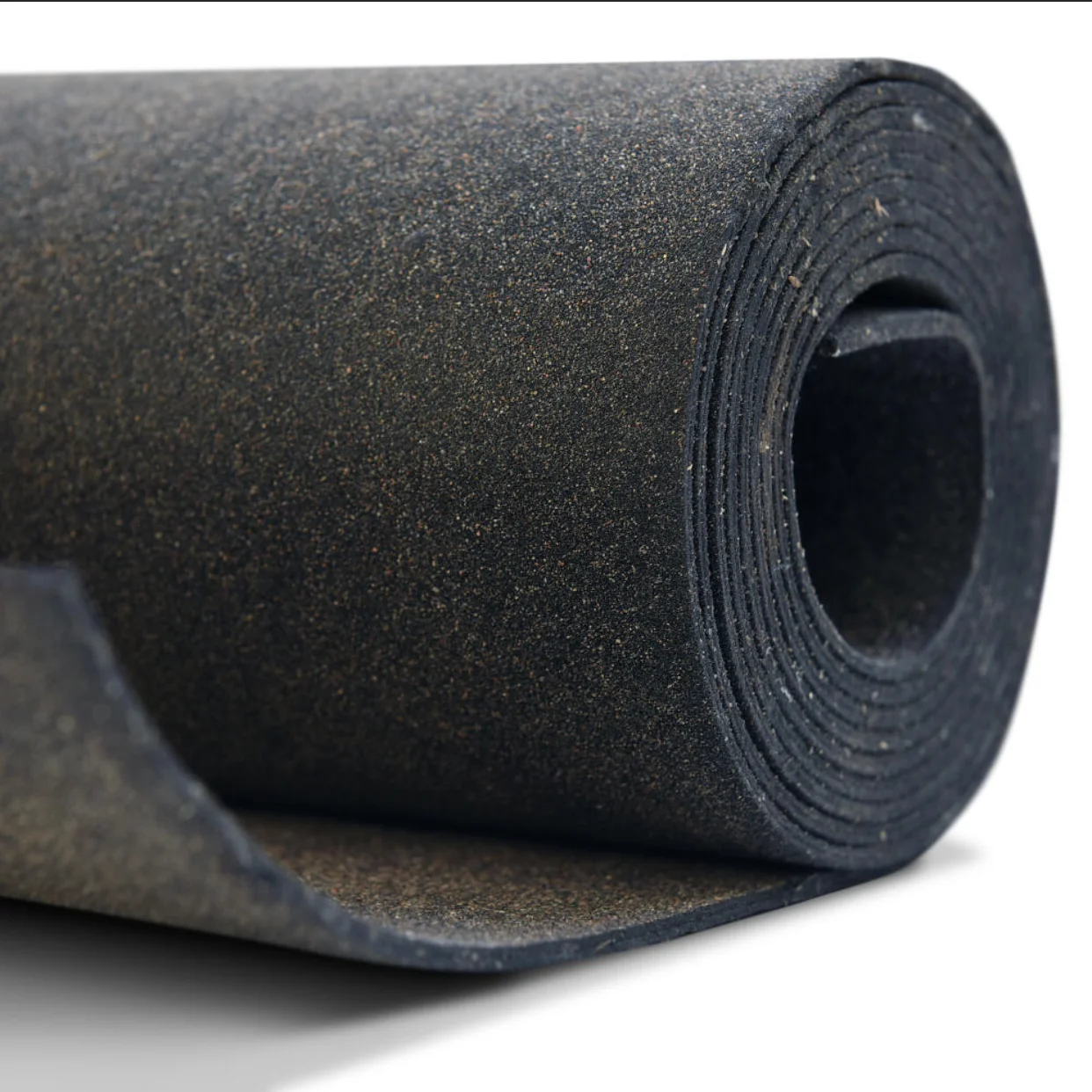

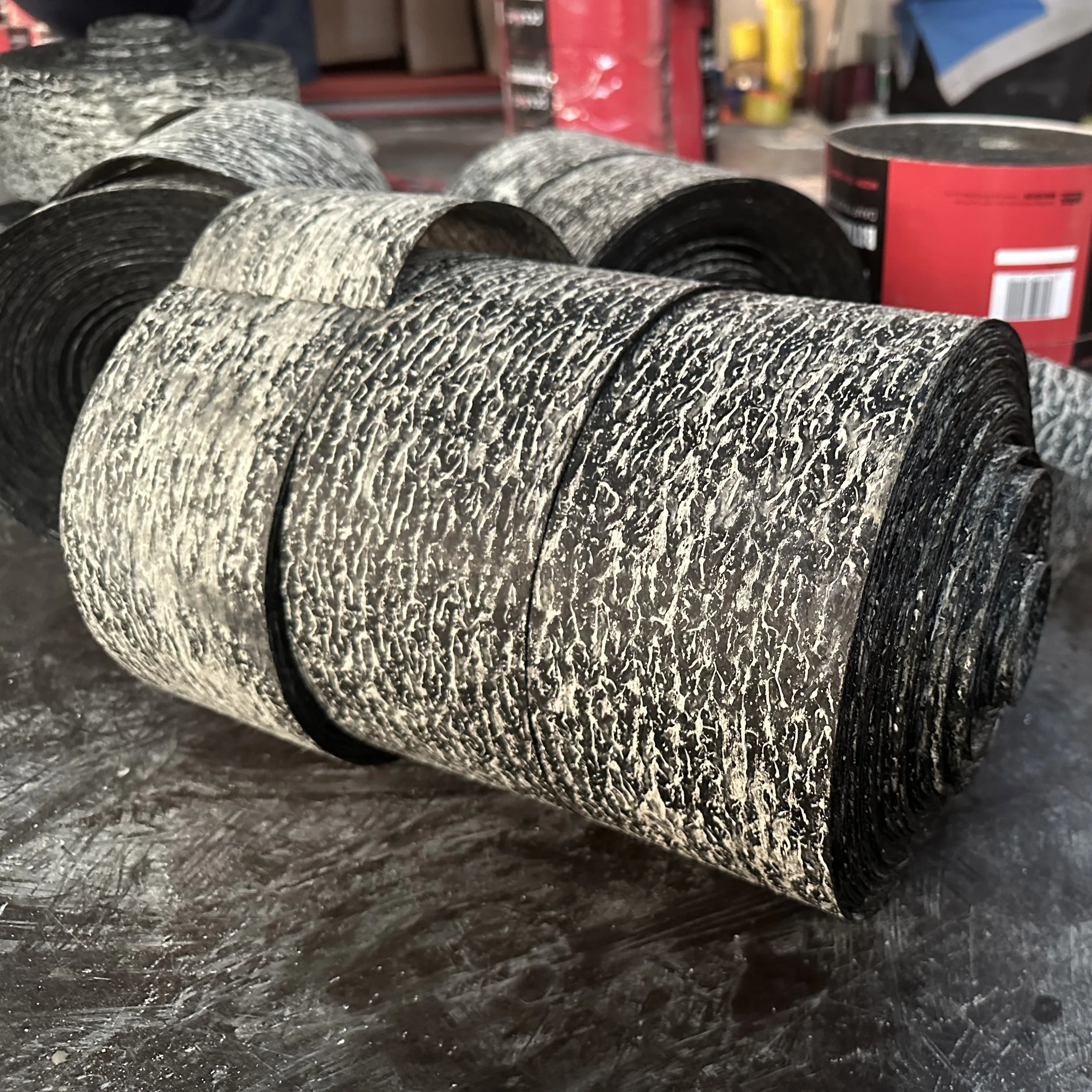

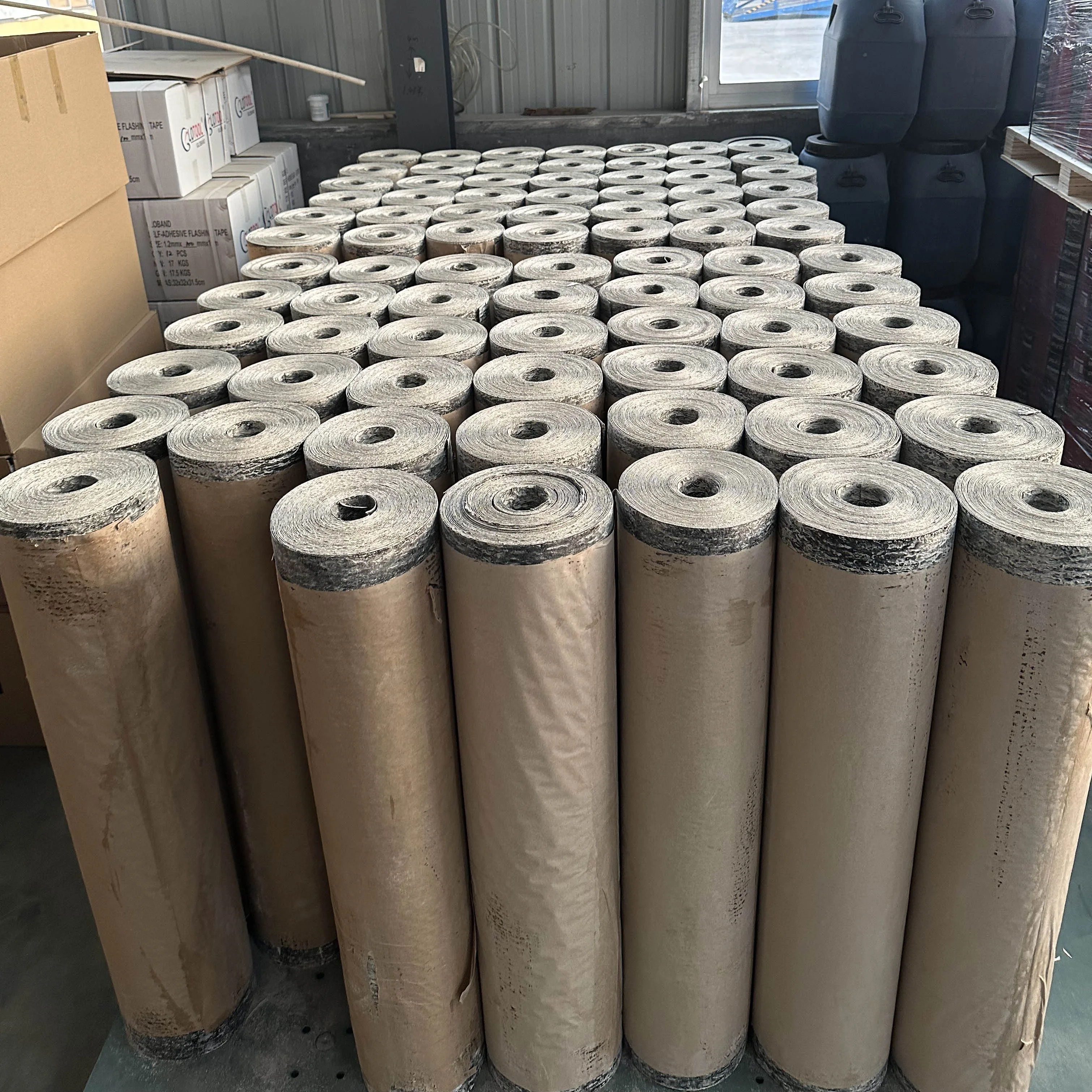

5 ply Malthold Bitmen dpc asphalt felt linoleum for roofing waterproofing
- Category: >>>
- Supplier: Shandong Kaiyang Waterproof Technology Co. Ltd.
Share on (1600963188401):
Product Overview
Description
Product Description

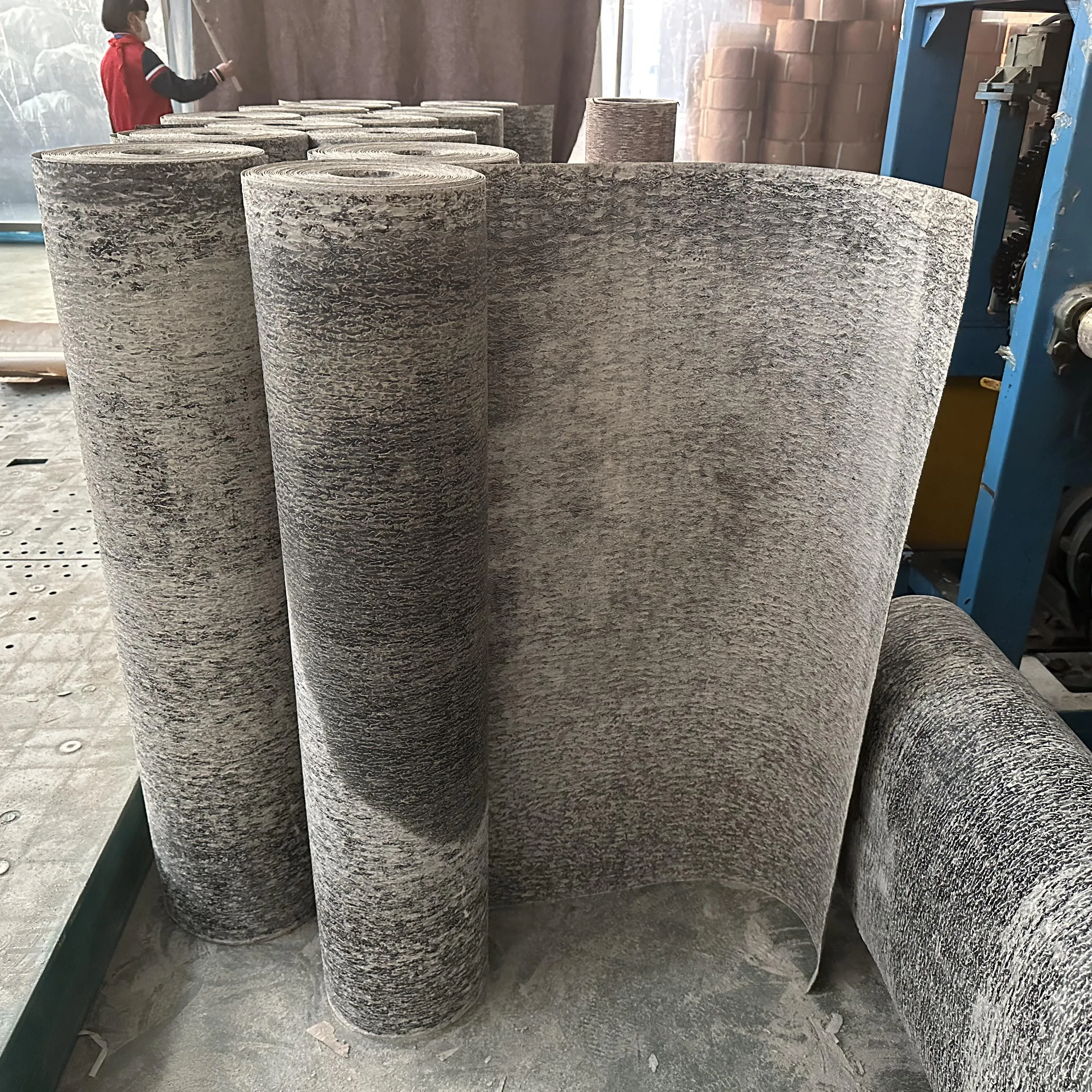

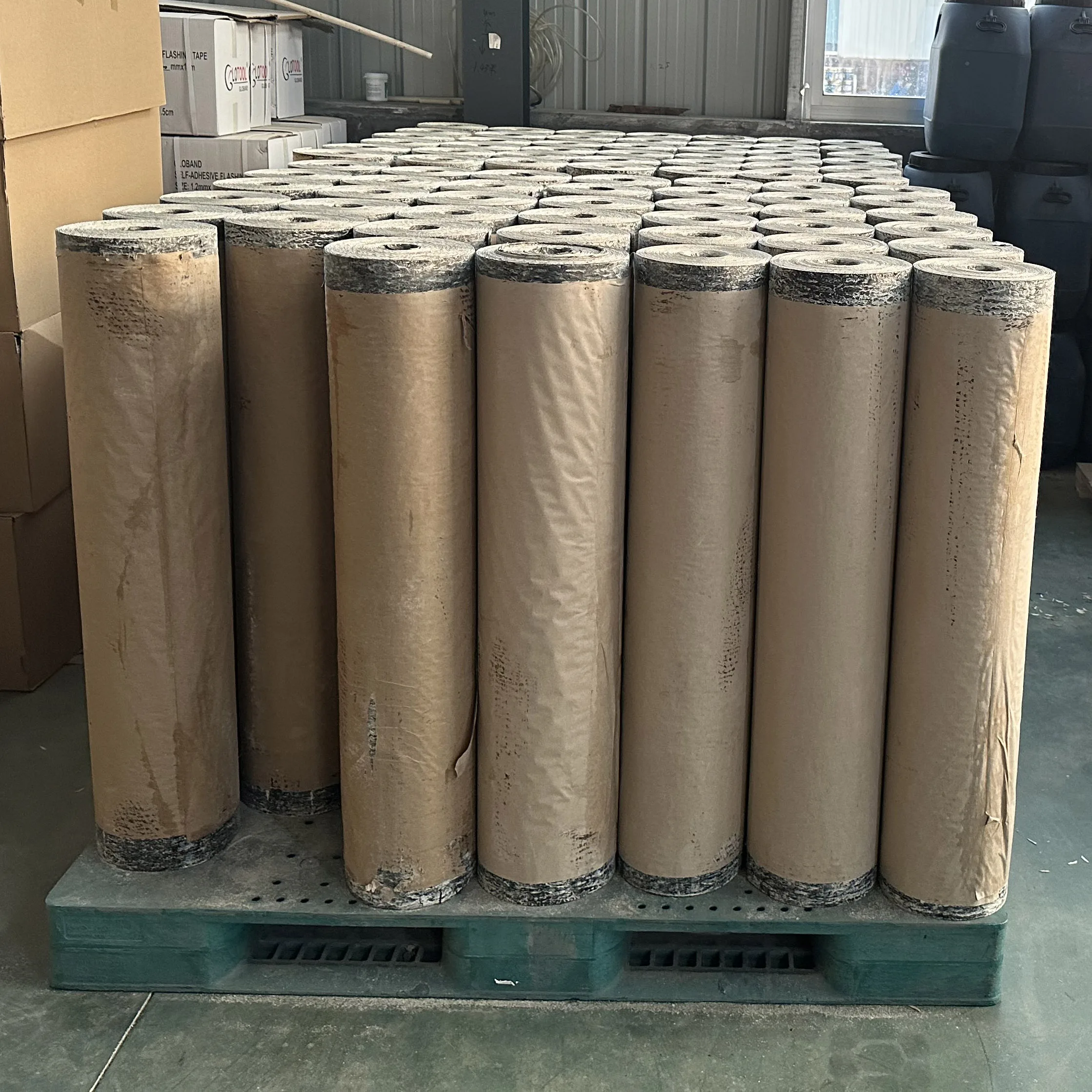

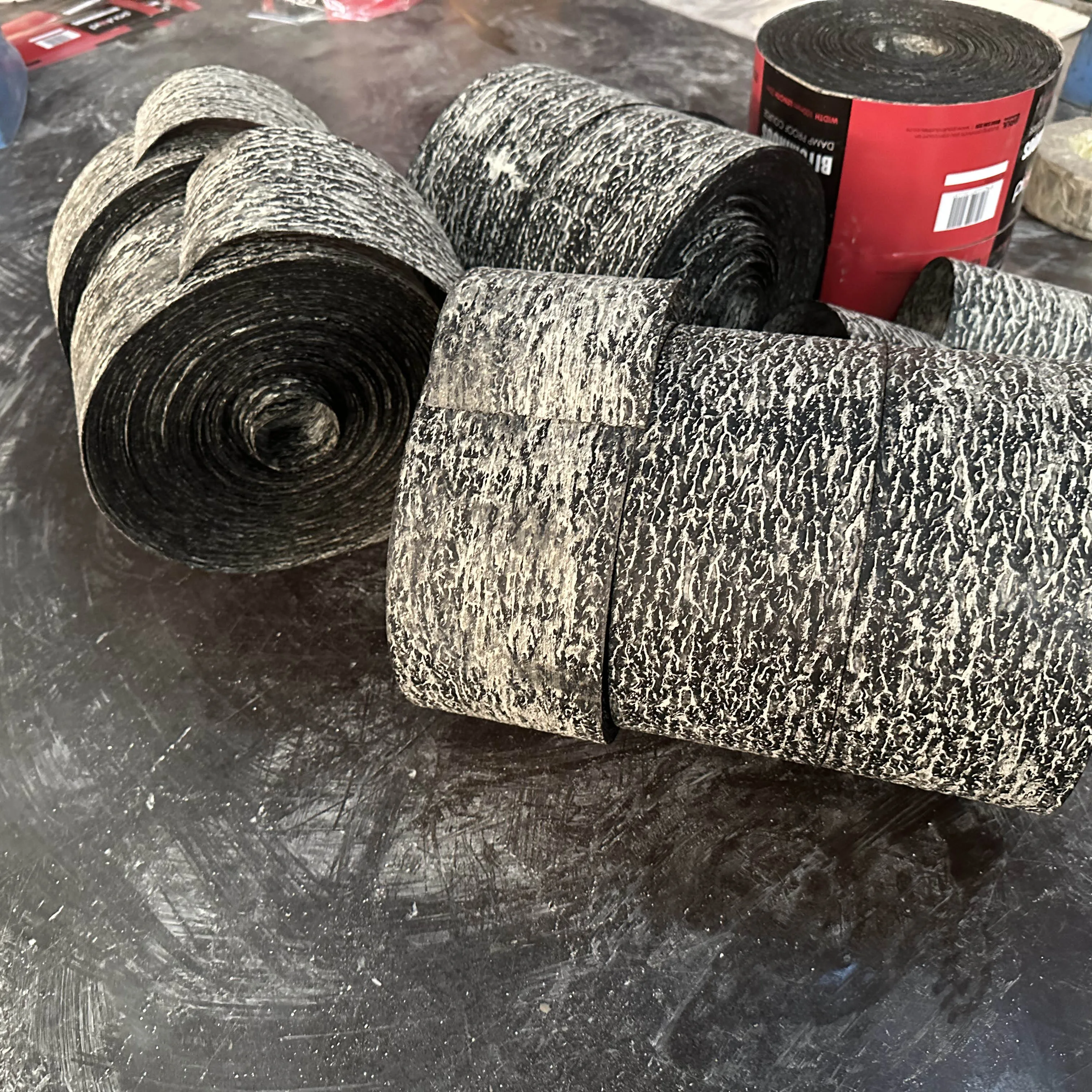

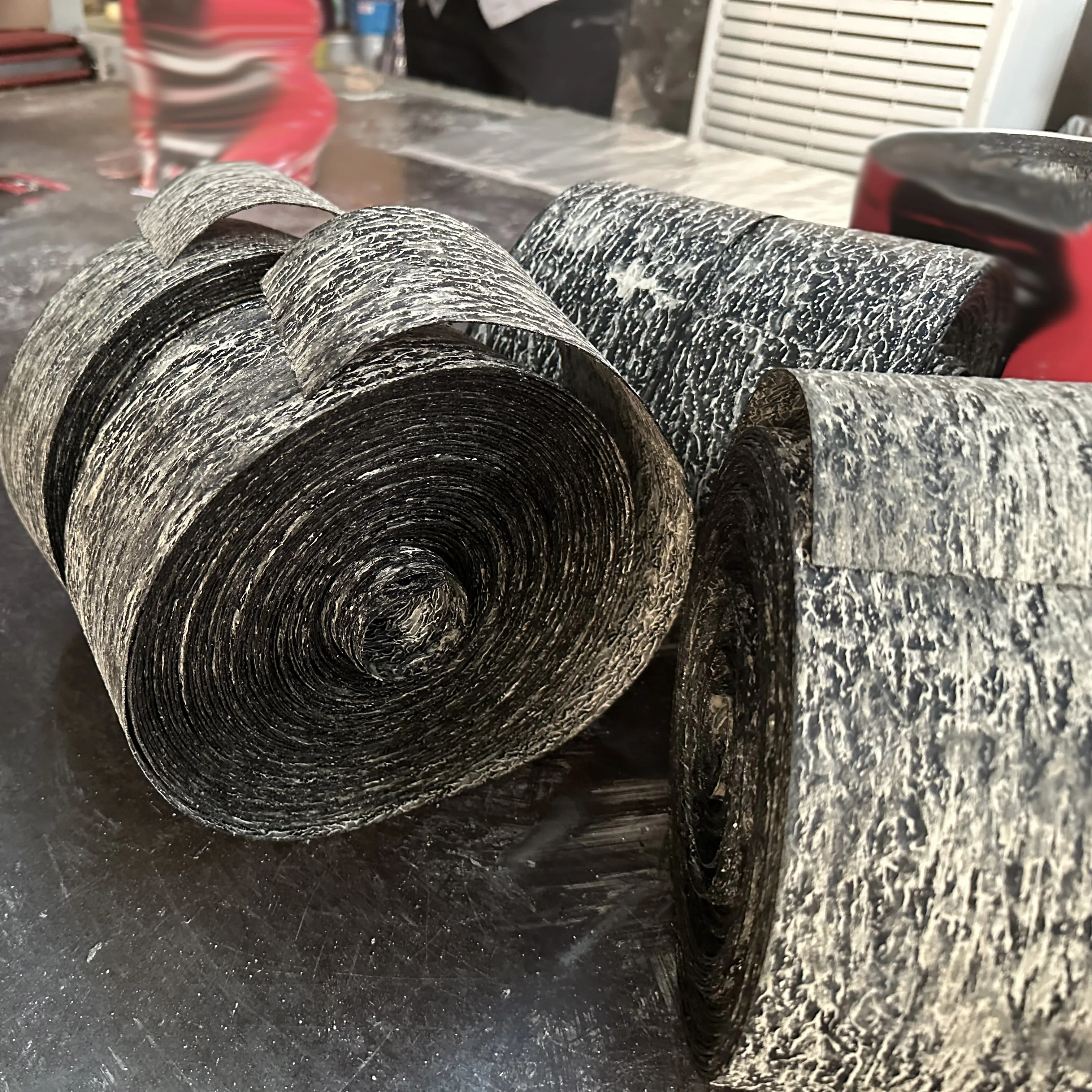

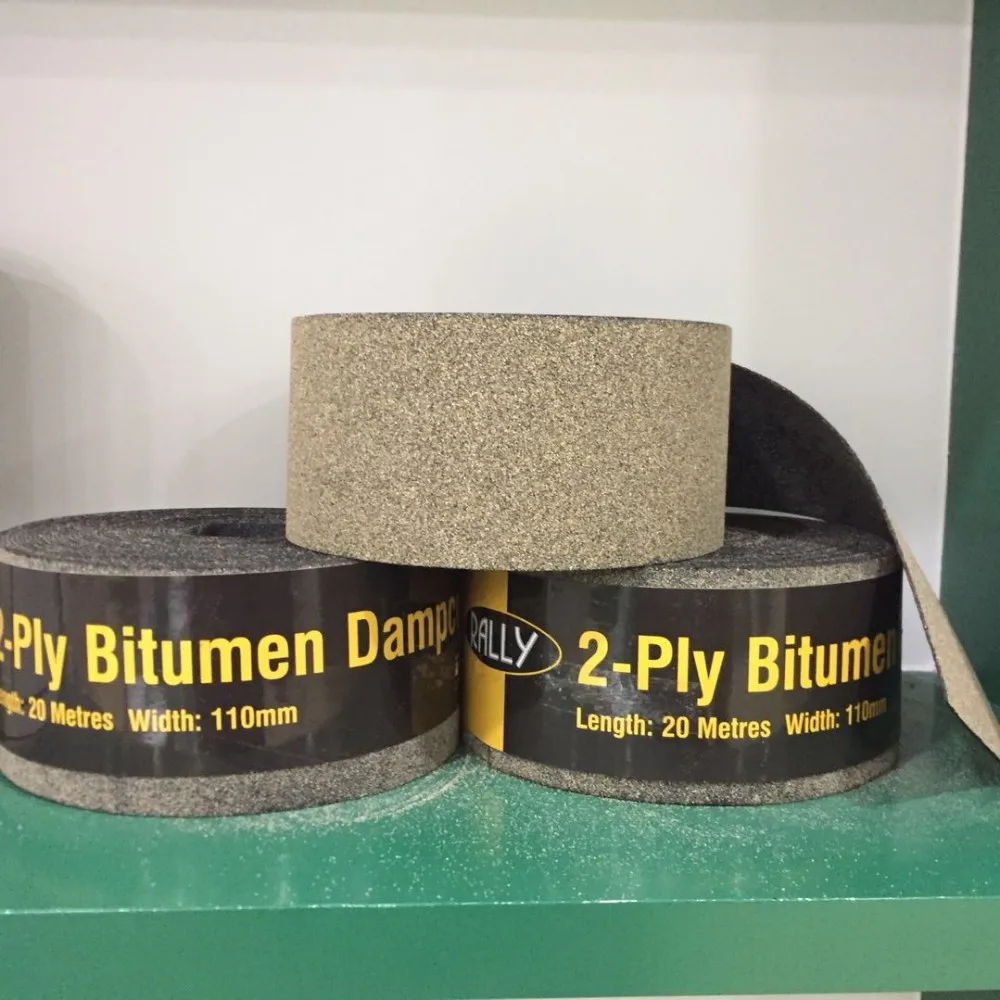

Keyrone Bitumen Damp Proof Course is a heavy duty, traditional DPC and cavity tray system manufactured with a polyester reinforced carrier, rubber modified bituminous coating and surfaced on both sides with a fine silica sand. It is supplied in 8m length rolls and the following widths: 450mm, 600mm and 1000mm.
Keyrone Bitumen Damp Proof Course is a heavy duty, traditional DPC and cavity tray system manufactured with a polyester reinforced carrier, rubber modified bituminous coating and surfaced on both sides with a fine silica sand. It is supplied in 8m length rolls and the following widths: 450mm, 600mm and 1000mm.
Features & benefits
Manufactured in excess of British Standard - traditional DPC and cavity tray systemExcellent mortar adhesion - ideal for low compressive load applications
Versatile heat bonded material - suitable to form complex or awkward detailing on site
Modified bituminous coating - laps can be tape bonded or heat bonded.
Manufactured in excess of British Standard - traditional DPC and cavity tray system Excellent mortar adhesion - ideal for low compressive load .
Applications
Versatile heat bonded material - suitable to form complex or awkward detailing on site Modified bituminous coating - laps can be
tape bonded or heat bonded.
Approvals and standards
Manufactured in excess of BS 6398:1983 Type A
Conforms to the specification requirements of NHBC Technical Guidance 6.1/05 CE Mark EN 13969:2004
Quality Management System ISO 9001:2015
Occupational Health and Safety System ISO 45001:2018
Environmental Management System ISO 14001:2015
Versatile heat bonded material - suitable to form complex or awkward detailing on site Modified bituminous coating - laps can be
tape bonded or heat bonded.
Approvals and standards
Manufactured in excess of BS 6398:1983 Type A
Conforms to the specification requirements of NHBC Technical Guidance 6.1/05 CE Mark EN 13969:2004
Quality Management System ISO 9001:2015
Occupational Health and Safety System ISO 45001:2018
Environmental Management System ISO 14001:2015

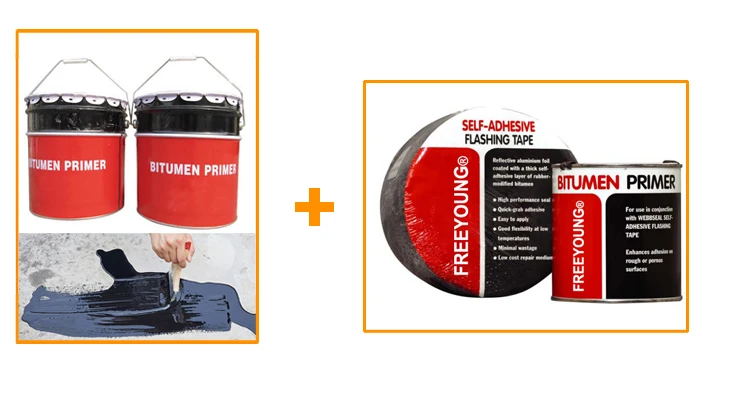

System components
I | Jointing Tape, 100mm x 15m |
II | Tanking Primer, 5L |
III | DPC Surface Fixing System |
IIII | Detailing Strip, 300mm x 10m, 500mm x 10m |
Preparation
Keyrone Damp Proof Course can be cut with a sharp retractable safety knife.
Where the DPC is being fully bonded to the substrate, the surface should be primed with Visqueen HP Tanking Primer and allowed to dry thoroughly.
Material must be warmed above 5°C prior to unrolling.

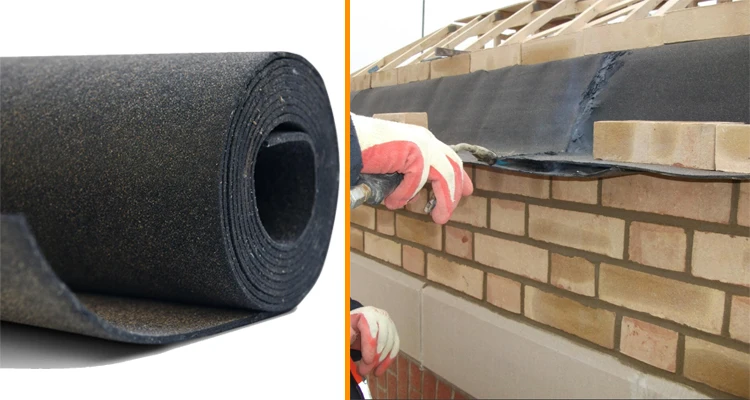

Installation When built into a masonry wall construction Keyrone Damp Proof Course should be installed on an even bed of wet mortar, and any perforations in adjacent courses of masonry should be completely filled with mortar. To ensure mortar adhesion, as soon as possible after laying the DPC, lay at least one further course of masonry including a bed of mortar. Where the specification requires, the DPC can be fully heat bonded to the primed substrate. The DPC must extend through the full thickness of the masonry

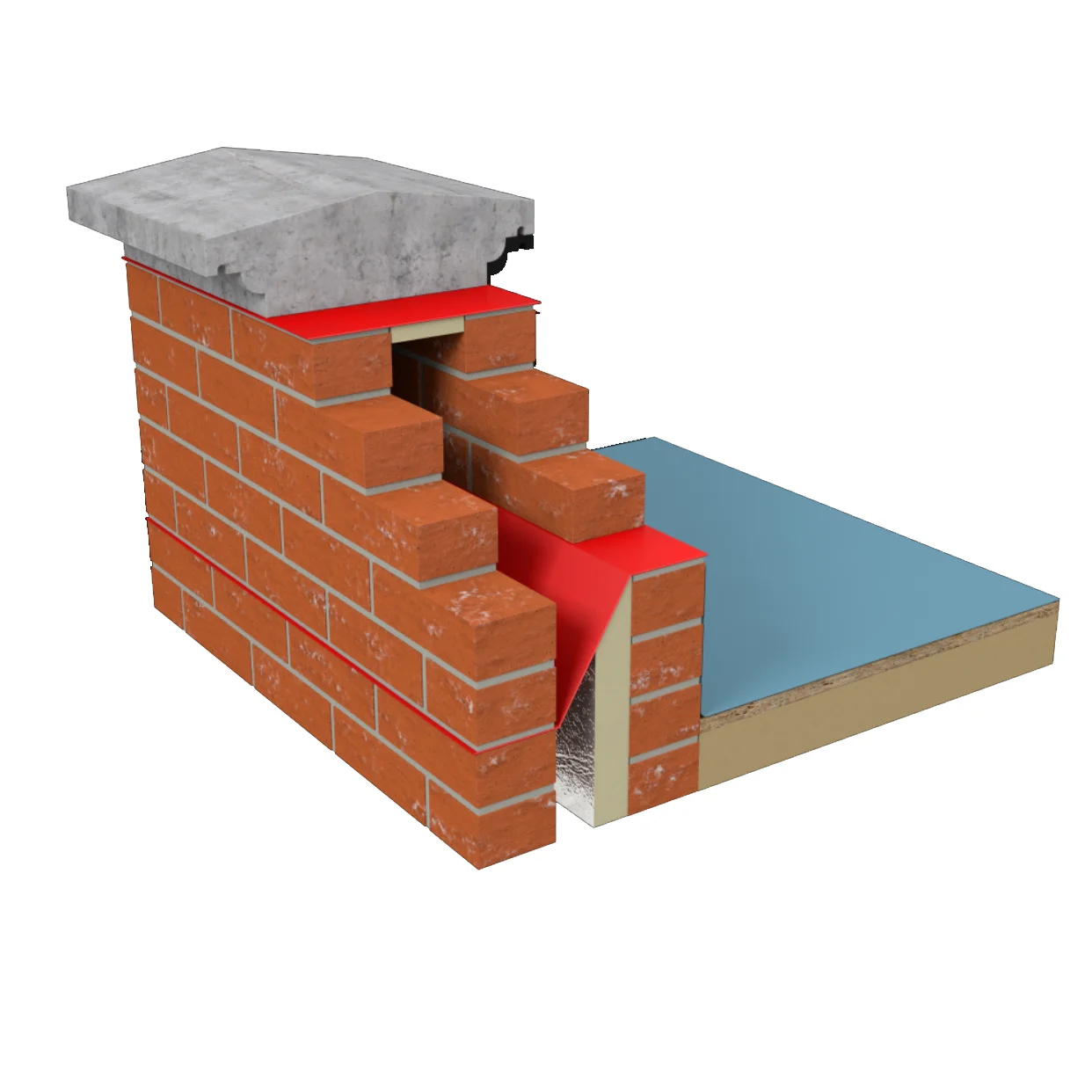

wall, including pointing, applied rendering or other facing materials. When used as a site formed cavity tray, the DPC can be either built-in to the inner leaf or surface fixed to the cavity face of the inner leaf.
When surface fixing the cavity tray, the substrate should be primed with Keyrone Tanking Primer and allowed to dry. The DPC should be bonded to the inner leaf using Keyrone Jointing Tape and permanently secured using Keyrone Fixing Strip and fixing suitable for the substrate. Keyrone Fixing Pins for masonry substrates are available.
Complex or awkward junctions e.g. corners, changes of level etc can be effectively sealed on site with the DPC when the lap joints are heat bonded.
All laps should be a minimum of 100mm and either bonded with Visqueen Zedex Jointing Tape or heat bonded with appropriate equipment e.g. propane gas torch.
Keyrone Damp Proof Course can be cut with a sharp retractable safety knife.
Where the DPC is being fully bonded to the substrate, the surface should be primed with Visqueen HP Tanking Primer and allowed to dry thoroughly.
Material must be warmed above 5°C prior to unrolling.
Installation When built into a masonry wall construction Keyrone Damp Proof Course should be installed on an even bed of wet mortar, and any perforations in adjacent courses of masonry should be completely filled with mortar. To ensure mortar adhesion, as soon as possible after laying the DPC, lay at least one further course of masonry including a bed of mortar. Where the specification requires, the DPC can be fully heat bonded to the primed substrate. The DPC must extend through the full thickness of the masonry
wall, including pointing, applied rendering or other facing materials. When used as a site formed cavity tray, the DPC can be either built-in to the inner leaf or surface fixed to the cavity face of the inner leaf.
When surface fixing the cavity tray, the substrate should be primed with Keyrone Tanking Primer and allowed to dry. The DPC should be bonded to the inner leaf using Keyrone Jointing Tape and permanently secured using Keyrone Fixing Strip and fixing suitable for the substrate. Keyrone Fixing Pins for masonry substrates are available.
Complex or awkward junctions e.g. corners, changes of level etc can be effectively sealed on site with the DPC when the lap joints are heat bonded.
All laps should be a minimum of 100mm and either bonded with Visqueen Zedex Jointing Tape or heat bonded with appropriate equipment e.g. propane gas torch.
Usable temperature range
It is recommended that Keyrone High Bond Damp Proof Course and all associated system components should not be installed below 5°C.
However due to the heat bonded installation method the DPC is more tolerant in cold weather working.
It is recommended that Keyrone High Bond Damp Proof Course and all associated system components should not be installed below 5°C.
However due to the heat bonded installation method the DPC is more tolerant in cold weather working.
