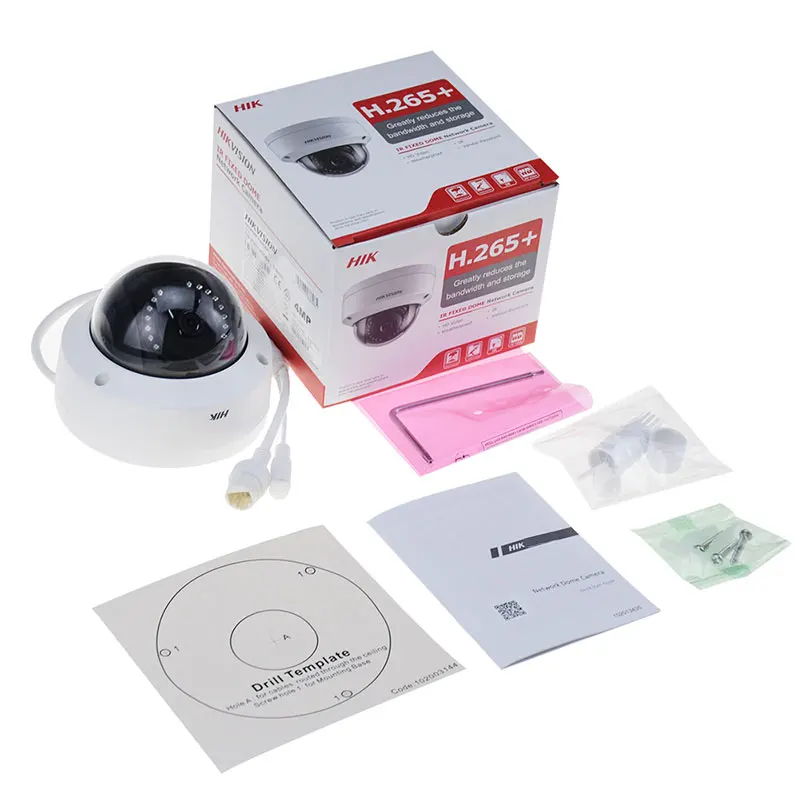

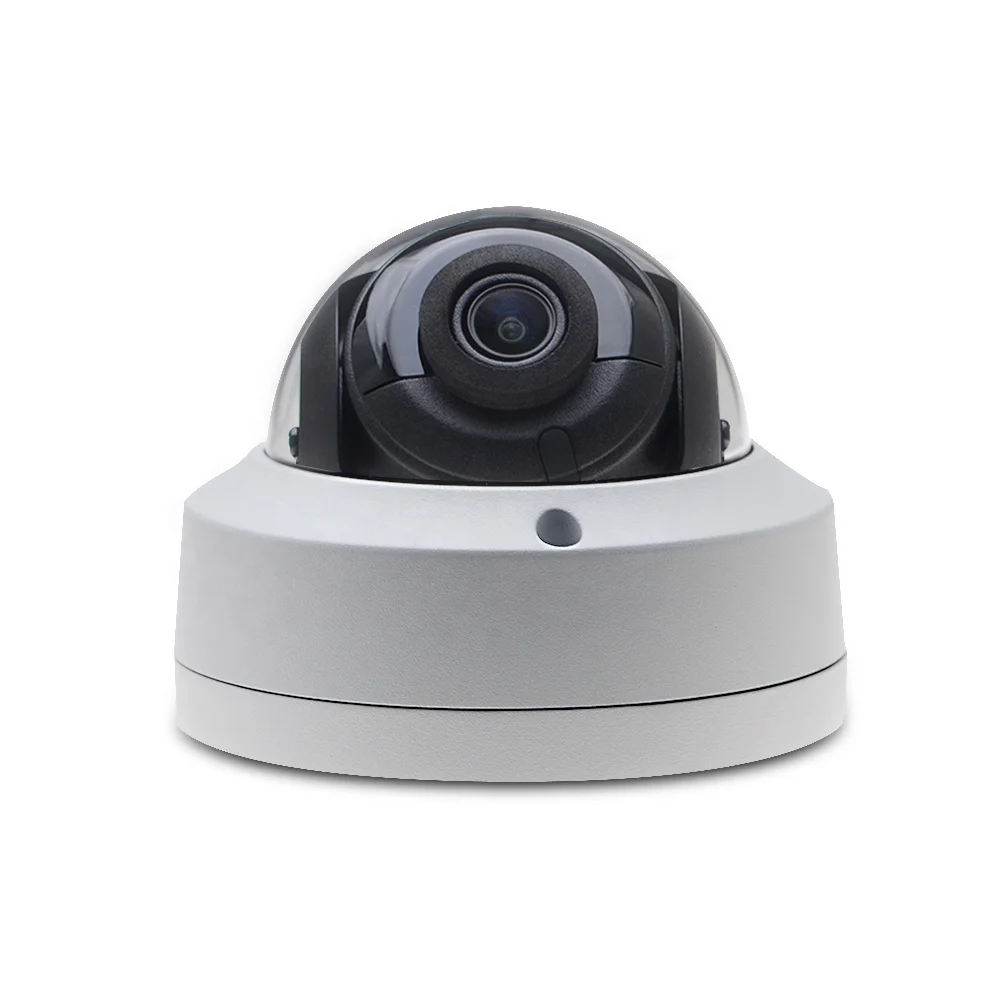

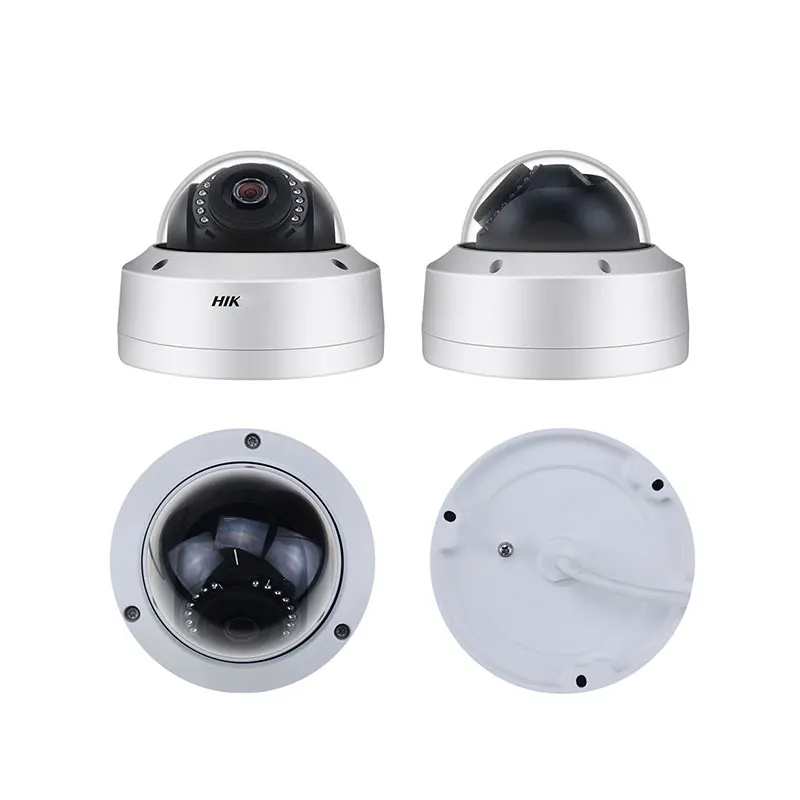

DS 2CD1143G0 I HIKVISION Compatible IP67 IK10 4MP 120 dB WDR Fixed Dome Network Cctv Camera

Camera

Image Sensor

1/3" progressivescan CMOS

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100, 000 s

Slow Shutter

Yes

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0°to 355°, tilt: 0°to 75°

Lens

Focal Length & FOV

2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°

Lens Mount

M12

Focus

Fixed

Aperture

F2.0

Illuminator

IR Wavelength

850 nm

IR Range

Up to 30 m

Video

Max. Resolution

2560 × 1440

Main Stream

50 Hz: 20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz: 20 fps (2560 × 1440)
30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Mainstream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

H.264+

Mainstream supports

H.265+

Mainstream supports

Region of Interest (ROI)

1 fixed region for mainstream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI

User/Host

Up to 32 users. 3 levels: administrator, operator and user

Client

iVMS-4200, Hik-Connect

Web Browser

Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+


Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser

Day/Night Switch

Auto, Schedule, Day, Night

Image Enhancement

BLC, 3D DNR

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection, video tampering alarm, exception

General

Linkage Method

Upload to FTP, notify surveillance center, send email

Camera Material

Aluminum alloy body

Camera Dimension

Ø 111 mm × 82.4 mm (Ø 4.4" × 3.2")

Package Dimension

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Camera Weight

Approx. 360 g (0.8 lb.)

With Package Weight

Approx. 560 g (1.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Startup and Operating
Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)

Web Client Language

English, Ukrainian

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter

Firmware Version

V5.5.120

Power Consumption and Current

12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Power Supply

12 VDC ± 25%
PoE: 802.3af, Class 3

Power Interface

Ø 5.5 mm coaxial power plug

Approval

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
