FTTH CATV Network Passive Pon Internet Indoor Fiber Optical Receiver AGC 5dB 15dB 1 Adapter Node SC APC UPC WDM 1 RF Port
- Category: >>>
- Supplier: Xi an Summitek Electronic Commerce Co. Ltd
Share on (1600964018941):
Product Overview
Description
Product Description

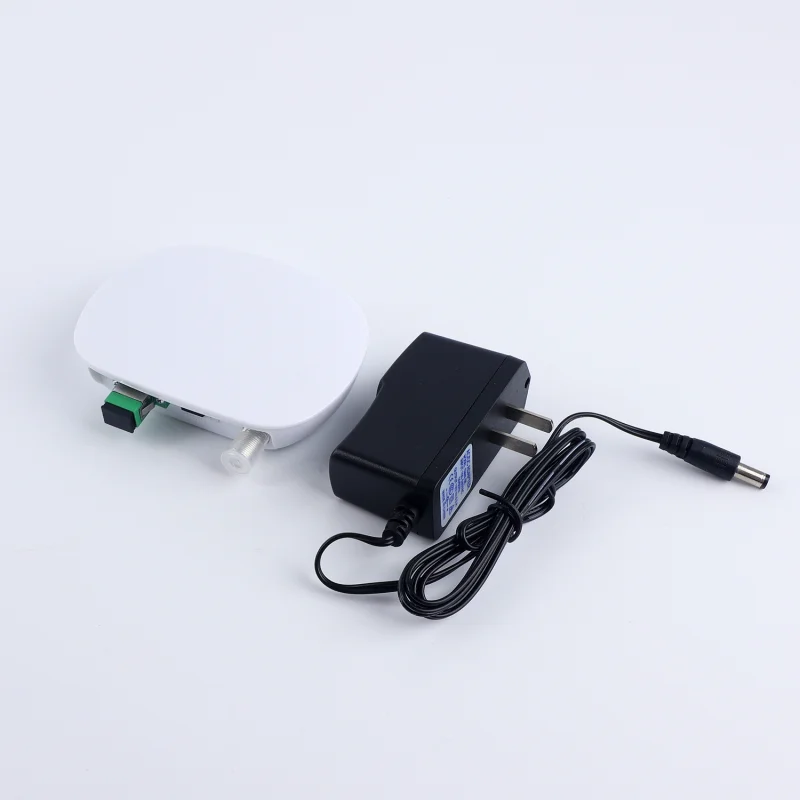

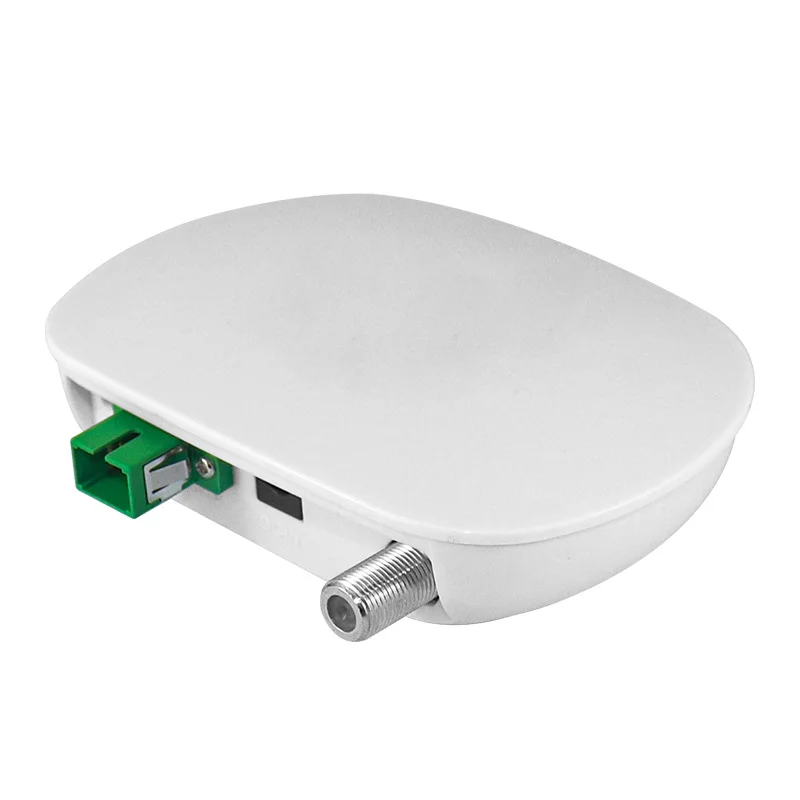

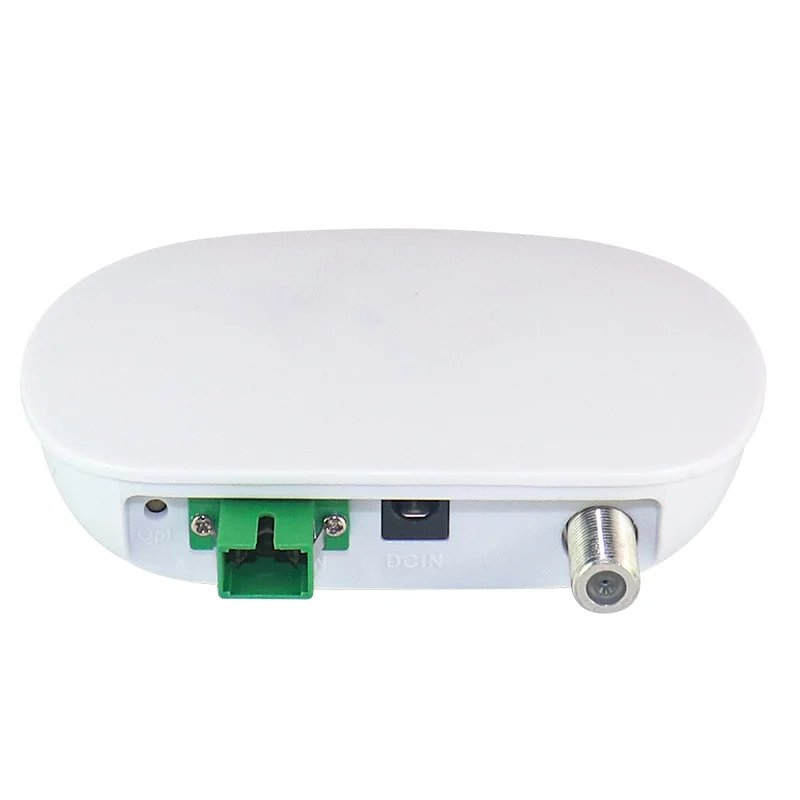

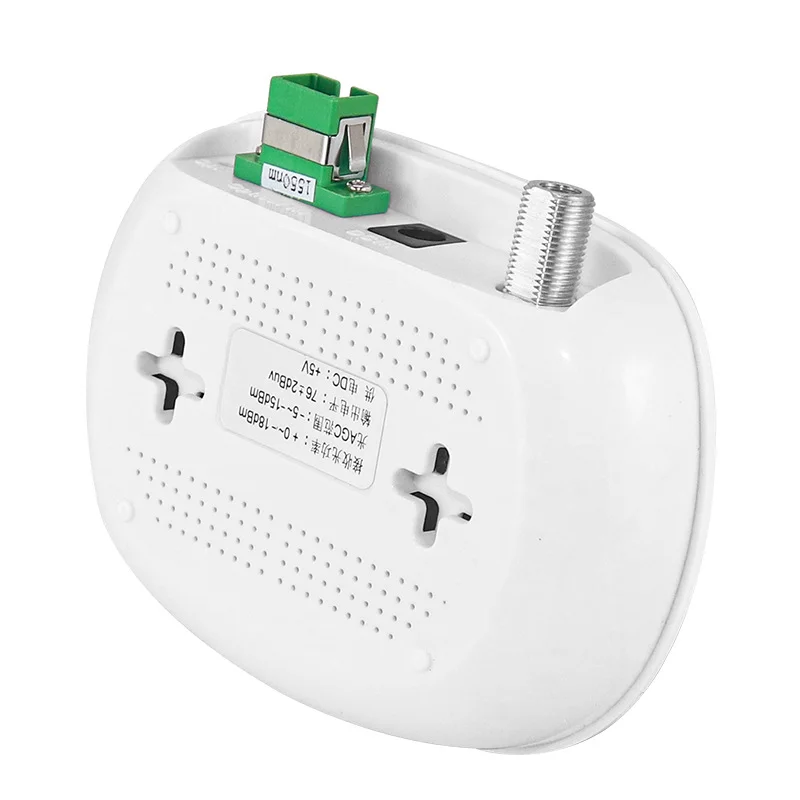

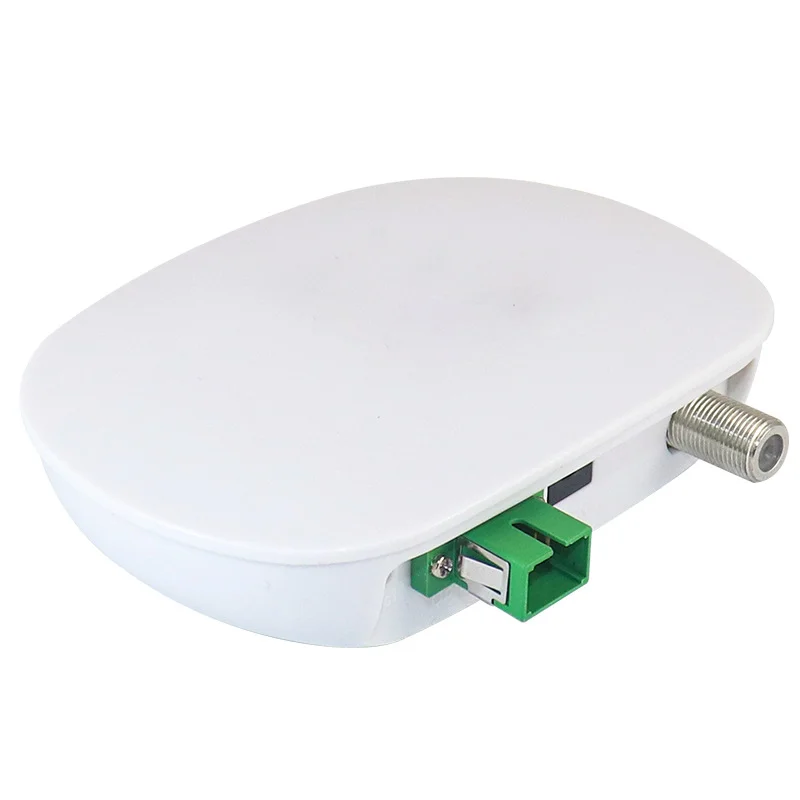

FTTH CATV Network Passive Indoor Fiber Optical Receiver AGC -5dB -15dB Node SC APC UPC WDM 1 RF Port
FTTH CATV fiber optic terminal receiver is a home-based fiber-to-home optical device, designed for homes to gain access to both analogue and digital signal, and realize the communication between radio/television network and Internet. This receiver uses low-power optical detector, GaAs and optical control AGC technology to reach superior FTTH CATV reception.
Specification
Technical Data | AGC WDM Optical Receiver |
Wavelength | 1200~1600nm &1550nm |
Optical input power | 0dBm~-10dBm(analog) & 0dBm~-18dBm(digital) |
Return loss | >45dB |
Optical connector | FC/APC&SC/APC FC/PC&SC/PC |
Frequency range | 47~1006MHz |
Inband flatness | ±1dB@45~862MHZ |
Rf output reflection | ≥16dB@ 47~550MHz, ≥14dB@550~862MHz |
Output level control | 0~18dB |
Output level | >78dBuV (AGC:@-9~+0dBm,Pin=0dBm) |
Output port | 1 |
AGC range | 0~-9dBm |
Output impedance | 75 Ω |
AGC range | -15dBm~-6dBm&-12dBm~-3dBm&-9dBm~0dBm |
CNR | ≥51dB |
CTB | ≥65dB |
CSO | ≥62dB |
Host voltage | DC5V |
Supply voltage | DC5V |
Adaptor voltage | AC90V~145V ,AC145V~265V |
Internal voltage | DC5V |
Working temperature | -20°C~+45°C |
Consumption | <2W |
Dimension | 110*110*28mm |
Weight | 200g |
Company Profile
Xi an Summitek Electronic Commerce Co., Ltd. established in 2007, SUMMITEK Cable is a leading manufacturer of fiber optic cable with full manufacturing facilities in Guangzhou,experts in manufacturing and exporting outdoor indoor fiber optic cable,fiber patch cord and 143 more products.We introduced advanced fully automated production equipment,having professional technical staff and best R&D management team,5500㎡ workshop,30 employees including 2 senior experts and 2 intermediate experts,as well as 12 years supplier of fiber optic material&network system material in domestic and overseas markets.
Fiber cabling material supplying: Outdoor/Indoor Fiber Optic Cable&Accessories,Fiber Patch Cord,Fiber Pigtails,Fiber Connectivity Components,GPON/EPON ONU,GPON/EPON OLT,XFP/SFP Module Transceivers,Network Switch,Fushion splicer,OTDR Tester,PLC/FBT Splitter,Fiber Patch Panel,Fiber Distribution box,FTTH access Terminal Box,FTTH Rossette Box,Fiber Splice Enclosure, Outdoor ODC ODF Distribution Cabinet,Cable Tray,PVC Cable Trunking,etc.
Our products are widely used in school,airports,hospitals,telecommunications,enterprises,
government,banks,buildings,office buildings,high-rise buildings,public places,residential areas and other comprehensive network cabling projects.We will always insist our operation philosophy of "Product Quantity Fast,Quality Risk Managing First".
Our Advantages
▶Trial order and small order are welcomed and arranged with OEM.
▶EXW/FOB/CFR/CIF/FCA/DDP delivery terms are welcomed
▶100%L/C payment term we are acceptable with MOQ
▶Complete inventory with warehouse and stockist
▶Global agent and overseas agent of our products we are welcomed
▶Lasting cooperation with giant corporations,trading companies,intermediaries
▶Value--added logistics service,customized logistics,supply chain logistics service
▶EXW/FOB/CFR/CIF/FCA/DDP delivery terms are welcomed
▶100%L/C payment term we are acceptable with MOQ
▶Complete inventory with warehouse and stockist
▶Global agent and overseas agent of our products we are welcomed
▶Lasting cooperation with giant corporations,trading companies,intermediaries
▶Value--added logistics service,customized logistics,supply chain logistics service
Packing

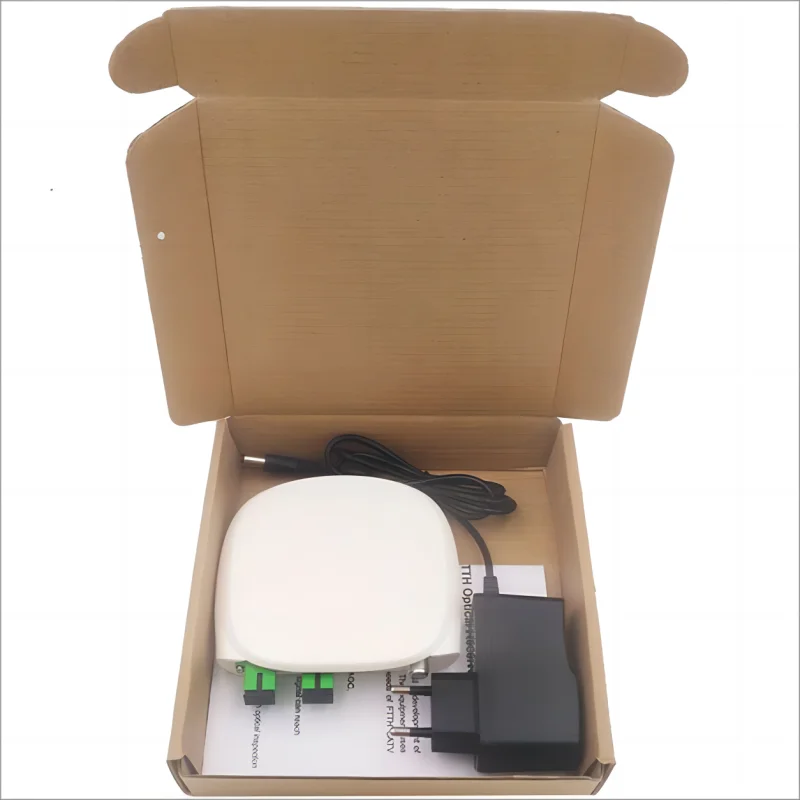

PACKING
200pcs/carton, Carton size 49*49*43cm, G.W: 14.5kgs
