Worth Buying and good multifunctional heat resistance Ring pellet mill die / roller shell
- Category: >>>
- Supplier: Liyang Rongda Machinery Co. Ltd.
Share on (1600964070586):
Product Overview
Description

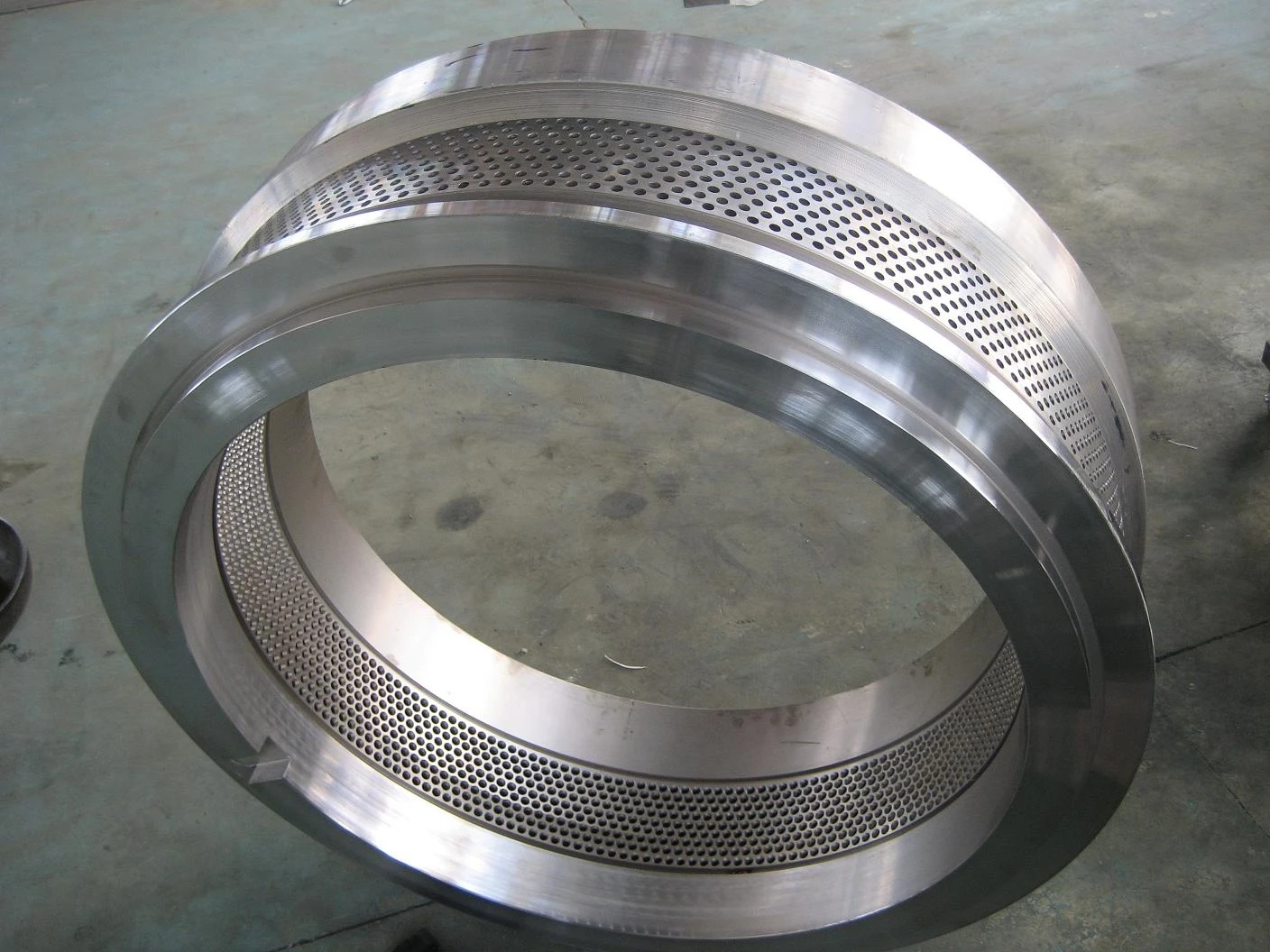

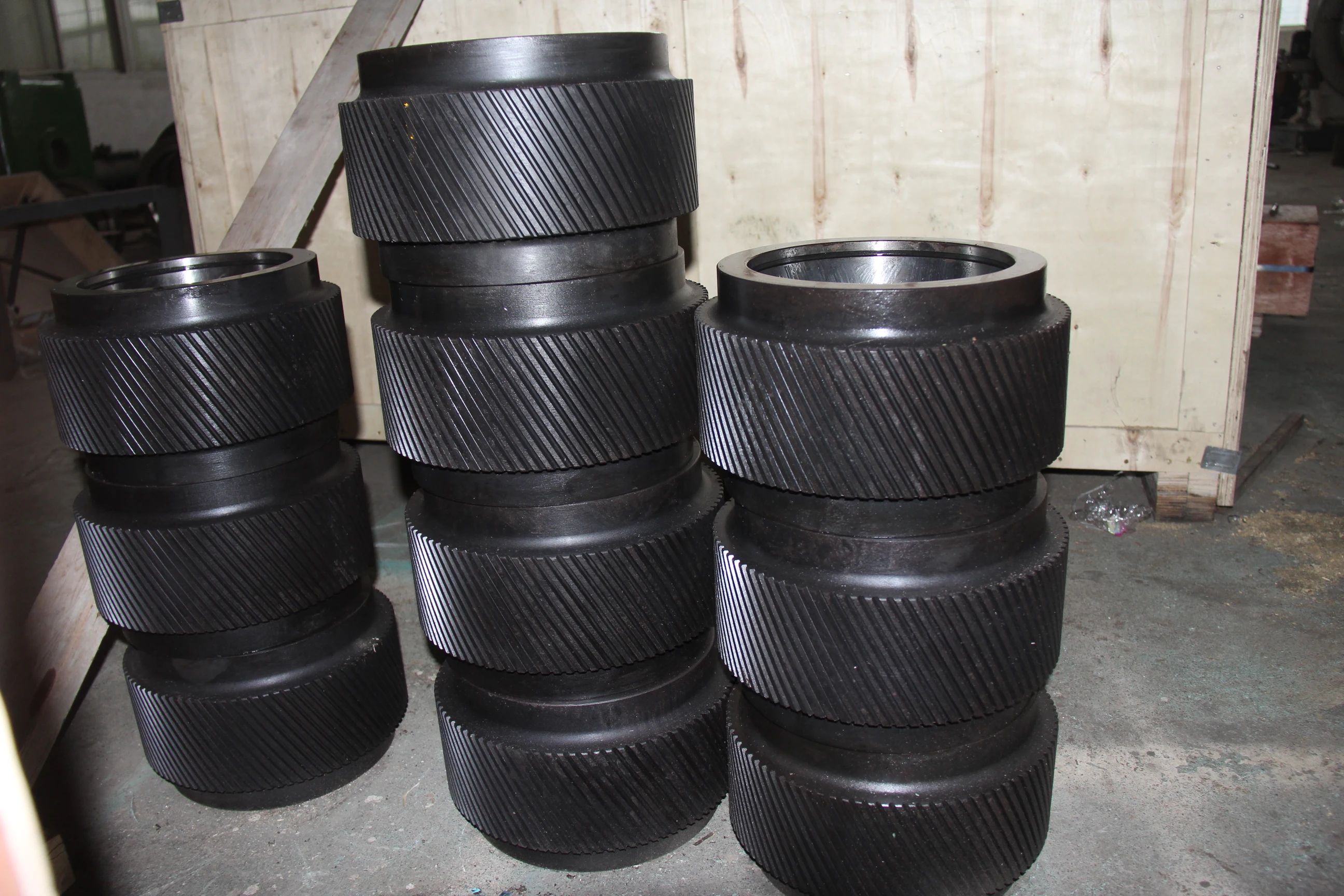

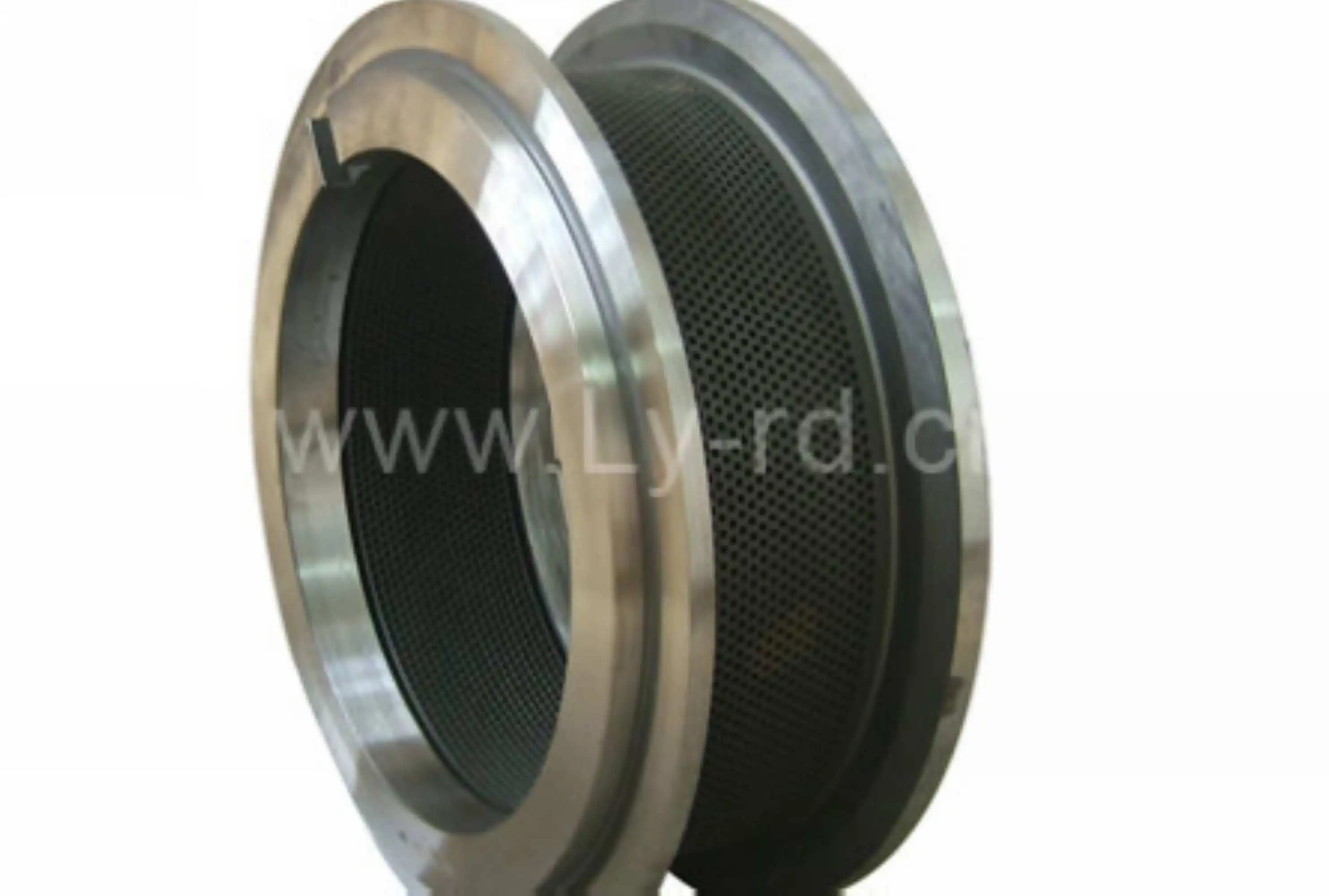

Ring pellet mill die / roller / roller shell for ring die pellet making machine on sale
Product Description
1. CE and Gost certificated.
2. Easy installation and maintenance.
3. High capacity.
4. Long service life.
5. Rich experience.
Our company's die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelleting and high quality. We can produce many kinds of ring die according to your requirements.
According to the material, the die can be segmented into two kinds, stainless steel with long life and alloy steel with low price. Also according to the die's hole diameter, L/D ratio and size of ring dies fabricated, the dies can be segmented into many different kinds.

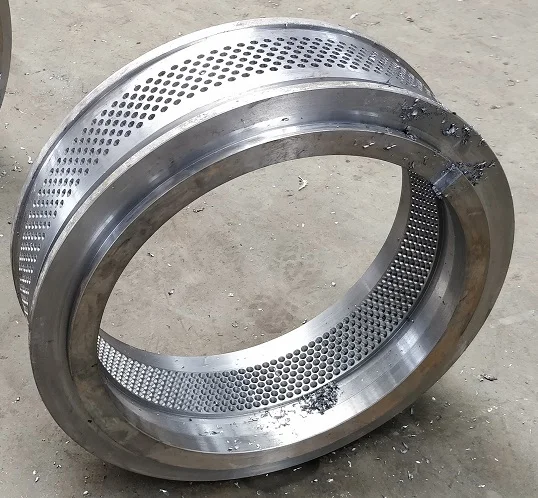

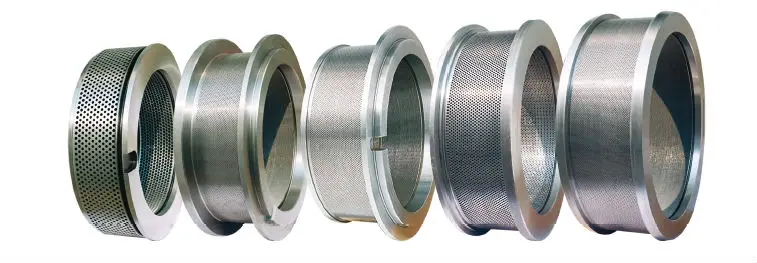

stainless steel die
♦Technical Parameter for Best Selling Ring Die Wood Pellet Machine
| Dia. of Die (mm) | Hole Dia.(mm) | Material | Lifespan (hours) |
| 350/420/480/508//678/768 | 6/8/10/12 | alloy steel | 800-900 |
♦Technical Parameter for Best Selling Ring Die Feed Pellet Machine
| Dia. of Die (mm) | Hole Dia.(mm) | Material | Lifespan(hours) |
| 320/350/400/420/508/558/678/768 | 2/3/4/4.5/5/6/8/10 | stainless steel | 500-600 |

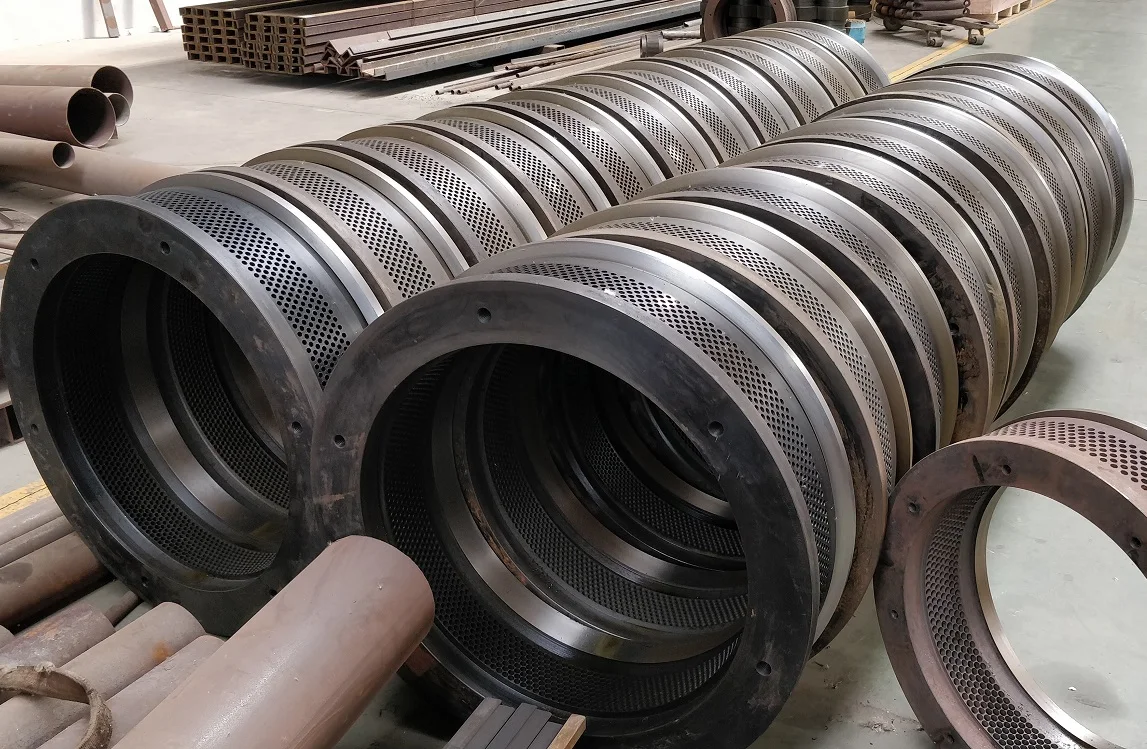

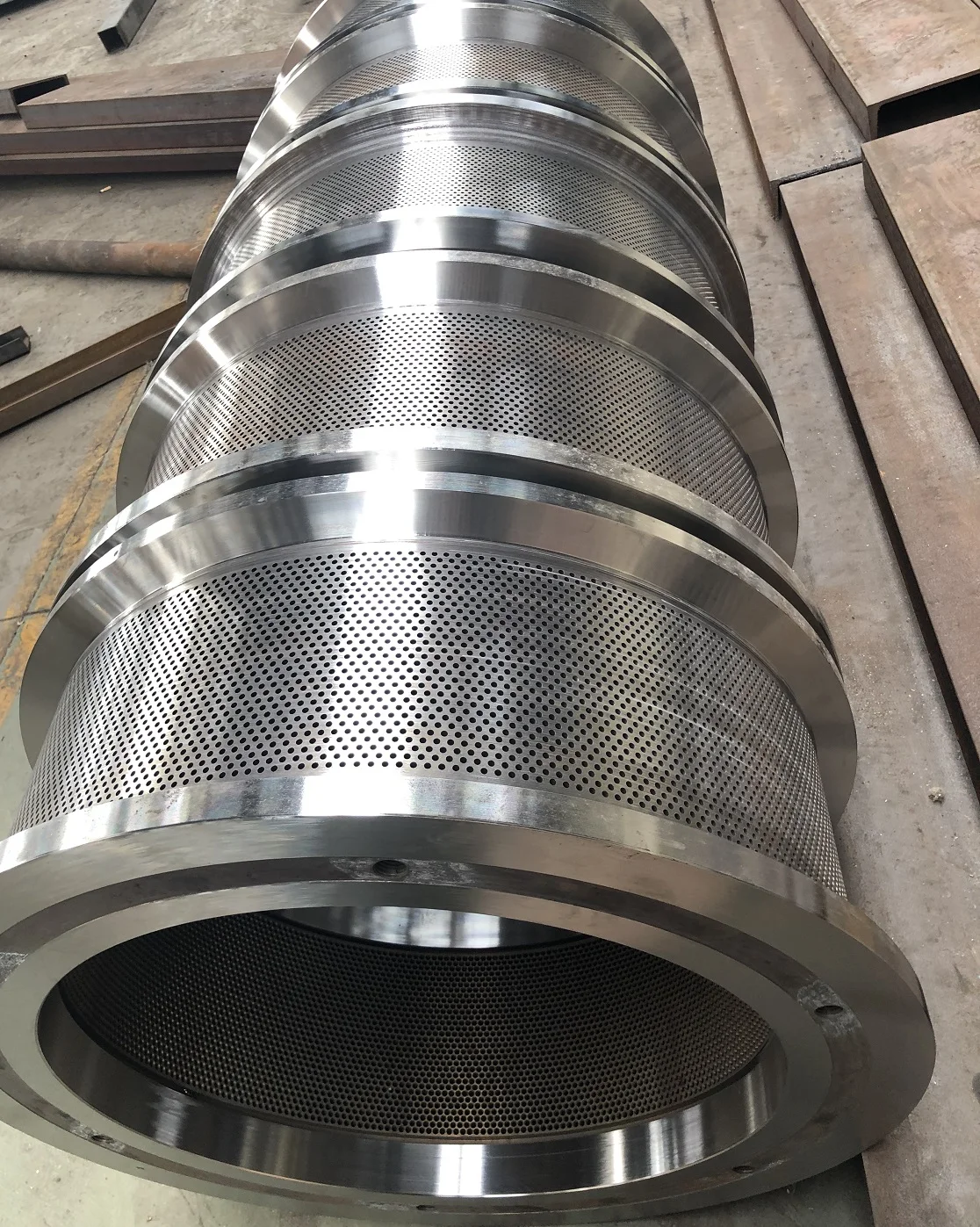

stainless steel die
Manufacturing Process of Ring Die
The whole ring die processing is under automatic control. We use high quality 40Cr alloy steel or X46Cr13 stainless steel as material;use imported computerized gun drilling machine for punching and realize one-time molding for die hole with a very smooth surface; use vacuum heat treatment furnace for scale-free heating.
The Processing Technology of Ring Die for Making Wood Pellets
Forging billet→Rough Lathing→Punching→Hole Grinding→Heat treatment→Finish machining
The Processing Technology of Ring Die for Making Wood Pellets
Forging billet→Rough Lathing→Punching→Hole Grinding→Heat treatment→Finish machining
stainless steel die
Features of Ring Die for Pellet Machine
♥ Advanced Automatic Ring Die Processing Technology. Imported gun driller for drilling; vacuum furnace for scale-free heating; highly polished.
♥ Good Mechanical Properties. Good tensile strength, good abrasion resistance, good corrosion resistance, good impact resistance, good heat resistance, good fatigue resistance.
♥ Long Service Life. The service life of our ring die for making wood pellets can be up to 2000 tons; and for making feed pellets can be up to 10000 tons.
♥ High Quality Pellets. Finished pellets made by our ring die have smooth surface and high density.
♥ Different Hole Dia. to choose. Ring die diameter for feed pellet mill ranges from 2mm to 10mm; ring die diameter for wood pellet mill ranges from 6mm to 12mm.
♥ Advanced Automatic Ring Die Processing Technology. Imported gun driller for drilling; vacuum furnace for scale-free heating; highly polished.
♥ Good Mechanical Properties. Good tensile strength, good abrasion resistance, good corrosion resistance, good impact resistance, good heat resistance, good fatigue resistance.
♥ Long Service Life. The service life of our ring die for making wood pellets can be up to 2000 tons; and for making feed pellets can be up to 10000 tons.
♥ High Quality Pellets. Finished pellets made by our ring die have smooth surface and high density.
♥ Different Hole Dia. to choose. Ring die diameter for feed pellet mill ranges from 2mm to 10mm; ring die diameter for wood pellet mill ranges from 6mm to 12mm.
stainless steel die
stainless steel die
Compression Ratio of Ring Die
(Compression Ratio= L/D L: Effective Die Hole Pelleting Length; D: Effective Die Hole Dia)
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
Generally speaking, the higher the compression ratio, the denser the finished pellets. But it does not mean that the higher the compression ratio, the better the pellet quality. Compression ratio should be calculated based on your raw material for making pellets. Commonly compression ratio is inversely proportion to the hardness of raw material, the harder the raw material, the smaller the compression ratio.
stainless steel die
Company Information
We are specialized in designing and manufacturing poultry feed, aquatic feed pellet machinery, biomass pelle machinery and the complete production line (all auxiliary equipment) with CPM advanced tachnology.
The current products include: hammer mill, ngredient weighing system, mixer, pellet mill, counter-flow cooler, dryer, crumbler, rotary screener, liquid adding equipment, pulse filter equipment, horizontal and vertical conveying equipment, links and gates, permanent magnet cylinder, and de-iron equipment, etc,.
Liyang Rongda Machinery Co., LTD. located in Daitou Industrial Zone with 25000 square meters area, Liyang city, Jiangsu province, China.
stainless steel die

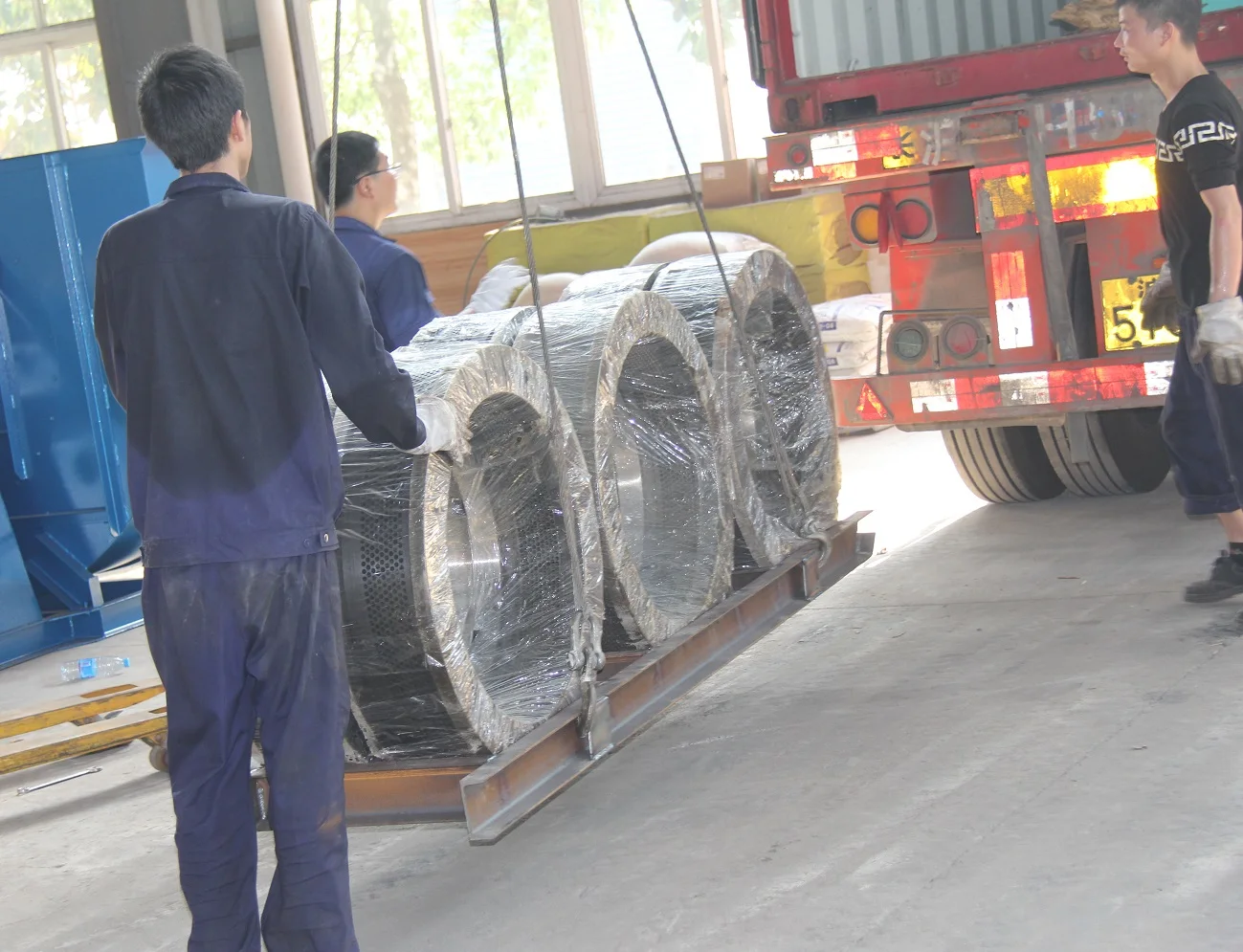

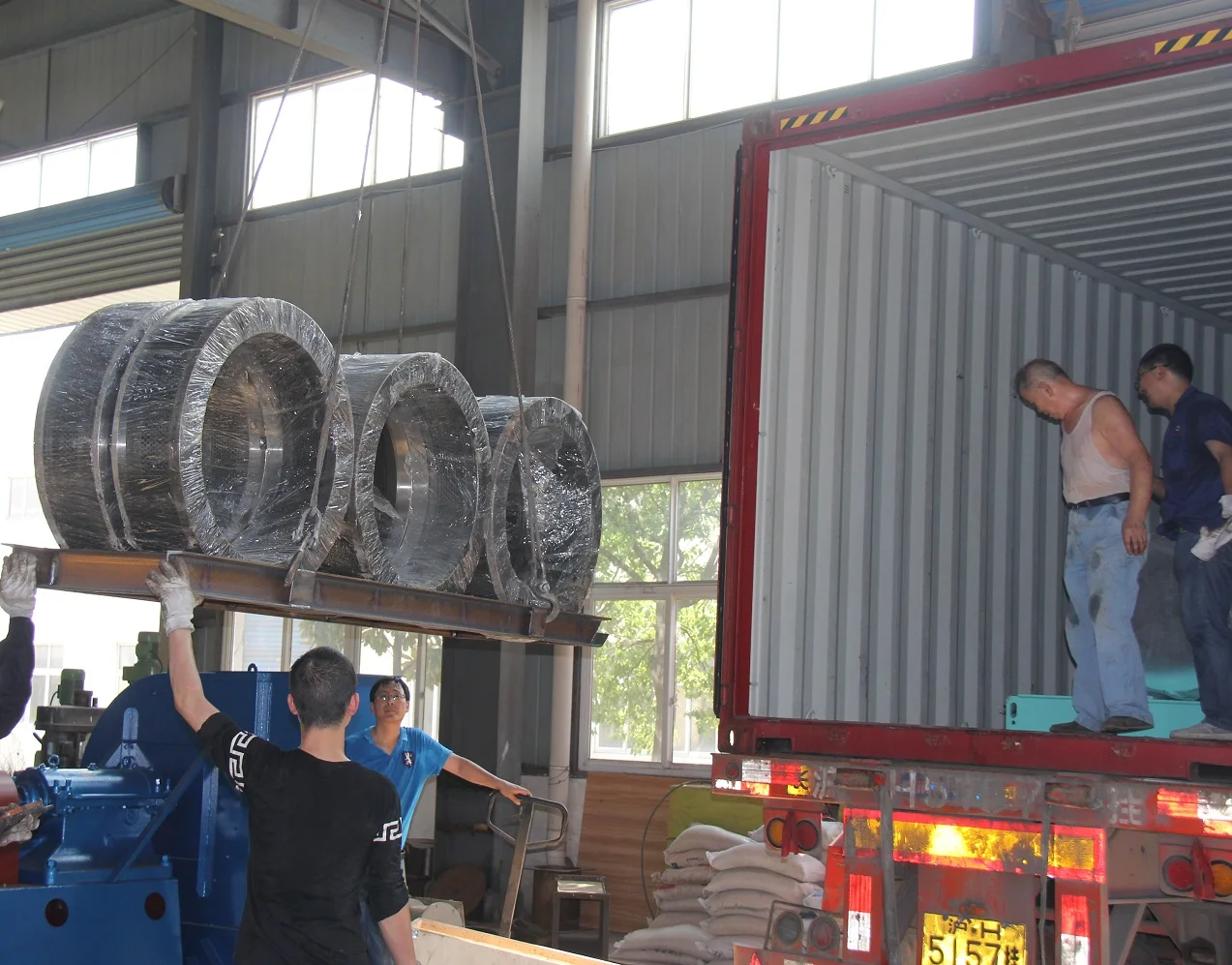

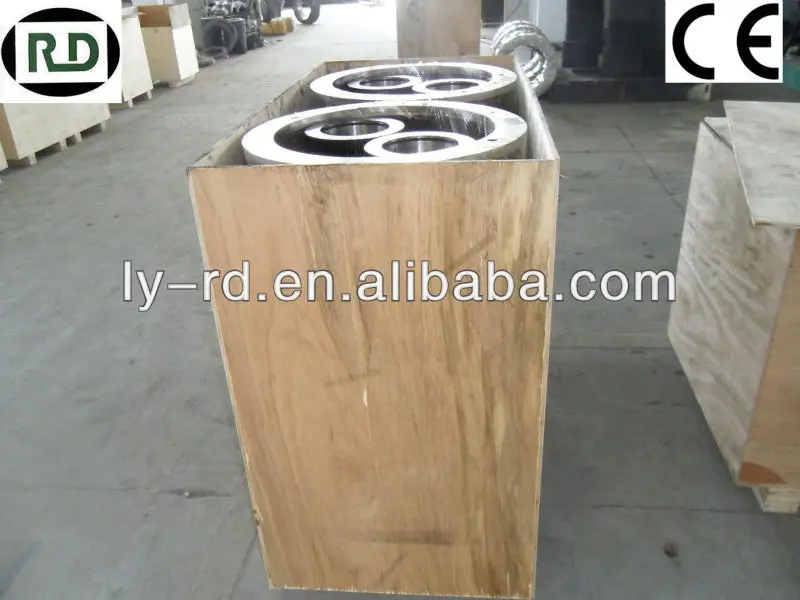

Delivery Management: When the container arrived our factory, our shipping operator and delivering equipments will be ready on time to ensure goods shipped based on Sales Order requirement.
FAQ
| 1. Q: Are you a trading company or a manufacturer? |
| A: We are a manufacturer, which has almost 20 years of experience in this industry. |
| 2. Q: How can I get to your company? |
| A: You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport. |
| You may also come to our city,Liyang city by High speed Railway,just 20-30mins. |
| 3. Q: How long is your guarantee? |
A: One year(Calculated from the equipment arrives the customer's side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened. |
| 4. Q: Will you send engineers to install the plant? |
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer. |
| 5. Q: Do you have some foreign customers using your equipment? |
A: yes, we have.our company has established business relationships with customers in Russia, German,Slovakia,Ukraine,Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq,Jordan,Saudi Arabia,Syria, Libya etc. |
