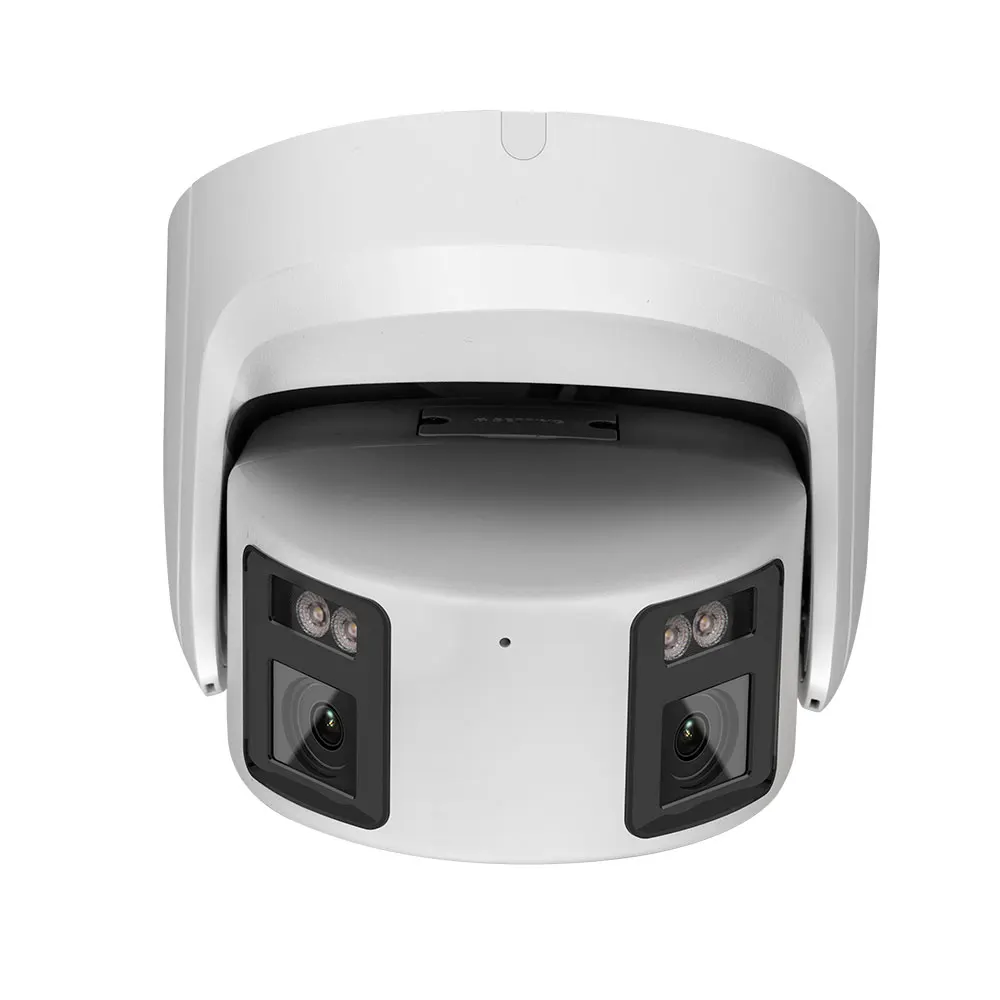

HIK Original 4K Acusense Fixed Dome Network Camera Bulit in Mic IP67 IK10 network camera Fixed h.265 poe cctv camera
- Category: >>>
- Supplier: Shenzhen Lin Wei Ke Xun Technology Co. Ltd.
Share on (1600964235880):
Product Overview
Description
Data sheet
DS-2CD2186G2-ISU
4K Acusense Fixed Dome Network Camera
* High quality imaging with 8 MP resolution
* Excellent low-light performance via powered-by-DarkFighter technology
* Efficient H.264+ compression technology
* Clear imaging against strong back light due to 120 dB true WDR technology
* Focus on human and vehicle targets classification based on deep learning
* Built-in microphone for real-time audio security (-SU)
* Audio and alarm interface available(-SU)
* Water and dust resistant (IP67) and vandal resistant (IK10)
* High quality imaging with 8 MP resolution
* Excellent low-light performance via powered-by-DarkFighter technology
* Efficient H.264+ compression technology
* Clear imaging against strong back light due to 120 dB true WDR technology
* Focus on human and vehicle targets classification based on deep learning
* Built-in microphone for real-time audio security (-SU)
* Audio and alarm interface available(-SU)
* Water and dust resistant (IP67) and vandal resistant (IK10)
Camera | HK original DS-2CD2143G0-I 4MP POE Dome Camera CCTV Waterproof IP67 IP camera with Audio mini Surveillance Camera |
Image Sensor: | 1/1.8" Progressive Scan CMOS |
Signal System: | PAL |
Min. Illumination: | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter time: | 1/3 s to 1/100,000 s |
Slow shutter: | Support |
Lens: | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° |
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° | |
Lens Mount: | M12 |
Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Day& Night: | IR cut filter |
Wide Dynamic Range: | 120 dB |
Digital noise reduction: | 3D DNR |
Compression Standard | |
Video Compression: | H.+/H./H.264+/H.264/MJPEG |
Video bit rate: | 32Kbps~16Mbps |
Audio Compression: | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Triple Streams: | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)Yes |
Image | |
Max. Image Resolution: | 3840 × 2160 |
Frame Rate: | 50Hz:25fps (2560 × 1440, 2304 × 1296, 1920 × 1080) |
60Hz: 30fps (2560 × 1440, 2304 × 1296, 1920 × 1080) | |
Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement: | BLC/3D DNR |
Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Target Cropping: | No |
ROI: | 1 fixed region for main stream and sub-stream |
Day/Night Switch: | Auto/Schedule/Triggered by alarm in (-S) |
Network | |
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy |
mask, Watermark, IP address filtering | |
System Compatibility: | Open Network Video Interface (Profile S, Profile G),ISAPI |
Interface | |
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button: | Yes |
Audio | With RS485 |
Environment Noise Filtering: | Support |
Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz |
Smart Feature-set | |
Behavior Analysis: | Line crossing detection, intrusion detection |
Line Crossing Detection: | Cross a pre-defined virtual line |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
Recognition: | Face Detection |
General | |
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption: | 12 VDC ± 25%, 5W |
PoE(802.3af, class 3), 6.5W | |
Weather Proof: | IP67 |
IR Range: | Up to 30m |
Dimensions: | Camera: Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.6") |
Package: 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6") | |
Weight: | Camera: 590 g (1.3 lb.) |
With Package Weight | Approx. 850 g (1.9 lb.) |
key features
Notice
Dear customers, choose us and you will definitely feel the value. If the same product we compete with Quality, if the same quality we compete with Price, if the same price we compete with Service, if the same service we compete with Consistency
We sell DH and HIK all the network products. Please contact us freely.
FAQ
Q. What's the actual products I can get?
A: Usually OEM made by Hik/DH(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU warehouse, we provide most lines of stock products. So if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
A: Usually OEM made by Hik/DH(no logo on the products). Customs order is welcome here. Pls contact with the sales for more details for you need.
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU warehouse, we provide most lines of stock products. So if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
