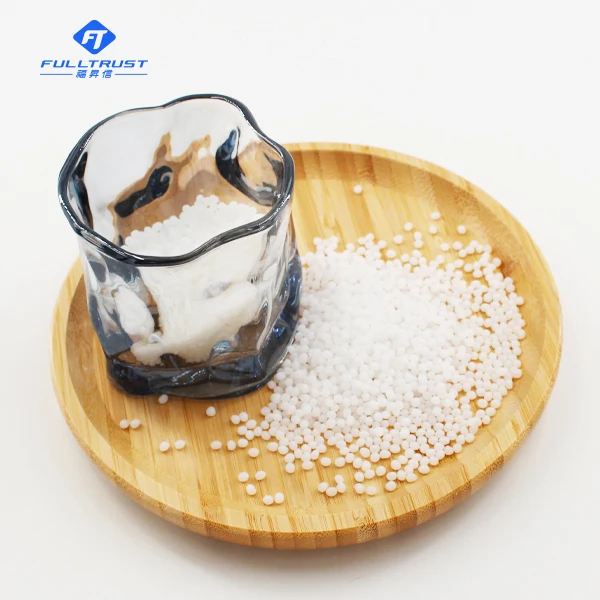

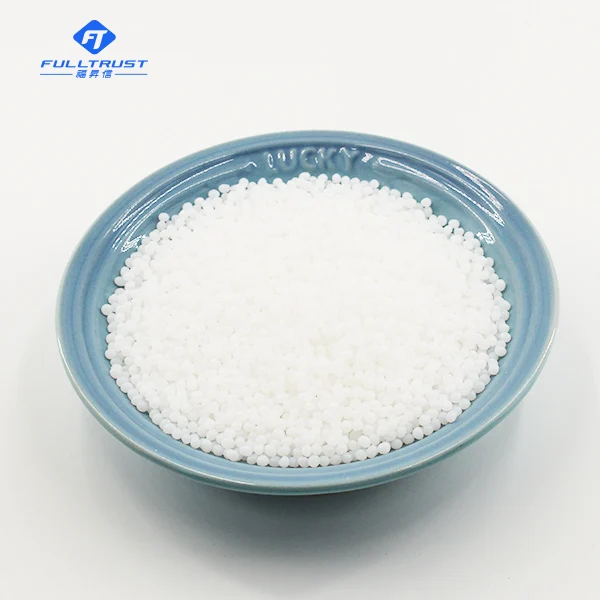

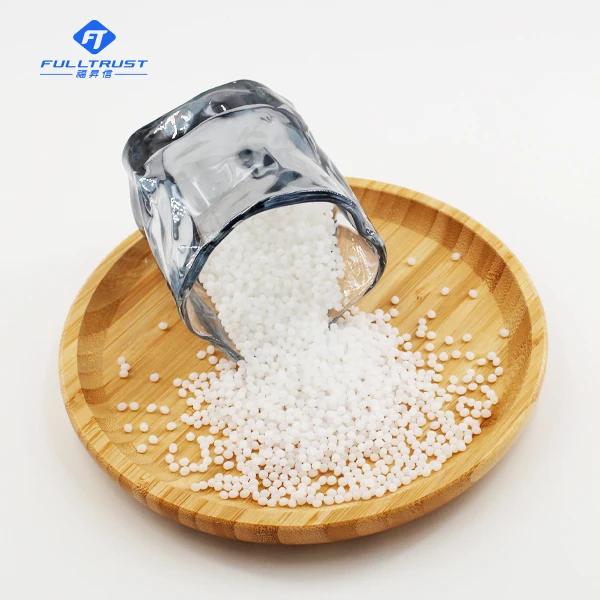

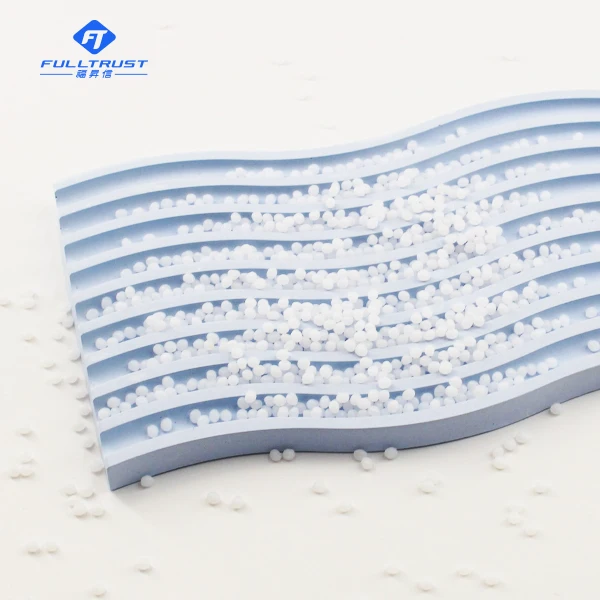

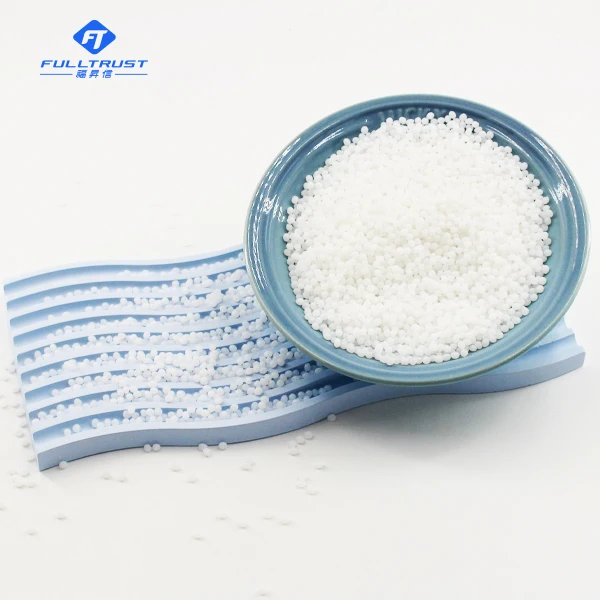

Aliphatic Grade Virgin TPU Pellet Resin Material Halogen free fire retardant tpu Granules
- Category: >>>
- Supplier: Jiaxing Fulltrust Plastic Co. Ltd.
Share on (1600964246441):
Product Overview
Description
Physical Properties | Metric | English | Comments | |||
Specific Gravity | 1.127 g/cc | 1.127 g/cc | ISO 1183-1 | |||
Mechanical Properties | Metric | English | Comments | |||
Hardness, Shore A | 88 | 88 | ISO 868 | |||
Tensile Strength, Ultimate | 26.0 MPa | 3770 psi | 200 mm/min; DIN 53504 | |||
Elongation at Break | 552 % | 552 % | 200 mm/min; DIN 53504 | |||
100% Modulus | 8.20 MPa @Strain 100 % | 1190 psi @Strain 100 % | 200 mm/min; b.o. ISO 527-1,-3 | |||
200% Modulus | 14.1 MPa @Strain 200 % | 2050 psi @Strain 200 % | 200 mm/min; b.o. ISO 527-1,-3 | |||
Rebound | 43 % | 43 % | Resilience; ISO 4662 | |||
Tear Strength | 45.5 kN/m | 260 pli | 500 mm/min; ISO 34-1 | |||
Abrasion | 31 | 31 | mm3; ISO 4649 method A | |||
Compression Set | 23 % @Temperature 23.0 °C, Time 259000 sec | 23 % @Temperature 73.4 °F, Time 72.0 hour | ISO 815 | |||
55 % @Temperature 70.0 °C, Time 86400 sec | 55 % @Temperature 158 °F, Time 24.0 hour | ISO 815 | ||||
Processing Properties | Metric | English | Comments | |||
Melt Temperature | 200 - 220 °C | 392 - 428 °F | ||||
Mold Temperature | 20.0 - 40.0 °C | 68.0 - 104 °F | ||||
