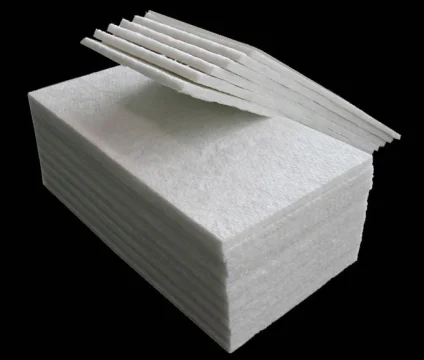

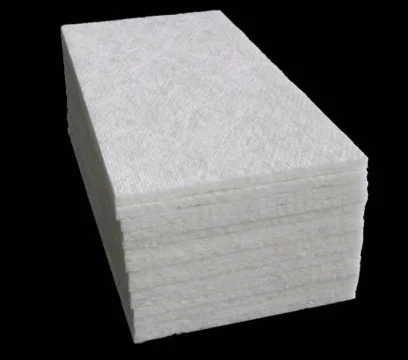

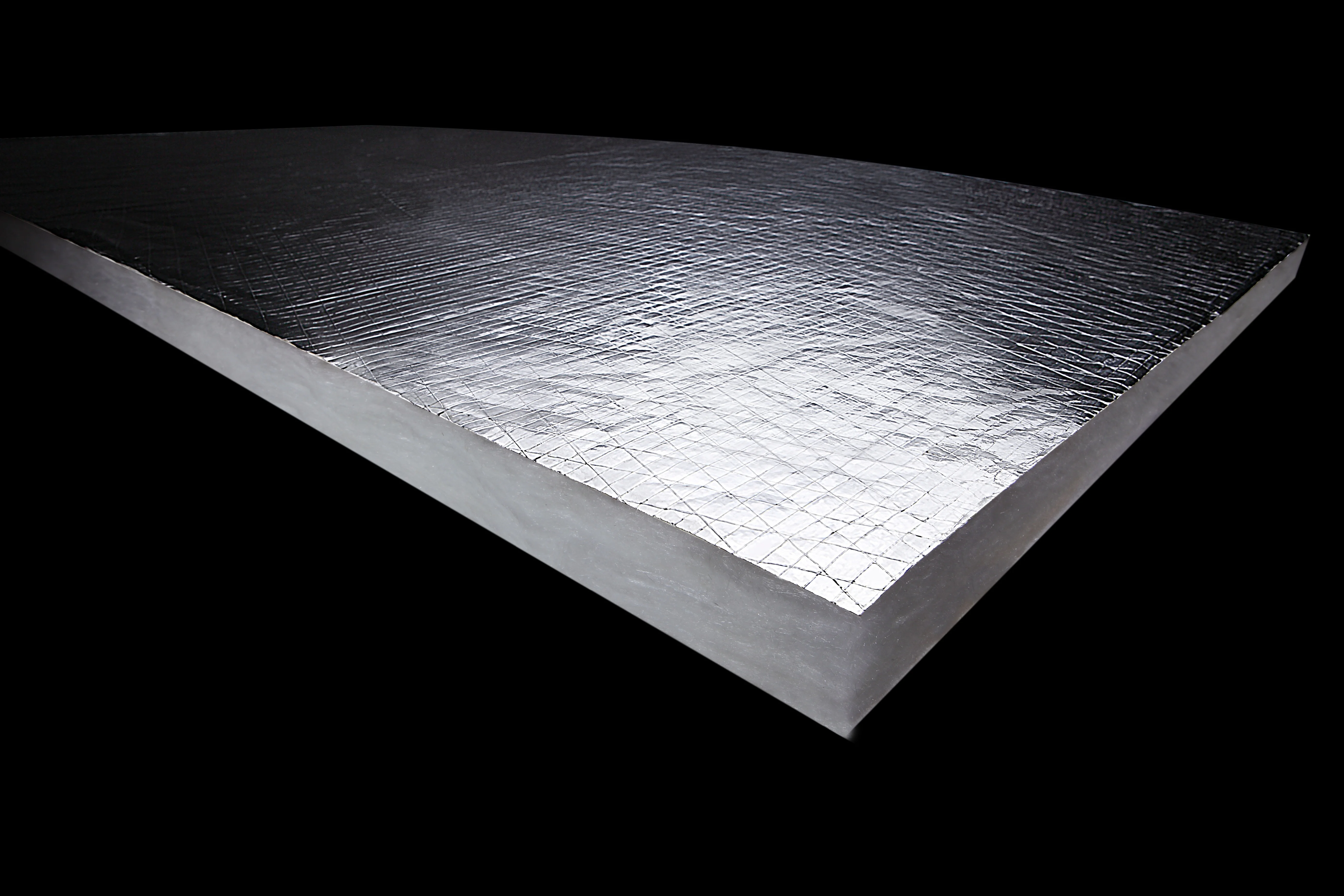

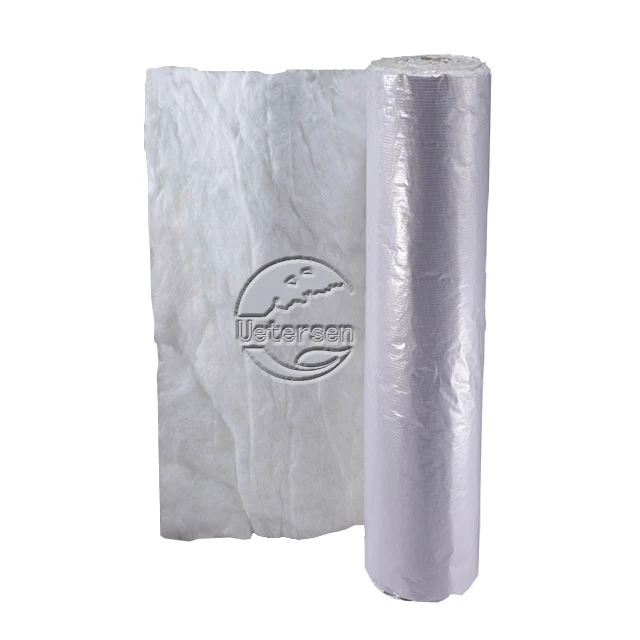

thermal and sound comfort insulation material 50mm white glass wool with FSK barrier

Share on (1600964250081):


Price:$0.50

Quantity:


Product Overview

Description



Product description


Glass wool insulation is a kind of sustainable, decarbonization building materials, which can save energy comsuption effectively in residential and industry area.


Glass wool is basically manufactured by SiO2 (usually cullet), soda ash, borax, dolomite, etc. melting these raw materials and thrown into fine silky threads (wool) by centrifugal force in a rotating fibre spinner. And wool-like stuff usually features of good heat preservation and sound absorption.Glass wool is even better than rock wool at thermal insulation and noise reduction. Moreover, Glass wool is naturally fireproof becasue those raw materials are inorganic. Most important is that they are proven of no healthy risk to mankind.In practice, glass wool is a popular insulation materials today and widely used in residental insulation and industrial insulation.

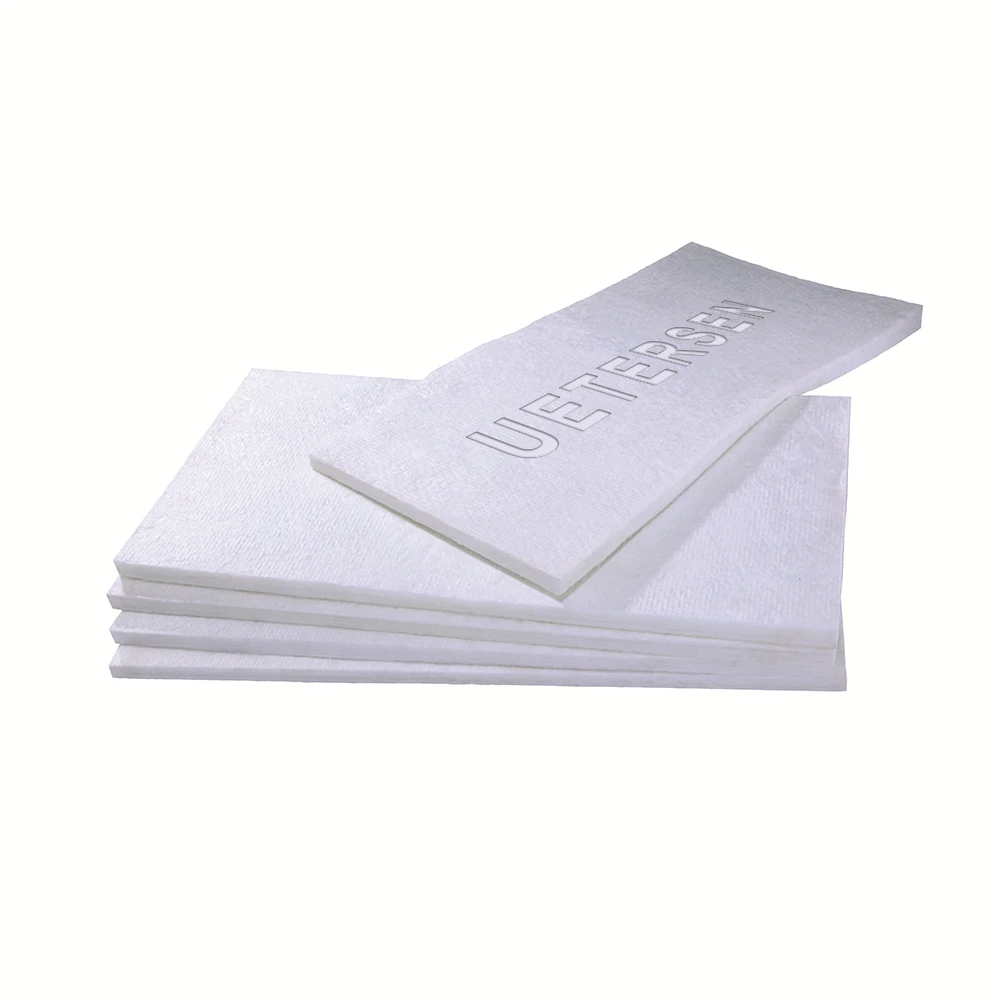

Glass wool can be shaped as board, strip, blanket, tubular, loose-fill, to fit different applications. And for some specific purposes, it can be reinforced at certain of properties through additives and different formula, such as rigidity, resiliency, hydraophobic, higher temperature durable, vapor proof, etc.


31


 4


5





Physical property



































































































 PropertyUnit value  value II
Densitykg/m312-20
Thermal conductivityW/m.K12kg/m30.039
16kg/m30.037
20kg/m30.036
Fiber diameterum5-7
Hydrophobic rate%>98
Heat load shrinkage temp.0C>400
Shot content%0
Corrosion None to regular metals
Fire performance Class A non cumbustion
Thickmm50/75/100/150
Widthmm1200
NRC 50mm0.89
75mm1.01
100mm1.14
Facing FSK, fireproof veneer optional




Uetersen advantages


Glass wool insulation quality rely on fibres quality. Uetersen glass fibers have the features as following:



  • Uniform long and fine fibers, diameter is less than 7 microns, length is 15-20cm.

  • High strength fibers, soft and no shots content.

  • Binders and additives are sprayed evenly

  • No hazardous substance contained, formaldehyde-free optional, etc.










Quality Effects


What effect the glass wool quality?



  • Raw materials: high level impurity substance will cause fibres quality directly and cause high shot content. On the other hand, in order to avoid unhealty elements, additives or binders should come from those qualified brands.

  • Formula: For instance, in order to make out formaldehyde-free glass wool, we use special binders without any formaldehyde content. And in order to get high-temperature resistance wool, we even eliminate all resins.

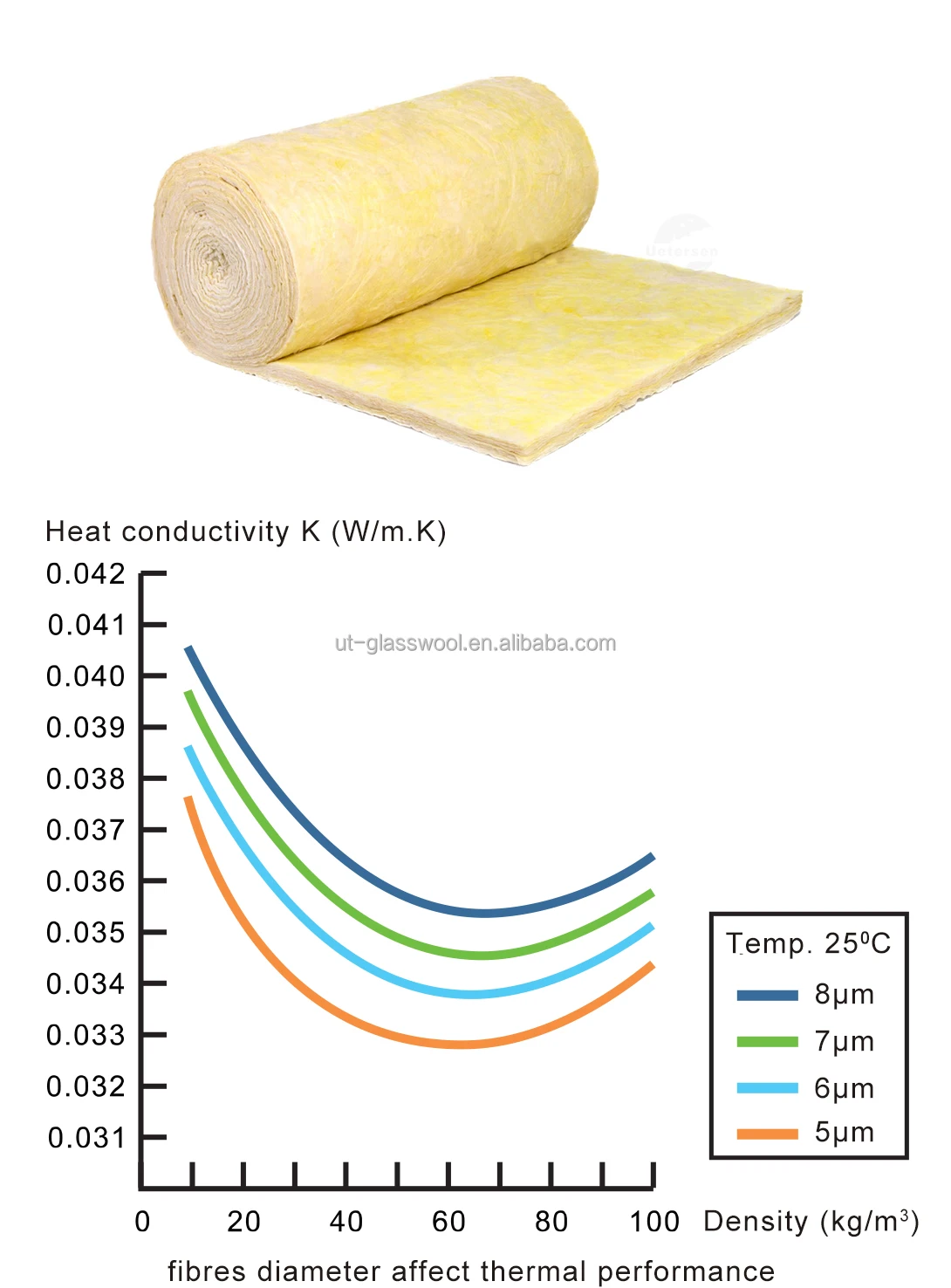

  • Production equipments and operation: The temperature level control, spinning speed, feeding volume,etc. these factors will effect the fibers diameter thus furtherly effect its insulation performance.

  • QC: if QC absent at some vital production steps. it can be imaged how disastrous the final products is.

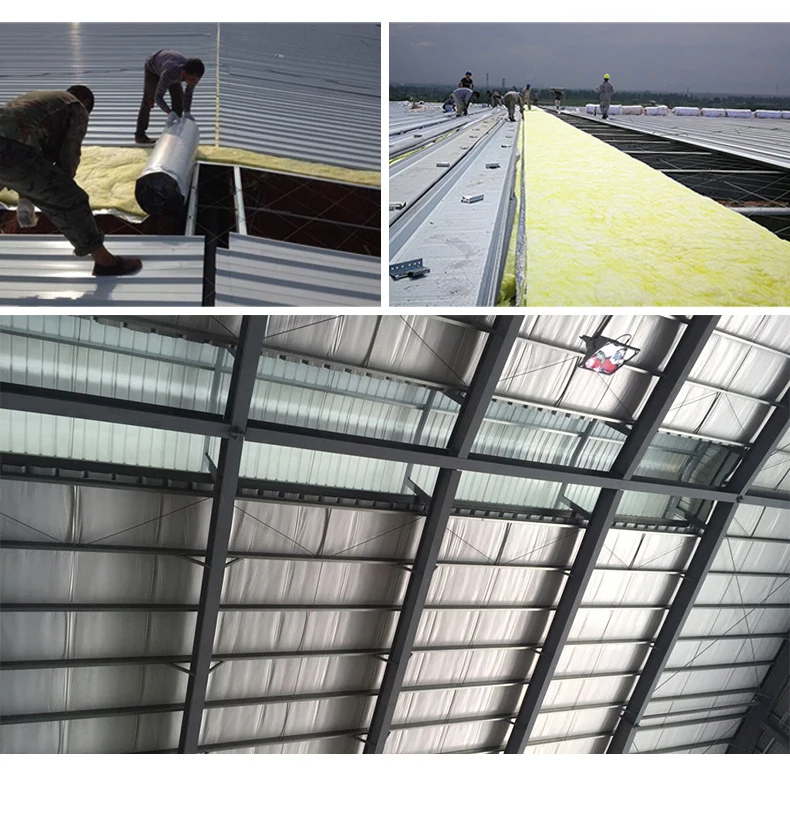

Steel structure roofing insulation 7.jpg





About Uetersen


Uetersen is a time-honored brand of thermal insulation materials manufacturer. With decades of development, Uetersen gathers strong R&D capability and sophisticated manufacturing skills. In China, we are in lead to launch high-end thermal  insulation materials, such as aerogel insulation panels, Vacuum Insulation panels, formaldehyde-free glass wool, LNG resilient blanket, etc. More than a manufacturer, we are also expertise in complete solutions in the field of building thermal insulation, room acoustic, industrial duct insulation, LNG tank insulation, etc. So, let's talk about your projects, we are standby to serve you individually.

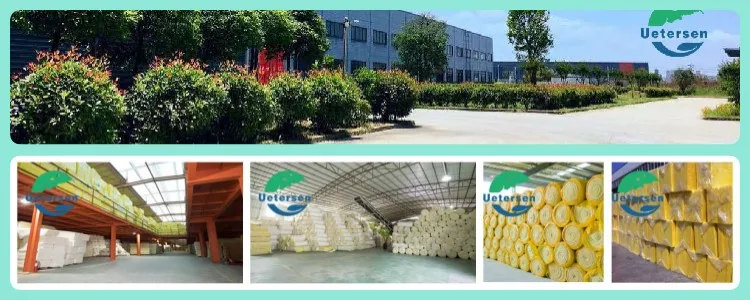

factory1


cert

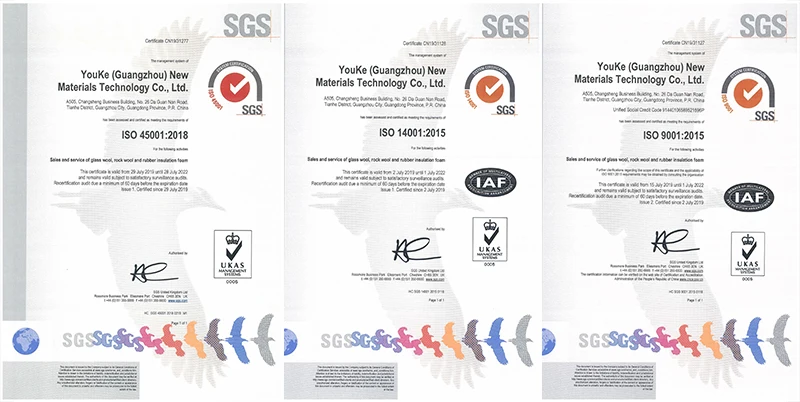

Certificates

Uetersen manufactory passed through quality management system, envrionmental management system, Health & safety management system ( ISO9001/ ISO14001/ISO45001), and our products comply with related criteria (CE\\ Rohs \\ASTM, etc.). Those certification ensure customers that we are continuously setting high standards for our quality.






Packing and delivery

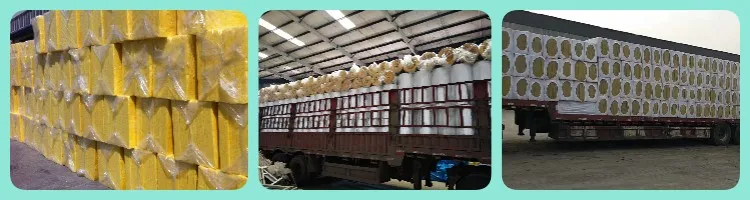

packingMost of our rock wool and glass wool insulation materials are packed into PE bag/film, shrinkage and vacuumed, then put into another woven bag or kraft carton. We will make sure they are in minimum dimension and good conditions enough for long distance delivery by sea, by land, or by air.











FAQ


A1:Uetersen has been in the thermal insulation industry for more than 20 years. Some of our management members have been in this field since the first rock wool plant was set up in China. With such rich experience, we can provide unmatched consulting service to make sure that you will get the right thermal insulation materials which can cover your requests and related standards. In addition, Uetersen keeps increased research-input to update the latest technologies to meet gradually tougher requirements in different applications.

Q2: What products Uetersen can manufacture?
A2: We have 4 focused divisions to meet your requirements principally, Rock wool, Glass wool, Rubber foam, as well as aerogel. But those materials derive a variety of properties to cover specific requirements.

Q3: Are you accept OEM/ODM order?
A3: We surely provide customer-tailored service. But a corresponding production quantity is required to lower the average cost, which you can well understand.

Q4: How about the lead time?
A4: We usually keep certain amount of common models in our warehouse. We can make fast delivery for small orders after final inspection and packaging. Whilst for those orders come with excessive quantity or customized production, we usually make delivery in 10-30 working days accordingly.
