All Feeders Free Stock in EU SMT802A SMT Pick and Place Machine Electronic PCB Led Lamp Production Line
- Category: >>>
- Supplier: Wenzhou Yingxing Import&Export Co. Ltd.
Share on (1600964267965):
Product Overview
Description
Product Description
Introduction

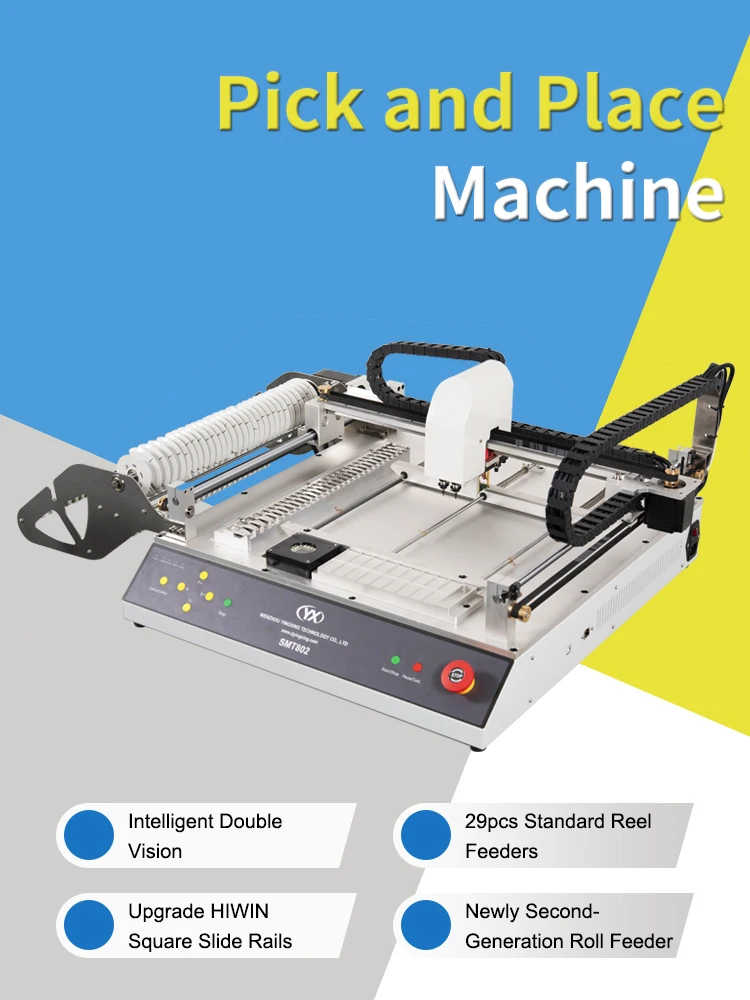

SMT802A automatic visual pick and place machine has upper and bottom visual system, can automatic to locate and identify the PCB and the center of components,playing a lead -role in domestic market.
Feature
1. intelligent double vision.
2. 29pcs standard reel feeders.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.
Part list
1.SMT802A pick and place machine: 1 Set
2.User Manual CD:1 PCS CD disk:1PCS USB: 1 PCS Power Line: 1PCS Screw Driver:1 Set
3.4 kind nozzle:1 Set (Totally 4: 503-1, 504-1, 505-1, 506-1)
4.Spare Parts: 1 Set(Grease: 1 box, Wrench:1 PCS, Teasing needle:1 PCS,Rubbing ring:Several)
The SMT802 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
The SMT802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
The SMT802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)
Model | SMT802A |
Max Applicable PCB | 20*20mm-340*340mm |
Max XY Moving Rang | 395*450mm |
Max Z Moving Range | 12.5mm |

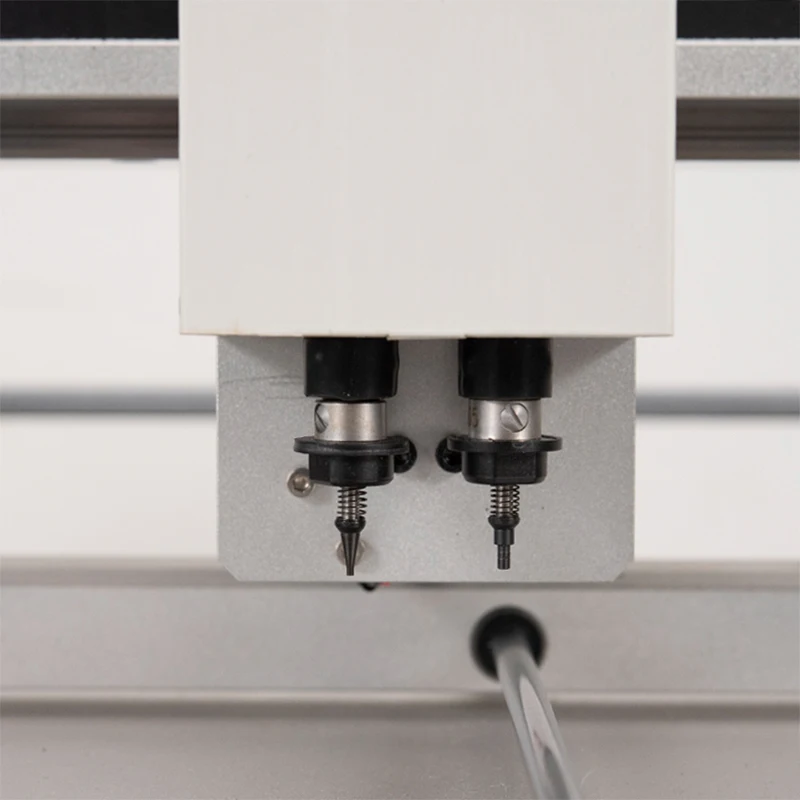

Placement Head Quantity | 2 |
Mounting Speed without Vision | 7000CPH |
Mounting Speed with Vision | 5500CPH |
Mounting Accuracy | ±0.025mm |
Applicable Component | 0402-5050 . SOP . TQFP . QFN BGA etc. |
Component Supply | tape reel , bulk , tubblar , tray etc. |

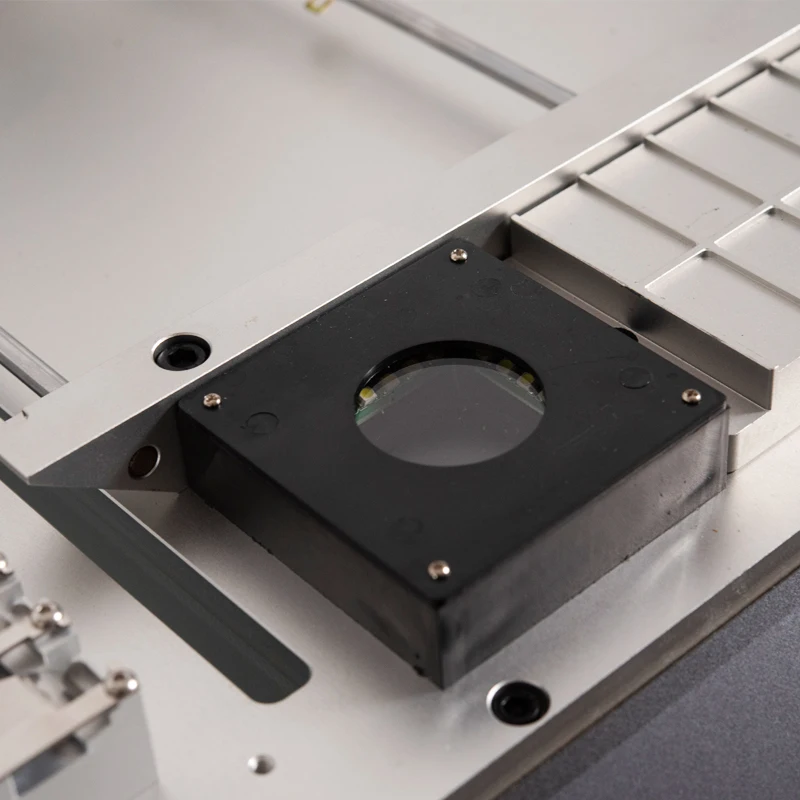

Vision System | 2 HDCCD camera |
Driver | high voltage driver |
Feeder Count ＆ Tape Width | total=29PCS 8mm=25pcs , 12mm=3PCS 16mm=1PCS |
Pump | silent brushless vacuum pump , blowing pump |
Leakage Material Detection | vacuum |
Power | 125W (average power) |
Power Supply | AC220V or AC110V |
Machine Size | L940*W640*H330mm |
Package Size | L1070*W770*H420mm |
Volume | 0.32CBM |
Net Weight | 45kg |
Gross Weight | 58kg |
Support PCB Design Software | protl99 / altium designer / eagle / pads / allegre etc. |

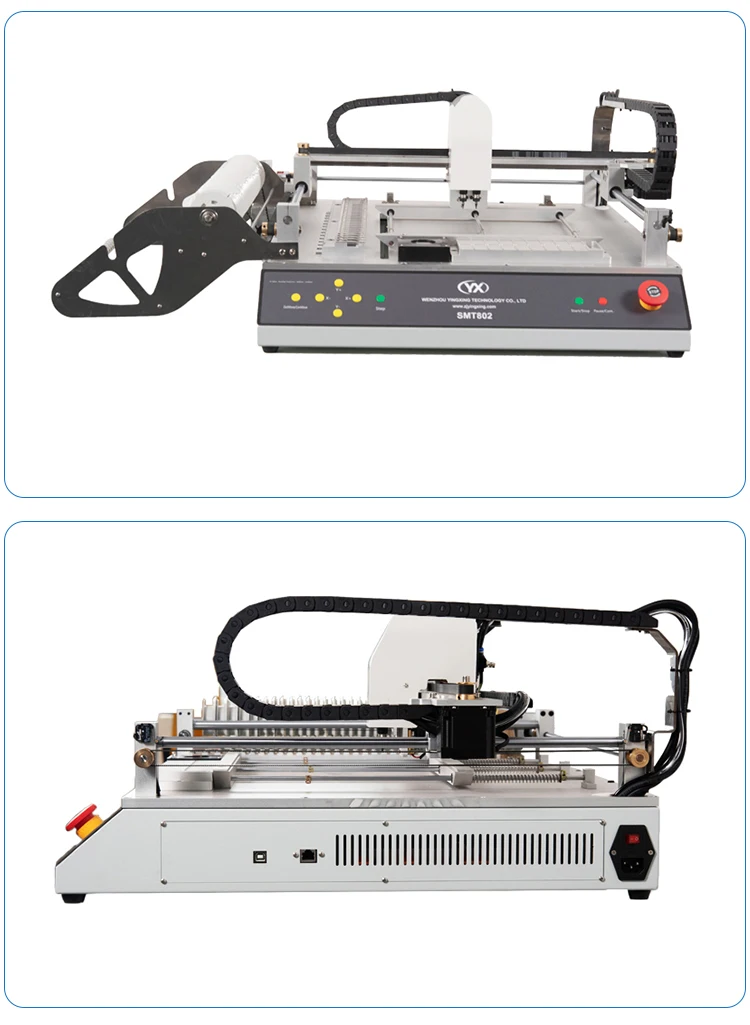

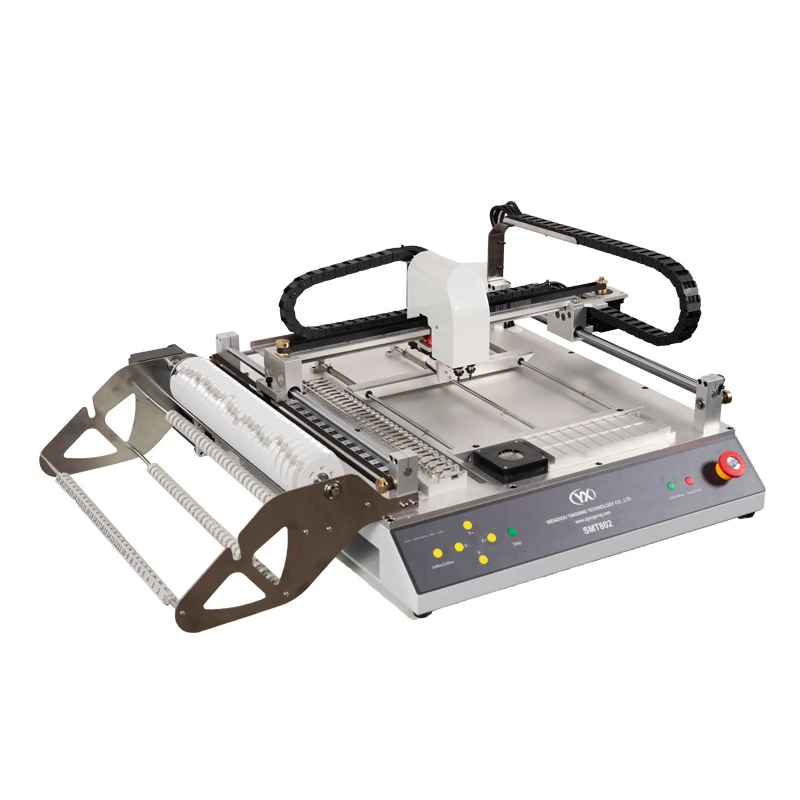

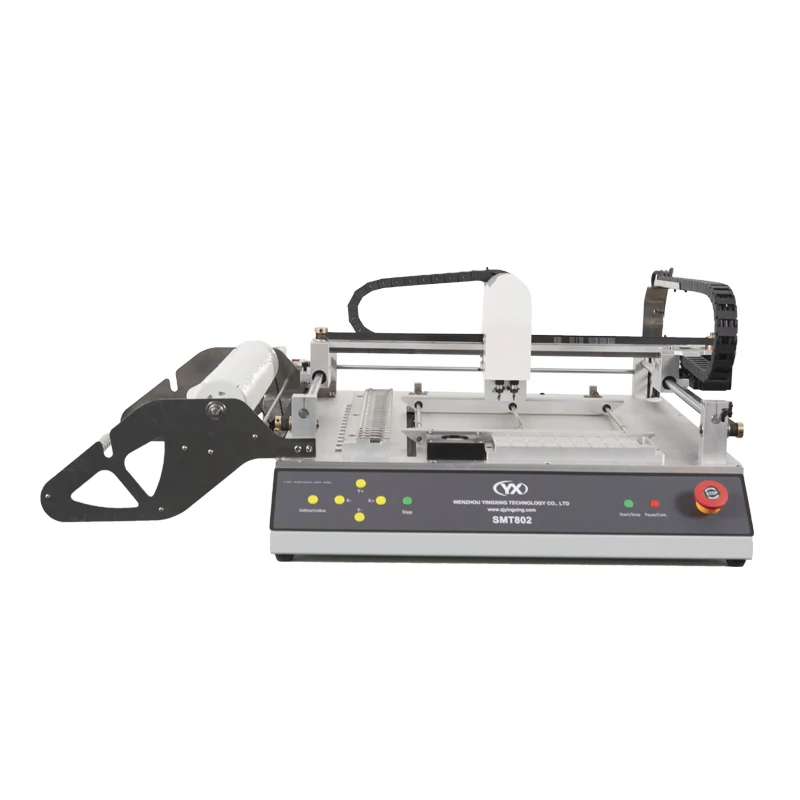

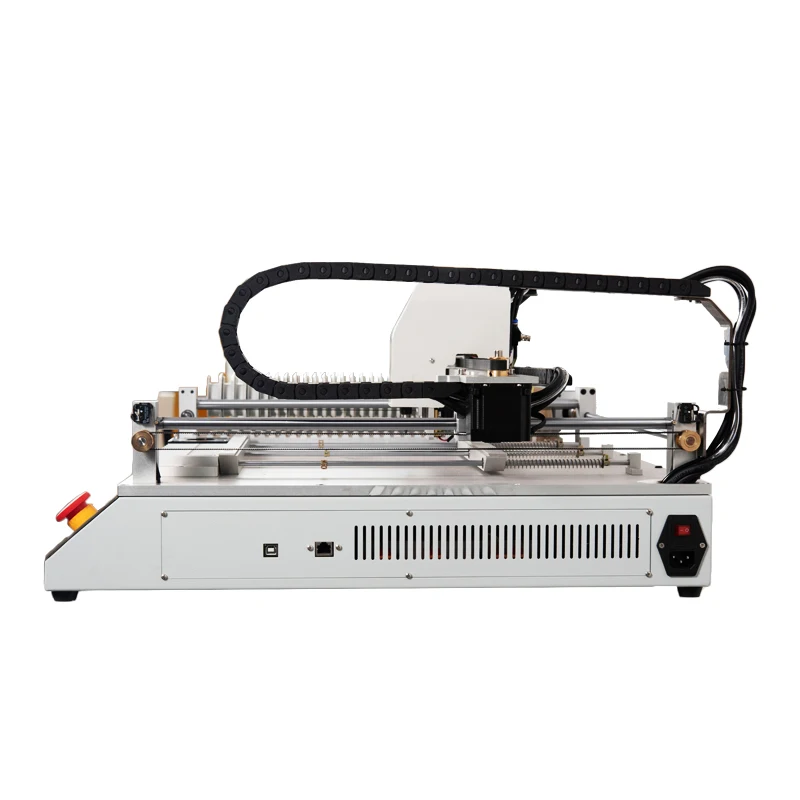

Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
