5000g/hour Pellet imprimante 3D particle large 2000mm 3d printing machine industrial stampante 3D printer impresora 3d
- Category: >>>
- Supplier: Luoyang Dowell Electronics Technology Co. Ltd.
Share on (1600964315828):
Product Overview
Description
Products Description
Model: | DP1220-12 | ||||||
Printing area: | 1100*1900*2000MM | ||||||
Extruder: | Single screw extrusion | ||||||
Nozzle temperature: | 0-420℃ | ||||||
Heating platform: | 6mm tempered glass 0-100℃ (150°c customization) | ||||||
Leveling: | auto leveling, auto 64 points level | ||||||
Screen size: | Full color touch screen | ||||||
Voltage: | 110V/220V | ||||||
File format: | STL/OBJ/STP/Gcode | ||||||
Pellet diameter: | ＜4mm | ||||||
Connectivity: | USB, SD card, WiFi. | ||||||
Control system: | 3 stage temperature control, liquid cooling. | ||||||
Standard Characteristic: | auto leveling, auto resume from power off, auto power off | ||||||
Customization options: | Printing size | Auto feeding system | |||||
Why Dowell 3D Pellet Printer
Dowell 3d printer converts raw material directly to the print bed in a granular form.
It is designed to print big projects, resulting in shorter turnaround times and more reliability with low material cost, fast printing speed and the final product is with high strength.
1. Pellet extruder to print pellet directly, lower cost.
2. Screw feeding, 3 stages temperature control.
3. Water cooling system.
4. 3D/BL touch 64 points auto leveling.
5. 420C high temperature nozzle.
6. 100C high temperature hot bed (optional 150C).
7. Variety of large size model, accept customize.
8. Optional max 60C constant temperature enclosure.
4. 3D/BL touch 64 points auto leveling.
5. 420C high temperature nozzle.
6. 100C high temperature hot bed (optional 150C).
7. Variety of large size model, accept customize.
8. Optional max 60C constant temperature enclosure.
Material save
Pellets are the raw form of most plastics used in industrial molding processes such as injection molding, and therefore cost up to 10 times less than traditional 3D printing filament feedstock. Overall, pellets are considered one of the lowest-cost 3D printing raw materials.
High temperature Extruder
420C high temperature nozzle, support a variety of material availability.

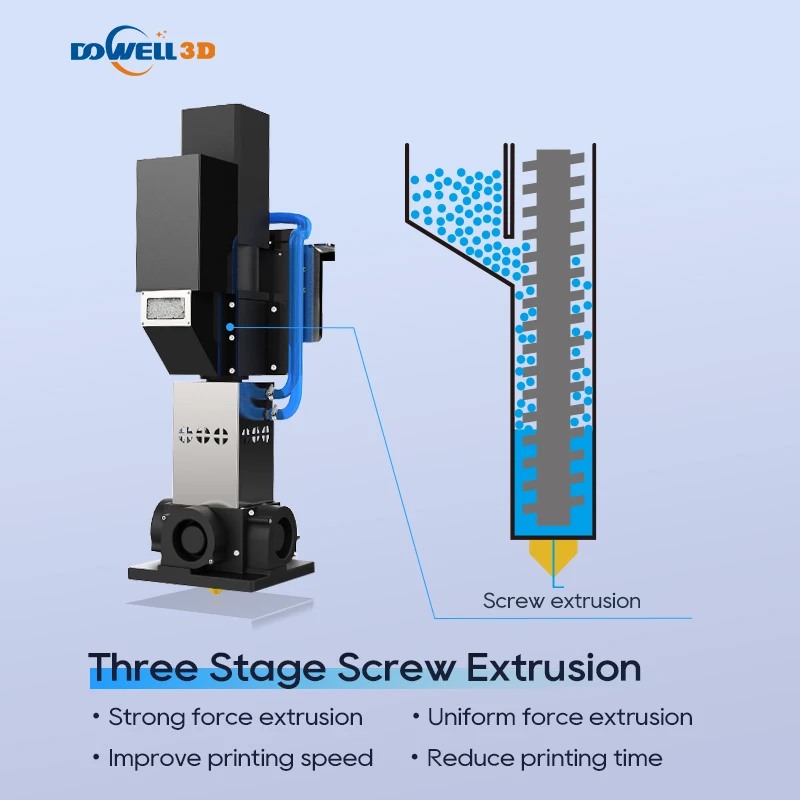

3 Stage High performance screw extrusion
Powerful extrusion force. Precise 3 stage independent temperature control, making extrusion even and smooth.

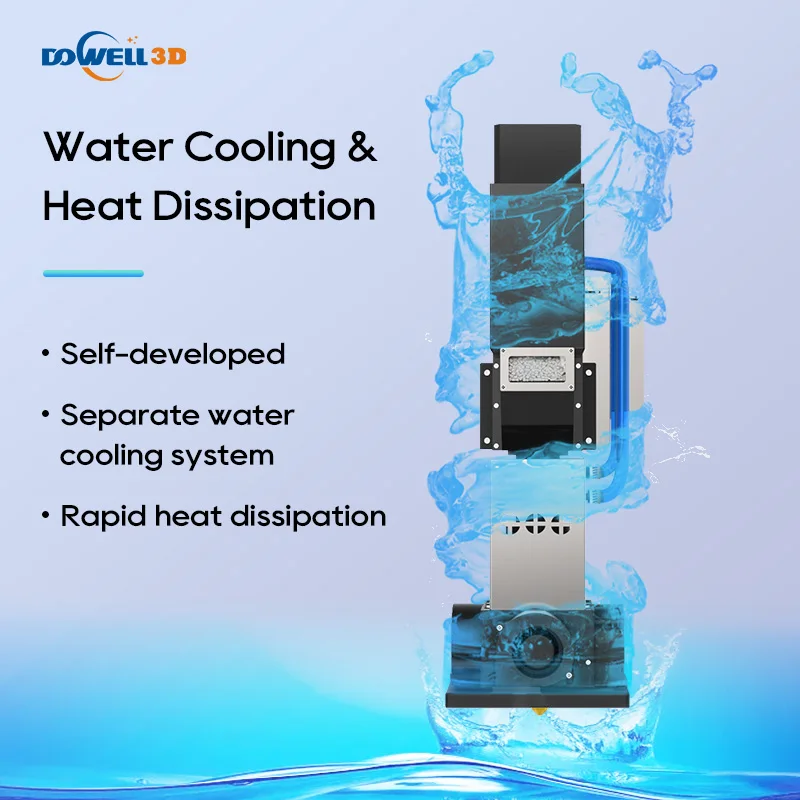

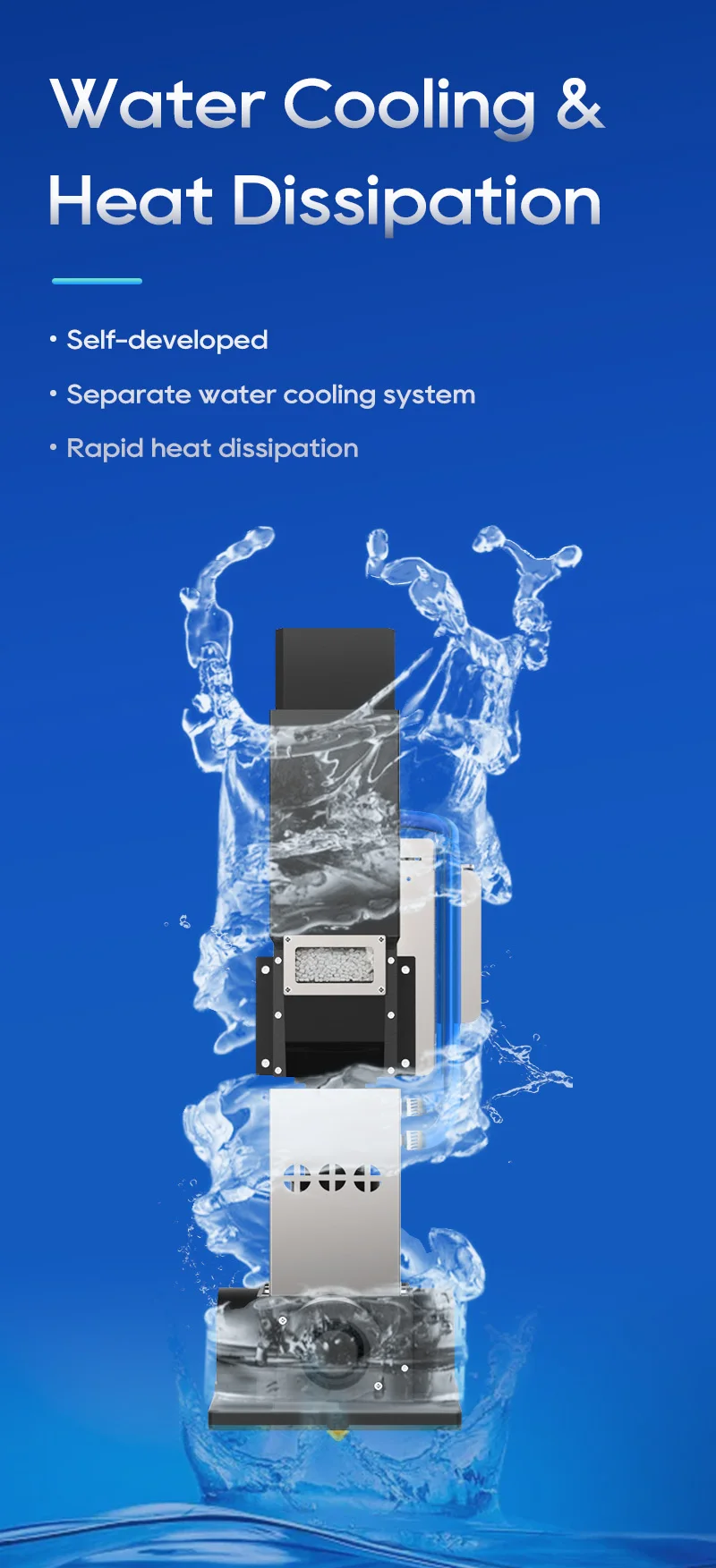

Water cooling system, Precise temperature control ensures printing quality
Rapid heat dissipation, cooling water circulates through it, absorbing the heat of the extruder. The warmer water returns from the hot end, is cooled by the radiator, and then circulates back to the hot end, keeping the material solid so it can be pushed by the extruder before entering the "melt zone" and turning into a liquid.
Reduce noise
Dowell uses an independently developed low-noise motor, which will not affect your life and rest when doing a long print jobs.
Auto resume from power recovery
It saves the print job status and if the power outage occurs, Dowell printers provide the option to resume interrupted print jobs.
High temperature hot bed
The whole platform is heated by silicon rubber heater evenly, temp controlled by independent controller. Standard max temp 100C, optional 150C.
Auto Leveling
First perform 4 corner detection, then 64-point detection, automatically adjust for unevenness.

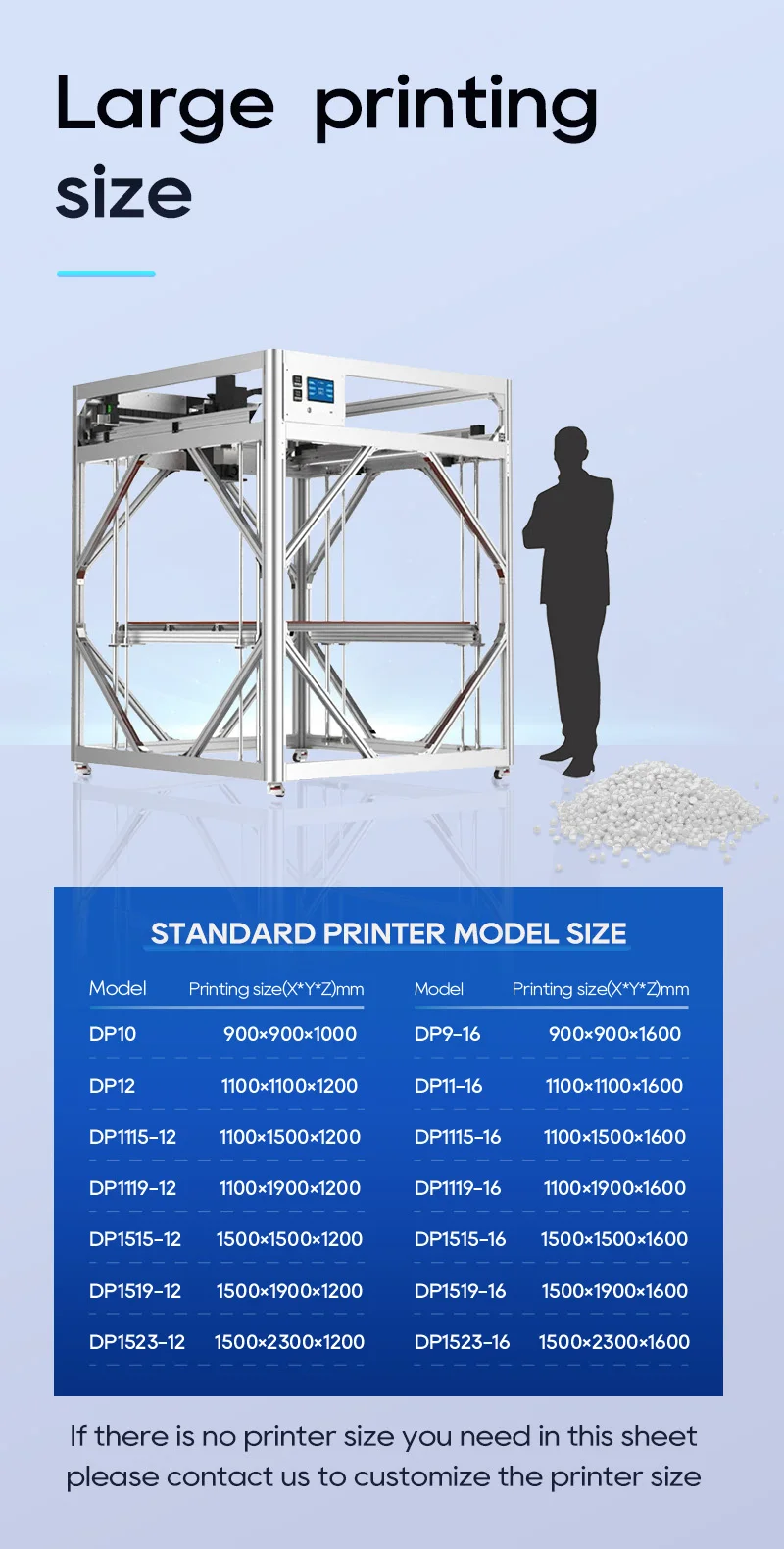

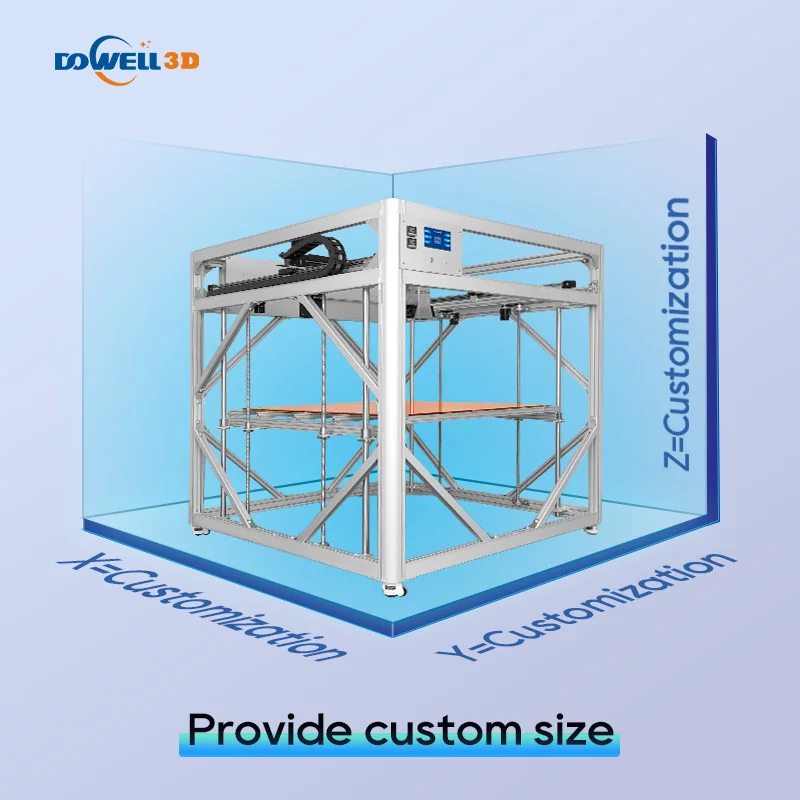

Customization printing size
We supply 14 standard sizes, if there is no size that can meet your printing needs, please contact us to customize it for you.

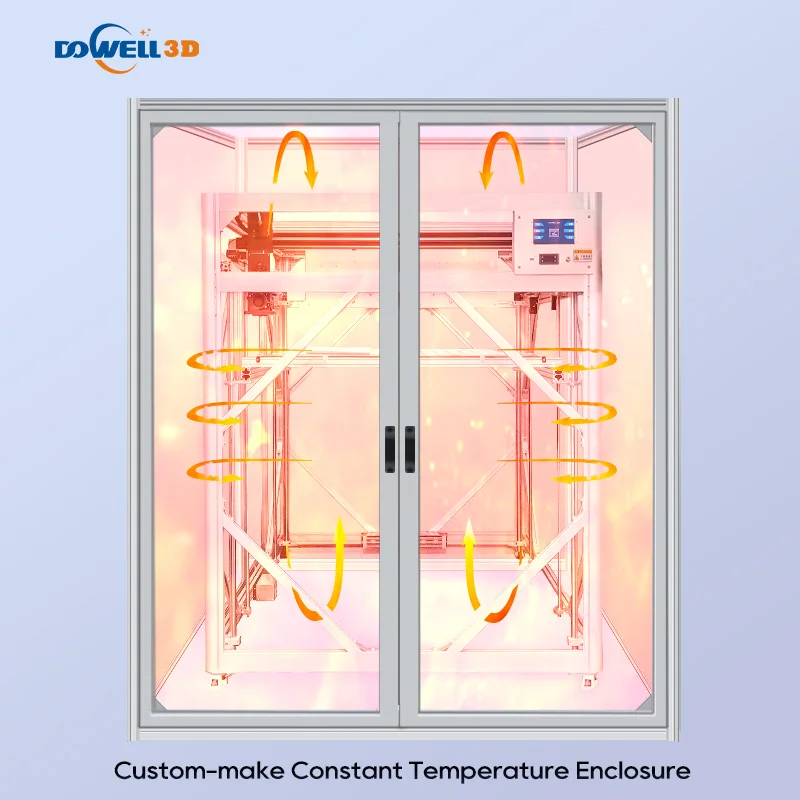

Constant 60°c temperature enclosure
The Standard pellet printer is open frame, we also provide an option of 0- 60C constant temperature enclosure. There is independent heaters and temperature control system.

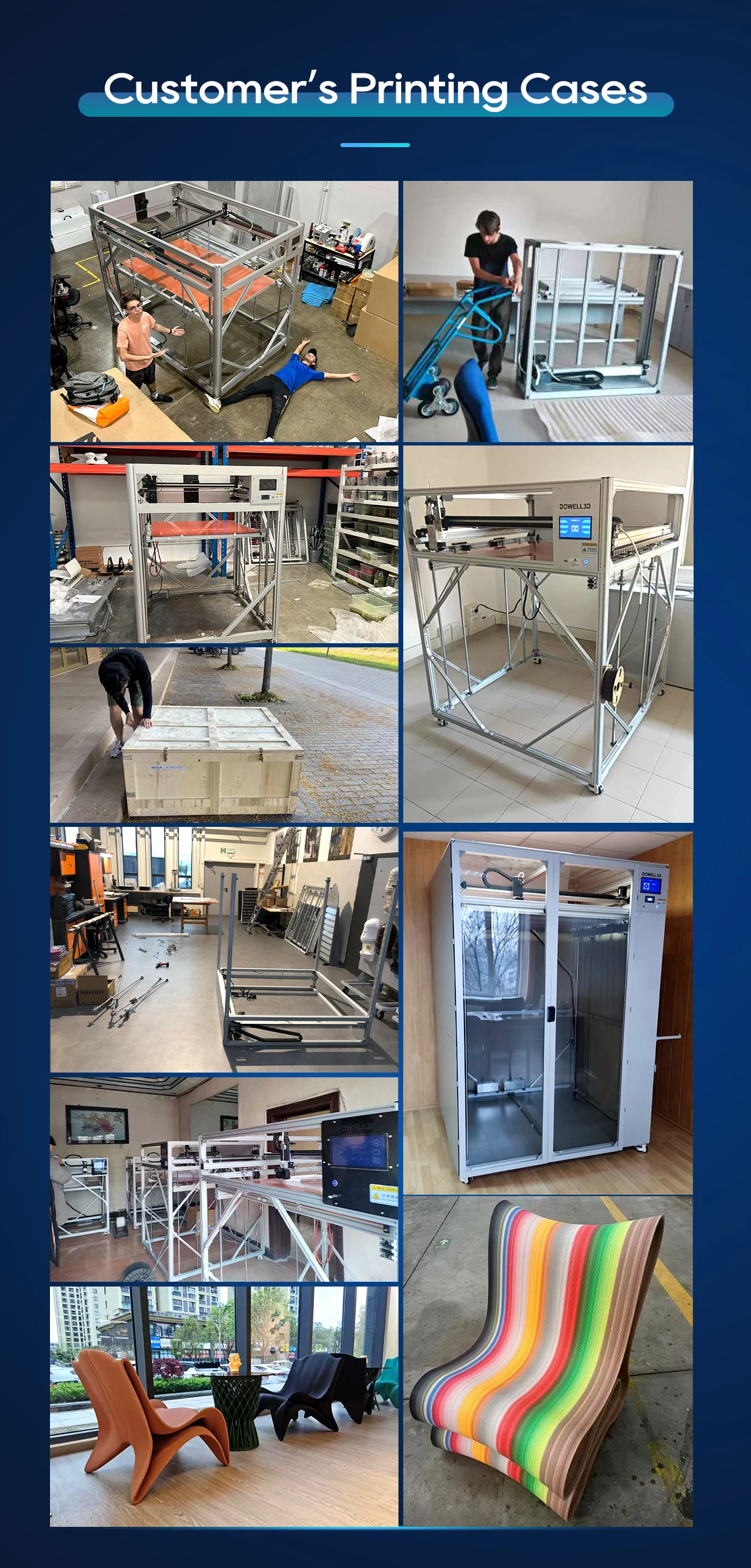

User's Feedback
