Wholesale price expanded pu foam spraying reactor machine on sale
- Category: >>>
- Supplier: Jinan Demeijia Machinery Co. Ltd.
Share on (1600964328425):
Product Overview
Description
Product Description

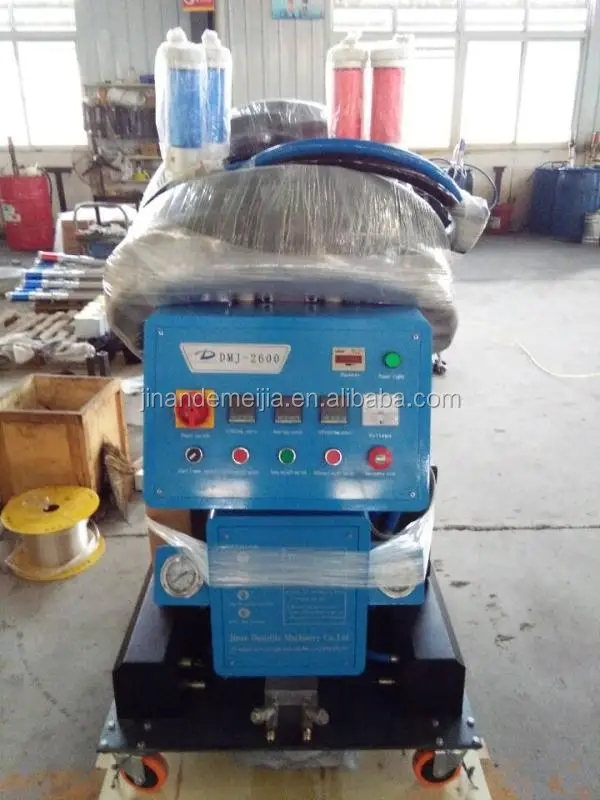

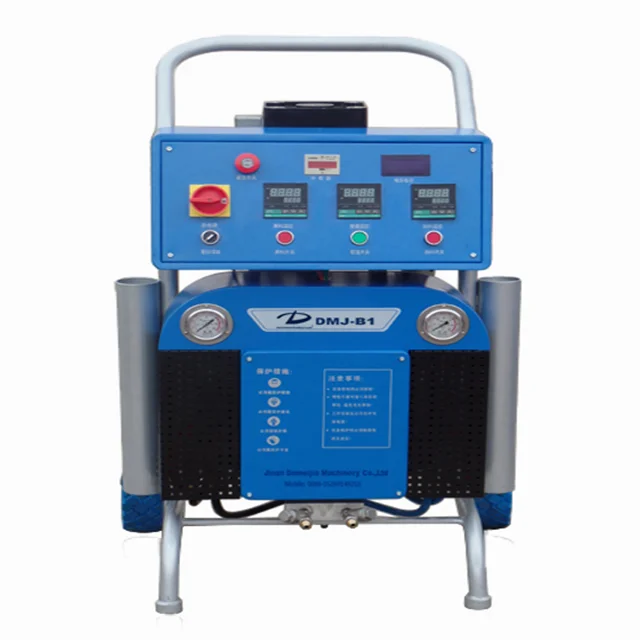

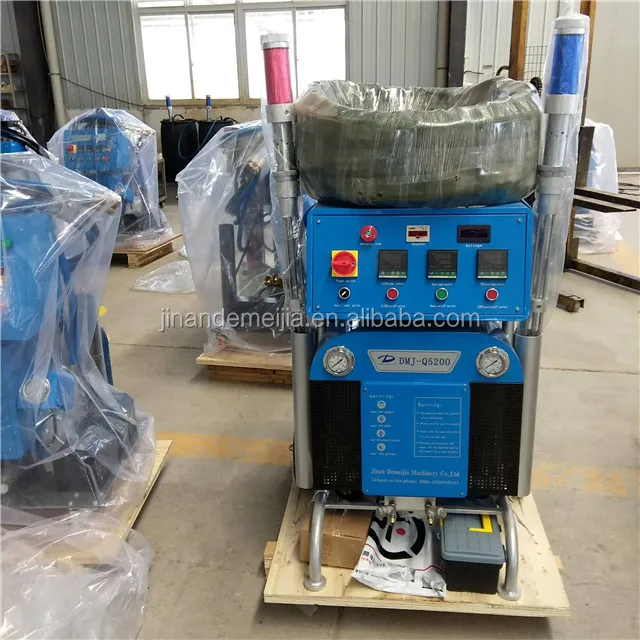

Wholesale price expanded pu foam spraying reactor machine on sale
Application: Mainly used for polyurethane injecting and pu polyurea spraying work.

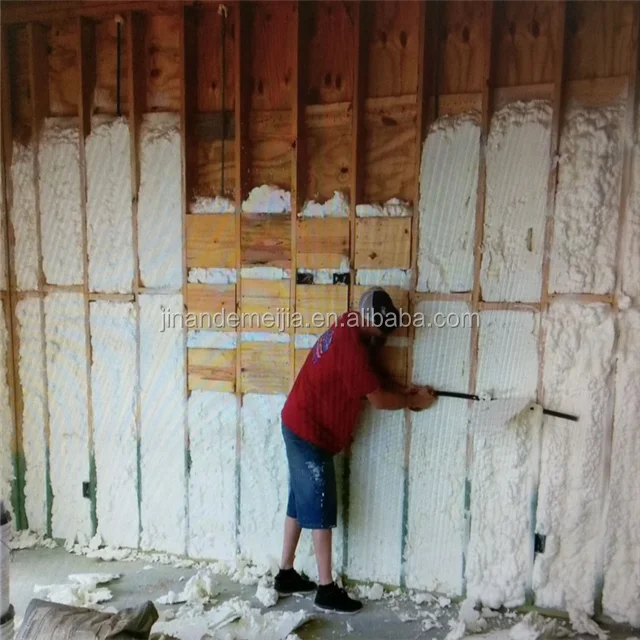

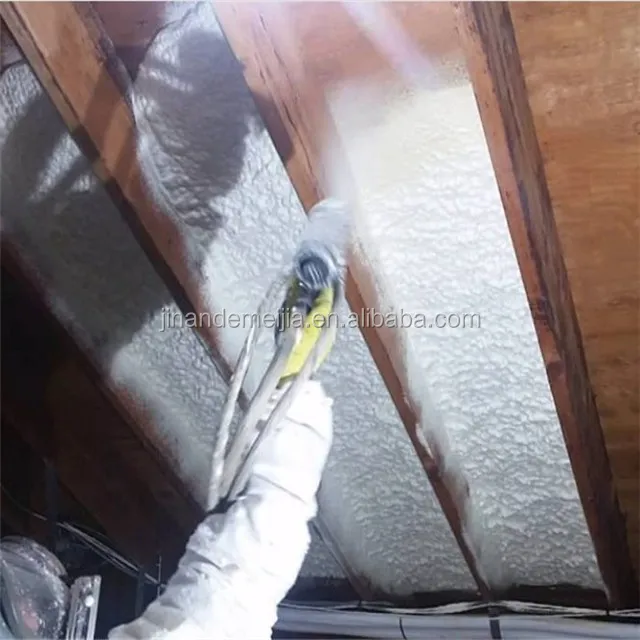

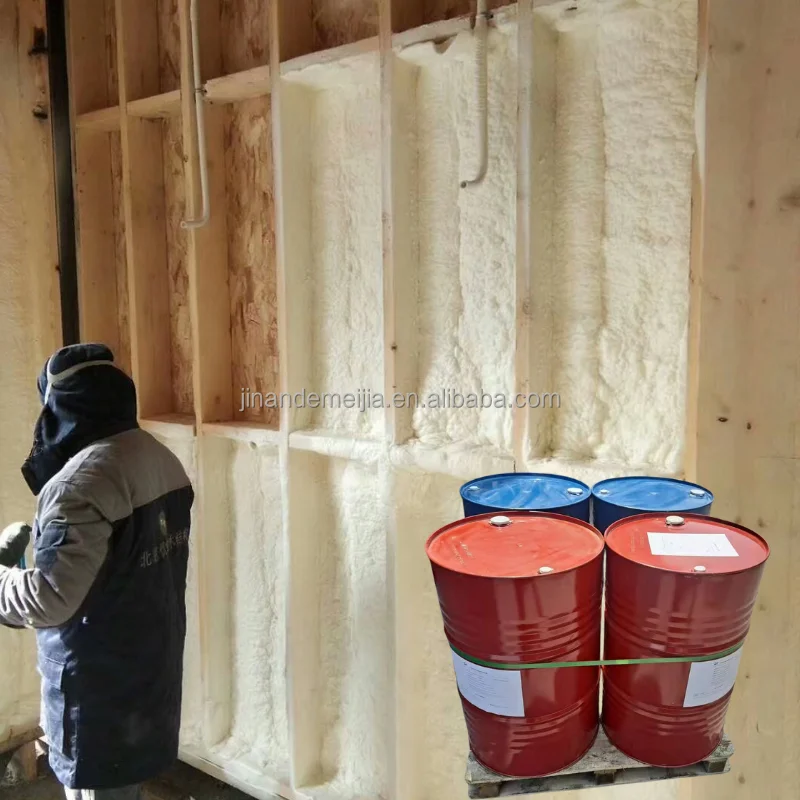

For spraying: Building exterior and interior wall spraying, cold storage spraying , cabinet insulation and noise proofing of car&bus, roof insulation and waterproof, refrigerated trucks and industrial anticorrosion spraying.

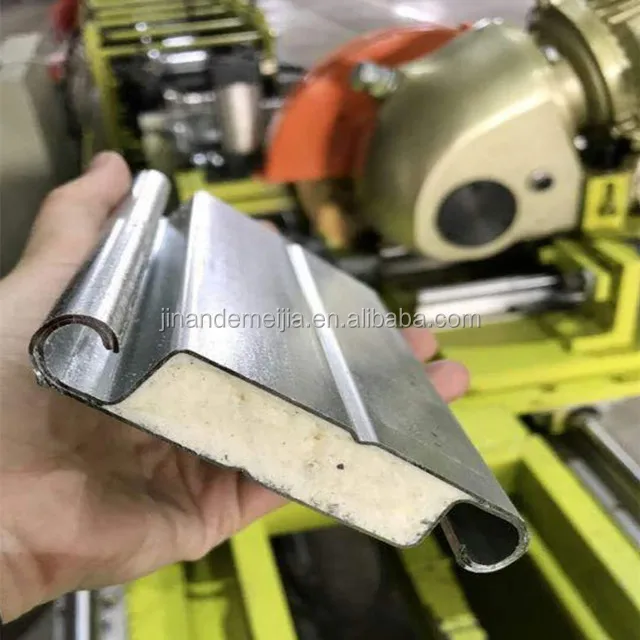

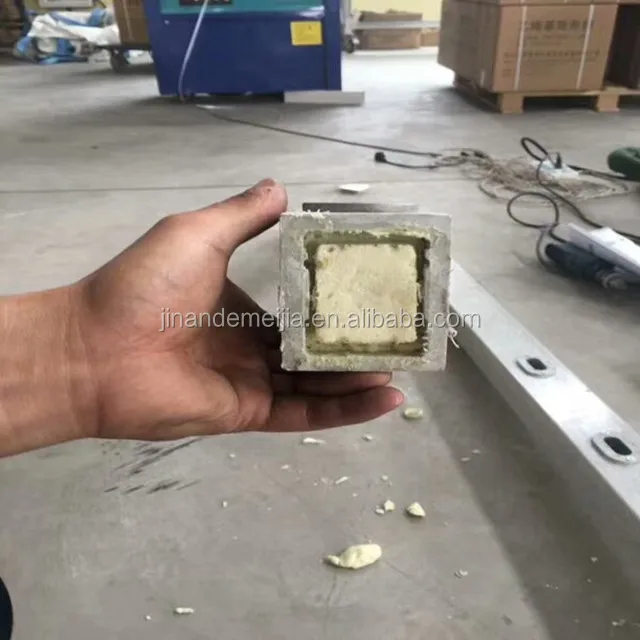

For injecting: Solar water heater, refrigerator, freezer, pipe joints, door-crack padding, products padding & packaging, roller shutter door, security door, road construction, wall noise proofing, landscape modeling etc.

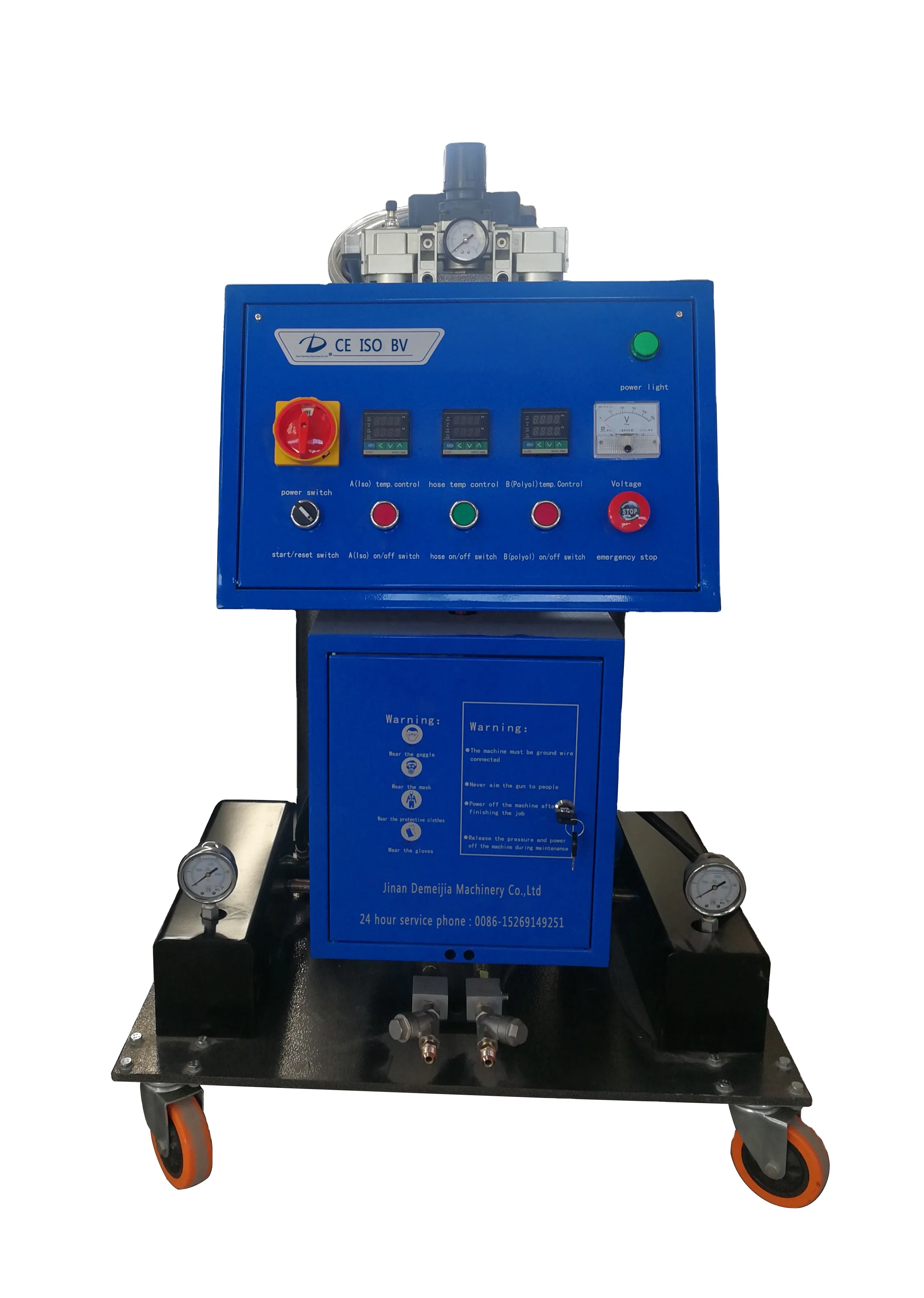

Model | DMJ-Q30 | DMJ-L100 |
Power source | 220V/380V/Other | 220V/Other |
Machine dimension | 80*90*150cm | 45*25*45cm |
Heating power | 15kw | 1.5kw |
Packing weight | 250kg | 40kg |
Raw output | 2-12kg/min | 2-12kg/min |
Miximum output pressure | 22Mpa | 6Mpa |
Heating hose | 15 meters | 7m(max 10m） |
Driven mode | pneumatic | pneumatic |
Air source | 0.5-0.8Mpa ≥1.0m³/min | 0.5-0.8Mpa ≥0.5m³/min (500L/min) |
AB material output ratio: | 1:1 | 1:1 |

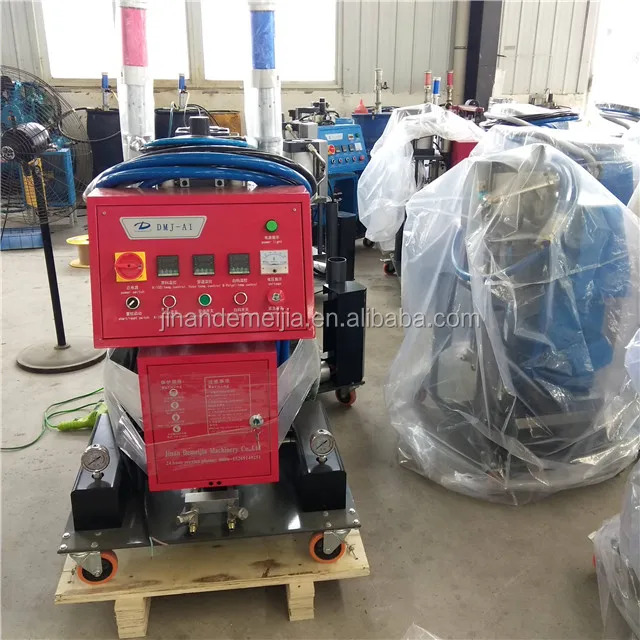

Model | DMJ-A1 | DMJ-L130 | |
Power source | 220V/380V/Other | ||
Machine dimension | 80*90*150cm | ||
Heating power | 11kw | ||
Packing weight | 200kg | ||
Raw output | 2-12kg/min | ||
Miximum output pressure | 15Mpa | ||
Heating hose | 15 meters（max 75m) | ||
Driven mode | pneumatic | ||
Air source | 0.5-0.8Mpa≥0.9m³/min | ||
AB material output ratio: | 1:1 | ||
Detailed Images
Wholesale price expanded pu foam spraying reactor machine on sale
Brand: DMJ
Original: Jinan, China.
1.Domestic biggest pu spray machine and Polyurea spray machine manufacturer.
2.In USA,CANADA,MEXICO,RUSSIA,SPAIN,Slovakia,have agent and distributor.
3.Factory have CE, ISO, BV.
Original: Jinan, China.
1.Domestic biggest pu spray machine and Polyurea spray machine manufacturer.
2.In USA,CANADA,MEXICO,RUSSIA,SPAIN,Slovakia,have agent and distributor.
3.Factory have CE, ISO, BV.

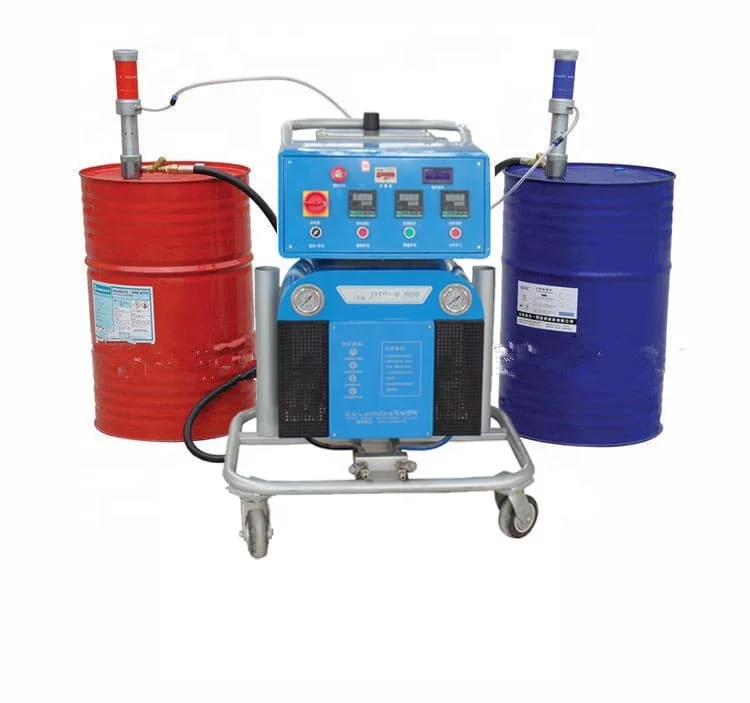

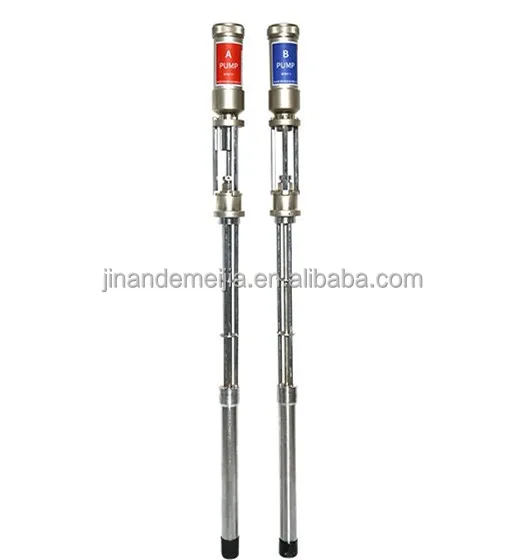

Machine Pump
Brand: DMJ
Original: Jinan, China.
1. Pressure ratio: 3:1
2. Material flow: 0-18L/ min
3. Working Pressure: 0.1-1.0 Mpa
4. Inter Pressure: 0.3-0.8 Mpa
5. Length: 1280mm ,Diameter: 32mm
Original: Jinan, China.
1. Pressure ratio: 3:1
2. Material flow: 0-18L/ min
3. Working Pressure: 0.1-1.0 Mpa
4. Inter Pressure: 0.3-0.8 Mpa
5. Length: 1280mm ,Diameter: 32mm
Machine Gun
Original: China Jinan City
1. Clean: self clean
2. Output flow: 1-12 kg/min
3. Working pressure: 35 Mpa
4. Working air pressure: 0.2-1.2 Mpa
5. Gun: spray and inject nuzzle
Machine Hose
Original: Jinan, Cnina.
The heating hose is used to heat the raw material during hose flowing before spraying, which can keep the right temperature to get
good foaming result.
Wholesale price expanded pu foam spraying reactor machine on sale
Brief introduction:
Pu foam material has many advantages such as insulation, heat proofing, noise proofing and anticorrosion etc. Widely used in many areas. Environmental friendly and energy saving. The insulation and heat proofing function are better than any other materials.
Working principle:
The function of this pu spray foam machine is to extract black and white material. Make them pressurized. So both materials combined by high pressure in the gun head and then spray out spray foam soon.
Factory Direct! Low price! High quality!
PU polyurea spray machine & PU inject equipment
Spare Part & Drawing
Spare Parts | ||
No. | one set for gun,machine,hose and pump | |
Guarantee | ||
TNT / EMS DHL | During warantee time any parts if broken we will send spare parts to client winth 12month | |
Machine working drawing | ||
Including | polyurea pu spray machine 1.Machine: 1 set 2.Spray gun: 1 set 3.Heating pipe: 15m 4.Connecting pipe for spray gun: 1.5m 5.Transfer pump: 2 sets 6.Spare parts and use operation | |
Spray and inject working
Company and Package
Professional 20 years for pu and polyurea machine
factory is in North of China,Jian City
Package
* Length width height: 1000*1000*1500 mm
* Weight 230kg
