MANUFACTURER SUPPLY TYSTVideo 8 Way Wireless Full Duplex Communication Same Time wireless call system
- Category: >>>
- Supplier: Beijing Tianying Vision Technology Co. Ltd.
Share on (1600964336940):
Product Overview
Description
Product Description

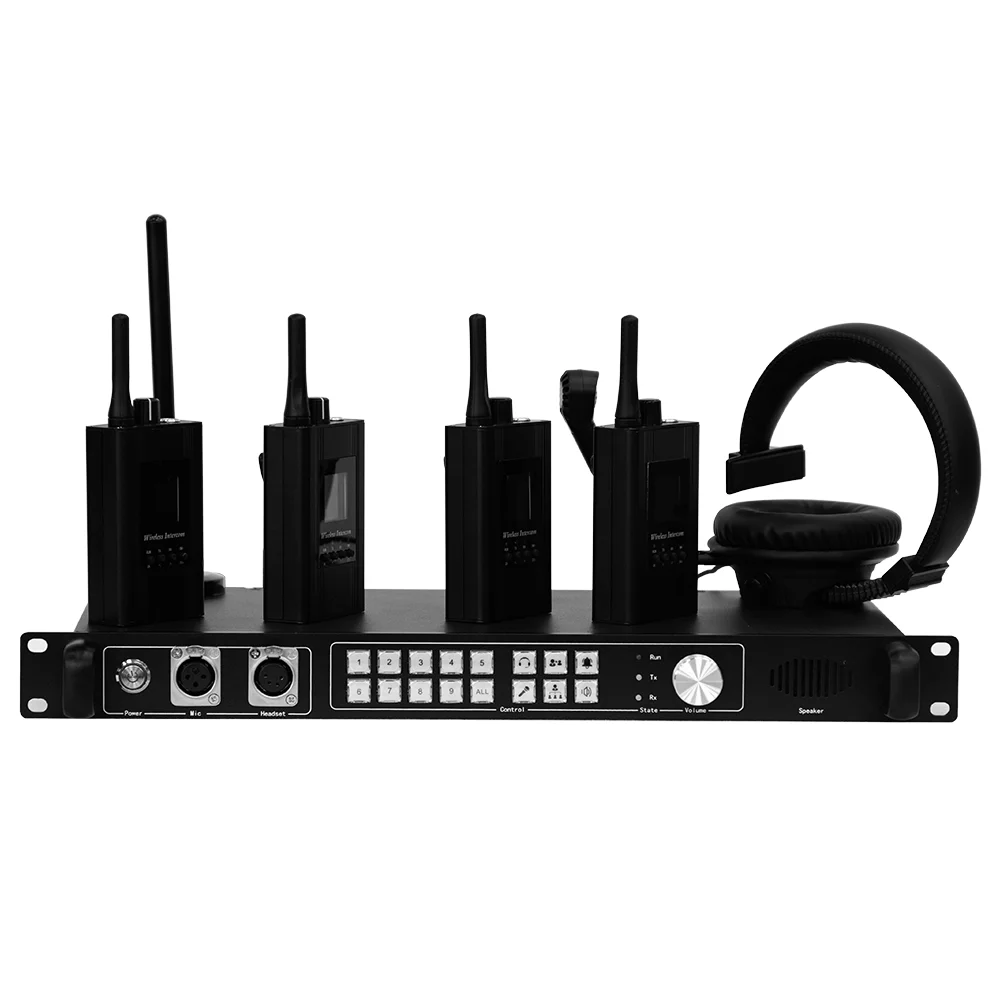

Full duplex wireless communication system
The TY-910ST broadcast-level wireless directing call system of Tiantai Television Communication adopts low power consumption and low radiation GFSK mode in the 433MHZ～440MHZ frequency band. The call master and sub-machines are based on fixed-frequency encryption processing technology, which can meet the simultaneous use of multiple sets of calls at the same event site. String frequency. The host of the call system adopts a design of 1 to 8 and 1 to 4 as standard. Users can choose one-to-one, one-to-many or many-to-many communication methods according to their needs. Director activities. TY-910ST adopts high-quality and low-noise IC design specifications, built-in speaker, LED reset crystal button, self-locking button, group control button, monitor button, microphone button, extension prompt button, headphone interface, microphone interface and tally The transmission interface and the call system have clear sound quality, and can maintain a good low-noise connection (almost no noise) in a variety of environments.
The call system is equipped with 5 single-ear wired high-end soft PU leather headsets, equipped with a one-way microphone, clear call quality, high sensitivity, clear and transparent headset sound quality, and can also be equipped with binaural headsets and optional hidden vacuum headsets according to user needs .
Host | Extension | ||
Button interface | switch 14 crystal control keys Volume knob Status Indicator 3-pin XLR female gooseneck microphone input 4-pin XLR female headphone output speaker Antenna interface (ANT female seat) DB25 female Tally interface 3-pin AUX IN audio input 3-pin AUX OUT audio output AC power socket AC input | Antenna interface SMA-K female Switch and volume knob 6-pin mini XLR headphone jack 3.5 inch LED display Status Indicator Extension Setting Button mini usb charging port 3.5 Tally output port Back clip | |
Supply voltage | 100-240V AC input 50/60Hz | 4000mah, polymer lithium battery | |
Receiving sensitivity | ≤-93dBm | ≤-93dBm | |
Power consumption | ＜1W | ＜1W | |
Size | 482 x 45 x 215mm (including antenna interface) | 65 x 27 x 163mm (including antenna height) | |
Working frequency | 428-439MHz digital frequency; | ||
Frequency response | 550~3.6KHz，＜+/-3dB | ||
Signal to noise ratio | >50dB | ||
Temperature range | -20～60℃ | ||
Total harmonic distortion (THD) | ＜3% | ||
Call distance | The maximum distance between host and slave is 1500 meters (visual distance) | ||
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
Exhibition Glimpse
Company Introduction
Packing&Shipping
We have a factory specializing in the production of flght boxes, all the products can provide the corresponding flight boxes,so as to be carried at ordinary times.
If you have video and audio equipment or other sophisticated equipment need to customize the flight case, we are the right choise !!!
