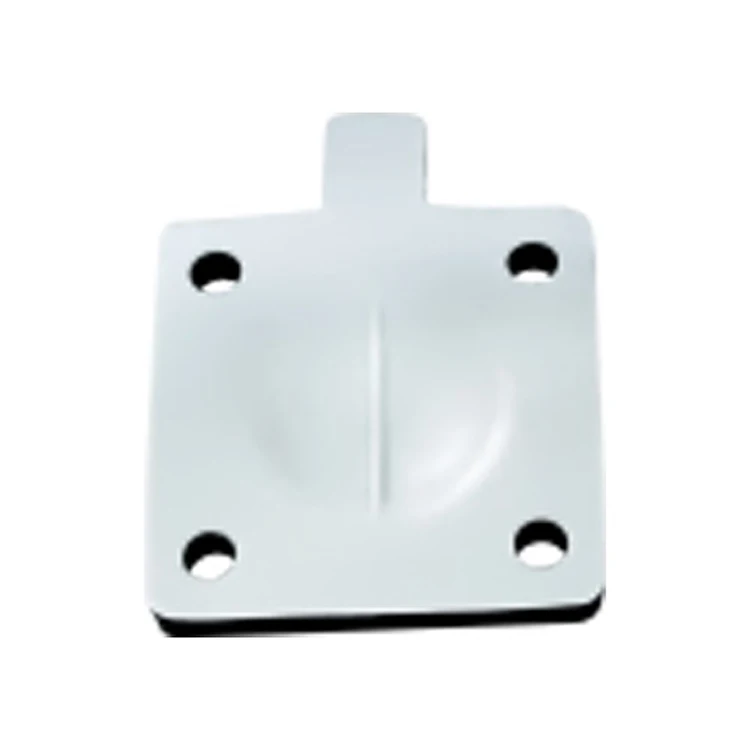

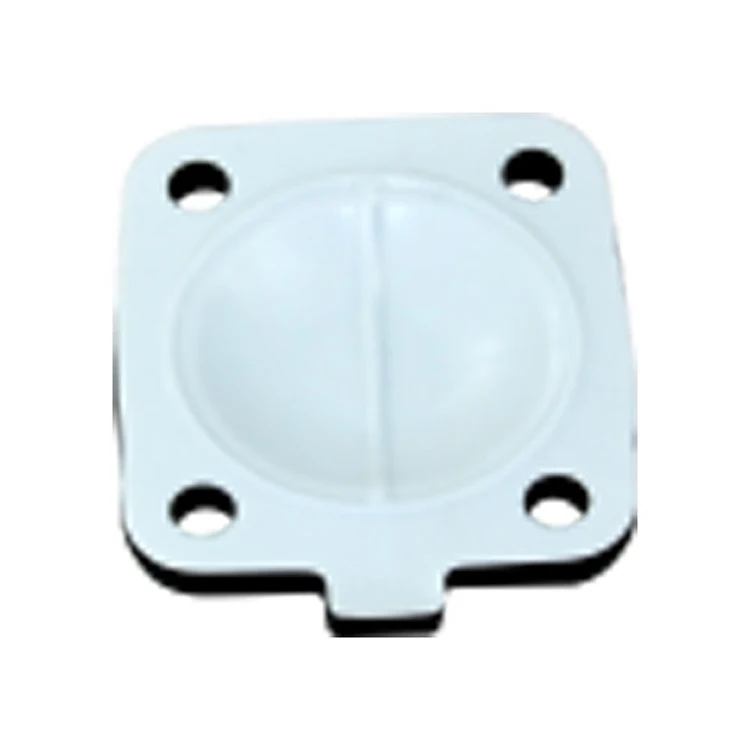

Rubber Silicon EPDM/PTFE gasket seal for diaphragm valve

Product Overview

Description

Rubber Silicon EPDM/PTFE gasket seal for diaphragm valve

Diaphragm/ Gasket

In addition to outside the valve body.the gasket is the only direct contact with the media parts,diaphragm valve is rely on diaphragm  to medium and executive structive and external air apart.Gasket is also moving parts,diaphragm  on the diaphragm valve move to realize medium flow control and cut off.

DONJOY diaphragm valve gaskets according to their testing methods and strandards and third party under strict test specification after many years of research and test,these tests are simulated field real condition.For example,in the automation saturated steam closed loop system testing gasket,the gasket shape,material composition,body design,actuators and the influence of valve assembly etc.

All the different materials of the gaskets may be assembled to the valve of the same specificaitons.No need replacement gasket even changing actuator.



Material optional:

• Adhensive EPDM+PTFE:PTFE diaphragm tablet has high chemical resistance,high stability,good flexibility,long life,high sealing,no cold degeneration,and not affected by temperature fluctuations excellent performance,whether it is thermal cycle,cold cycle or steam disinfection system.  Size:1"- 3" ,DN20-DN80; Temperature:-20℃ to 120℃

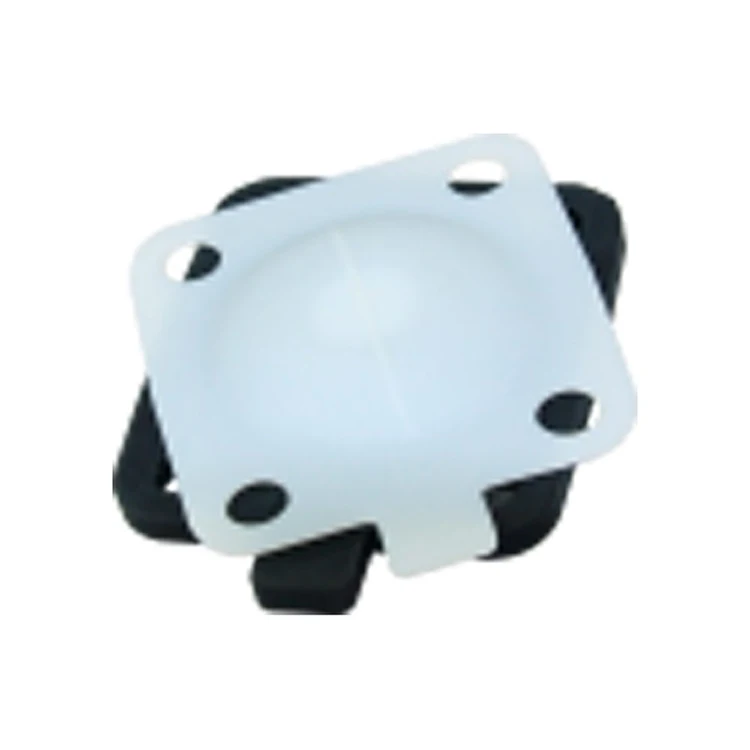

• Double diaphragm EPDM+PTFE:By EPDM and PTFE composed of diaphragm,the characteristics of the diaphragm is the valve is in the closed position,diaphrgam itself shape can and body sealing,which reduces the diaphragm tolerance and prolong the service life of the diaphragm.Size:1/2"- 4" ,DN10-DN100; Temperature:-20℃ to 150℃

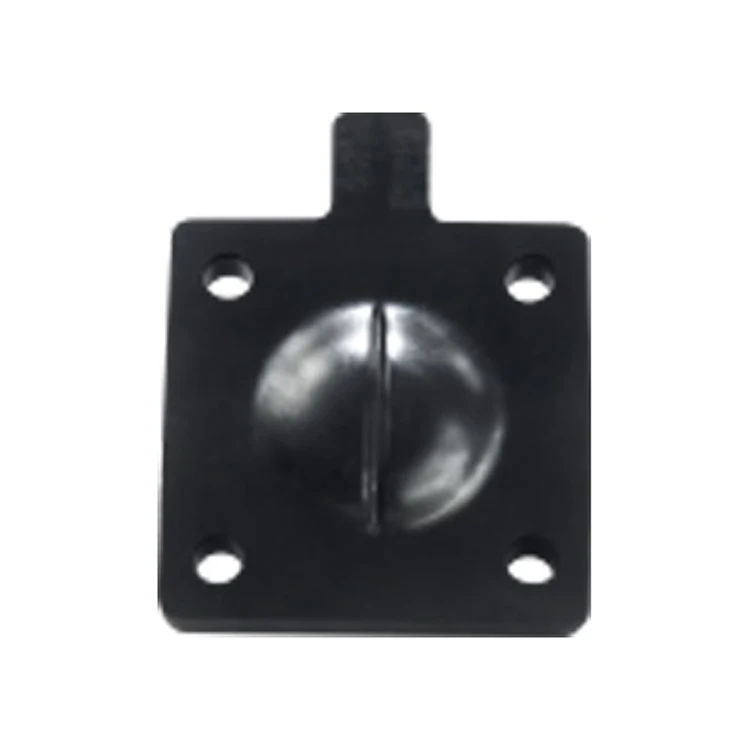

• Single diaphgram EPDM/Siliconm/FPM:Rubber diaphragm embedded a layer of vulcanized fiber layer enhance its mechanical properies,the diaphragm in pressure and temperature has high seal stability,reinforcing fiber hardening in stanless steel bolt,so as to ensure better rubber and metal bond together,Therefore rubber diaphragm more suitable for use in vacuum environment.Size:1"- 3" ,DN20-DN80; Temperature:-20℃ to 120℃


• Mini type diaphgram gasket:Size 1/4"-3/4" DN6-DN15; single diaphragm EPDM Silicon FPM,adhensive diaphragm EPDM+PTFE; Temperature:-20℃ to 120℃ for single diaphragm;-20℃ to 120℃ for adhensive diaphragm







ITEM:	diaphragm valve gasket
Material	EPDM,SILICON,FPM,EPDM+PTFE
Size:	1/4 INCH ~ 4 INCH
Max. temperature:	-20~150 degree centigrade (up to diaphragm gasket)
Max. pressure:	Standrad→ NC: EPDM (6BAR), PTFE (4.5BAR)  Optional→ NC: EPDM (8BAR), PTFE (6BAR) Optional→ NO/AA: EPDM (8BAR), PTFE (6BAR)
Application:	Dairy, food, beverage, pharmacy, cosmetic etc
