Best Seller Portable NEJE 3Max V2 E40 DIODE Portable Wood Routers Laser Carving Cutting Machine OEM factory
- Category: >>>
- Supplier: Shenzhen Xinghuan Trade Co. Ltd.Shenzhen Ltd.
Share on (1600964379197):
Product Overview
Description
Products Description
NEJE 3 MAX V2 E40 Laser Engraver & Cutter Fetures: | ||||||||
◆ At the same time, it supports NEJE software, NEJE APP, LaserGRBL, Lightburn; BLE-based wireless control, supports NEJE APP wireless control. | ||||||||
◆ NEJE optimizes the low-light experience in GRBL mode for diode lasers, and the low-light settings can be adjusted through the laserGRBL software. | ||||||||
◆ NEJE is compatible with M8, M7, Door functions, and automatically adapts to lightburn, laserGRBL and NEJE software for better automation of processes. | ||||||||
◆ NEJE 3 adopts all-metal frame + PC CNC structural parts, which improves the stability of the structure and enhances the smoothness of movement. It also adopts easy maintenance driving structure. | ||||||||
◆ The top 32-bit processor has replaced the previous two The chip processing solution is more reliable, support OTA upgrade in NEJE mode, NEJE continuously upgrades software and firmware Provide more surprising and useful interesting features. | ||||||||
Why Choose Us
RECOMMENDED REASON
NEJE 3 MAX V2 is Portable Higher Accuracy DIY Desktop Laser Engraver & Cutter engraving cutting machine.
NEJE E40（10000W/mm²）(High Precision multi-function module) is a high-power dual beam fixed focus high-precision module. E40 module has extremely small incisions when cutting MDF boards, leather, acrylic, fabric, cardboard and other high-density materials less than 4mm, and the minimum gap between incisions is less than 0.06mm, At the same time, it can carve stainless steel, stone, glass,ceramics and other high-resolution materials with high-precision rendering capability, and the imaging effect is meticulous andaccurate. It is a perfect high-power image rendering module.
Product Paramenters
3 Max Machine | ||
Frame Size (LxWxH) | 590 x 980 x 160 mm | |
Engraving Area (XxY) | 470 x 790 mm, support extension to 1030*790mm | |
Material | Aluminum alloy + PC | |
Dot Pitch | 0.075mm | |
Pixel | 6133 x 10800 px | |
Motor Size | 42 x 42 x 40 mm | |
Motor Drive Current | 0.9A | |
Drive Design | Built-in | |
Home | Rear Left | |
Origin | Front Left | |
Max Move Speed | X:1000mm/s, Y:750mm/s | |
MCU | 32-bit MCU | |
Input | 12V 5A | |
Off-Line Working | Supported | |
Vertical Carving | YES | |

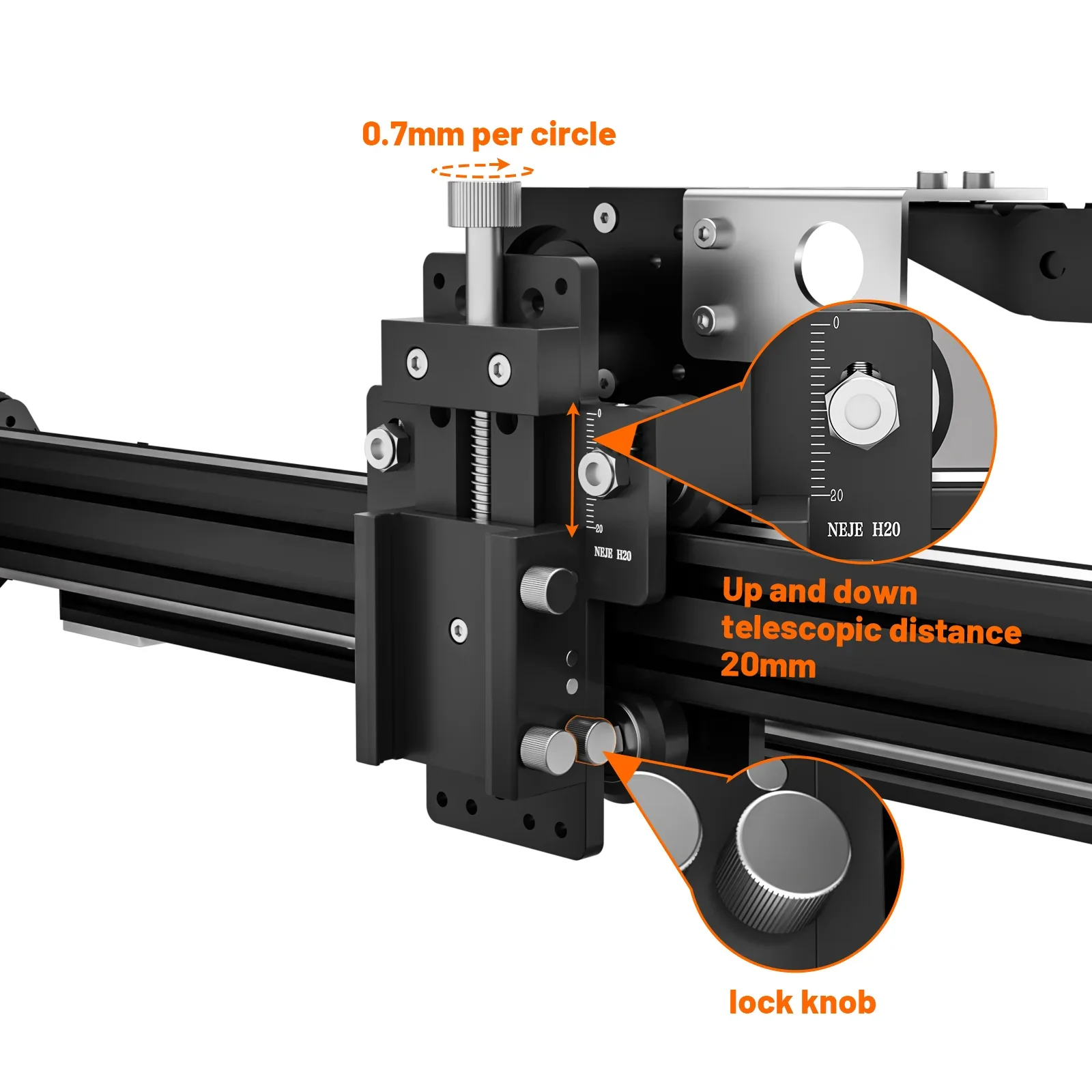

Module Height Adjuster | YES | |
Limit Switch | YES | |
Technology | Y-axis fit adjustable design, X-axis stress fit assembly | |
Feature | Fit, high precision, stablize, smooth, no oil, easy maintenance, long life | |
NEJE E40 Laser Module | ||
Module Size | 40x48x130 mm | |
Input | DC 12V 4A | |
Optical Power | Pulse 12W+, CW 11W | |
Wavelength | 450nm | |
Warranty | 2 years | |
Light Source | Original diode X2 | |
Software | ||
Mobile Phone & Pad | NEJE Android APP NEJE iPhone & iPad APP | |
PC | NEJE macOS software NEJE Wins software LaserGRBL with firmware GRBL1.1f. LightBurn Software with firmware GRBL1.1f. LightBurn ( paid software from the official website of Lightburn.) | |
Product packaging

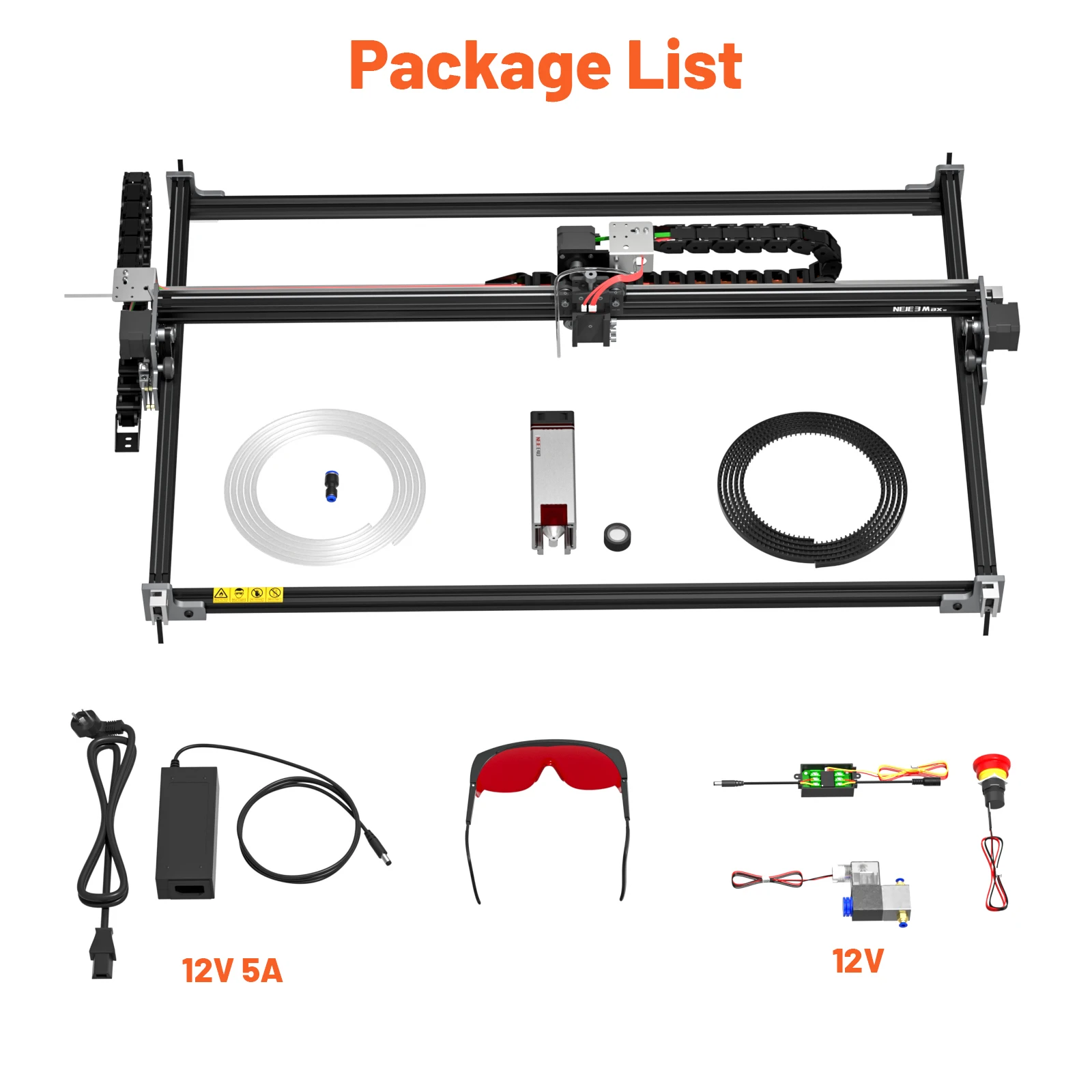

PACKING LIST:
◆NEJE 3 Max Machine(All functions of the whole machine are tested, and only 6 screws are needed to complete the assembly) x 1◆E40 Laser Module with air Assist Kits x 1
◆12V 4A standard certified power adapter x 1
◆USB Cable + Manual + Quality Card x 1
◆Goggles x 1
◆L-shaped Crawler Aluminum Profile x 1
◆Crawler x 2
◆12V Valve Control Kit (less than 1.5mpa) x 1
◆12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W) x 1
◆Door Control Kit x 1
◆(The length of the control line is 1 meter.)
◆Screw Nut Wrench Screwdriver Belt Installation Package x 1
◆Test Material Package x 1
Certifications
◆ Our factory is certified by ISO9001 quality system and ISO140001 environmental management system. All products have passed CE, ROHS, FCC, SDS certificates and so on.
◆ NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.
◆ NEJE has greatly enhanced the anti-static and surge design under the new control system. NEJE has passed the very severe test in the experiment, which has greatly improved the reliability of the NEJE control system. The new system does not require additional grounding to protect equipment.
FAQ
Are you a factory.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.
Do you have warehouse overseas.
We have warehouse in Netherlands, UK, Germany, Spain, USA, Russia, which can speed up the service all over the world.
Delivery in 2-3 working days, arriving in 7 days.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
What are my payment options?
We accept payment by L/C, T/T, Western Union, Paypal, Credit Card and Cash.
Yes, we are professional manufacturer that is concerned with the design, development and production of NEJE DIY USB Laser Engraver Printer
since 2013.
Do you have warehouse overseas.
We have warehouse in Netherlands, UK, Germany, Spain, USA, Russia, which can speed up the service all over the world.
Delivery in 2-3 working days, arriving in 7 days.
What is the quality assurance policy.
1-2 year warranty according to different product series. please contact for more details
Can you customize the product for me.
Yes, we can provide customize service such as logo printing, packing design...
Can you customize the product for me.
Yes, we can provide customize service such as logo printing, packing design...
We welcome OEM or ODM orders. Let's have win-win cooperation together.
How long does it take for my order to ship?
Ex-stock product: around 3 working days after payment receipt
Customize product: around 7 working days after payment receipt
Specific delivery date: pls contact our sales team for double confirmation
What are my payment options?
We accept payment by L/C, T/T, Western Union, Paypal, Credit Card and Cash.
