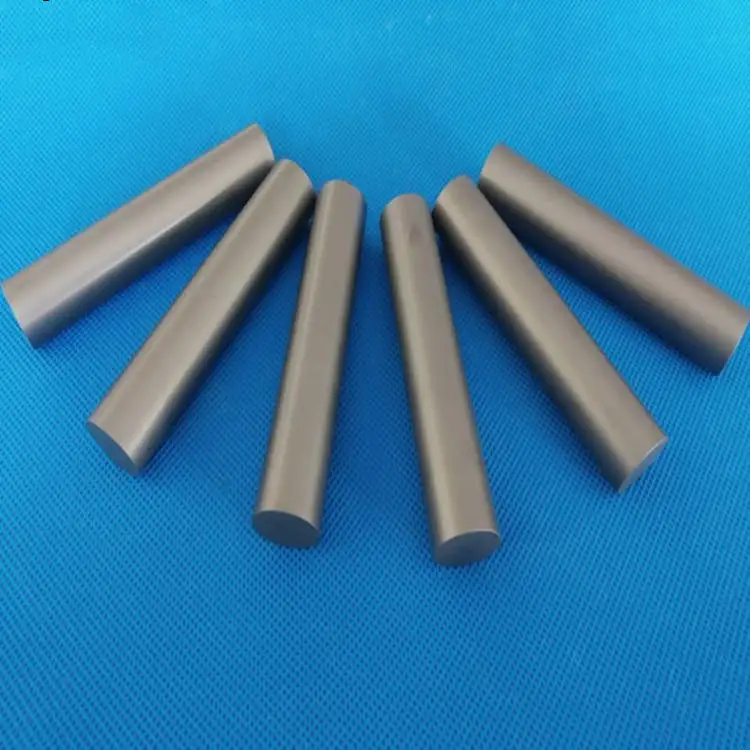

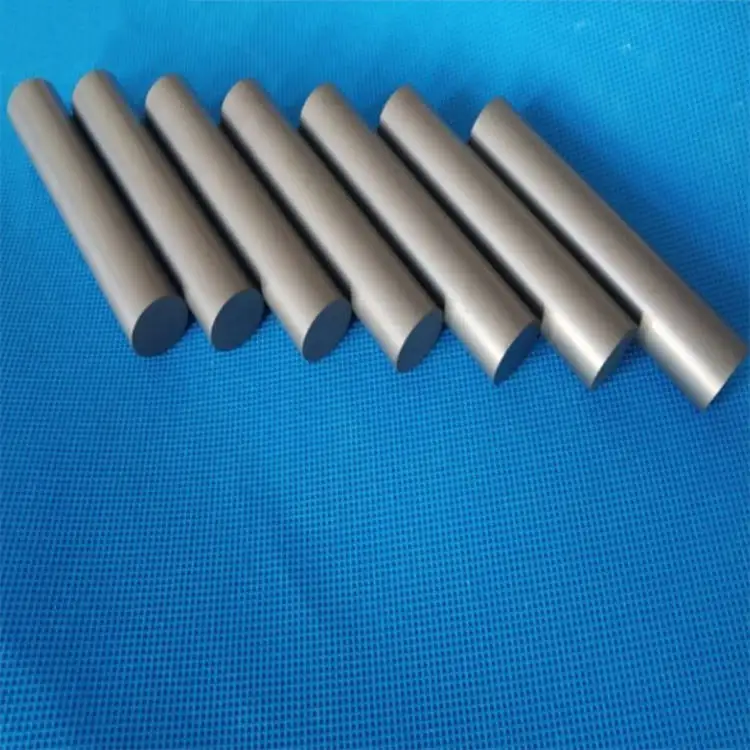

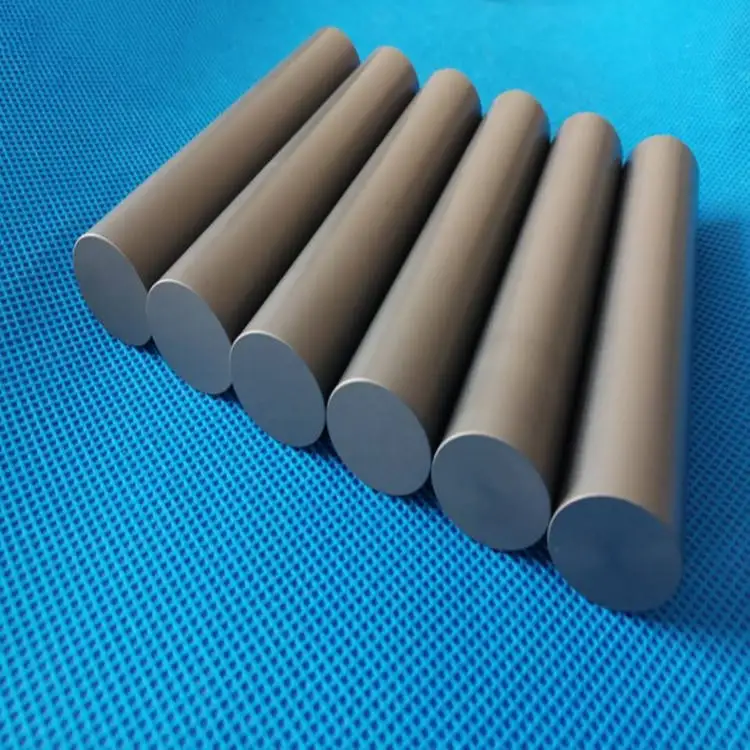

Polished Wear resistant Silicon carbide ceramic rod shaft/bar
- Category: >>>
- Supplier: Hoyue Technology (lianyungang) Co. Ltd.
Share on (1600964396288):
Product Overview
Description
Product Description
(1) Extreme hardness and wear resistance
(2) Exceptional corrosion reistance
(3) Good mechanical strength
(4) Superior anti-oxidation
(5) Outstanding thermal shock resistance
(6) Low thermal expansion coefficient
(7) High thermal conductivity
Property
Superior high temperature resistance,wear resistance and oxidation resistance.
Excellent straightness,less than 1‰.
High uniformly distributed loading capacity,more than 4997 kg.m/L.
OEM accepted.
Easy to install.
Various shape accepted,Germany imported technology and materials.
Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Superior high temperature resistance,wear resistance and oxidation resistance.
Excellent straightness,less than 1‰.
High uniformly distributed loading capacity,more than 4997 kg.m/L.
OEM accepted.
Easy to install.
Various shape accepted,Germany imported technology and materials.
Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Specification
Parameter | SSiC | SISIC |
Purity( % ) | >98 | >90 |
Hardness( HRA ) | ≥92 | ≥90 |
Grain Size( um ) | 0.5~0.7 | 8~20 |
Density( g/cm3 ) | 3.10~3.15 | 3.03~3.08 |
Bend Strength( MPa ) | 400-580 | 350-450 |
Compressive Strength(MPa) | >2200 | >2000 |
Fracture Toughness( MPA ) | 3.05-4.6 | 4.3 |
Elastic Modulus( GPa ) | >400 | >360 |
Thermal Conductivity(W/M.K) | 100~120 | 50~100 |
Coefficient of heat Expansion( L/°C ) | 4.02x10-6 | 4.3x10-6 |
Poisson Ratio | 0.14 | 0.15 |
You May Like
Packing & Delivery
Our Service
Company Profile
Hoyue technology is one of the manufacturers and suppliers of high-quality quartz glass and precision ceramics in China.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,ceramic washers,ceramic pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
Our products include ceramic rods, ceramic tubes, ceramic plates, ceramic sheets, ceramic blocks, ceramic nozzles, ceramic plungers,ceramic washers,ceramic pacers, ceramic substrates and precision parts for industrial, quartz tube, quartz plate,cuvette, silicon wafer. We have all-line high precision equipment from ceramic forming, sintering to precision machining. Hope fora wide range of sincere cooperation with customers at domestic and abroad.
FAQ
Q: What's your samples policy?
We can provide some free samples if we have the similar products in stock, but customer needs to pay the freight cost.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirment or samples to us for quotation, we will send price to you once received your drawings or samples within 24 hours.
Q: Do you accept customized dimension?
Yes, we can produce ceramic parts per customer's request.
Q:How to get the price?
You can provide drawings with performance requirment or samples to us for quotation, we will send price to you once received your drawings or samples within 24 hours.
Q: How to deal with the faulty?
Our products are produced in strict quality control system and the defective rate will be less than 0.2%.If the products you received is not the same as drawings, we will arrange re-production.
If you only have samples, you can also send us.
If you only have samples, you can also send us.
