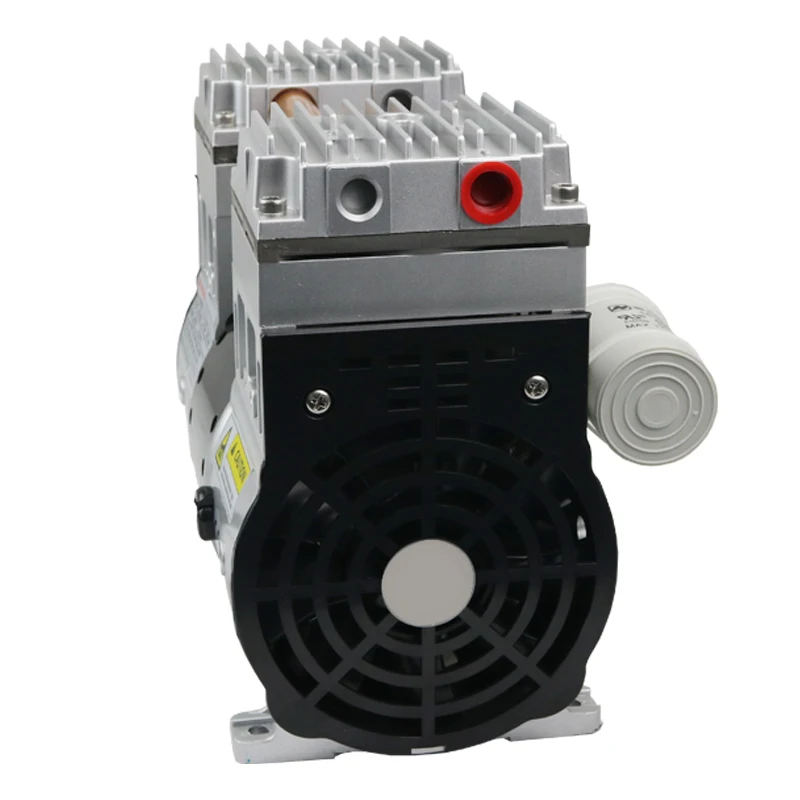

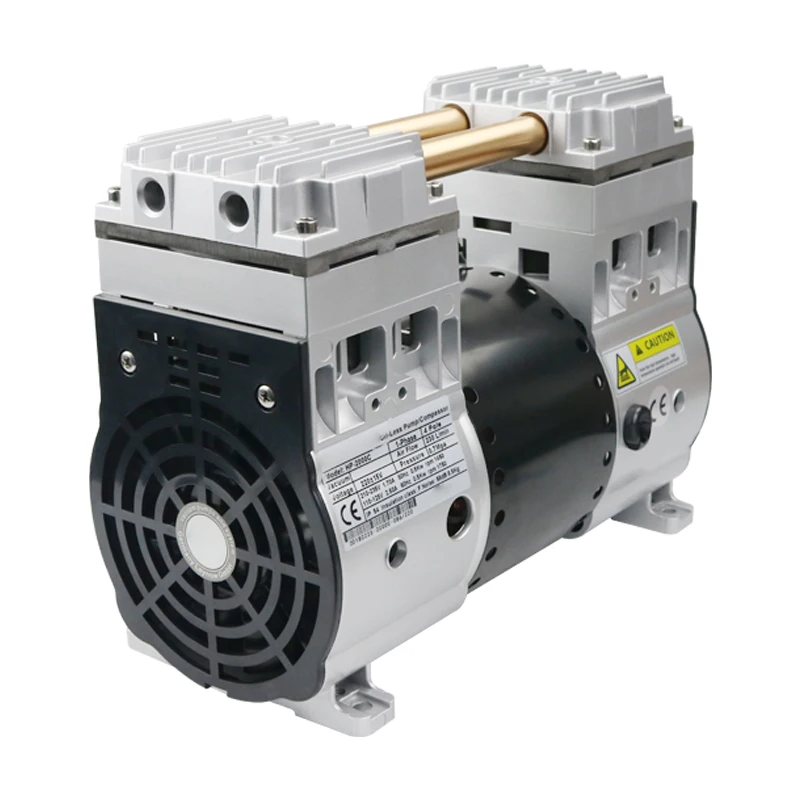

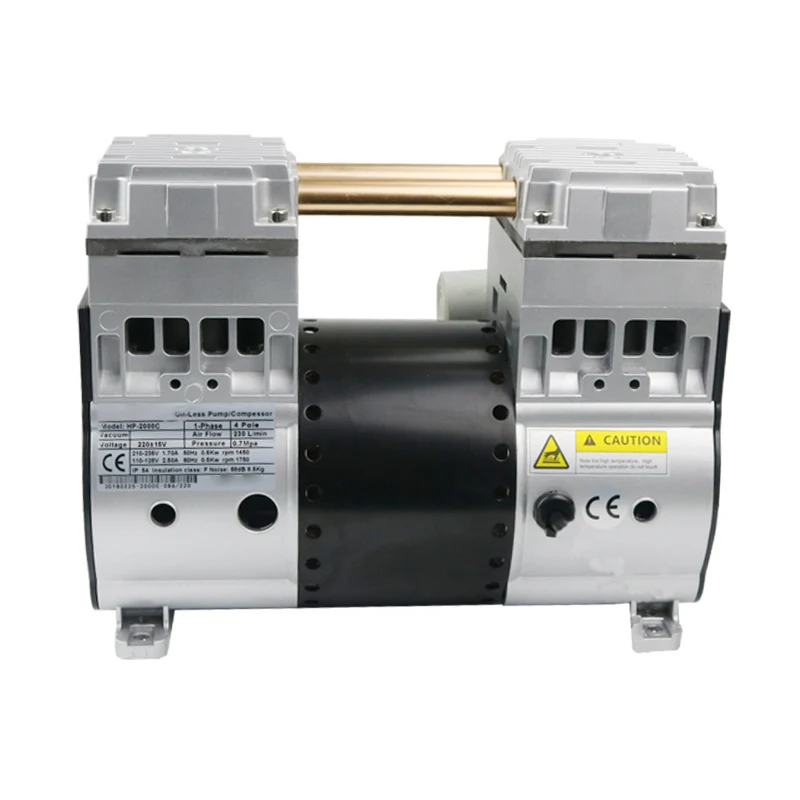

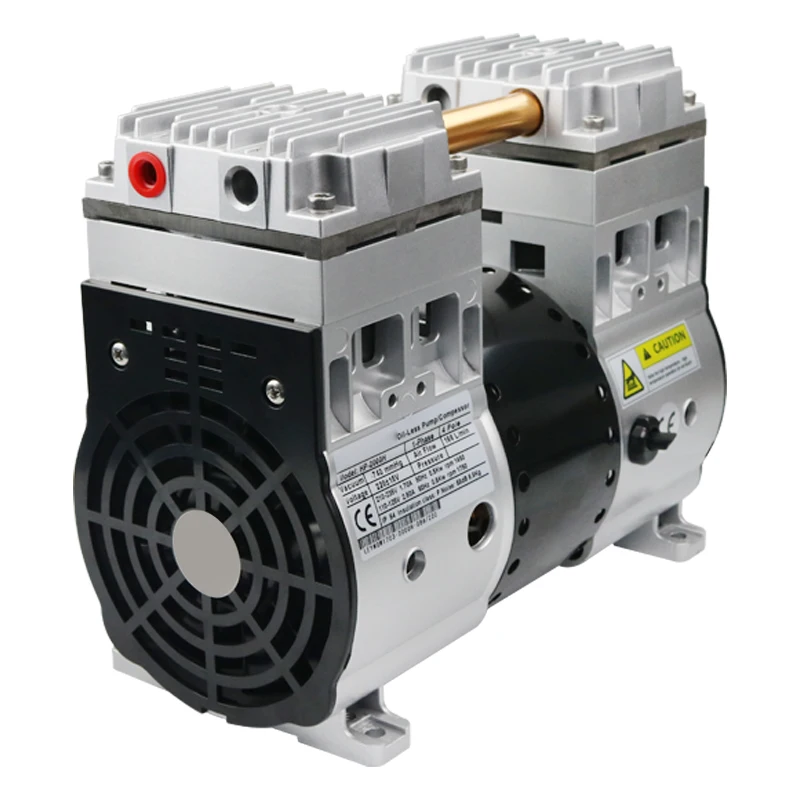

Factory brushless high precision low noise AC 1.1kW 220L/min oil free mini small piston air compressor for dental use
- Category: >>>
- Supplier: Beijing Super Q Technology Co. Ltd.
Share on (1600964420327):
Product Overview
Description
Product Description
item | Oil-free piston vacuum pump |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | Super Q |
Model Number | 2400C |
Place of Origin | China |
Beijing | |
Application | Household inflation, Automotive maintenance, Construction and renovation, Medical equipment, Laboratory use, Food processing |
Power Source | Electric |
Pressure | High Pressure Air |
Structure | PISTON PUMP |
Voltage | AC110/220~240 |
Power | 1.1kW |
motor | with |
Product name | Silent small piston air compressor |
Usage | Provide high-pressure air |
Voltage | AC110/220~240 |
Theory | Reciprocating Pump |
Motor | 100% Copper Wire |
Use | Oil free high-pressure clean air |
RPM | 1450/1740 |
Max Flow | 220L/min |
Max pressure | 800kPa |
Oil free small silent piston air compressor
Oil free mini silent piston air compressor
Silent small oil-free piston air compressors are a common type of air compressors that generate compressed air through the reciprocating motion of the piston. When the piston moves downward, the air is compressed and forced to enter the compression chamber through the intake valve. When the piston moves upward, the intake valve closes and the exhaust valve opens simultaneously. As a result, the compressed air inside the compression chamber is expelled into the external environment. The reciprocating motion of the piston continues repeatedly, gradually compressing and expelling the air inside the compression chamber, thus forming compressed air.

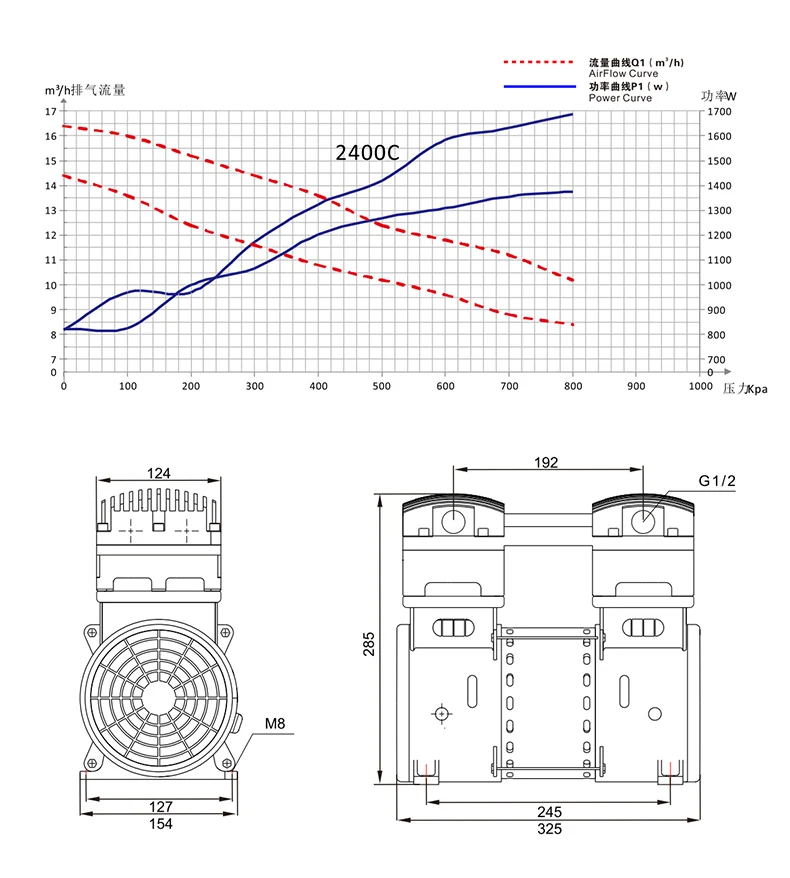

Product Paramenters
2400C | Unit | 50Hz | 60Hz | |
Flow | L/min | 220 | 220 | |
Pressure | kPa | 800 | 800 | |
Power | kW | 1.10 | 1.70 | |
Speed | rpm | 1450 | 1740 | |
Current | A | 6.50 | 6.50 | |
Voltage | V | 220/380 | 220/380 | |
Hole | mm | 8 | 8 | |
Heat | ℃ | 5-40 | 5-40 | |
Sound | dB(A) | 72 | 72 | |
Weight | kg | 18 | 18 | |
Installation dimensions | mm | L245*W127 | ||
Dimensions | mm | L325*W153*H280 | ||
Restart pressure | kPa | 0 | ||
Product Features
No need for lubricating oil: Oil-free piston air compressors are designed to operate without the need for adding or replacing lubricating oil. This not only simplifies the operating process but also avoids the pollution issues of lubricating oil to the environment and the compressed air.
Silent operation: This type of air compressors typically adopts noise reduction design, which greatly reduces the noise level during operation by minimizing mechanical vibrations and airflow noise generated. This makes them suitable for use in noise-sensitive environments, providing a quieter working environment.
High compression ratio: Oil-free piston air compressors can provide a relatively high compression ratio, making them suitable for many applications that require higher pressures.
Simple and reliable structure: This type of air compressors has a relatively simple structure, consisting of a small number of pistons, valves, and sealing rings, reducing the risks of malfunctions and maintenance. Additionally, they are often made with high-quality materials and precise manufacturing processes, ensuring durability and reliability.
Wide range of applications: Oil-free piston air compressors are widely used in various fields, including medical equipment, automotive manufacturing, food processing, printing, and textile industries, among others. They can provide stable and reliable compressed air to meet the demands of different industries.
Silent operation: This type of air compressors typically adopts noise reduction design, which greatly reduces the noise level during operation by minimizing mechanical vibrations and airflow noise generated. This makes them suitable for use in noise-sensitive environments, providing a quieter working environment.
High compression ratio: Oil-free piston air compressors can provide a relatively high compression ratio, making them suitable for many applications that require higher pressures.
Simple and reliable structure: This type of air compressors has a relatively simple structure, consisting of a small number of pistons, valves, and sealing rings, reducing the risks of malfunctions and maintenance. Additionally, they are often made with high-quality materials and precise manufacturing processes, ensuring durability and reliability.
Wide range of applications: Oil-free piston air compressors are widely used in various fields, including medical equipment, automotive manufacturing, food processing, printing, and textile industries, among others. They can provide stable and reliable compressed air to meet the demands of different industries.
Application
1.With German production process
2.Components are derived from Germany import3.Ultra quiet,Light Volume
4.Strong steam drainage ability
5.Maintenance is easy
6.Continuous operation in the field of energy corresponding to the pressure
Household inflation: Mini air compressors are commonly used for inflating vehicle tires, bicycle tires, swimming rings, inflatable beds, etc.
Automotive maintenance: Mini air compressors can be used to provide pressure for automotive air conditioning or hydraulic components in the braking system. They can also be used for cleaning the interior of vehicles or sanding paint surfaces with dents.
Construction and renovation: Mini air compressors are used for motorized spraying, wall coating spraying, floor coating spraying, and other construction operations.
Medical equipment: Mini air compressors can provide compressed air as a power source for surgical drills, dental equipment, ventilators, and other medical devices.
Laboratory use: Mini air compressors are widely applied in laboratories to provide air sources for experimental instruments and transport samples to detectors, among other uses.
Food processing: Mini air compressors are used to supply air for bacteria filters, oxidation processors, and other equipment in food processing.
In conclusion, mini air compressors have applications in various fields, offering compressed air or energy sources for different facilities and machines.
Automotive maintenance: Mini air compressors can be used to provide pressure for automotive air conditioning or hydraulic components in the braking system. They can also be used for cleaning the interior of vehicles or sanding paint surfaces with dents.
Construction and renovation: Mini air compressors are used for motorized spraying, wall coating spraying, floor coating spraying, and other construction operations.
Medical equipment: Mini air compressors can provide compressed air as a power source for surgical drills, dental equipment, ventilators, and other medical devices.
Laboratory use: Mini air compressors are widely applied in laboratories to provide air sources for experimental instruments and transport samples to detectors, among other uses.
Food processing: Mini air compressors are used to supply air for bacteria filters, oxidation processors, and other equipment in food processing.
In conclusion, mini air compressors have applications in various fields, offering compressed air or energy sources for different facilities and machines.
Why Choose Us
Packing & Delivery
In wooden cases with soft inner.
Company Profile
Beijing Super Q Technology Co., Ltd. is a national high-tech enterprise and Zhongguancun high-tech enterprise. It has R&D department, manufacturing department and sales department. Since its establishment, the company has been continuously developing and innovating, from deeply rooted in the various institutes of the Chinese Academy of Sciences to serving companies in the industrial field.
Super Q Technology is committed to providing customers with a range of products from low vacuum to super high vacuum. We are not only a provider of vacuum products, but also specializes in solving problems related to vacuum product applications for customers.Mainly engaged in vacuum accessories, vacuum valves, vacuum pumps, vacuum measurement, vacuum auxiliary parts, vacuum technology application products, mass flow meter, non-standard customized products, etc., the products are exported to Asia, Europe, South America, North America, Oceania, Africa and other 132 countries.In 2020, the company focused on the application of vacuum technology, independently developed and produced a variety of advanced new vacuum technology materials, mainly including vacuum insulation board, vacuum insulation decorative integrated board, vacuum glass, vacuum energy-saving doors and windows and other products, and provided consulting, design, construction, operation and maintenance of healthy and energy-saving buildings.
Our company has a sound marketing management system and has many partners. In order to meet the global environmental and energy challenges, we have been committed to realizing a new energy-saving and low-carbon future through advanced vacuum technology, providing high-quality solutions, and going all out to promote the healthy and rapid development of energy-saving materials.The company always insists on continuously improving the quality and service of products, meeting the needs of various user partners, and seeking a win-win cooperation.
Super Q Technology is committed to providing customers with a range of products from low vacuum to super high vacuum. We are not only a provider of vacuum products, but also specializes in solving problems related to vacuum product applications for customers.Mainly engaged in vacuum accessories, vacuum valves, vacuum pumps, vacuum measurement, vacuum auxiliary parts, vacuum technology application products, mass flow meter, non-standard customized products, etc., the products are exported to Asia, Europe, South America, North America, Oceania, Africa and other 132 countries.In 2020, the company focused on the application of vacuum technology, independently developed and produced a variety of advanced new vacuum technology materials, mainly including vacuum insulation board, vacuum insulation decorative integrated board, vacuum glass, vacuum energy-saving doors and windows and other products, and provided consulting, design, construction, operation and maintenance of healthy and energy-saving buildings.
Our company has a sound marketing management system and has many partners. In order to meet the global environmental and energy challenges, we have been committed to realizing a new energy-saving and low-carbon future through advanced vacuum technology, providing high-quality solutions, and going all out to promote the healthy and rapid development of energy-saving materials.The company always insists on continuously improving the quality and service of products, meeting the needs of various user partners, and seeking a win-win cooperation.
FAQ
1. who are we?
We are based in Beijing, China, start from 2016,sell to Eastern Europe(49.00%),Eastern Asia(28.00%),North America(12.00%),South America(8.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pumps, Valves
4. why should you buy from us not from other suppliers?
We are mainly engaged in the production and development of vacuum accessories, vacuum valves, vacuum pumps, vacuum measurement, vacuum auxiliary components, vacuum technology application products, mass flow meters, non-standard customized products, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
We are based in Beijing, China, start from 2016,sell to Eastern Europe(49.00%),Eastern Asia(28.00%),North America(12.00%),South America(8.00%),Oceania(3.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pumps, Valves
4. why should you buy from us not from other suppliers?
We are mainly engaged in the production and development of vacuum accessories, vacuum valves, vacuum pumps, vacuum measurement, vacuum auxiliary components, vacuum technology application products, mass flow meters, non-standard customized products, etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Russian
