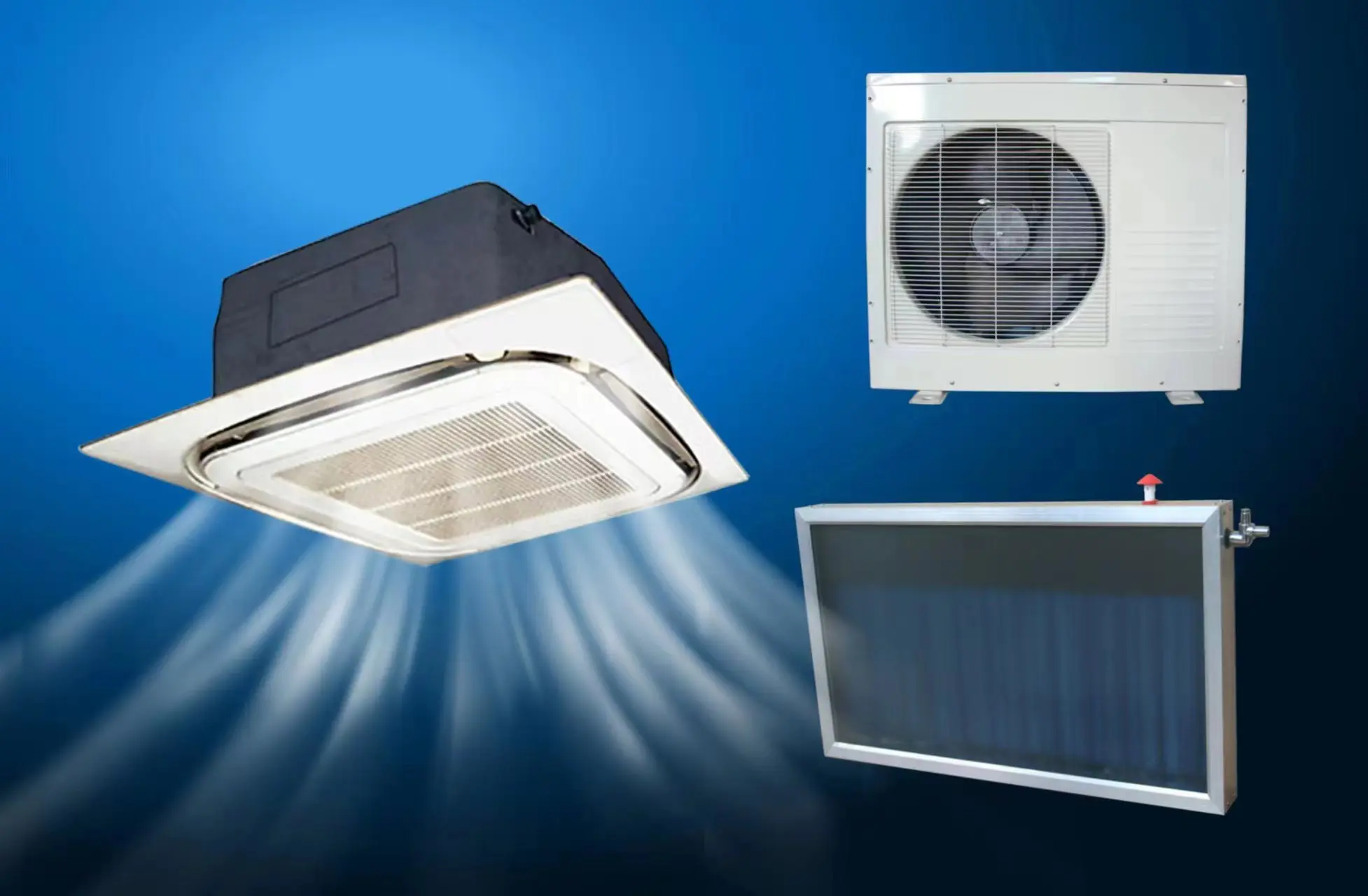

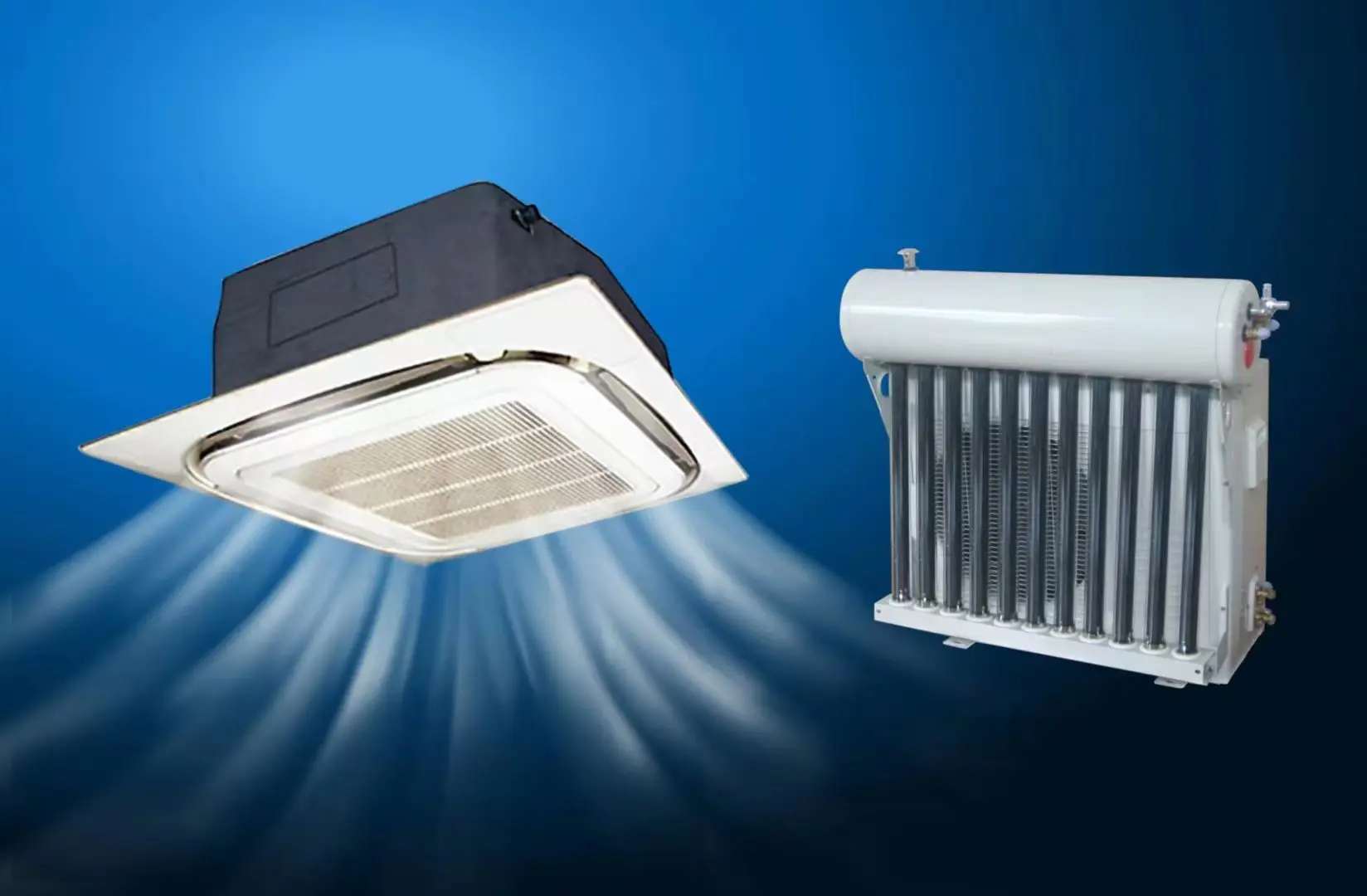

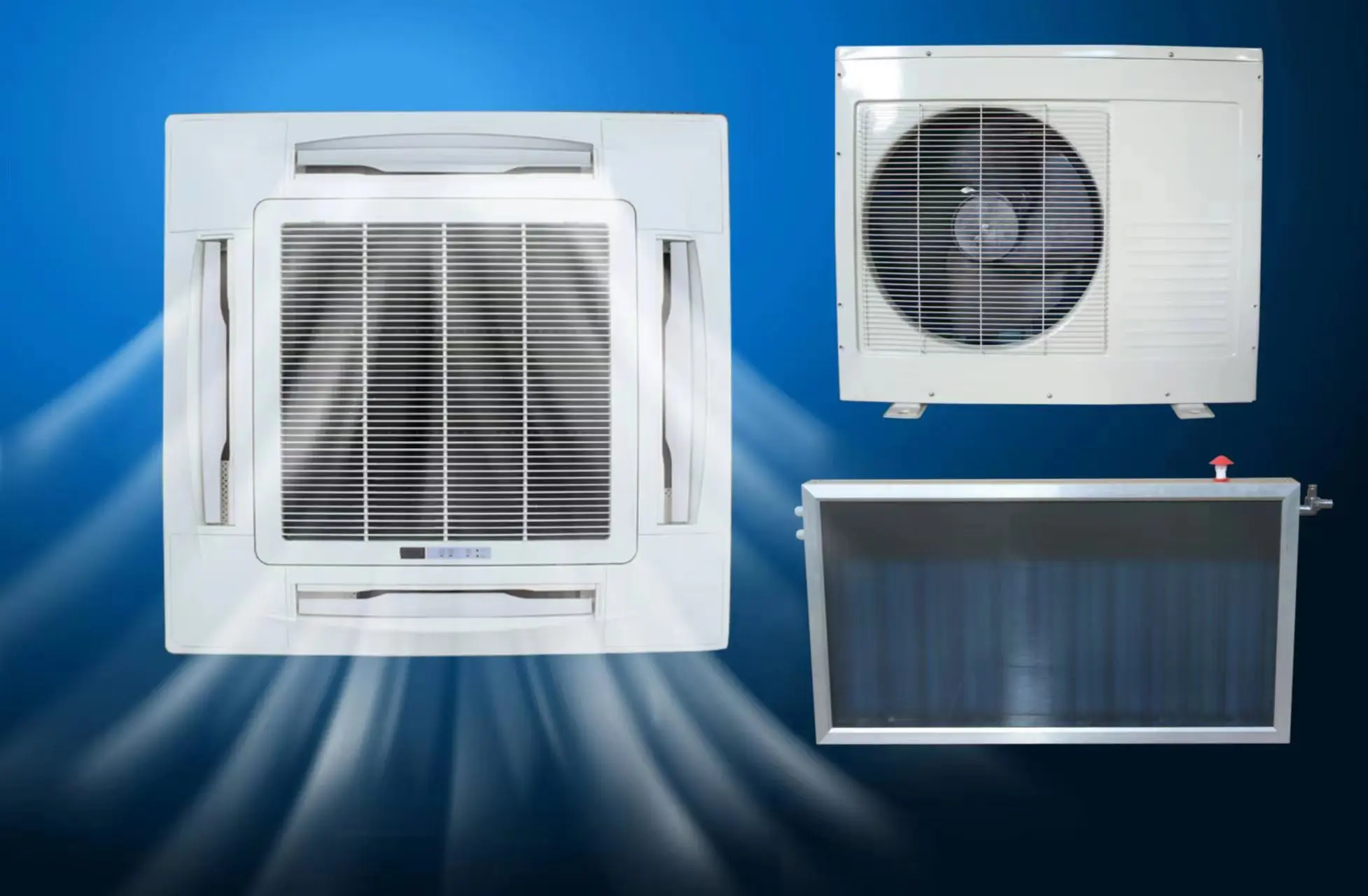

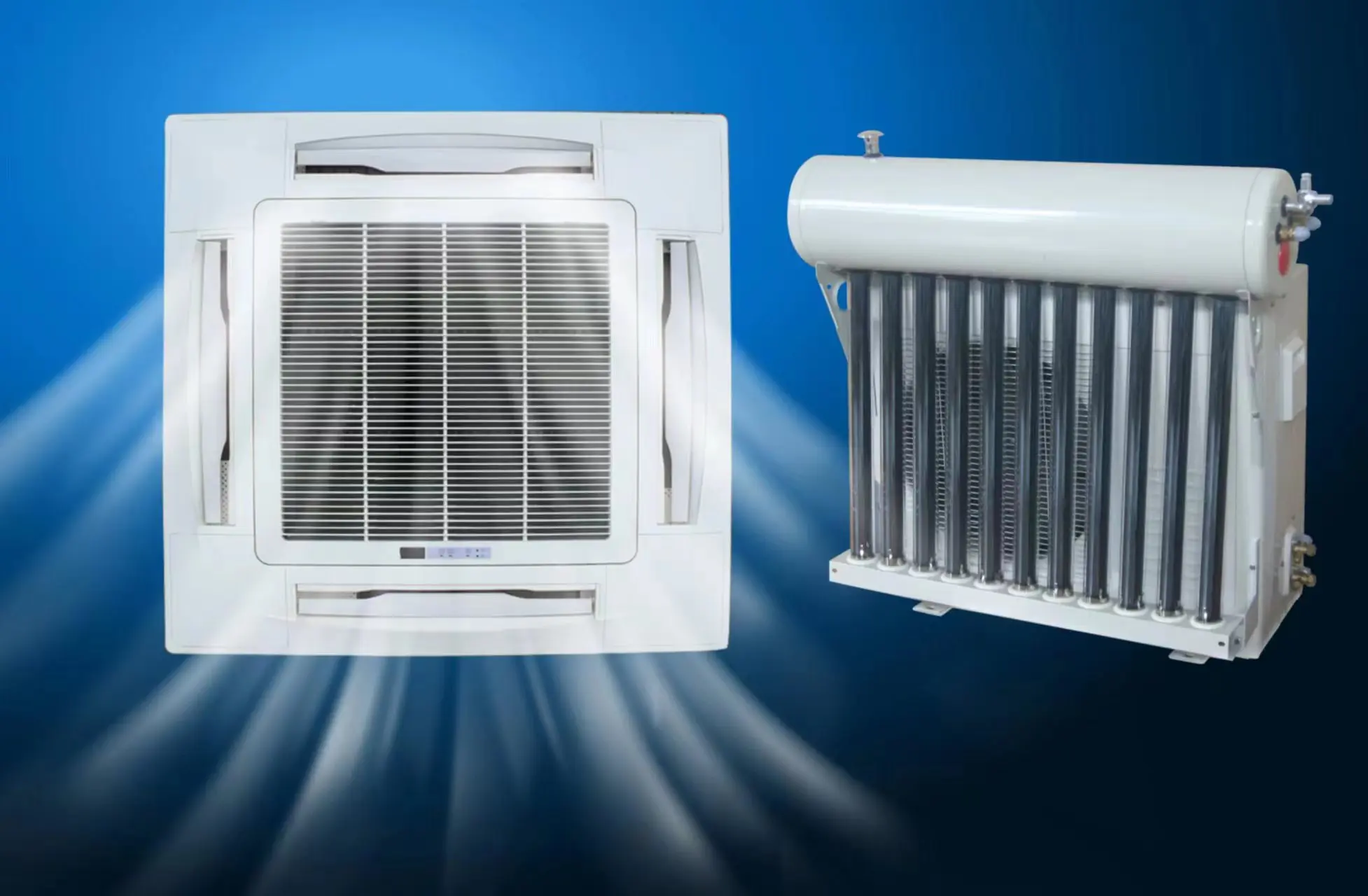

18000Btu ~ 60000Btu Commercial Home Solar Aircon Energy Saving Hybrid Powered Aire Acondicionado Solar Air Conditioner Cassette
- Category: >>>
- Supplier: Shenzhen Switch Energy Technology Co. Ltd.
Share on (1600964427686):
Product Overview
Description
Product Paramenters
Model No. | TKF(R)-52QW | TKF(R)-60QW | TKF(R)-72QW | TKF(R)-90QW | ||||||||
Power Supply：380VAC, 1PH, 50Hz | 9000BTU | 12000BTU | 18000BTU | 24000BTU | ||||||||
Performance | ||||||||||||
Capacity | Cooling | Btu/h | 18000 | 20000 | 24000 | 30000 | ||||||
W | 5200 | 6000 | 7200 | 9000 | ||||||||
Heating | Btu/h | 20000+1700 | 22000+1700 | 27000+1700 | 39000+1700 | |||||||
W | 6000+500 | 6600+500 | 7900+500 | 10000+500 | ||||||||
Noise | Indoor | dB(A) | ≤42 | ≤45 | ≤49 | ≤49 | ||||||
Outdoor | dB(A) | ≤55 | ≤56 | ≤58 | ≤58 | |||||||
Air Circulation | m³/h | 700 | 800 | 1250 | 1700 | |||||||
Suitable Area | m² | 20~36 | 25~42 | 30~48 | 35~52 | |||||||
EER | W/W | 3.84 | 3.88 | 3.82 | 3.85 | |||||||
SEER | Btu/h/w | 13.21 | 13.24 | 13.03 | 13.1 | |||||||
Power Consumption | ||||||||||||
Power Input | Cooling | W | 1150~1350 | 1350~1560 | 1700~1900 | 2200~2420 | ||||||
HeatingRated Current | Heating | W | 1150~1390+500 | 1350~1590+500 | 1700~1950+500 | 2270~2340+500 | ||||||
Rated Current | Cooling | A | 5.54~6.22 | 6.14~7.09 | 7.73~8.64 | 9.82~11.95 | ||||||
Heating | A | 5.54~6.43+2.2 | 6.14~7.23+2.2 | 7.73~8.66+2.2 | 10.12~11.03+2.2 | |||||||
Vacuum Tube | Diameter*Length*Pcs | 47mm*620mm*11 | 47mm*620mm*11 | 47mm*620mm*11 | 47mm*700mm*13 | |||||||
Dimension | ||||||||||||
Indoor Unit | NET | mm | 640*640*280 | 640*640*280 | 850*850*250 | 850*850*250 | ||||||
Shipping | mm | 680*680*320 | 680*680*320 | 890*880*290 | 890*880*290 | |||||||
Panel | NET | mm | 650*650*60 | 650*650*60 | 960*960*60 | 960*960*60 | ||||||
Shipping | mm | 730*750*130 | 730*750*130 | 1010*1010*110 | 1010*1010*110 | |||||||
Outdoor Unit | Net | mm | 850*300*755 | 850*300*755 | 940*300*755 | 950*355*835 | ||||||
Shipping | mm | 950*400*770 | 950*400*770 | 990*400*770 | 1140*460*910 | |||||||
Water Tank | Shipping | mm | 980*400*370 | 980*400*370 | 980*400*370 | 1120*400*400 | ||||||
Vacuum Tube | Shipping | mm | 980*400*370 | 980*400*370 | 980*400*370 | 1120*400*400 | ||||||
Weight | ||||||||||||
Indoor Unit | Net/Gross | kg | 26/32 | 28/34 | 28/34 | 29/44 | ||||||
Outdoor Unit | Net/Gross | kg | 48/50 | 50/52 | 55/58 | 68/72 | ||||||
Solar Collector | Net/Gross | kg | 16/17 | 16/17 | 16/17 | 17/20 | ||||||

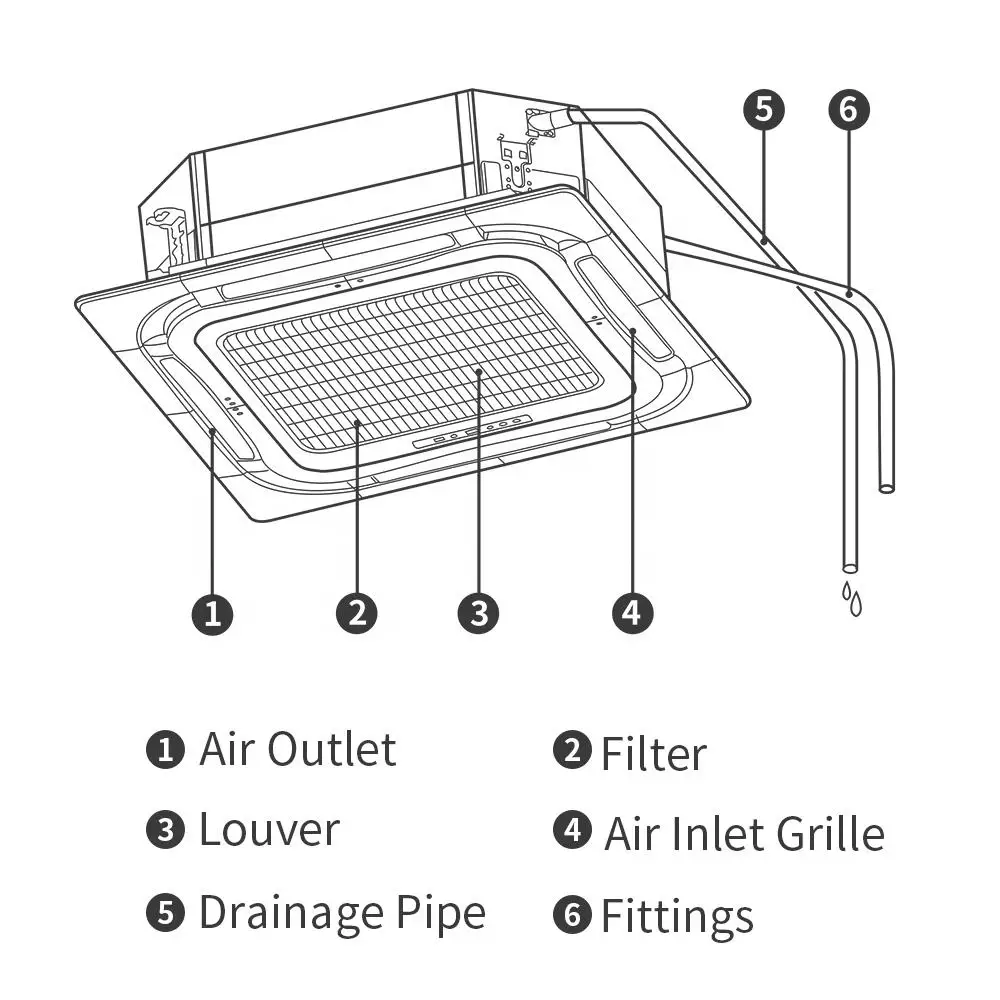

Details Images

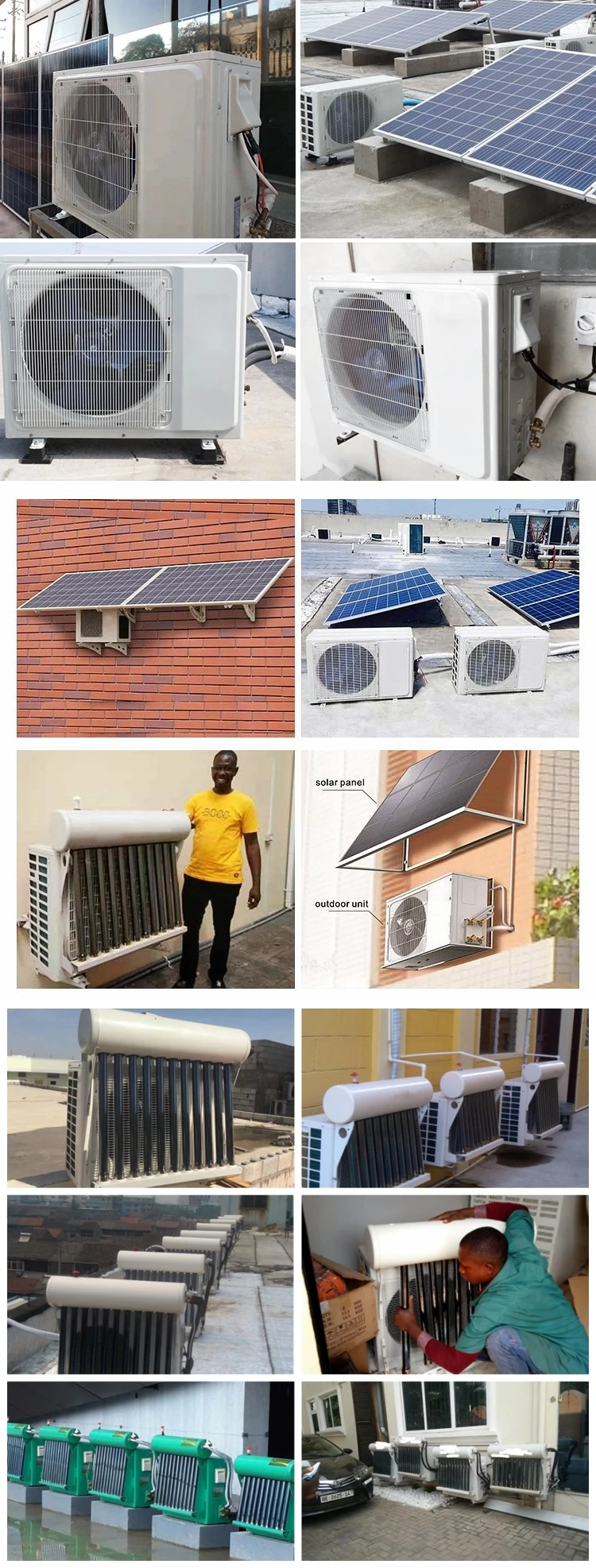

Customer Project
Recommend Products
Our Factory
Shenzhen Switch Energy Technology Co., Ltd. is a group company specializing in emerging energy industries such as solar and wind energy. The company's development strategy is to integrate research and development, production, sales, and after-sales service, so that customers have a good purchase and use experience.
We can provide a full range of new energy products, including photovoltaic panels/grid-connected inverters/off-grid inverters/hybrid inverters/lead-acid batteries/lithium iron phosphate batteries/lithium batteries/charge controllers/wind turbine power generation/ Household energy storage systems, etc., our products have undergone rigorous professional testing and passed various official certifications. Our company not only has a large number of product R & D and manufacturing talents, but also has an experienced foreign trade team, which can solve many problems faced in the process of product export. With years of technical precipitation and professional services, our company has won the favor of users all over the world.
Certifications
Exhibition
FAQ
Q1. Can I have a sample order for Solar air conditioner?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.
Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 1-2 months.
Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes,we offer 3-5 years warranty to our products.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.
Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 1-2 months.
Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes,we offer 3-5 years warranty to our products.
