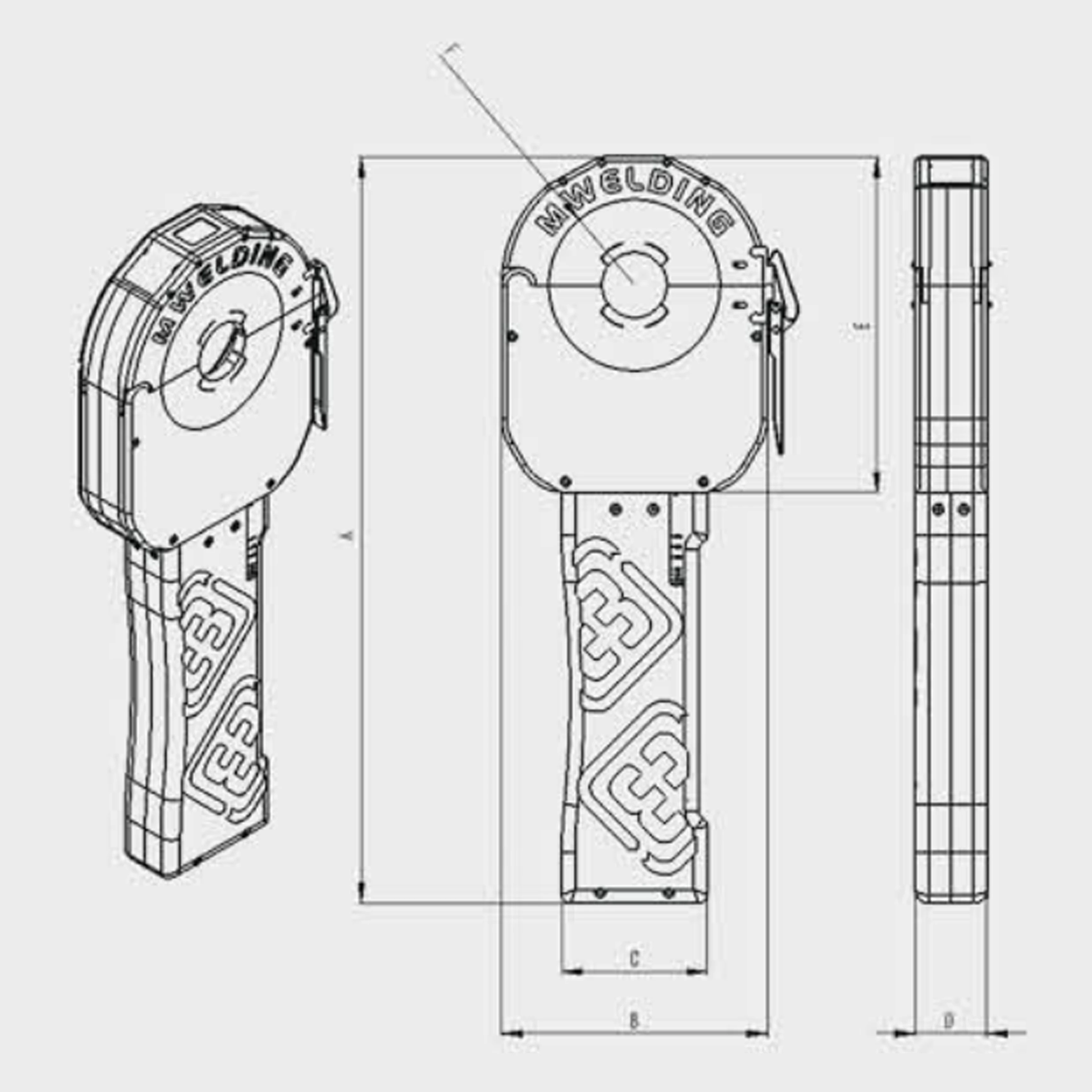

Construction Machinery And Equipment Welding Of Butt Welder Closed Orbital Welding Machine MWF 120
- Category: >>>
- Supplier: Shanghai Mwelding Intelligent Technology Co. Ltd.
Share on (1600964459276):
Product Overview
Description
Product Description

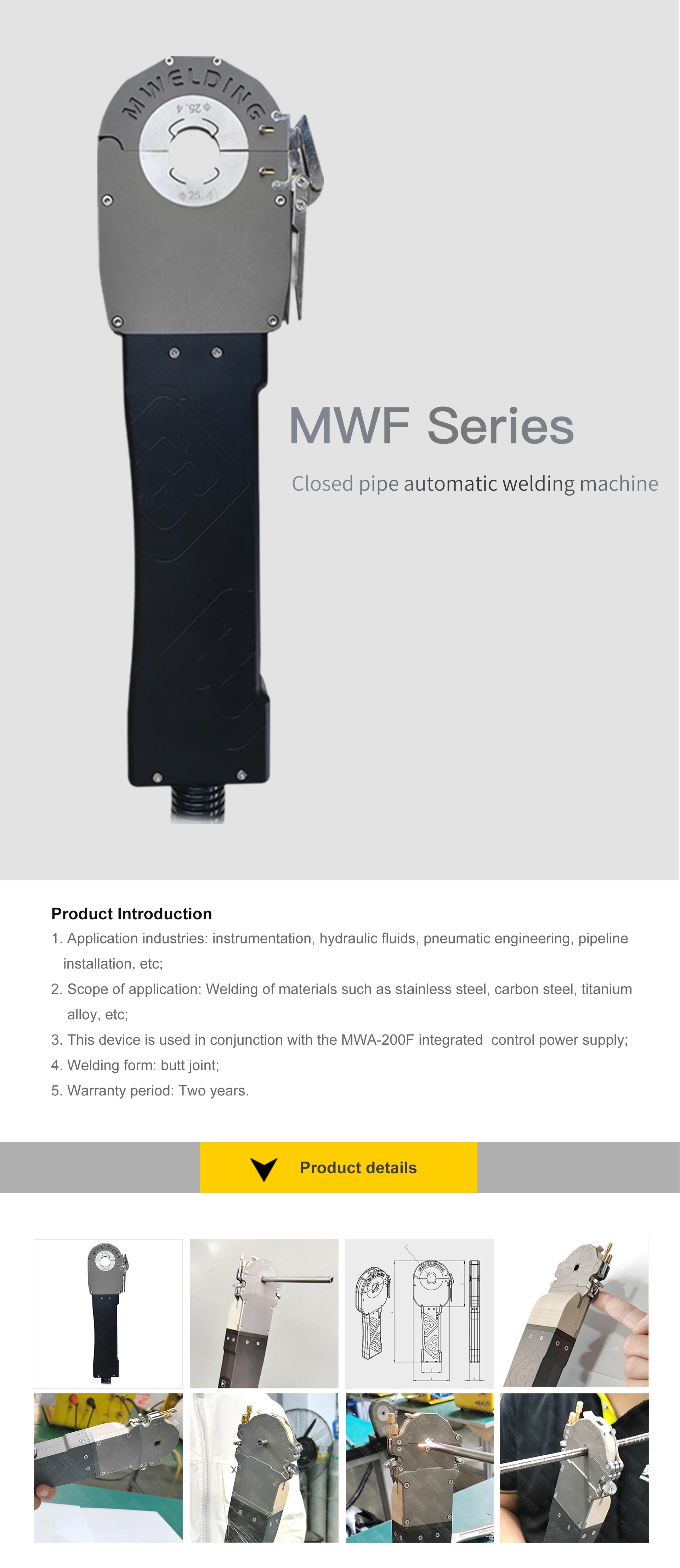

Product Introduction
1. Application industries: instrumentation, hydraulic fluids, pneumatic engineering, pipeline installation, etc;
2. Scope of application: Welding of materials such as stainless steel, carbon steel, titanium alloy, etc;
3. This device is used in conjunction with the MWA-200F integrated control power supply;
4. Welding form: butt joint; 5. Warranty period: Two years.
Company Information
Shanghai Meiwelding Intelligent Technology Co., Ltd
| Parameter/Model | MWH-12 | MWH-18 | MWH-40 | MWH-80 | MWH-120 | MWH-168 |
| Applicable pipe diameter | Φ4—Φ12.7 | Φ4—Φ17.1 | Φ6.35— Φ38.1 | Φ19.05—Φ76.2 | Φ38.1—Φ114.3 | Φ38.1— Φ114.3 |
| Docking wall thickness | ≤1.0mm | ≤1.0mm | ≤2.5mm | ≤2.5mm | ≤2.5mm | ≤2.5mm |
| Protective gas | argon | argon | argon | argon | argon | argon |
| Cooling method | Circulating water cooling | Circulating water cooling | Circulating water cooling | Circulating water cooling | Circulating water cooling | Circulating water cooling |
| Tungsten electrode specifications | 1.0mm | 1.6mm | 1.6/2.4mm | 1.6/2.4mm | 1.6/2.4mm | 1.6/2.4mm |
| Welding gun weight | 1.0kg | 1.5kg | 2.5kg | 3.0kg | 6.0kg | 10.0kg |
Q: Are you a factory or a trading company?
Answer: We are integrated with industry and trade, producing and selling both.
Q: What is your purchasing process like?
Answer: Technical communication - Scheme design - Equipment customization - Installation and debuggingTraining guidance - Starting after-sales service.
Q: Is your after-sales service your own or outsourced to a third party?
Answer: After sales service process (except for individual parts that require external processing)Electrical accessories need to be purchased from professional suppliers, all of which are sourced from Meiwelding Collaborate with employees from various departments to complete.
Q: What is your official website address?
Answer:www.mwelding.com.cn
