Product Overview
Description
Products Description
Automatic carton case box packing machines
For the carton packing design, there are so many options below, please tell me your requirements, we can customize the suitable carton packing machine for your needs:
1, Automatic carton case box packing line;
2, Automatic case erector;
3, Gripper type automatic bottle/can packer in carton;
4, Drop down type automatic bottle/can packer in carton;

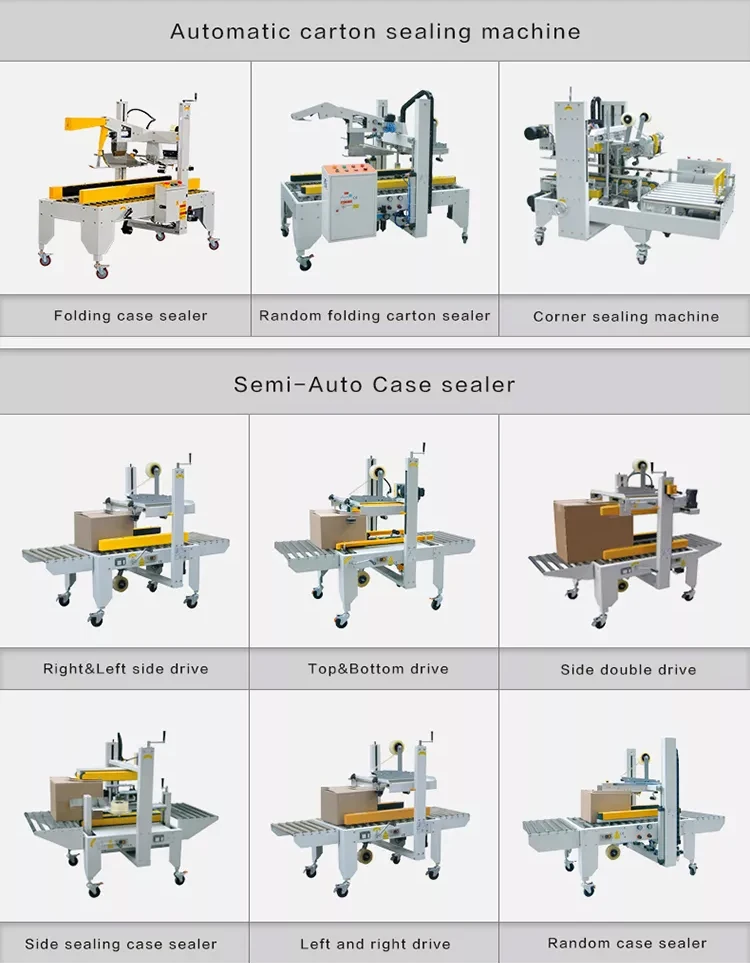

5, Semi-auto Side Driving Bottom-top tape sealing machine;
6, Automatic folding Bottom-top tape sealing machine;
7, Carton Sealing and strapping machine;
8, 4 edge corner case sealer machine;

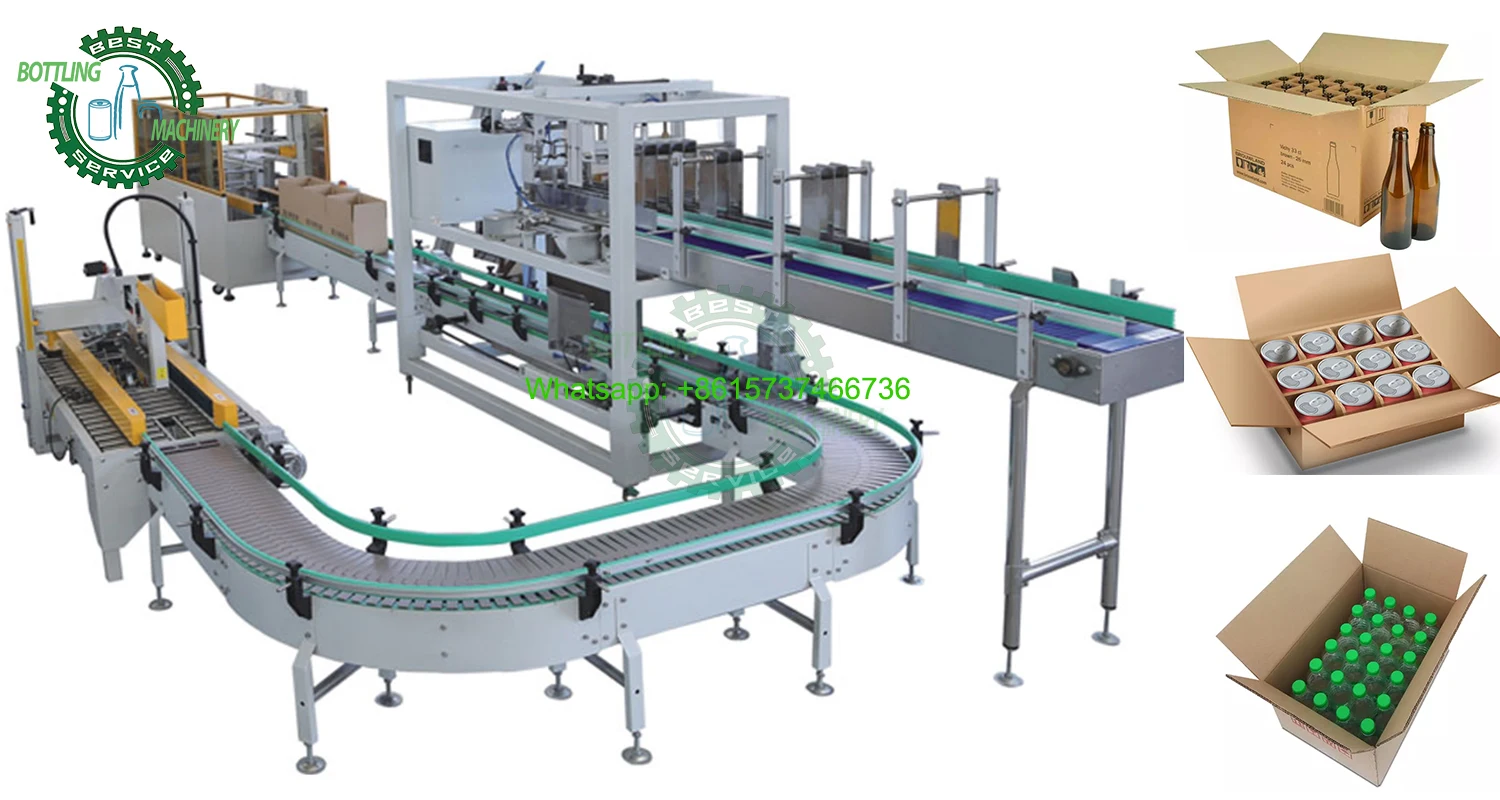

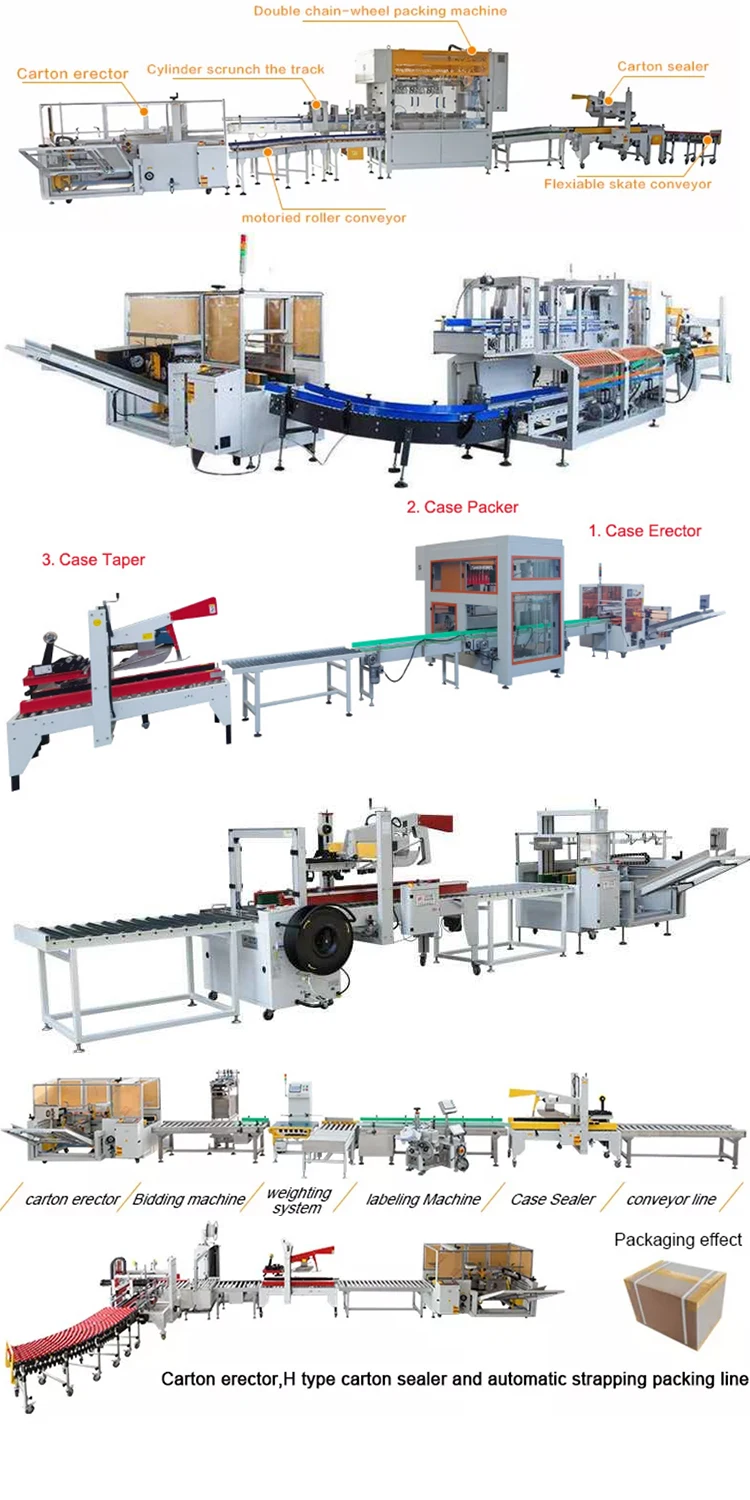

Automatic carton case box packing line:
This carton packaging line Including carton erector, bottle/can packer, carton sealer, carton corner edge sealer, labeling machine and strapping machine which can be equipped with various options based on the requirements of our clients to save labor cost and improve working capacity.
Advantage of packing line:
1.Imported accessories, electrical and pneumatic components
2.Realize fold the box flaps automatically
3.Manually adjustable the height and the width for different size of cartons
4.Top&bottom belts driven, carton sealing in top
5.Cutter Safety system to prevent hands form stabbed by the cutter
6.Both steel and stainless steel types
7.Also suitable for cartons with side covers
8.Top and bottom movement can be interchanged
9.Height of working table can be adjustable
Advantage of packing line:
1.Imported accessories, electrical and pneumatic components
2.Realize fold the box flaps automatically
3.Manually adjustable the height and the width for different size of cartons
4.Top&bottom belts driven, carton sealing in top
5.Cutter Safety system to prevent hands form stabbed by the cutter
6.Both steel and stainless steel types
7.Also suitable for cartons with side covers
8.Top and bottom movement can be interchanged
9.Height of working table can be adjustable

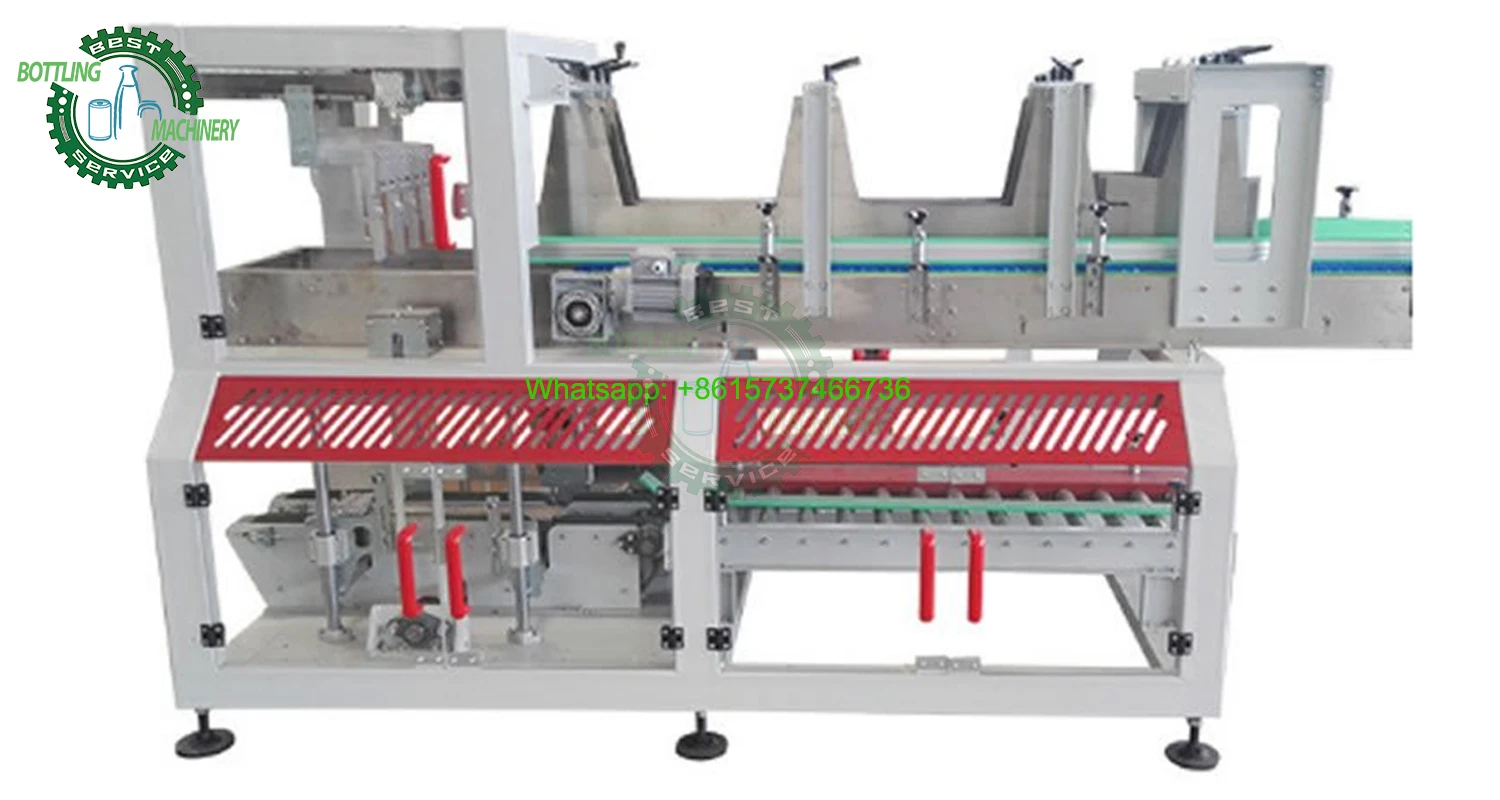

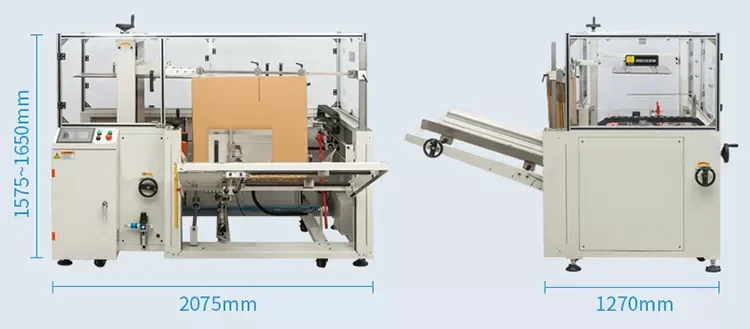

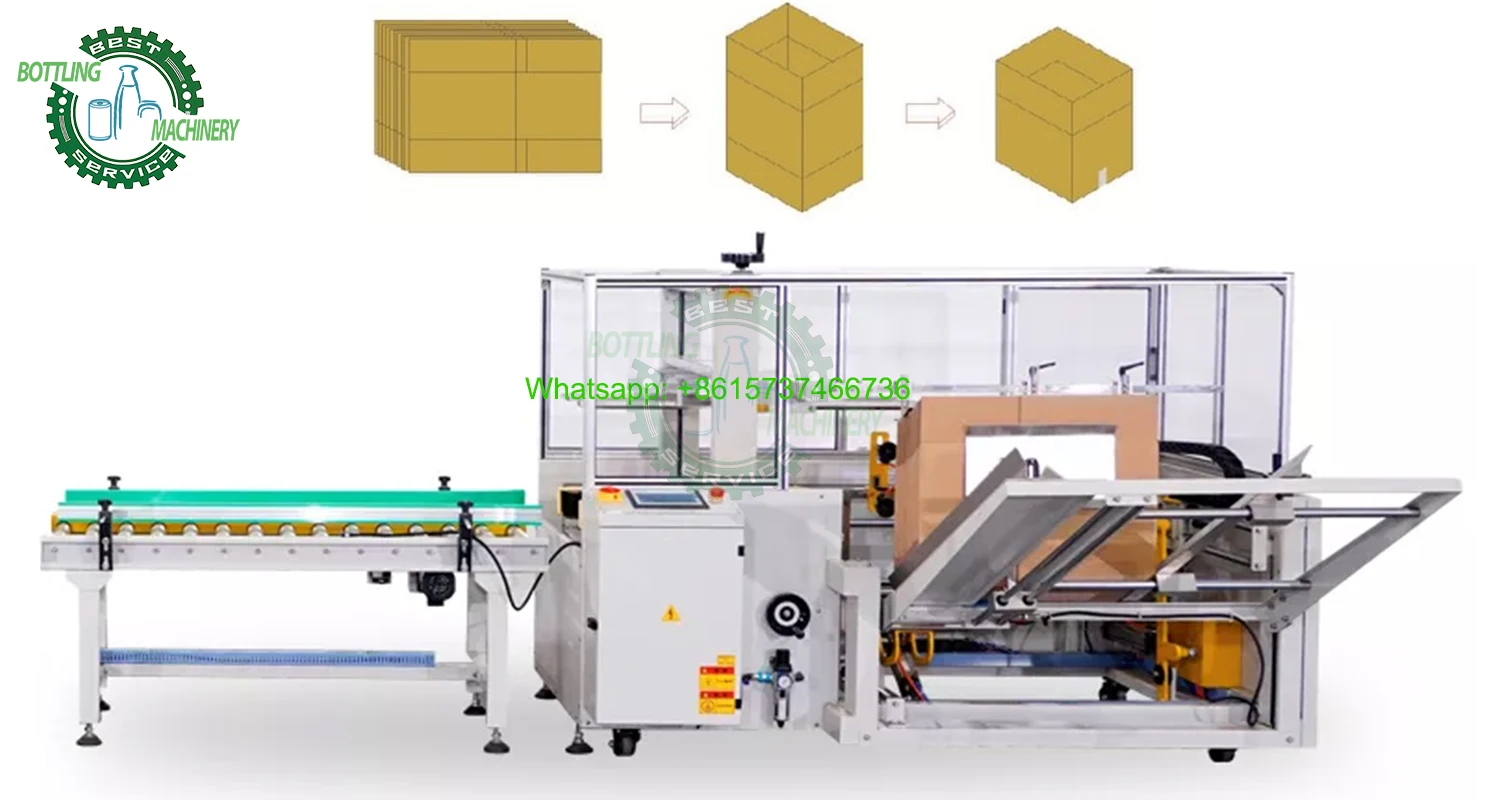

Automatic case erector :
It is suitable for carton of the same specification to open and fold the bottom, form the carton, and then seal the box with tape at the bottom;
Manually adjust the size of the carton, simple operation, easy to use, easy to adjust, fast unpacking, high efficiency, sturdy and durable, can be used alone, or can be used in conjunction with the automatic packaging line.
Equipment Features:
●Suitable for unpacking and back sealing of various sizes of cartons. If you need to change the size of the carton, you can adjust it manually. The operation is simple and convenient.
●Automatic unpacking, automatic folding of the lower cover, and automatic sealing of the bottom of the carton. The machine adopts PLC+ man-machine interface control, which is easy to operate, simple to maintain and stable in performance. It is the first choice for automatic large-scale production line equipment.
●The bottom does not stop, and the bottom is folded and sealed during transportation;
●Complete the whole process of suction box, forming, bottom folding and bottom sealing in 5 seconds; high-speed, stable, convenient and economical.
●Using this unpacking machine to replace labor can reduce at least 2 packing workers, save 5-% of consumables, increase the rate, greatly save costs and improve efficiency; it can also standardize and beautify the packaging.
Manually adjust the size of the carton, simple operation, easy to use, easy to adjust, fast unpacking, high efficiency, sturdy and durable, can be used alone, or can be used in conjunction with the automatic packaging line.
Equipment Features:
●Suitable for unpacking and back sealing of various sizes of cartons. If you need to change the size of the carton, you can adjust it manually. The operation is simple and convenient.
●Automatic unpacking, automatic folding of the lower cover, and automatic sealing of the bottom of the carton. The machine adopts PLC+ man-machine interface control, which is easy to operate, simple to maintain and stable in performance. It is the first choice for automatic large-scale production line equipment.
●The bottom does not stop, and the bottom is folded and sealed during transportation;
●Complete the whole process of suction box, forming, bottom folding and bottom sealing in 5 seconds; high-speed, stable, convenient and economical.
●Using this unpacking machine to replace labor can reduce at least 2 packing workers, save 5-% of consumables, increase the rate, greatly save costs and improve efficiency; it can also standardize and beautify the packaging.
Carton size | L(250mm-900mm); W(160mm-400mm); 510<(L+W)<1200mm; 285<w/2+H<700MM |
Packing speed | 8-12pcs/min |
Width of adhesive tape | 48mm,60mm,72mm |
Power | 300W |
Voltage | 220V/ 50Hz single phase |
Air supply | 6kgf/cm2, 450nl/min |
Conveyor height | Min.600mm Max.700mm Standard height:650mm |
Machine dimension | L2100mm*W2100mm*H1480mm |
N.W | 520kg |

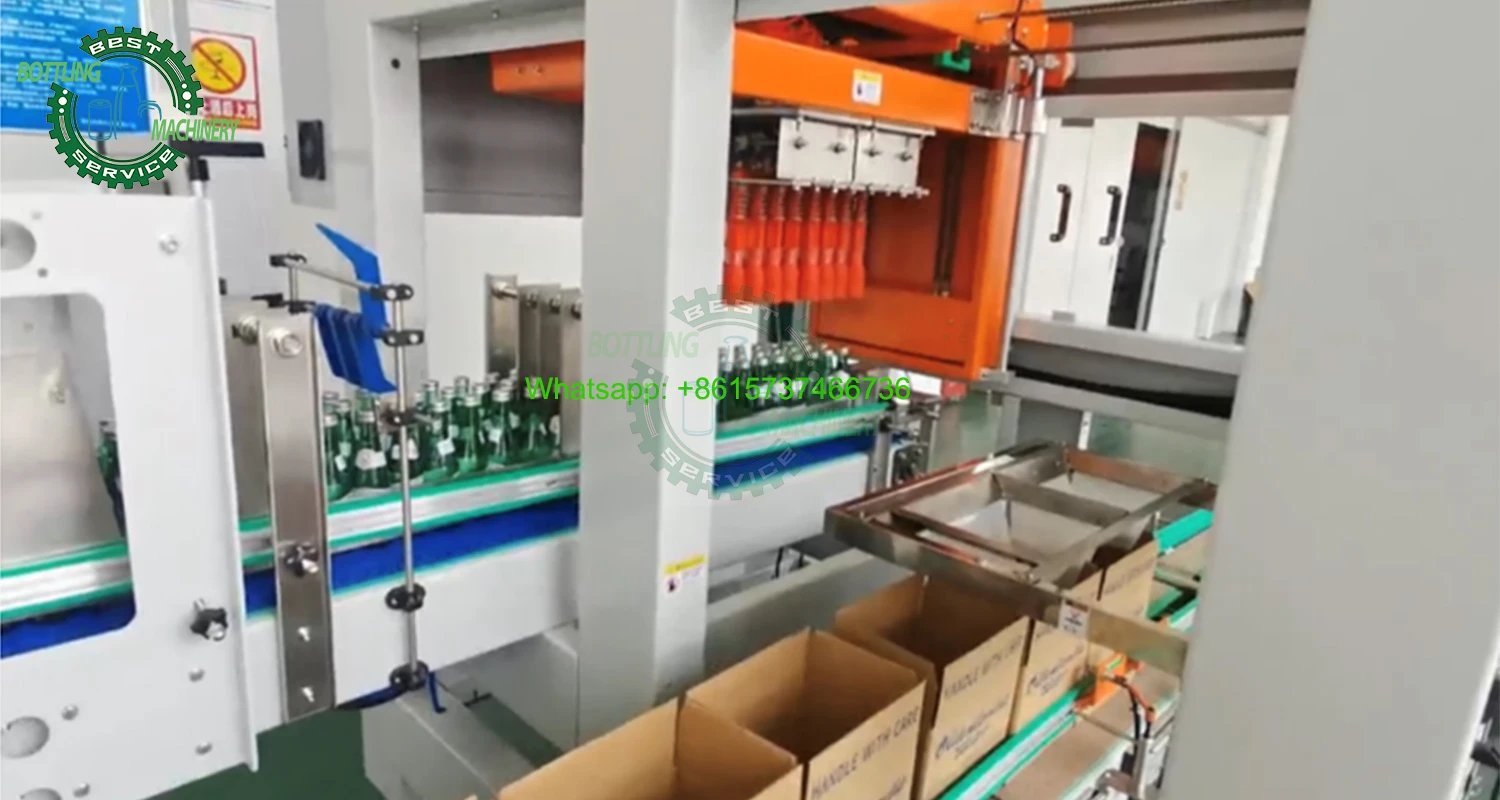

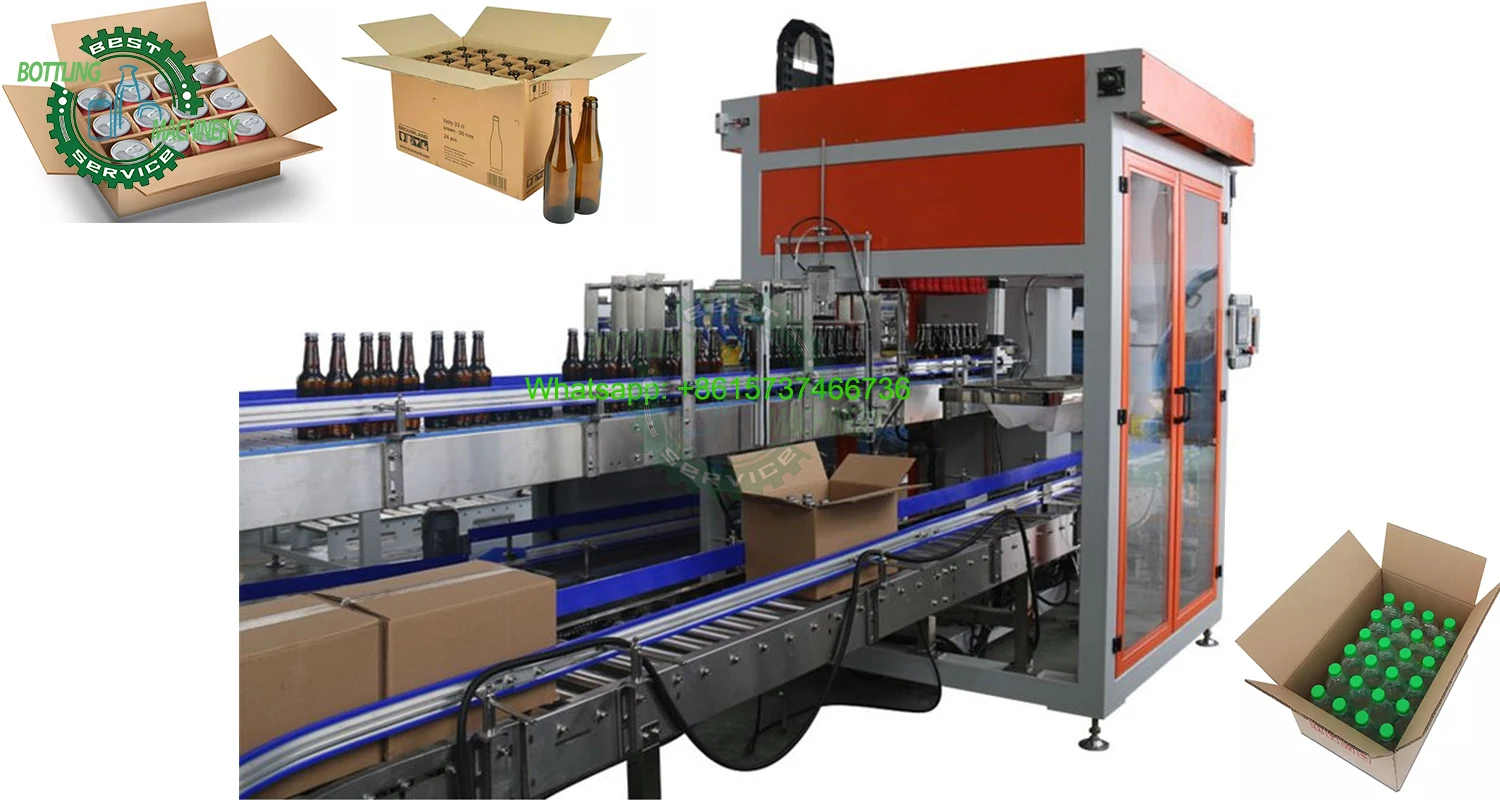

Gripper type automatic bottle/can packer in carton:
1. Reliable operation:
This machine using special pneumatic components to achieve the pick and place of products. Through mechanical operation, pneumatic and electrical control, it can accurately and reliably load products from the bottle table into the carton.
2.Smooth operation:
The entire packing process is driven by the variable frequency motor to drive different mechanical mechanisms independently to rise, translate, and lower the product, and it is combined with pneumatic, electrical, and light control to achieve automation. Coordinated movements, smooth and accurate movement. Into the box operation with manual into the box, automatic box, and continuous fast into the box and so on.
3. Grasping operation:
It is equipped with manual operation and automatic operation. With the advantages of Operational safety, small site coverage, and Large operating space. With a variety of protection functions, in case of failure in a timely manner. For example, if the bottle is not full on the incoming belt and bottle transportation platform, the bottle will automatically stop to wait; The machine will automatically shut down when the scratched bottle and cartons are misplaced.
This machine using special pneumatic components to achieve the pick and place of products. Through mechanical operation, pneumatic and electrical control, it can accurately and reliably load products from the bottle table into the carton.
2.Smooth operation:
The entire packing process is driven by the variable frequency motor to drive different mechanical mechanisms independently to rise, translate, and lower the product, and it is combined with pneumatic, electrical, and light control to achieve automation. Coordinated movements, smooth and accurate movement. Into the box operation with manual into the box, automatic box, and continuous fast into the box and so on.
3. Grasping operation:
It is equipped with manual operation and automatic operation. With the advantages of Operational safety, small site coverage, and Large operating space. With a variety of protection functions, in case of failure in a timely manner. For example, if the bottle is not full on the incoming belt and bottle transportation platform, the bottle will automatically stop to wait; The machine will automatically shut down when the scratched bottle and cartons are misplaced.
PLC control system:
It is a computer program, with a simple operation and stable performance. It is with convenient operation, simple design, reducing quantity, and intensity of labor is a piece of indispensable equipment for an automatic production line.

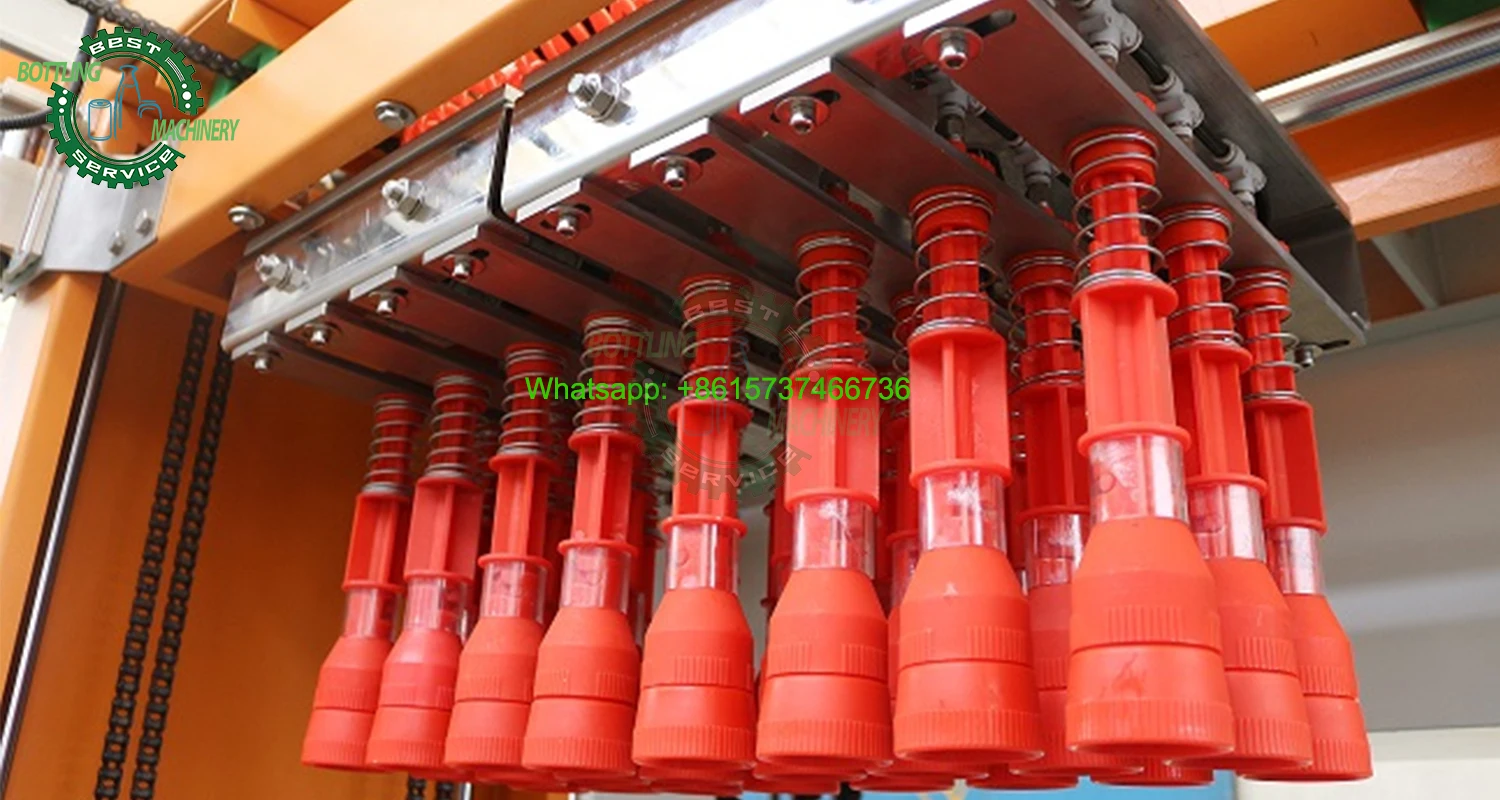

Bottle grasper:
According to different bottle shape, bottle grasper is specially designed, airbag style grasper head，no injury to bottles, no bottle falling and low air consumption; Bottler grasping is driven by up-down and side moving servo motors, that means there is designed height difference for bottle grasping area and box filling part for different bottles;
Lifting system:
PLC sensor system to make sure correct bottle orientation, to enhance lifting and dropping precision; Step driving motor to adjust lifting and side moving speed, to achieve grasping and dropping at low speed and moving at middle speed, the speed adjustment to make sure the higher efficiency as well stable performance;
Conveyor:
Driven by the asynchronous motor, according to different request, use inverter and contactor to control, will apply auto bottle supply, auto bottle arranging, auto carton supply, and auto box out;
It is a computer program, with a simple operation and stable performance. It is with convenient operation, simple design, reducing quantity, and intensity of labor is a piece of indispensable equipment for an automatic production line.
Bottle grasper:
According to different bottle shape, bottle grasper is specially designed, airbag style grasper head，no injury to bottles, no bottle falling and low air consumption; Bottler grasping is driven by up-down and side moving servo motors, that means there is designed height difference for bottle grasping area and box filling part for different bottles;
Lifting system:
PLC sensor system to make sure correct bottle orientation, to enhance lifting and dropping precision; Step driving motor to adjust lifting and side moving speed, to achieve grasping and dropping at low speed and moving at middle speed, the speed adjustment to make sure the higher efficiency as well stable performance;
Conveyor:
Driven by the asynchronous motor, according to different request, use inverter and contactor to control, will apply auto bottle supply, auto bottle arranging, auto carton supply, and auto box out;
Pick up type carton packing machine: | ||||
Applicable Container | Plastic bottle, Glass bottle, Tins and Cans | |||
Product Size | 250ML-2000ML | |||
Container Diameter | L 250-450 x W 150-400 x H 100-400mm | |||
Capacity | 5-20 Cartons/per min | |||
Machine Dimension(L*W*H) | L6285*W2582*H2115mm | |||
Carton Size | 500 < L+W+H< 1000 | |||
Power | 4KW | |||
Power Supply | 3PH 220V/380V 50/60Hz | |||
Air Pressure | 6-8kg/cm² | |||
Height of Work Table | Feed-in worktable 850mm; out 650mm | |||
Packing Material | Carton | |||
Automatic carton forming machine | L 2100 x W 2400x H 2400 mm | |||
Carton erector machine | L2000 x W 1900x H 1450 mm | |||
Carton tapper | L2147x W 1058 x H 1524 mm | |||
Devices | Brand | Origins | ||
PLC | SIEMENS | Germany | ||
Frequency Converter | Danfoss | Danmark | ||
Touch Screen | SIEMENS | Germany | ||
Low-voltage Apparatus | Schneider | France | ||
Drive Motor | Panasonic | Janpan | ||
Pneumatic Components | SMC | Germany | ||
Photoelectric Sensor | SICK | Germany | ||

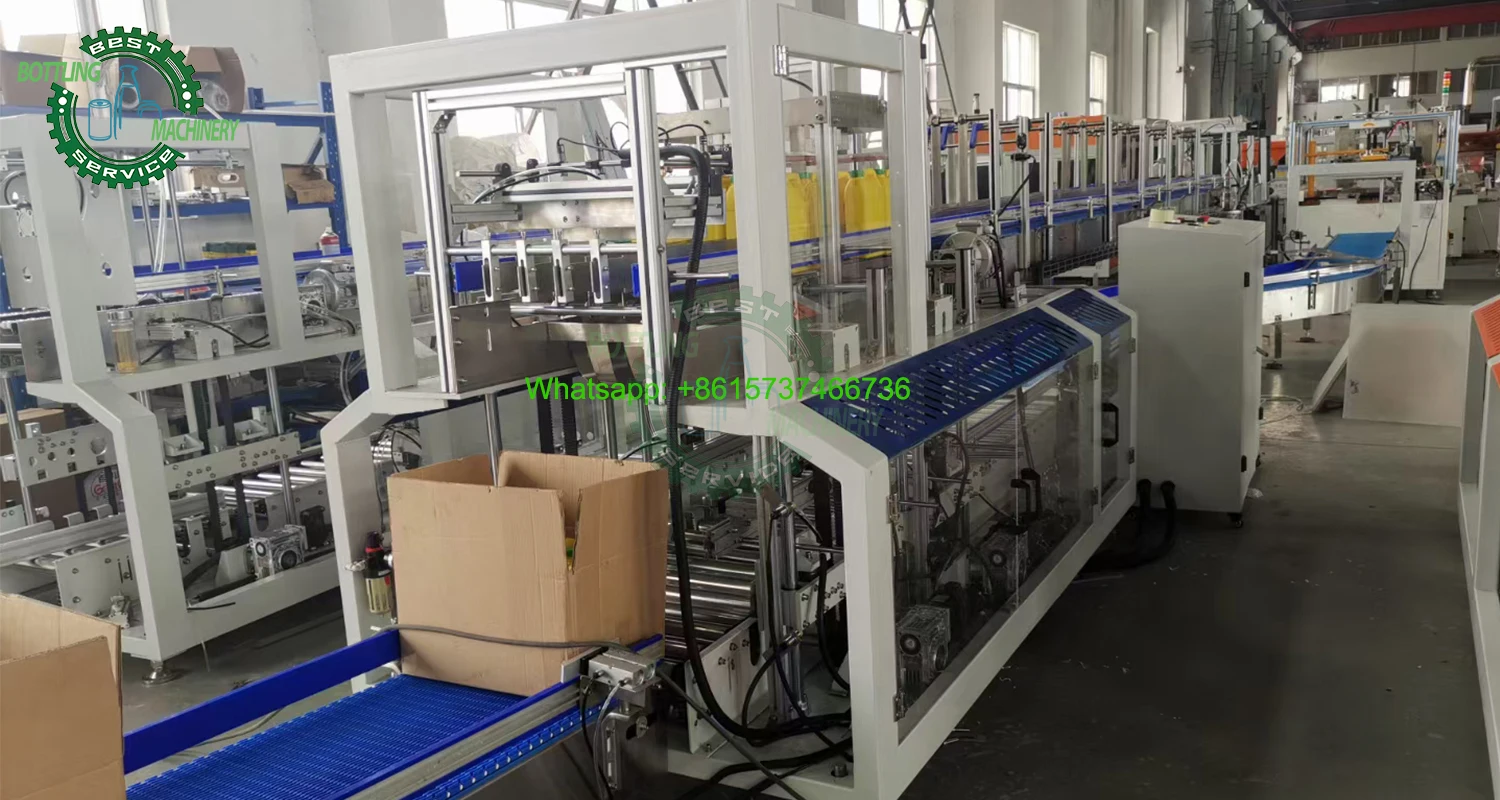

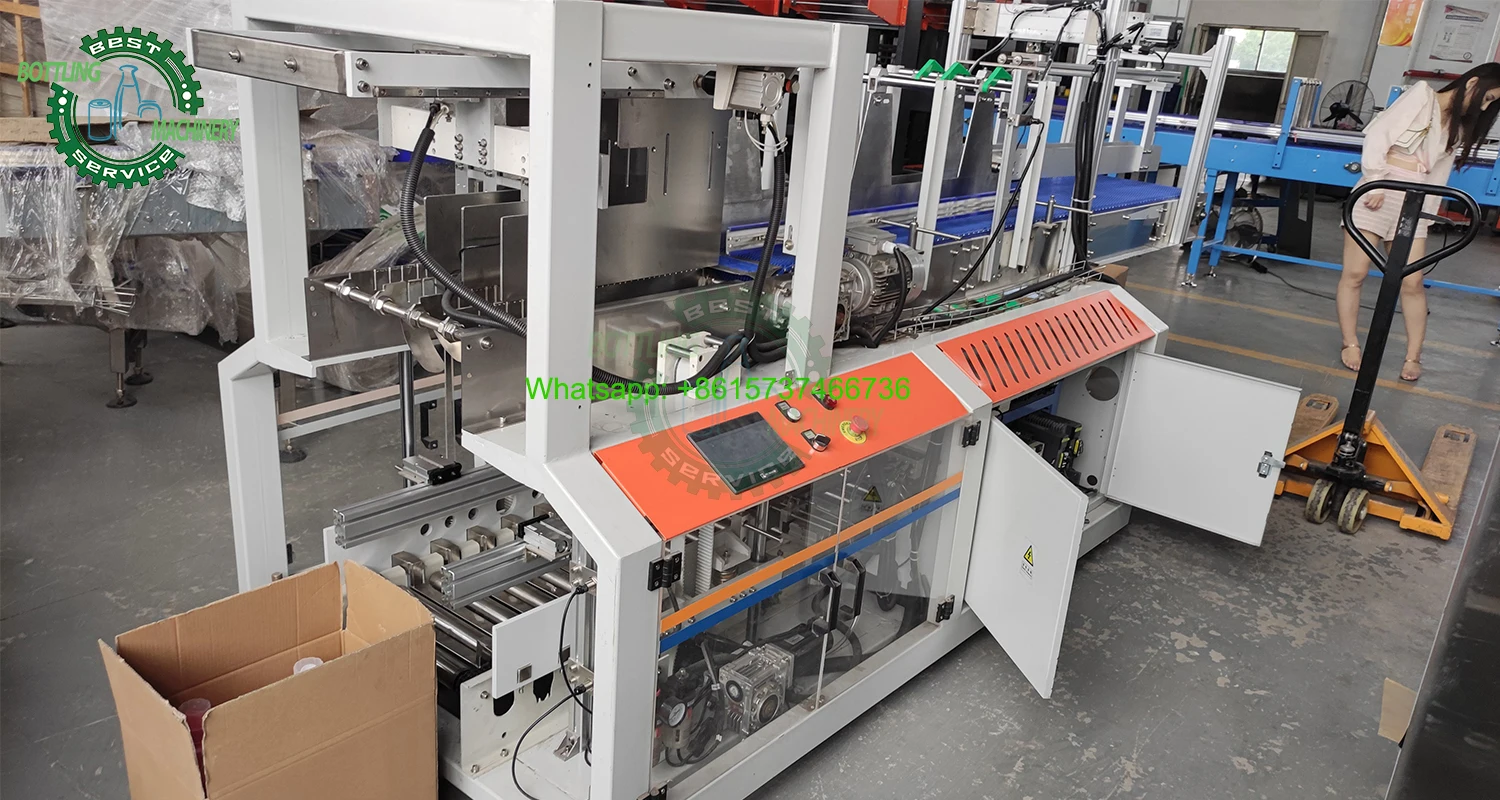

Drop down type automatic bottle/can packer in carton:
This machine adopt advanced processing tech and software technology. This drop down carton packer is use for automatically packing of kinds of glass or plastic bottles, cans, barrels etc products into opened empty carton box. And this drop type carton packer suitable for the carton packing process of water, beverage, oil, etc production line, and also suitable for bottle/cans shape products carton packing work in other industries. Drop down type carton packer is a kind machine with strong compatibility, which can be used for different specifications of cartons and bottles.
According to the packing requirements, the products can be arranged in automatically. After that, the whole train of mechanism will feeding the products to the top of the empty carton box, and then open the products supporting device to drop the products into the carton naturally.
The drop type carton packer normally need match with carton erector and carton sealer machine working together,for finished carton box open, carton packing and carton sealing works.
Also could according to client’s different products special requirement to improve design for achieved carton packer works !
According to the packing requirements, the products can be arranged in automatically. After that, the whole train of mechanism will feeding the products to the top of the empty carton box, and then open the products supporting device to drop the products into the carton naturally.
The drop type carton packer normally need match with carton erector and carton sealer machine working together,for finished carton box open, carton packing and carton sealing works.
Also could according to client’s different products special requirement to improve design for achieved carton packer works !
Machine Characteristics:
1.Adopt intelligent HMI to control and display machine running action status and with alarm function in real time.
2. Through buffer device to realize packing product into empty carton box smoothly, and minimize the possibility of injury to the products.
3. Carton Packing speed is adjustable (controlled by frequency converter).
4. Automatic alarm for lack of products(bottles etc), effectively reducing the probability of carton packing error.
5. Equipped with the safety protection function of accidental or fault gives alarm warning and the indicator light flashes.
1.Adopt intelligent HMI to control and display machine running action status and with alarm function in real time.
2. Through buffer device to realize packing product into empty carton box smoothly, and minimize the possibility of injury to the products.
3. Carton Packing speed is adjustable (controlled by frequency converter).
4. Automatic alarm for lack of products(bottles etc), effectively reducing the probability of carton packing error.
5. Equipped with the safety protection function of accidental or fault gives alarm warning and the indicator light flashes.
Model: | BLZX-12 |
Speed: | 8-15(cases/min) |
Applicable Products: | Various Bottles, Barrels,Cans etc Products |
Main Supply Power: | About 3KW |
Voltage: | 220V/380V,3Phase, 50Hz/60Hz |
Air Consumption: | 0.9m3/h |
Air Pressure: | 0.5-0.8Mpa |
bottle conveyor height | 1100+-50mm |
box conveyor height | 1100+-50mm |
Pallet Conveyor Height | 650mm |
Working Noise: | ≤75db |
Machine Weight: | About 950KG |
Machine Dimension: | 2450*1500*1800mm |

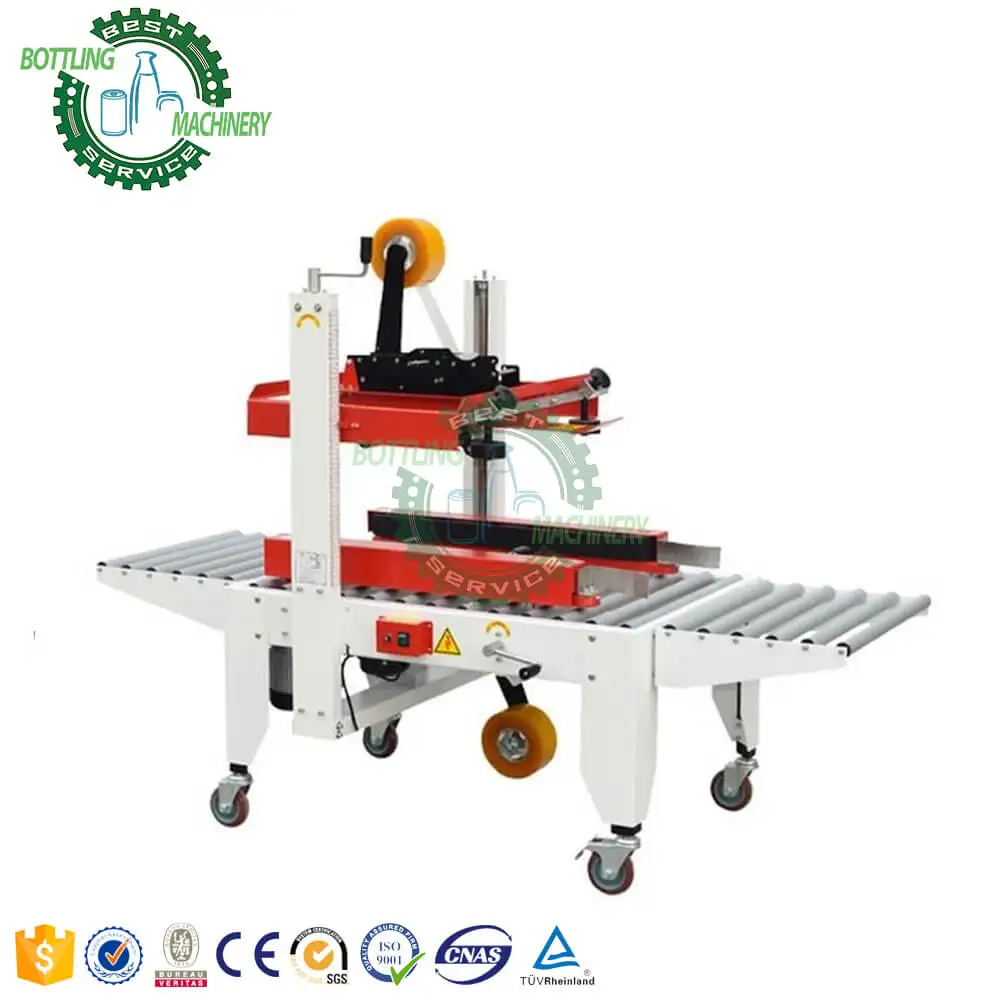

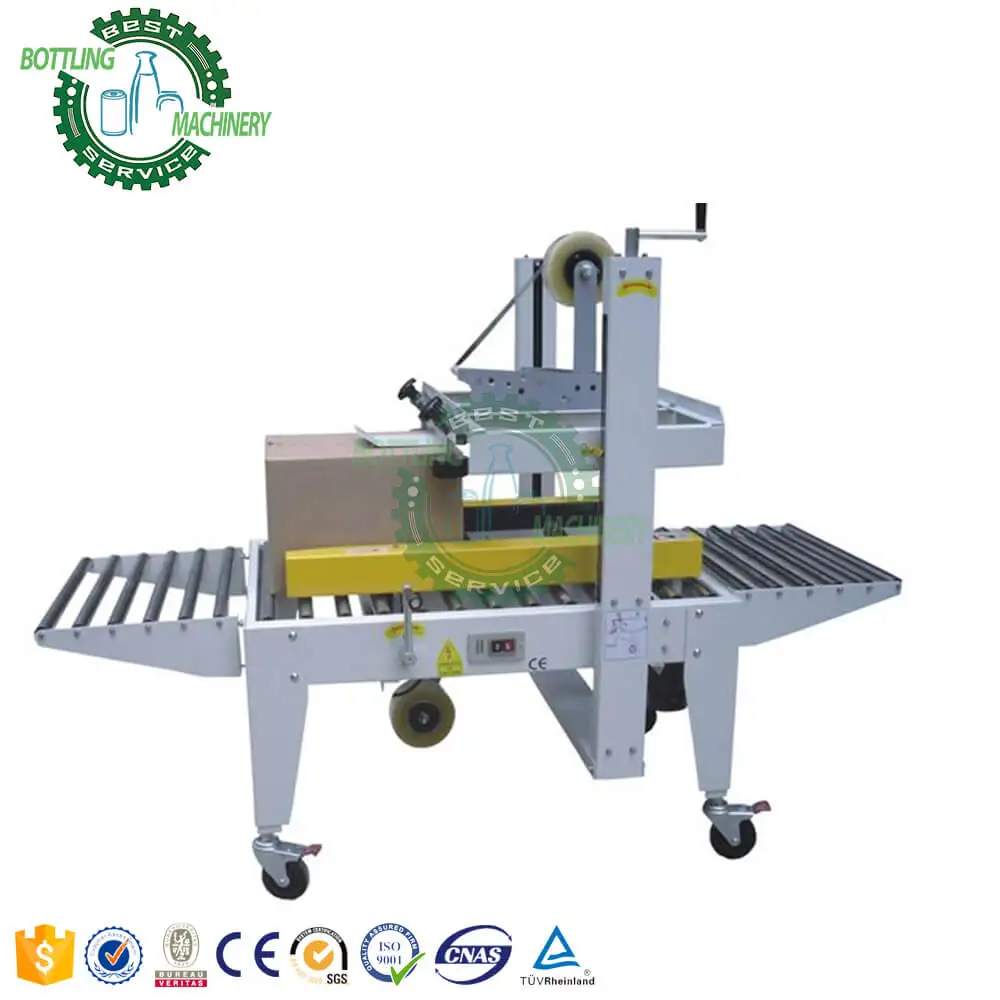

Semi-auto Side Driving Bottom-top tape sealing machine
1, The semi auto carton box adhesive tape sealing machine is mainly used when sealing and packaging carton either individually or as part of a production line depending on the unit required.
2, This machine is primarily applicable to the carton packaging and sealing. It can be operated individually or used in the production line. It is extensive used on electrical machinery, textiles, food, retail, pharmacy and chemical industries. With the use of the sealing tape, it is economic, high efficiency and easy to adjust. It can seal the carton by up and down direction at one time. It can improve their product image more adopting with word printed sealing tapes.
Characteristic:
1. Quickly finish sealing& very economic & easily adjust
2. right & left convey
3. Up& down sealing
4. Smooth feeding &perfect sealing ( tidy, firm, no tearing the box)
5. if need date code printer, pls tell in advance, it accept customization. Standard machine has no this function
2, This machine is primarily applicable to the carton packaging and sealing. It can be operated individually or used in the production line. It is extensive used on electrical machinery, textiles, food, retail, pharmacy and chemical industries. With the use of the sealing tape, it is economic, high efficiency and easy to adjust. It can seal the carton by up and down direction at one time. It can improve their product image more adopting with word printed sealing tapes.
Characteristic:
1. Quickly finish sealing& very economic & easily adjust
2. right & left convey
3. Up& down sealing
4. Smooth feeding &perfect sealing ( tidy, firm, no tearing the box)
5. if need date code printer, pls tell in advance, it accept customization. Standard machine has no this function
Model | FXJ-5050 |
Electrical Power | AC110-220V/60-50Hz |
Total Power | 180W |
Conveyor Speed | 15.7m/min (4-6cartons per min) |
Style | top and bottom sealing |
Tape width | 48/60/75mm |
Max Carton Width*Height | 500*500mm |
Min Carton Width*Height | 120*110mm |
Machine Size | 1850*835*1100-1720mm |
Gross Weight | 120kg |

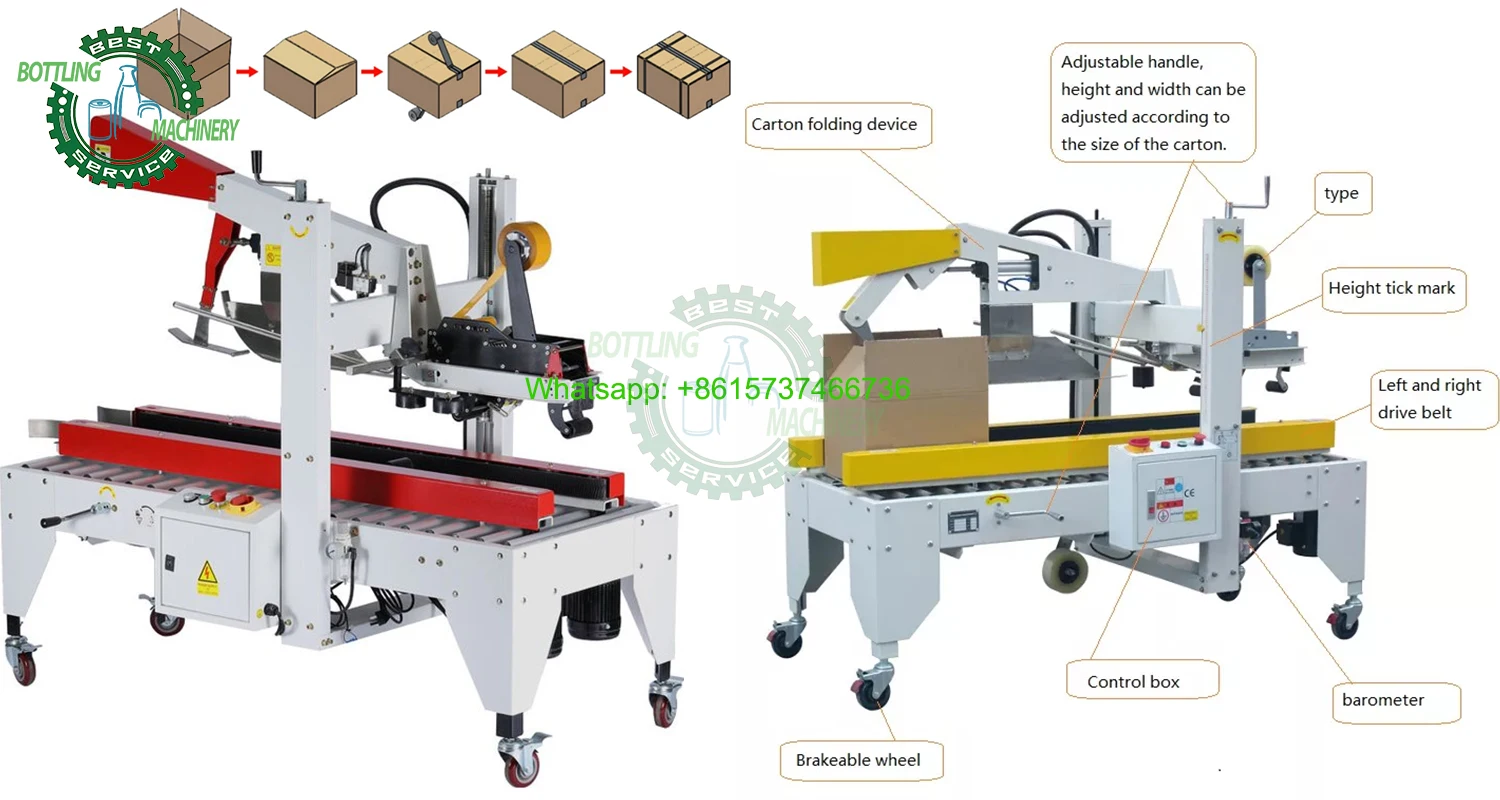

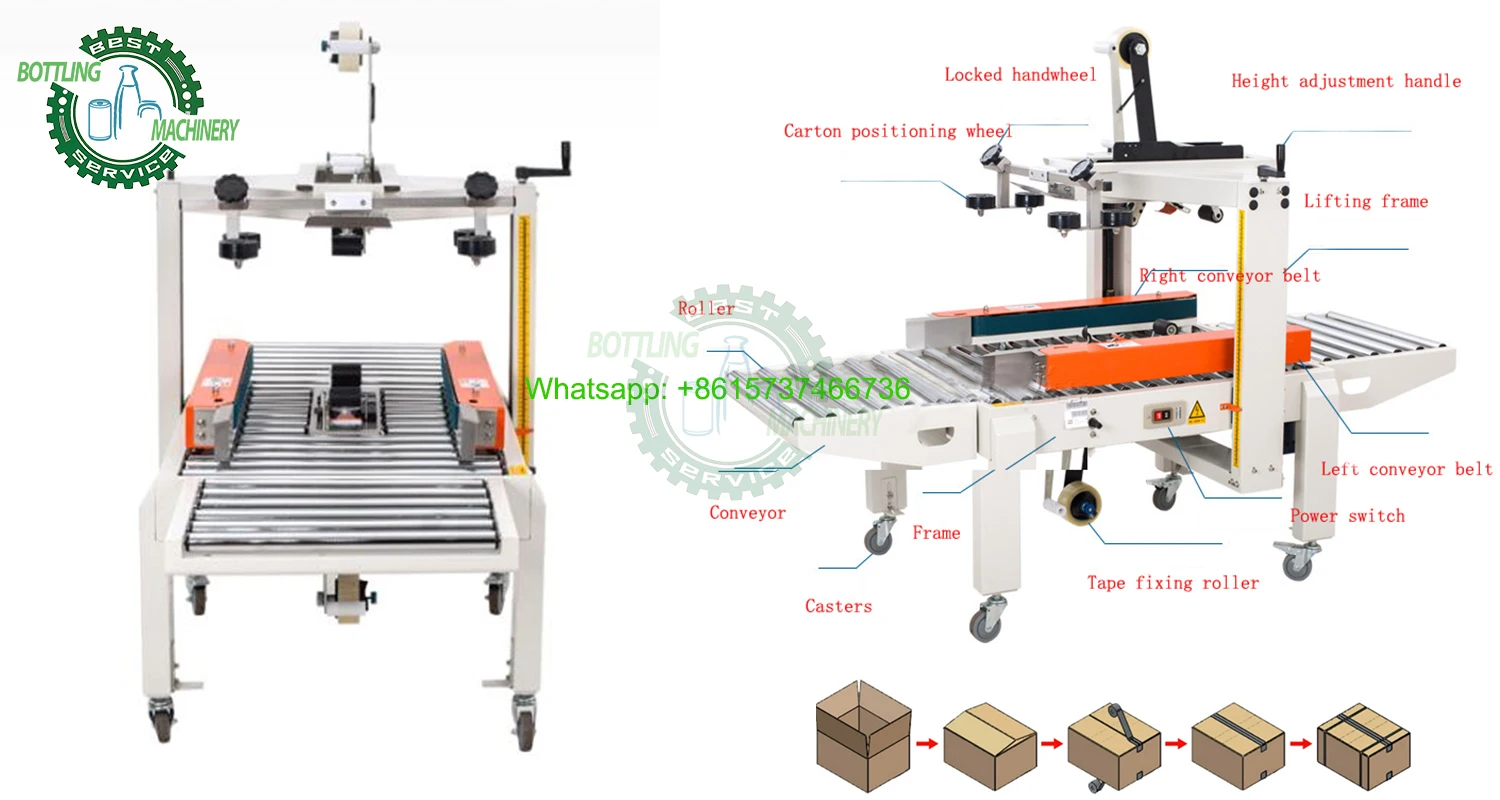

Automatic folding carton Bottom-top tape sealing machine
Product Description:
FXJ series carton sealing machine is primarily applicable to the carton packaging and sealing. It can be operated individually or used in the production line. It is extensive used on electrical machinery, textiles, food, retail, pharmacy and chemical industries. With the use of the sealing tape, it is economic, high efficiency and easy to adjust. It can seal the carton by up and down direction at one time. It can improve their product image more adopting with word printed sealing tapes.
Features:
When the size of the carton changes, manual positioning, automatic folding of the upper cover and rear cover of the carton, and automatic folding without folding the corners quickly. The covers on both sides are stable and beautiful, and the motors on both sides automatically drive the high-strength gripping PVC tape in a timely manner, and send it into the carton for sealing, which can complete the upper and lower sealing action at one time. This machine adopts pneumatic device to realize automatic folding of the back cover. Reliable work, convenient operation and simple maintenance. This machine can be operated alone or combined with unmanned automatic strapping machine and conveyor to form an automatic sealing and packaging production line. The adhesive tape is sealed flat, firm, standardized and beautiful, and will not tear the box.
FXJ series carton sealing machine is primarily applicable to the carton packaging and sealing. It can be operated individually or used in the production line. It is extensive used on electrical machinery, textiles, food, retail, pharmacy and chemical industries. With the use of the sealing tape, it is economic, high efficiency and easy to adjust. It can seal the carton by up and down direction at one time. It can improve their product image more adopting with word printed sealing tapes.
Features:
When the size of the carton changes, manual positioning, automatic folding of the upper cover and rear cover of the carton, and automatic folding without folding the corners quickly. The covers on both sides are stable and beautiful, and the motors on both sides automatically drive the high-strength gripping PVC tape in a timely manner, and send it into the carton for sealing, which can complete the upper and lower sealing action at one time. This machine adopts pneumatic device to realize automatic folding of the back cover. Reliable work, convenient operation and simple maintenance. This machine can be operated alone or combined with unmanned automatic strapping machine and conveyor to form an automatic sealing and packaging production line. The adhesive tape is sealed flat, firm, standardized and beautiful, and will not tear the box.
Model | FXJ-6050 |
Electrical Power | AC110-220V/60-50Hz |
Total Power | 260W |
Conveyor Speed | 22m/min (0-20 cartons per min) |
Style | top and bottom sealing |
Tape width | 48-60mm |
Tape Length | ≥150mm |
Max Carton Width | 500mm |
Max Carton length | 600mm |
Air Pressure | 2/3 |
Machine Size | 1720×950×（1490-1770）mm |
Gross Weight | 180kg |

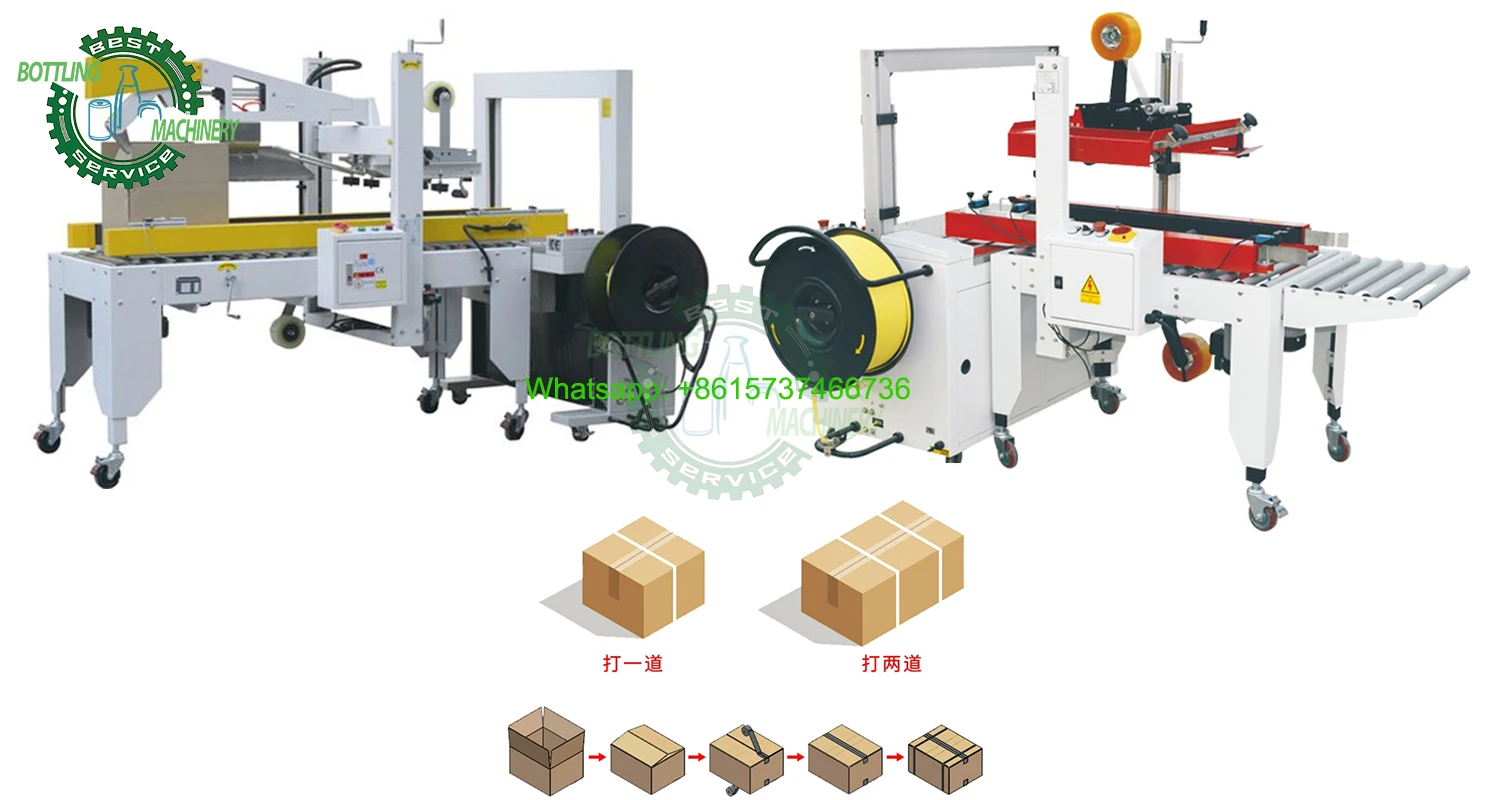

Carton Sealing and strapping machine
Automatic carton sealing strapping machine FXJ-5050+MH-101A realizes the integrated process of packing box, including sealing and straping case. It could match with the automatic unmanned production line. Automatic carton up and down sealing, two lines strapping. No need any labor. High efficient, carton sealing strapping machine is widely used in toys,Household appliances, medicine, printing, electronic,commodity filed, suitable for large quantity production.
Main characteristics of Carton Sealing and strapping machine
1.Carton sealing strapping machine do carton sealing and strapping at same time. High speed, efficient.
2.PLC control, easy operation, low failure rate
3.The carton sealing strapping machine could work alone or match with the production line
4.Adopt Imported micro switch to control the carton position
Main characteristics of Carton Sealing and strapping machine
1.Carton sealing strapping machine do carton sealing and strapping at same time. High speed, efficient.
2.PLC control, easy operation, low failure rate
3.The carton sealing strapping machine could work alone or match with the production line
4.Adopt Imported micro switch to control the carton position

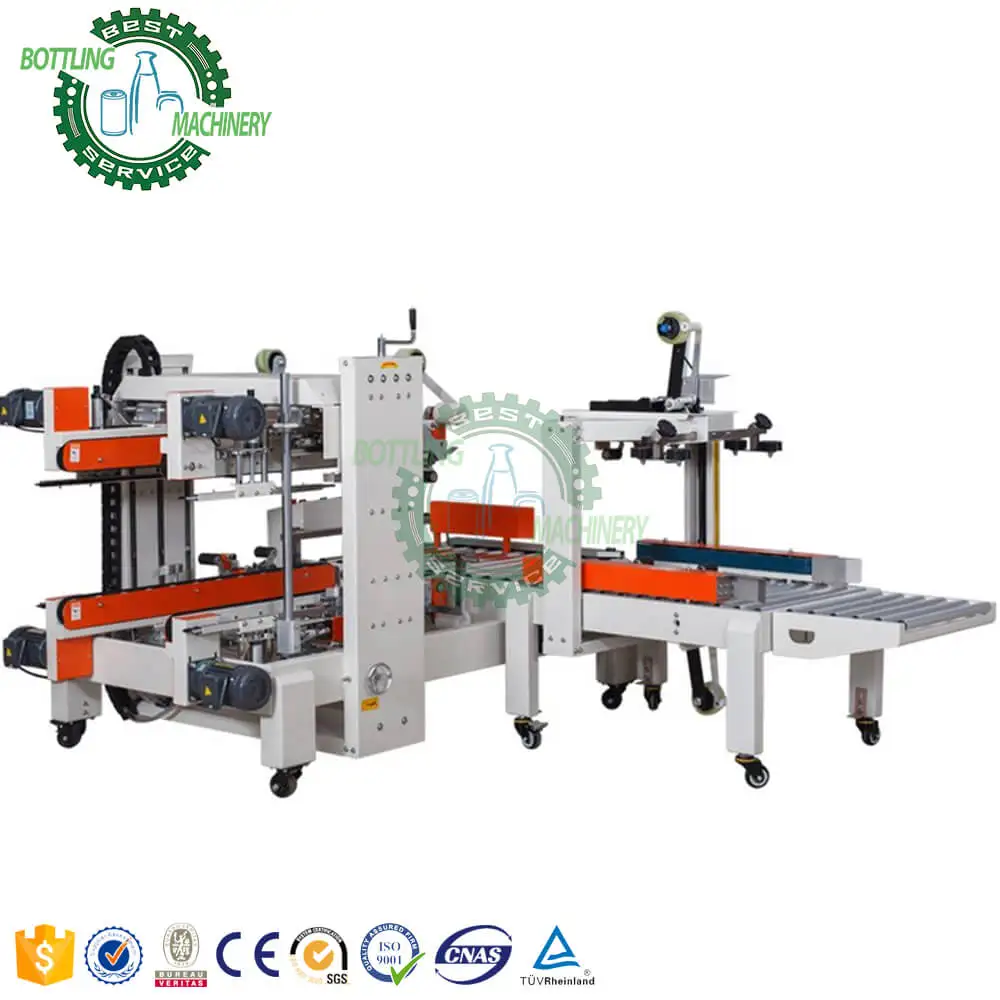

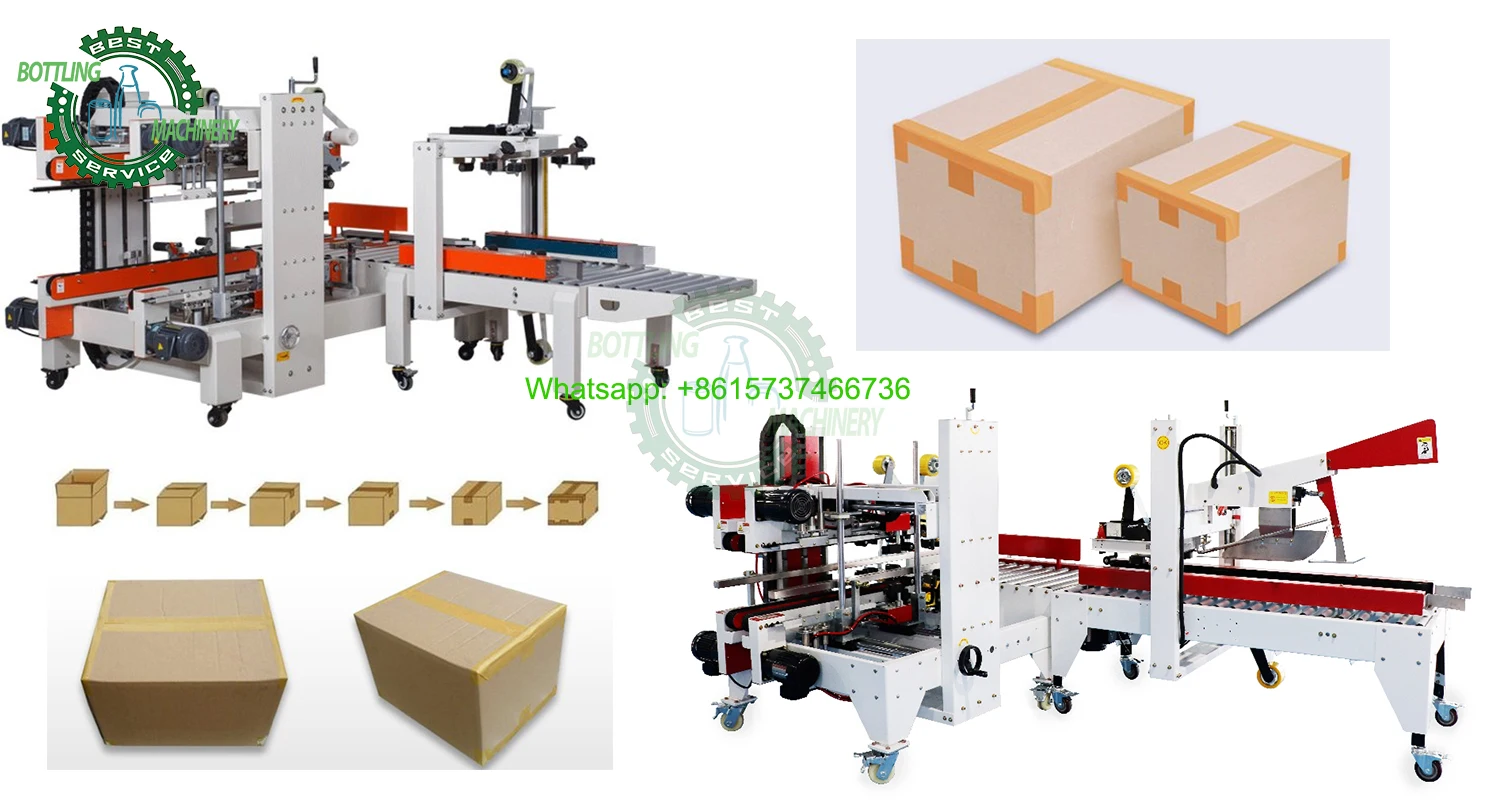

4 edge corner case sealer machine
Fully automatic four outer edge carton sealing machine was designed to eliminate costly hand taping of the four outer edges of manual sized cartons where pilfer proofing and protection of your product from outside environment is necessary. The unit includes a front side entry for a 90 degree directional carton turn before entering into the four edge sealing station.
Machine features:
•Imported parts(SCHNEIDER BRAND), electrical and pneumatic components.
•Automatically adjust the height and the width for different size of cartons.
•Advanced pneumatic control system compare with the complicated electrical control system.
•Place a 90 degree turntable if you need a system that runs straight line.
•Cutter Safety system to prevent hands form stabbed by the cutter;
•Both steel and stainless steel types.
•Photoelectricity induction system.
Machine features:
•Imported parts(SCHNEIDER BRAND), electrical and pneumatic components.
•Automatically adjust the height and the width for different size of cartons.
•Advanced pneumatic control system compare with the complicated electrical control system.
•Place a 90 degree turntable if you need a system that runs straight line.
•Cutter Safety system to prevent hands form stabbed by the cutter;
•Both steel and stainless steel types.
•Photoelectricity induction system.
Model | FXJ-P5050E |
Infeed type | L type |
Sealing speed | 480-600pcs/hour |
Max. Packing size | L500*W500*H500mm |
Min. Packing size | L340*W200*H180mm |
Power supply | 110-415V 1/3phase |
Power | 1KW 50/60HZ |
Air pressure | 6kg/cm³ |
Applicable tape | 48/60/75mm (choose one type ) |
Machine size | L1910*W1150*H1500mm |
Machine weight | 440kg |
company profile
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service,
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case.
2. The delivery date of this machine is within 10-25 days after payment.
2. The delivery date of this machine is within 10-25 days after payment.
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
Sachet water packing line
Contact us
MS YOLANDA
5 years’ experience in foreign trade sales
Major in International business at Yantai UniversityWhatsapp/Wechat: +8615190564896Email:yolanda@zjgbottlingmachinery.com
MR PHIL LANE
8 years’ experience in foreign trade sale
Major Architecture, skilled CAD drawing, physical structureChina College English Test-6
Whatsapp/Wechat: +8615737466736
EMail:admin@zjgbottlingmachinery.com
EMail:admin@zjgbottlingmachinery.com
MR ANDY
6 years in foreign trade sales
Major in mechanical engineering at universityProficiency in photoshop drawing
Whatsapp/Wechat: +8613306249269
Email:sales1@zjgbottlingmachinery.com
Email:sales1@zjgbottlingmachinery.com
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
