Multifunctional Small Fruit Freezing Machine Household Laboratory Vacuum Lyophilization Machine
- Category: >>>
- Supplier: Zhengzhou Zhiyin Industry Co. Ltd.
Share on (1600964682909):
Product Overview
Description
Product Description
Multifunctional Small Food Fruit Freeze Drying Machine Household Lab Vacuum Lyophilization machine
Specification
Multifunctional Small Food Fruit Freeze Drying Machine Household Lab Vacuum Lyophilization machine
Product Name: | Vacuum Freeze Dryer |
Model: | HDF-40 |
Power: | 1550W |
Dimension: | 615*750*900MM |
Cold trap temperature: | ≤-40°C |
Drying temperature: | -25~+60℃ |
No load: | <5Pa |
Water catch capacity: | 4KG |
Partition: | four layers with heated partition |
Material tray size: | 200mm*425MM |
Multifunctional Small Food Fruit Freeze Drying Machine Household Lab Vacuum Lyophilization machine
Model number | ZYD-1 | ZYD-4 | ZYD-6 |
Freeze-dried area | 0.1㎡ | 0.4㎡ | 0.6㎡ |
Cold trap temperature | -40℃ | -40℃ | -40℃ |
Ultimate vacuum | <5Pa | <5Pa | <5Pa |
Handling capacity (KG/ batch) | 1~2kg | 4~6kg | 6~8kg |
Plate spacing (mm) | 45 | 45 | 50 |
Voltage | 220V/50HZ-Other | 220V/50HZ-Other | 220V/50HZ-Other |
Power supply (KW) | 0.75KW | 1.1KW | 2.3KW |
Weight(KG) | 50KG | 80KG | 120KG |
Tray quantity | 3 | 4 | 4 |
Material tray size(mm) | 140*278mm | 200*450mm | 310*430mm |
Overall dimension (mm) | 670*600*780mm | 700*630*900mm | 730*810*1180mm |
Multifunctional Small Food Fruit Freeze Drying Machine Household Lab Vacuum Lyophilization machine
Features:
(1) This machine adopts Secop (Danfoss) compressor for refrigeration, which has rapid refrigeration and low cold trap temperature.
(2) LCD screen control system, easy to operate and powerful.
(3) The door of the drying chamber is made of colorless transparent plexiglass, the samples are clear and intuitive, and the whole process of freeze-drying can be observed.

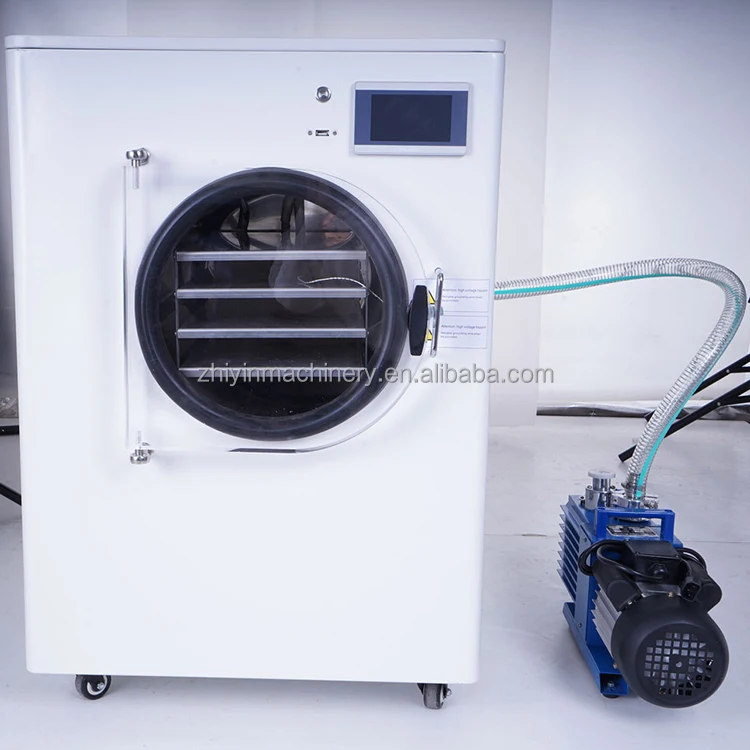

(4) The connection between the vacuum pump and the host adopts the international standard KF quick connector, which is simple and reliable.
(5) This machine has stable performance, easy operation and low noise.
(2) LCD screen control system, easy to operate and powerful.
(3) The door of the drying chamber is made of colorless transparent plexiglass, the samples are clear and intuitive, and the whole process of freeze-drying can be observed.
(4) The connection between the vacuum pump and the host adopts the international standard KF quick connector, which is simple and reliable.
(5) This machine has stable performance, easy operation and low noise.
Industrial Vacuum Freeze Drying Machine

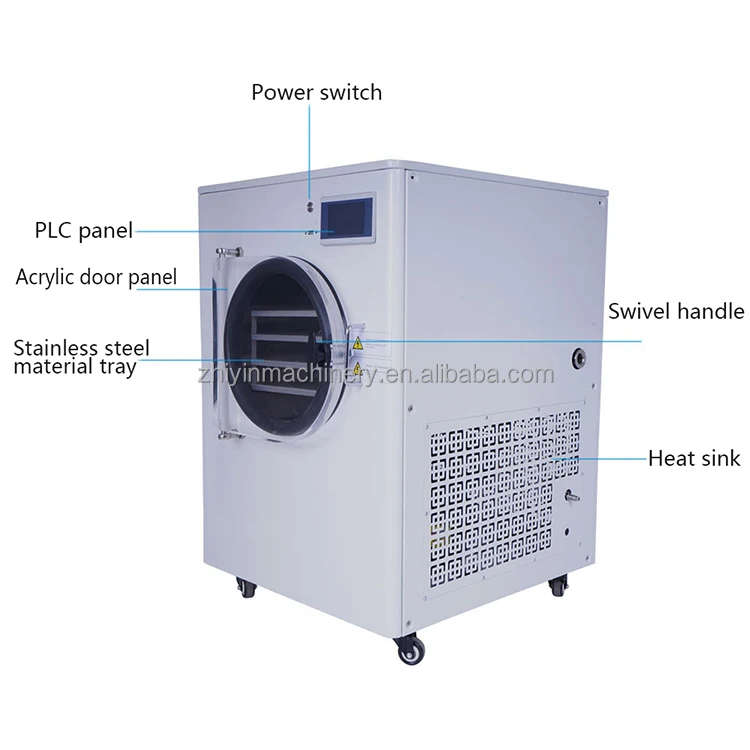

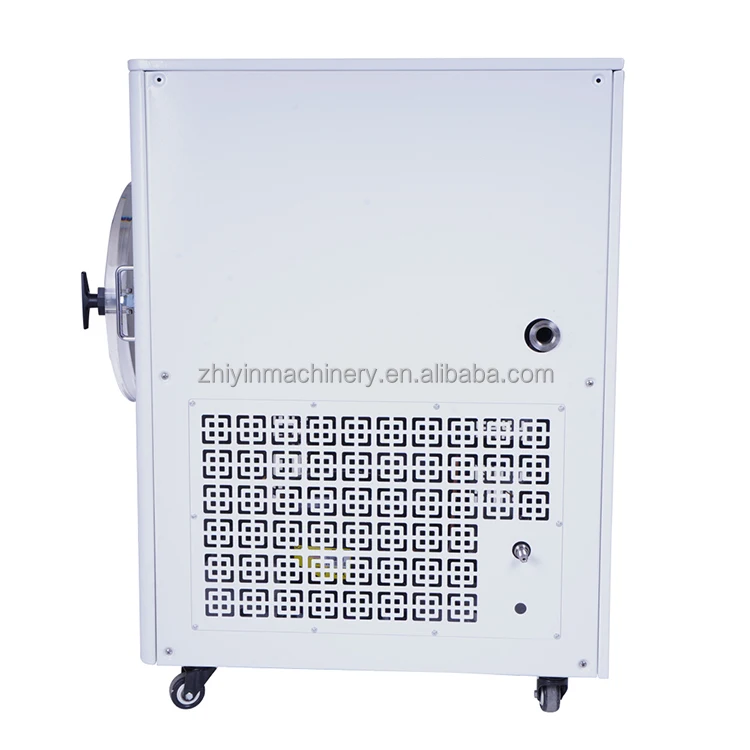

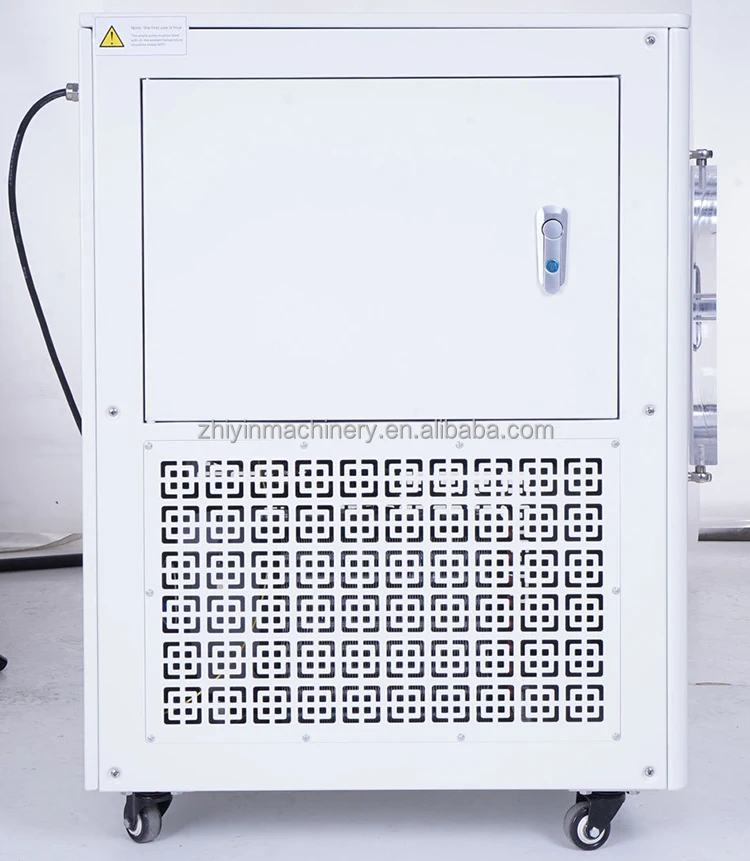

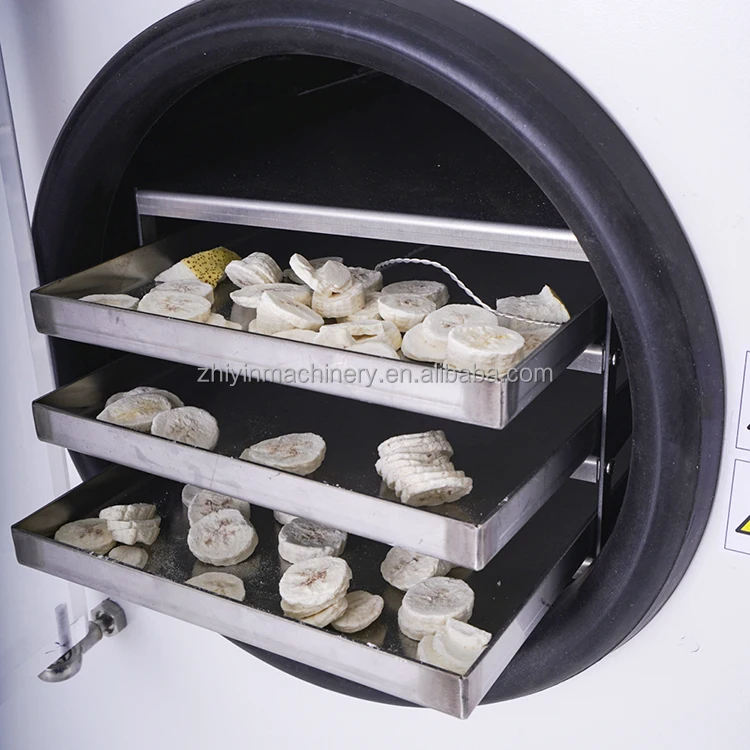

Product side display and exquisite workmanship
Industrial Vacuum Freeze Drying Machine

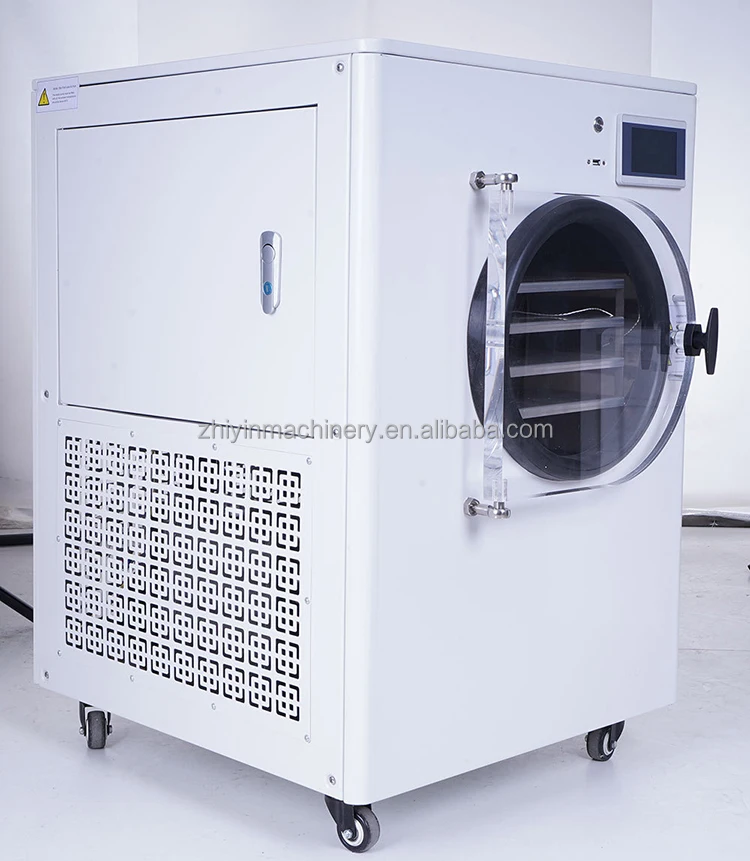

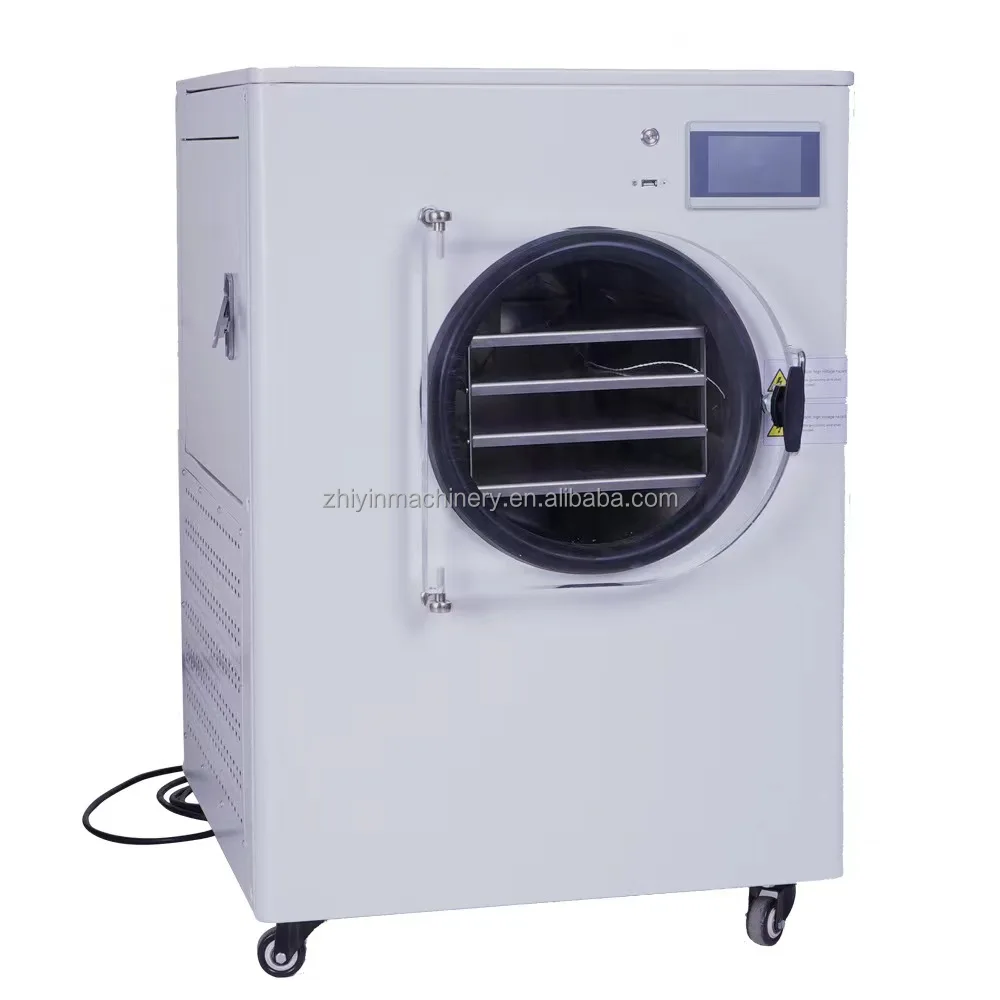

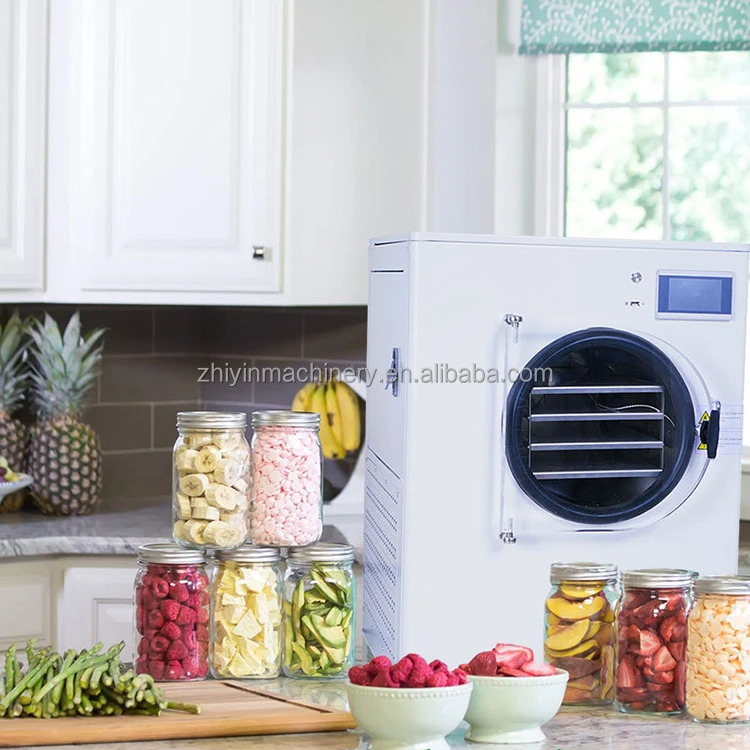

The overall appearance is small and easy to operate
