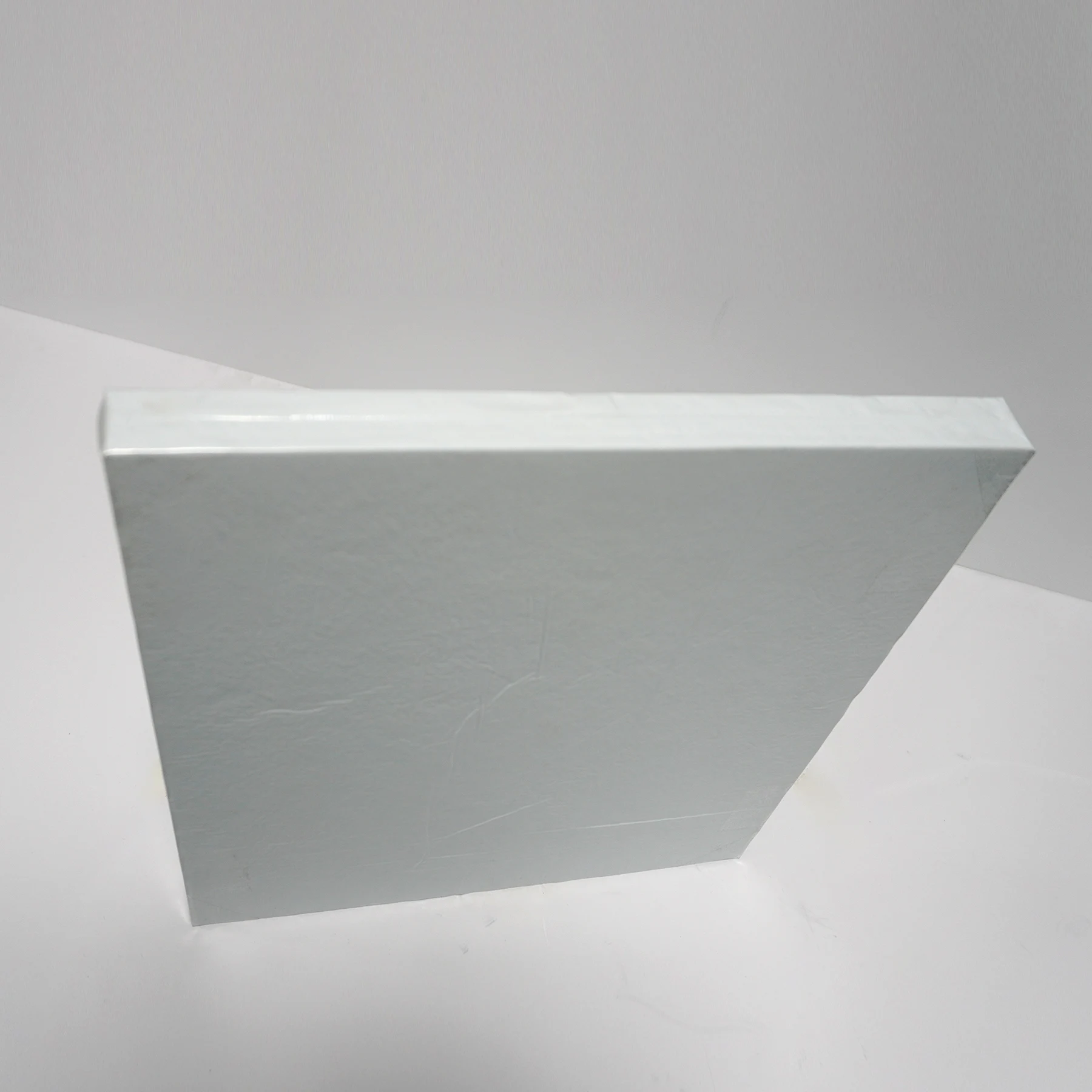

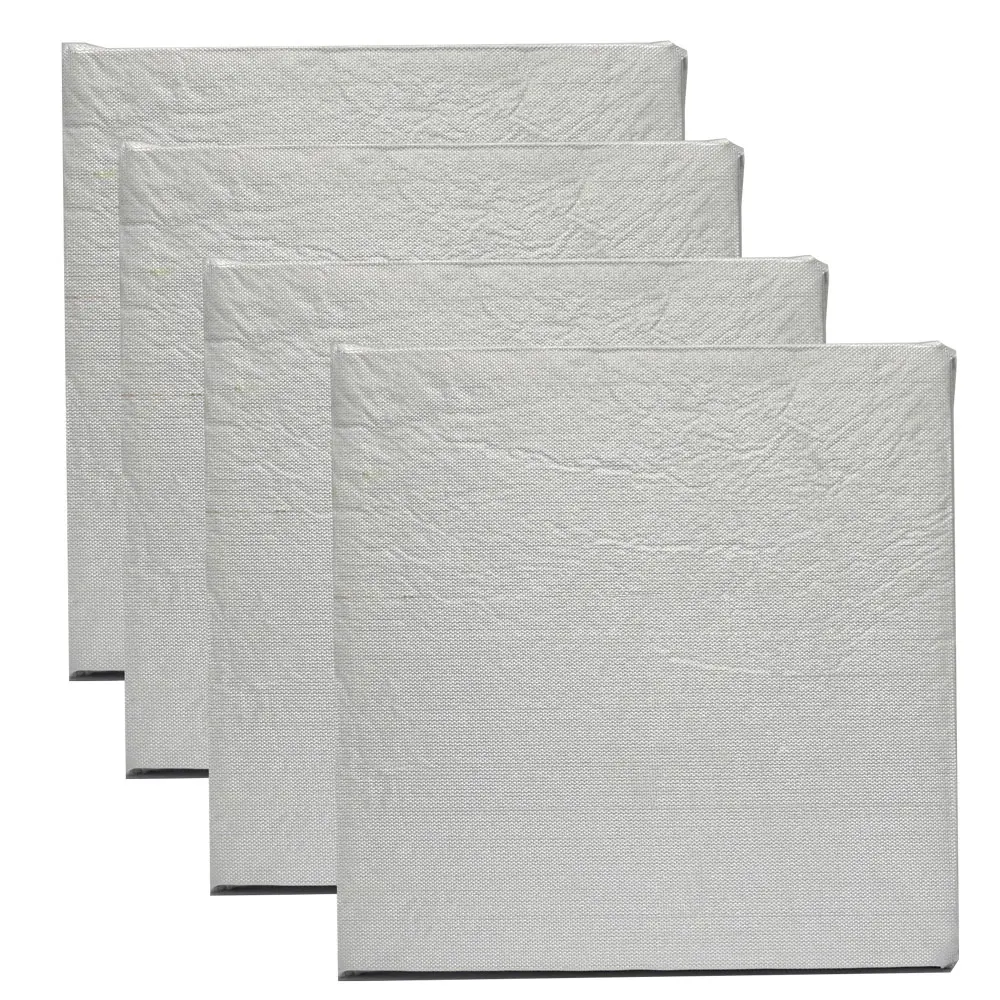

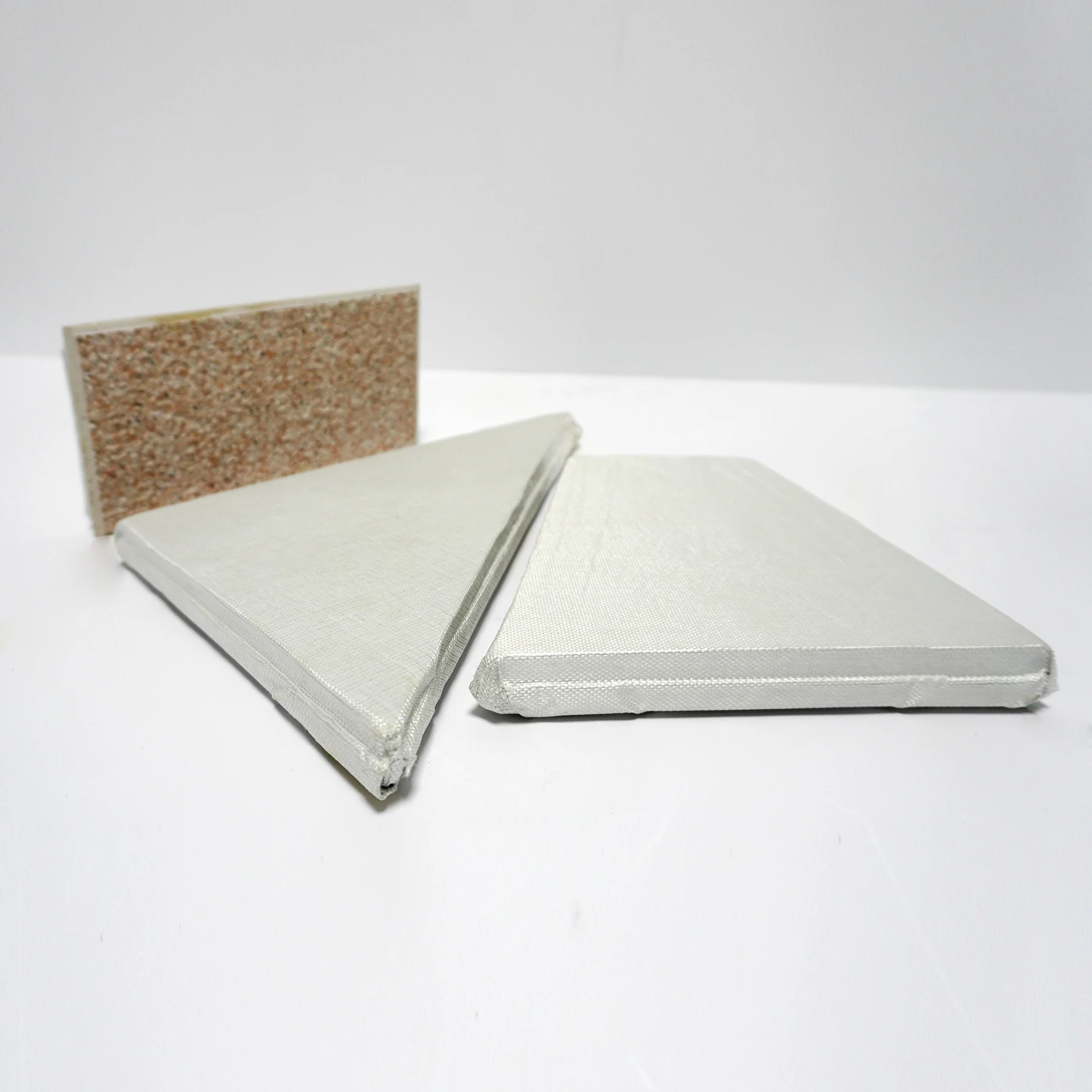

Wholesale silica powder vig board of fumed silica covered fiber glass cloth convenient for building paste
- Category: >>>
- Supplier: Sichuan Linglinghao Technology Co. Ltd.
Share on (1600964700892):
Product Overview
Description
Product Description

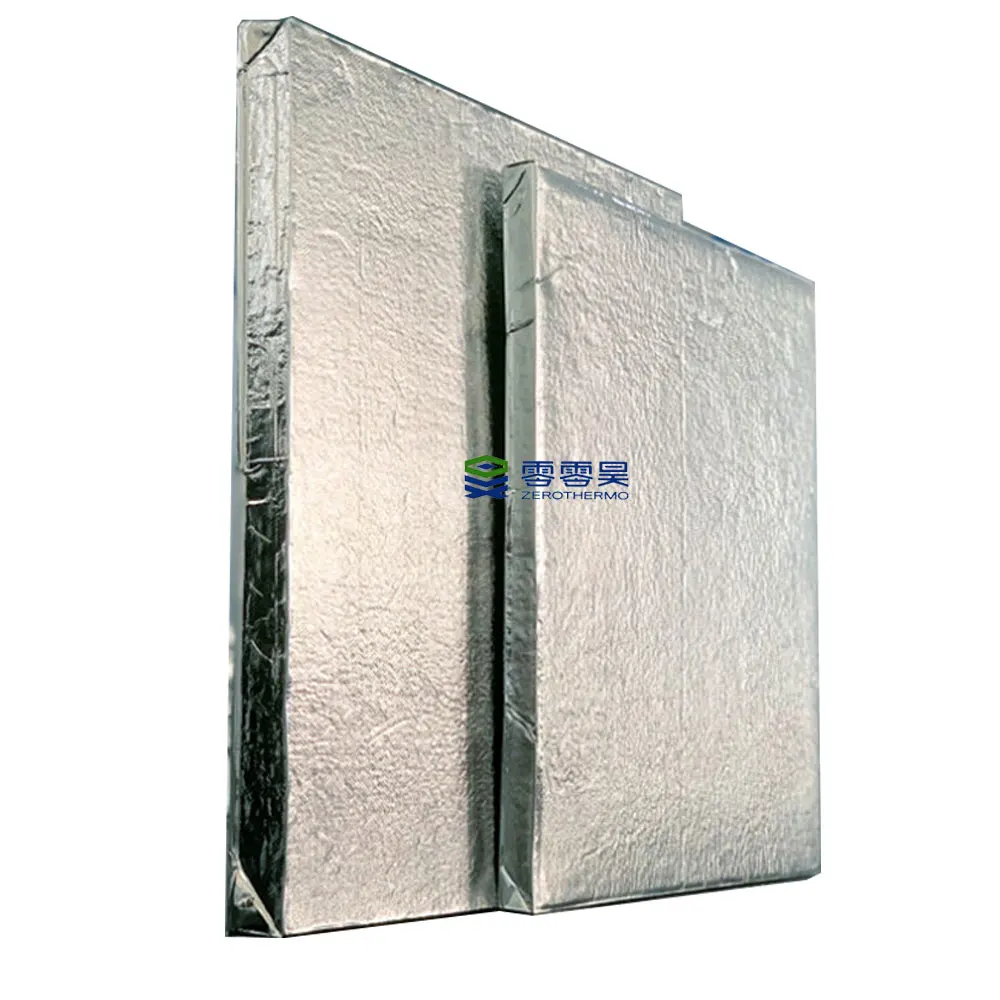

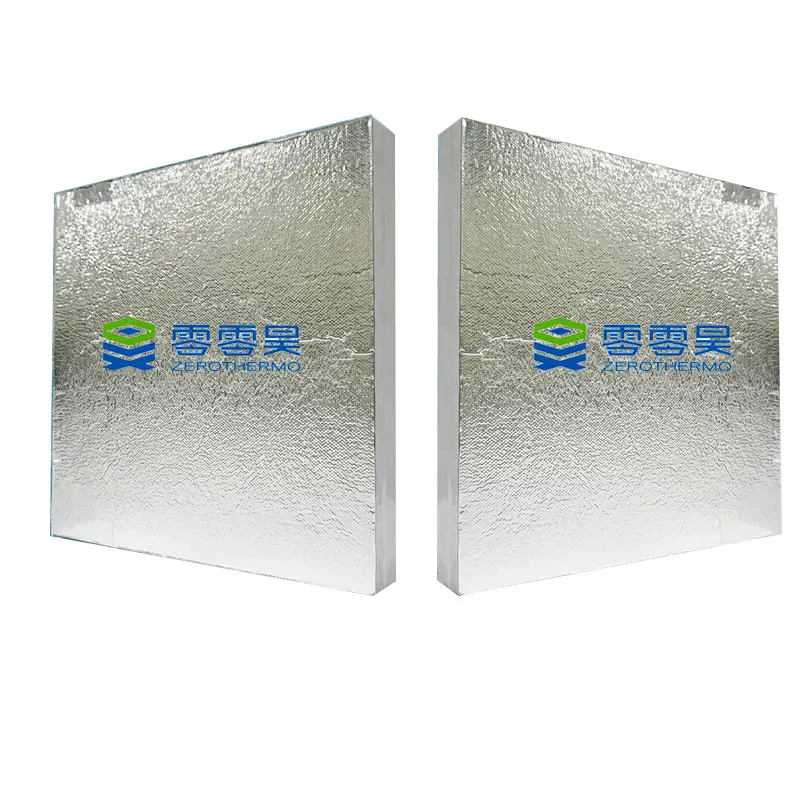

Fumed Silica Vacuum Insulation Panel for Low Temperature Cold Chain Logistics
Zerothermo Fumed silica Vacuum insulation panels VIPs’ thermal conductivity is less than 0.0045w / (m.k), which is the best cold chain insulation material. High insulation performance up to 10 times better than traditional materials, also has good thermal insulation performa nce and energy saving, non-toxic,fireproof,economic, environmental benefits. Its thinner layer thickness make more space for incubator and reach the best space utilization than ever.
Zerothermo Vacuum Insulated panels( VIP) are designed for space, weight and thermal management in low temperature-controlled range applications , such as cold chain logistics, especially used for vaccine cold boxes, ultra-low temperature freezers, cold storage containers, household refrigerators. Zerothermo Team are focused on innovating vacuum technology for many years, all our products compliance with REACH and ROHS, please rest assured to purchase.
VIP Advantages:
Maximum Thermal Protection (Low Thermal Conductivity ≤ 0.0045 W/mK)
Thin Design,(5-50mm thickness)
Consists of 100% Non-Toxic Materials with Recycled Materials
Meet or Exceed Energy Efficiency Regulations and Standard Very Low Global Warming Potential
Fumed Silica cored material more than 50 years life span
Standard size:
Fumed Silica cored material more than 50 years life span
Standard size:
300mmx600mmx25mm
400mmx600mmx25mm
800mmx600mmx25mm
900mmx600mmx25mm
or customized size according to customer's size&design requirements.
or customized size according to customer's size&design requirements.
Product Features
Super Insulation Performance
The microporous core material itself has good insulation performance. After being sealed in vacuum, its insulation performance becomes dramatically better, its thermal conductivity can reach as low as 0.0045W/(m·K), even 4 times better than Aerogel.
Good Fireproof Performance
As its main composition is fumed silica, the non-organic material, the fireproof level of VIP can reach Level A, compared with
most part of organic materials as XPS, EPS, or PU, the VIP can be safer during application.
most part of organic materials as XPS, EPS, or PU, the VIP can be safer during application.
Stable Quality
Several measures have been taken to assure the quality of products. And we guarantee the long-term stability of the vacuum degree of VIP. And Its thinner layer thickness make more space for incubator and reach the best space utilization than ever.
Economic & Efficiency
As its main composition is fumed silica, the non-organic material, no toxic or polluted gas emission. When it is being applied practically, the insulation thickness can be dramatically reduced, which saves considerable effective
space.
space.
Structure of VIP
Composed by microporous fumed silica core materials with high performance gas barrier, with an aluminum layer, prevents vacuum failure.
Specification
item | value |
Warranty | 5 years |
After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement |
Project Solution Capability | graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, ODM/Customized |
Application | cold chain logistics cooler box freezer |
Design Style | Modern |
Place of Origin | China |
Sichuan | |
Brand Name | Zerothermo |
Model Number | G018 |
Type | Insulation Panel |
Material | fumed silica |
Size | Standard or Customized Sizes |
Thickness | 5-50mm |
Thermal Conductivity | ≤0.0045W/(m.K) |
Density | 180kg/m3 |
Compression Strength | ≥100KPa |
Tensile Strength | ≥80KPa |
Working temperature | -80/+70℃ |
Tolerance(Length*Width) | -3/+2 |
Tolerance(Thickness) | ±1mm |
Packing | Carton with Pallet |

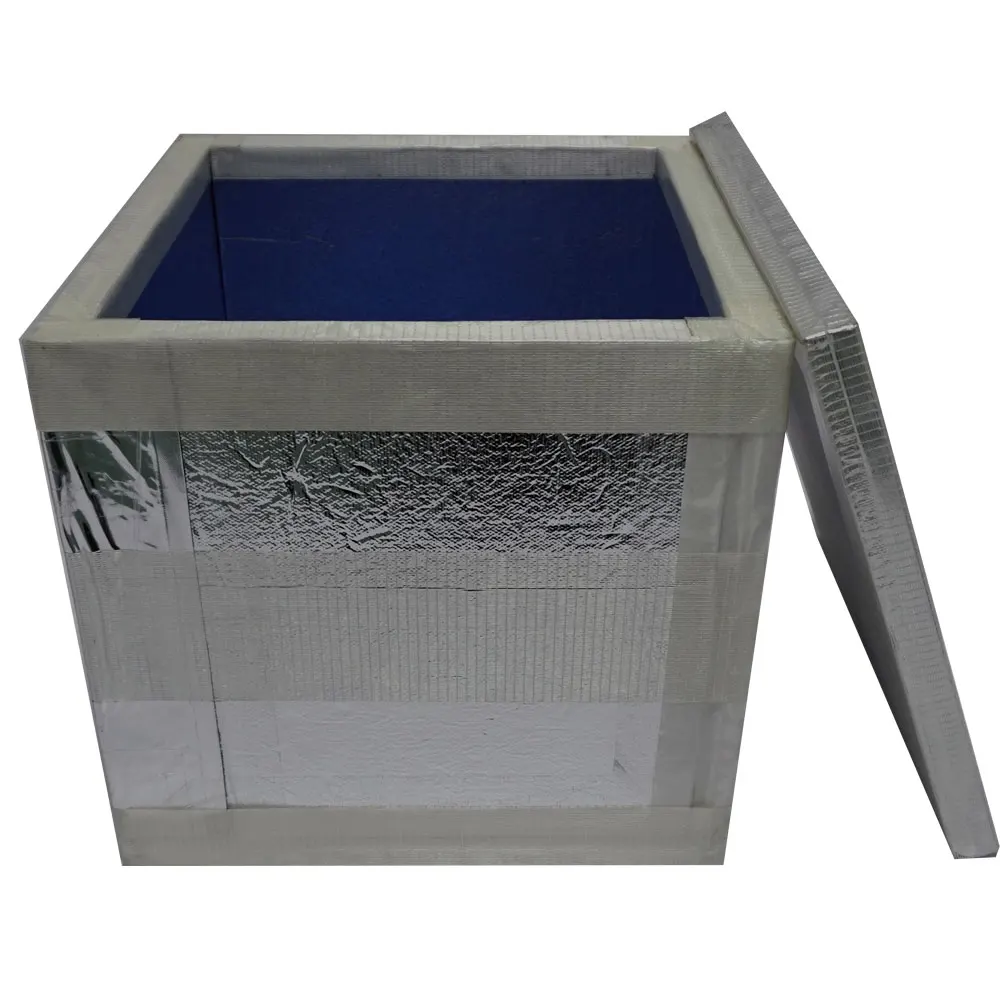

Application

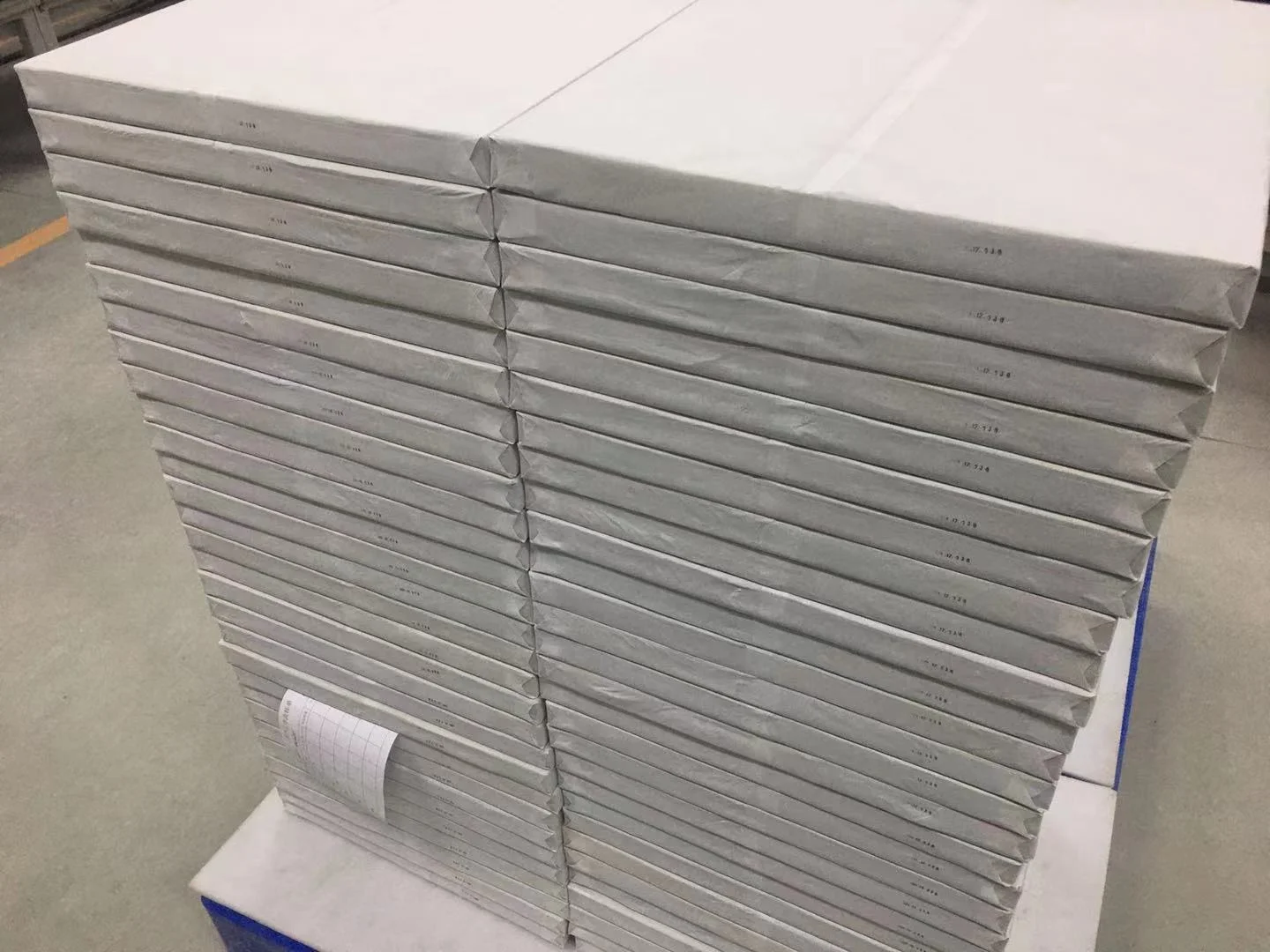

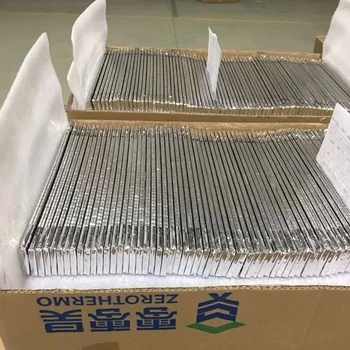

Packing & Delivery
Packing with Strengthened Carton on Pallet

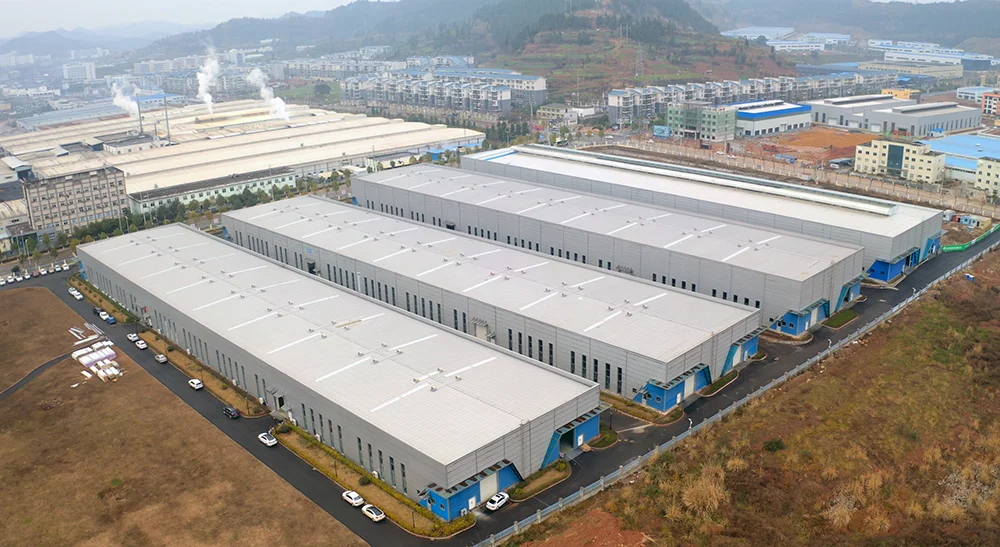

Company Profile
Zerothermo Technology Co., Ltd. is a high-tech company focusing on R&D, production, Sales and service of vacuum insulation technology. The factory is located in Sichuan and covers an area of 70,000 sqms. Main products include vacuum insulation panel, integrated vacuum insulation and decoration panel, fabricated vacuum insulation and decoration wall panel, vacuum glass, vacuum insulated doors and windows, solar photovoltaic glass, healthy and energy-saving building, cold-chain insulation material and composite material.
The company has a high-level innovative R&D team and is one of the editing institutions of Vacuum Insulation Panel National Standard. Zerothermo has participated in multiple construction of demonstration projects led by Ministry of Housing and Urban-Rural Development of China, which have been selected into Important Projects Library of Made in China 2025.
Since the founding of the company, we have been searching for the best solutions for China's Building Insulation. By serious attitude and professional spirit, we will devote every effort to promote the development of china's energy saving industry.
The company has a high-level innovative R&D team and is one of the editing institutions of Vacuum Insulation Panel National Standard. Zerothermo has participated in multiple construction of demonstration projects led by Ministry of Housing and Urban-Rural Development of China, which have been selected into Important Projects Library of Made in China 2025.
Since the founding of the company, we have been searching for the best solutions for China's Building Insulation. By serious attitude and professional spirit, we will devote every effort to promote the development of china's energy saving industry.
Team & Exhibition
Certification
FAQ
1. who are we?
We are based in Sichuan, China, start from 2017,sell to North America(60.00%),Western Europe(20.00%),Southeast Asia(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
vacuum insulation panel,microporous insulation panel,vacuum glass,flexible nano thermal insulation blanket,fire door insulated material
4. why should you buy from us not from other suppliers?
We have one of the biggest production line of vacuum insulation panel and vacuum glass in southwestern China. We have the ISO certification, and our products have passed ROHS and REACH test of SGS. Products are widely used and appreciated in the market.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,French
We are based in Sichuan, China, start from 2017,sell to North America(60.00%),Western Europe(20.00%),Southeast Asia(10.00%),Eastern Asia(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
vacuum insulation panel,microporous insulation panel,vacuum glass,flexible nano thermal insulation blanket,fire door insulated material
4. why should you buy from us not from other suppliers?
We have one of the biggest production line of vacuum insulation panel and vacuum glass in southwestern China. We have the ISO certification, and our products have passed ROHS and REACH test of SGS. Products are widely used and appreciated in the market.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,Portuguese,French
