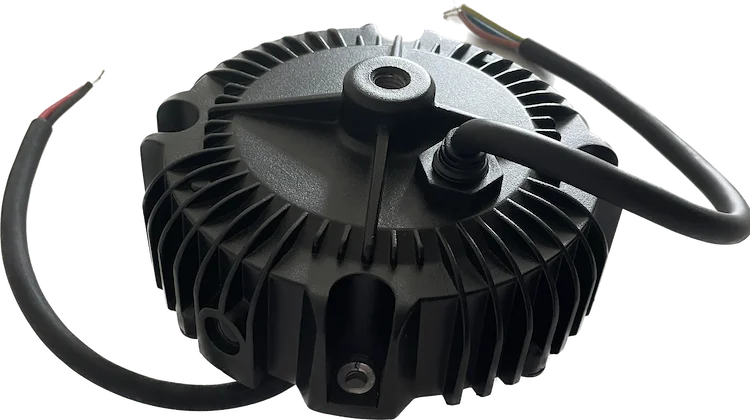

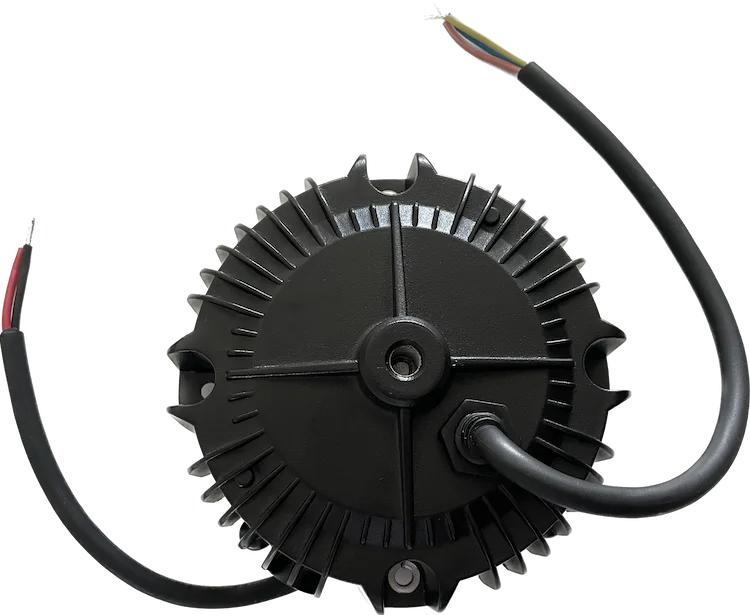

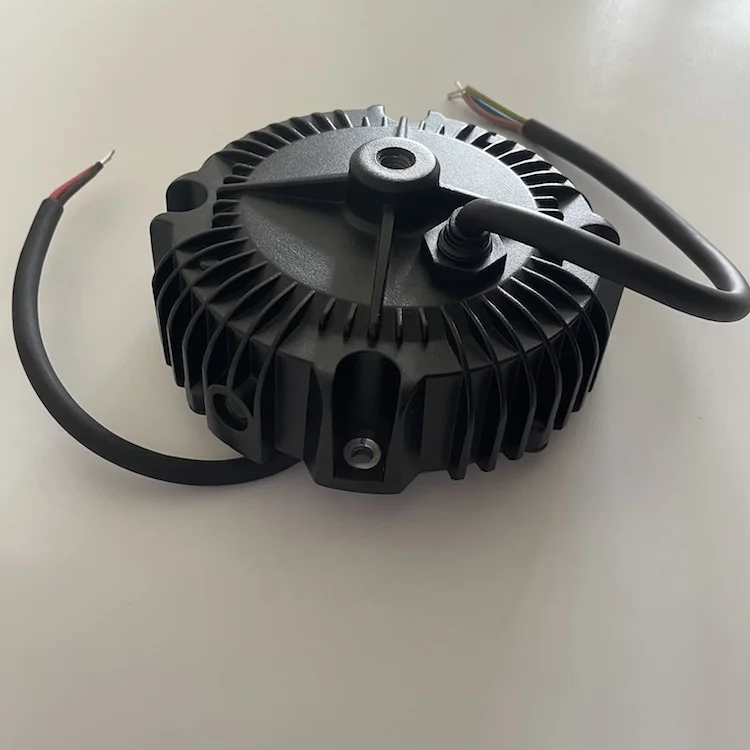

150W 200W UFO waterproof IP67 DRIVER XGB 160 series Constant power mode led driver
- Category: >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (1600964928218):
Product Overview
Description
MODEL NO.: | XBG-160-A |
POWER: | 160W |
INPUT VOLTAGE | 90~305VAC |
APPLICATIONS: | led bay lighting/led stage light/spot lighting/Explosion-proof lighting... |
Wattage :
160W
160W
Features :

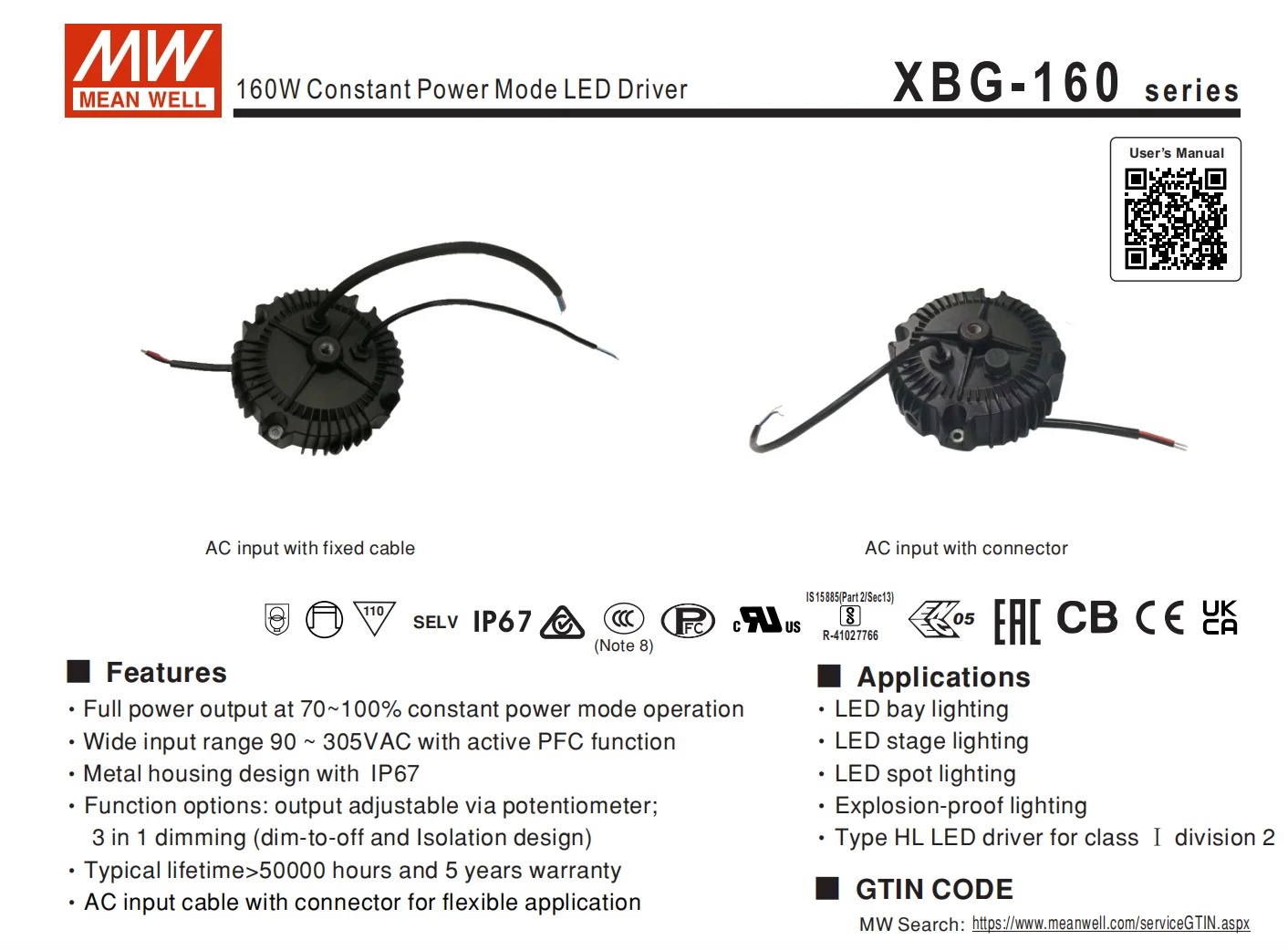

XBG-160 series is a 160w AC/DC LED driver featuring the constant power mode. XBG-160 operates from 90-305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40 degree ~ 90 degree case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-160 series comply with the latest version of IEC61347/GB7000. 1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.
XBG-160 series is a 160w AC/DC LED driver featuring the constant power mode. XBG-160 operates from 90-305VAC and offers with different rated current ranging between 2850mA and 4100mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40 degree ~ 90 degree case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XBG-160 series comply with the latest version of IEC61347/GB7000. 1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both users and luminaire system during installation.

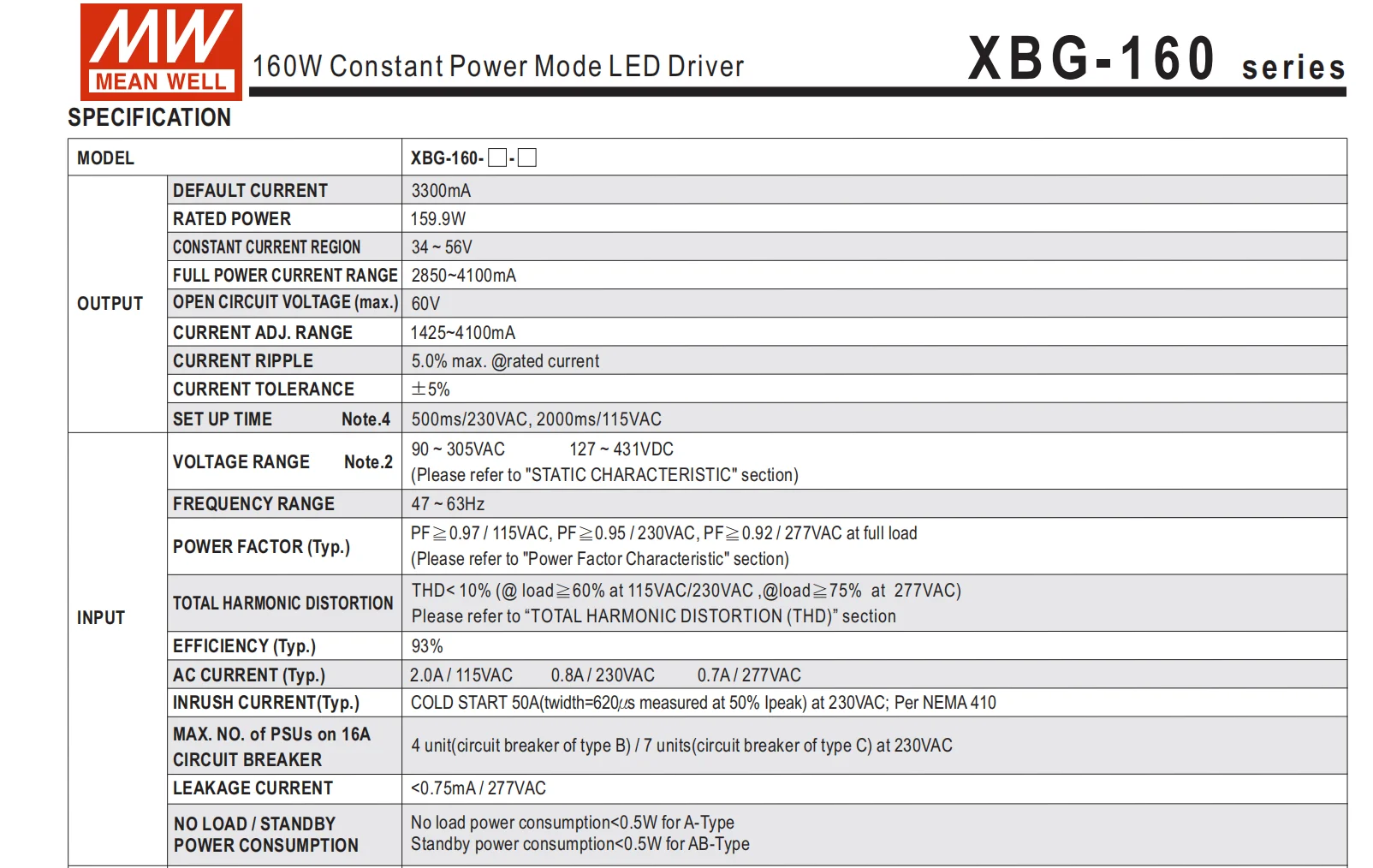

Product details
Model No. | XBG-160-A |
Rated Current | 3.3A |

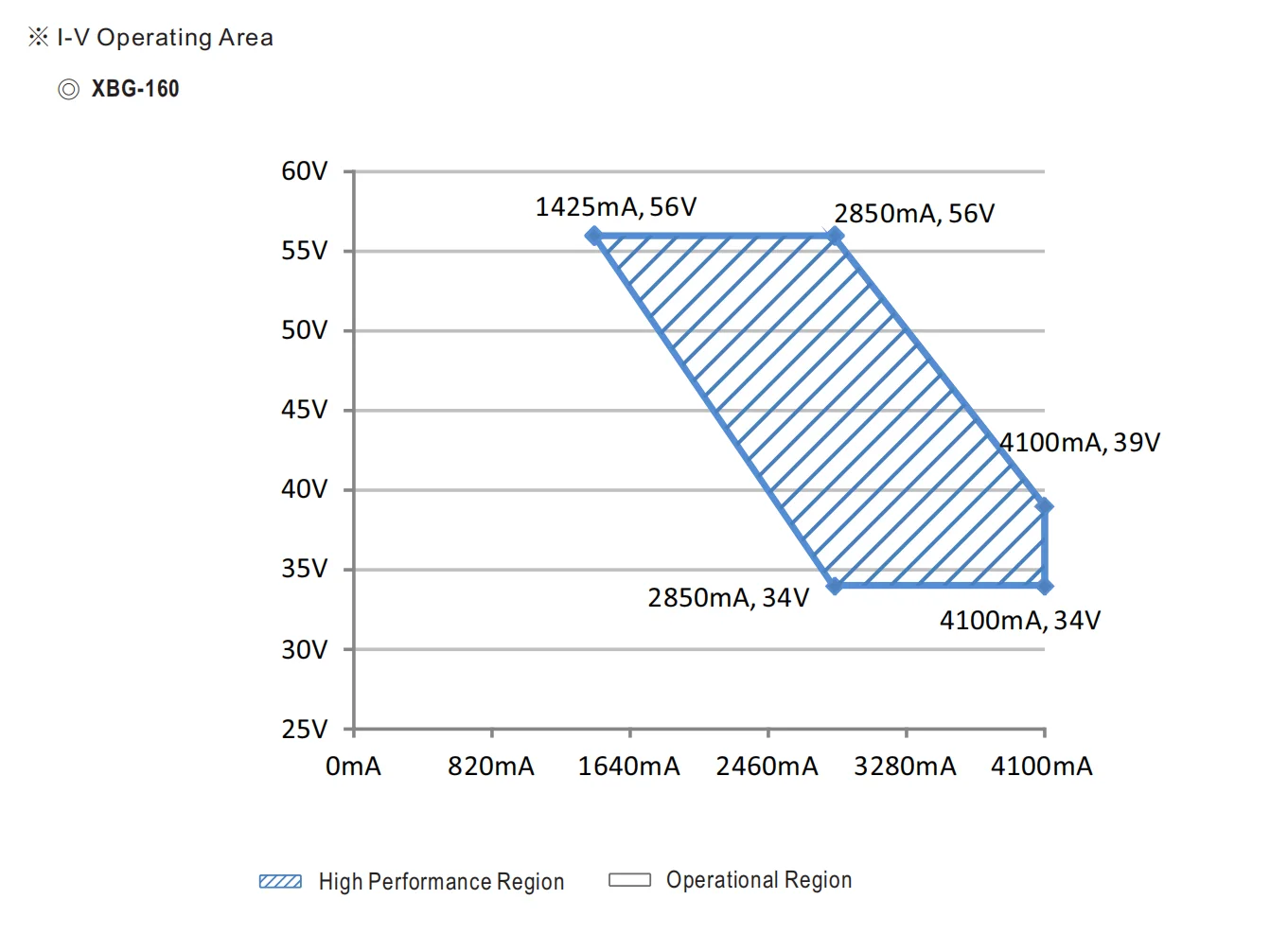

Constant current region | 34-56V |
Rated Power | 100VAC-305VAV |
EFFICIENCY (Typ.) | 93% |
Current ADJ. RANGE | 1.425-4.1A |
Dimensions and weight | 151.5*60MM (D*H)/1.25KG/pc |
Package | 8PCS/CARTON, WEIGHT 11.5KG. |

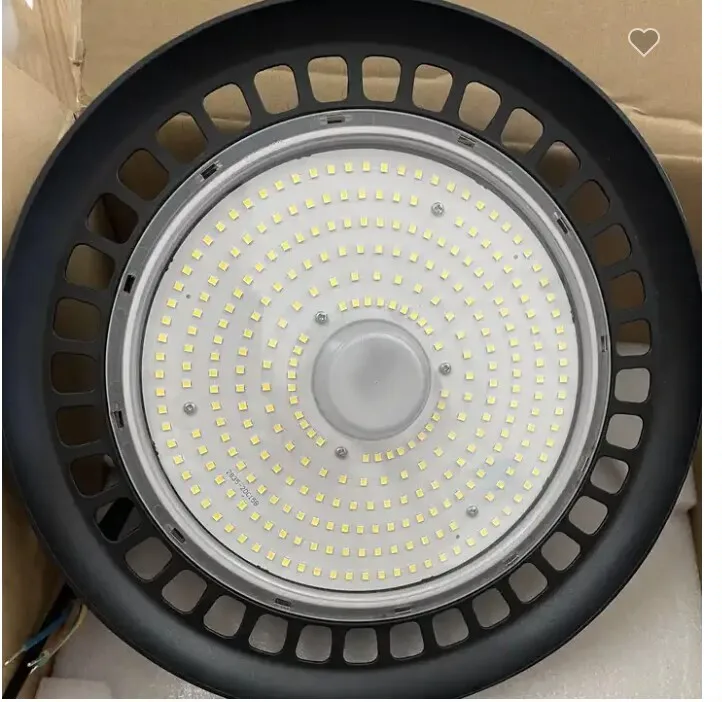

Product Application
