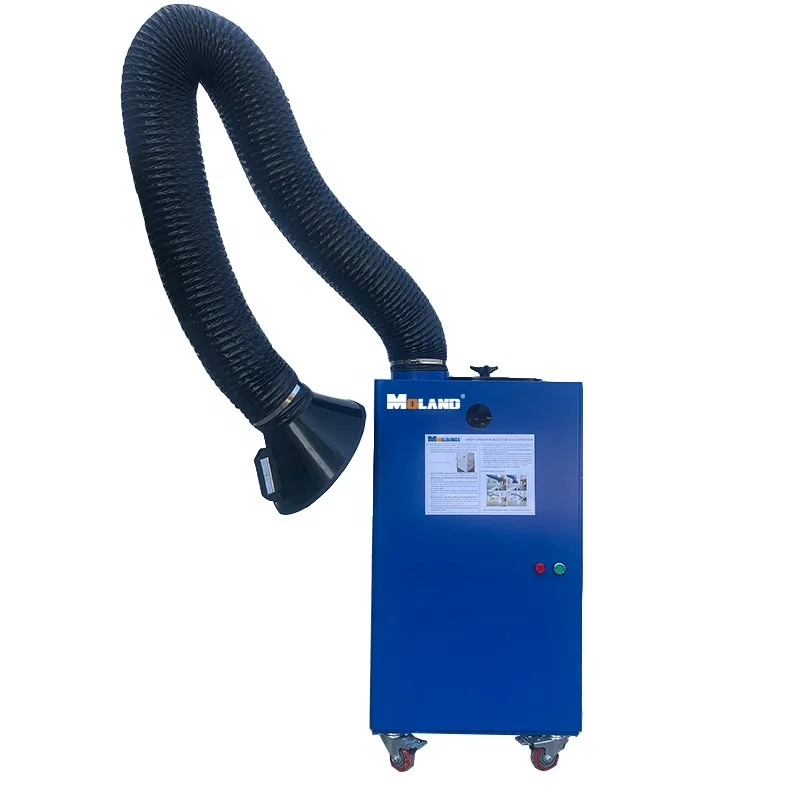

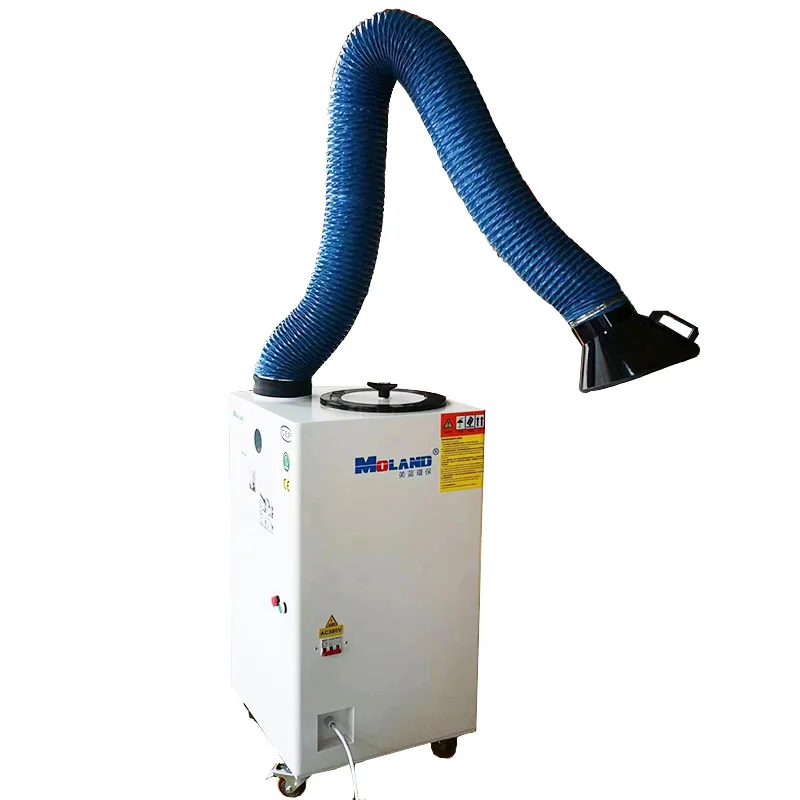

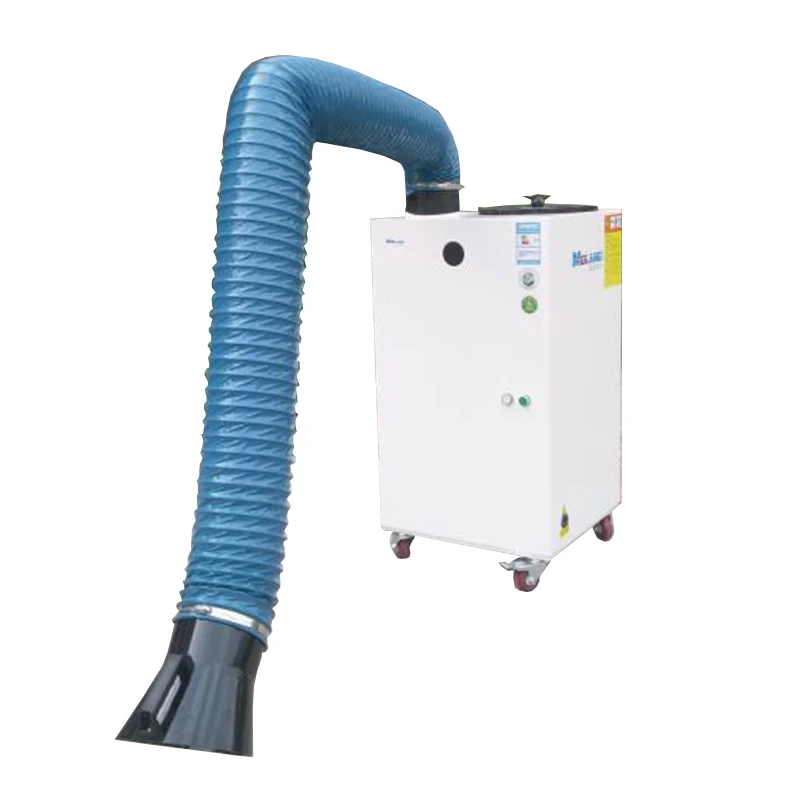

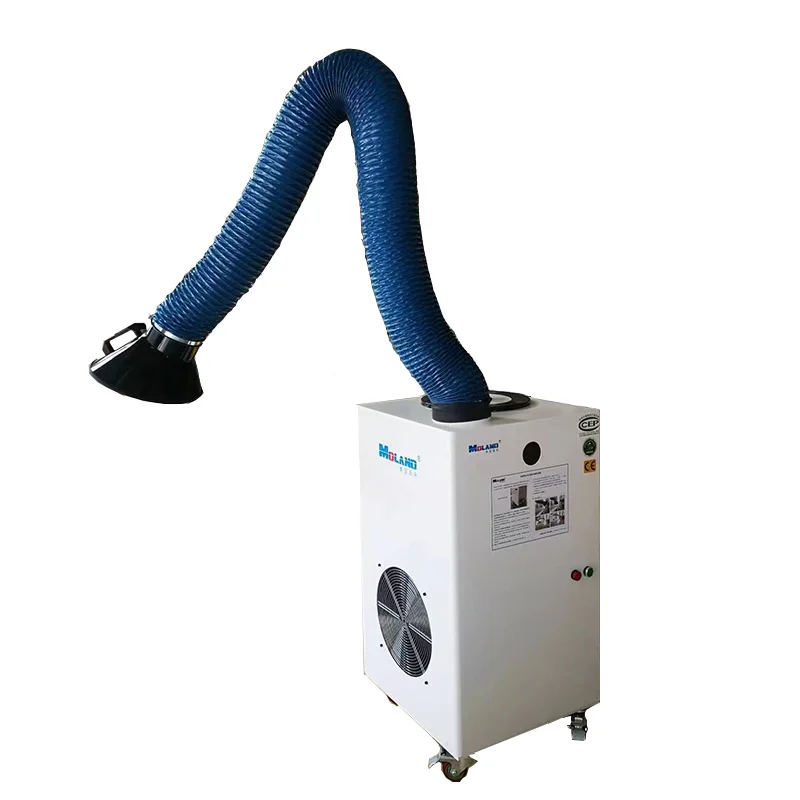

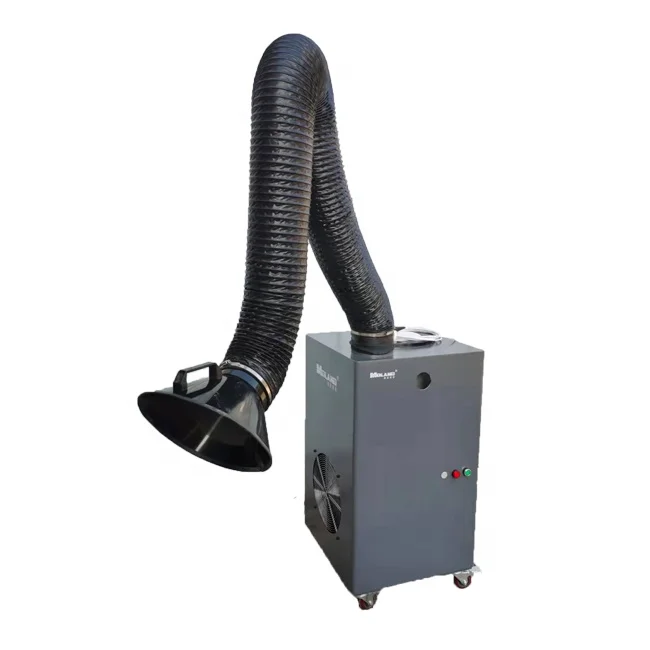

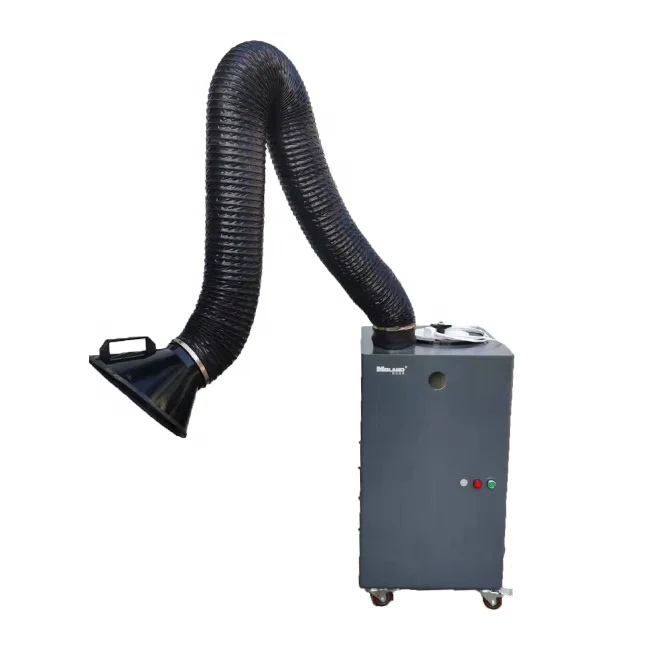

Filter Cartridge Mobile Welding Dust Collector Fume Collector
- Category: >>>
- Supplier: Shandong Moland Environmental Tech Co. Ltd.
Share on (1600964946322):
Product Overview
Description
Product Specification
Model | MLWF120 |
Motor Power | 1.1 KW |
Working Voltage | 220V 50Hz |
Air Volume | 1500 m^3/h |
Filter Efficiency | 0.3um 99.9% |
Filter Material | Flame retardant coated polyester fiber |
Cleaning Mode | Manual cleaning |
Filter Area | 8m^2 |
Noise Level | 65 dBA |
Size | 550*550*1050mm |
Weight | 90kg |
Logo | Moland or customized |
Color | White or customized |
Application | It is suitable for non-oil welding conditions such as electric welding, argon arc welding, second protection welding and so on. |

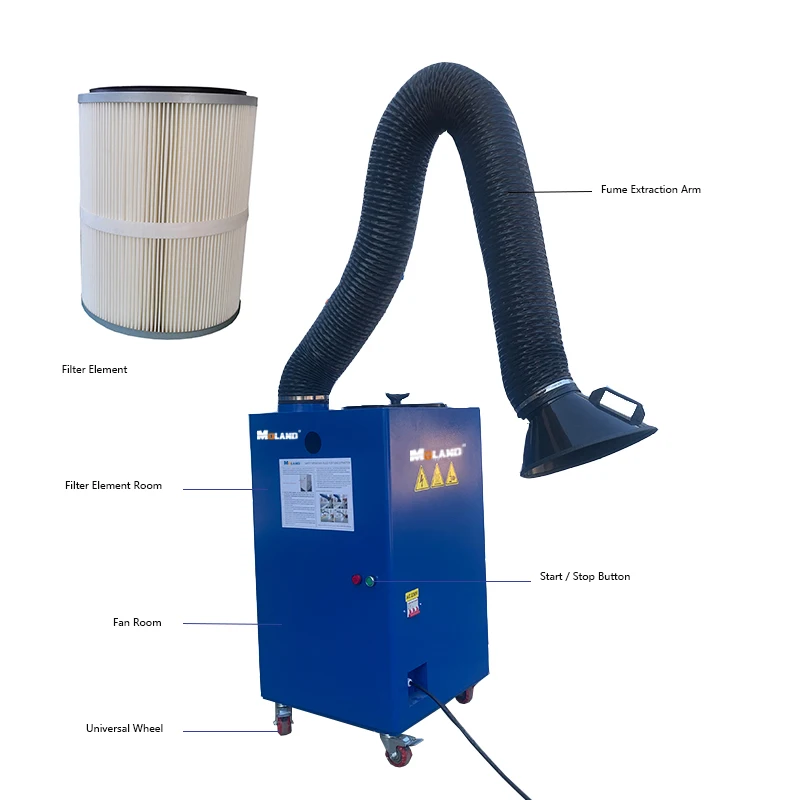

Details Images
Extraction Arm
Flexible extraction arm is equipped.
Extraction Arm Size:
Φ160*2000mm
Φ160*3000mm
Extraction Arm Type:
Internal skeleton extraction arm
External skeleton extraction arm
Flexible extraction arm is equipped.
Extraction Arm Size:
Φ160*2000mm
Φ160*3000mm
Extraction Arm Type:
Internal skeleton extraction arm
External skeleton extraction arm
Cartridge Filter
Size: Φ325*400mm
Cleaning mode: manual cleaning
Filtration efficiency: 0.3um >99.9%
Size: Φ325*400mm
Material: Flame Retardant Coated polyester fiber
Qty: 1 pcReplacement: Quick disassembly chuck
Filter area: 8m^2Cleaning mode: manual cleaning
Filtration efficiency: 0.3um >99.9%
Choose brand motor, stable performance, low noise.

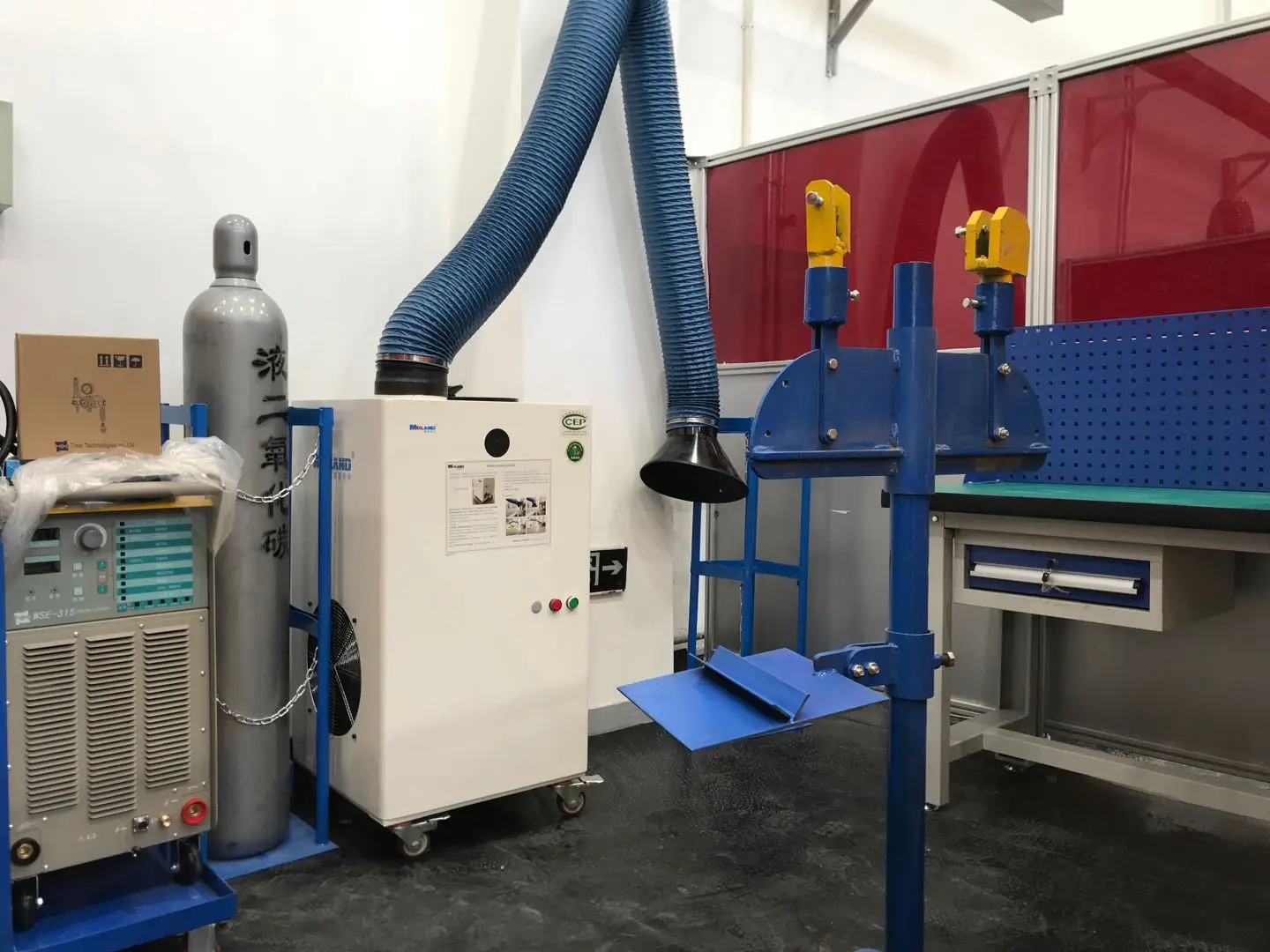

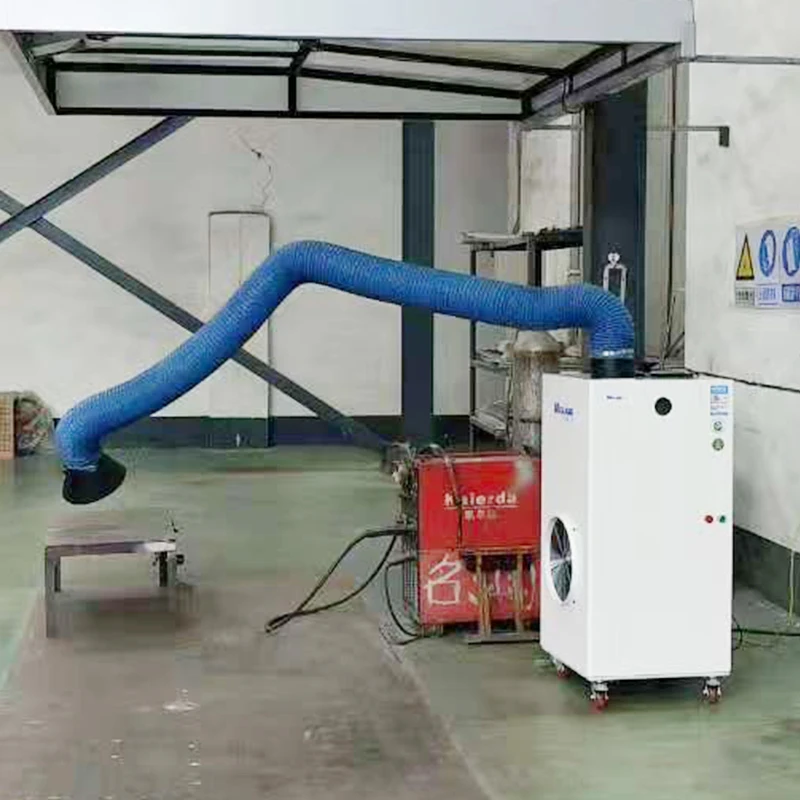

With universal moving wheels, you can freely move it to anywhere between welding stations.
Company Profile
Shandong Moland Environmental Tech. Co.,Ltd
Shandong Moland Environmental Tech. Co.,Ltd is located in No. 11889 Jingshi West Road, Changqing District, Jinan City, Shandong, China, established in 2016. It’s an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification systems.
The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries.
The company has passed the ISO 9001 quality management system certification, obtained the certification of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the International leading level.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.
Certifications
Product: CE, ISO9001, ISO14001, ISO45001, Third-party Inspection Reports, etc.
R&D: Utility Model Patent Certificate，Appearance Patent Certificate
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.
Exhibition & Customer Feedback
Packaging And Shipping
Recommend Products
FAQ
Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.
Q2: What's the package?
A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.
Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
