Cover lid liting and vessel body fixed lab stainless steel high pressure reactors
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600965190918):
Product Overview
Description
Product Description
Cover lid liting and vessel body fixed lab stainless steel
high pressure reactors/ Lab pressure reactors

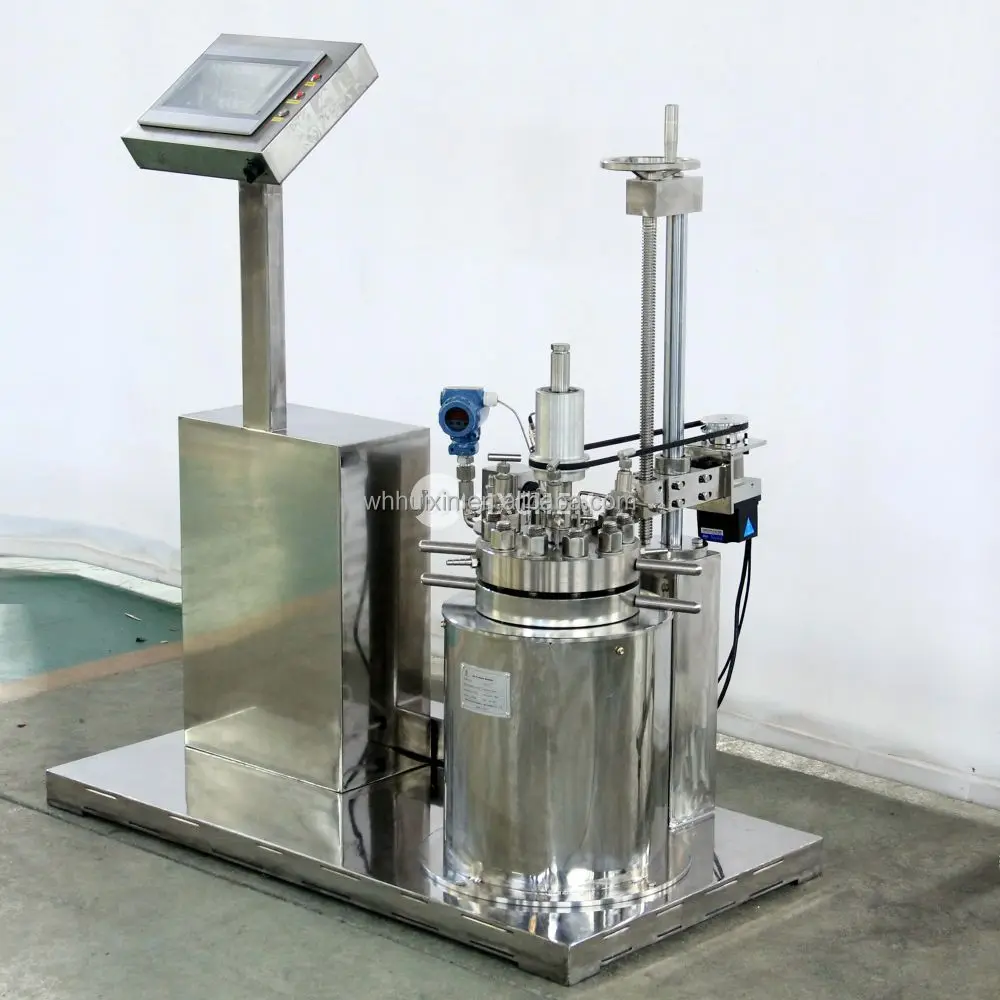

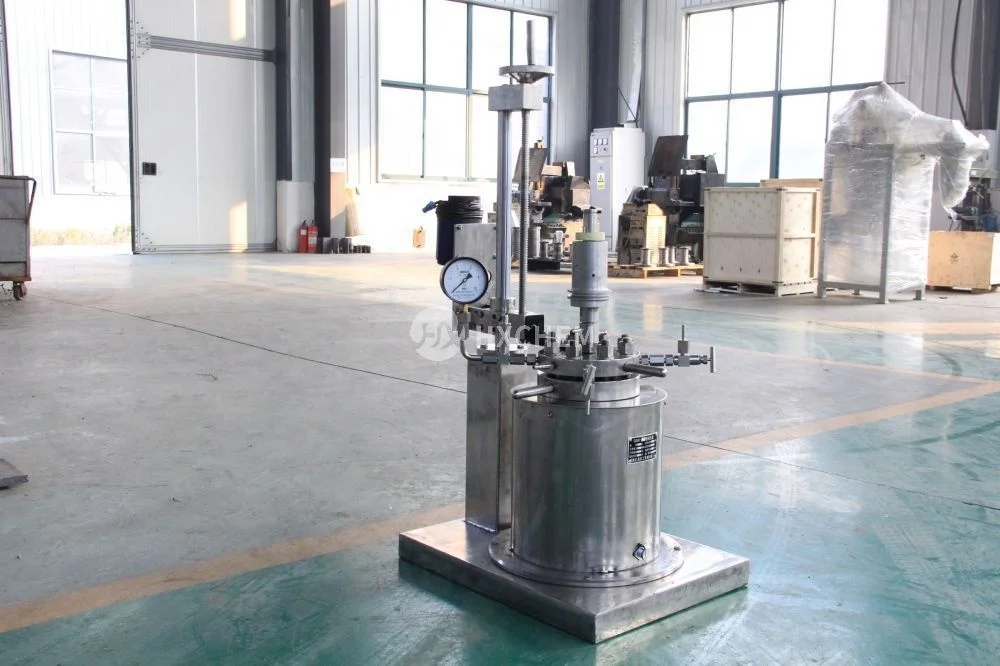

Lab Stirred Reactor with manual lift
This series stirred pressure reactor is widely used in laboratory application, features as fellows:
* 100% Sealing. Zero leakage. Low energy cost magnetic stirrer.
* Electric heating furnace is fixed on the moveable frameplate .
* Vessel body can be manual move outside for weighing；
* Top cover lid & magnetic agitator can be manual lifting & lowering
* 100% Sealing. Zero leakage. Low energy cost magnetic stirrer.
* Electric heating furnace is fixed on the moveable frameplate .
* Vessel body can be manual move outside for weighing；
* Top cover lid & magnetic agitator can be manual lifting & lowering
Application: Rearch/Lab, High pressure, high vacuum, high temperature condition. Chemical reaction, Syntheses, Reactor systems, Low temperature reactions.
Volume | 250ml-5 liters |
Pressure | Standard 100bar, Max.300bar |
Temperature | 350 ℃ |
Material | SS304 /SS316 |
Heating type | Electric Heating |
Cooling type | Internal spiral coils |
Impeller type | Propeller, Turbine, Anchor type |
Product Features
Special alloy available
Titanium, Nickel, Hastelloy, Zirconium

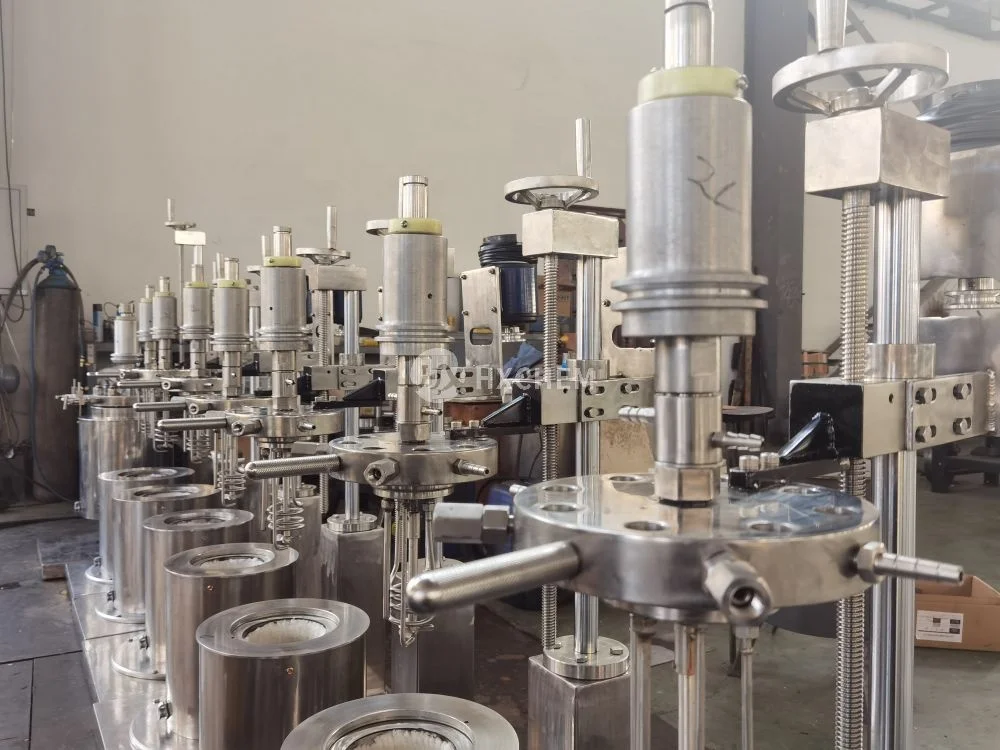

Top cover lid & magnetic agitator can be manual lifting & lowering.

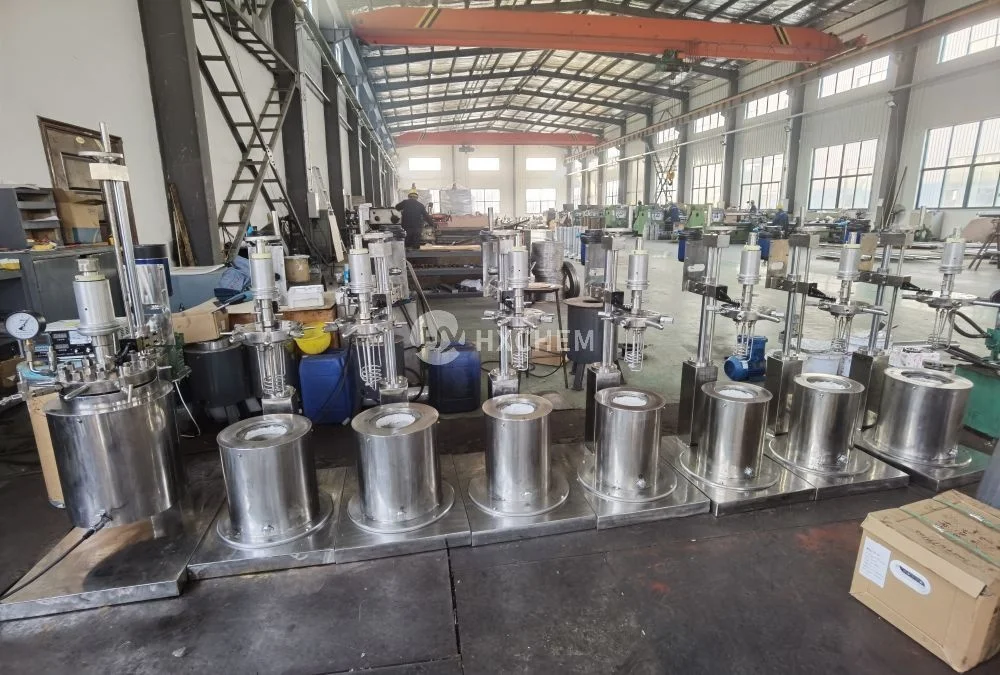

Vessel body can be manual move outside for weighing；
Magnetic coupling agitator
Internal cooling coils

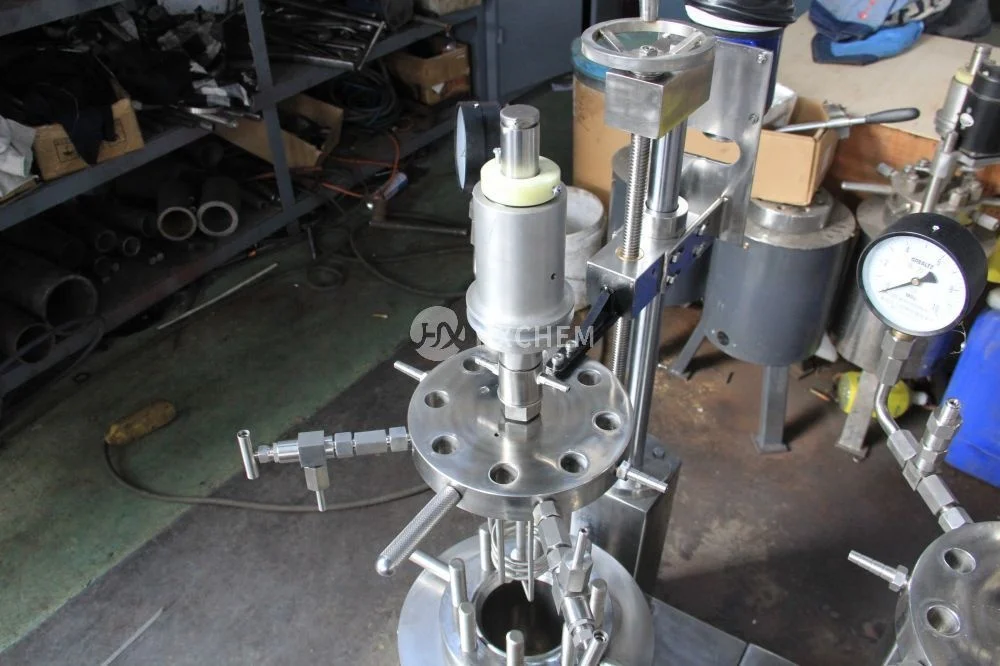

Cover lid manual lifting design.
Size Information
Model No. | GSHK-0.25 | GSHK-0.5 | GSHK-1 | GSHK-2 | GSHK-3 | GSHK-5 | |||||
Capacity (L) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | |||||
Working Pressure (MPa) | 10 | 10 | 10 | 10 | 10 | 10 | |||||
Working Temperature (℃) | 350 | 350 | 350 | 350 | 350 | 350 | |||||
Stirring Speed (r/min) | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | |||||
Motor power (kW) | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.6 | |||||
Heating Power (kW) | 1 | 1 | 2 | 2 | 3 | 4 | |||||
Material | Standard SS304 OR SS316 | ||||||||||
Heating Method | General electric heating(water recycling, thermal oil heating available | ||||||||||
Cooling Method | Spiral coils(Single coils, serpentine coils available) | ||||||||||
Charging Method | Charging from above(Bottom valve available) | ||||||||||
Stirring type | Propeller, paddle type, anchor type or customized | ||||||||||
Lifting and tilting type | Mannual operation | ||||||||||
Control panel | Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control | ||||||||||

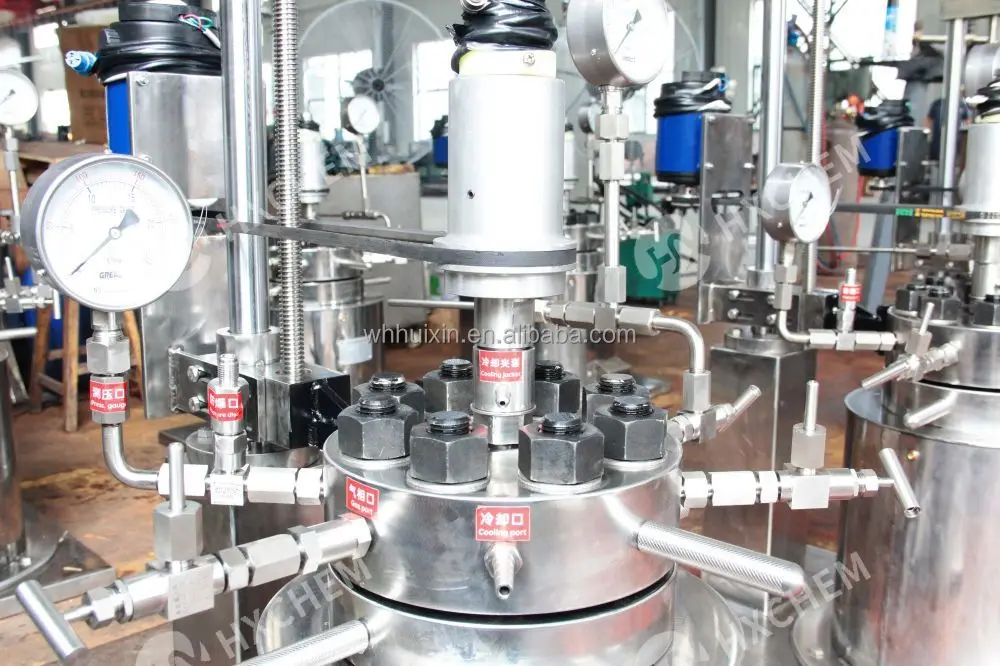

Standard fittings | Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil | ||||||||||
Customization
Customized Specifications
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
If there has special process requires, HXHCEM will also customize for you!
Pls list your basis process parameters like follows:
1. Reactor volume
2. Operating Temperature
3. Operating Pressure
4. Reactor Material / contacting components material
5. Agitator type, and the Mixing Speed, motor power request?
6. With heating device or not？ Heating type？
7. Internal cooling coil or not, exchange area?
8. Your other requests
......Contact us！
We like to help you to accomplish your plans.
Certifications
Pressure vessel certificate
ASME "U" Certificate
ISO9001 Certificate
ISO 14001 Certificate
ISO 45001 Certificate
CE Certificate

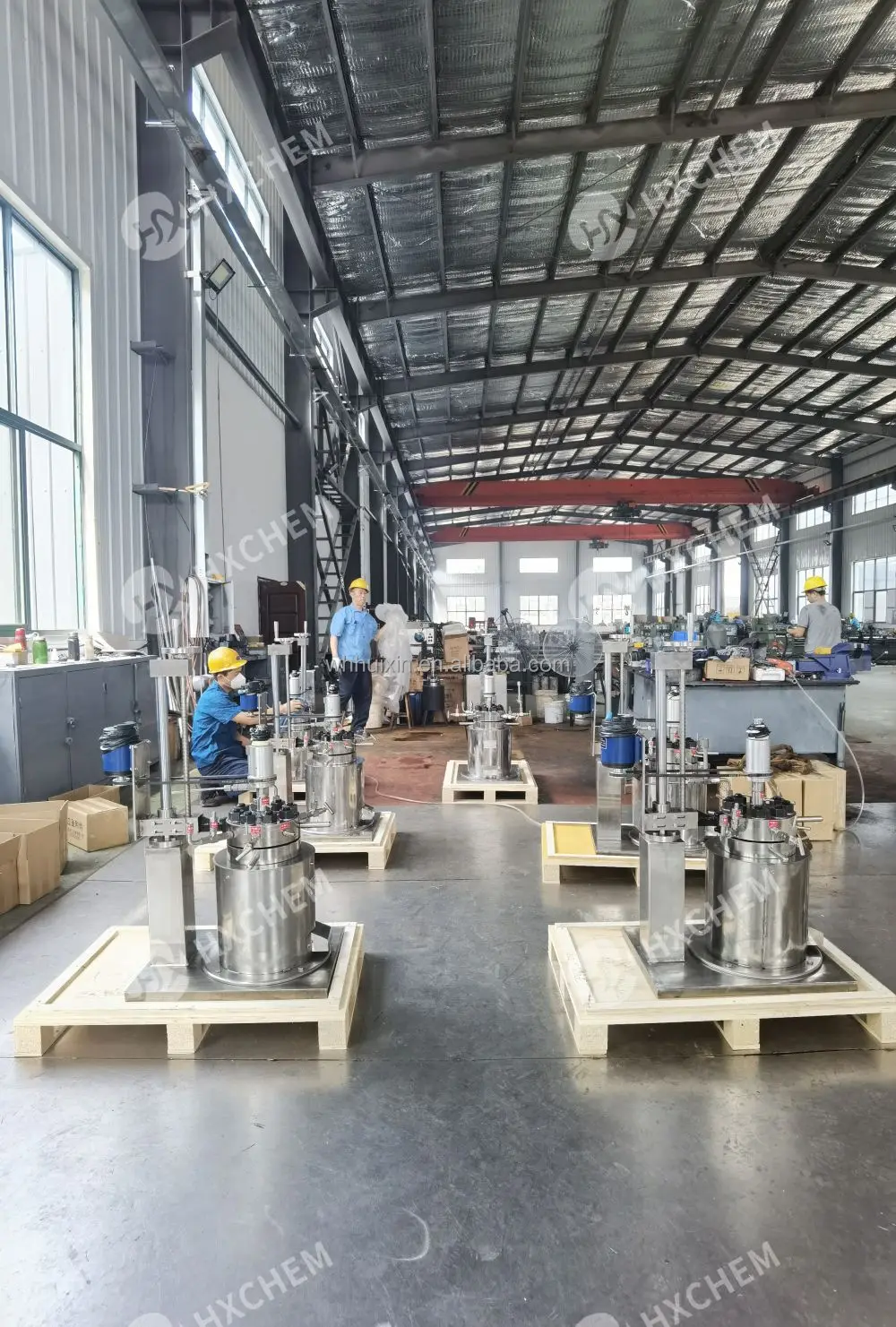

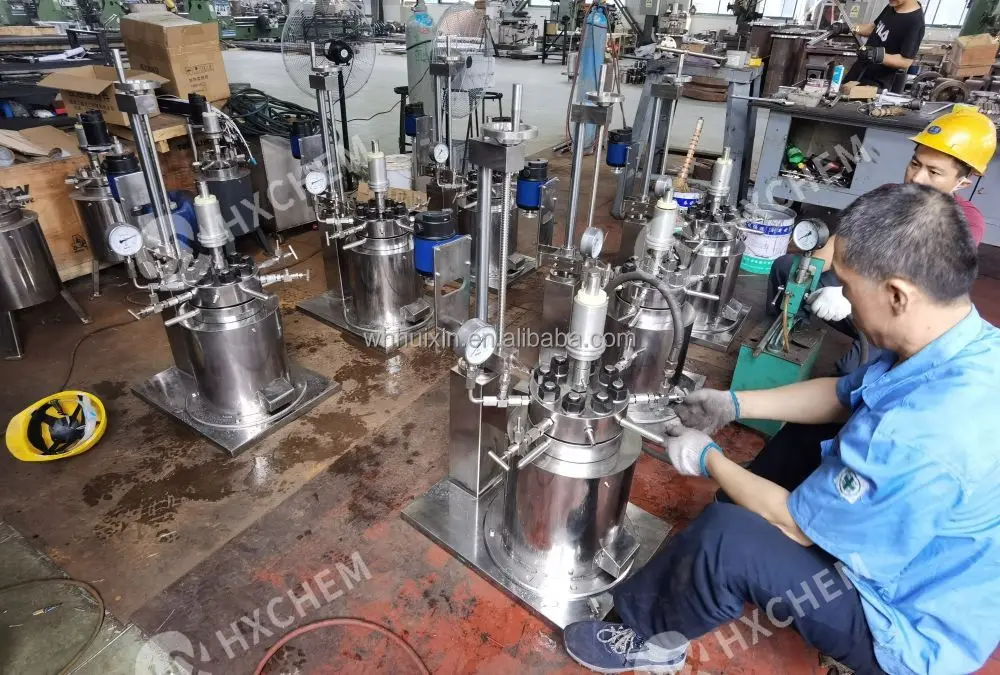

Company Introduction
Hydrothermal Synthesis Reactors
Lab high pressure autoclave reactor
Lab reactor with lift & tilt
Pilot reactor & Plant
Reaction system
Industrial SS mixing tank
Industrial pressure reactor
Pressure vessel
Magnetic stirrer & agitator
Title goes here.
HIGH PRESSURE MANUFACTURER SUPPLIERS
NOTES: The stirred autoclaves are usually equipped with a dished bottom. However, conical vessel bottoms or conical vessels are also available. The lid layout can be adapted as desired. When the container is open, the entire inner diameter is available for emptying, cleaning and inspection.They are available up to a working pressure of 350 bar and a maximum temperature up to 500 °C.
Available materials: stainless steel, Hastelloy, PTFE or nickel，Inconel coated.
Various heating/cooling systems, magnetic stirrers or magnetically coupled overhead stirrers, as well as a wide variety of gas and liquid supplies are available. Matching PTFE or glass liners (inlays), catalyst baskets complete the available options. They can be designed as single and parallel reactor plants. In addition to the standard configurations, you can also have plants specially tailored to your requirements.
The HiClave systems are suitable for numerous applications:
* (High pressure) extraction
* (High pressure) digestion
* (High pressure) hydrolysis
* (High pressure) hydrogenations
* Hydrothermal carbonization
* Development of hydrogen storage technology
* (radical, cationic, anionic and coordinative) polymerization
* numerous other high pressure syntheses
We also manufacture pressure vessels and apparatus for laboratory and pilot plants according to your individual requirements and specifications. The special production of reaction vessels is a particular strength of our company which is based on decades of experience in apparatus and boiler construction. For example, we manufacture reactors for pressure and vacuum with special equipment and in special shapes from stainless steel and high-quality alloys according to your specifications.We manufacture complete experimental plants according to customer requirements. The add-on parts are interchangeable and changeable due to the modular system.
