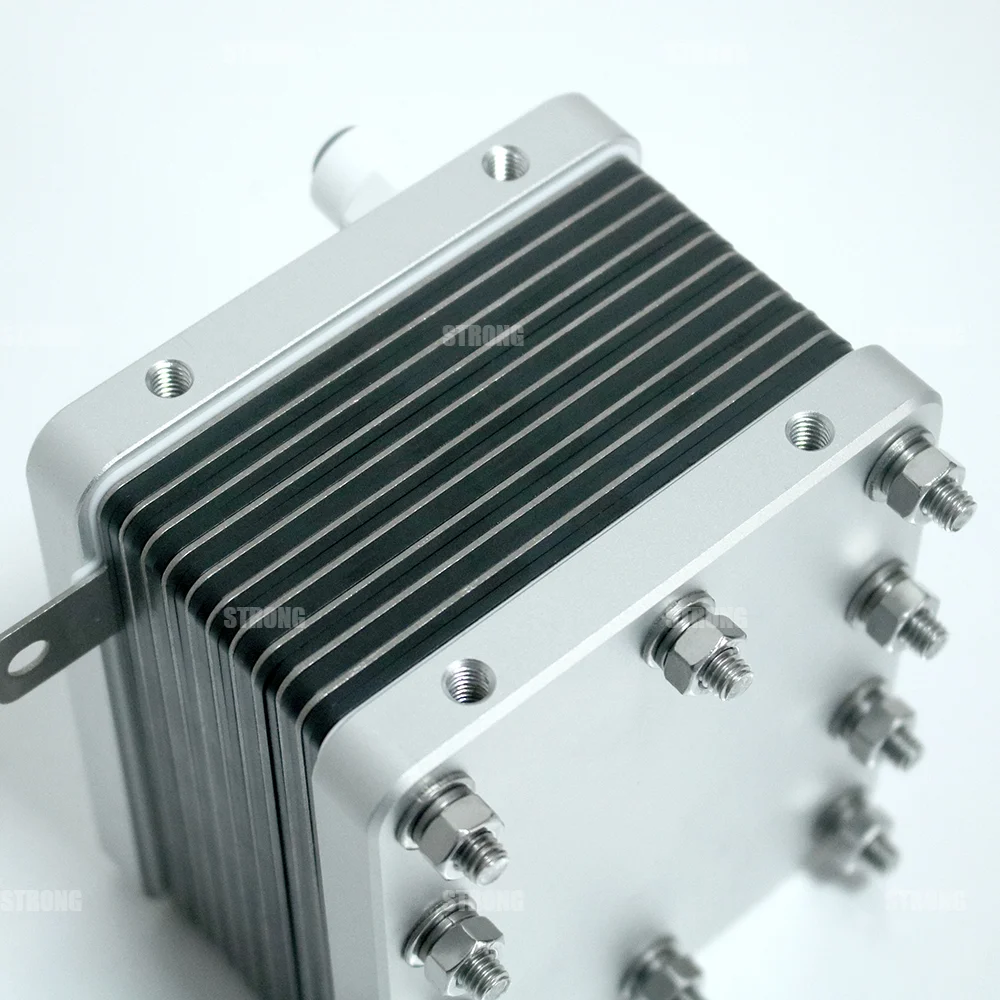

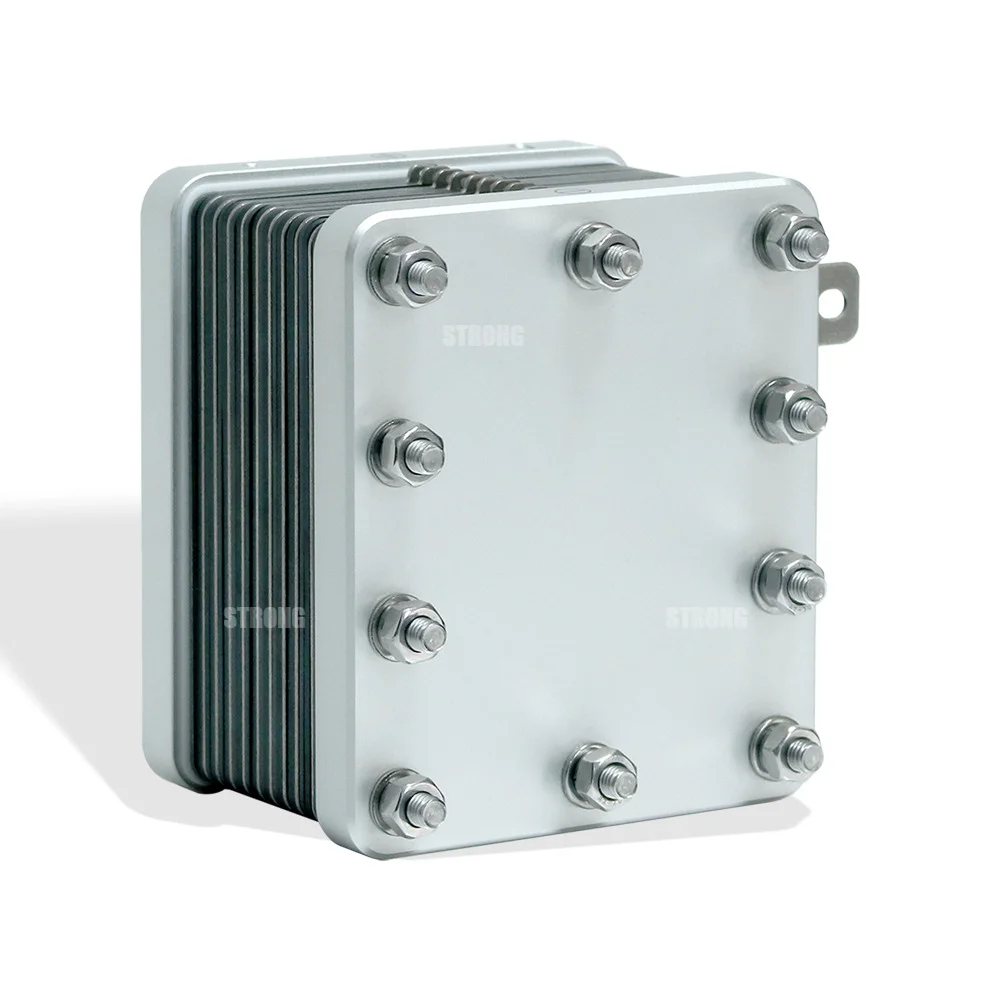

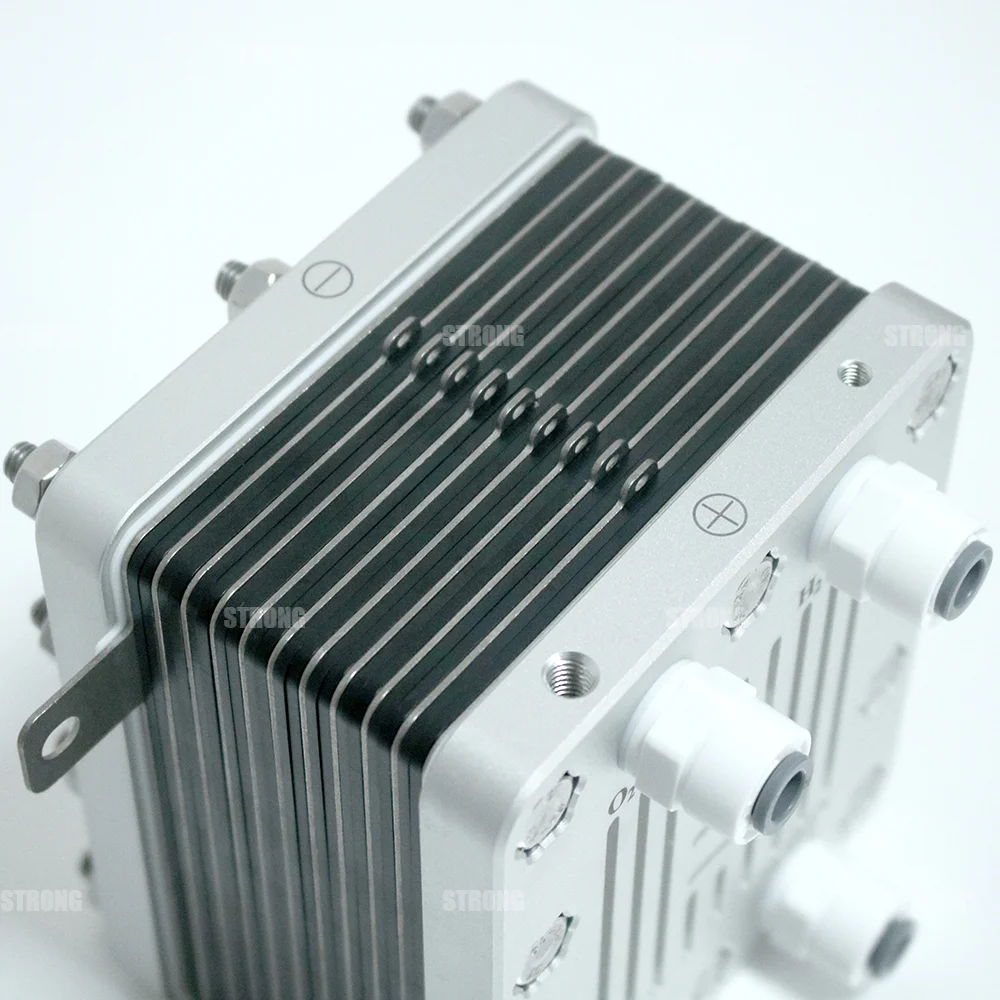

3000ml/min Compact Alkaline Electrolyzer Hydrogen Generator Hydrogen Electrolyzer PEM Generator with Spare Parts
- Category: >>>
- Supplier: Dongguan Strong Machinery Co. Ltd.
Share on (1600965218023):
Product Overview
Description
Product Description

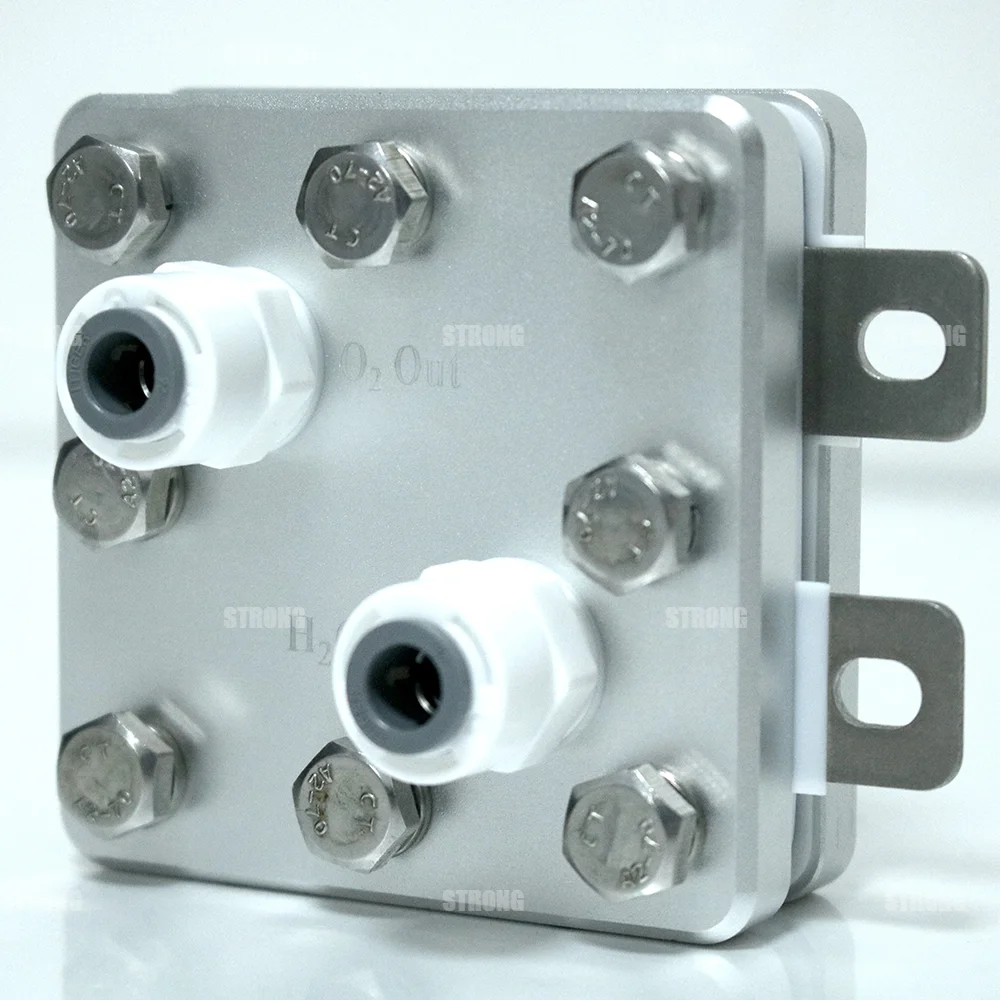

H₂O In：Represents the water inlet of pure water, connected to the water outlet of pure water tank.
H₂O Out：Represents the outlet of hydrogen, connected to the hydrogen pipe.
H₂ Out：It represents the outlet of oxygen, and it is also the return water outlet. The water from the oxygen outlet is either connected to the steam-water separator, and the water from the steam-water separator is returned to the water tank; Or directly connected to the water tank.
H₂O Out：Represents the outlet of hydrogen, connected to the hydrogen pipe.
H₂ Out：It represents the outlet of oxygen, and it is also the return water outlet. The water from the oxygen outlet is either connected to the steam-water separator, and the water from the steam-water separator is returned to the water tank; Or directly connected to the water tank.
Machine Paramter
Product Model | Hydrogen production | Oxygen production | Water consumption | Recommended pressure | Rated Current | Output voltage |
ST-50 | 50 ml/min | 25 ml/min | ≯ 6 ml/h | 0.1~1.0 MPa | 7A | 3.5V |
ST-100 | 100 ml/min | 50 ml/min | ≯ 12 ml/h | 0.1~1.3 MPa | 13A | 3.5V |
ST-150 | 150 ml/min | 75 ml/min | ≯ 18 ml/h | 0.1~1.3 MPa | 20A | 3.5V |
ST-200 | 200 ml/min | 100 ml/min | ≯ 36 ml/h | 0.1~1.3 MPa | 25A | 3.5 V |
ST-300 | 300 ml/min | 150 ml/min | ≯ 36 ml/h | 0.1~1.3 MPa | 20A | 5 V |
ST-450 | 450 ml/min | 225 ml/min | ≯ 54 ml/h | 0.1~1.3 MPa | 20A | 7.5 V |
ST-600 | 600 ml/min | 300 ml/min | ≯ 72 ml/h | 0.1~1.3 MPa | 20A | 10 V |
ST-1000 | 1000 ml/min | 500 ml/min | ≯ 120 ml/h | 0.1~1.3 MPa | 25A | 15 V |
ST-1200 | 1200 ml/min | 600 ml/min | ≯ 144 ml/h | 0.1~1.3 MPa | 25A | 18 V |
ST-1400 | 1400 ml/min | 700 ml/min | ≯ 168 ml/h | 0.1~1.3 MPa | 25A | 21V |
ST-1600 | 1600 ml/min | 800 ml/min | ≯ 192 ml/h | 0.1~1.3 MPa | 25A | 24 V |
ST-1800 | 1800 ml/min | 900 ml/min | ≯ 216 ml/h | 0.1~1.3 MPa | 25A | 27 V |
ST-2000 | 2000 ml/min | 1000 ml/min | ≯ 240 ml/h | 0.1~1.3 MPa | 25A | 30 V |
ST-3000 | 3000 ml/min | 1500 ml/min | ≯ 264 ml/h | 0.1~1.3 MPa | 36A | 32V |
