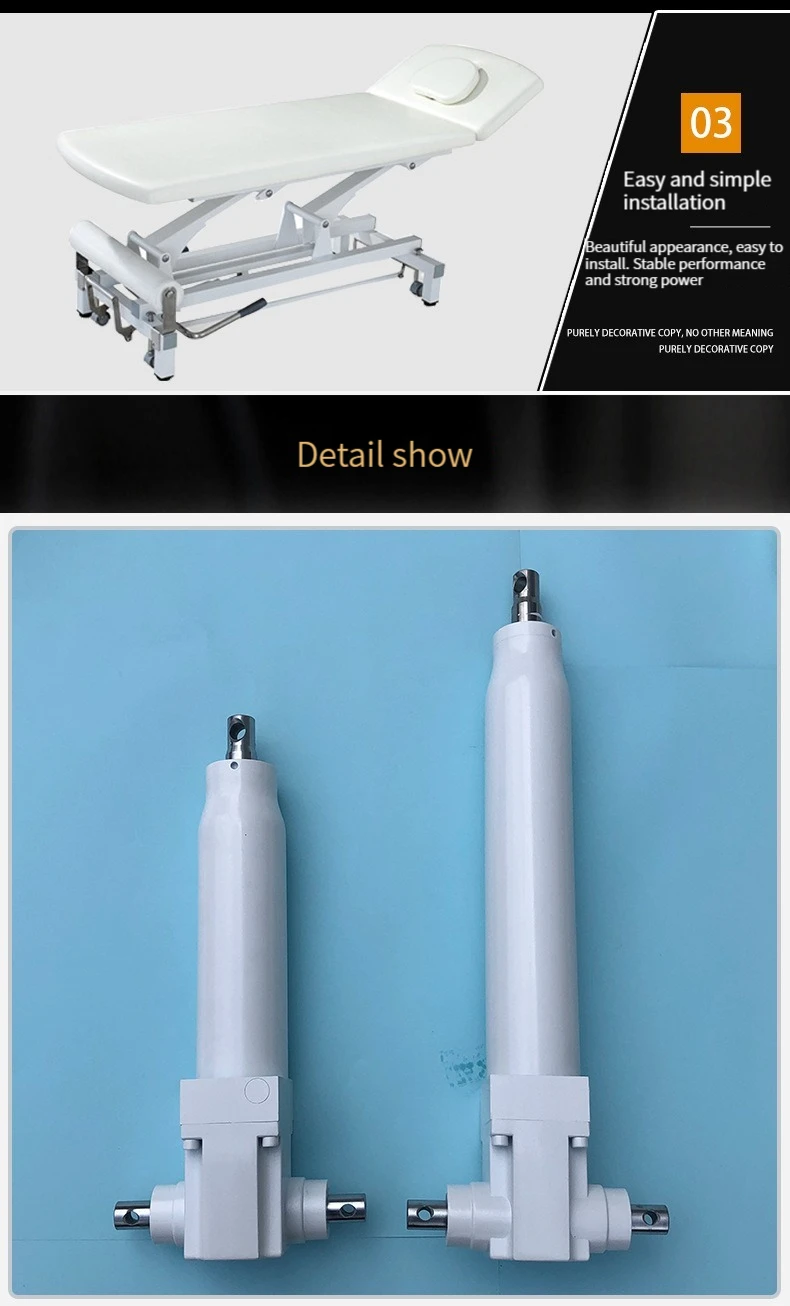

HYDRAULIC CYLINDER (ACTUATOR) FOR MEDICAL BED
- Category: >>>
- Supplier: Changzhou Changxing Motion Tech Co. Ltd.
Share on (1600965220734):
Product Overview
Description
Product Overview
HP250
The smart, intuitive design of the HP250 combines a pump, cylinder, valves and reservoir into one compact, maintenance-free unit,giving you years of trouble-free operation and trusted performance. Every HP250 hydraulic actuator features an installed pressure relief and flow control valve to ensure smooth descent independent of patient weight.
Stroke length (mm): 100, 120, 130, 135, 140, 150, 200, 250, 305, 400Lifting force(kN): 3, 6, 8, 10
Highest static load (kN): 5, 8, 10, 12.5
Number of strokes: 10-35
Lowering speed: fixed throttle or throttle tube / automatic throttle valve.

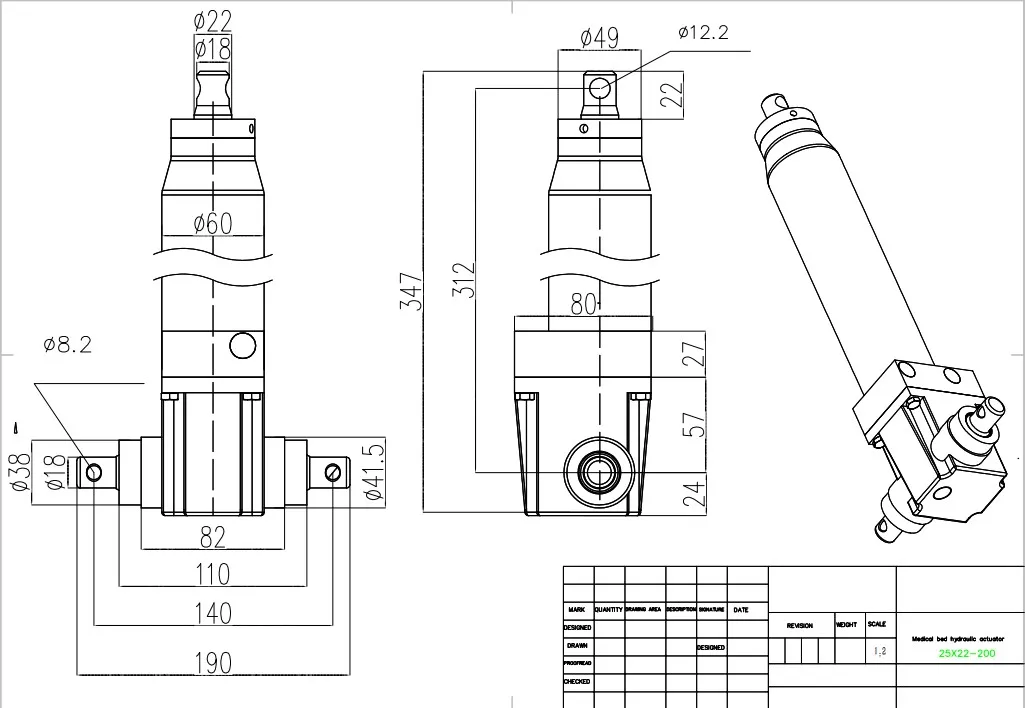

Pump piston diameter (mm): 14, 16
Main piston diameter (mm): 18, 22
Extended length (mm): main length - 137 + stroke + desired end of piston rod
Mounting bolts diameter 38 (mm): 60/90 - 85/110 distance
Lifting level: 35 degrees
Safety valve: optional Pedal
shaft: right / left optional with descent
Water resistance on washing lines: Standard
Colour: silver grey / customer request
Feeding / stroke (mm2): 2.3 – 3.0
Main piston end: transverse opening – optional external / internal thread / piston rod mount Pedal
movement: normal or reverse
Highest static load (kN): 5, 8, 10, 12.5
Number of strokes: 10-35
Lowering speed: fixed throttle or throttle tube / automatic throttle valve.
Pump piston diameter (mm): 14, 16
Main piston diameter (mm): 18, 22
Extended length (mm): main length - 137 + stroke + desired end of piston rod
Mounting bolts diameter 38 (mm): 60/90 - 85/110 distance
Lifting level: 35 degrees
Safety valve: optional Pedal
shaft: right / left optional with descent
Water resistance on washing lines: Standard
Colour: silver grey / customer request
Feeding / stroke (mm2): 2.3 – 3.0
Main piston end: transverse opening – optional external / internal thread / piston rod mount Pedal
movement: normal or reverse
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | HP250 | ||||
1 | Warranty | 1year | ||||
2 | Stroke length (mm) | 100, 120, 130, 135, 140, 150, 200, 250, 305, 400 | ||||
3 | Place of Origin | China Jiangsu | ||||
4 | color | silver grey / customer request | ||||
5 | Speed | fixed throttle or throttle tube / automatic throttle valve. | ||||
6 | Highest static load (kN) | 3, 6, 8, 10 | ||||
7 | Safety valve | optional Pedal | ||||
8 | Lifting level | 35 degrees | ||||
