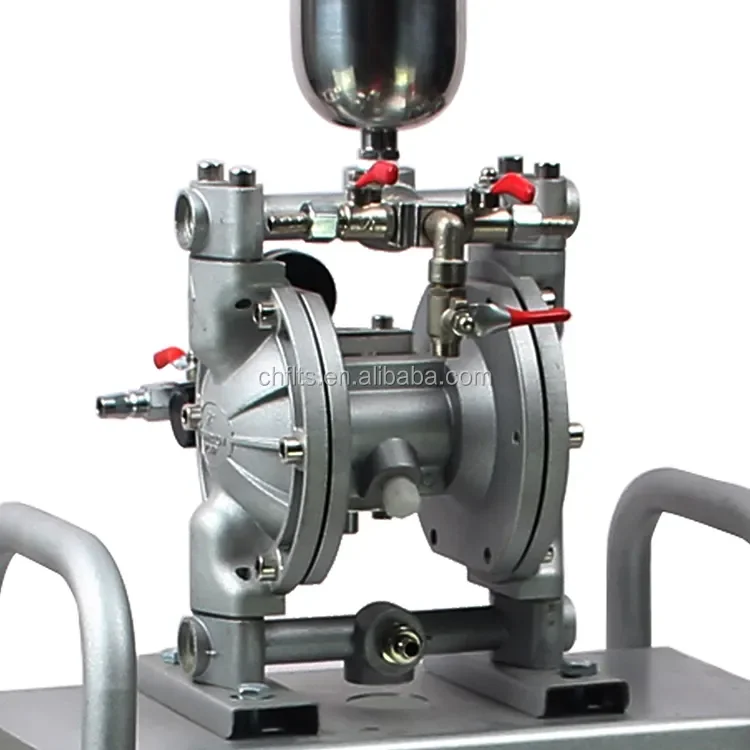

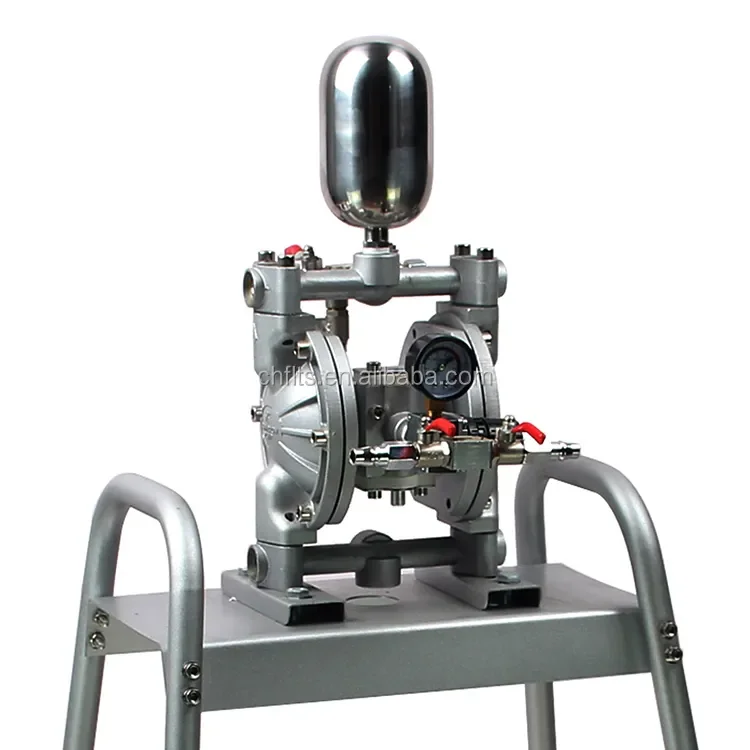

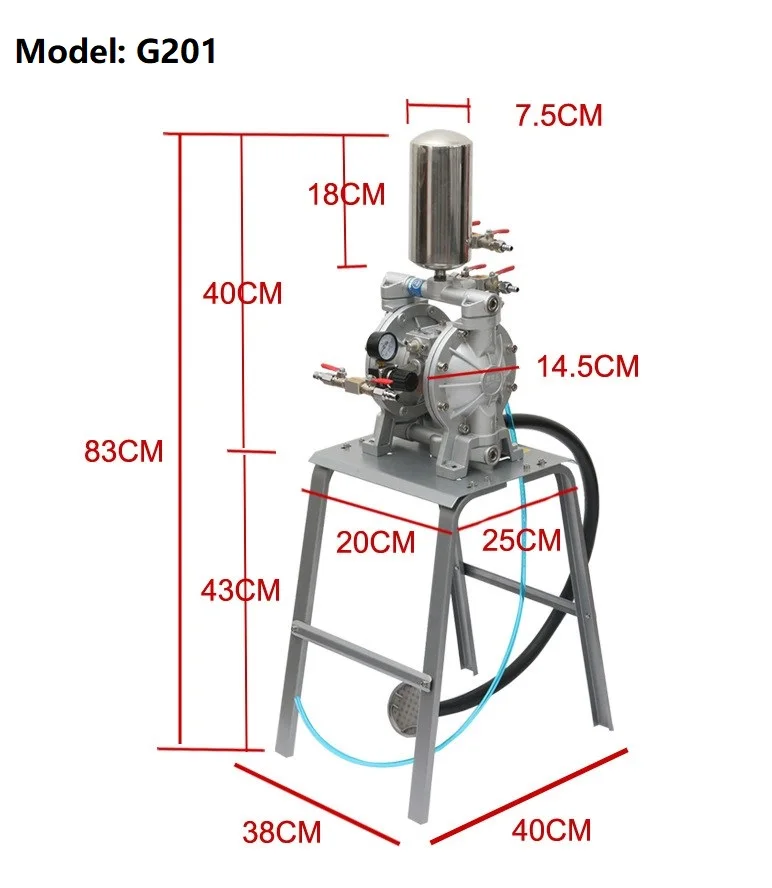

G201 3/4 inch Aluminum Alloy Air Operated Double Diaphragm Pump Paint Diaphragm Pump Set with Agitator Stand type diaphragm pump
- Category: >>>
- Supplier: NINGBO FULAITESI TECHNOLOGY CO. LTD
Share on (1600965304945):
Product Overview
Description
Recommend Products
Products Description

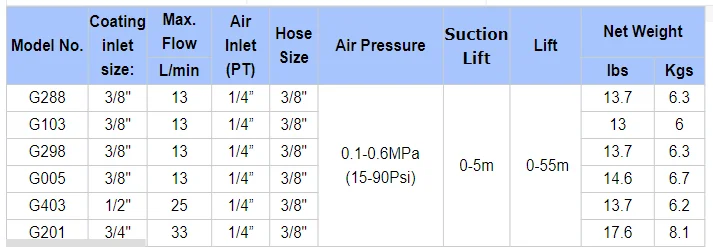

Product Name | Double Diaphragm Pneumatic Pump | Model | G201 | ||
Max permitted grain | 1.5mm | Max reciprocating speed | 80-160cpm | ||
Coating inlet size | 3/4" | Max. Flow(L/min) | 33 | ||
Air Inlet(PT) | 1/4” | Hose Size | 3/8" | ||
Air Pressure | 0.1-0.6MPa(15-90Psi) | Suction Lift | 0-5m | ||
Lift | 0-55m | Gross Weight/Pcs | 9 kgs | ||
Carton Size | 50*27*36 cm | PC/CTN | 2PCS | ||
Application | Paint ,Coating, Ink, Glue,Gasoline, Chemical, Pharmacy Industry Etc. | Gross Weight/Ctn | 18.0 KGS | ||
Feature | ♦ Generality Applicable to textile, chemical, pharmaceutical, spraying, sewage treatment industries. ♦ Reliability Reliable operation preventing the machine from damage due to dry-running or ccidenta halt. ♦ Energy-saving 100% of the energy utlization, when close export, pump automatically stop, flow can be adjusted in material, can add the throttle to exit flow adjustment. | ||||
