DC 5V WCS1800 Hall Current Detection Sensor Module 35A Precise With Short Circuit Overcurrent Signal Lamp A/D conversion
- Category: >>>
- Supplier: Shenzhen Boyida Electronics Co. Ltd.
Share on (1600965377457):
Product Overview
Description
Product Description
DC 5V WCS1800 Hall Current Detection Sensor Module 35A Precise With Short Circuit Overcurrent Signal Lamp A/D conversion
Specifications:
Features:
WCS1800 Hall current sensor has two main functions.
The first function is analog signal followed by operational amplifier, which is suitable for A/D conversion.
The second function is the switching signal, which can set the current limit value in advance. When the actual current value is greater than the preset current value, the switching signal will change from low level to high level, and it will be indicated by an LED indicator.
Product parameters:
Working voltage: DC5V
Current detection range: DC: ±35A, AC: 25A (for analog output);
Linearity: K=60mV/A;
Current limit current range: 0.5A--35A (applicable to switch output);
Sampling current conversion analog voltage signal output, which can be connected to ADC, TTL level signal output, and can be connected to MCU IO port control.
The output signal is: analog voltage signal and switch signal
Indicator light: with over-current indicator

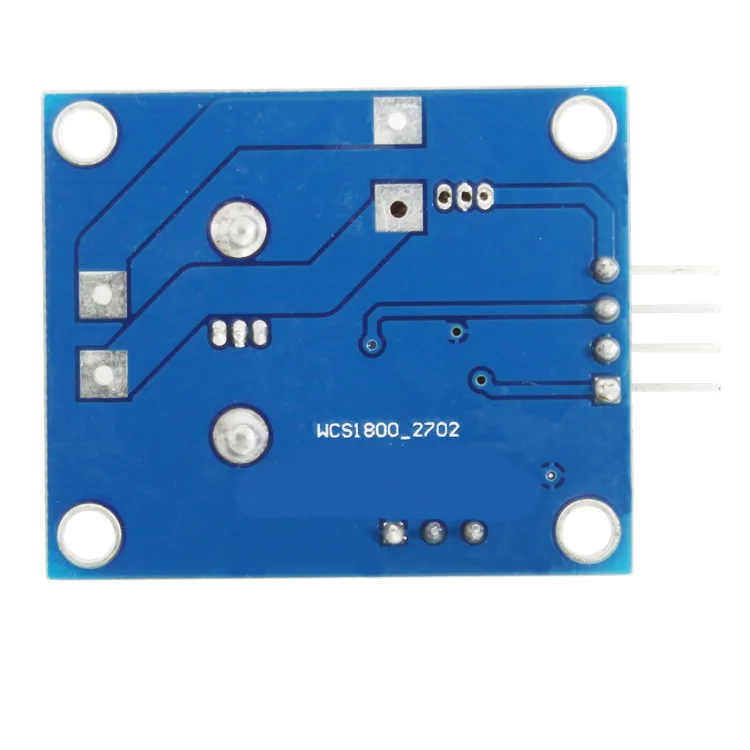

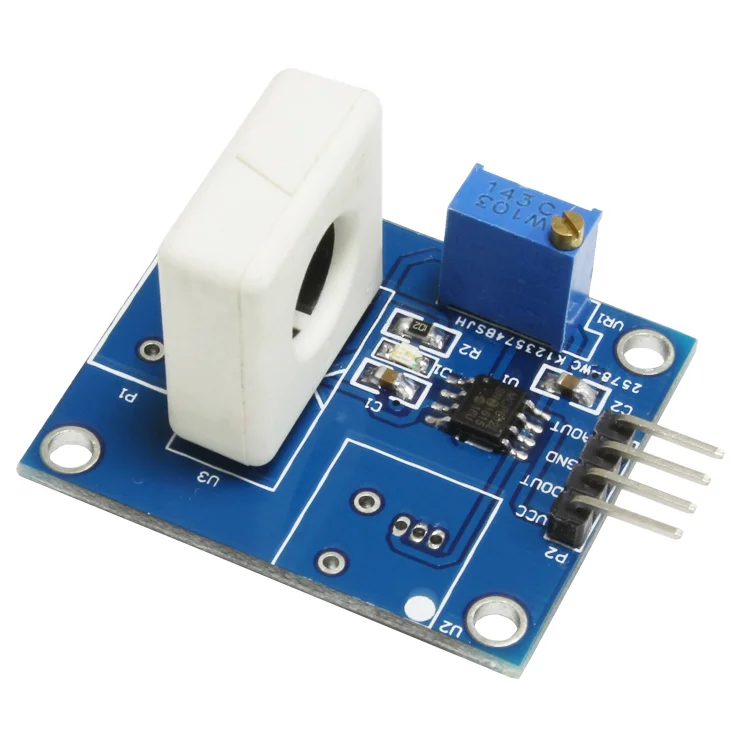

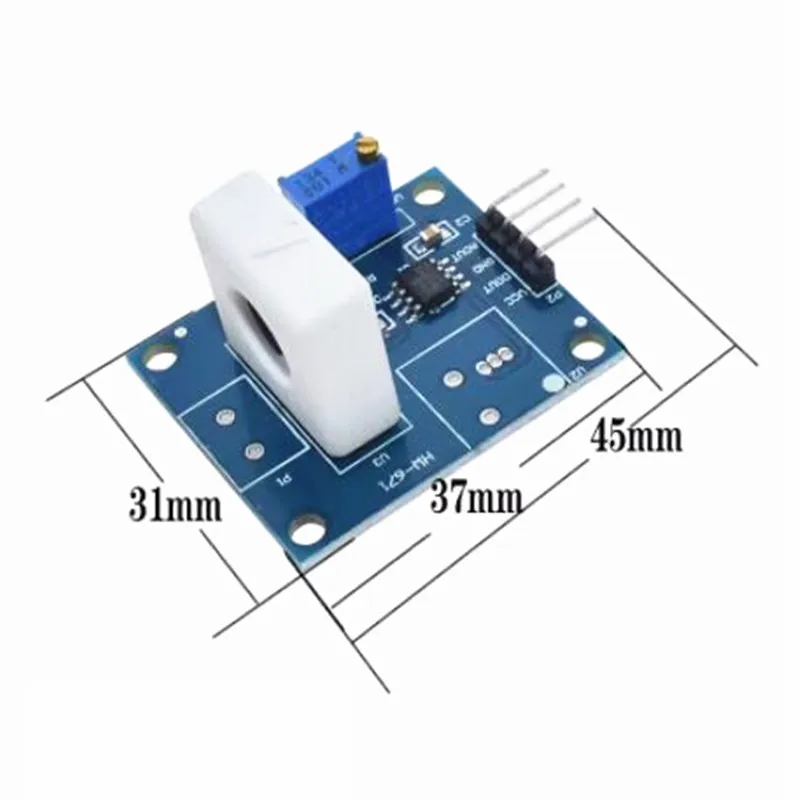

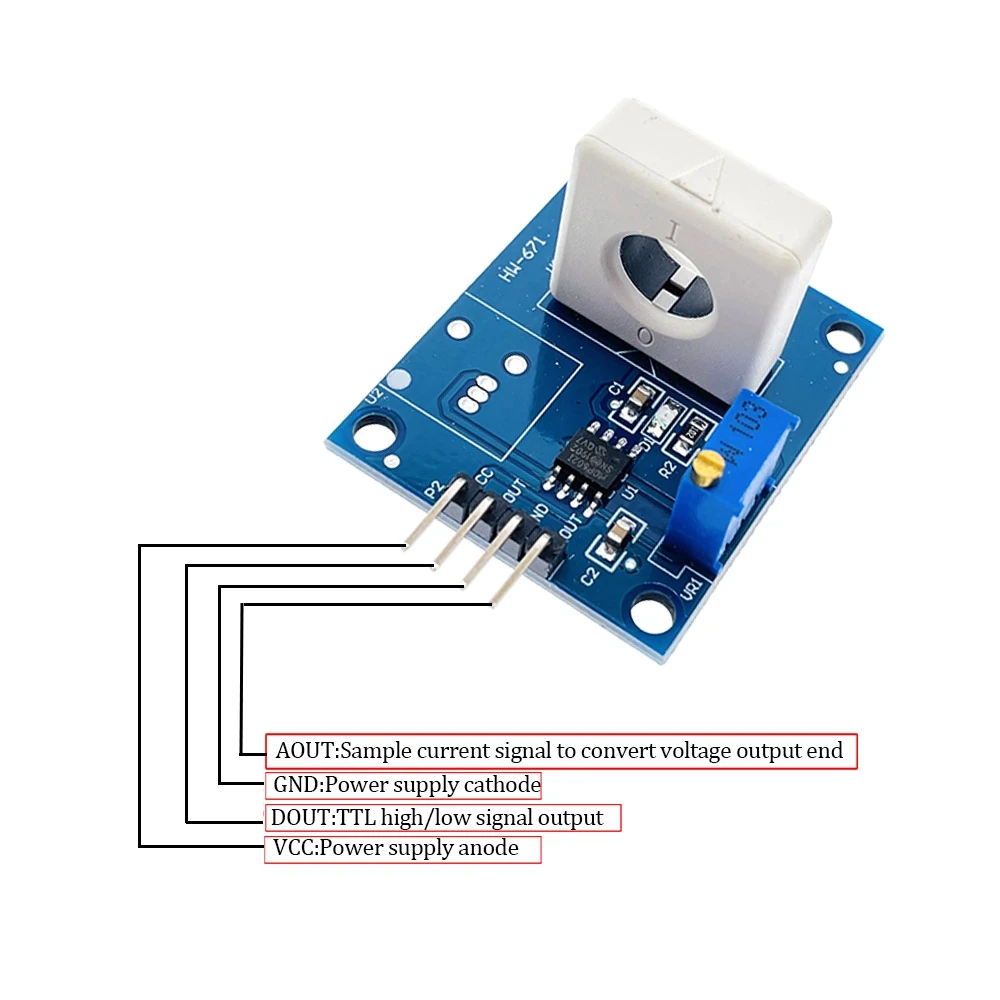

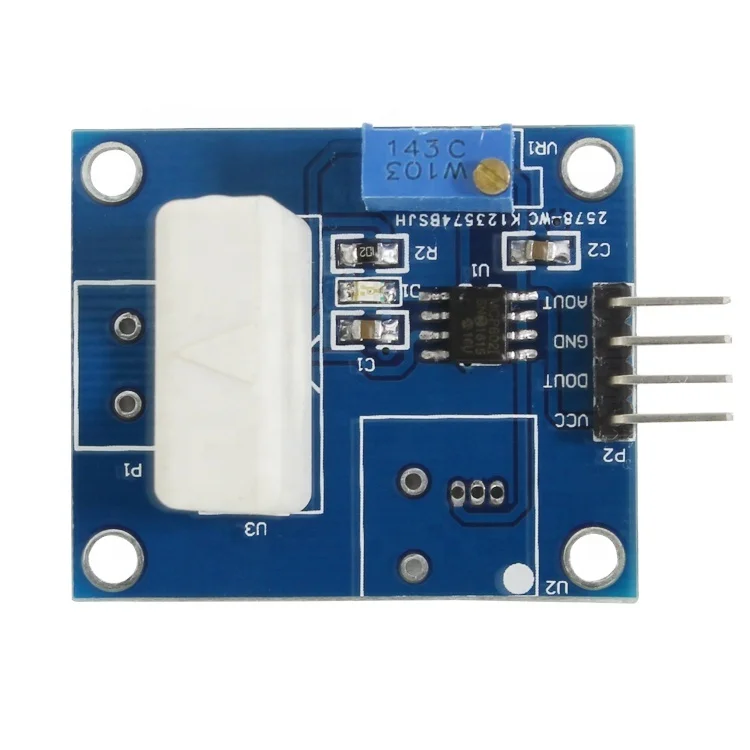

Interface Description:
VCC: power supply+
DOUT: TTL high/low level signal output;
GND: power supply-
AOUT: sampling current signal conversion voltage output terminal
Instructions:
1. Instructions for use of analog voltage signal output (AOUT):
The relationship between the detection current and the analog signal output is as follows:
Analog signal output: V0=±la*K (the current actually flowing through the Ia current detection pin, K is linearity);
Taking the input current of 1A as an example, Vcc=5V, the linearity of WCS1800 is 60mV/A
Let's briefly talk about the corresponding relationship between WCS1800 detection current and output voltage when the current flows in from the positive direction:
The formula V0=+ la*K, corresponding output: V0=(2.5+0.06)V=2.56V
When current flows in the opposite direction:
The formula V0=- la*K, corresponding output: V0=(2.5-0.06)V=2.44V
If it is an AC signal: V0=+ la*K, the corresponding output range of V0: 2.44V-2.56V
The above is the ideal value, the actual value will have a small accuracy error.
2.Switch output (DOUT) instructions
If in a circuit, if the current is higher than 1A, the module is required to output a high level:
Step 1: Pass a wire of the detection end through the round hole of the sensor (note that the current flows in from the forward direction at this time), then turn on the power supply, adjust the current of the detection end to 1A, turn the adjustable resistor Vref counterclockwise, and turn it all the way. It is good when the red LED is on (the transition point when the LED turns from off to bright is good, don't screw it). At this time Vref>Vo.
Step 2: The setting of the upper limit current of 1A has been completed. Withdraw the 1A current, the LED will light up,
Step 3: In the future, when the current of the detected terminal exceeds 1A, the red LED does not light up, and the module DOUT outputs a high level at this time.
