Product Overview
Description
Product Description:

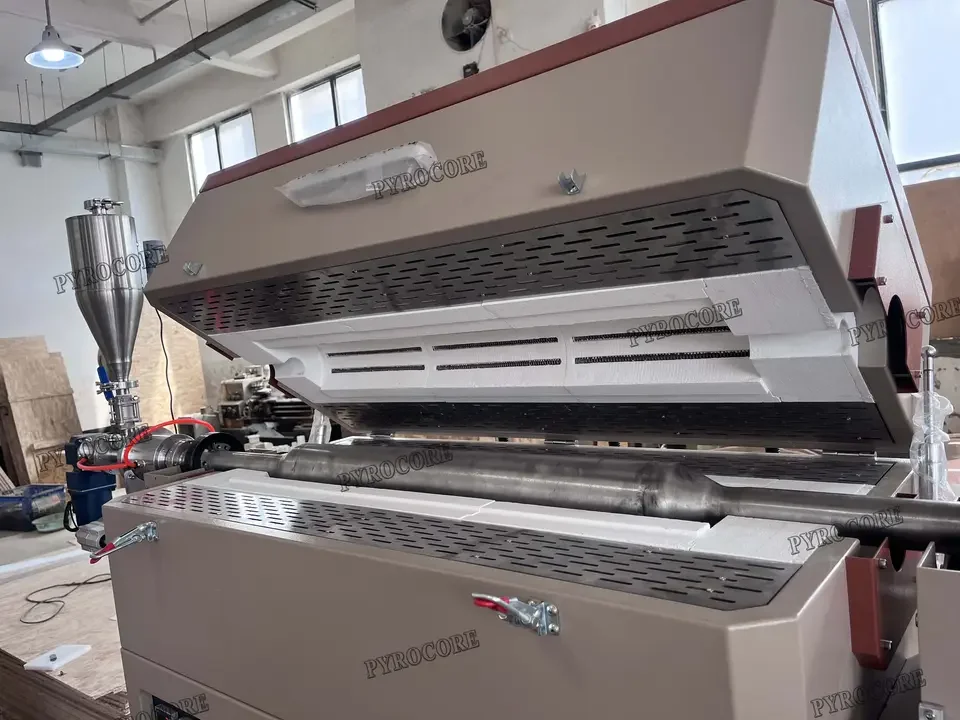

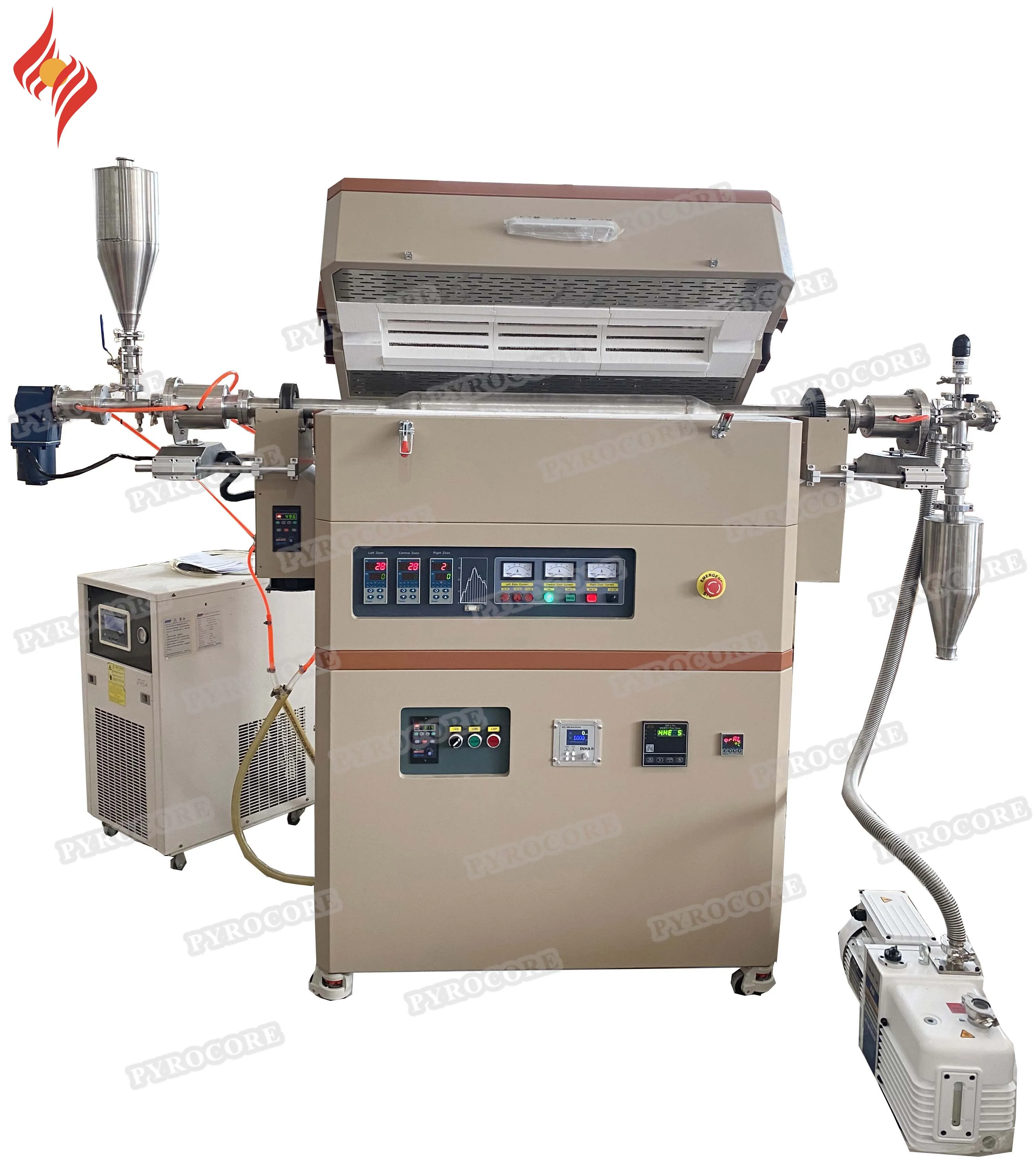

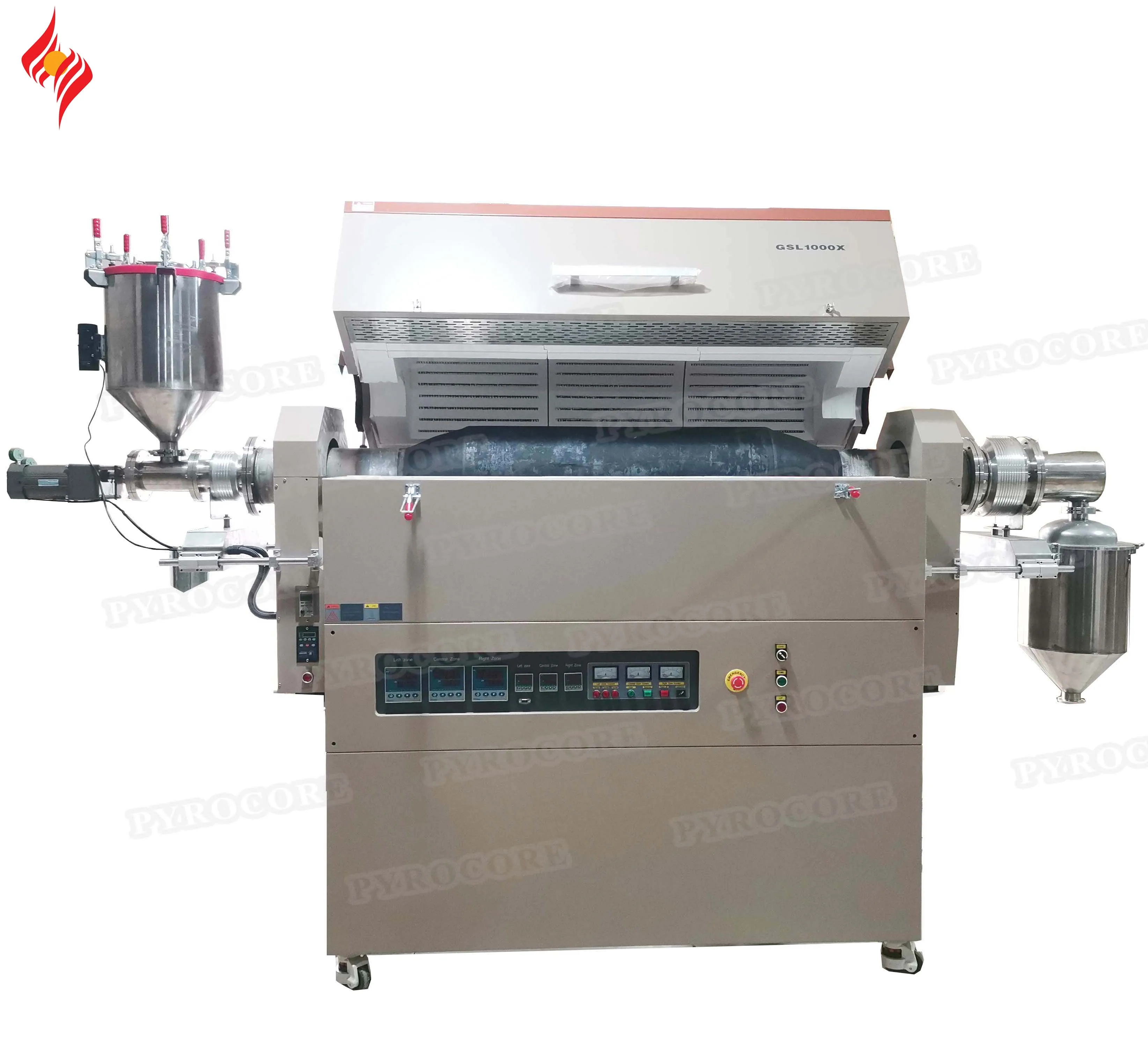

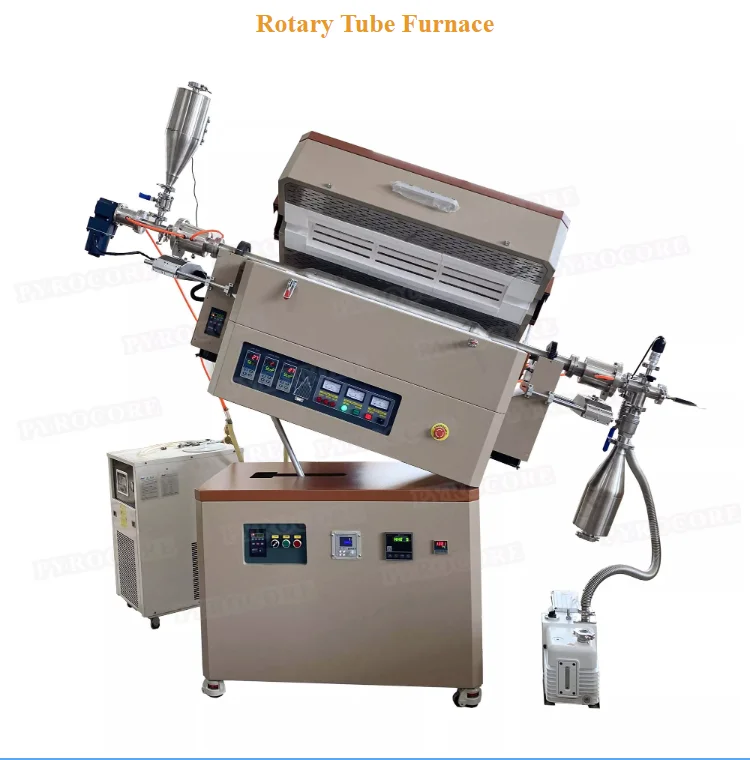

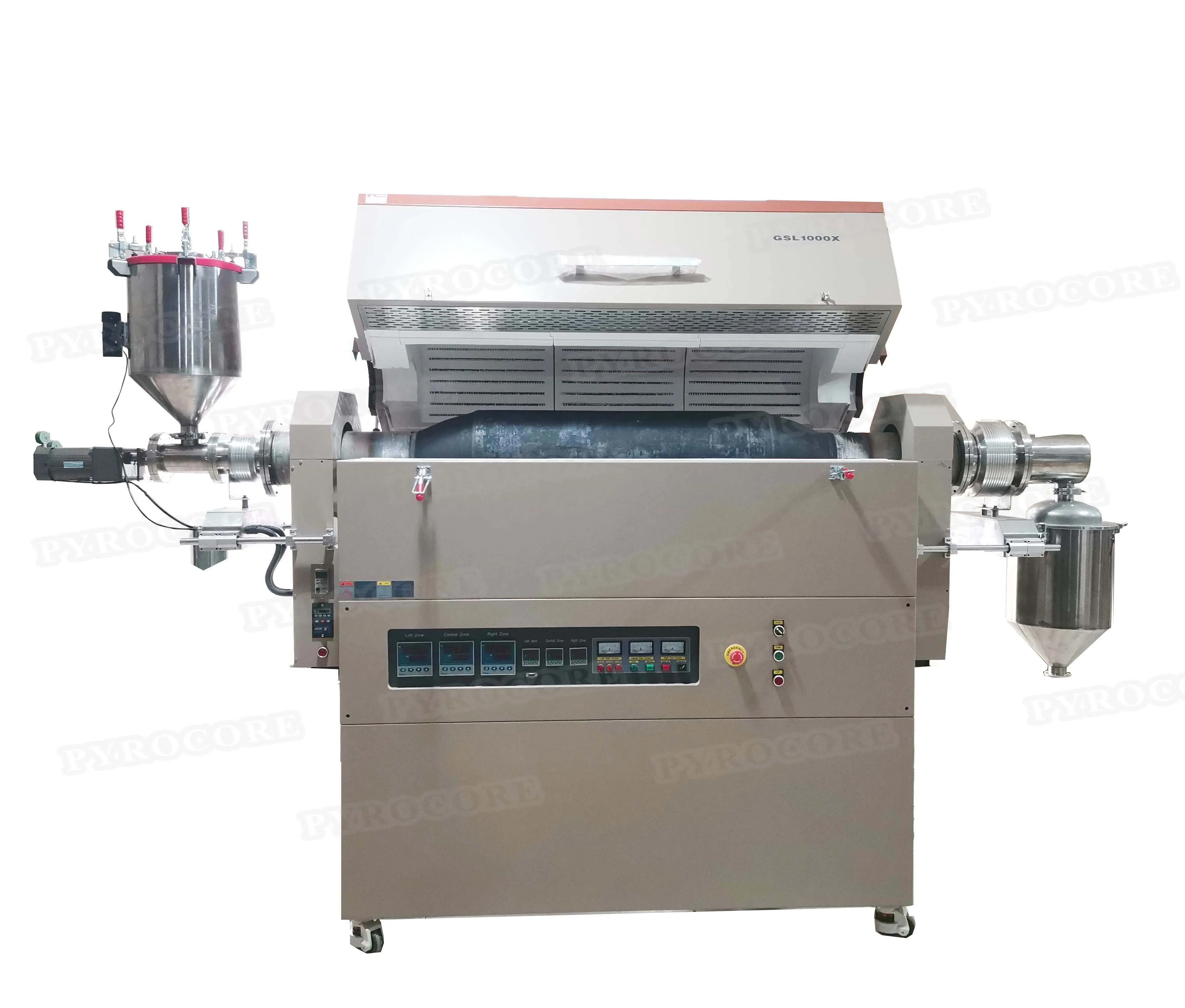

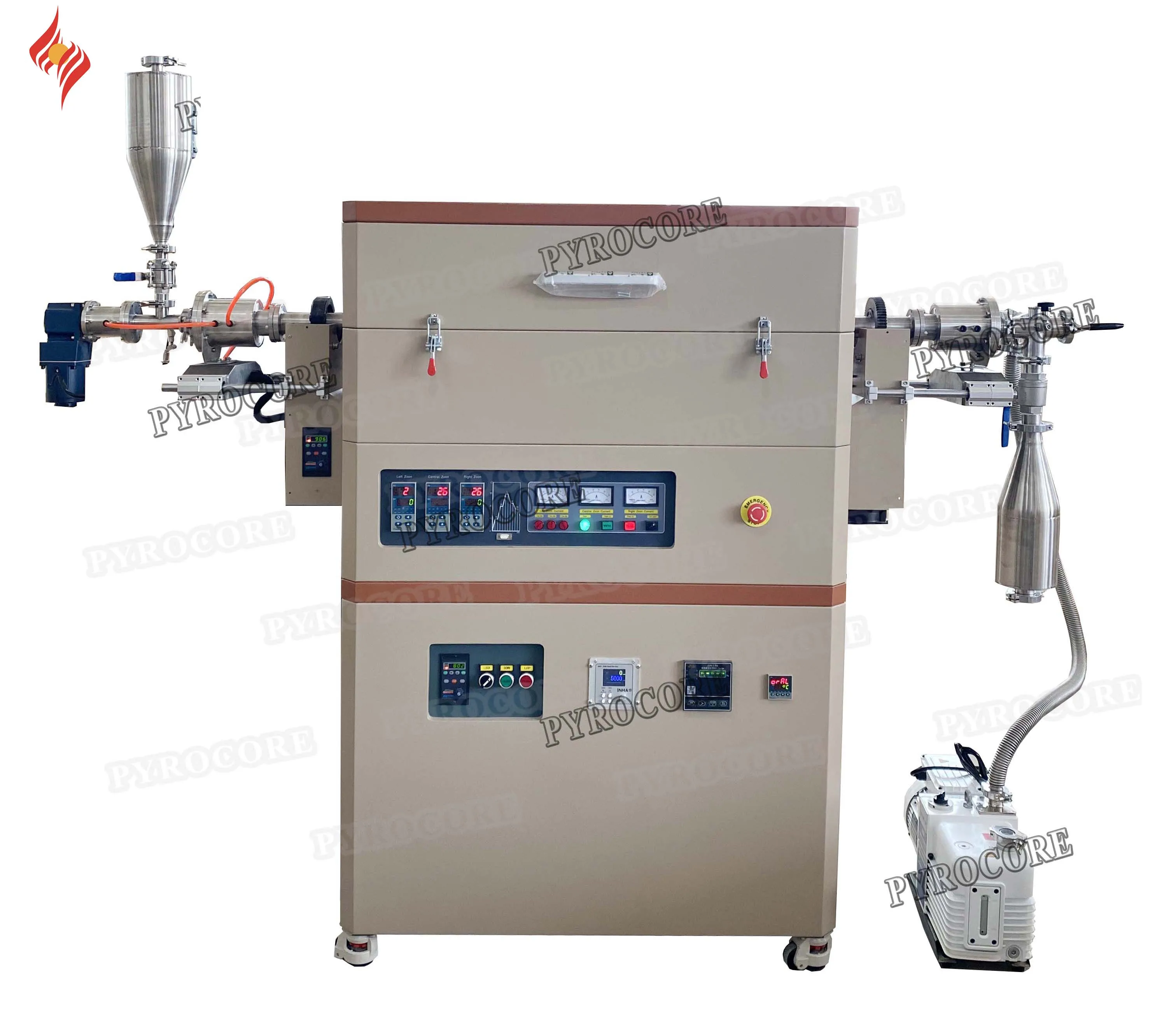

GSL-1100M3 high-temperature rotary tube furnace with iron-chromium-aluminum resistance wire, the maximum temperature can reach 1200 ℃. This tube furnace has many functions such as continuous feeding and discharging system, temperature control system,
tilting system, gas supply system, vacuum system, etc. It can provide vacuum and various atmosphere environments for sample heating treatment. It can usually be used for mica concentrate treatment, activated carbon extraction, etc. Welcome to contact us for more information.
GSL-1100M3 high-temperature rotary tube furnace with iron-chromium-aluminum resistance wire, the maximum temperature can reach 1200 ℃. This tube furnace has many functions such as continuous feeding and discharging system, temperature control system,
tilting system, gas supply system, vacuum system, etc. It can provide vacuum and various atmosphere environments for sample heating treatment. It can usually be used for mica concentrate treatment, activated carbon extraction, etc. Welcome to contact us for more information.
Technical Parameter | ||
Power | 4.5KW | |
Voltage | AC 208V , Single Phase, 60Hz | |
Heating element | Resistance Wire | |
Max. temp | 1200℃ | |
Constant working temp. | ≤1100℃ for continuously | |
Processing tube | Material: SS310 | |
Spec of Tube | Dia40mm*350mm + Dia80mm*600mm + Dia40*350mm | |
Heating zone | Three Heating Zones 600 mm (200mm+200mm+200mm) | |
Furnace tube rotation rate | 0~30r/min | |
Furnace body inclination angle | 0~30° | |
Chamber | Alumina, high temperature fiber | |
Thermocouple | K type | |
Temp accuracy | ±1℃ | |
Temp control | PID automatic control with 30 steps programmable | |
Over size of the furnace body | 1300mm L* 500mm W *1500mm H | |
Note:We can provide customized making and designs according to the customers' requirements. Contact us. | ||

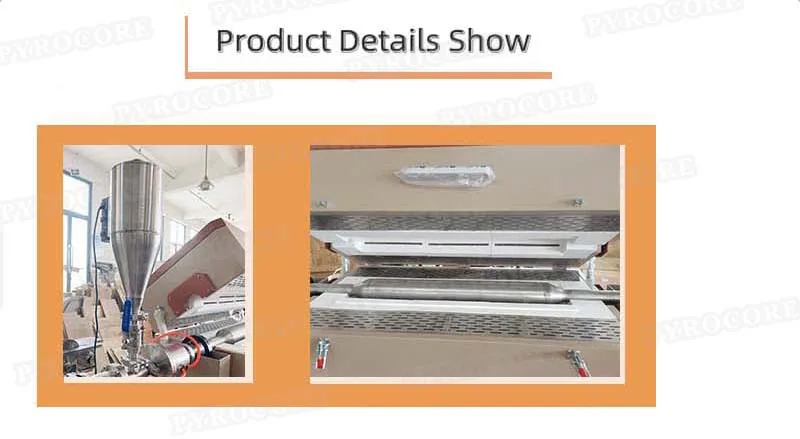

Feeding Hopper SS310

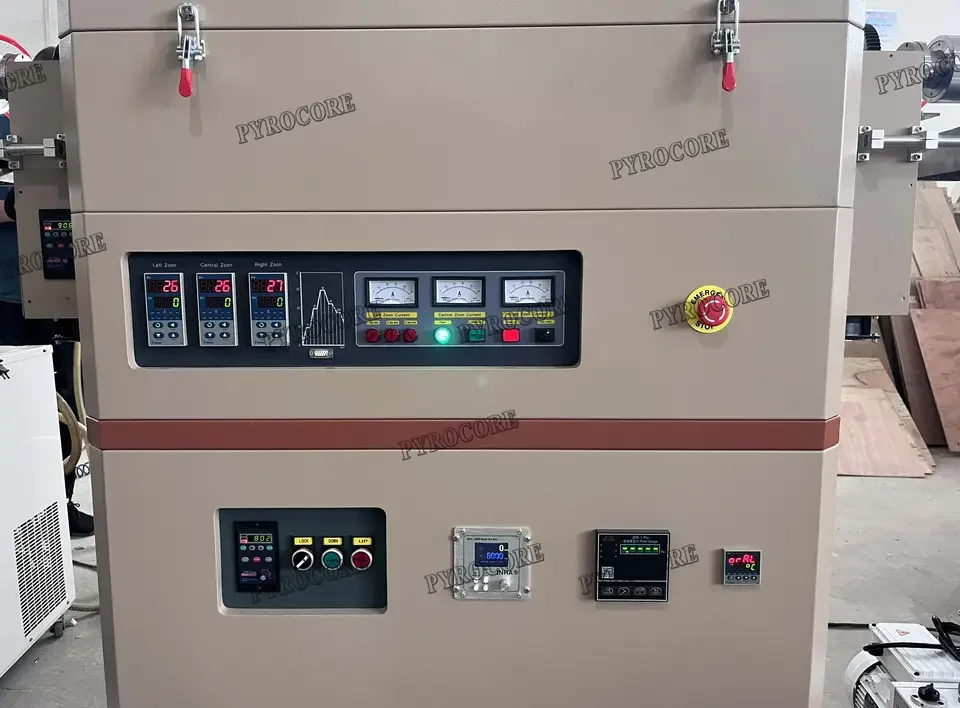

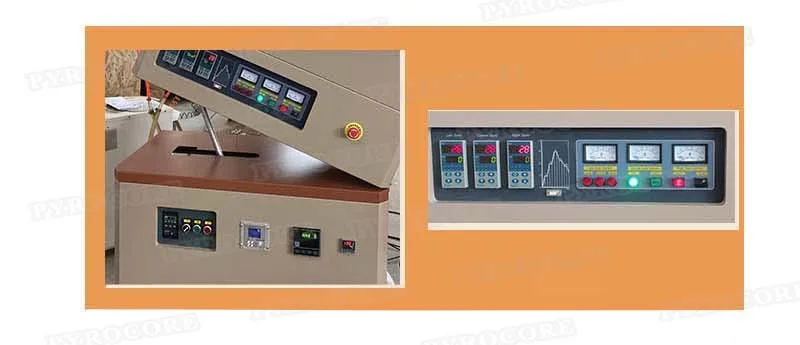

Tilt System Temp.Control System
The Optional Configurations

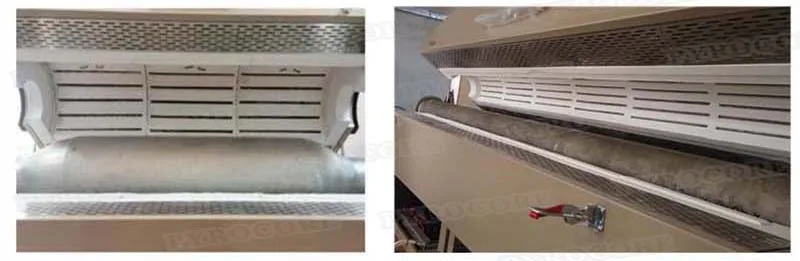

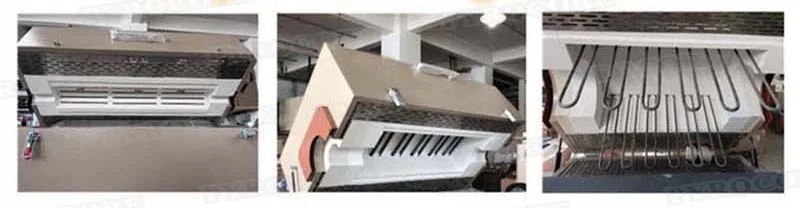

Resistance Wire Sic Heat Elements Mosi2 Heat Elements
Note:Heating elements can be selected accordding to your temperature requirements.
SS310 Inconel 600

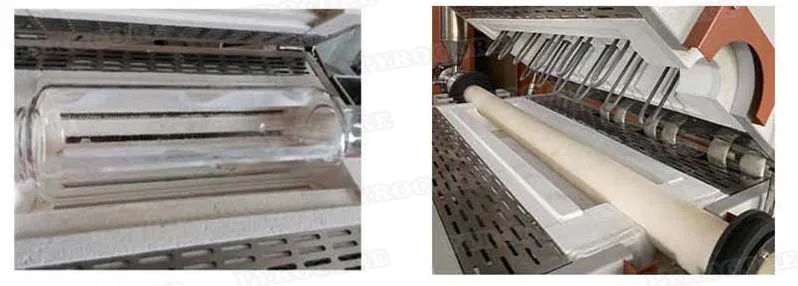

Quartz Tub CorundumTube
Note:The choice of pipe material will be infulend by size and temperature.
The Optional Accessories

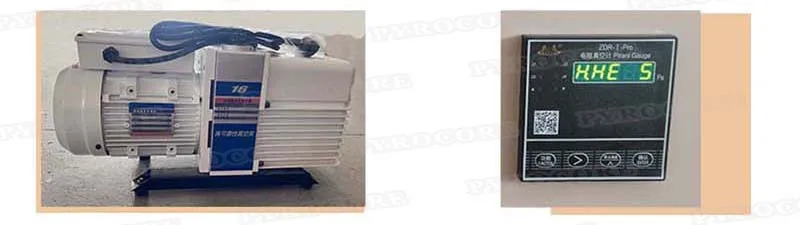

Vacuum Pump Vacuum Gauge
Note:For more tube furnace accessories details welcome to contact us!

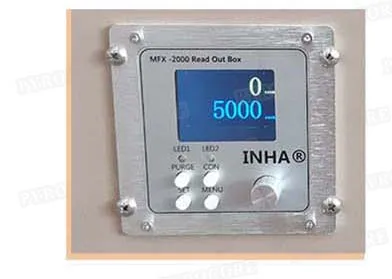

MFC
The Product Features:
1.The tube furnace adopts a double-layer shell structure, which has good thermal insulation performance.
2.The furnace is made of high-purity alumina insulation material, and the heat preservation effect is good.
3.PID automatic control panel, can set multiple heating curves.
4.Fast heating and low energy consumption.
5.With over temperature protection, overload protection.
Please contact us for more details about furnaces.
2.The furnace is made of high-purity alumina insulation material, and the heat preservation effect is good.
3.PID automatic control panel, can set multiple heating curves.
4.Fast heating and low energy consumption.
5.With over temperature protection, overload protection.
Please contact us for more details about furnaces.

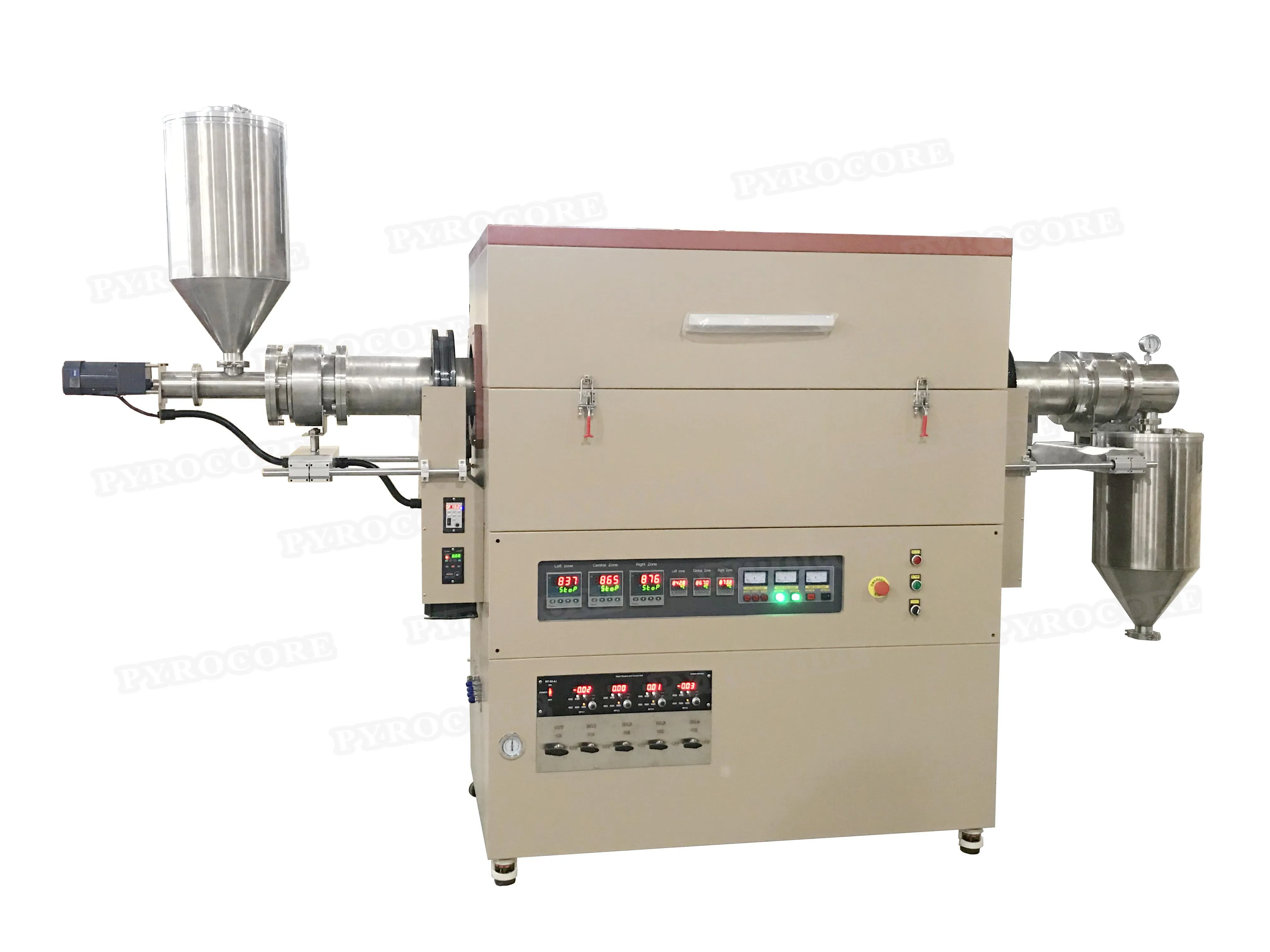

Other Type Rotary Tube Furnace
There is always one for you,if not please contact us,we will tailor one for you!
Tube Furnace Application

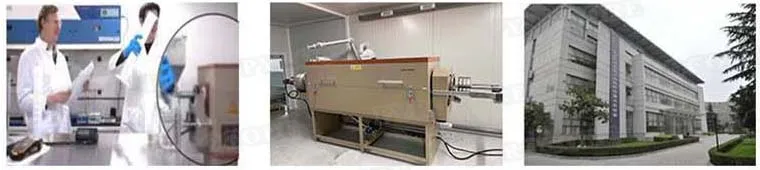

Laboratory Enterprise R&D University Research
Powder Particles Blocky
Rotary tube furnaces are widely used in the heat treatment of powders, granules, and othersamples, providing a variety of atmospheres for sample heat treatment; it is a good choice for heat treatment in laboratories,university scientific research, enterprise R & D, and other institutions.

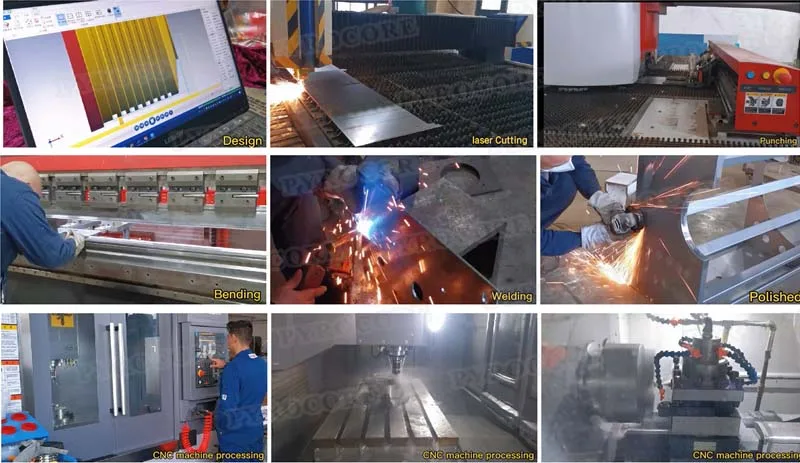

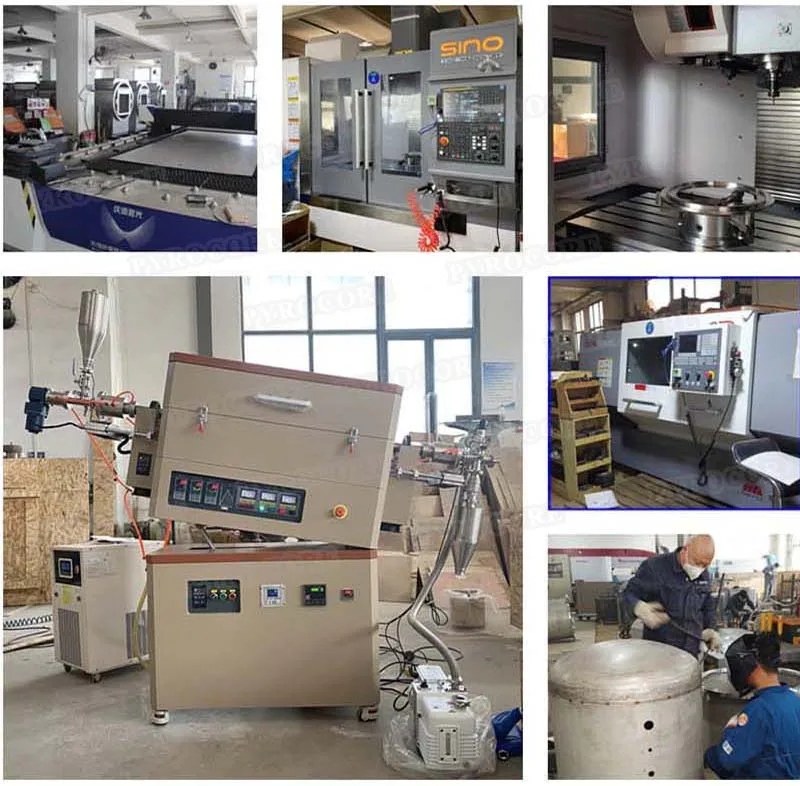

Our Factory
We have a complete set of mechanical equipment and senior technicians with rich production experience in the production of heating equipment. We can design and complete heating equipment for you according to your needs in the shortest cycle.
Welcome to consult us.
We have been engaged in high-temperature heating equipment for more than ten years, and have been focusing on the R&D, design, and production of heating equipment. Especially in the rotary tube furnace and high-temperature vacuum furnace with rich production experience. We have the ability to tailor-made for you according to your production process requirements and customize a heating device that meets your requirements. If you have this need, please contact us.
Over the years, we have focused on providing customers with heating equipment solutions,
and customer satisfaction is also our goal. If you need heating equipment, please contact us.
and customer satisfaction is also our goal. If you need heating equipment, please contact us.
Package:
To ensure that customers receive the stove and accessories without any damage, we pack the stove in three layers.
First, the stove is wrapped in clear plastic paper,
and then the gaps are filled with Styrofoam.
Finally packed in wooden boxes and reinforced with steel straps.
Shipping:
1. By express, such as DHL, UPS, FEDEX, etc. It usually takes 3-4 days to arrive.
2. It usually takes 5-7 days to arrive by air to the air port.
3. By sea to seaport, it usually takes 15-30 days to arrive. (depending on the voyage)
4. If your delivery time is urgent, we suggest you choose express or air freight.
5. If it is not very urgent, we recommend you to choose sea freight, which is very cheap.
To ensure that customers receive the stove and accessories without any damage, we pack the stove in three layers.
First, the stove is wrapped in clear plastic paper,
and then the gaps are filled with Styrofoam.
Finally packed in wooden boxes and reinforced with steel straps.
Shipping:
1. By express, such as DHL, UPS, FEDEX, etc. It usually takes 3-4 days to arrive.
2. It usually takes 5-7 days to arrive by air to the air port.
3. By sea to seaport, it usually takes 15-30 days to arrive. (depending on the voyage)
4. If your delivery time is urgent, we suggest you choose express or air freight.
5. If it is not very urgent, we recommend you to choose sea freight, which is very cheap.
FAQ
1.Can you customize a product without a design solution?
We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2.How to ensure the quality of products?
Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after confirmation.
3.How long will it take to ship?
Generally 25-40 days, depending on your specific requirements for equipment.
4.Are we unprofessional in the operation and installation of your machine?
We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for installation. Also, we have professional engineers who can solve all problems.
5.How to ship?
We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the transport yourself.
We have a professional team of designers who can provide design solutions and process according to customer requirements for equipment.
2.How to ensure the quality of products?
Before delivery, we will test each function of the equipment, and issue a test report for customer inspection, and then deliver the goods after confirmation.
3.How long will it take to ship?
Generally 25-40 days, depending on your specific requirements for equipment.
4.Are we unprofessional in the operation and installation of your machine?
We will provide product instructions and installation instructions, and if necessary, we can provide video instructions for installation. Also, we have professional engineers who can solve all problems.
5.How to ship?
We support sea, air, rail transportation, etc., you can choose according to your needs. Of course you can also arrange the transport yourself.
